ASRock B650M PG Lightning, AMD B650 motherboard - Socket AM5, DDR5

– 1x PCIe 4.0 x16 (x16) / 1x PCIe 3.0 x16 (x4)
– Supports up to 192 GB DDR5 RAM up to 7,200 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0) and 4x SATA 6G
– 1x USB 3.1 Type-C / 1x USB 3.1 Type-A / 2x USB 3.0 and 4x USB 2.0 Type-A on the I/O panel
– OC features: 8 virtual phases and 4 real phases VRMs, BIOS Flashback
– A total of 5x 4-pin PWM fans possible

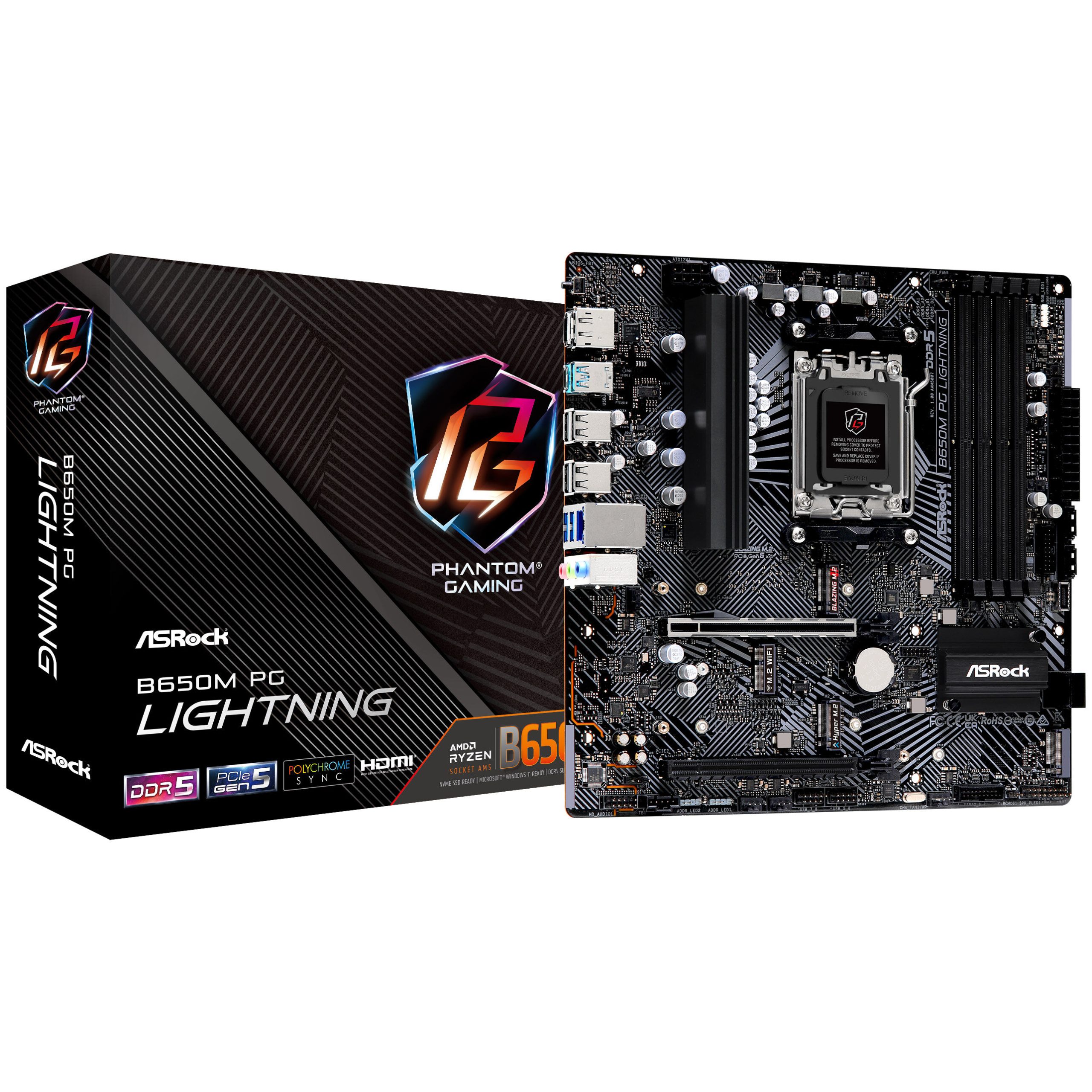

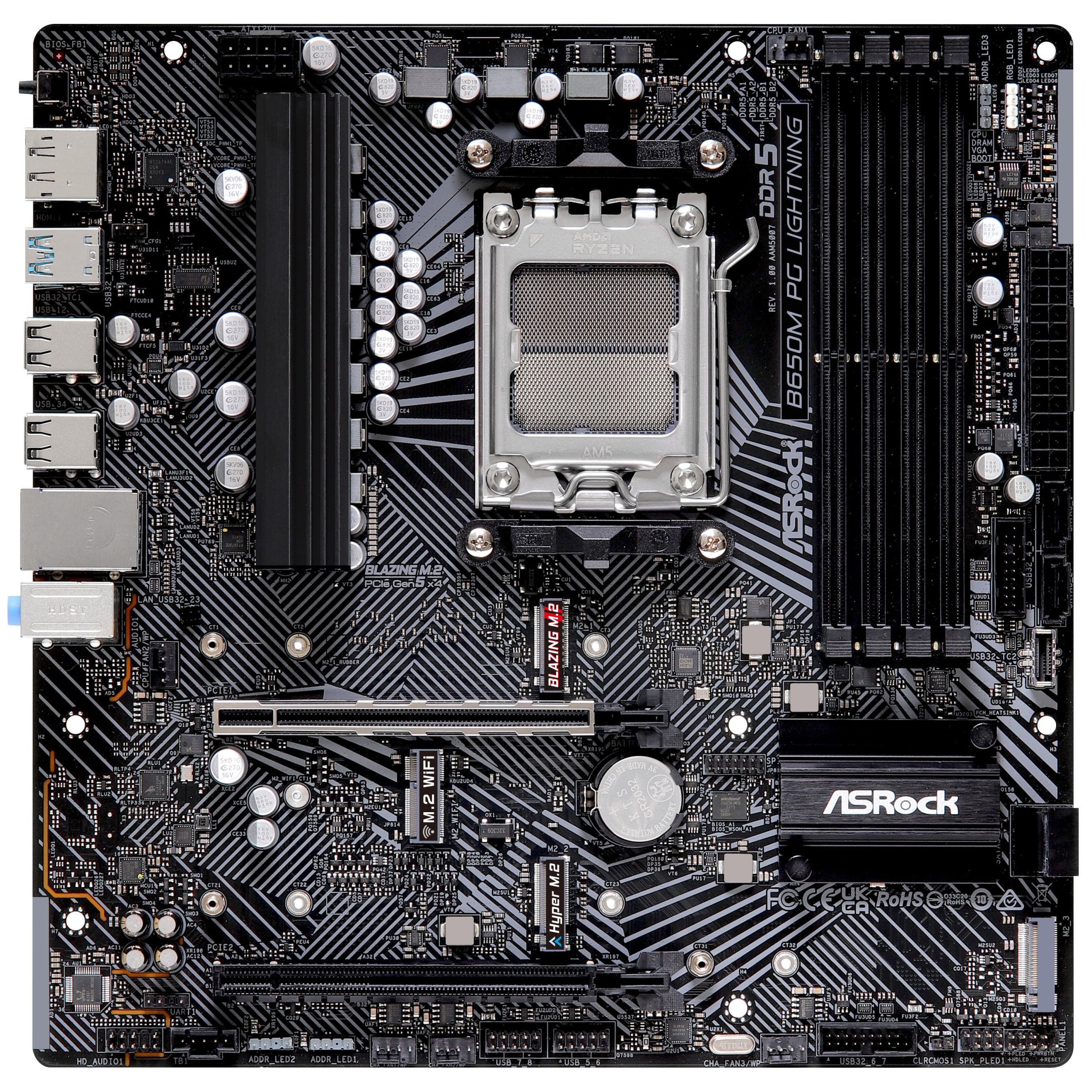

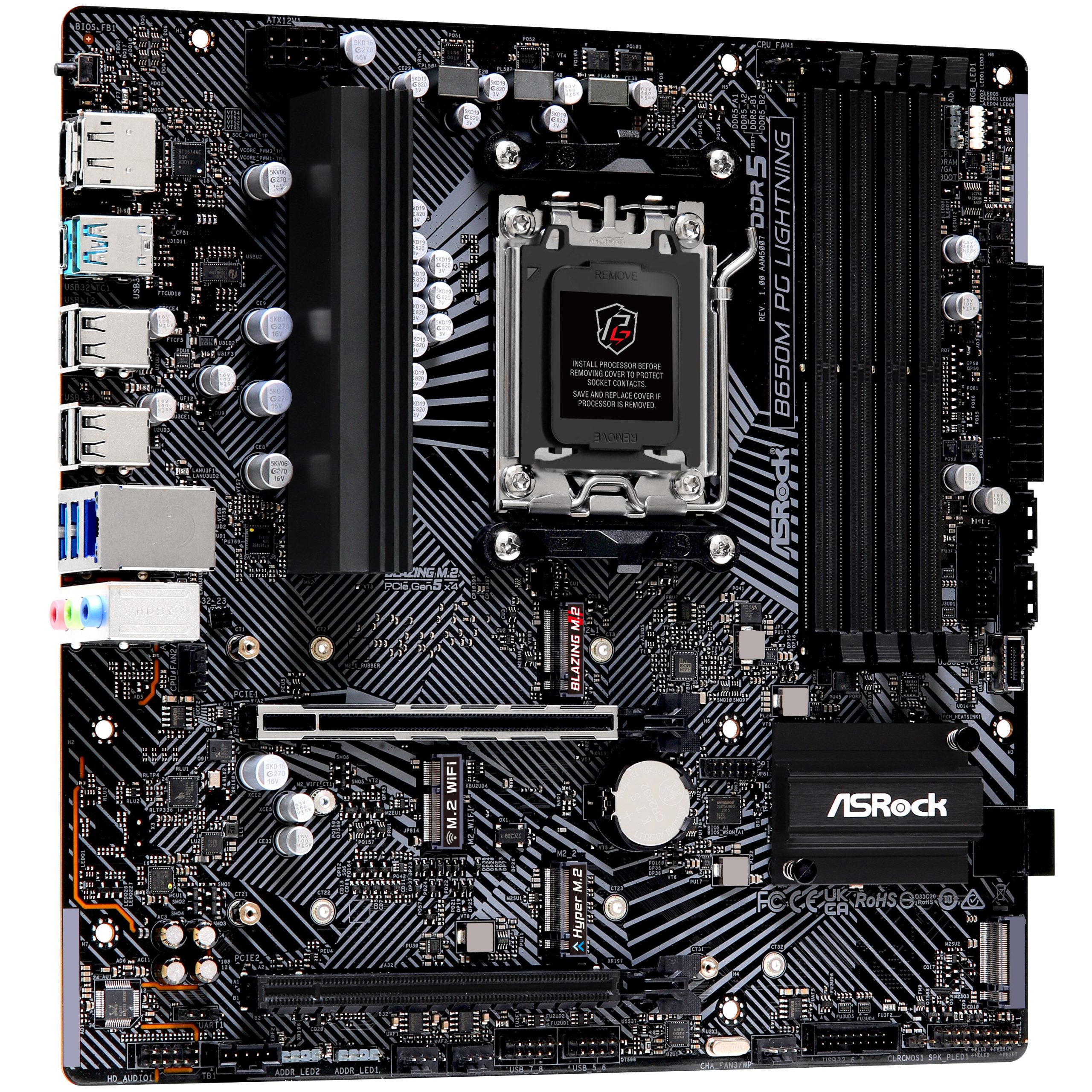

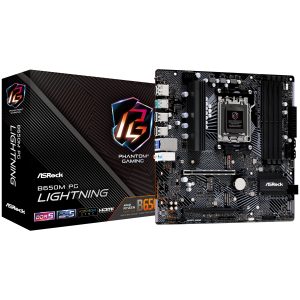

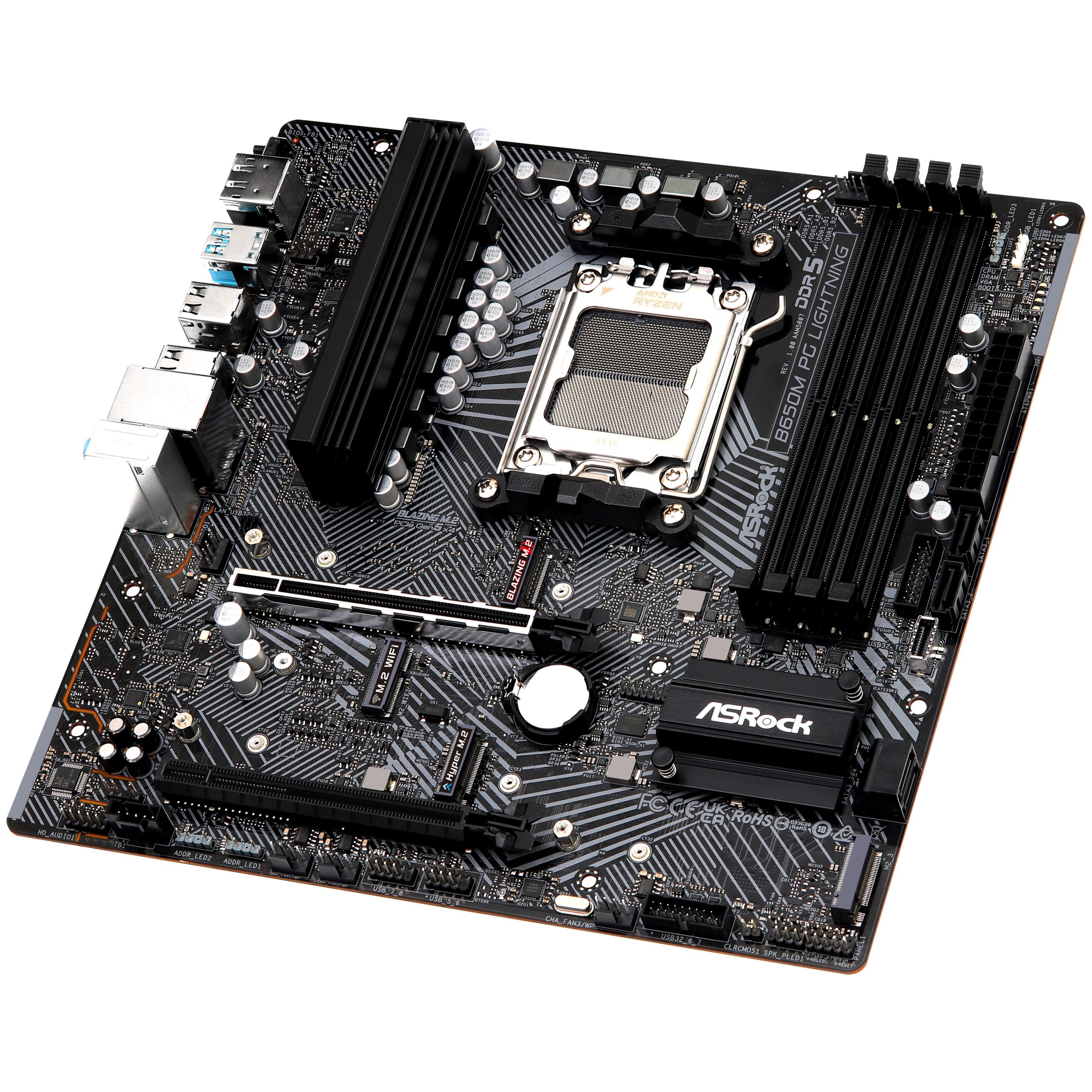

ASRock B650M PG Lightning: Micro-ATX motherboard with AMD B650 chipset for AM5 CPUs
The ASRock B650M PG Lightning features the B650 chipset for AMDs It is equipped with Ryzen 7000 processors and offers numerous features for enthusiasts and gamers. Since the Ryzen 7000 processors require a new socket due to support for PCIe 5.0 and the expanded power delivery, the 600 series motherboards use Socket AM5 (LGA 1718).

Despite the higher pin count on AM5, the actual size of the socket remains the same as the older generation, allowing most CPU coolers for Socket AM4 to be mounted on the motherboard.

The motherboard is geared towards gaming, so you can enjoy even demanding games. The voltage converters with 4 real and 8 virtual phases provide 50 A of stable power to the CPU, ensuring its high clock speeds even over extended periods. Features like BIOS Flashback allow you to use the PC again if something goes wrong. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS update service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– Micro-ATX (244 x 244 mm)
– Chipset:
– AMD B650
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (5,600 MHz, validated up to 7,200 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4; 2260-2280, CPU)
–  1x M.2 (PCIe 4.0 x4; 2260-2280, chipset)
– 1x M.2 (PCIe 4.0 x2; 2260-2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x CPU/water pump (4-pin)
– 3x chassis/water pump (4-pin)
– RGB header:
– 1x 3-Pin ARGB Header (5V)
– 3x 4-pin RGB headers (12 V)

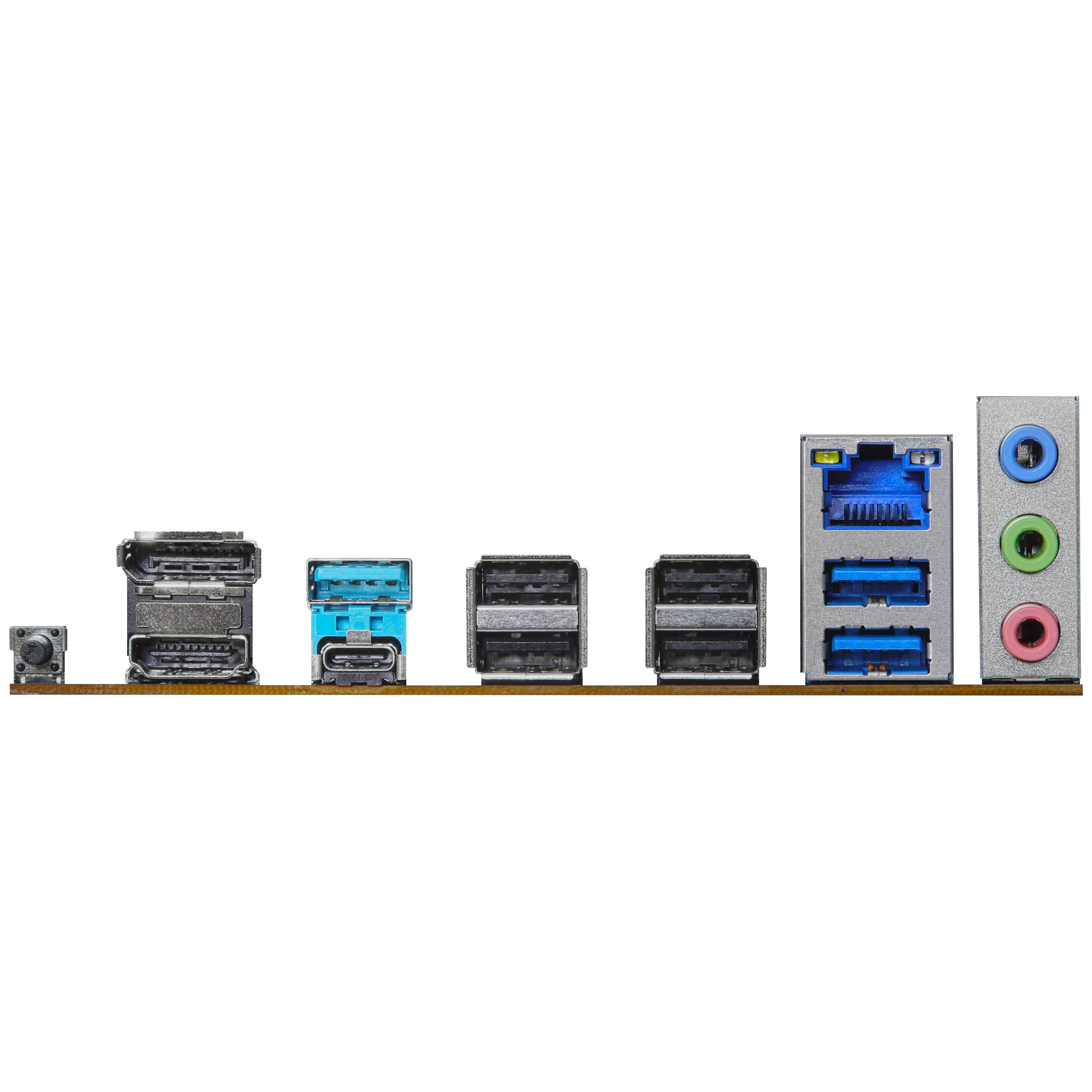

– External connections:
– 1x PS/2 keyboard/mouse
– 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbps)
– 1x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 2x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (Type-A, max. 480 Mbps)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Realtek RTL8125BG)
– 5x 3.5 mm jack (Realtek ALC897)
– 1x Reset
– 1x BIOS Flashback
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin 12V
– Accessories:
– 1x Manual
– 2x SATA cables
– Screw set for M.2
