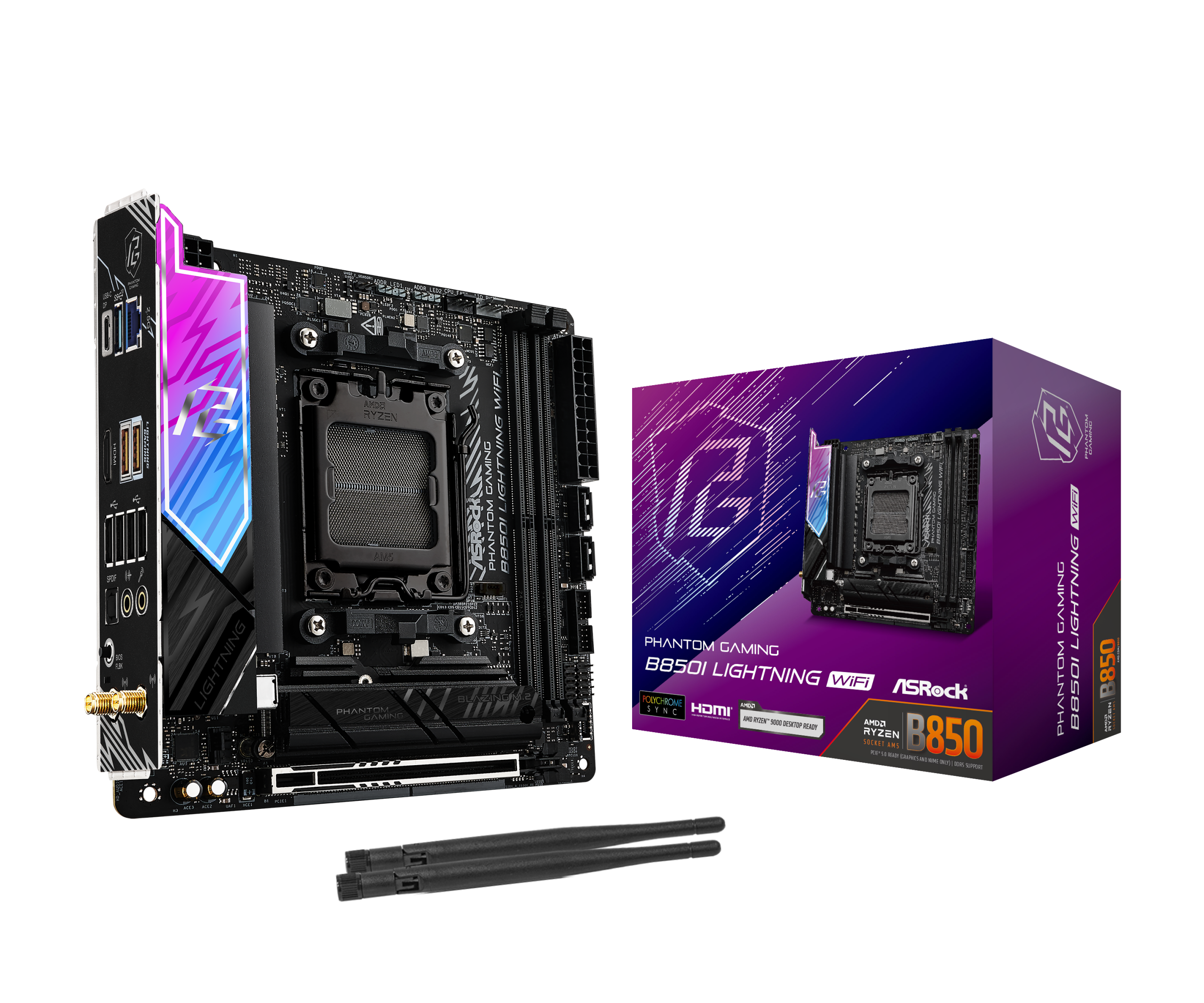

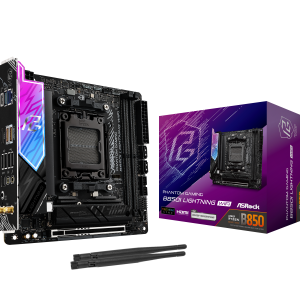

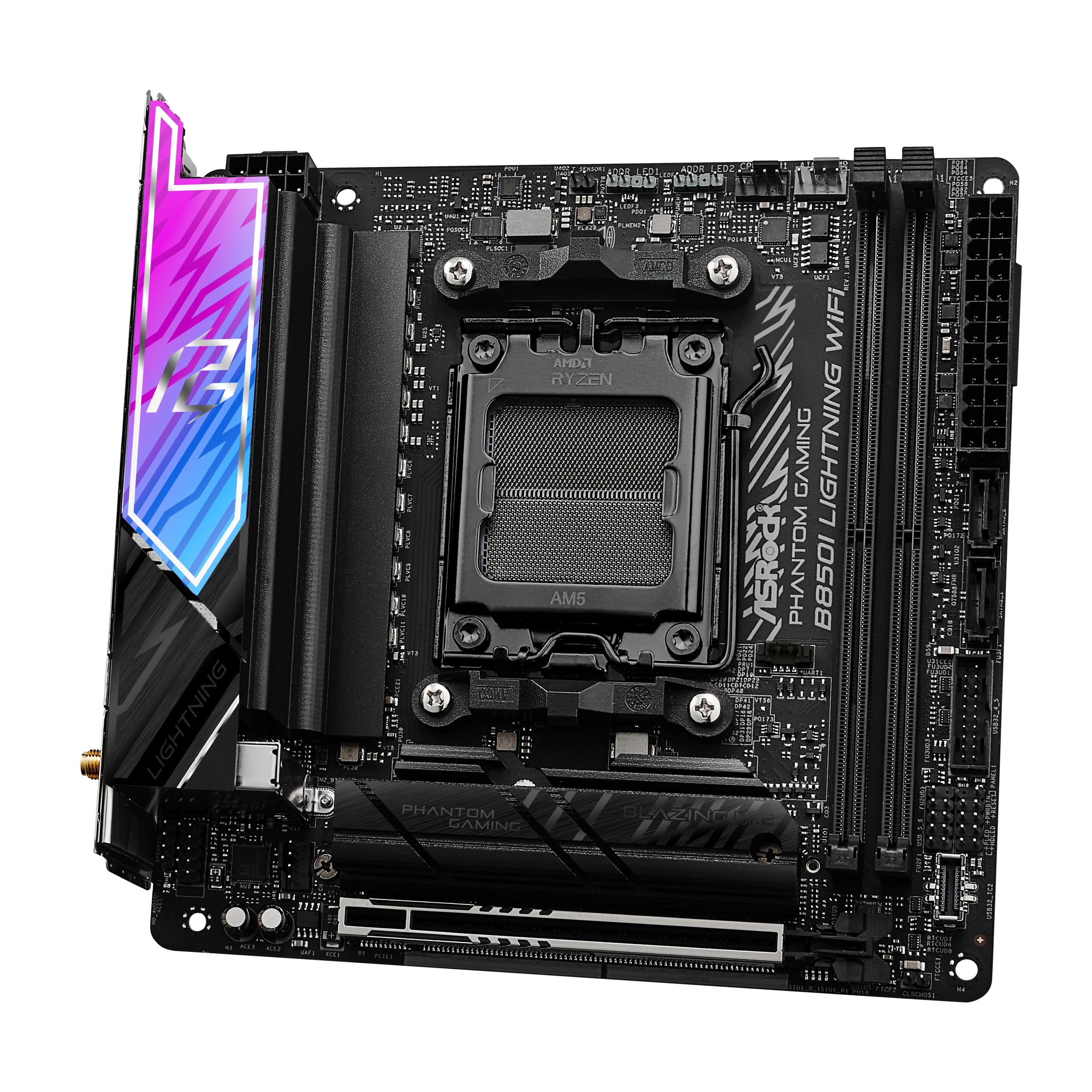

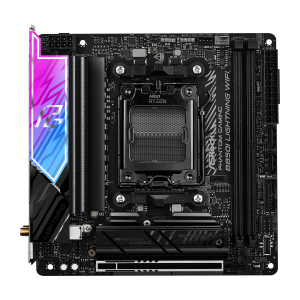

ASROCK B850I Lightning WiFi motherboard, socket AM5, AMD B850, Mini-ITX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16)
– RAM: 2x DIMM slots for up to 192 GB DDR5 RAM up to 8,200 MT/s
– Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 2x SATA
– USB: 1x USB-C 3.1, 2x USB 3.1, 1x USB 3.0, and 4x USB 2.0
– Cooling: 3x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 6E and Bluetooth 5.2

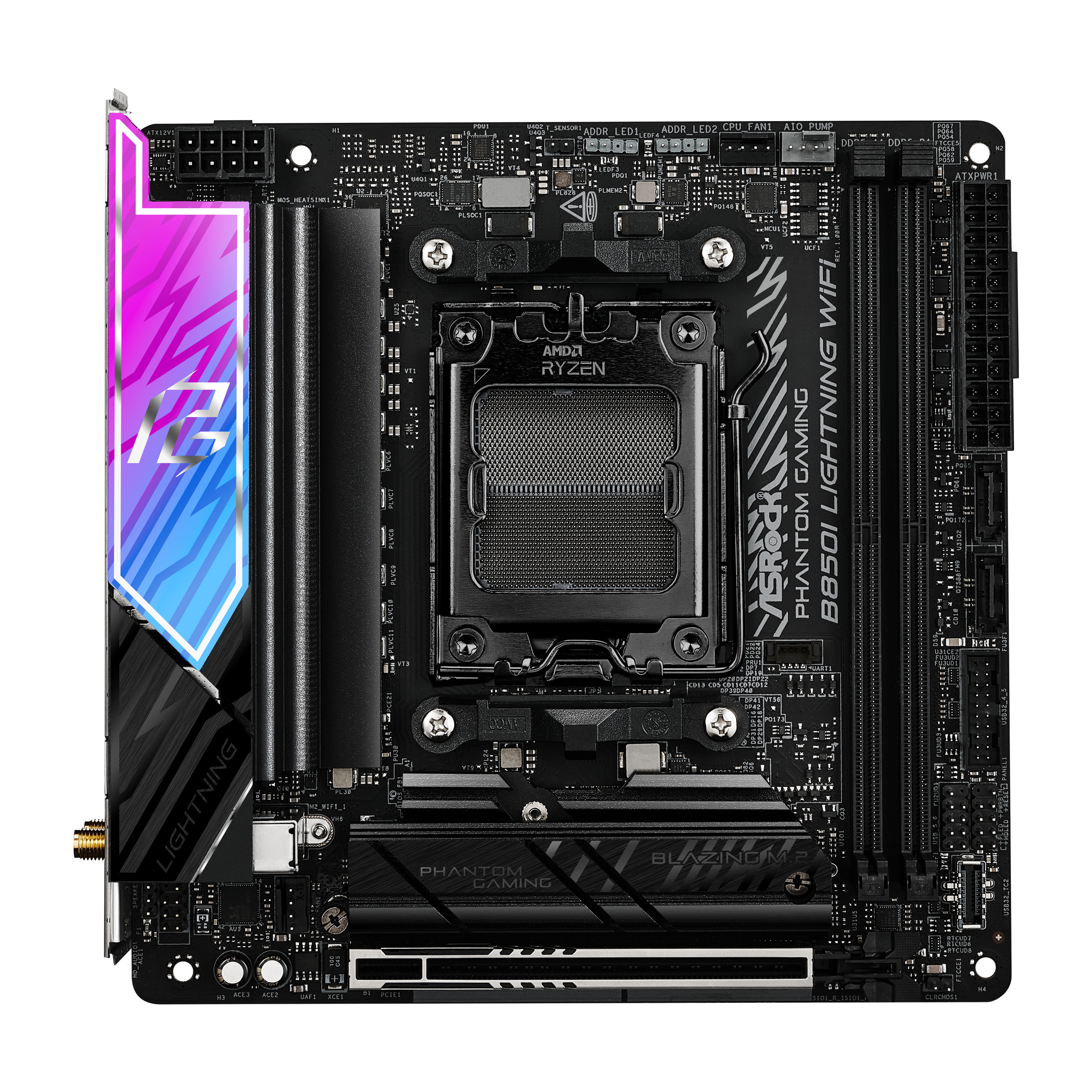

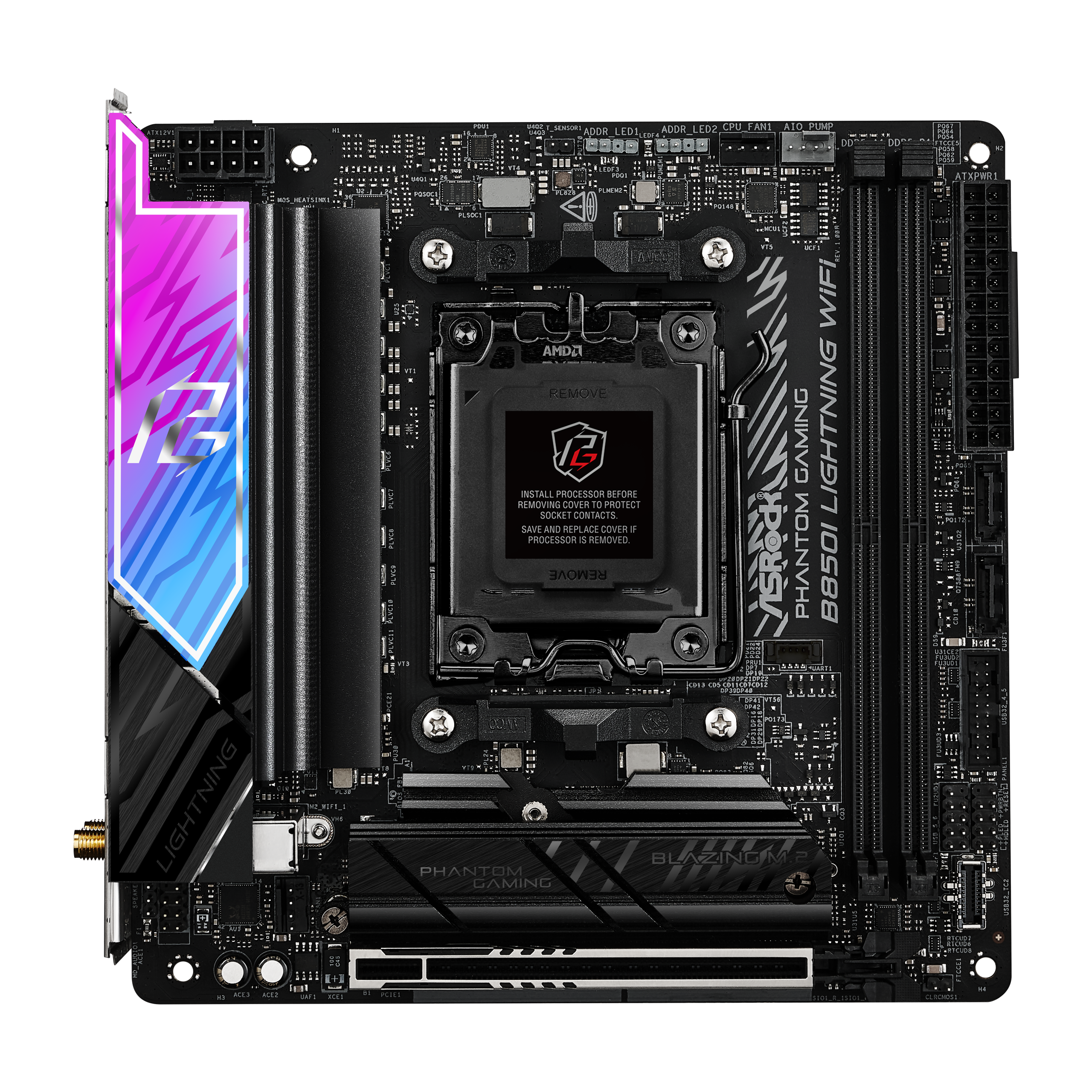

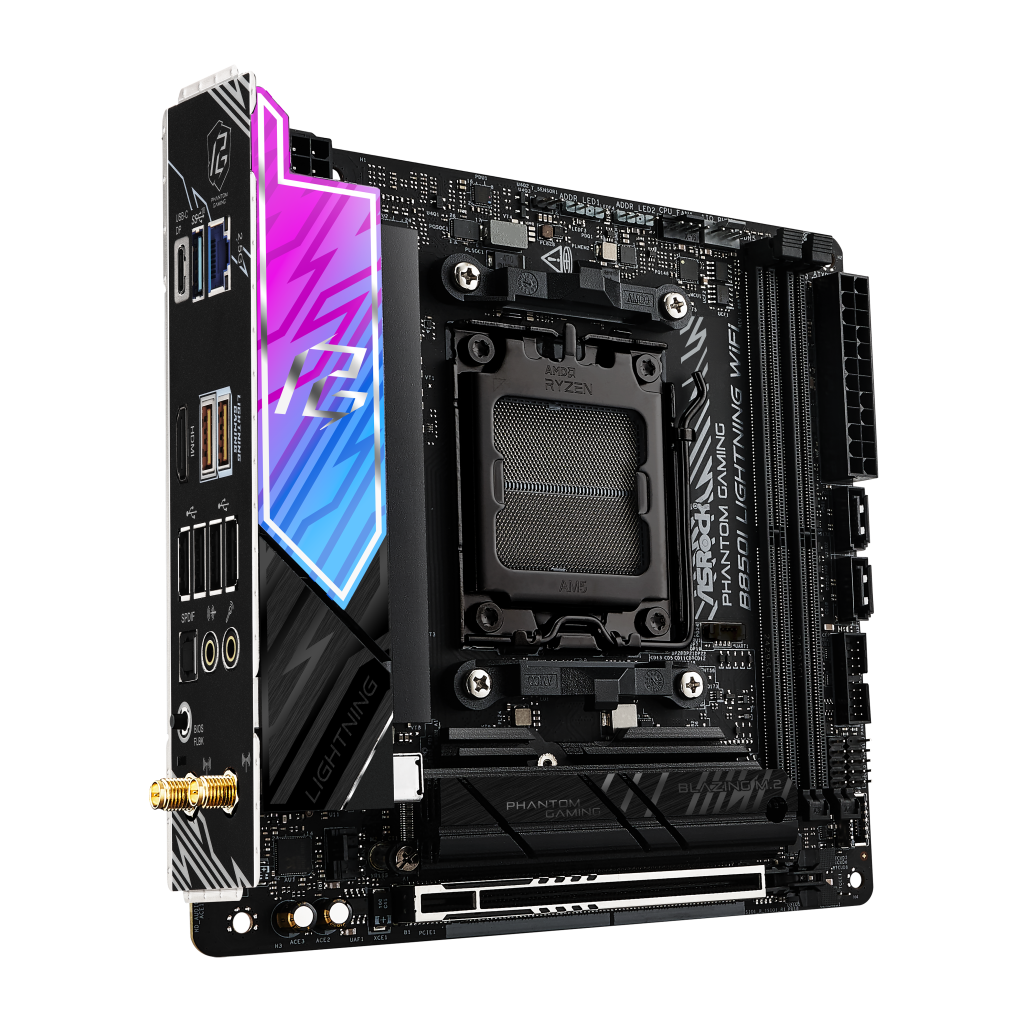

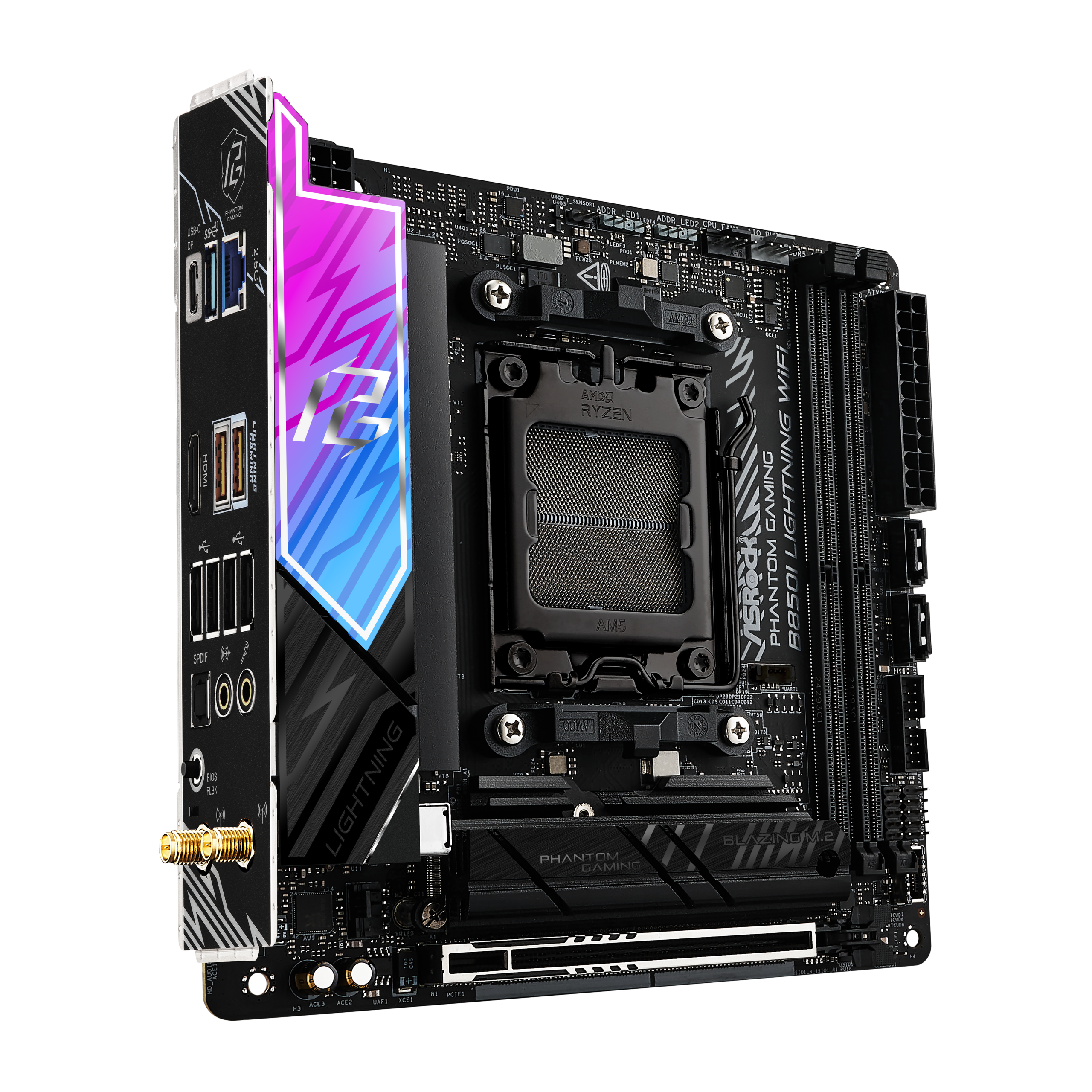

ASROCK B850I Lightning WiFi: Mini-ITX motherboard with AMD AM5 socket and B850 chipset
The ASROCK B850I Lightning WiFi is a Mini-ITX motherboard with the mid-range AMD B850 chipset and the AMD socket AM5. It supports both Ryzen 9000, 8000, and 7000 CPUs.

Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 10 Gbps are possible via USB 3.1.

Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked to higher clock speeds via the motherboard. This ensures a stable power supply to the processor, allowing even high-end CPUs to run at full performance for longer periods. You can also fully utilize the DDR5 memory with overclocking. Just in case, the ASROCK B850I Lightning WiFi offers BIOS Flashback.

Technical Details
– Color
– Main Color
– Black
– Form Factor
– Motherboard Form Factor
– ITX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B850
– RAM
– Max. RAM
– 128 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (OC)
– 8200 MT/s
– ECC Support
– Yes
– Memory Slots
– 2x
– Performance Profile
– AMD EXPO, Intel XMP
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– LAN Chip
– Killer E3100G
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 6E
– Bluetooth Standard
– 5.2
– Cooling
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 8-Pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
– 1
– USB 2.0 (internal) possible ports
– 2
– RGB / LED ports
– 2x Digital RGB (3-pin 5VDG)
– Front panel audio header
– Yes
– SPI TPM header
– No

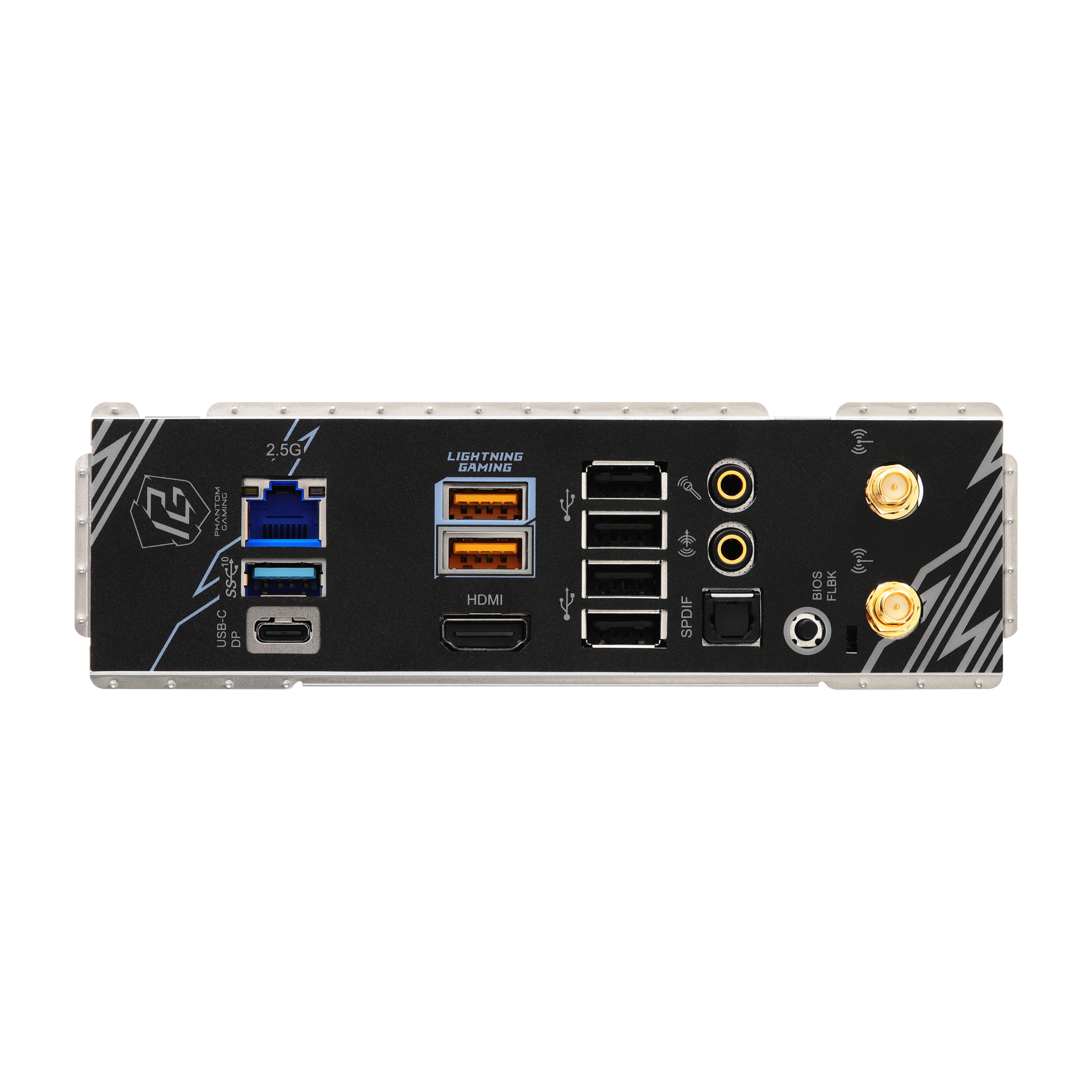

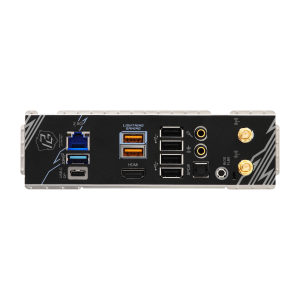

– External ports
– USB 3.1 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 2
– USB 3.0 (external) Type-A
– 1
– USB 2.0 (external) Type-A
– 4
– Display ports
– HDMI (1x), USB Type-C (Display Port shared) (1x)
– Storage ports
– M.2 PCIe 4.0 x4
– 1
– M.2 PCIe 5.0 x4
– 1
– SATA 6G (internal)
– 2
– Expansion slots
– PCIe x16 slots (total)
– 1
– PCIe 5.0 x16 (mechanical)
– 1
– Fan header
– 4-pin fan connectors
– 3
– Audio
– Sound chip
– Realtek ALC1220
– Lighting
– Lighting / RGB
– Yes
