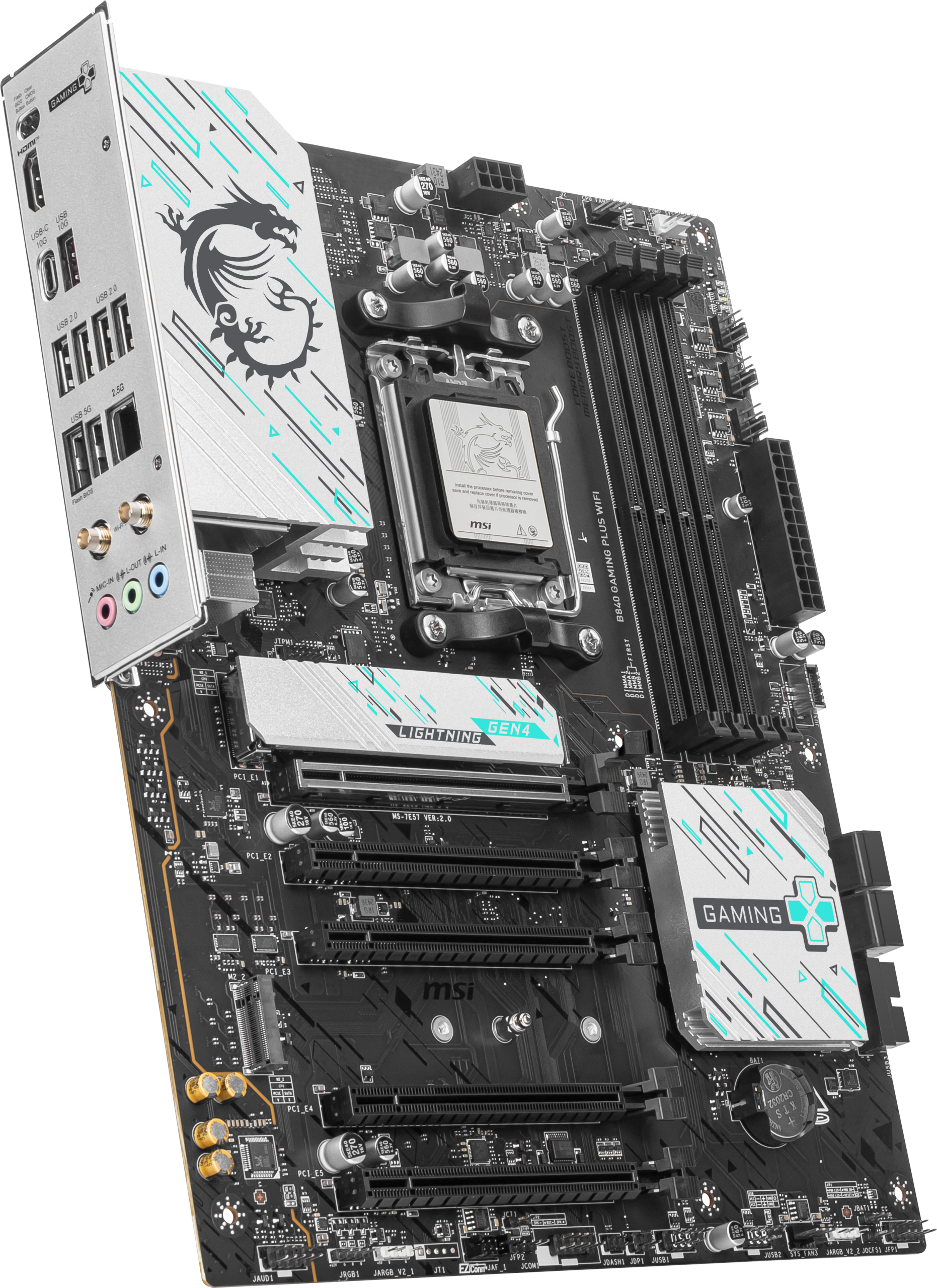

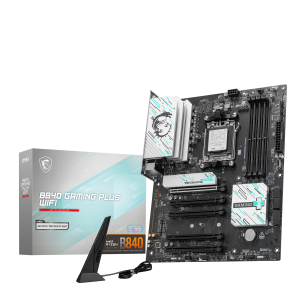

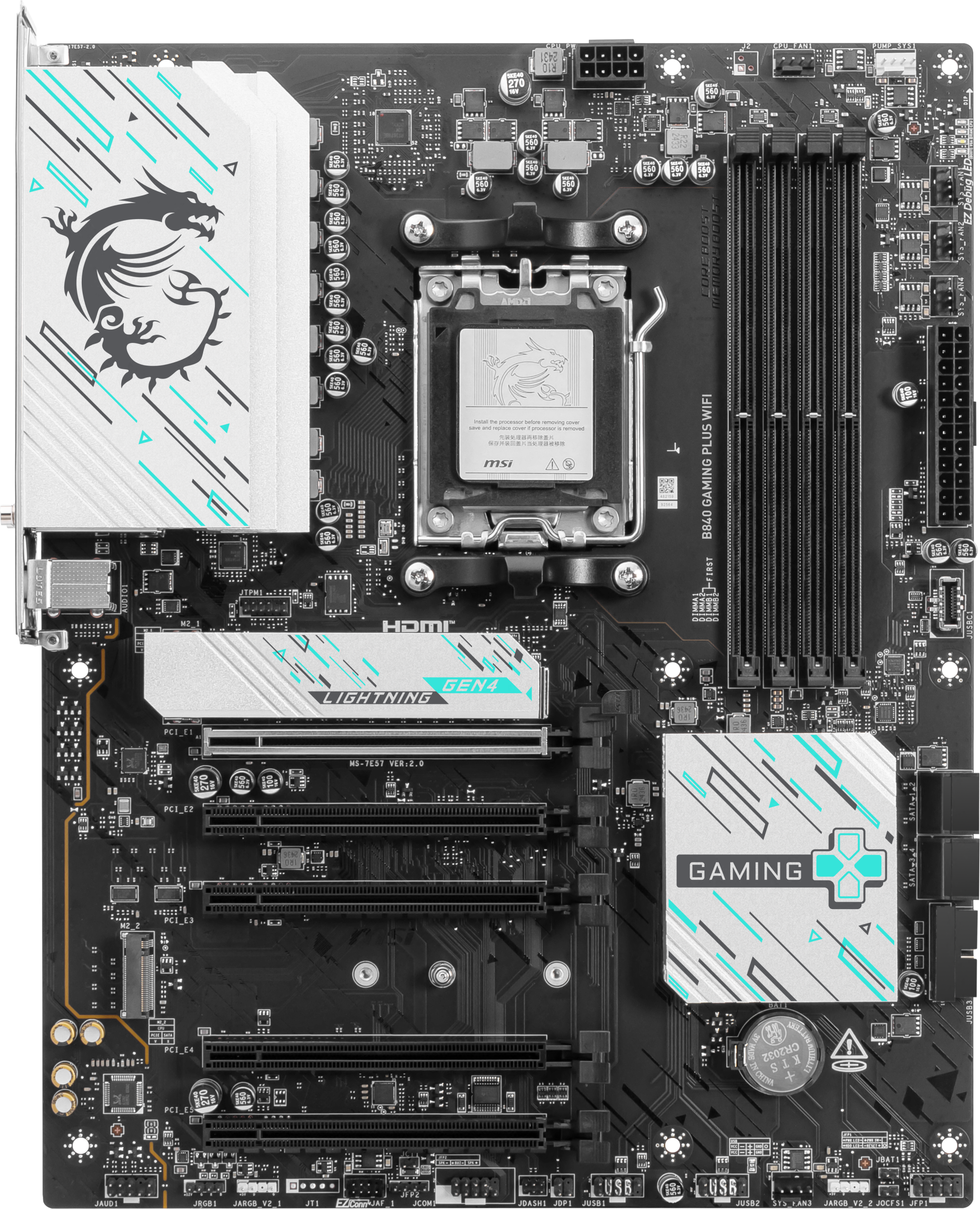

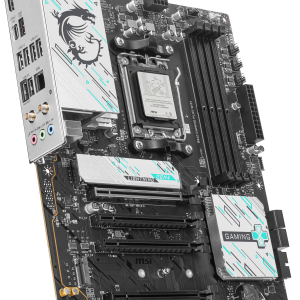

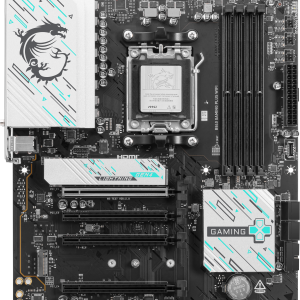

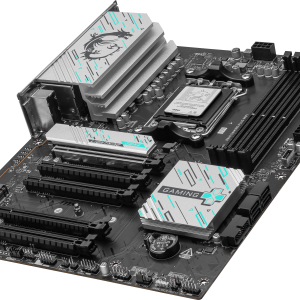

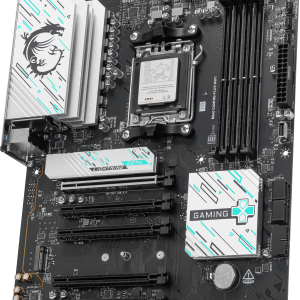

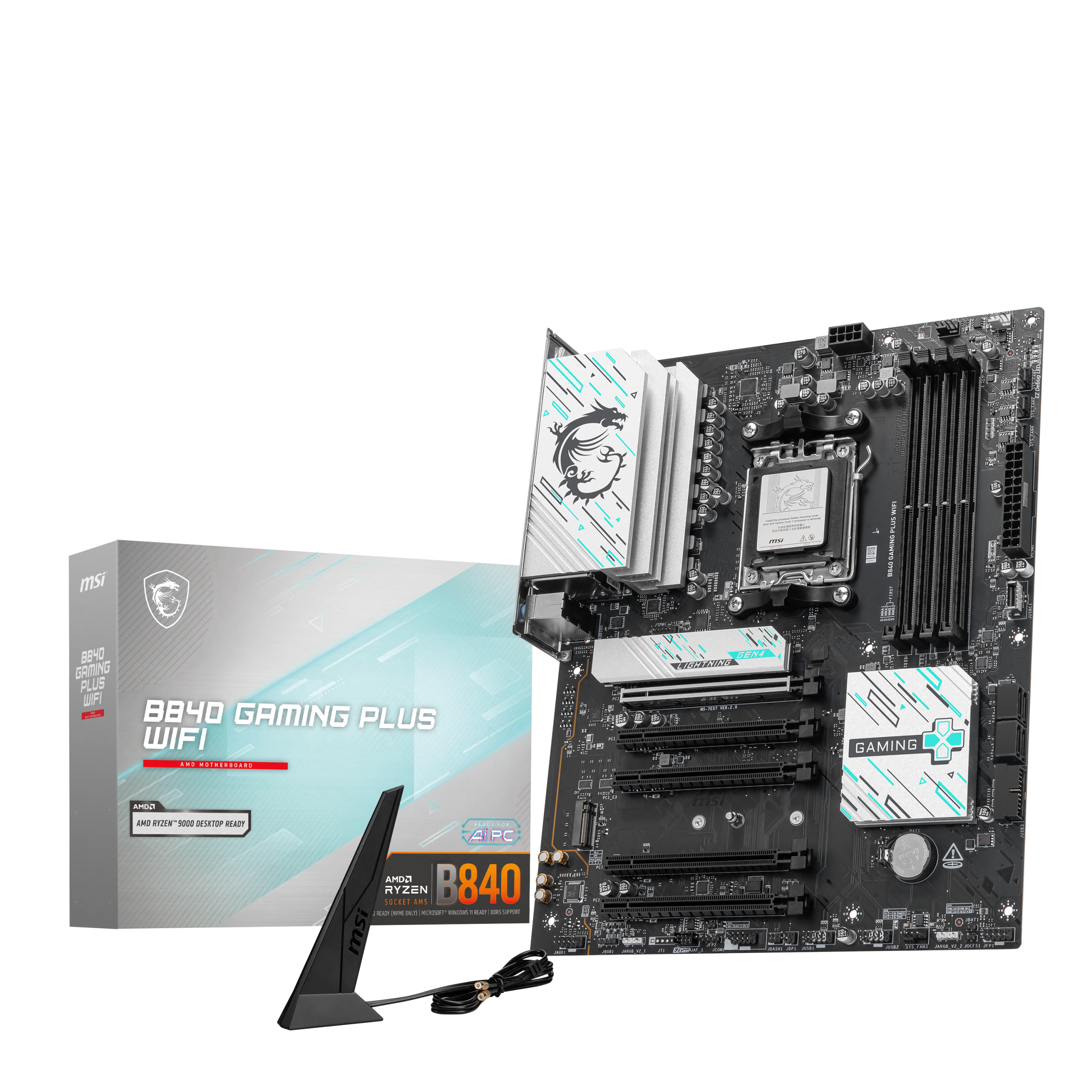

MSI B840 Gaming Plus WiFi motherboard, Socket AM5, AMD B840, ATX, DDR5

– Slots: 1x PCIe 4.0 x16 (x16), 1x PCIe 3.0 x16 (x4), and 3x PCIe 3.0 x16 (x1)
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,000 MT/s
– Storage: 2x M.2 (2x PCIe 4.0) and 4x SATA

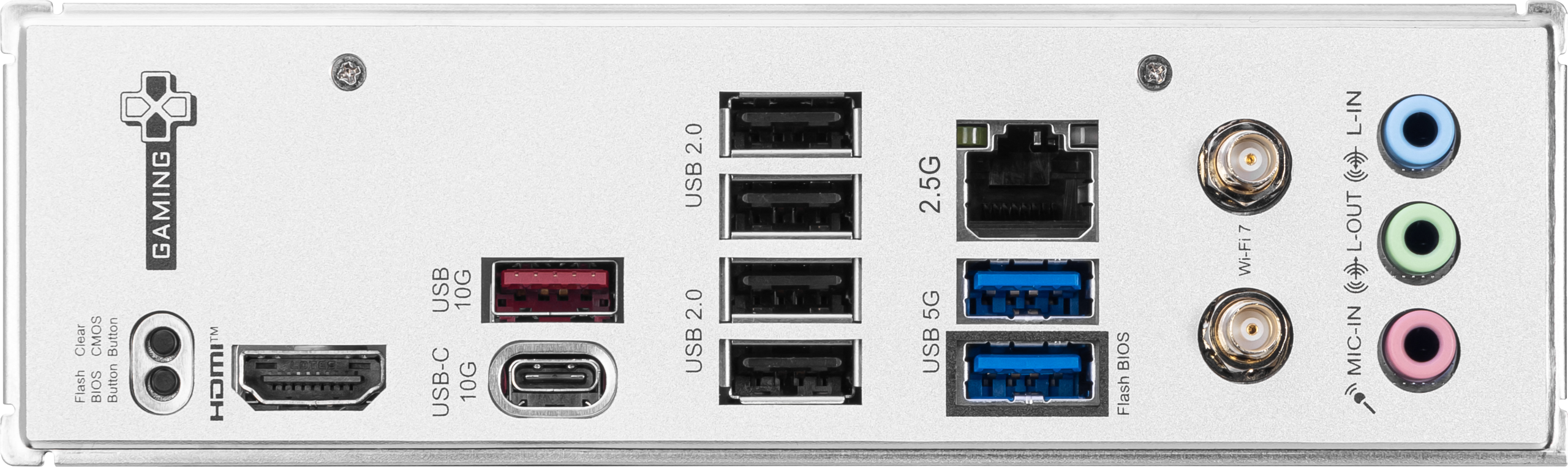

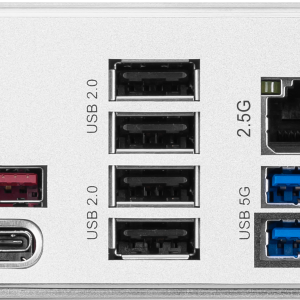

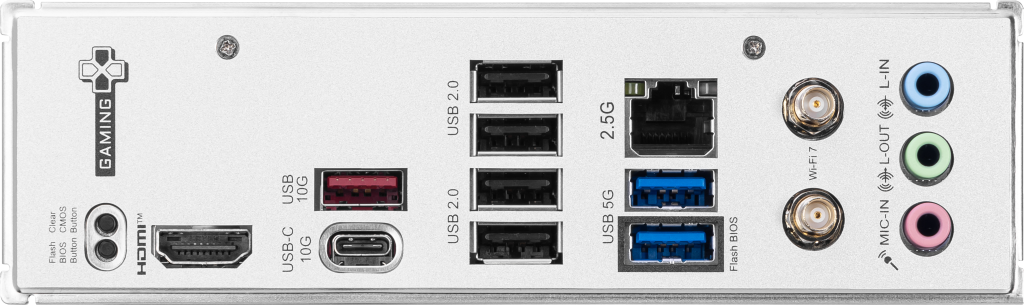

– USB: 1x USB-C 3.1, 1x USB 3.1, 2x USB 3.0, and 4x USB 2.0
– Cooling: 6x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 7 and Bluetooth 5.4

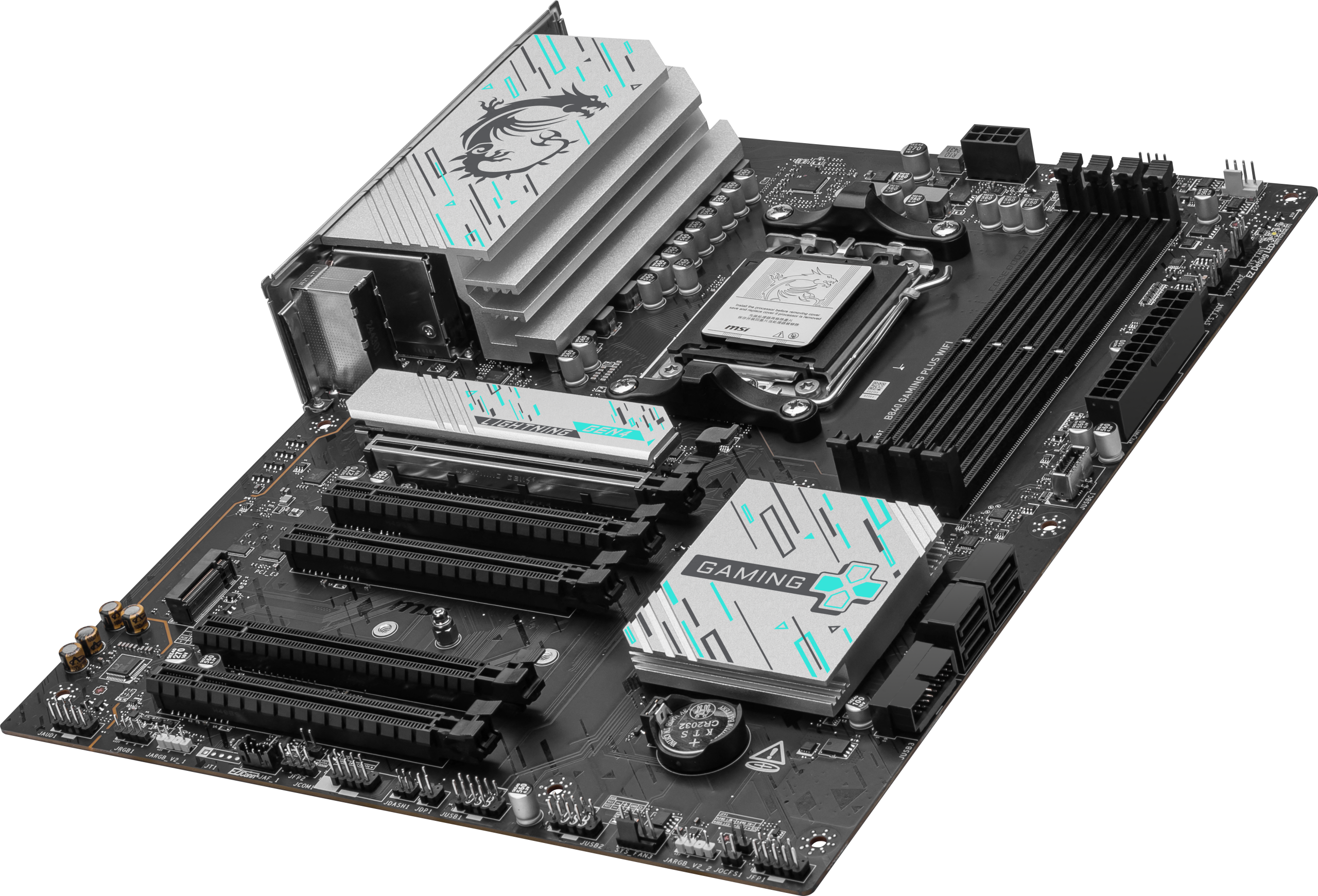

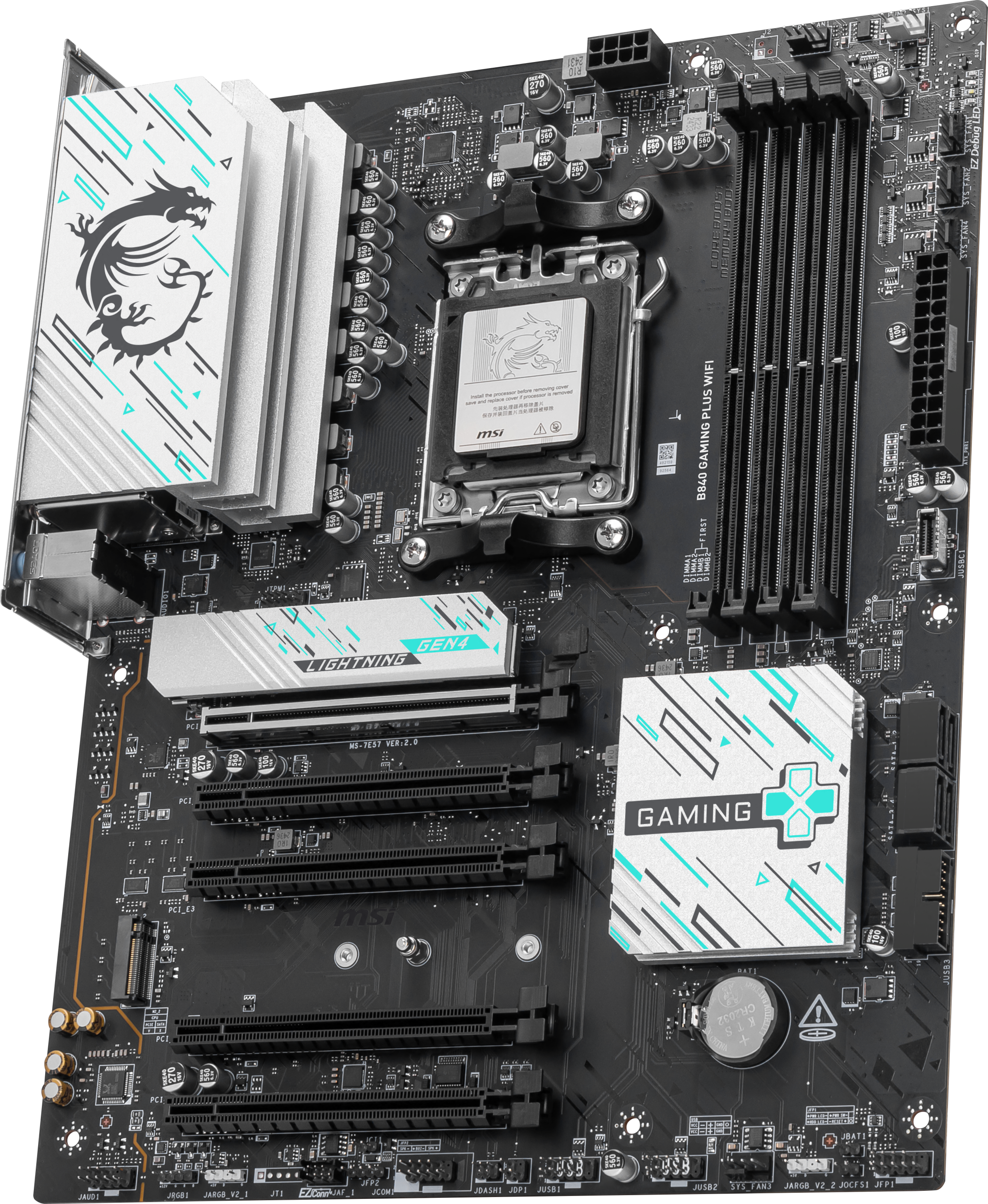

MSI B840 Gaming Plus WiFi: ATX motherboard with AMD AM5 socket and B840 chipset
The MSI B840 Gaming Plus WiFi is an ATX motherboard with the Entry-level AMD B840 chipset and AMD Socket AM5. It supports both Ryzen 9000, 8000, and 7000 CPUs. While the DDR5 RAM can be overclocked, the processor cannot.

Connecting graphics cards and NVMe SSDs is supported via PCIe 4.0. As the most affordable chipset in the AMD B800 series, it is suitable for office work and casual gaming.

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– White
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– AMD B840
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (Standard)
– 5600 MT/s
– Max. Memory Speed (OC)
– 8000 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible connectors
– 2
– USB 2.0 (internal) headers
– 2
– USB 2.0 (internal) possible connectors
– 4
– RGB / LED connectors
– 1x RGB (4-pin 5050 12VGRB), 2x Digital RGB (3-pin 5V/12VDG)
