MSI MPG X870E Edge TI WiFi motherboard, socket AM5, AMD X870E, ATX, DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 3.0 x16 (x1)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,400 MT/s (OC)
– 4x M.2 (including 2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G

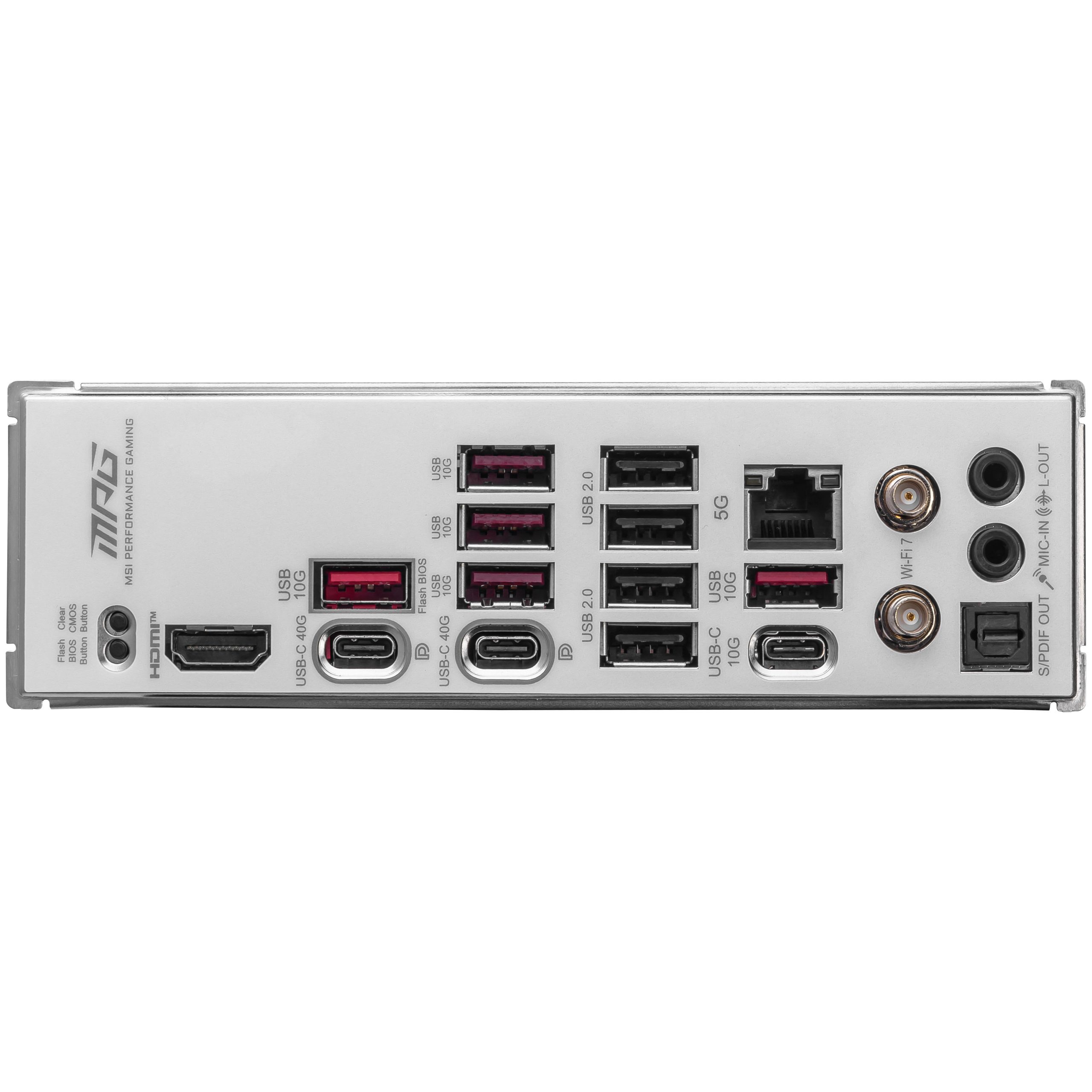

– 1x USB 4, 1x USB-C 3.1, 5x USB 3.1, and 4x USB 2.0 on the I/O panel
– OC features: 14+2+1 phase VRMs, CMOS reset
– A total of 8x 4-pin PWM fans possible

MSI MPG X870E Edge TI WiFi: ATX motherboard with AMD AM5 socket and X870E chipset
The MSI MPG The X870E Edge TI WiFi is equipped with the high-end X870E chipset for AMDs Ryzen 9000 series processors and offers numerous features for overclockers and gaming enthusiasts. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the MSI MPG X870E Edge TI WiFi supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly equipped for gaming
The motherboard is designed for overclocking so you can enjoy even the most demanding games. The voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Clear CMOS makes it easy to reset these settings if something goes wrong. And, as usual, DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
– Color
– Main Color
– White
– Dimensions
– Length / Depth
– 243.8 mm
 -Width
– 304.8 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD X870E
– RAM
– Max. Memory
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (Standard)
– 5600 MT/s
– Max. Memory Speed (OC)
– 8400 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 5 Gbit/s
– LAN Chip
– Realtek 8126
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU Power
– 2x 8-pin
– USB4 (internal) Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 1
– USB 3.0 (internal) Header
– 2
– USB 3.0 (internal) Possible Connectors
– 4
– USB 2.0 (internal) Header
– 2
– USB 2.0 (internal) Possible Connectors
– 4
– RGB / LED Connectors
– 1x RGB (4-pin 5050 12VGRB), 3x Digital RGB (3-pin 5VDG)
