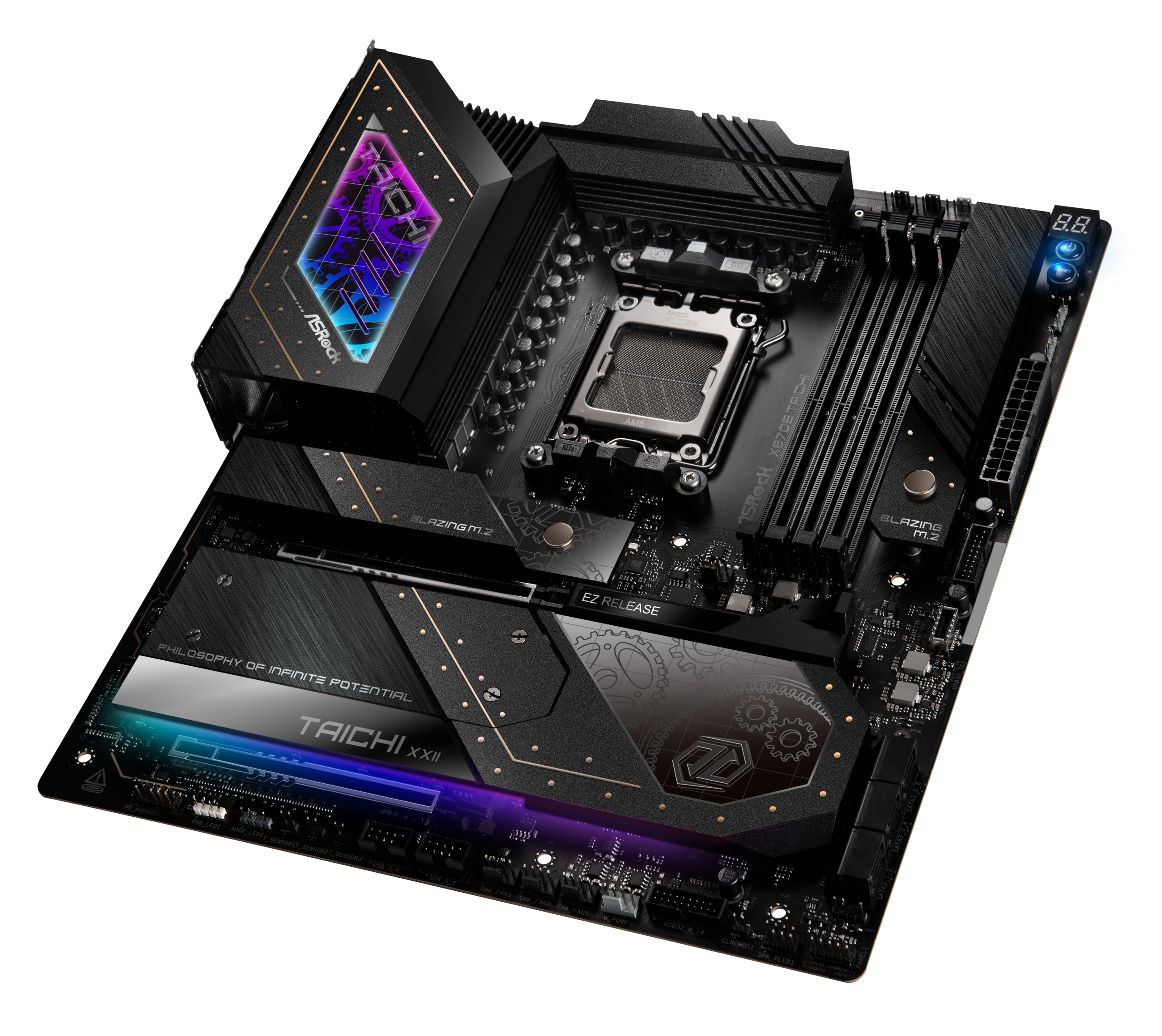

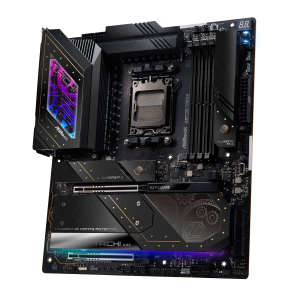

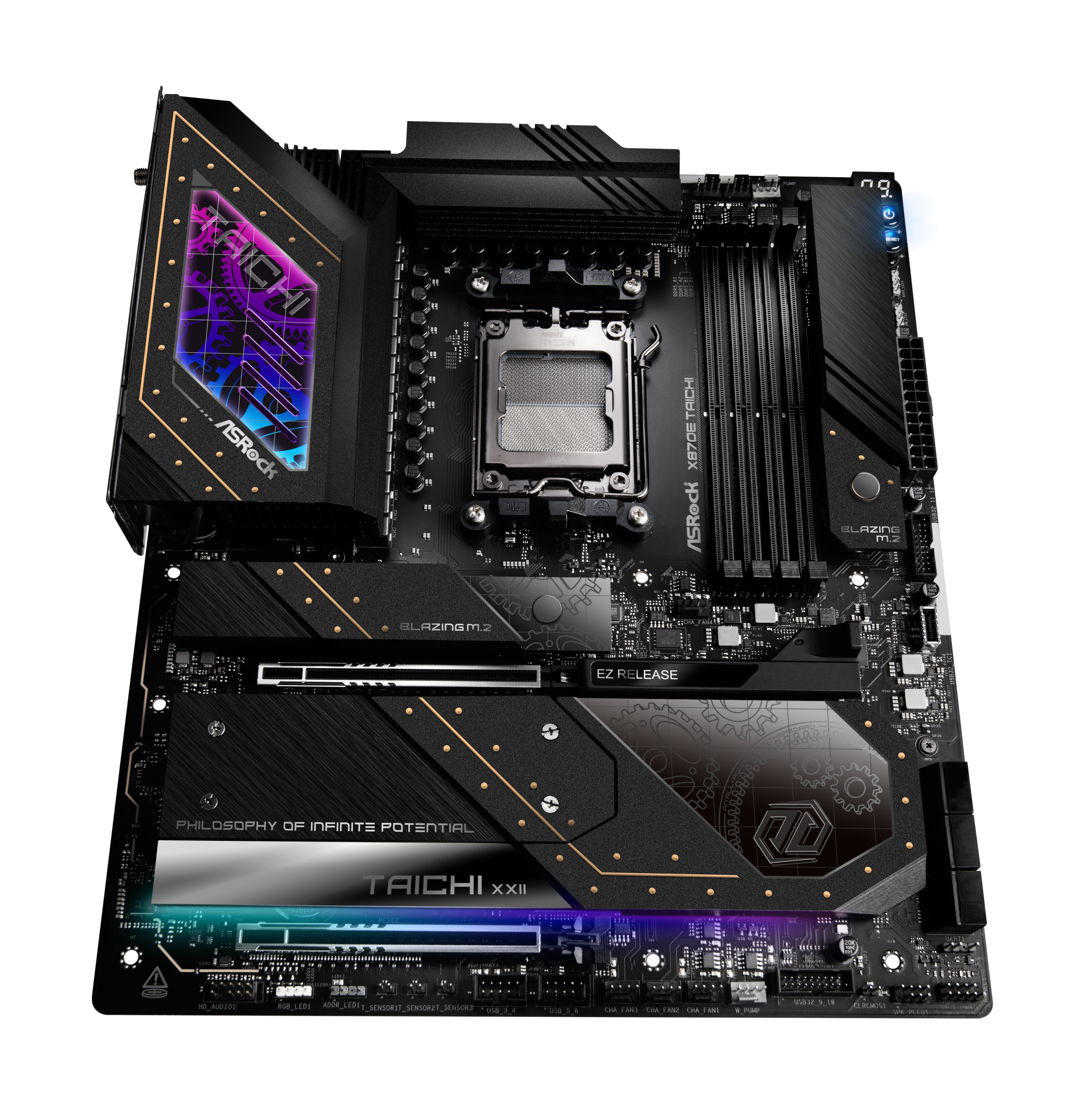

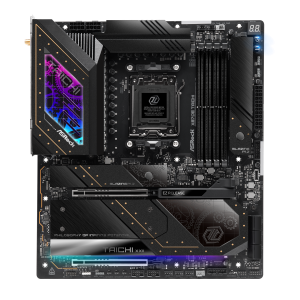

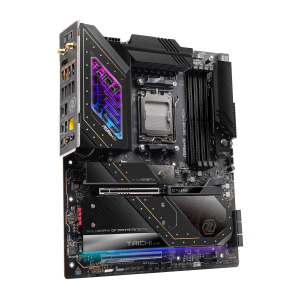

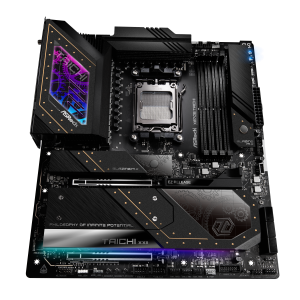

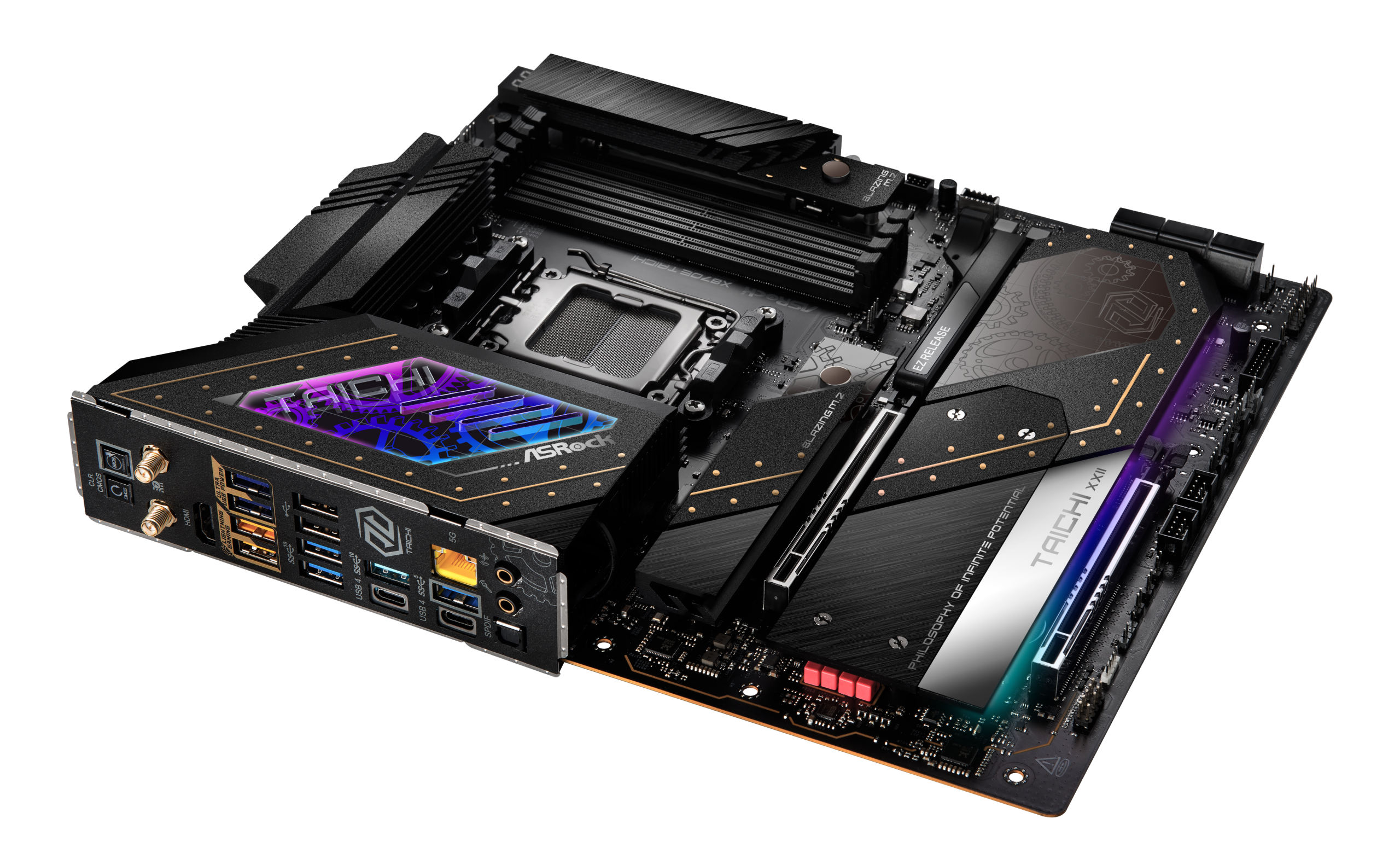

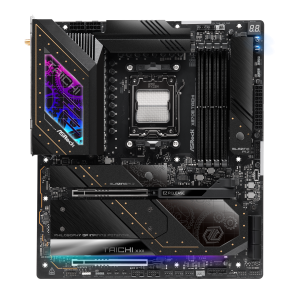

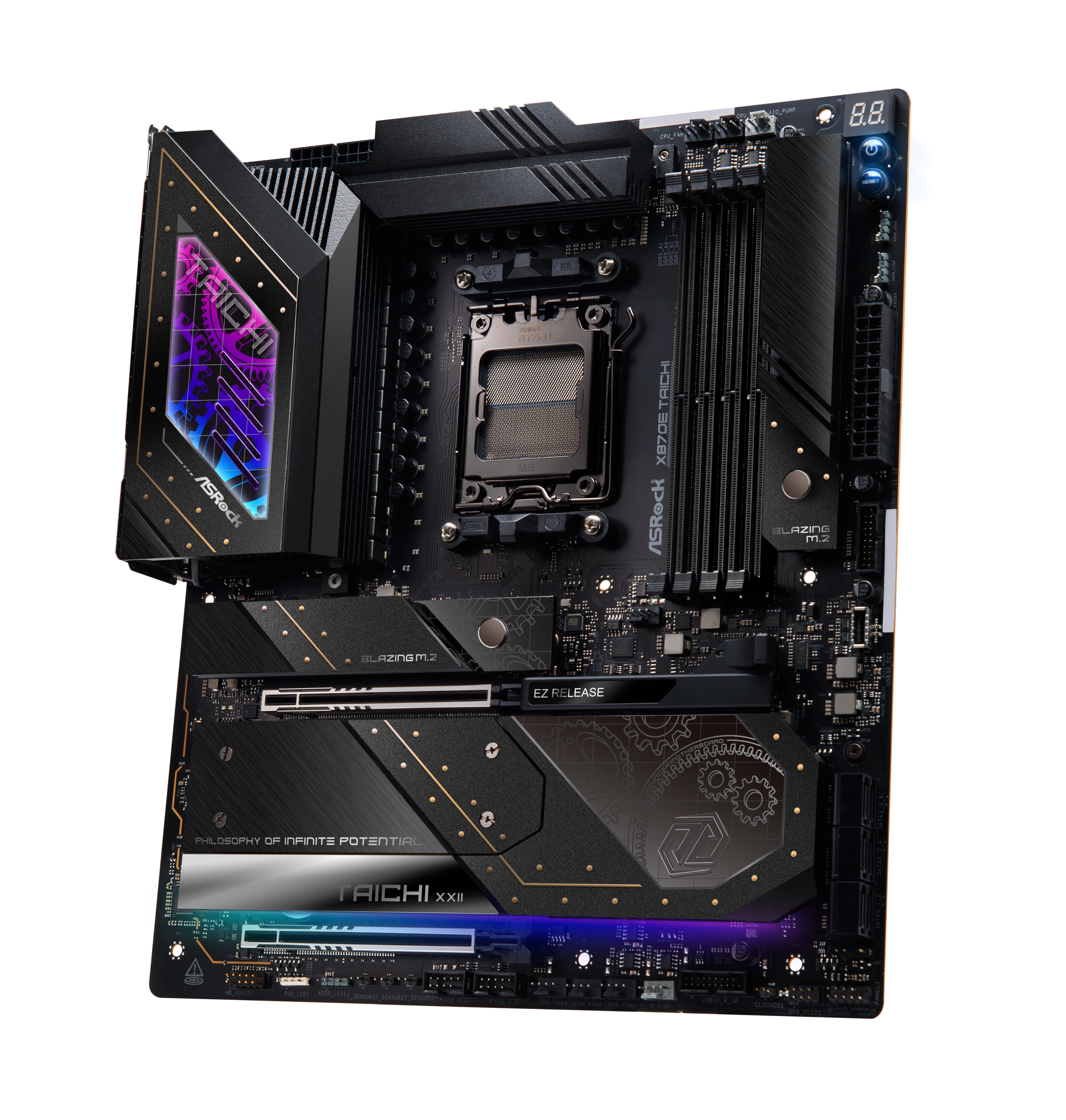

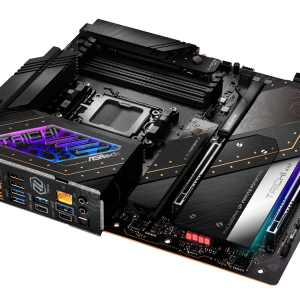

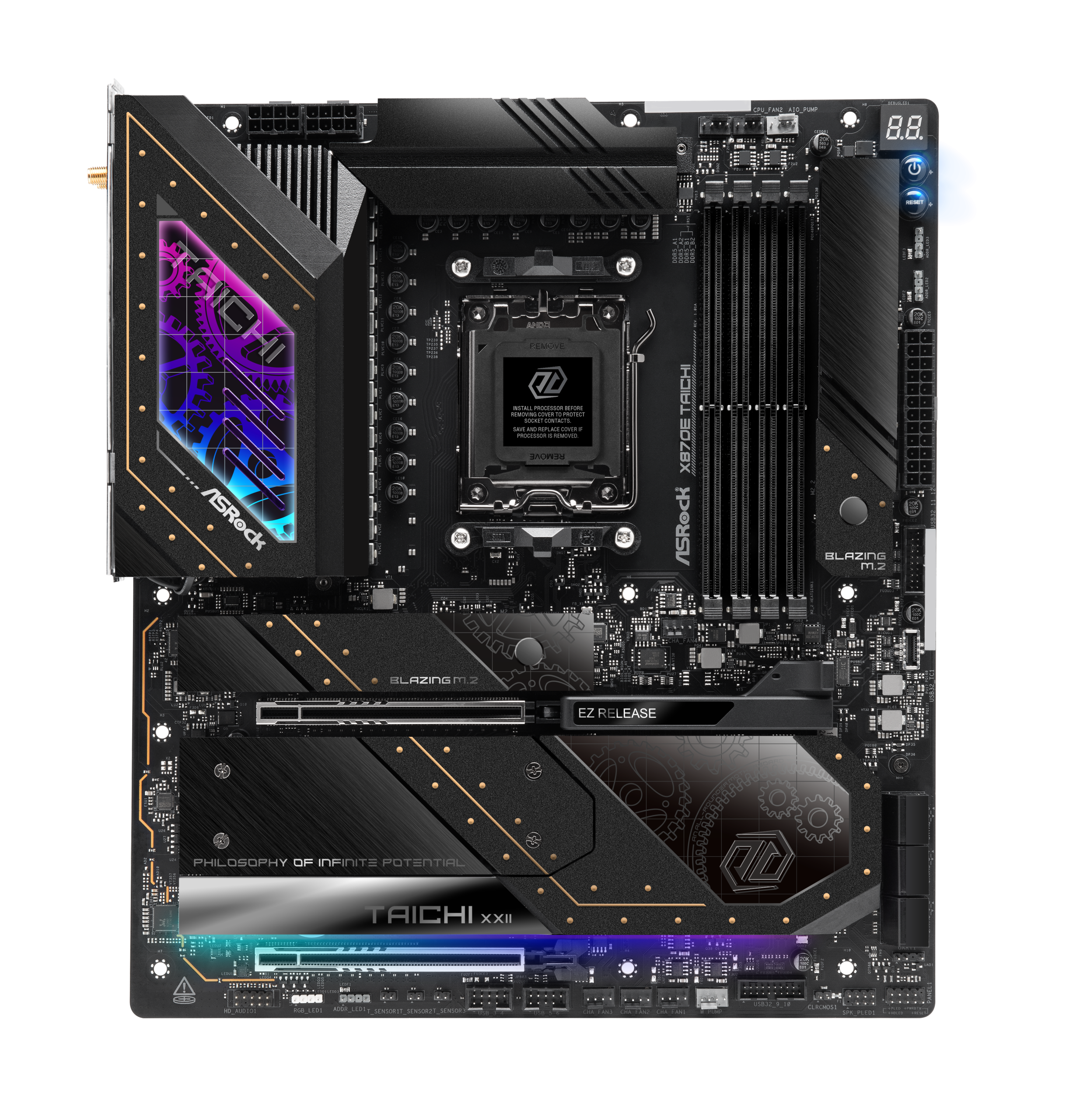

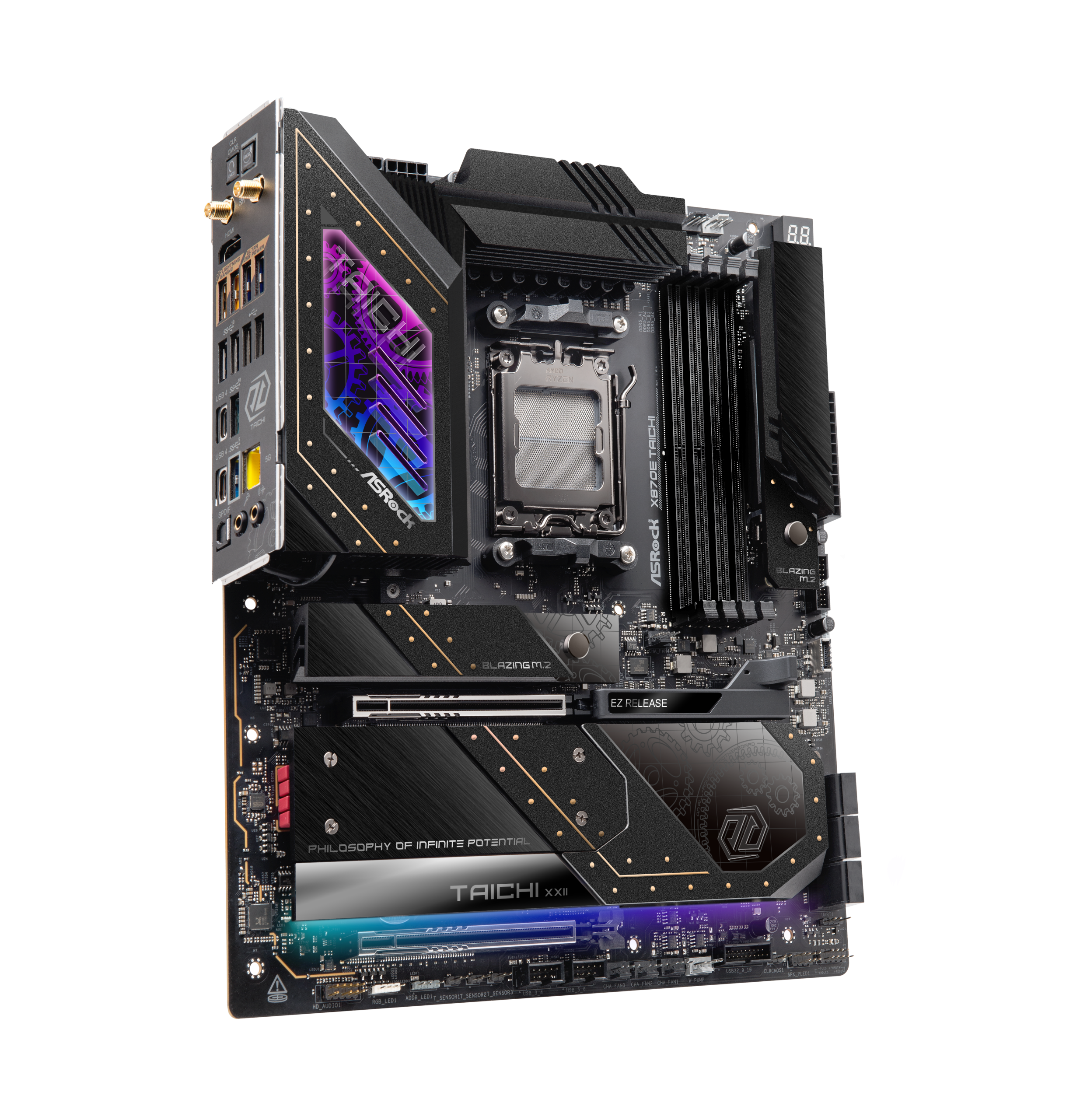

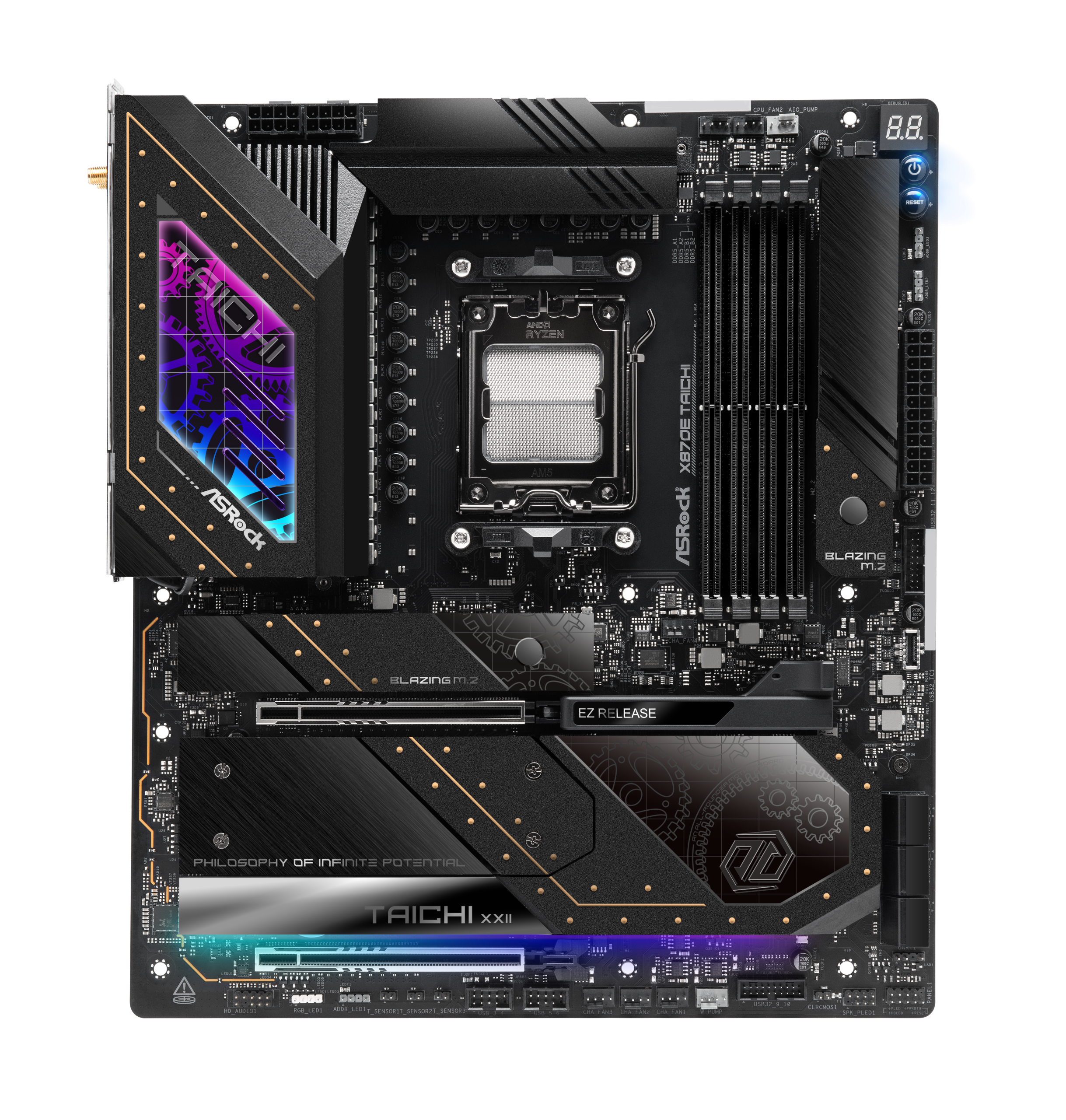

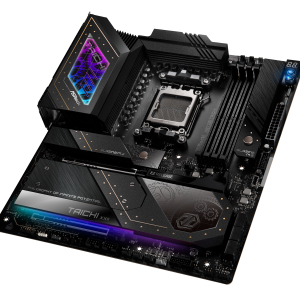

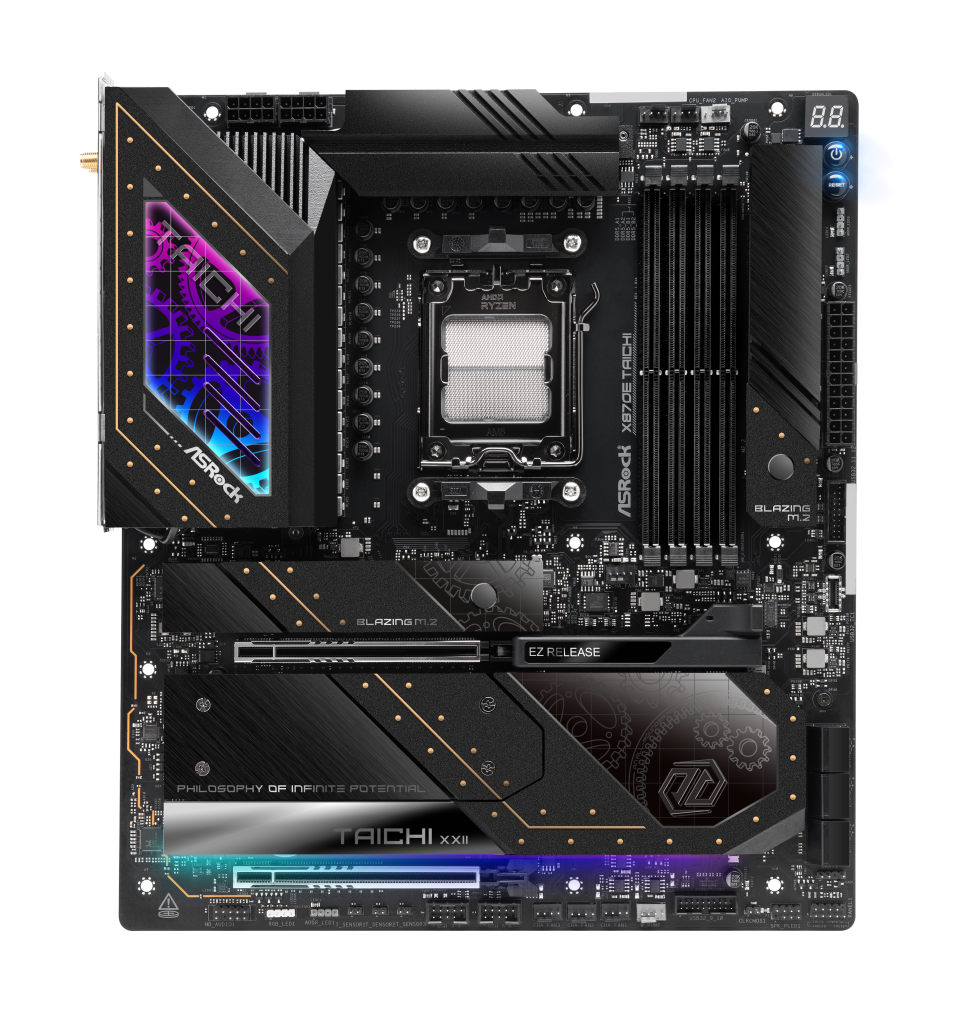

ASRock X870E Taichi motherboard, socket AM5, AMD X870E, EATX, DDR5

– 2x PCIe 5.0 x16 (x16)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,200 MHz (OC)
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 6x SATA 6G
– 2x USB 4, 5x USB 3.1, 3x USB 3.0, and 2x USB 2.0 on the I/O panel
– OC features: 27-phase VRMs, CMOS reset, BIOS flashback
– A total of 8x 4-pin PWM fans possible

ASROCK X870E TAICHI: EATX motherboard with AMD AM5 socket and X870E chipset
The ASROCK X870E TAICHI features the high-end X870E chipset for AMDs Ryzen processors. 9000 series and boasts numerous features for gamers. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASROCK X870E TAICHI supports PCIe 5.0, offering twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Optimally equipped for gaming
The ASROCK X870E TAICHI is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Features like BIOS Flashback and Clear CMOS also ensure you can use the PC again if something goes wrong. And, as usual, DDR5 RAM can also be pushed to its limits with higher clock speeds.

Technical Details
– Format:
– EATX (305 x 267 mm)
– Chipset:
– AMD X870E (Dual Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (up to 8,200 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 2x PCIe 5.0 x16 (electrical x16 or x8/x8, CPU)
– Internal Connectors:
– Total maximum usable PCIe lanes: 44
– 6x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 3x M.2 (PCIe 4.0 x4 & SATA; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20) Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 2x CPU fan header (4-pin)
– 4x fan header (4-pin)
– 1x AiO pump header
– 1x W_PUMP+ connector (4-pin)
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12V)

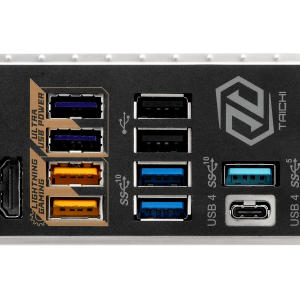

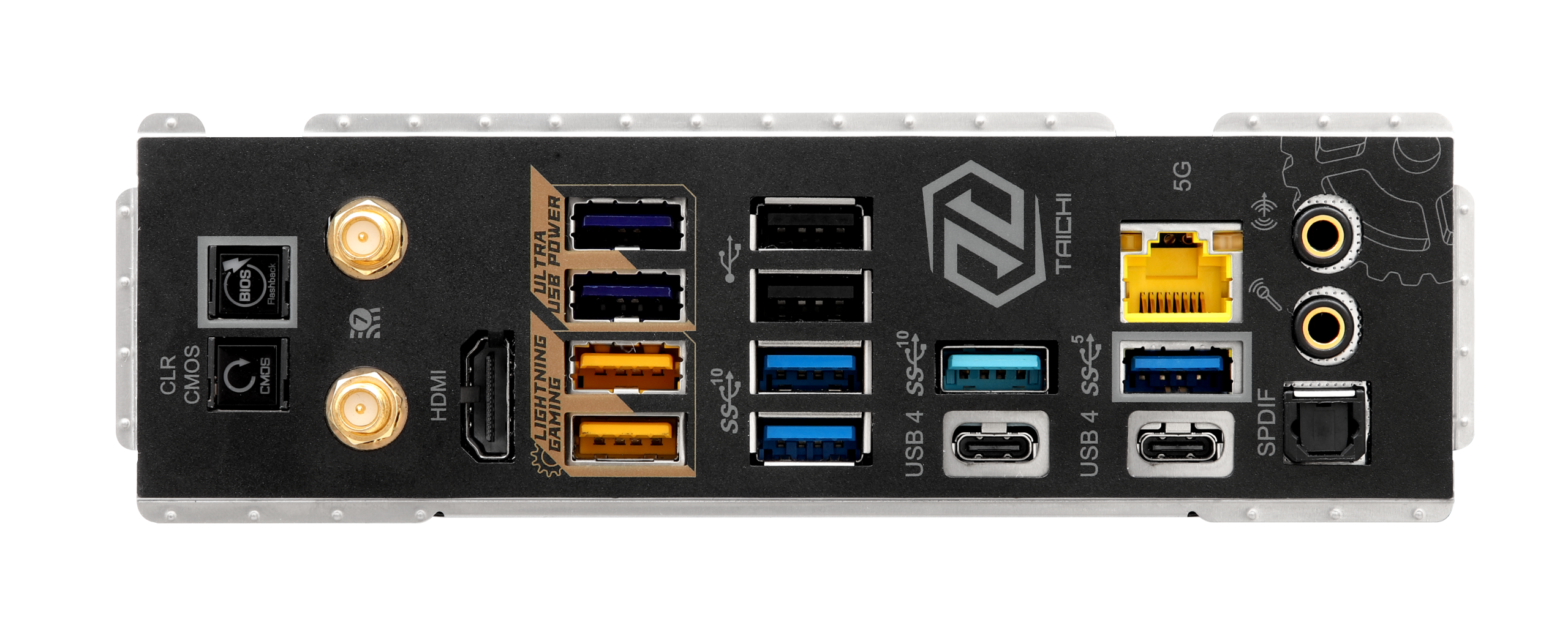

– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
– 5x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbps)
– 3x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (Type-A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x 5 Gigabit LAN (Realtek RTL8126CG)
– 1x WiFi/Bluetooth module
– 2x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC4082)
– 1x Clear CMOS button
– 1x BIOS Flashback
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V

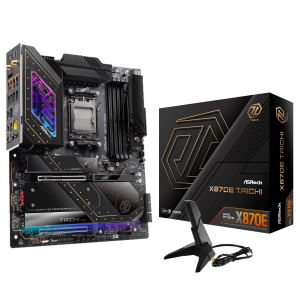

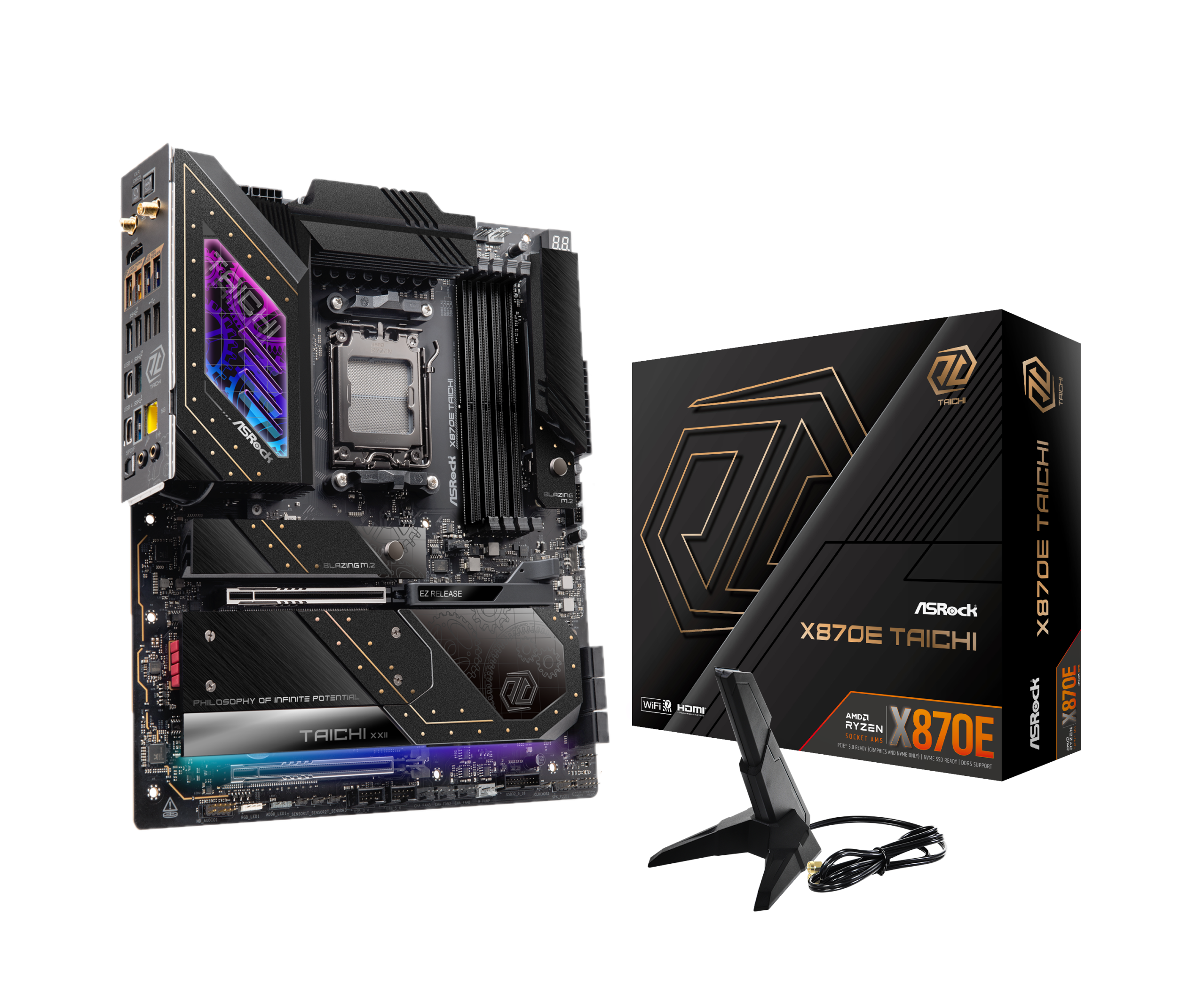

– Accessories:
– 4x SATA data cables
– 1x ASRock WiFi 2.4/5/6 GHz antenna
– 1x ARGB splitter cable
– 3x temperature sensor cables
