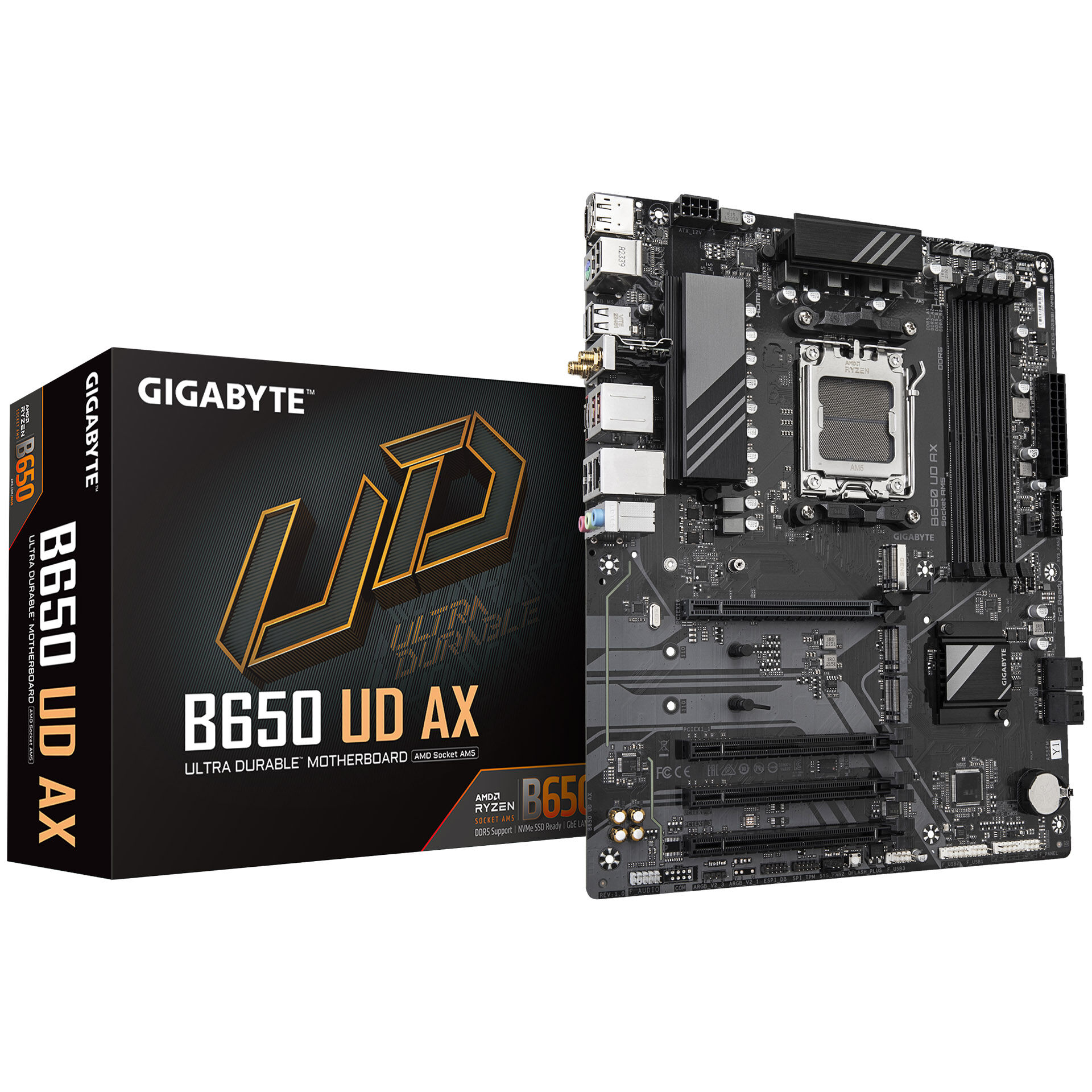

Gigabyte B650 UD AX motherboard, socket AM5, AMD B650, ATX, DDR5

– 1x PCIe 4.0 x16 (x16), 3x PCIe 3.0 (x1)
– Supports up to 256 GB DDR5 RAM up to 7,600 MHz (OC)
– 1x M.2 PCIe 5.0, 2x M.2 PCIe 4.0, and 4x SATA 6G
– 1x USB-C 3.1, 2x USB-A 3.0, and 6x USB-A 2.0 on the I/O panel
– A total of 5x 4-pin PWM connectors

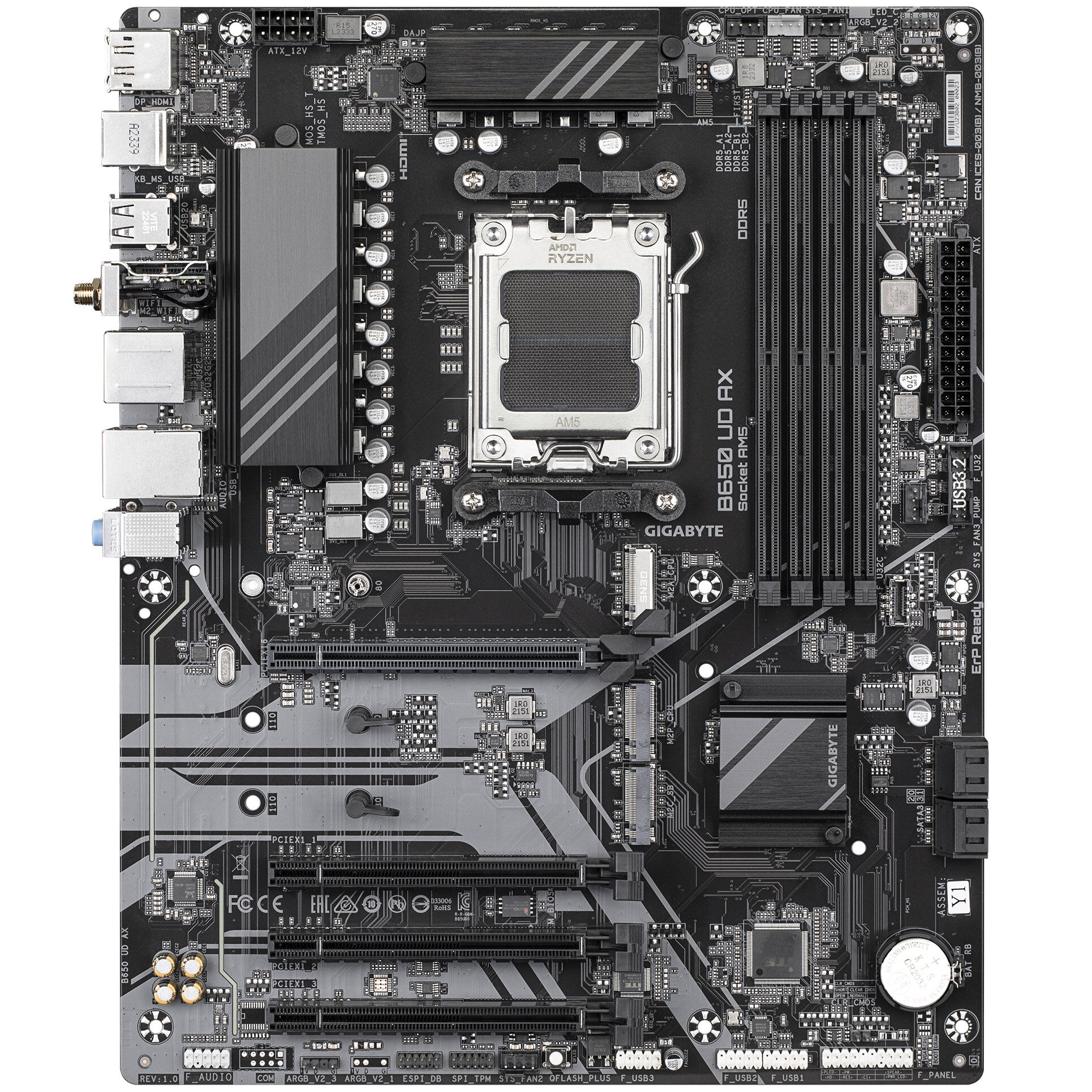

GIGABYTE B650 UD AX: ATX motherboard with AMD AM5
The GIGABYTE B650 UD AX is equipped with the B650 chipset for AMDs Ryzen 7000 and 8000 series processors and offers numerous features for overclockers and gamers. Since the Ryzen 7000/8000 series processors require a new socket due to support for PCIe 5.0 and the enhanced power supply, the 600 series motherboards use Socket AM5 (LGA 1718). Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most Socket AM4 CPU coolers to be mounted on the motherboard.

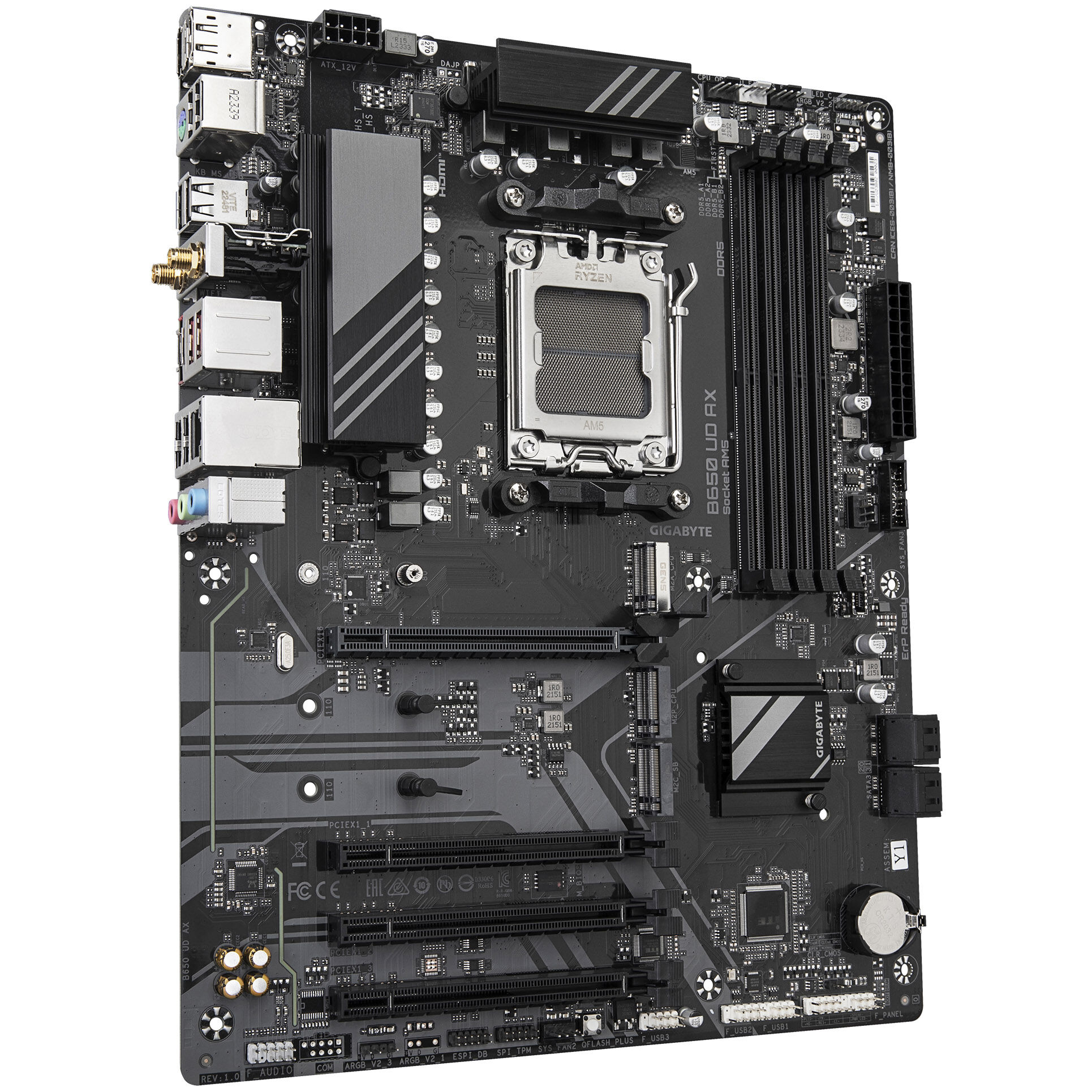

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD B650
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (5,200 MHz, validated up to 7,600 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 2x PCIe 3.0 x16 (electrical x1, CPU)
– 1x PCIe 3.0 x16 (electrical x1, chipset)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4/x2; 25110 / 22110 / 2580 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x2; 22110 / 2280, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 22110 /2280)
– 1x USB-C (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 6x USB 2.0 (3 headers, max. 480 Mbit/s)
– 1x system panel header
– – 1x front panel header
– 1x Front Panel Audio Connector
– 1x Q-Flash Plus button
– 1x serial port header
– 1x Trusted Platform Module Header
– 1x Clear CMOS header
– Fan connections:
– 1 x CPU fan header (4-pin).
– 1 x CPU fan/pump header (4-pin)
– 1 x Fan/Pump Header (4-Pin)
– 2 x Chassis Fan Headers (4-pin)
– RGB header:
– 3x 3-pin ARGB headers
– 1x 4-pin RGB header

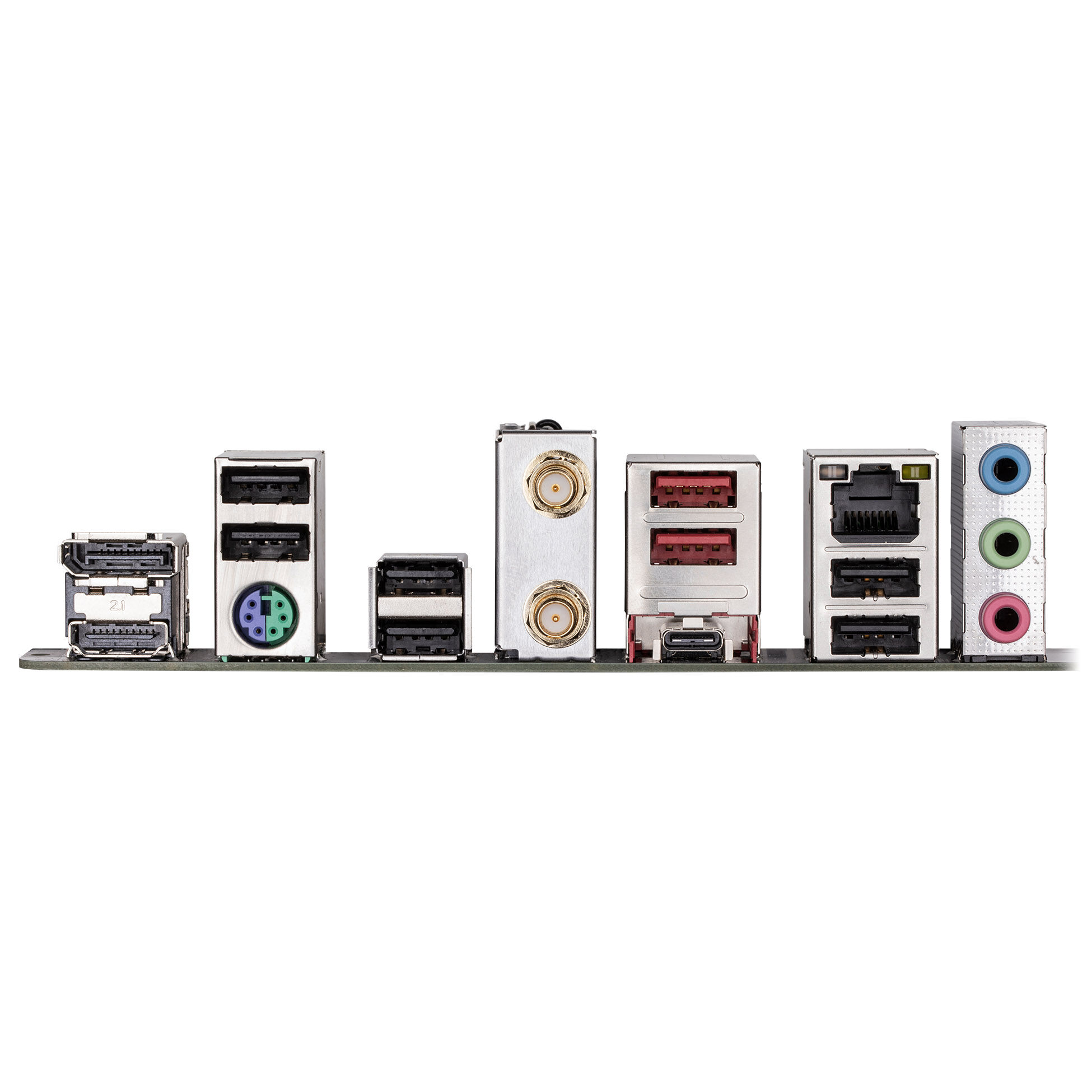

– External connections:
– 1x PS/2 keyboard/mouse
– 1x USB 3.0 (Type C, USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 6x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1xHDMI
– 1x 1 Gigabit LAN (RTL8111H)
– 2x SMA antenna connectors
– 3x 3.5 mm jack (Realtek ALC897)
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
