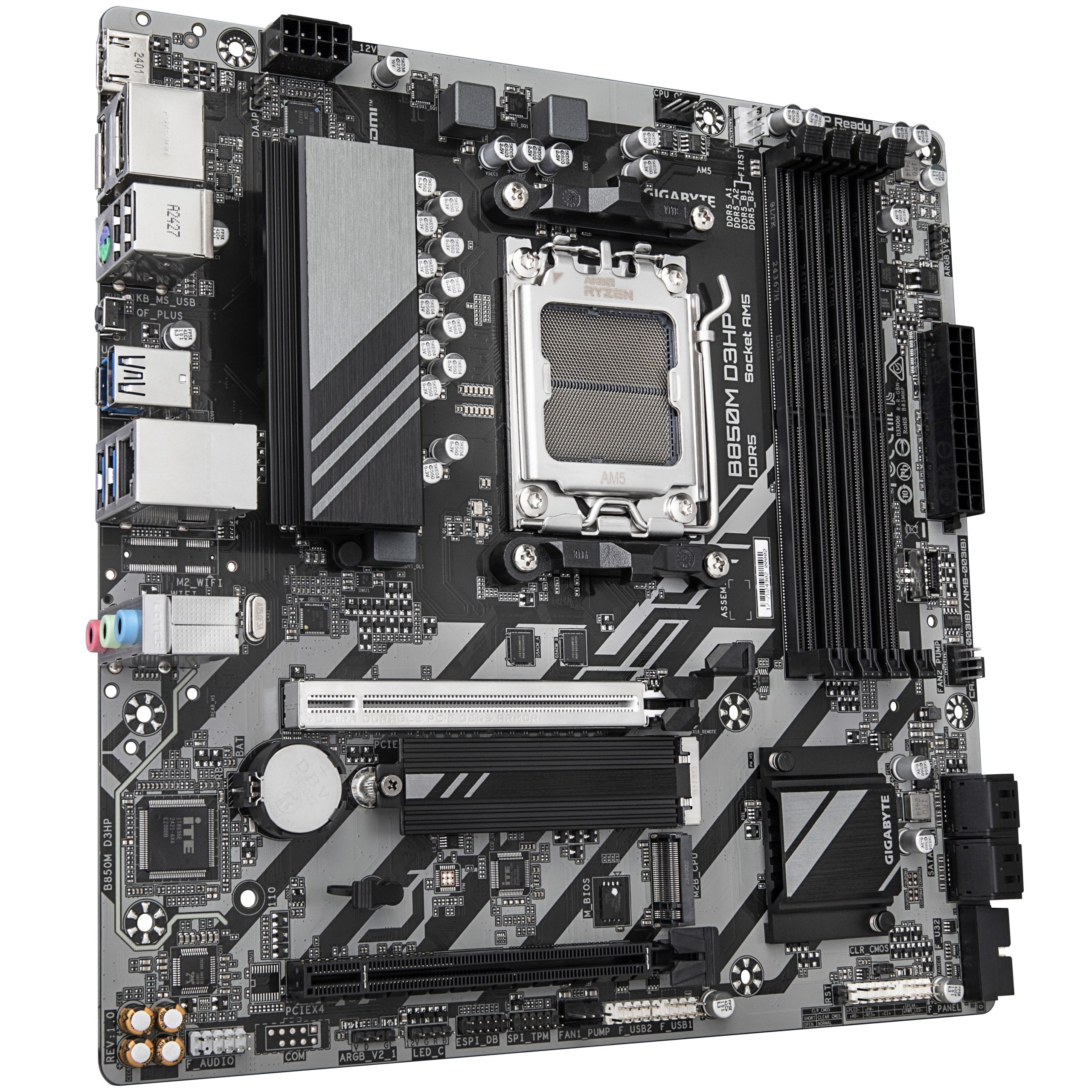

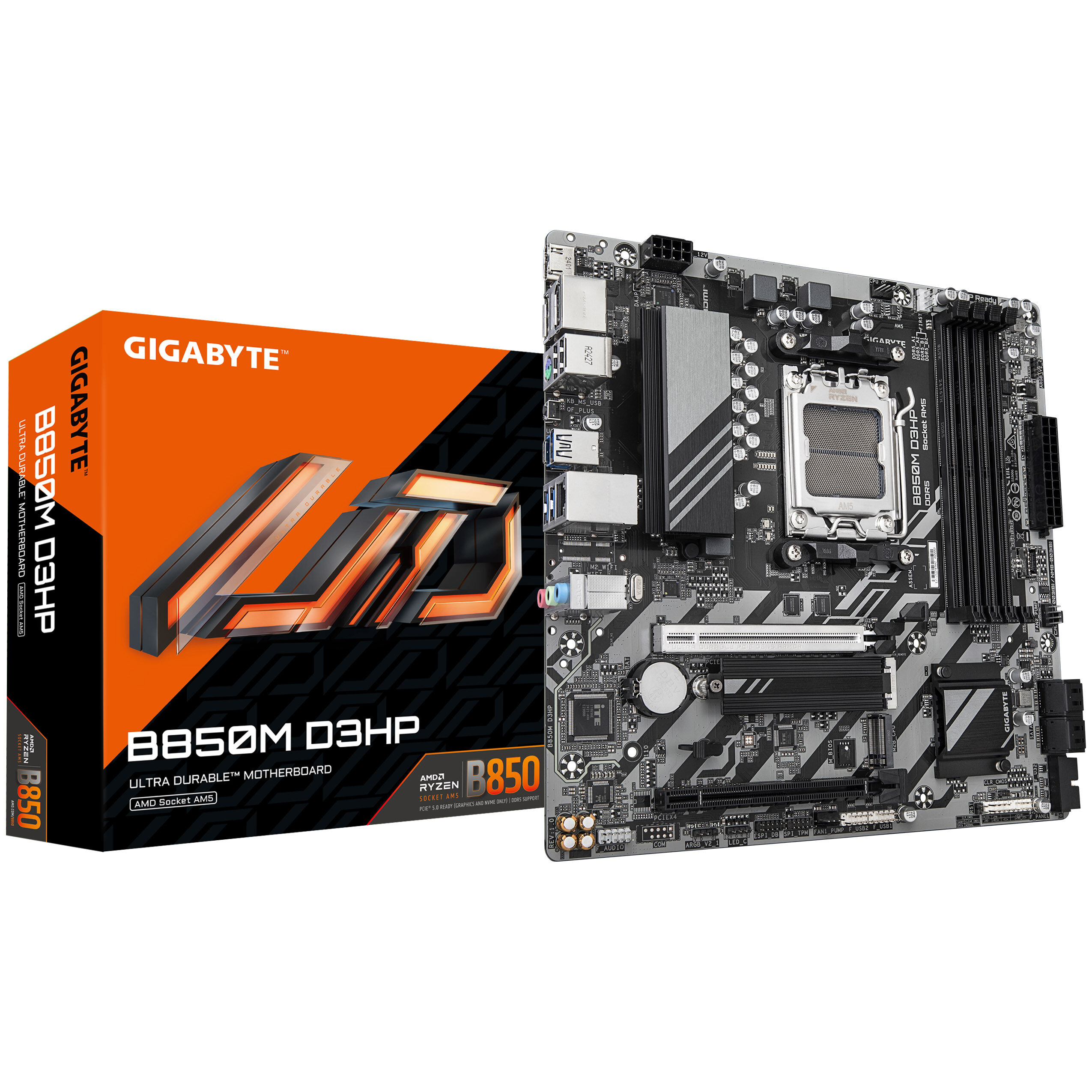

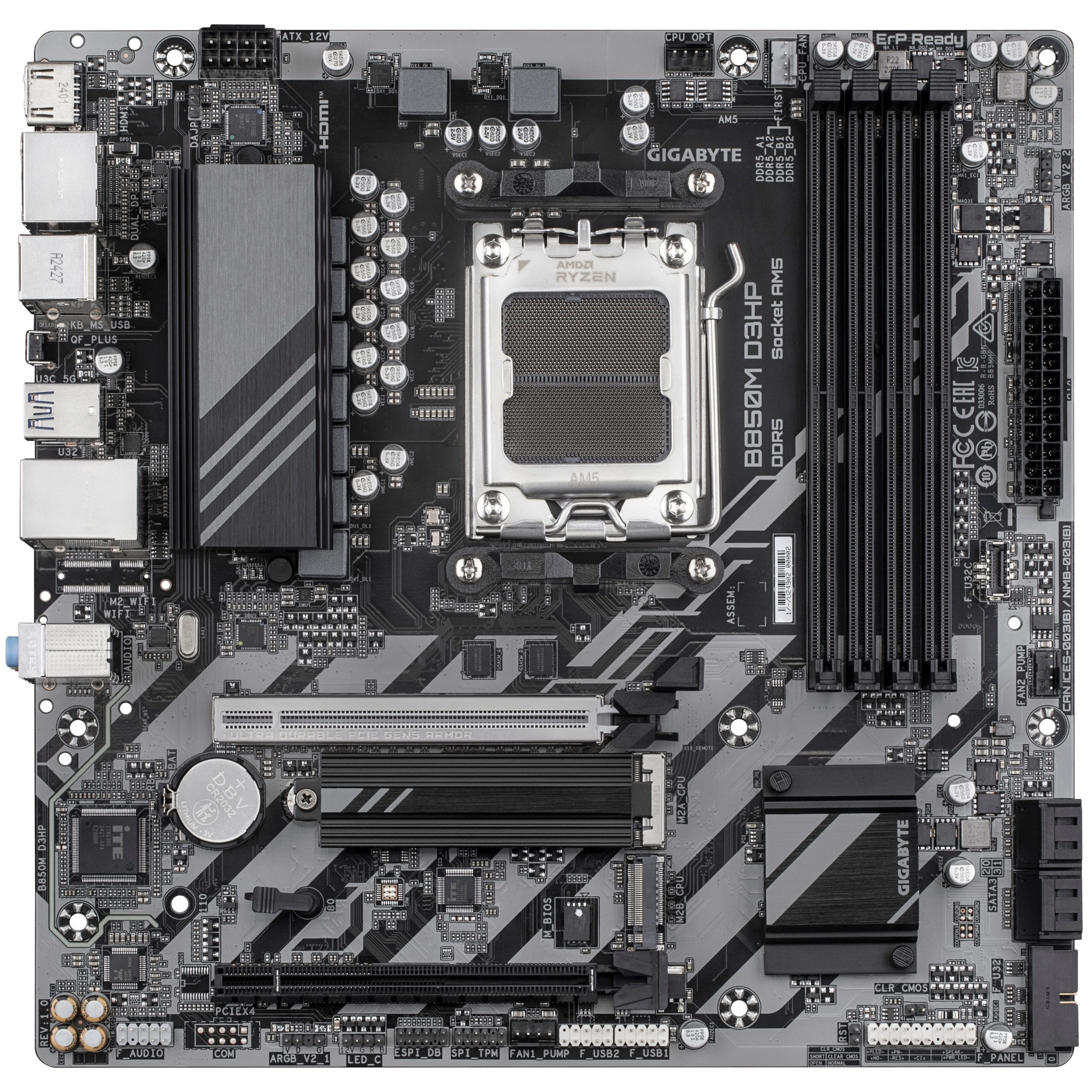

Gigabyte B850M D3HP motherboard, socket AM5, AMD B850, mATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 3.0 x16 (x4)
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,200 MT/s
– Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA
– USB: 1x USB-C 3.1, 3x USB 3.0, and 2x USB 2.0
– Cooling: 4x 4-pin PWM connectors for fans and radiators

GIGABYTE B850M D3HP: Micro-ATX motherboard with AMD AM5 socket and B850 chipset
The GIGABYTE B850M D3HP is a Micro-ATX motherboard with the mid-range AMD B850 chipset and the AMD AM5 socket. It supports both Ryzen 9000, 8000, and 7000 CPUs.

Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 10 Gbps are possible via USB 3.1.

Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked to higher clock speeds via the motherboard. This ensures a stable power supply to the processor, allowing even high-end CPUs to run at full performance for longer periods. You can also fully utilize the DDR5 memory with overclocking. Just in case, the GIGABYTE B850M D3HP offers Clear CMOS.

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Silver
– Dimensions
– Length / Depth
– 244 mm
– Width
– 244 mm
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B850
– RAM
– Max. Memory
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– UDIMM
– Max. Memory Speed (Standard)
– 8200 MT/s
– Max. Memory Speed (OC)
– 5200 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– Wi-Fi / Bluetooth
– No
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible connectors
– 2
– USB 2.0 (internal) headers
– 2
– USB 2.0 (internal) possible connectors
– 4
– RGB / LED connectors
– 1x RGB (4-pin 5050 12VGRB), 2x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes

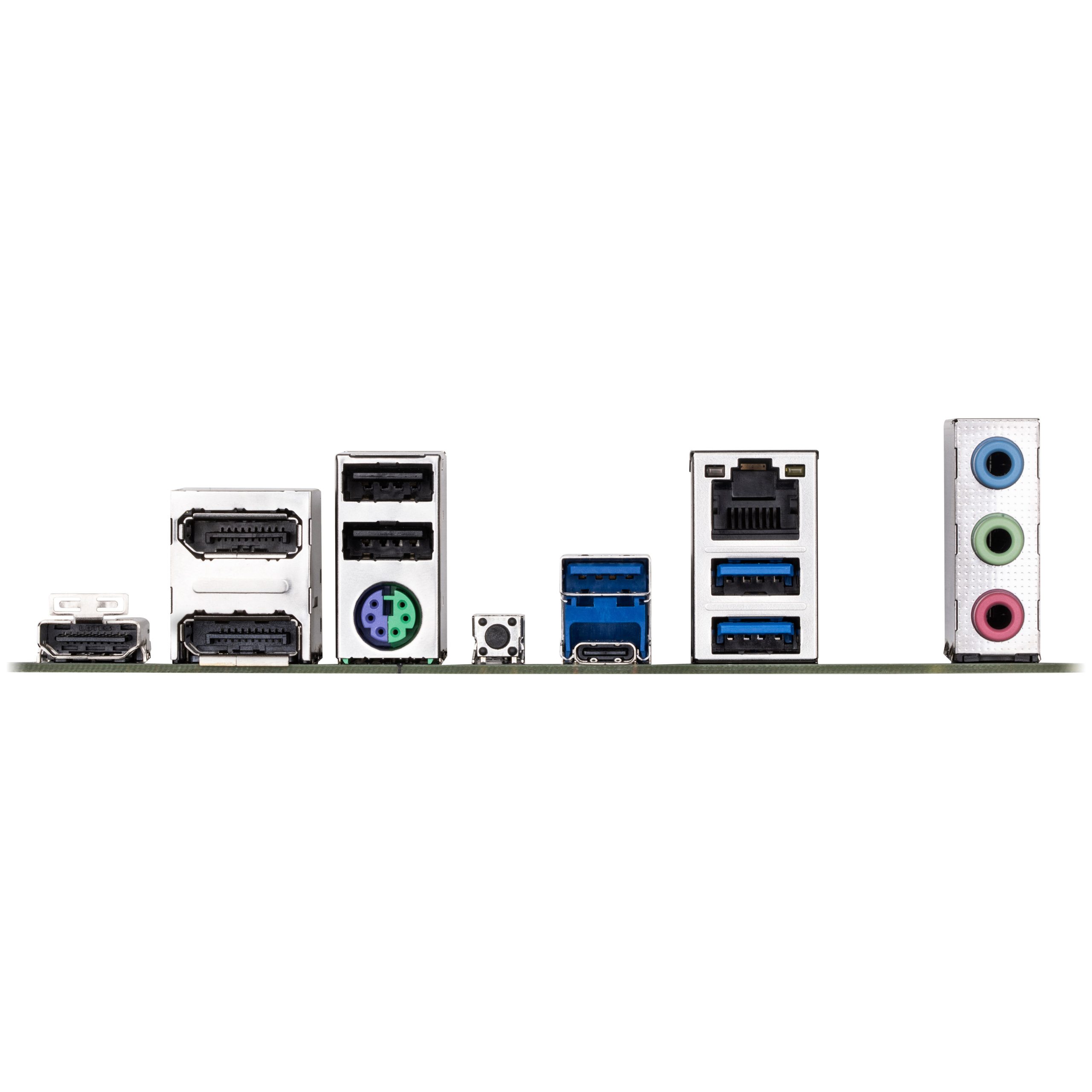

– External Connectors
– USB 3.1 (external) Type-C
– 1
– USB 3.0 (external) Type-A
– 3
– USB 2.0 (external) Type-A
– 2
– Display Connectors
– Display Port (2x), HDMI (1x)
– Storage ports
– M.2 PCIe 4.0 x4
– 1
– M.2 PCIe 5.0 x4
– 1
– SATA 6G (internal)
– 4
– Back Connect
– Back Connect
– No
