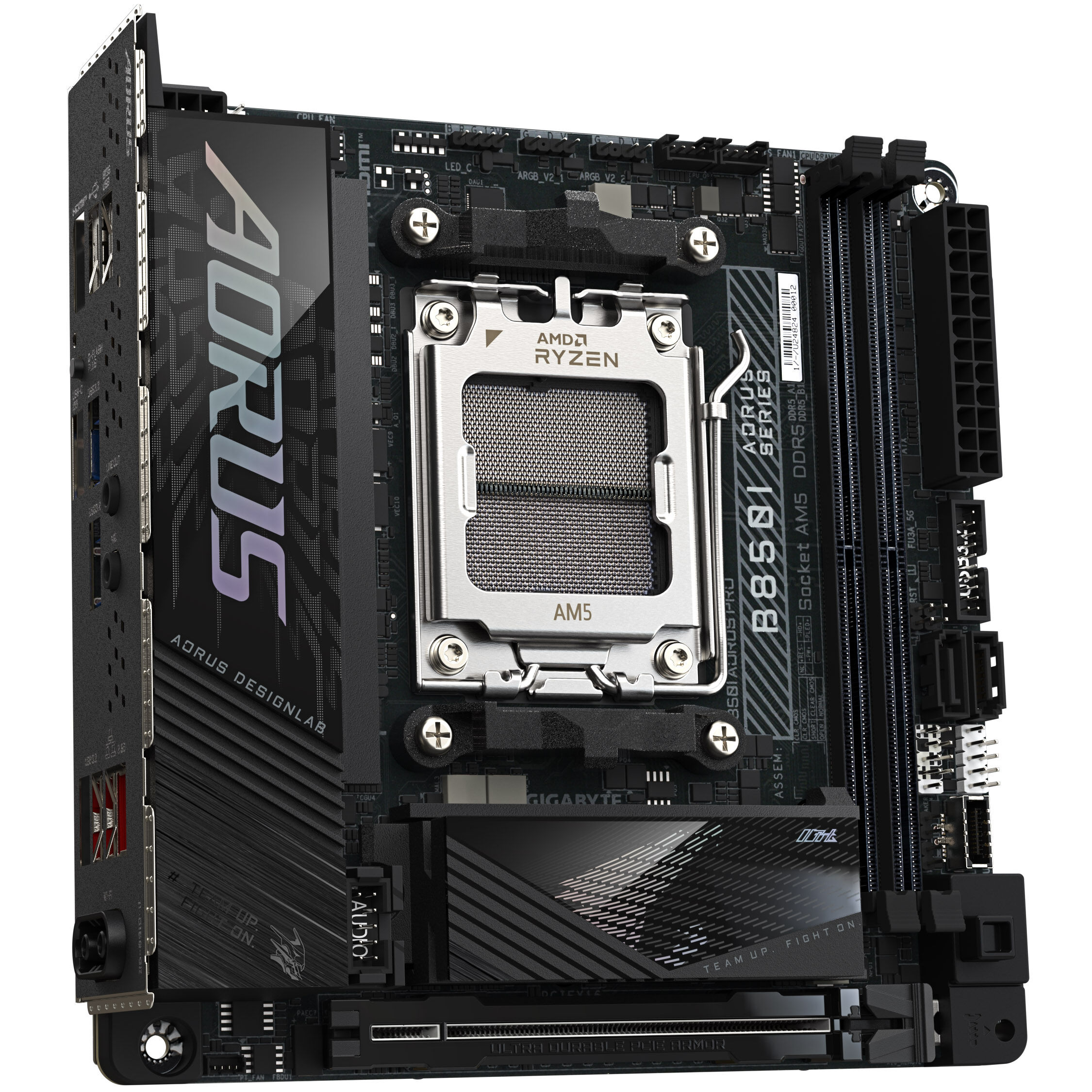

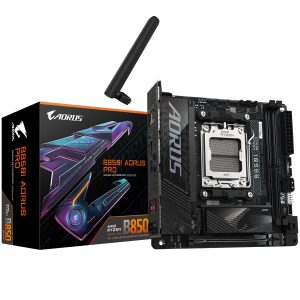

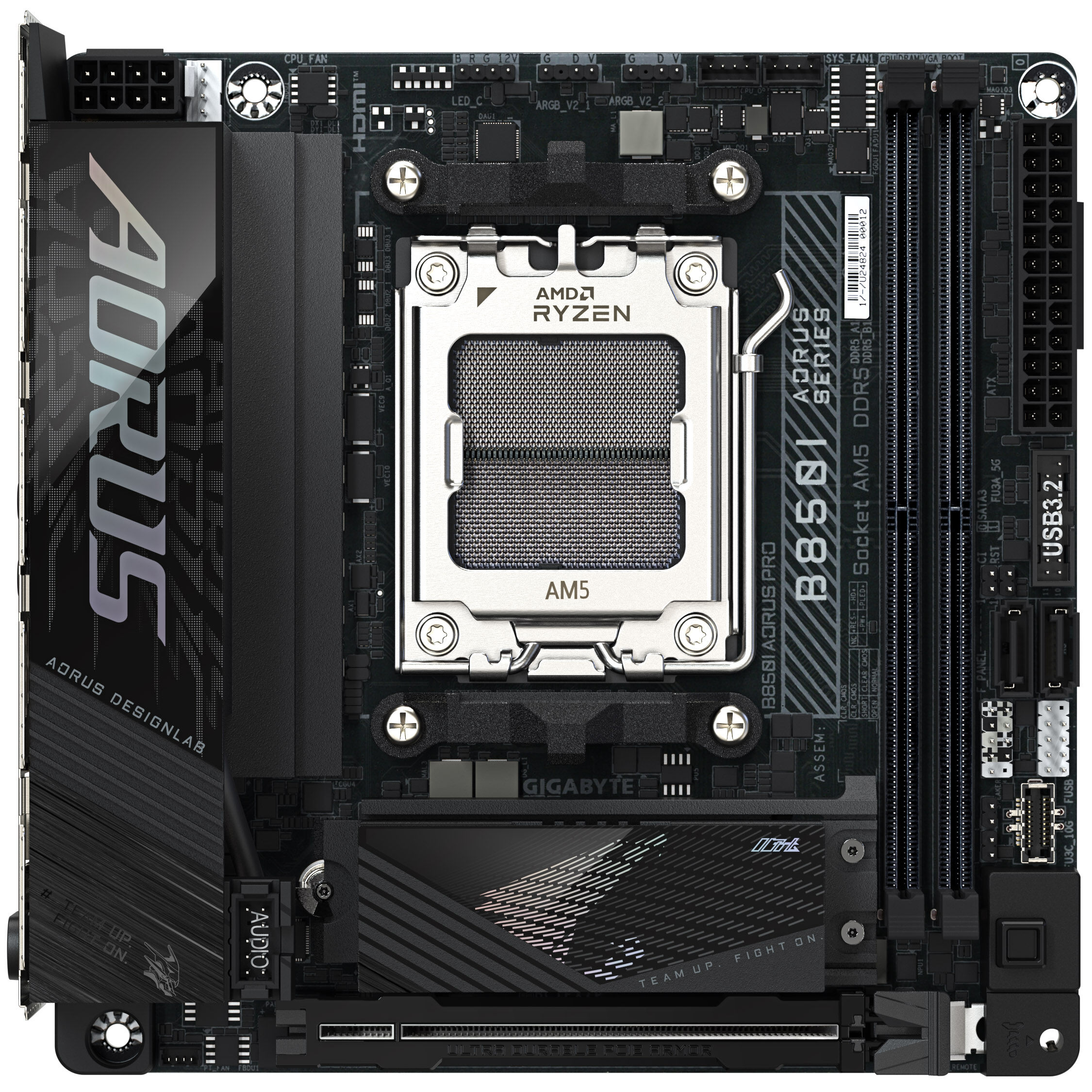

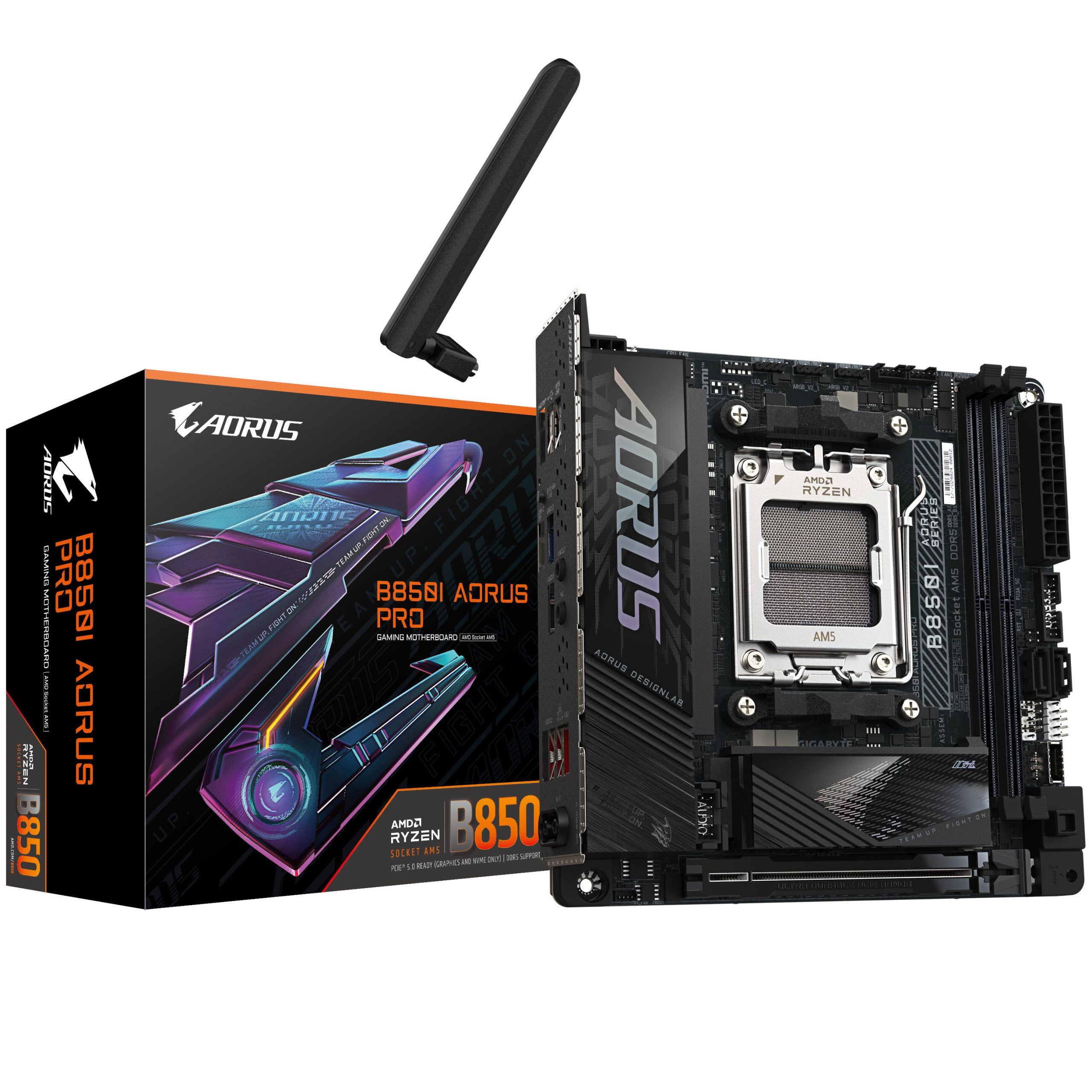

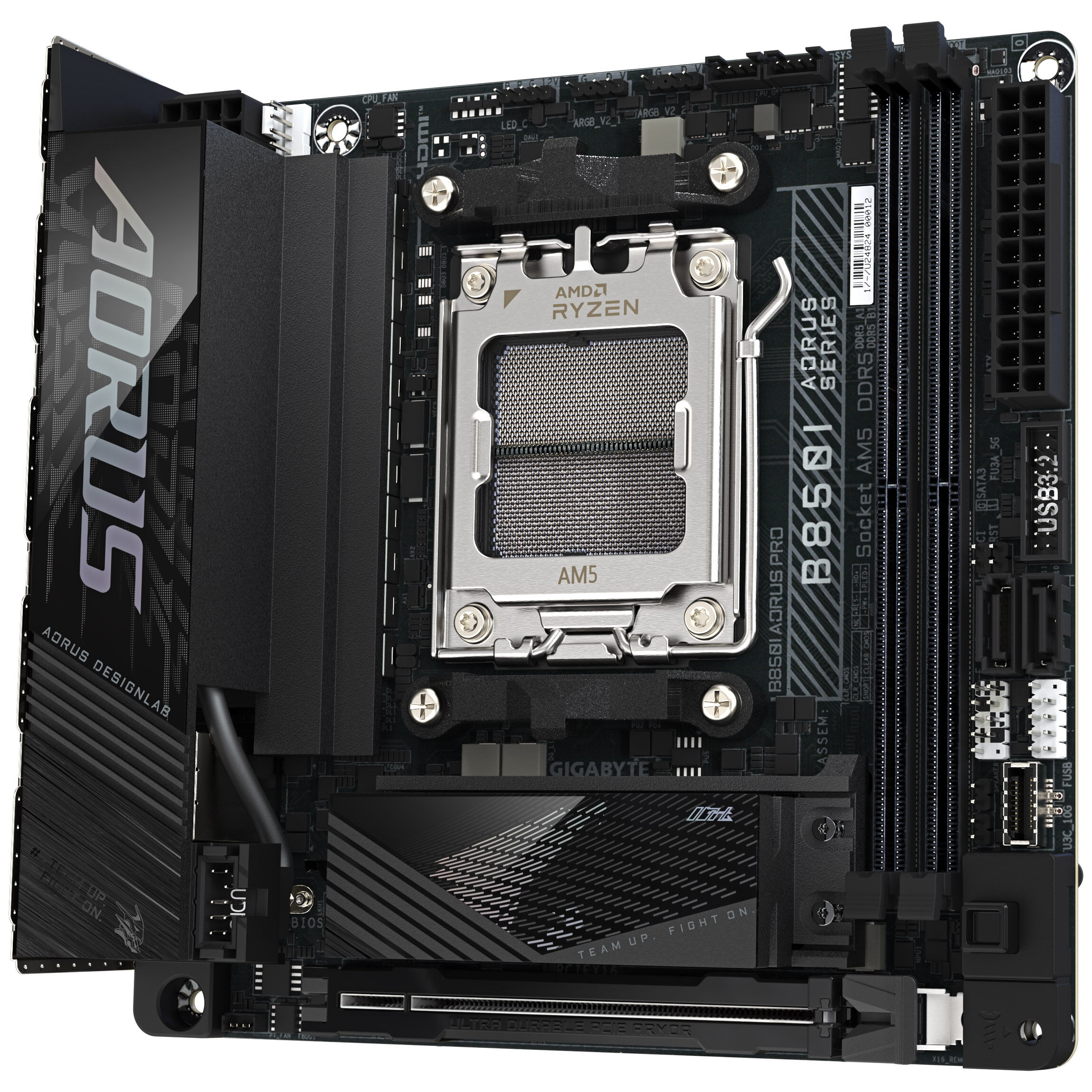

Gigabyte B850I Aorus Pro motherboard, socket AM5, AMD B850, Mini-ITX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16)
– RAM: 4x DIMM slots for up to 128 GB DDR5 RAM up to 8,400 MT/s
– Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA

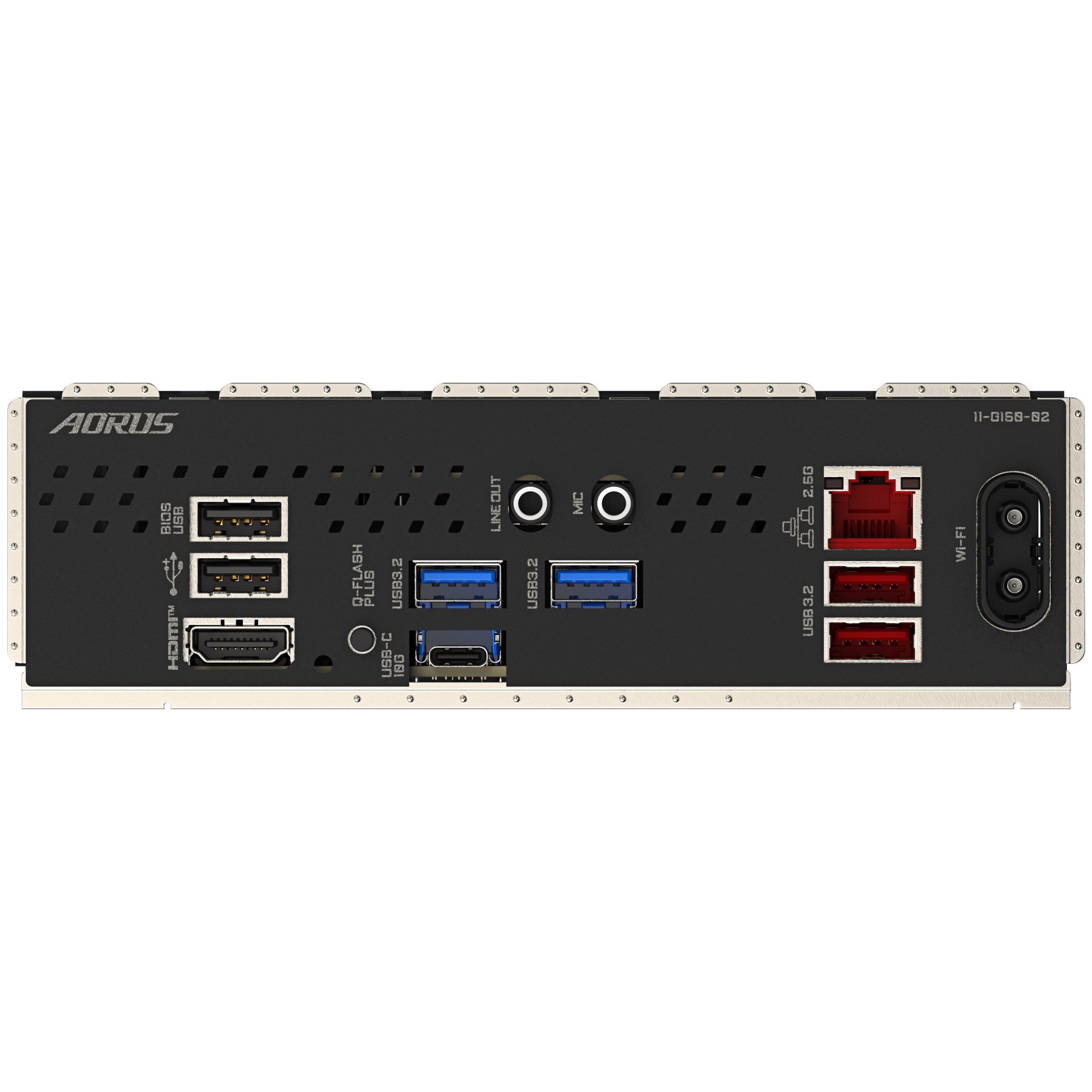

– USB: 1x USB-C 3.1, 2x USB 3.1, 2x USB 3.0, and 2x USB 2.0
– Cooling: 3x 4-pin PWM connectors for fans and radiators

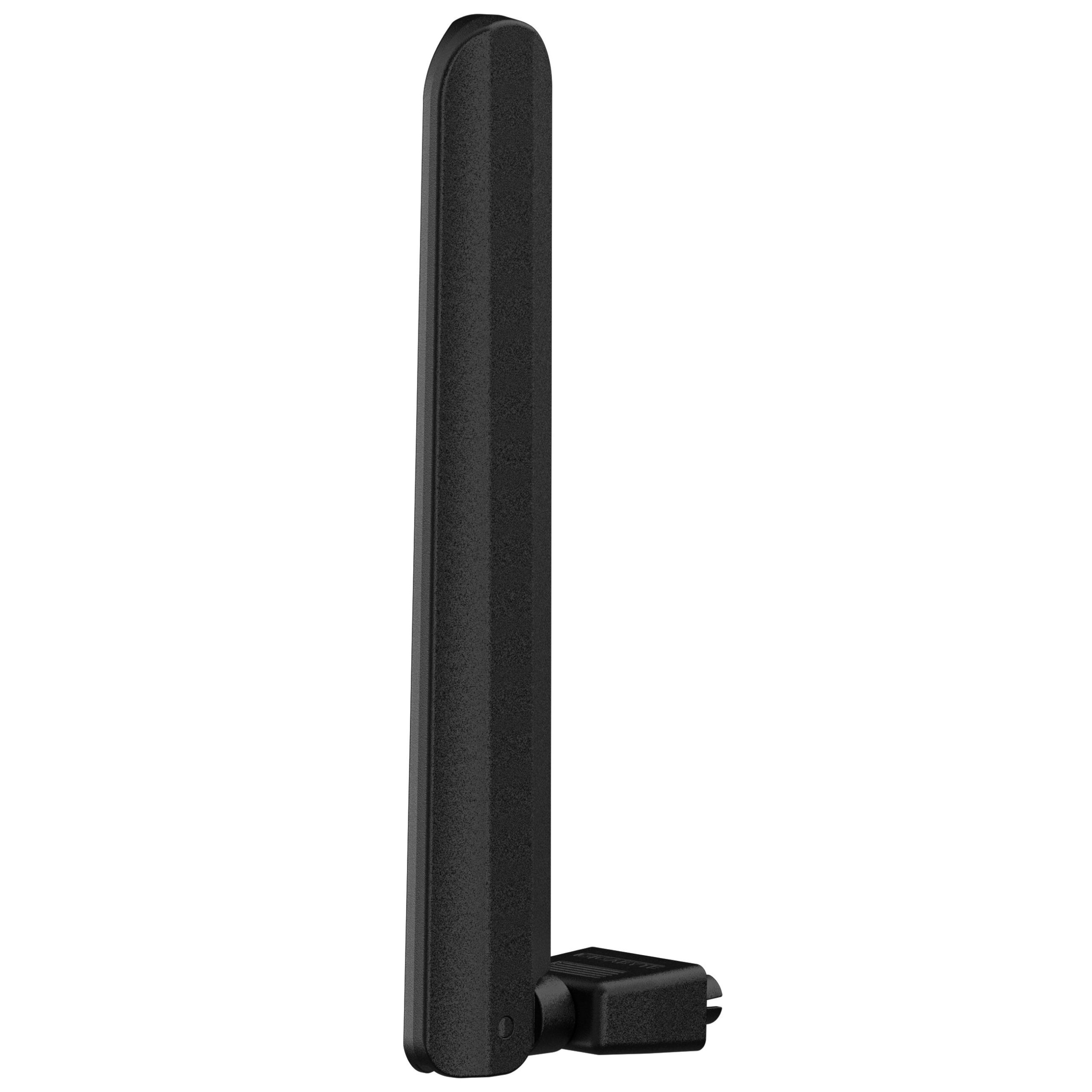

– Connectivity: Wi-Fi 7 and Bluetooth 5.4

GIGABYTE B850I Aorus Pro: Mini-ITX motherboard with AMD AM5 socket and B850 chipset
The GIGABYTE B850I Aorus Pro is a Mini-ITX motherboard with the mid-range AMD B850 chipset and the AMD Socket AM5. It supports Ryzen 9000, 8000, and 7000 CPUs.

Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 10 Gbps are possible via USB 3.1.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 170 mm
– Width
– 170 mm
– Form Factor
– Motherboard Form Factor
– Mini-ITX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– – Motherboard
– Motherboard Chipset
– AMD B850
– RAM
– Max. RAM
– 128 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– UDIMM
– Max. Memory Speed (Standard)
– 5200 MT/s
– Max. Memory Speed (OC)
– 8400 MT/s
– ECC Support
– No
– Memory Slots
 -2x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– – LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– LAN Chip
– Realtek 8125
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Wi-Fi Chip
– Realtek RTL8922AE
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power
– 2x 4-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Possible Connectors
– 1
– USB 3.0 (internal) Header
– 1
– USB 3.0 (internal) Possible Connectors
– 2
