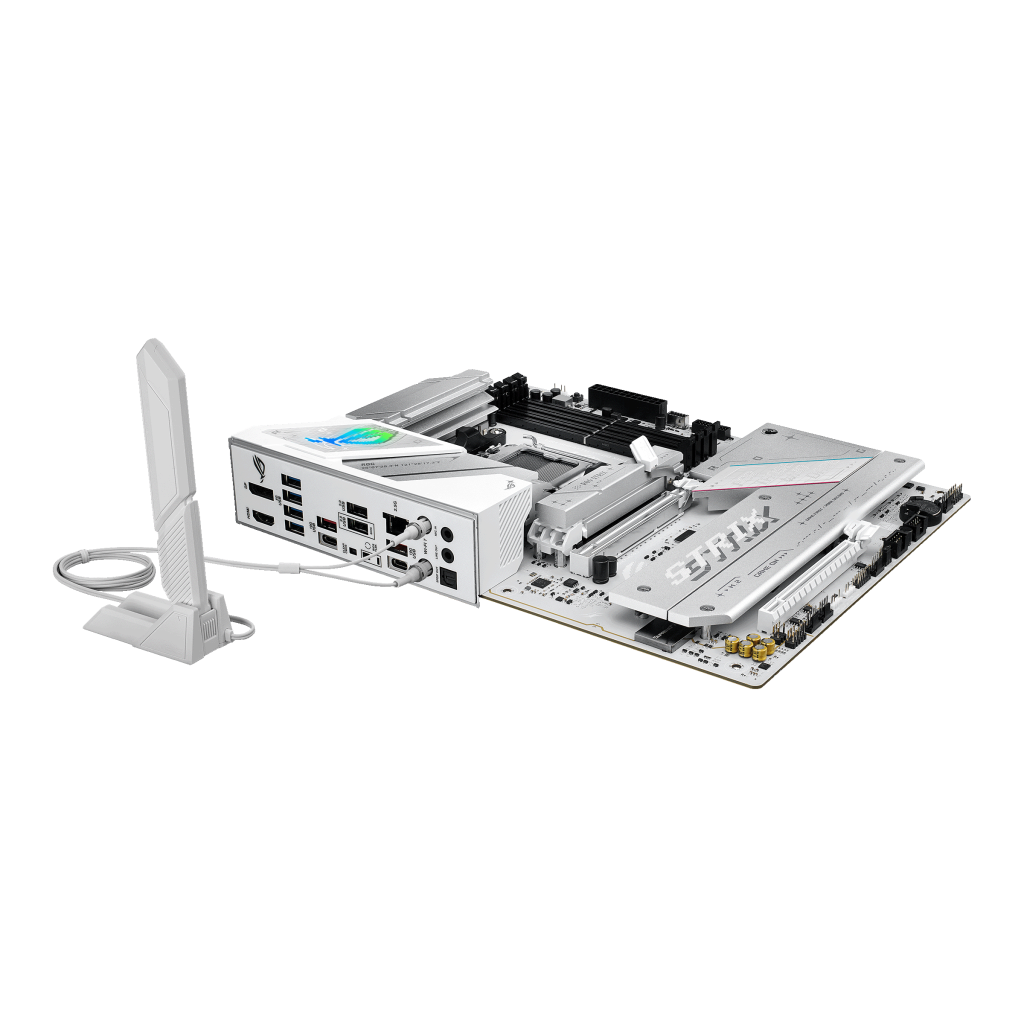

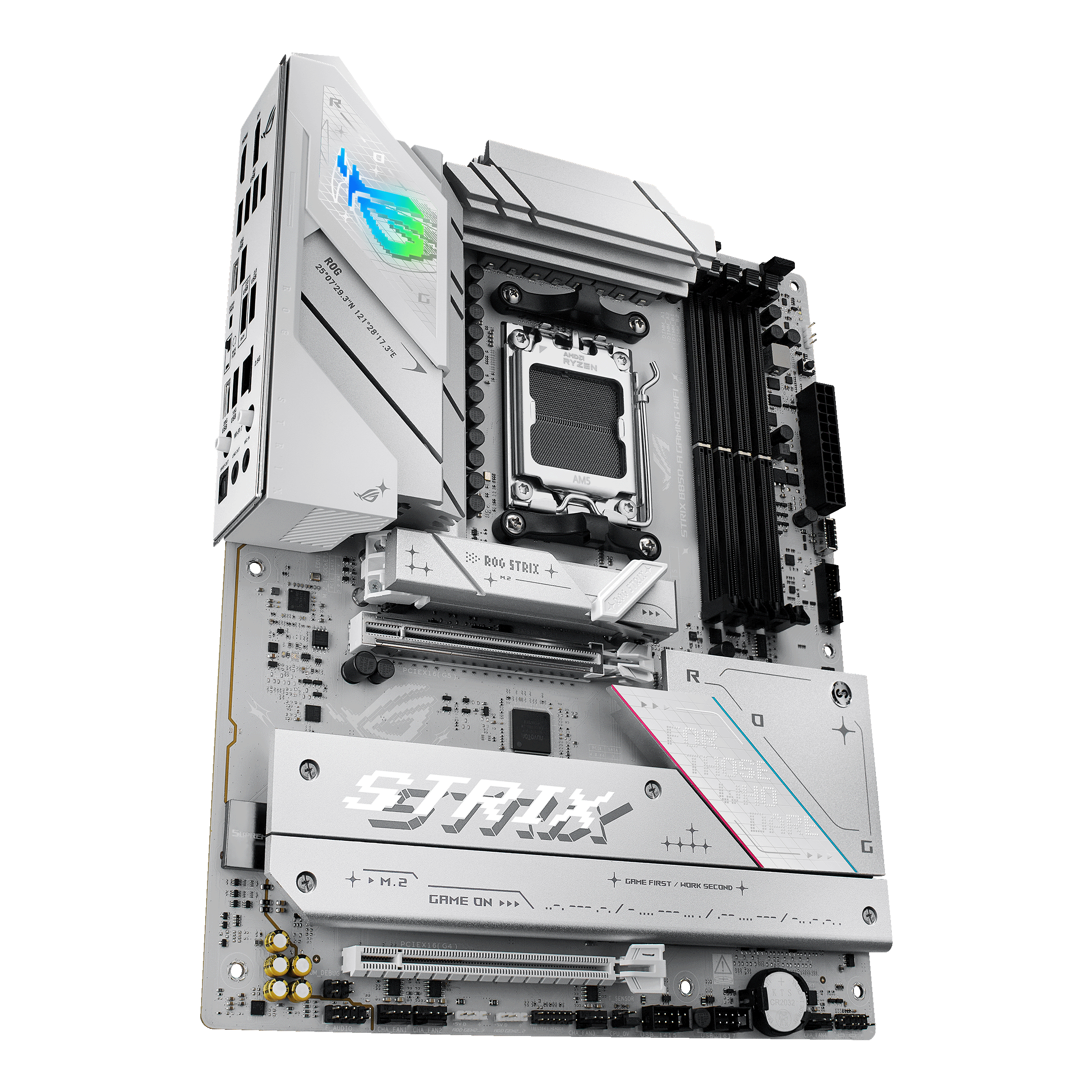

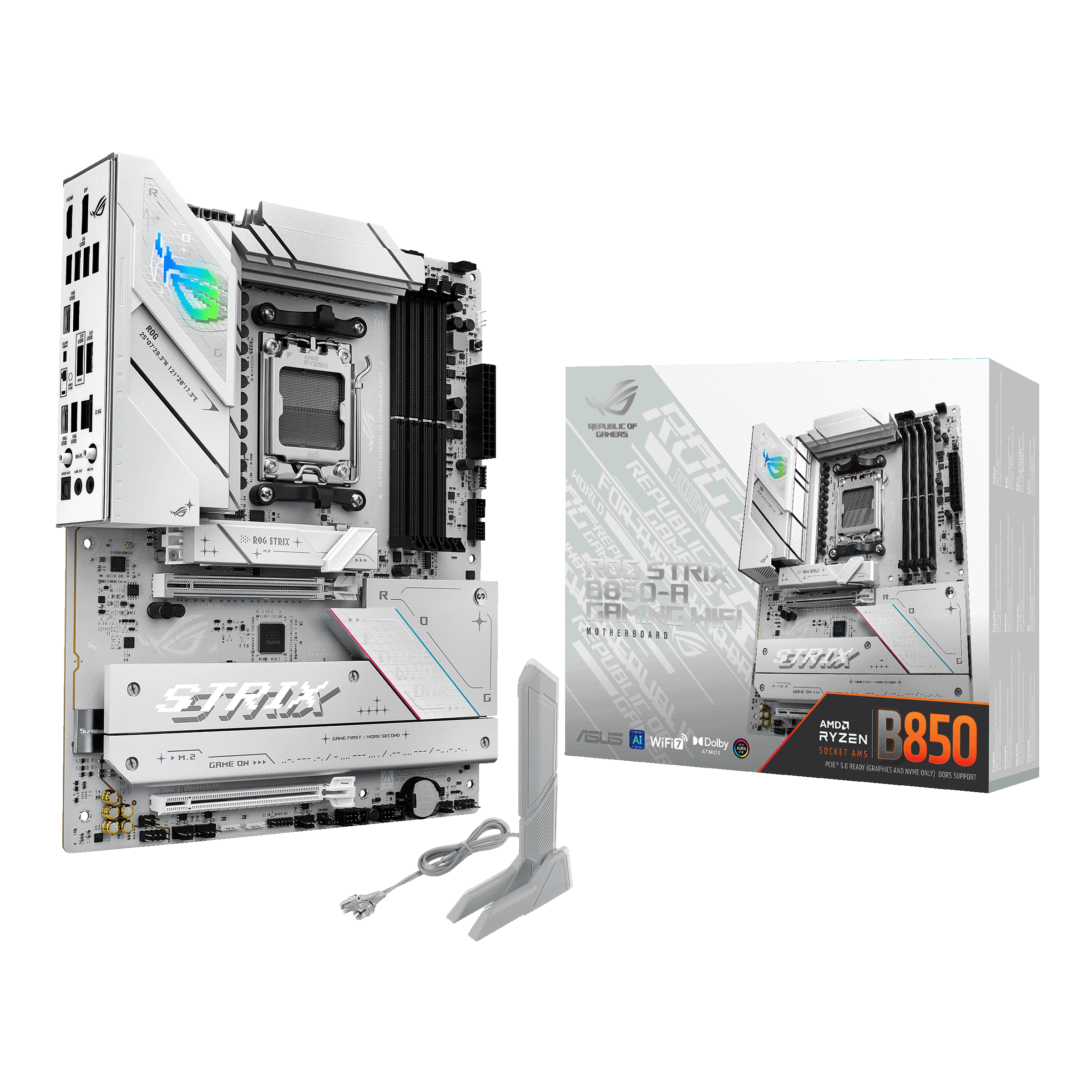

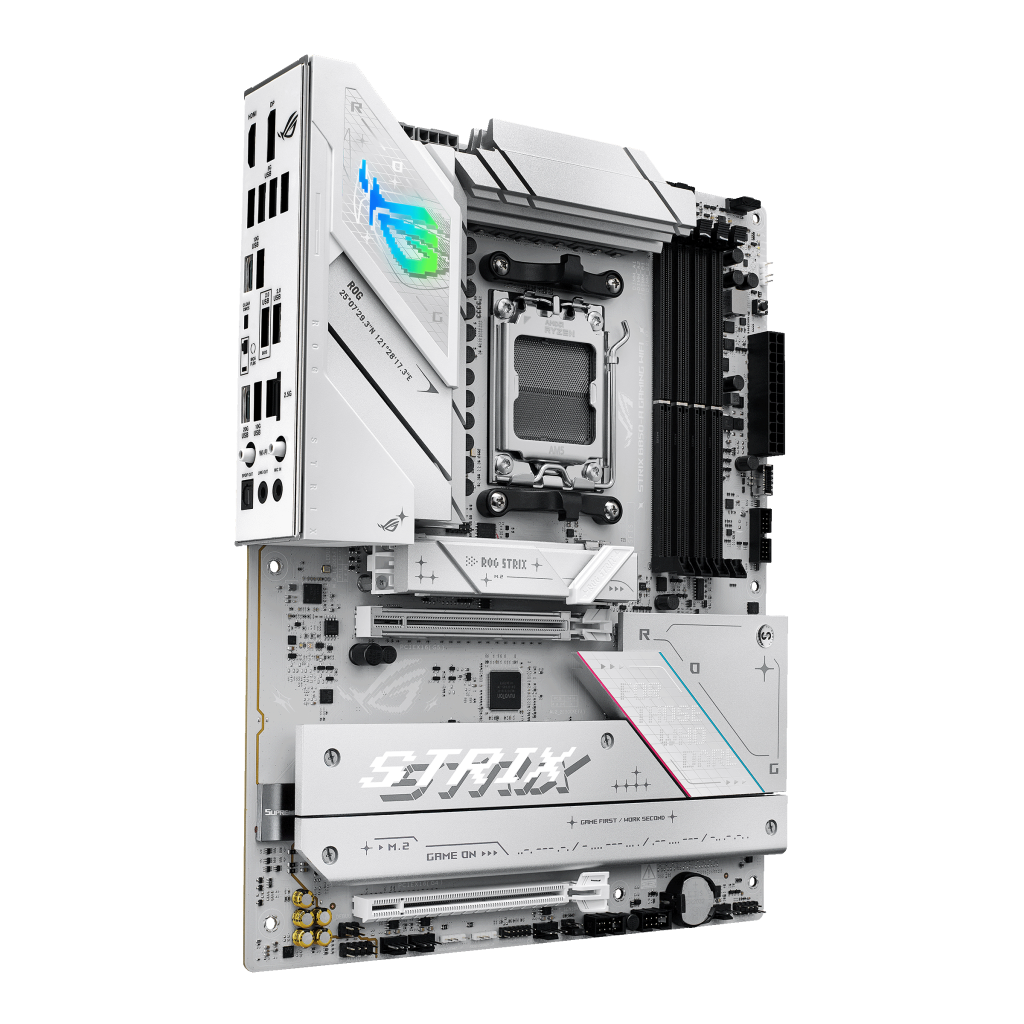

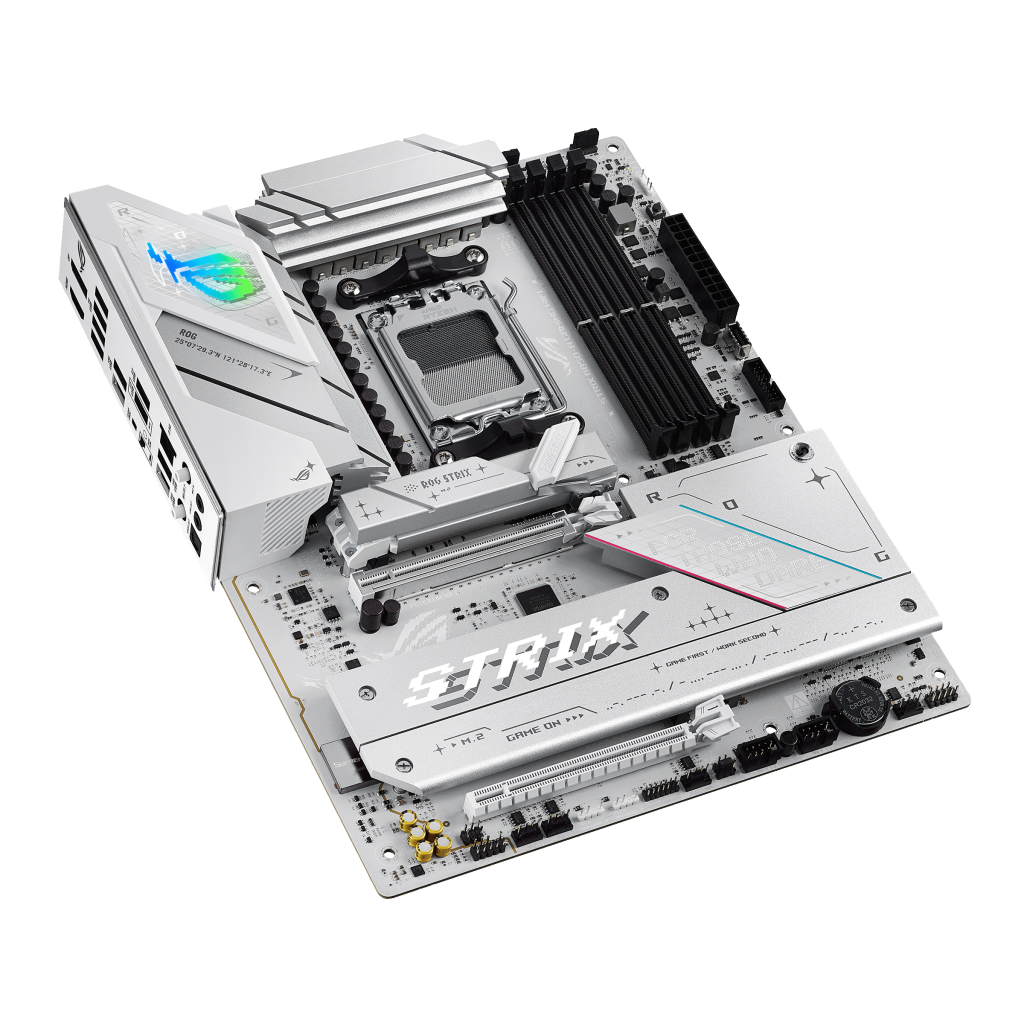

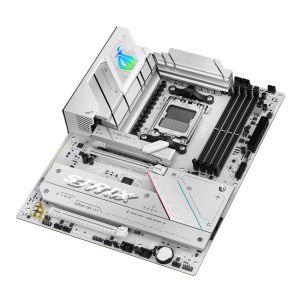

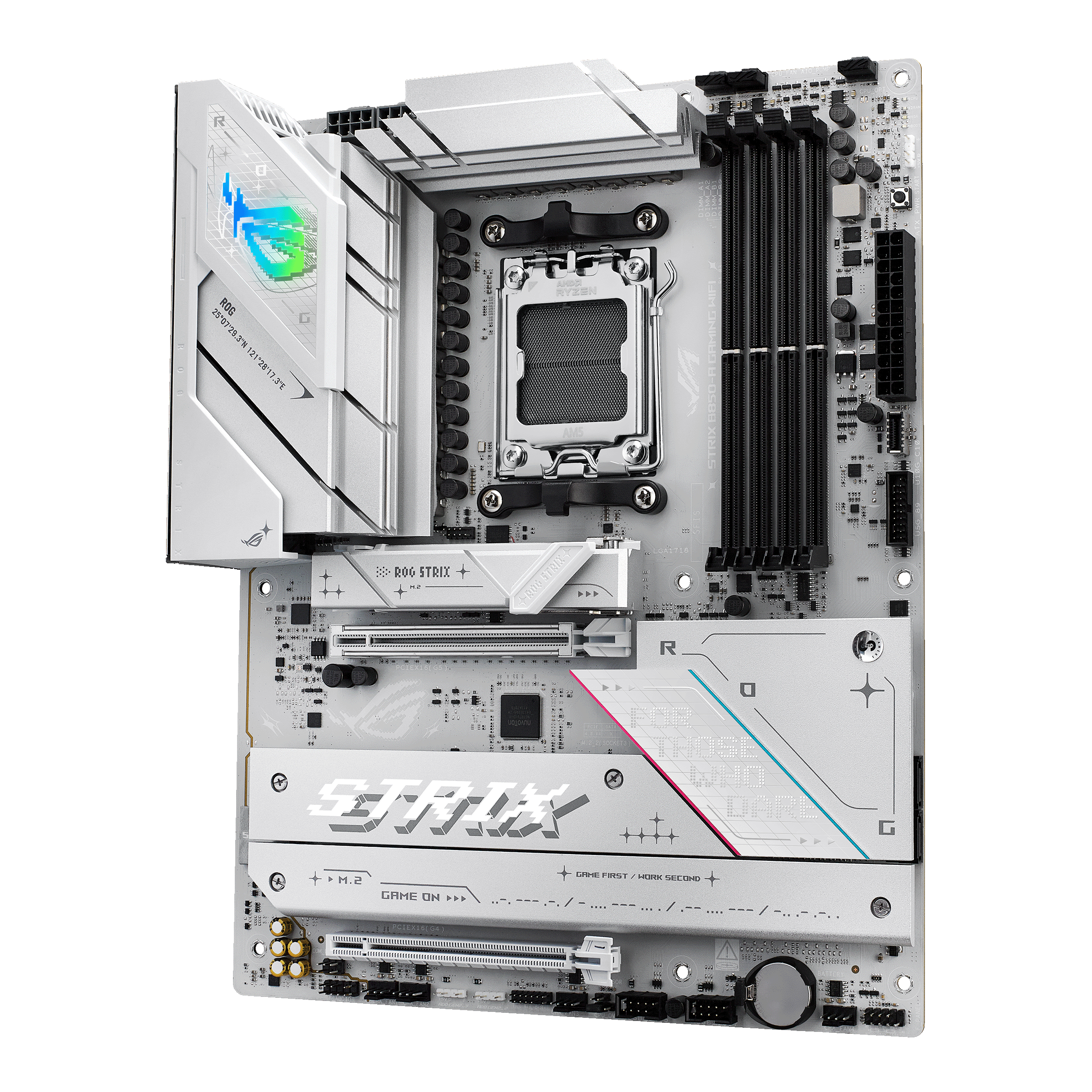

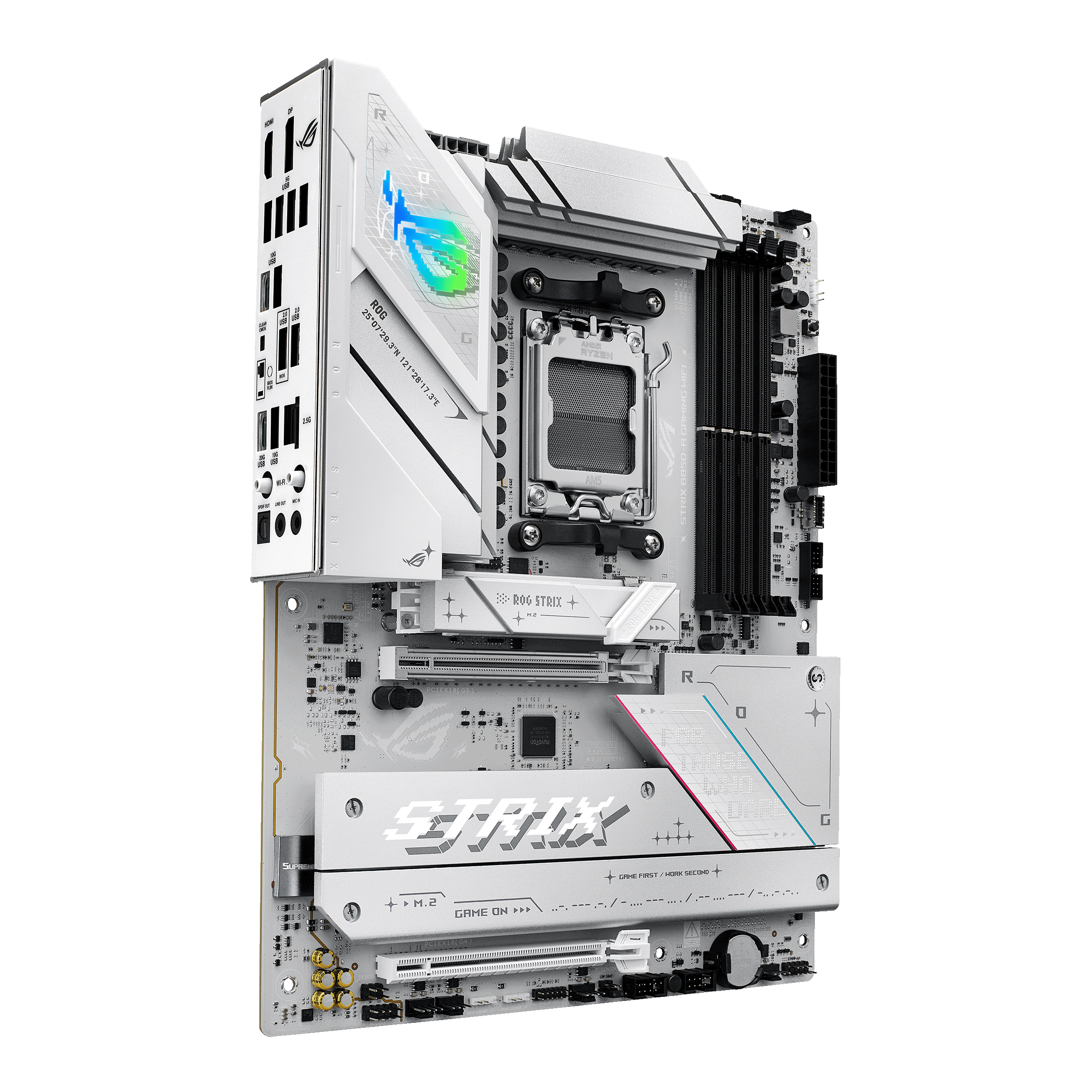

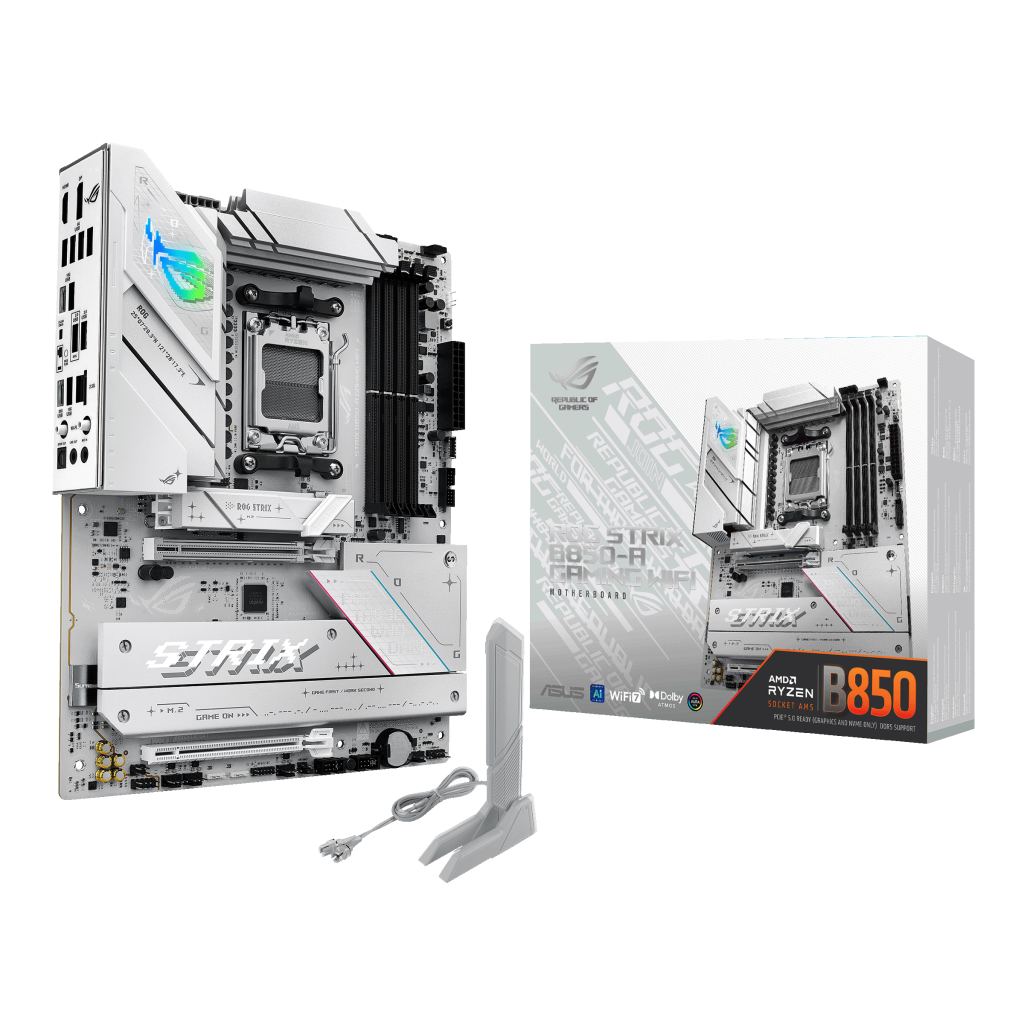

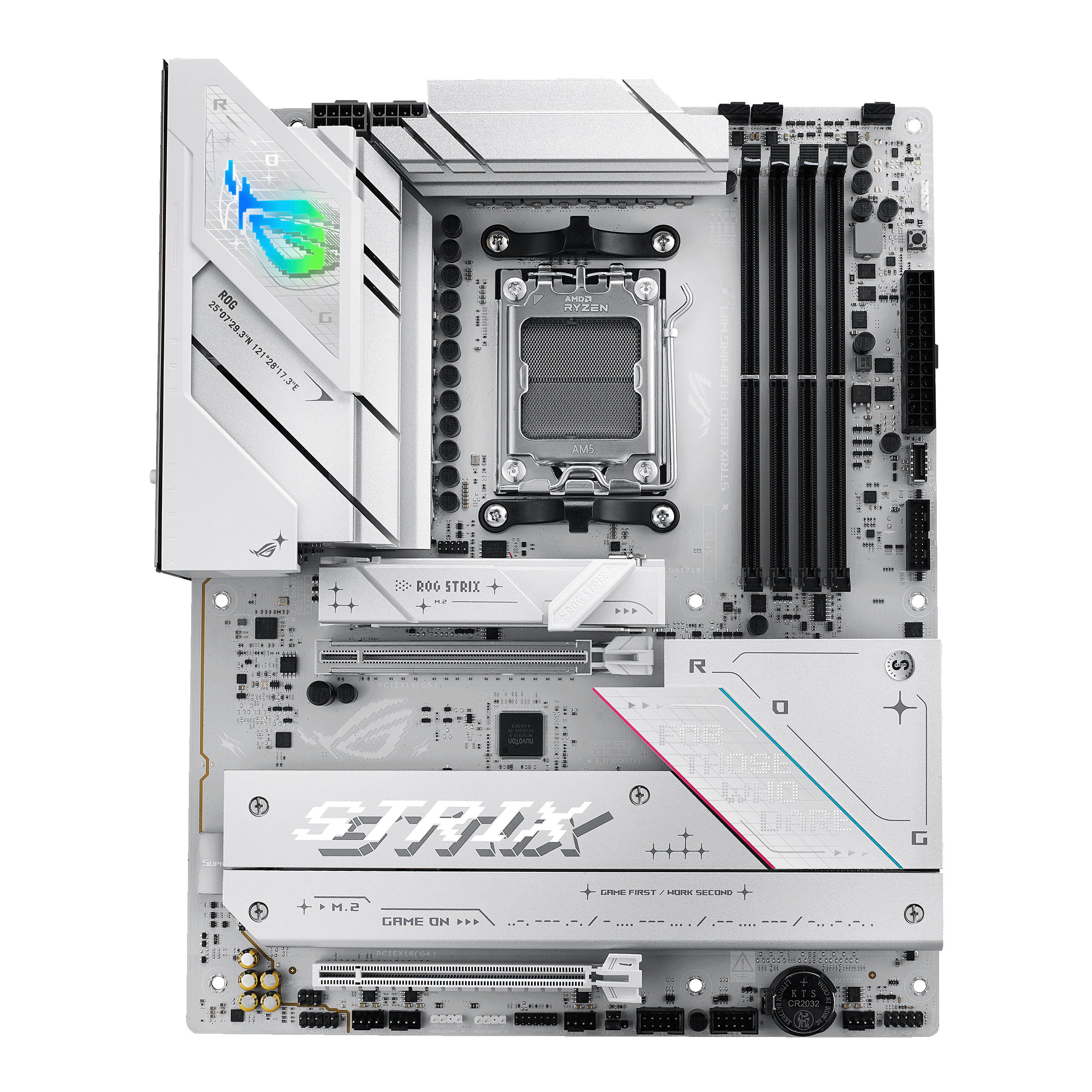

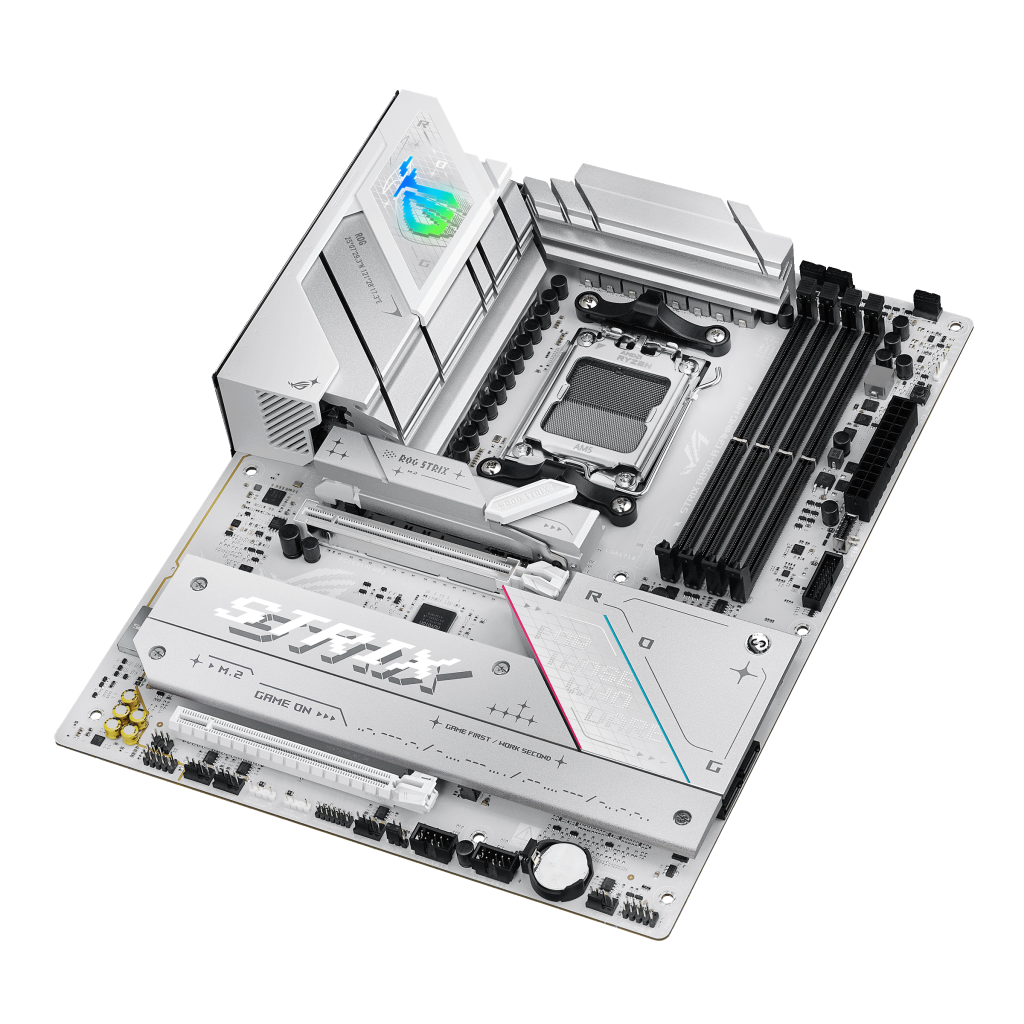

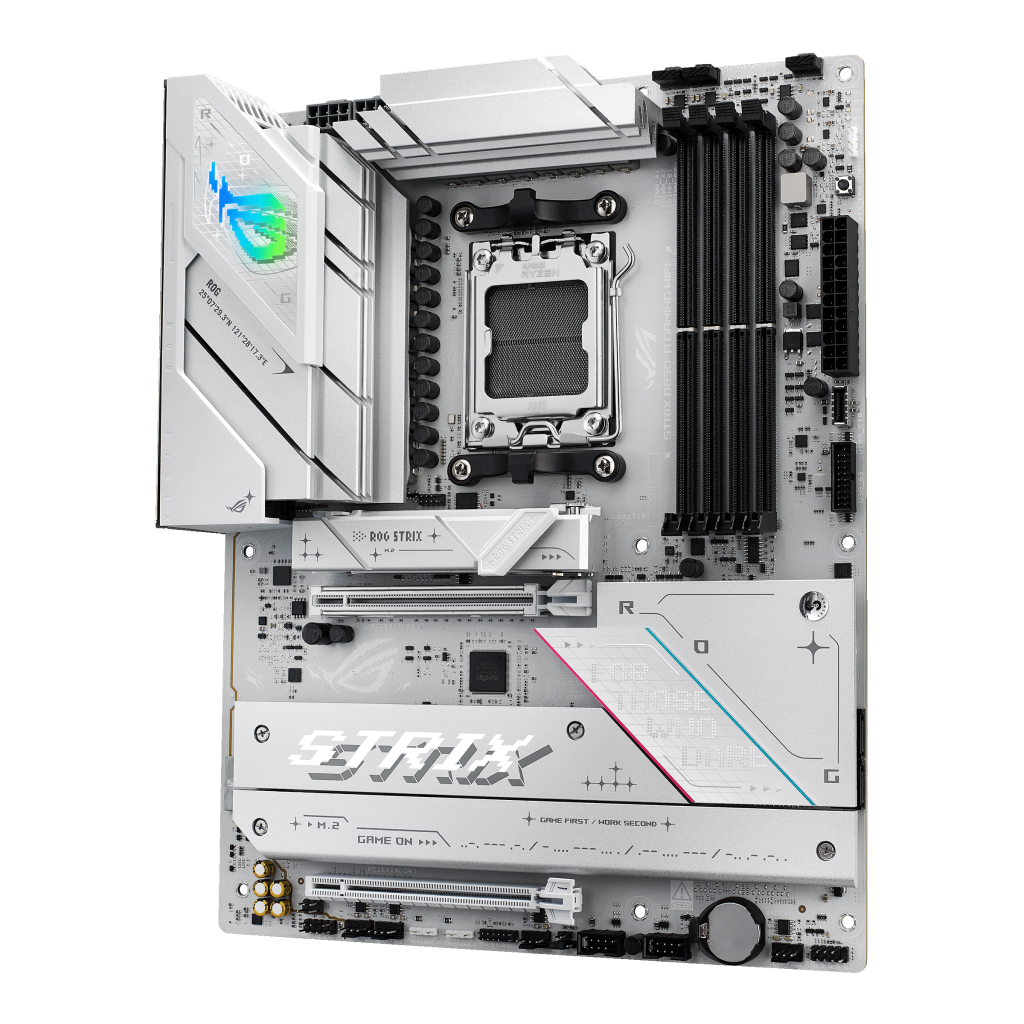

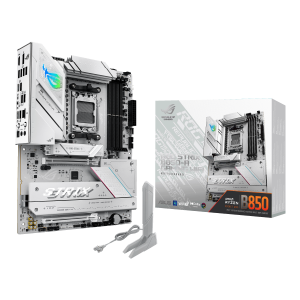

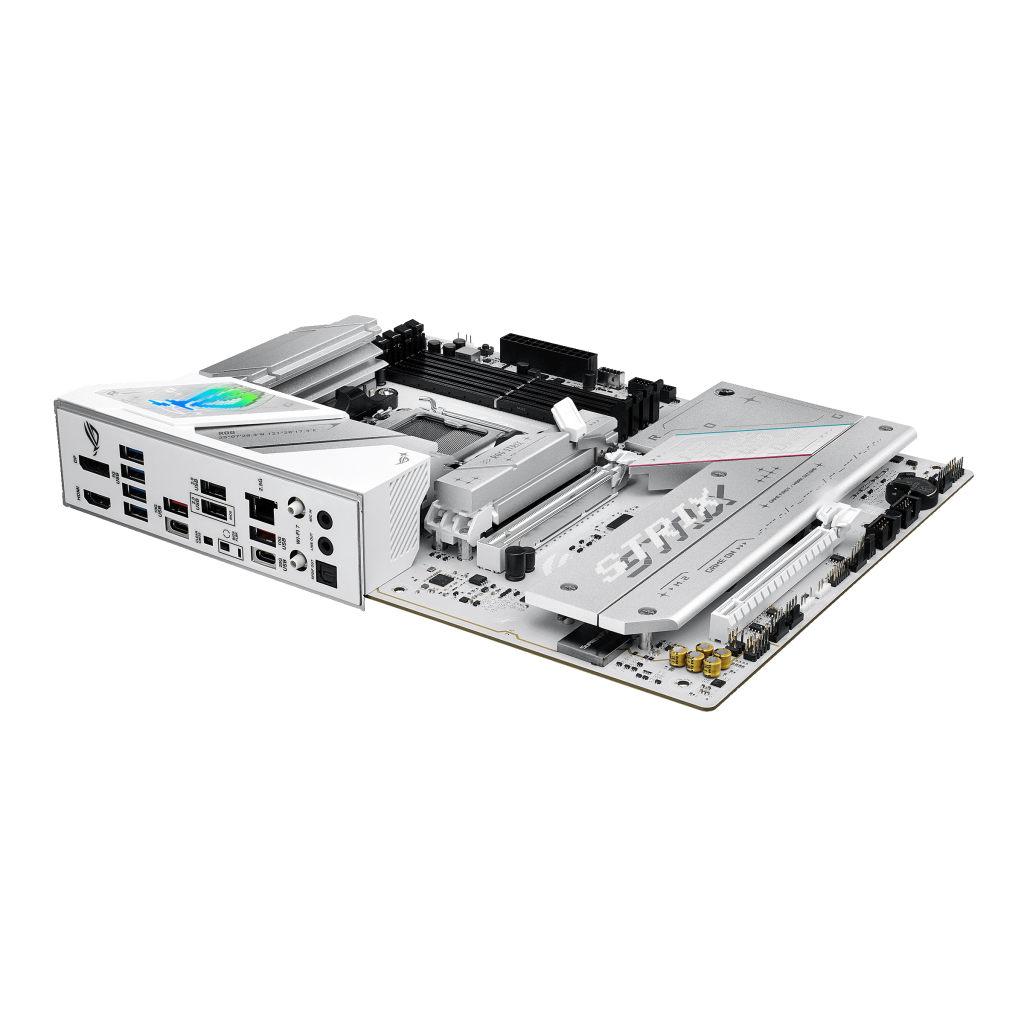

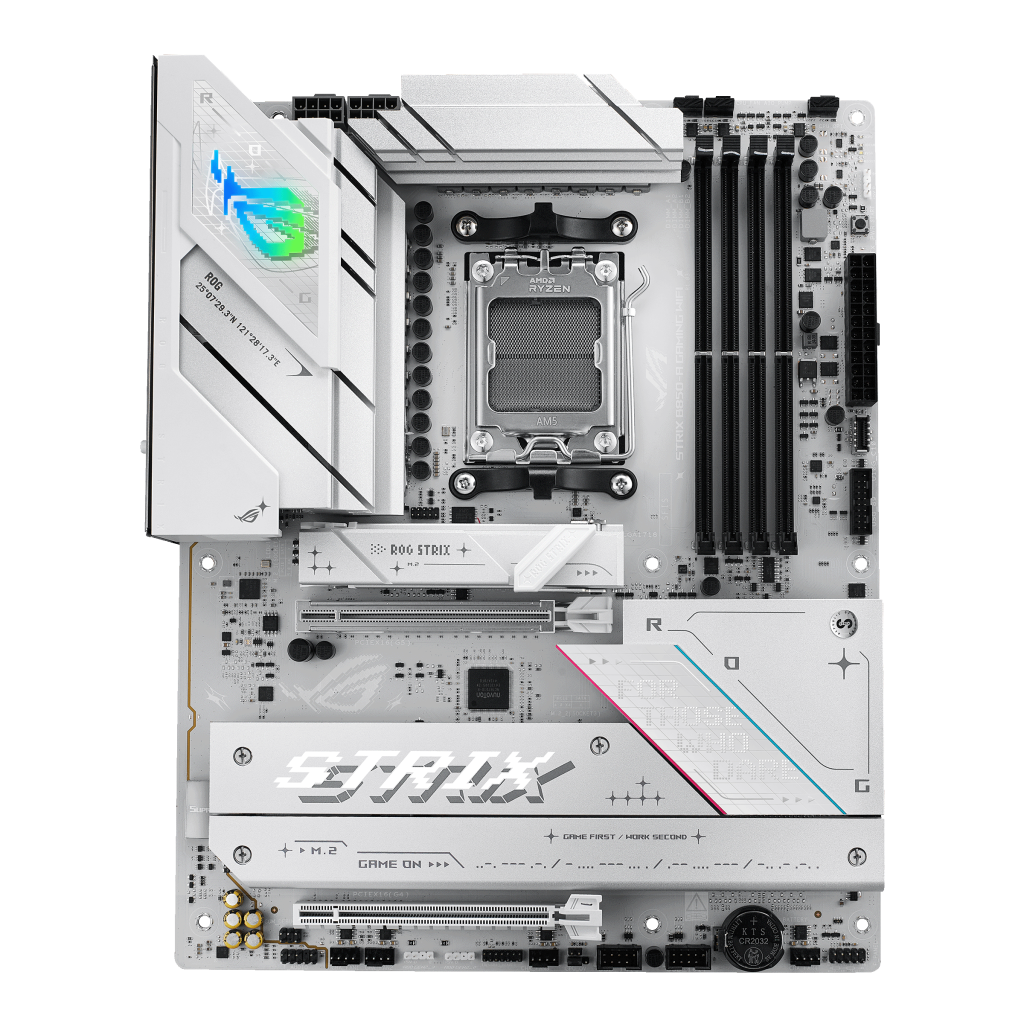

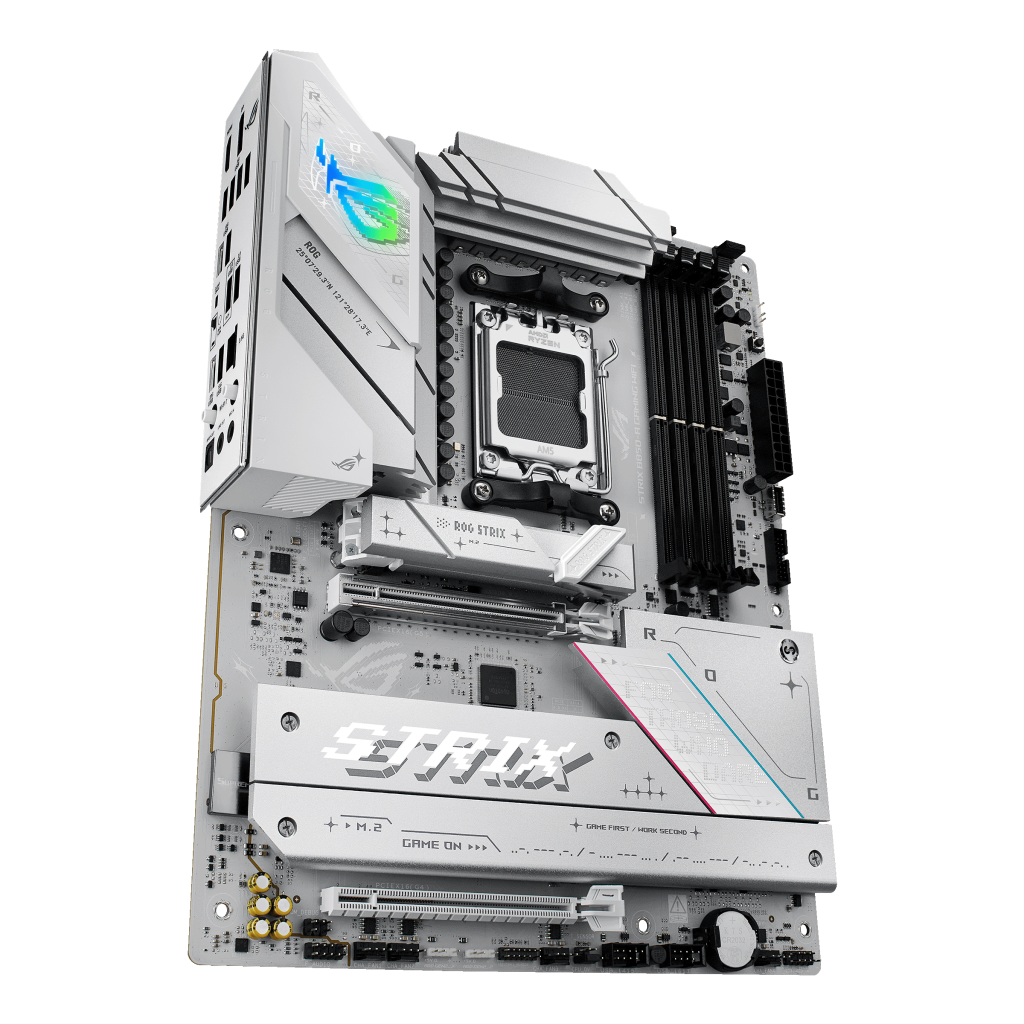

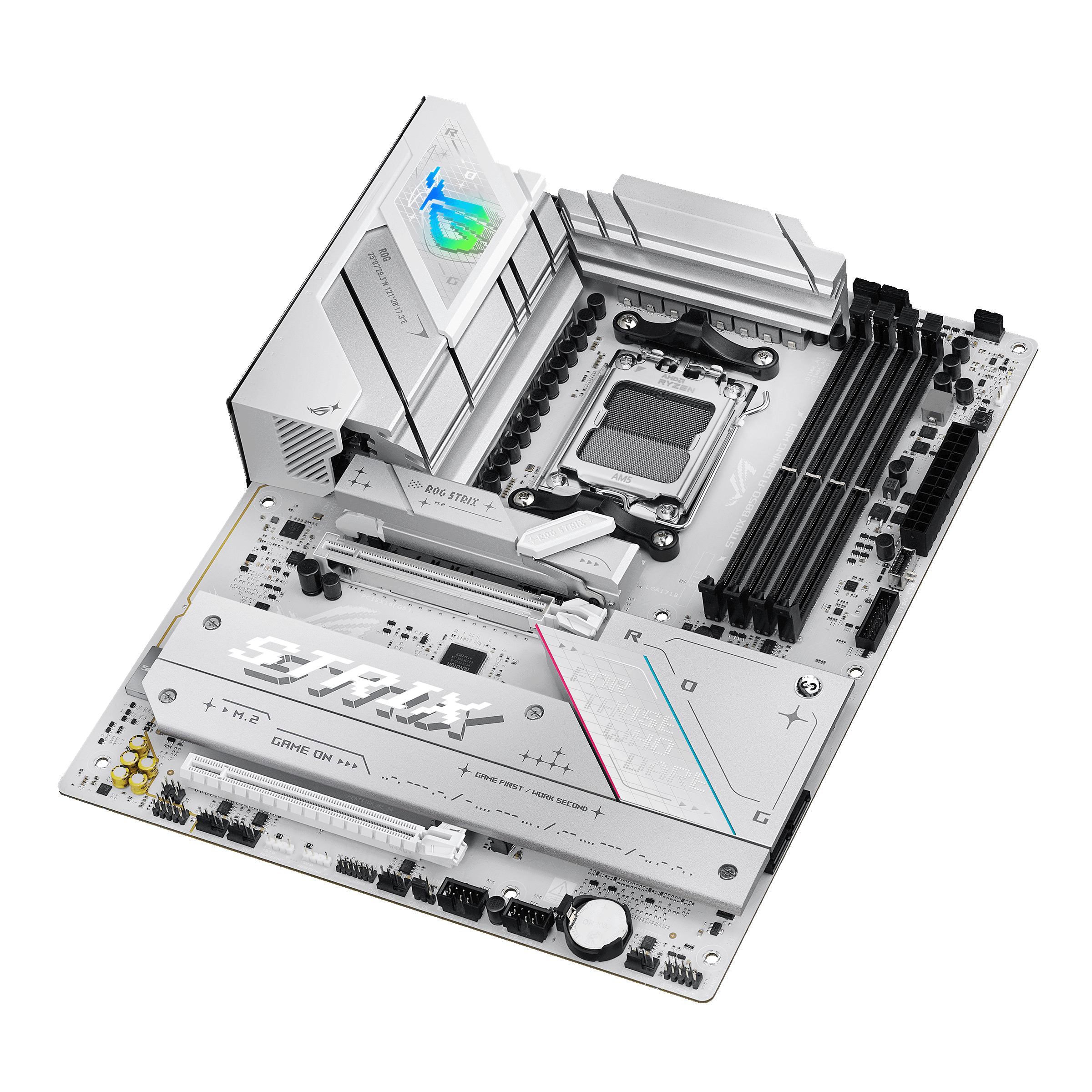

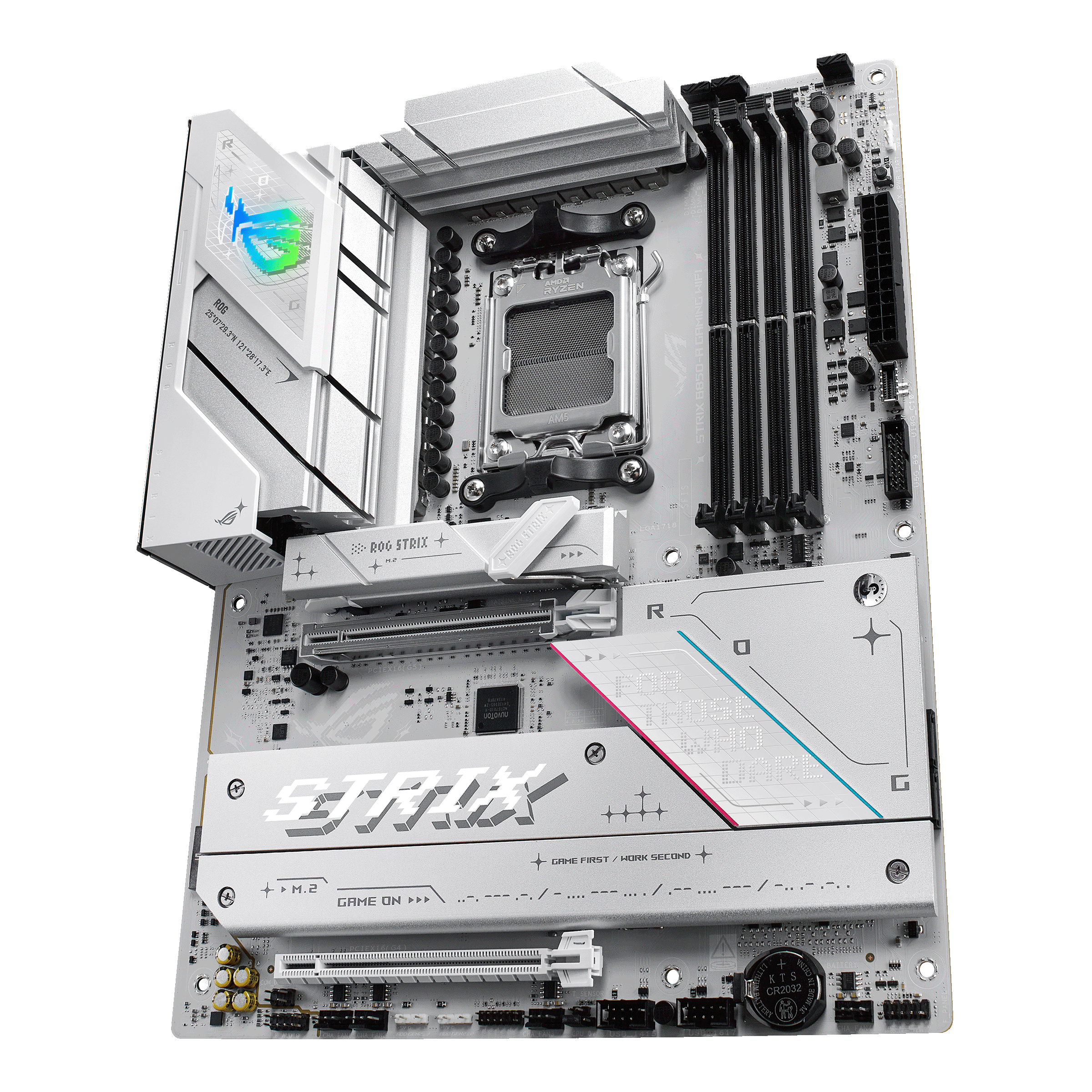

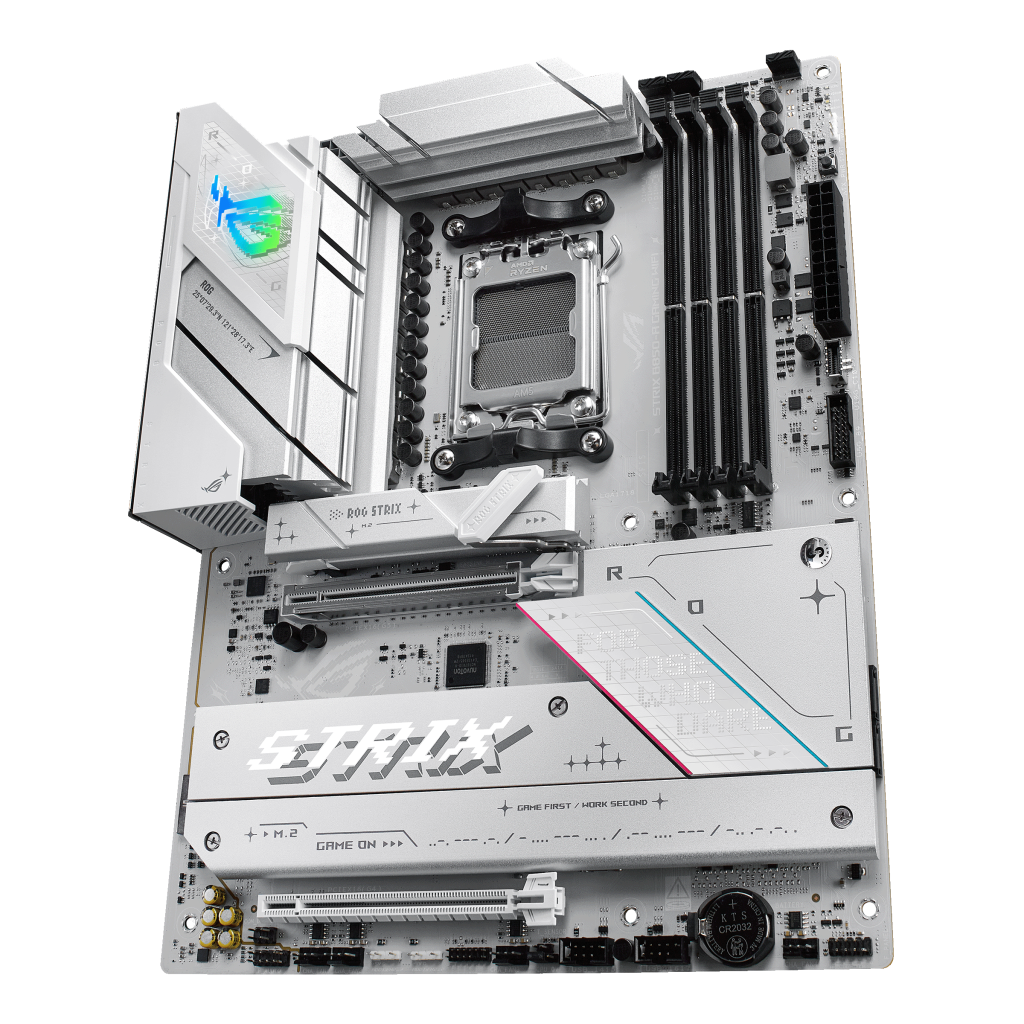

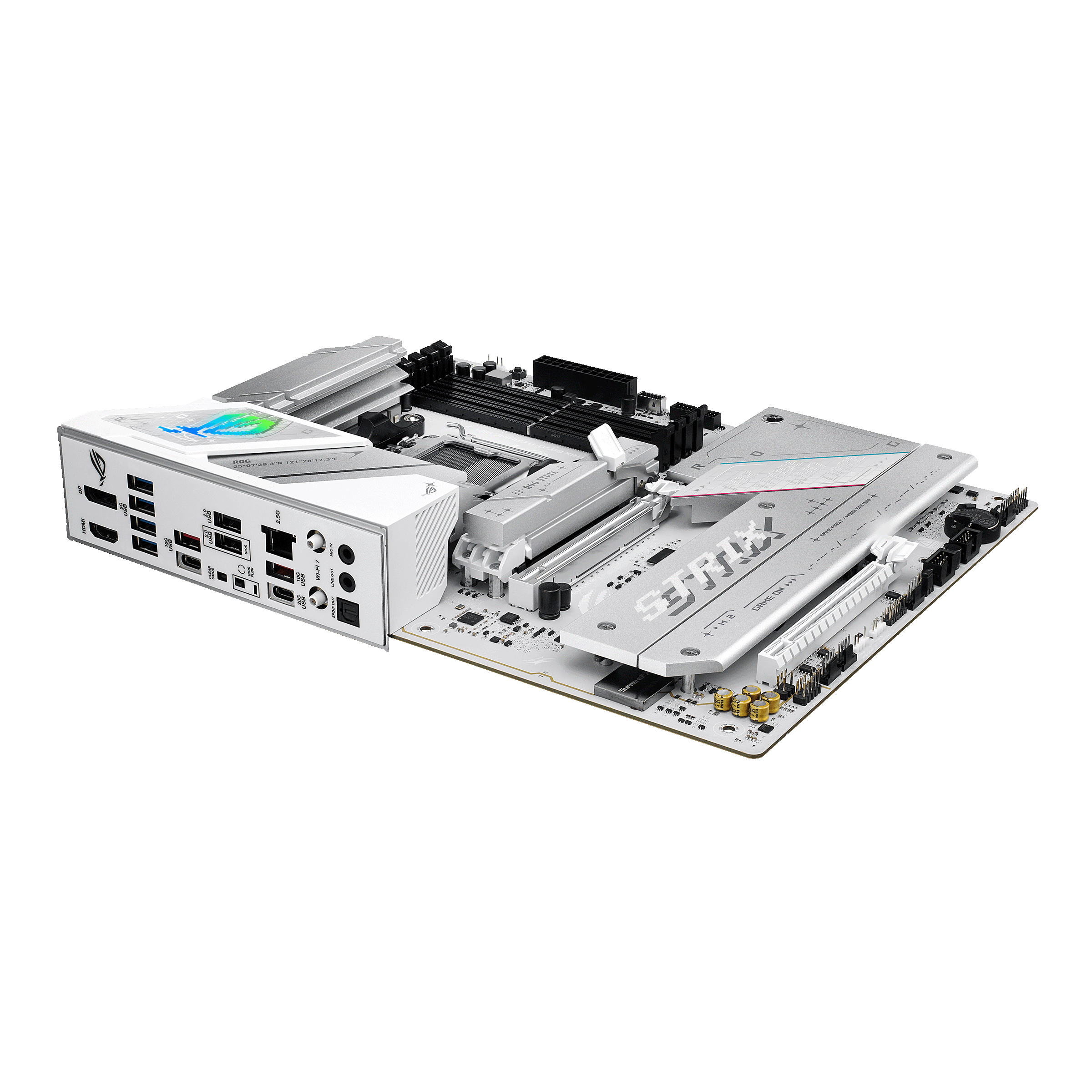

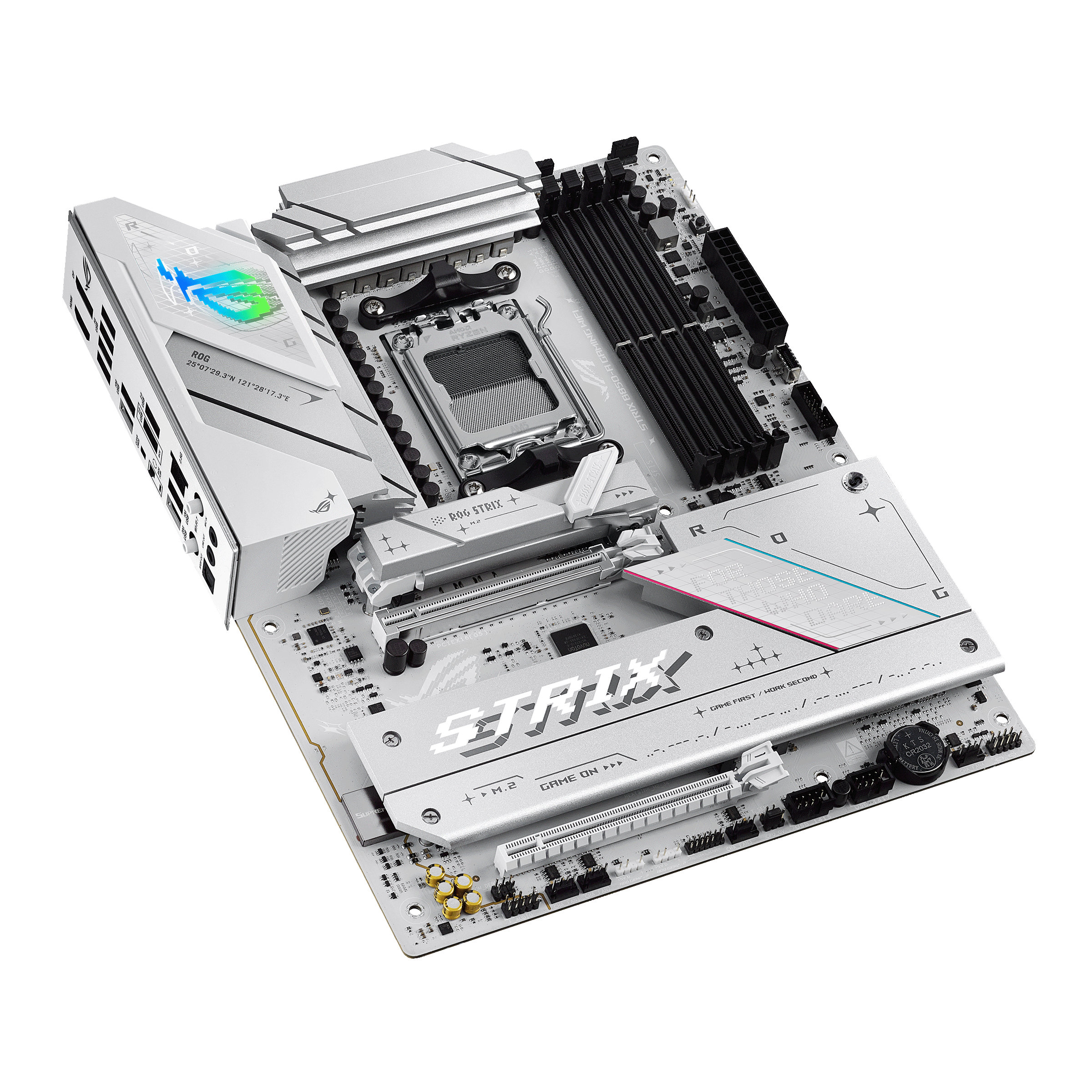

ASUS ROG STRIX B850-A Gaming WiFi motherboard, socket AM5, AMD B850, ATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 8,000 MT/s
– Storage: 4x M.2 (1x PCIe 5.0 & 3x PCIe 4.0) and 2x SATA

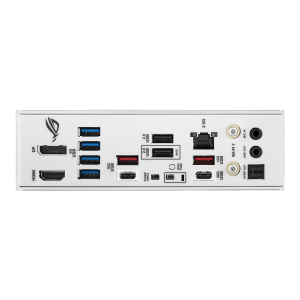

– USB: 1x USB-C 3.2, 1x USB-C 3.1, 2x USB 3.1, 4x USB 3.0, and 2x USB 2.0
– Cooling: 7x 4-pin PWM connectors for fans and radiators

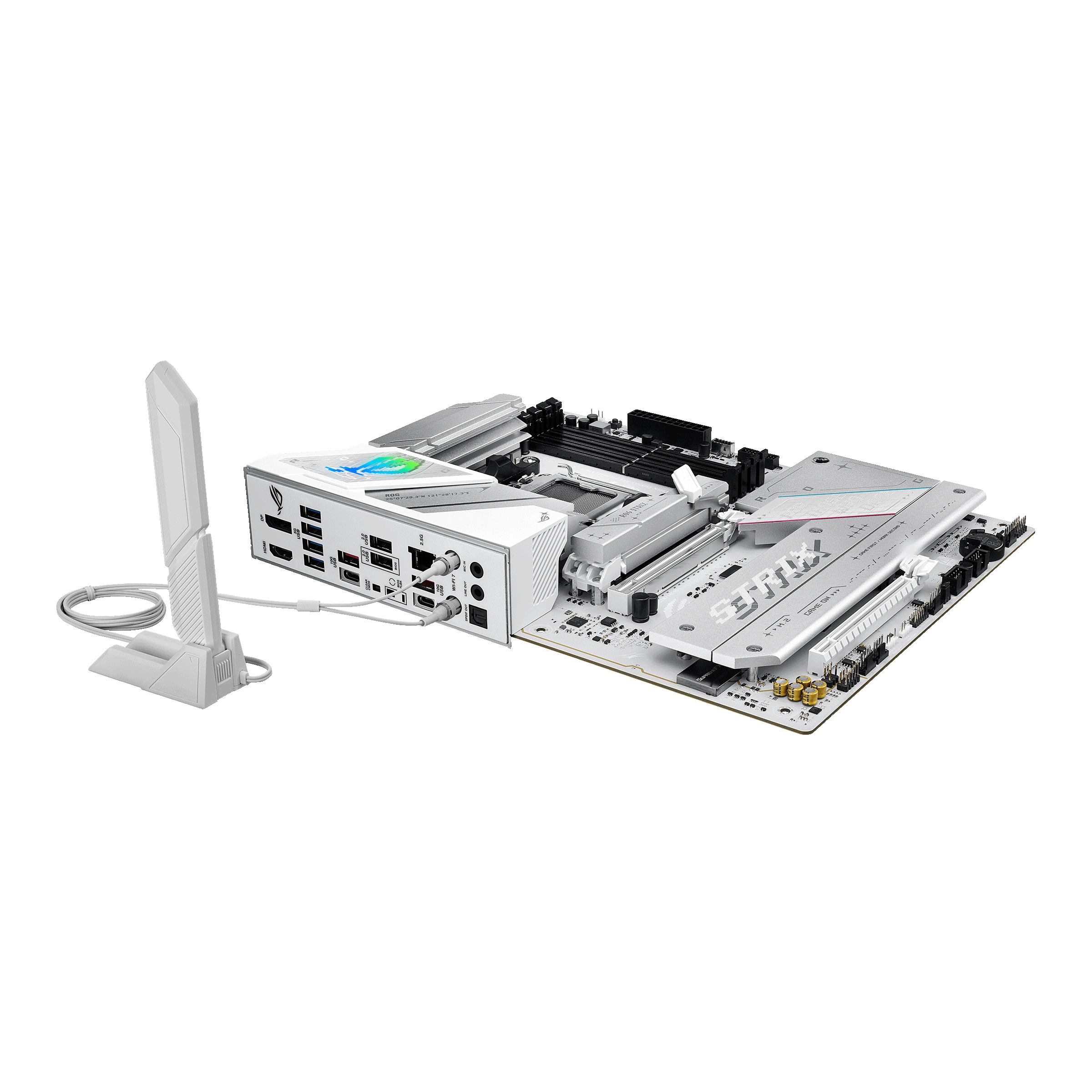

– Connectivity: Wi-Fi 7 and Bluetooth 5.4

ASUS ROG STRIX B850-A Gaming WiFi: ATX motherboard with AMD AM5 socket and B850 chipset
The ASUS ROG STRIX The B850-A Gaming WiFi is an ATX motherboard with the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 CPUs.

Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 40 Gbps are possible via USB 4.

Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked to higher clock speeds via the motherboard. This ensures a stable power supply to the processor, allowing even high-end CPUs to run at full performance for longer periods. You can also fully utilize the DDR5 memory with overclocking. Just in case, the ASUS ROG STRIX B850-A Gaming WiFi offers BIOS Flashback and Clear CMOS.

Technical Details
– Color
– Main Color
– White
– Dimensions
– Length / Depth
– 244 mm
– Width
– 305 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B850

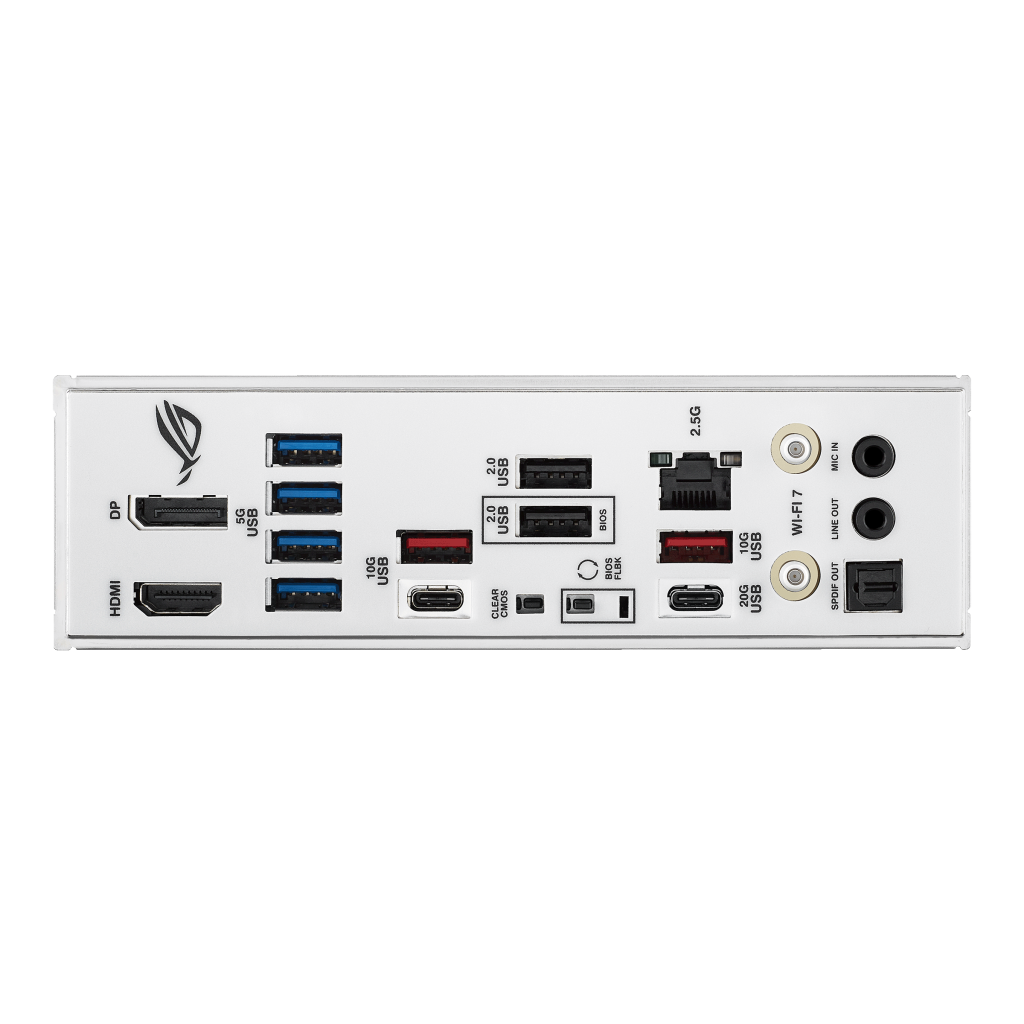

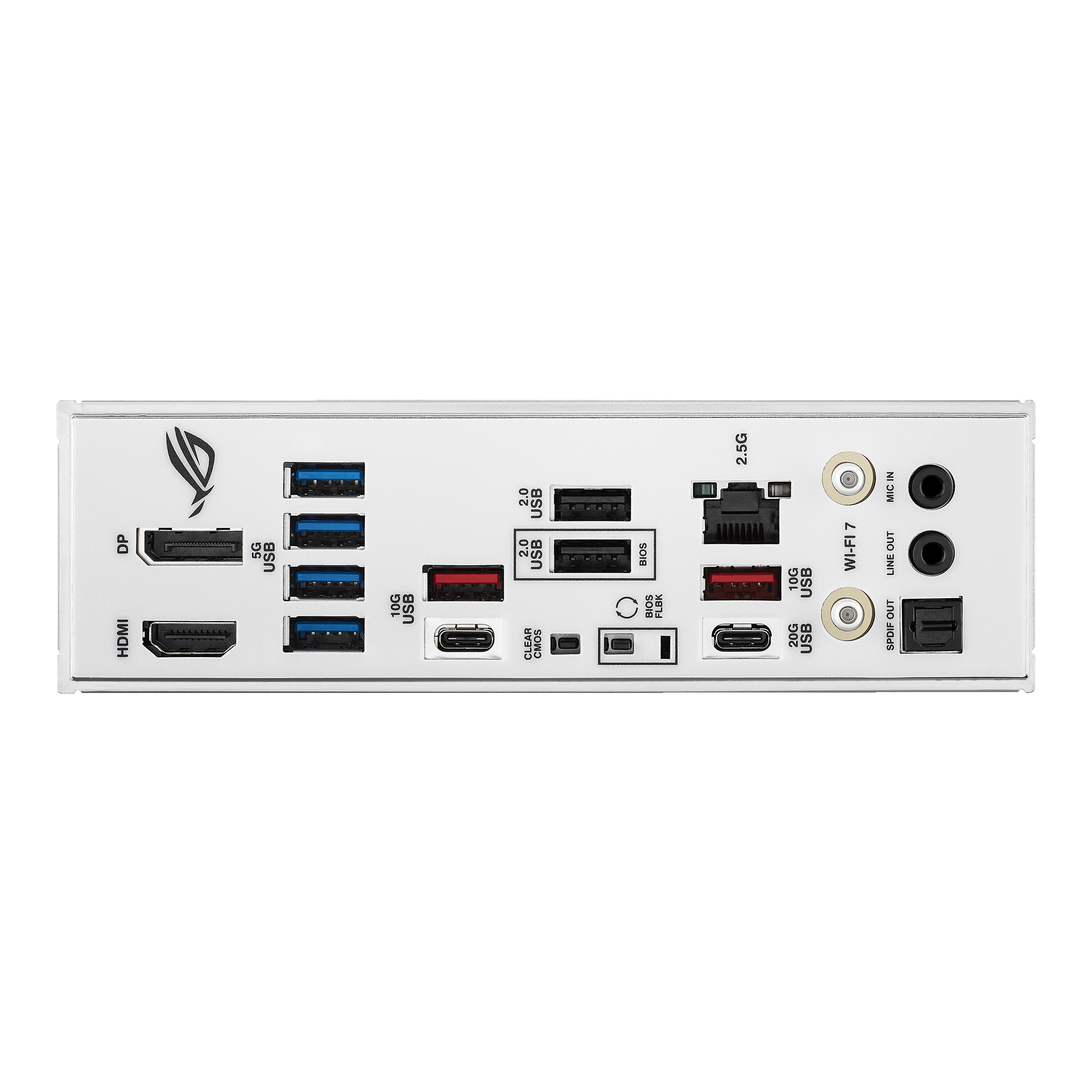

– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– UDIMM
– Max. Memory Speed (OC)
– 8000 MT/s
– ECC Support
– Yes
 -Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 8-pin
– USB4 (internal) header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible connectors
– 2
– – USB 2.0 (internal) header
– 1
– USB 2.0 (internal) possible connectors
– 2
– RGB / LED connectors
– 3x Digital RGB (3-pin 5VDG)
