Gigabyte X870E AORUS PRO ICE motherboard, socket AM5, AMD X870E, ATX, DDR5

– 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x2), and 1x PCIe 3.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,000 MHz (OC)
– 4x M.2 (including 3x PCIe 5.0 and 1x PCIe 4.0) / 4x SATA 6G
– 2x USB 4, 3x USB 3.1, 4x USB 3.0, and 2x USB 2.0 on the I/O panel
– OC features: 16+2+2 VRMs
– A total of 8x 4-pin PWM fans supported

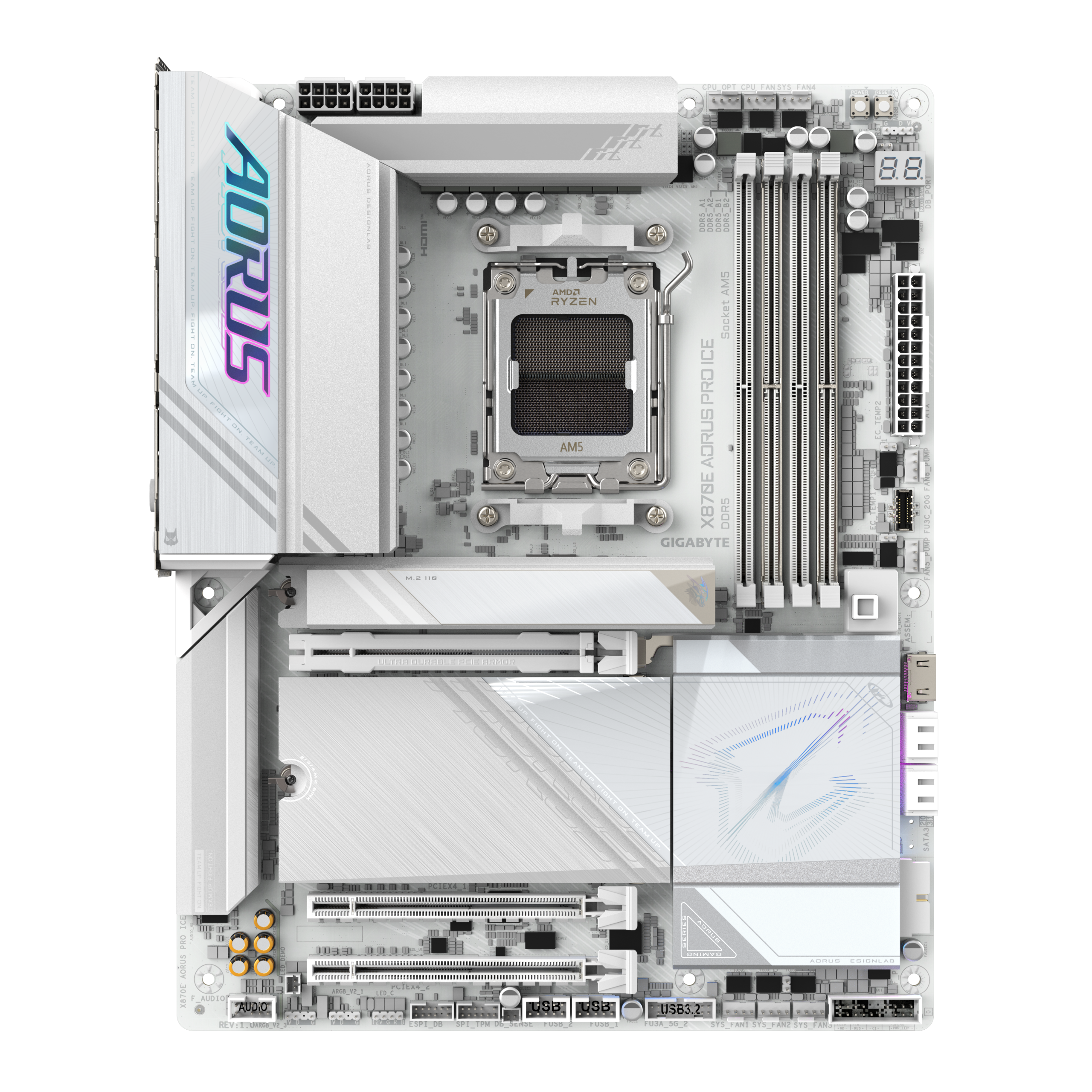

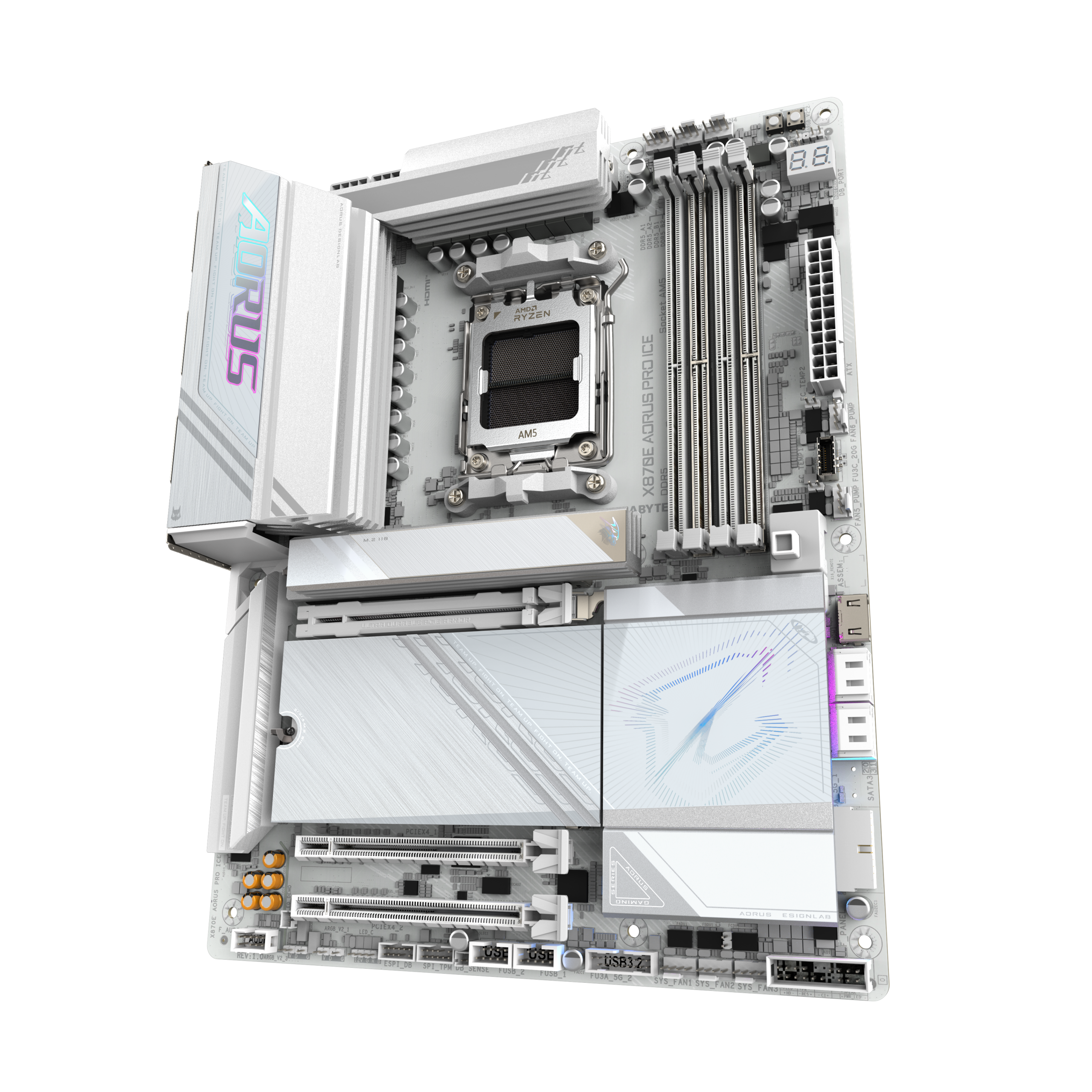

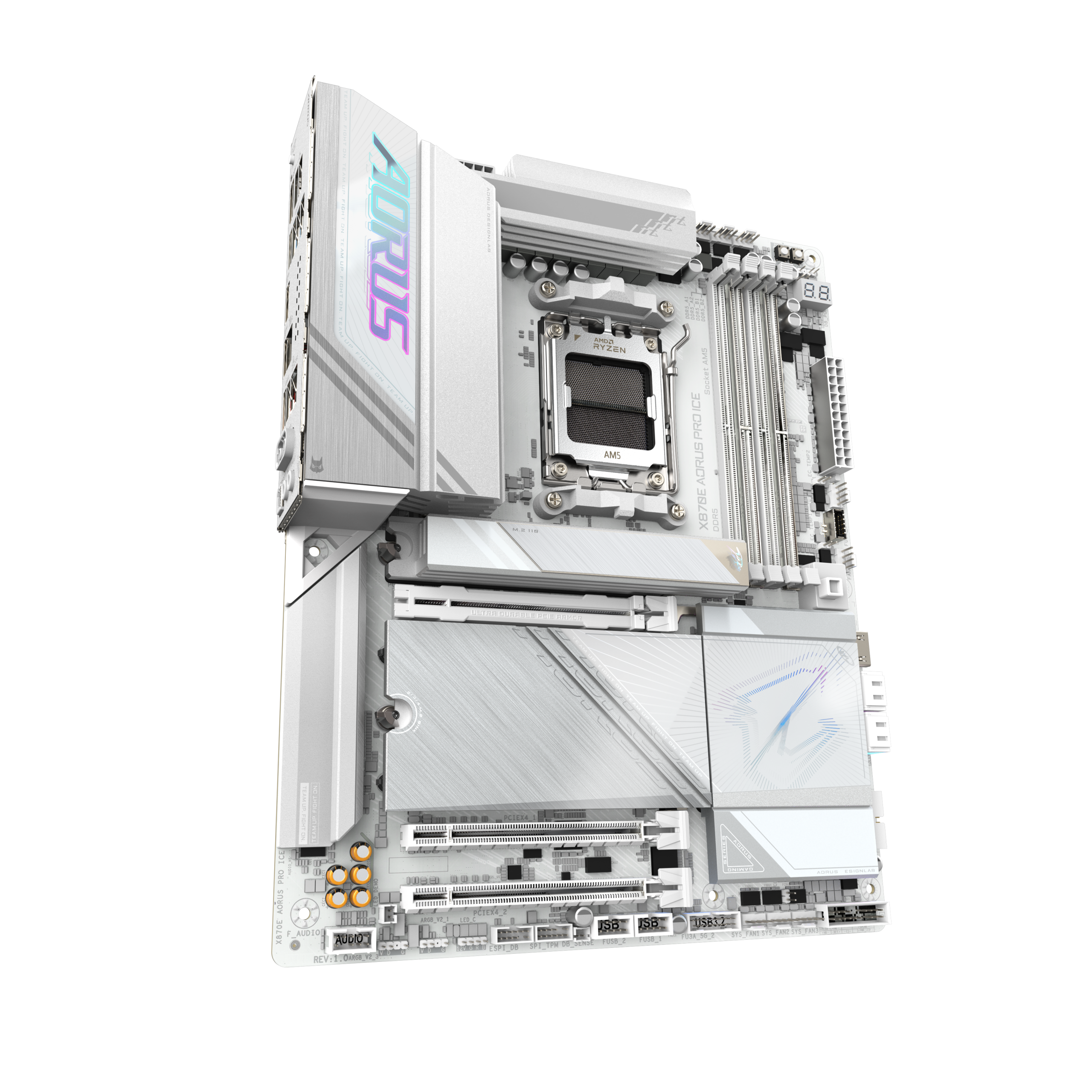

GIGABYTE X870E AORUS PRO ICE: ATX motherboard with AMD AM5 socket and X870E chipset
The GIGABYTE X870E Equipped with the high-end X870E chipset for AMDs Ryzen 9000 series processors, the AORUS PRO ICE offers numerous features for gamers. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE X870E AORUS PRO ICE supports PCIe 5.0, providing twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Designed for Demanding Applications
The GIGABYTE X870E AORUS PRO ICE is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
– Color
– Main Color
– White
– Dimensions
– Width
– 244 mm
– Height
– 305 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD X870E
– Dual BIOS
– No
– Built-in IO Shield
– Yes
– PCB Layer
– 6
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 5200 MT/s
– Max. Memory Speed (OC)
– 8200 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO, Intel XMP
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x (Total)
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.3
– Wi-Fi Chip
– Qualcomm QCNCM865
– Cooling
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– No
– Internal Connectors
– CPU Power
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 (internal) Header
– 2
– USB 2.0 (internal) Header
– 2
– RGB / LED Connectors
– 3x RGB (4-pin 5050 12VGRB)
– Front Panel Audio Header
– Yes

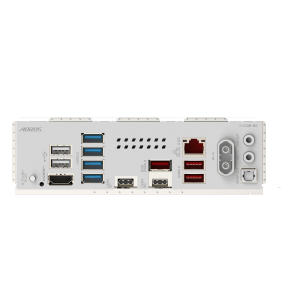

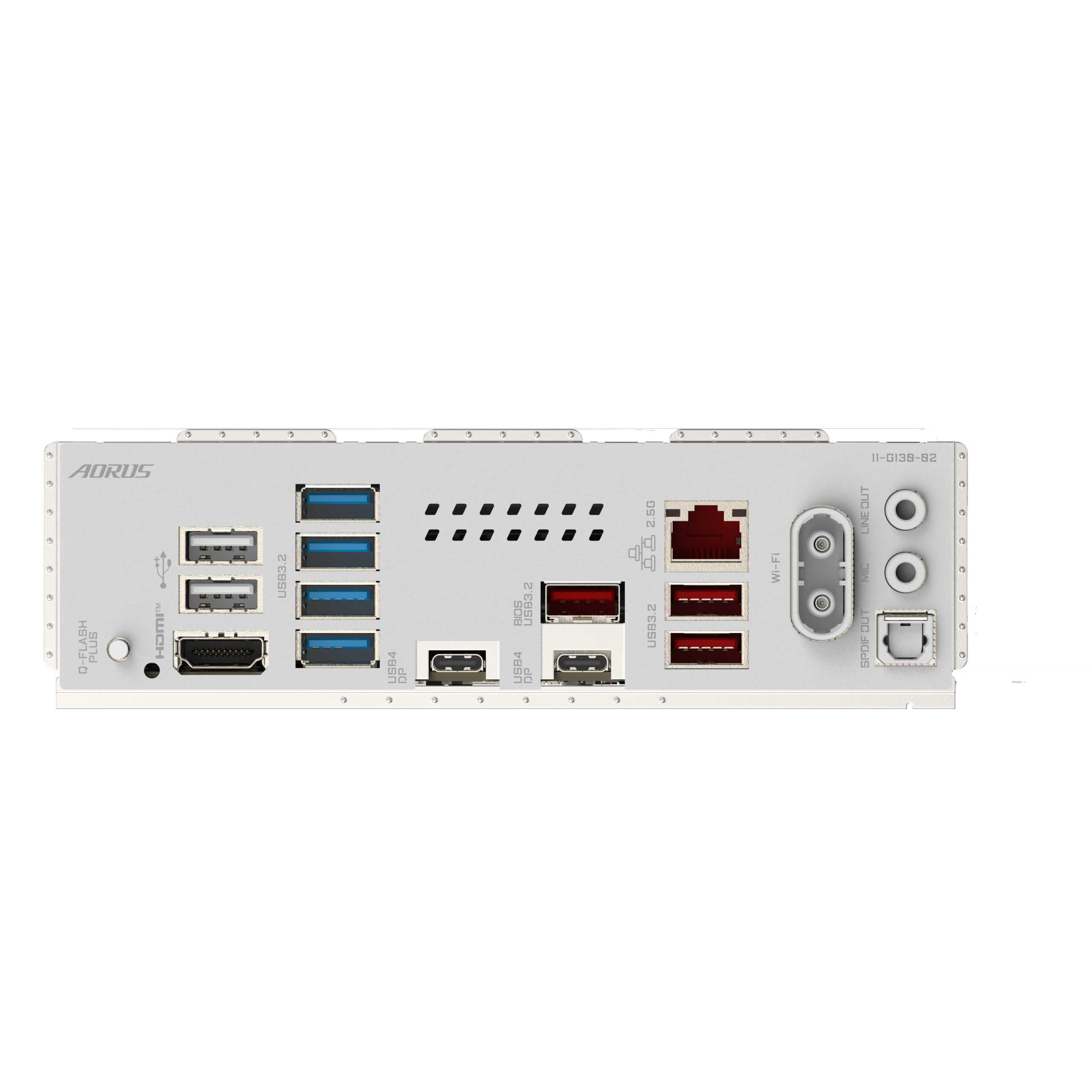

– External Connectors
– USB 4 Gen 2×2 (external) Type-C
– 2
– USB 3.1 (external) Type-A
– 3
– USB 3.0 (external) Type-C
– 4
– USB 2.0 (external) Type-A
– 2
– Display Ports
– HDMI (1x)
