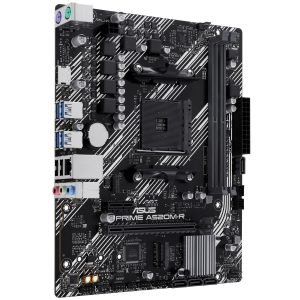

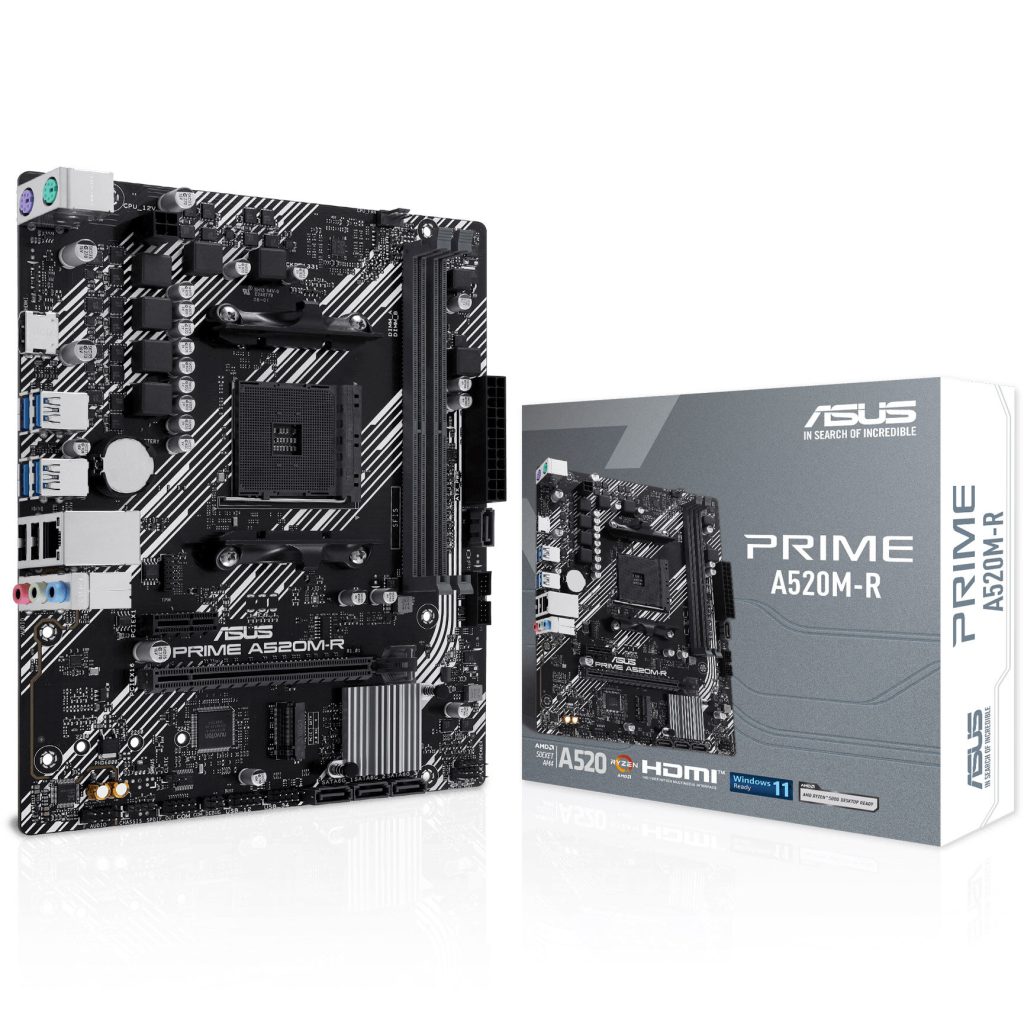

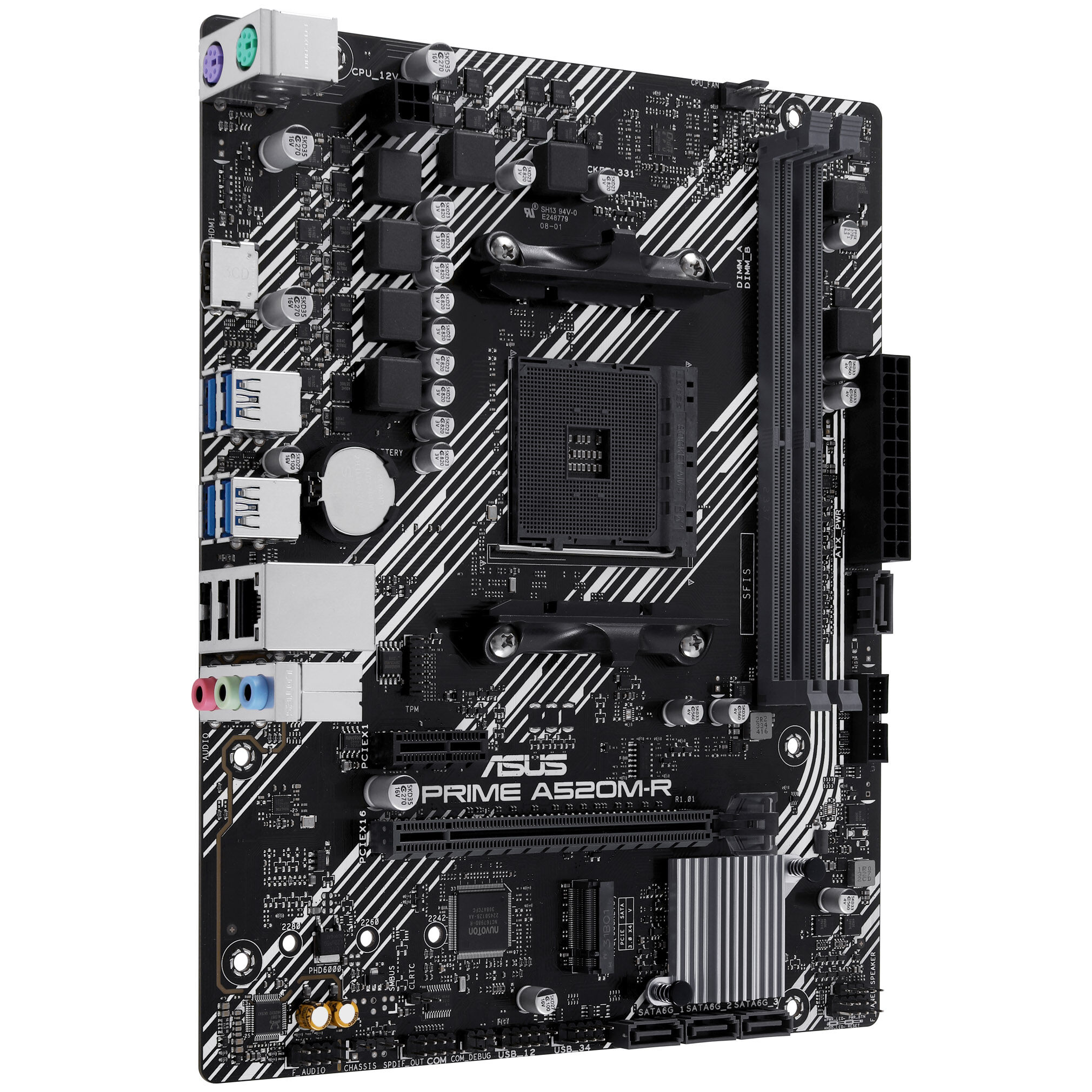

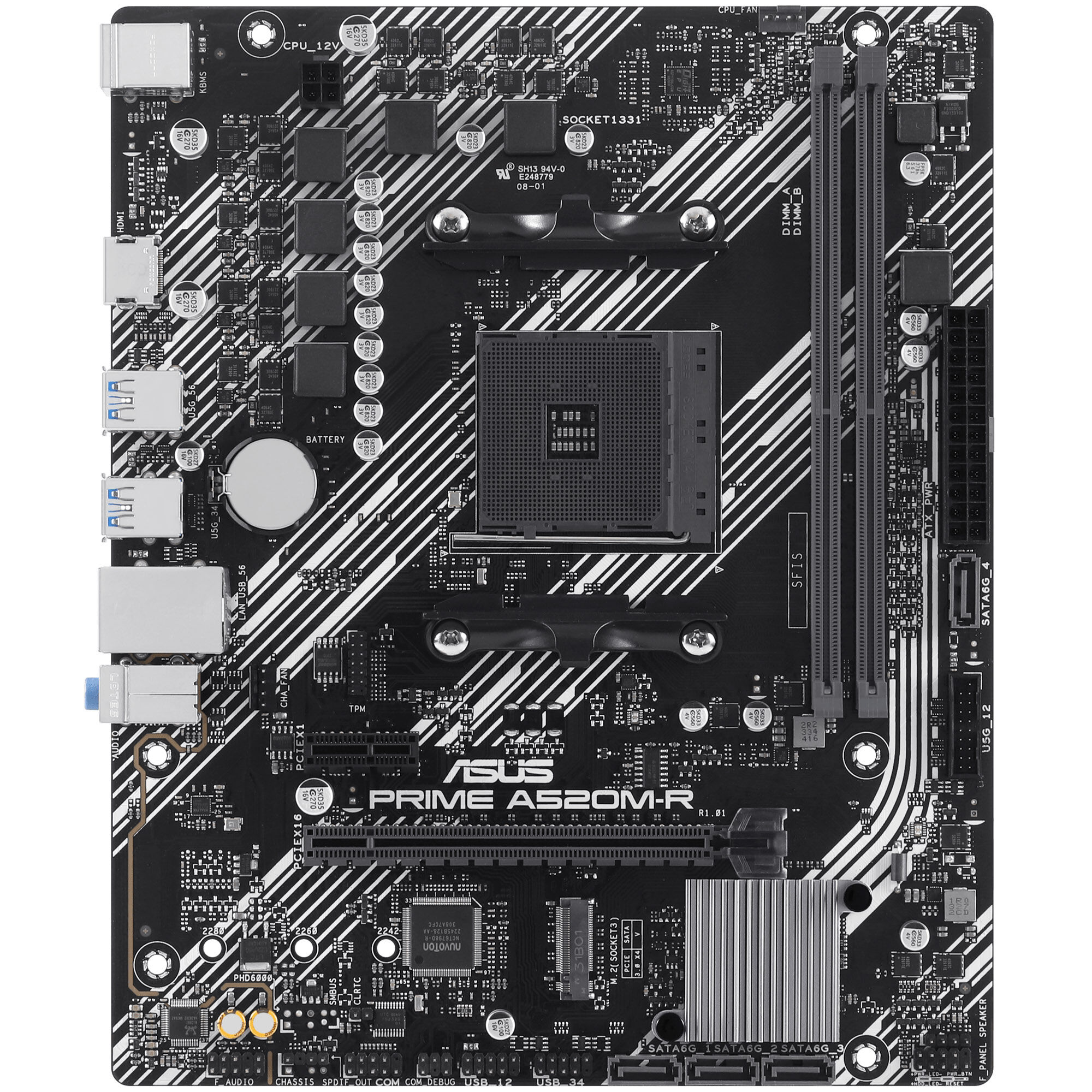

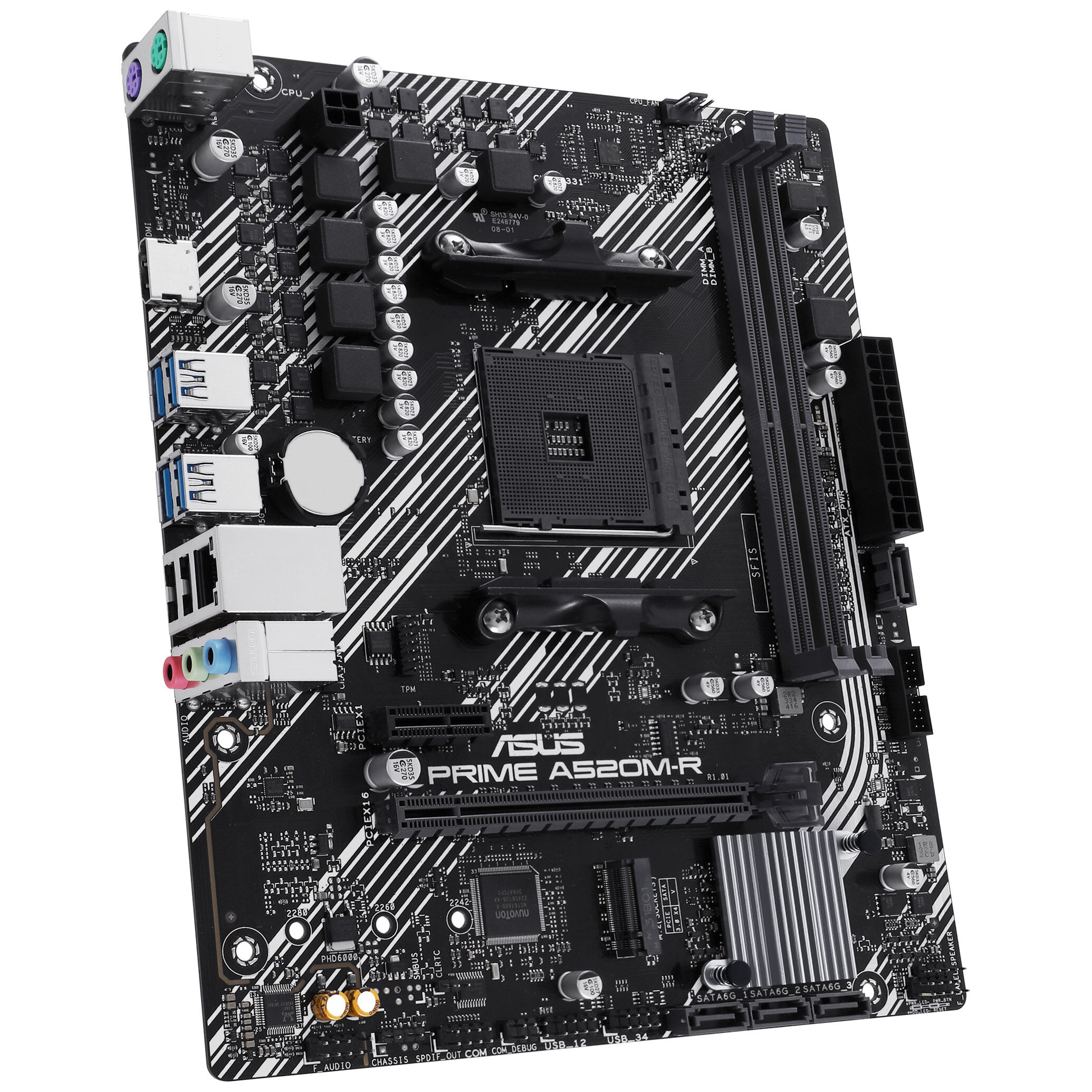

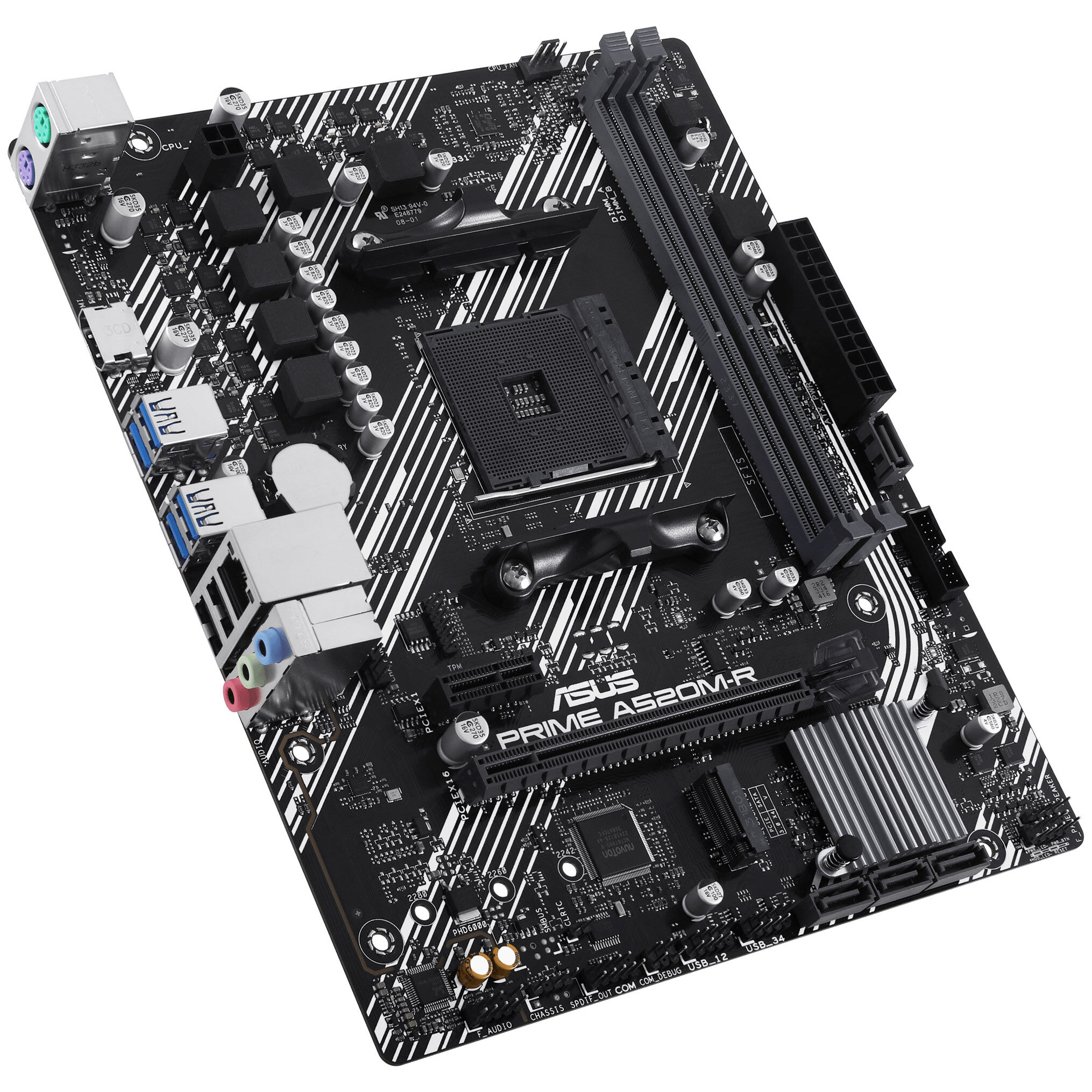

ASUS Prime A520M-R motherboard - A520 chipset, Socket AM4, DDR4

– 1x PCIe 3.0 x16 (x16) and 1x PCIe 3.0 x1 (x1) slot
– DDR4 memory up to 3200 MHz (5100 MHz OC)
– 1x M.2 slot and 4x SATA
– USB on the I/O panel: 1x USB-A 3.0, 2x USB-A 2.0
– 1 Gbit LAN
– Supports Ryzen processors with AM4 socket
– Only for AMD Ryzen 3000 / 3000G / 4000 / 4000G / 5000 and 5000G series CPUs

For Micro-ATX cases and Ryzen processors
The ASUS Prime A520M-R motherboard is specifically designed for Ryzen processors up to Ryzen 5000 with AM4 socket. The Micro-ATX standard allows you to easily install it in smaller and more compact cases.

Using the two RAM slots, you can expand the DDR4 memory by up to 64 GB, so your PC can easily handle even demanding multitasking tasks. You can also overclock the memory to up to 5,100 MHz.

Numerous ports and support for M.2 SSDs
The motherboard offers plenty of ports for your peripherals and hardware. Of course, you can also install fast M.2 SSDs on the motherboard. This ensures very fast boot and load times for your operating system and applications.

The motherboard also offers a 1 Gbit LAN port.

Temperature Control
You can control the fans using the integrated Fan Xpert 4 utility or directly via the ASUS UEFI BIOS. This provides you with extensive configuration options. Additionally, an intelligent circuit protects the fan head from overheating and overcurrent.

Note 1: The following specifications regarding PCIe lanes, M.2 slot connections, and PCIe slot connections refer to the combination of an A520 chipset with an AMD Ryzen 5000 series CPU!

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now.
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical details
– Format: Micro ATX (236 x 193 mm)
– Chipset: AMD A520
– Socket: AM4
– R.A.M:
– 2x DDR4 (3,200 MHz, up to 5,100 MHz via OC)
– Dual channel
– max. 64GB
– Slots:
– 1x PCIe 3.0 x16 (electrical x16)
– 1x PCIe 3.0 x1
– Internal connections:
– 4x SATA 6G
– 1x M.2 (M-Key, PCIe 3.0 x4, 2242 / 2260 / 2280)
– 1x USB 3.0 (1 header, USB 3.0 Gen1, max. 5 Gbit/s)
– 2x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Clear CMOS header
– 1x COM port header
– 1x S/PDIF Out Header
– 1x Front Audio
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x Chassis Fan (4-pin)

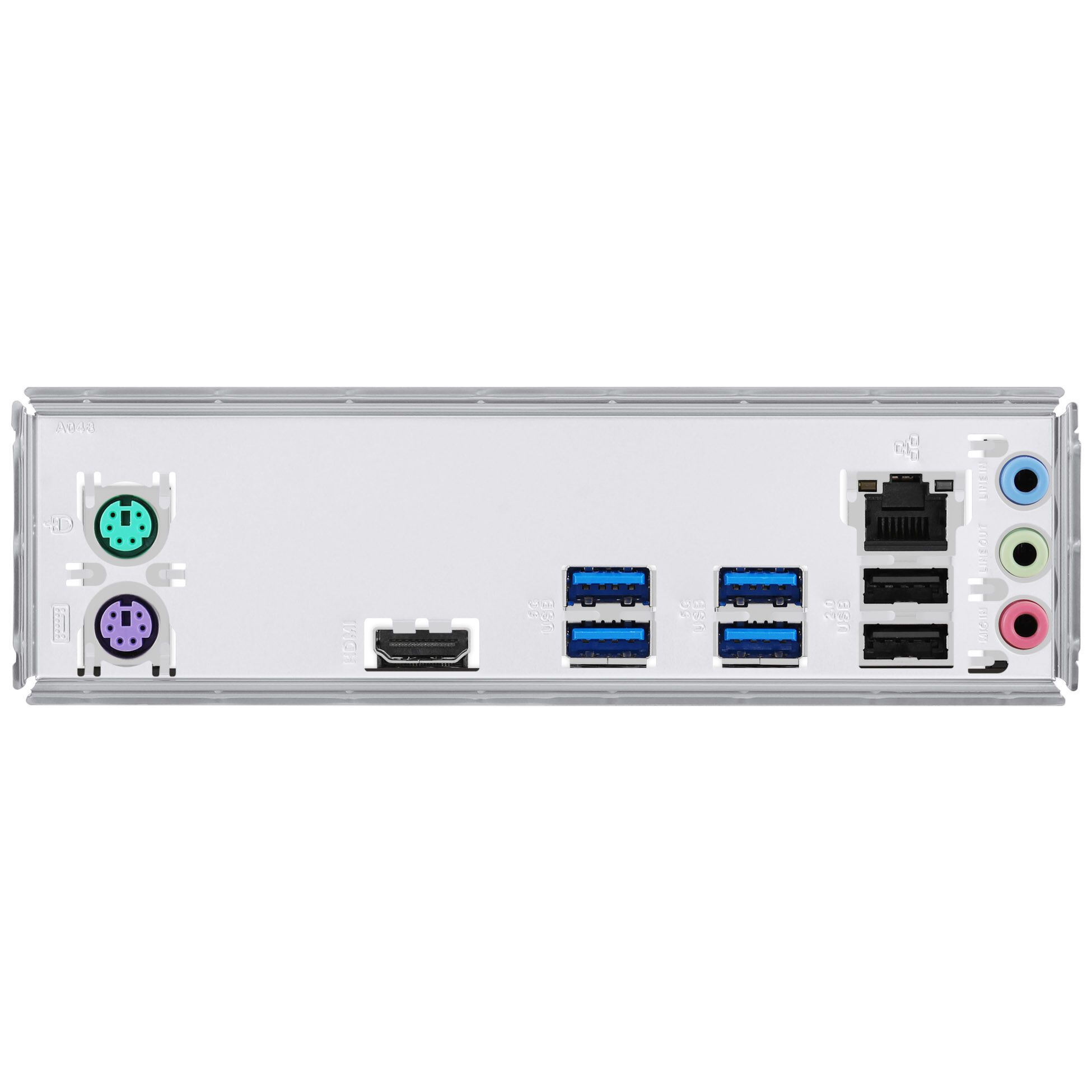

– External Connectors:
– 4x USB-A 3.1 (3.1 Gen 2, max. 10 Gbps)
– 2x USB-A 2.0
– 1x HDMI 2.1
– 1x 1-Gigabit LAN
– 3x 3.5 mm Jack
– Power:
– 1x 24-pin ATX12V
– 2x 4-pin +12 V
