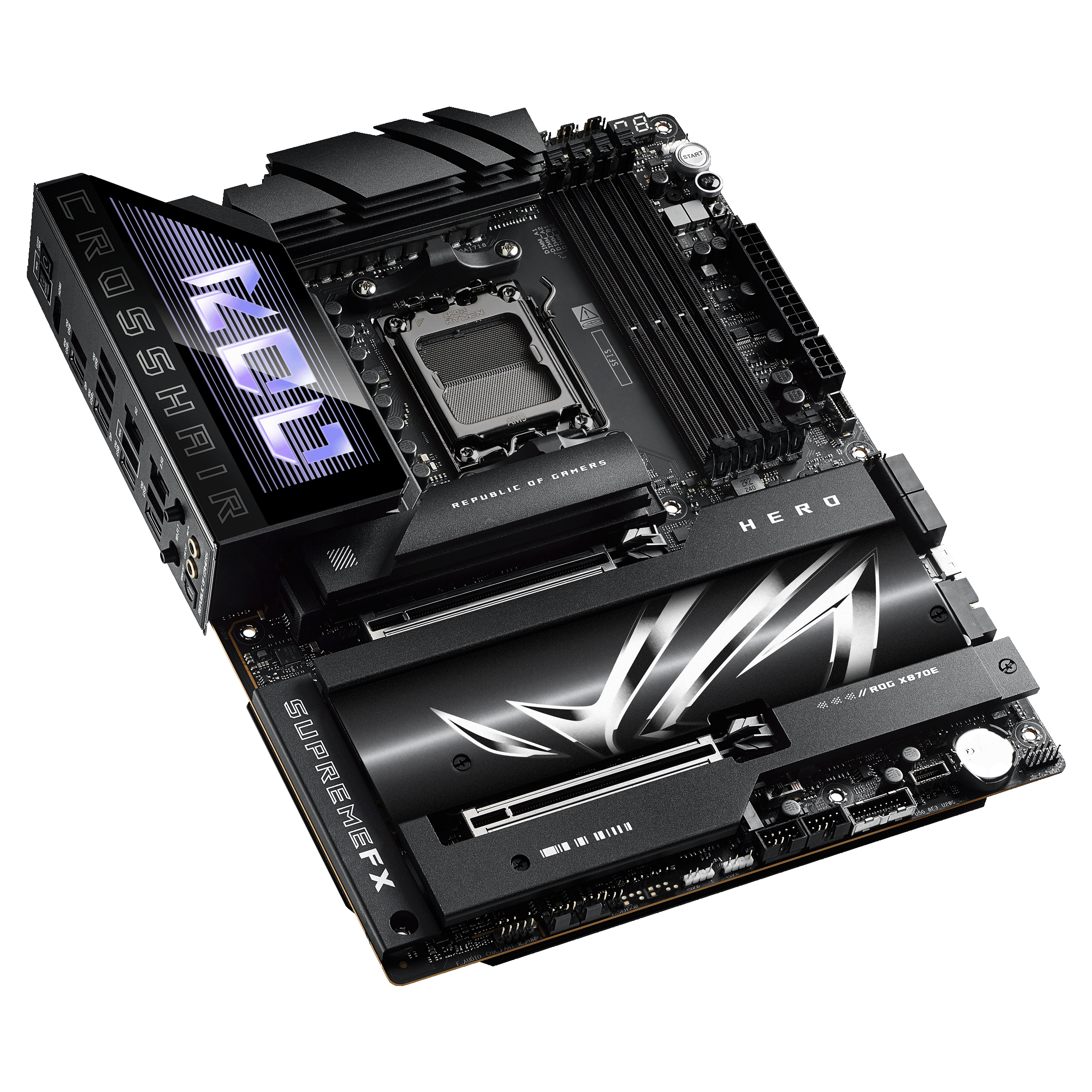

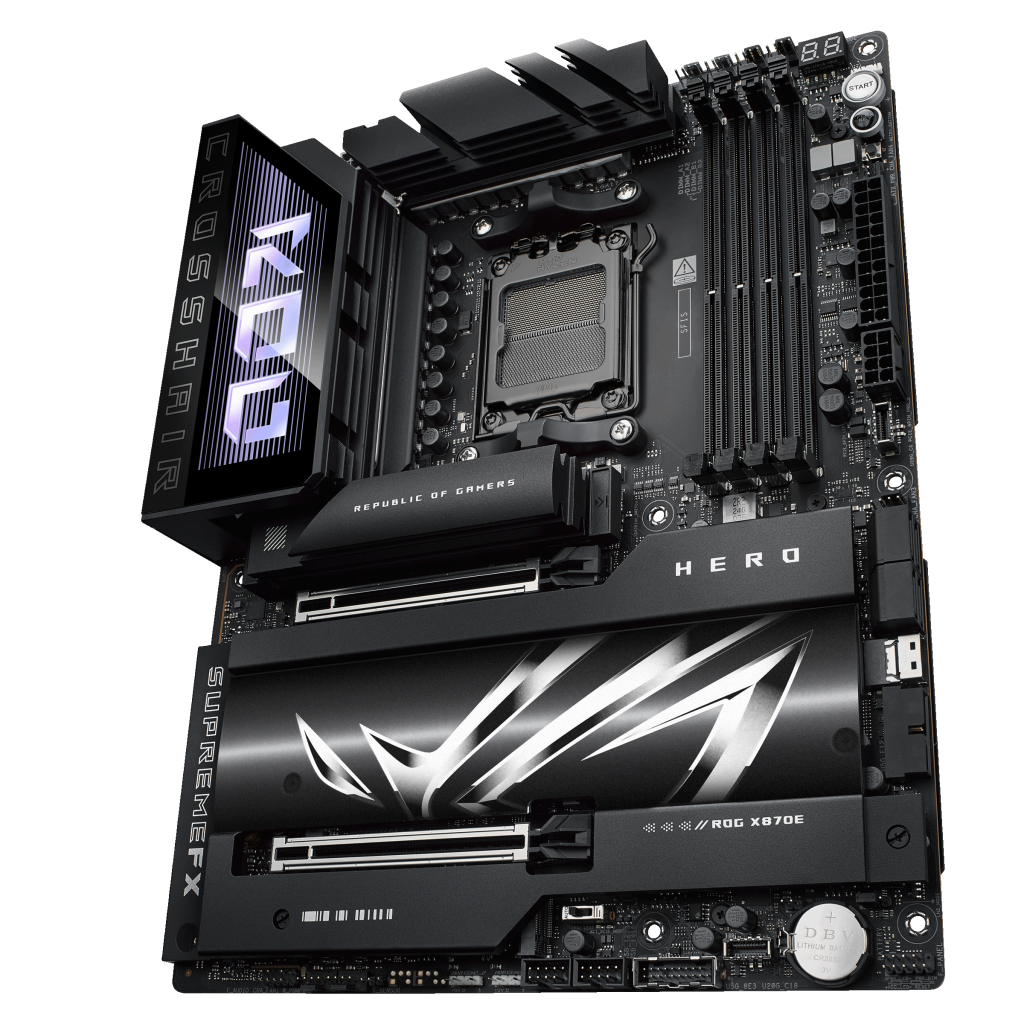

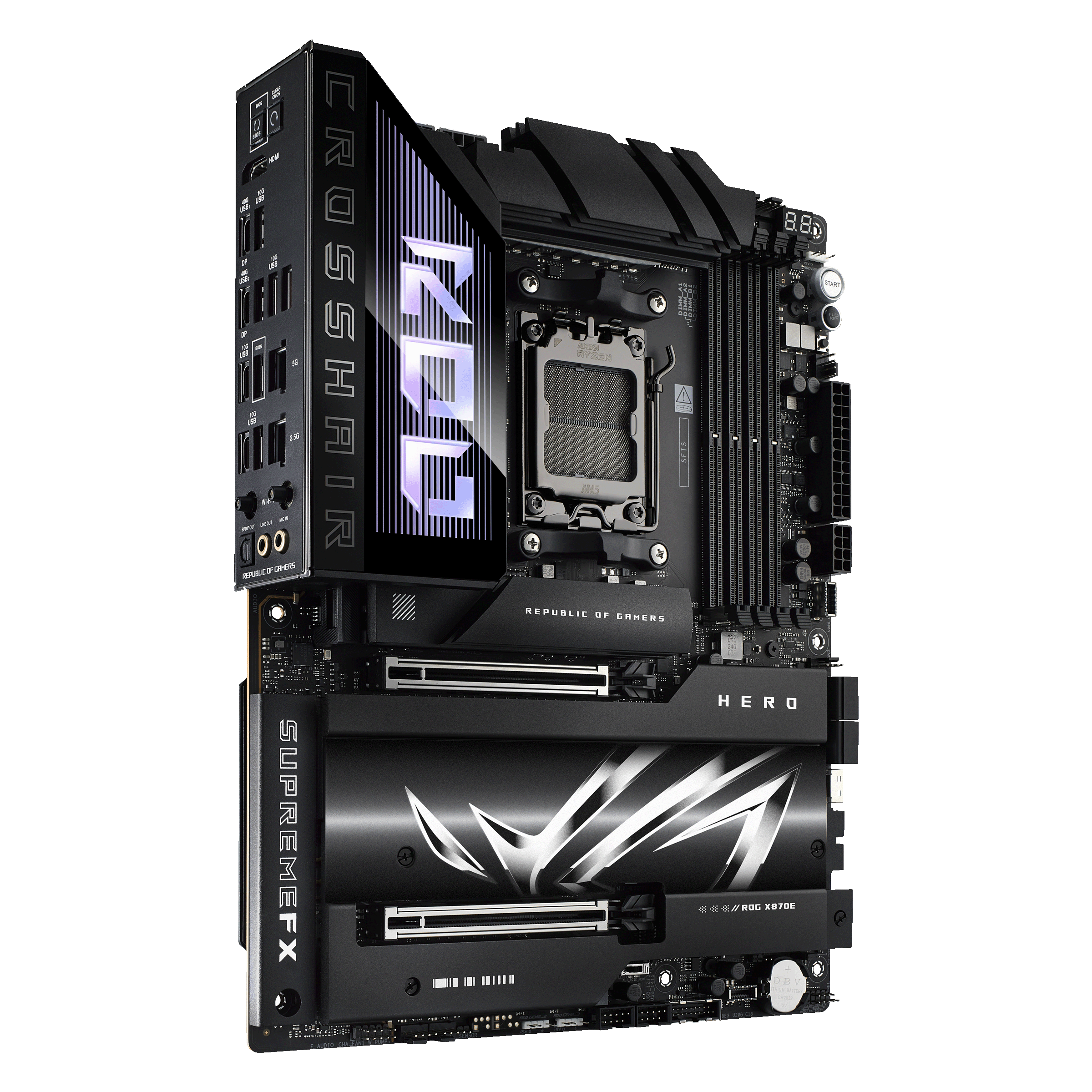

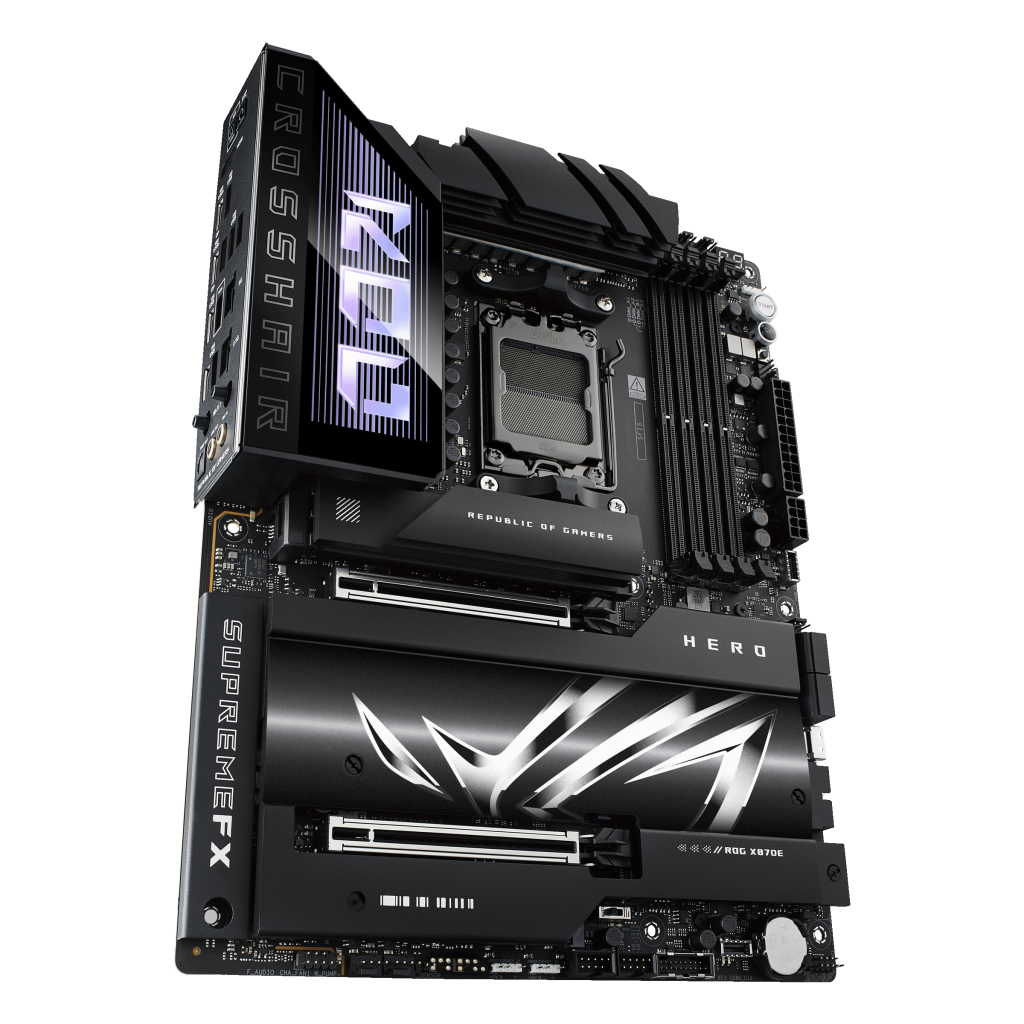

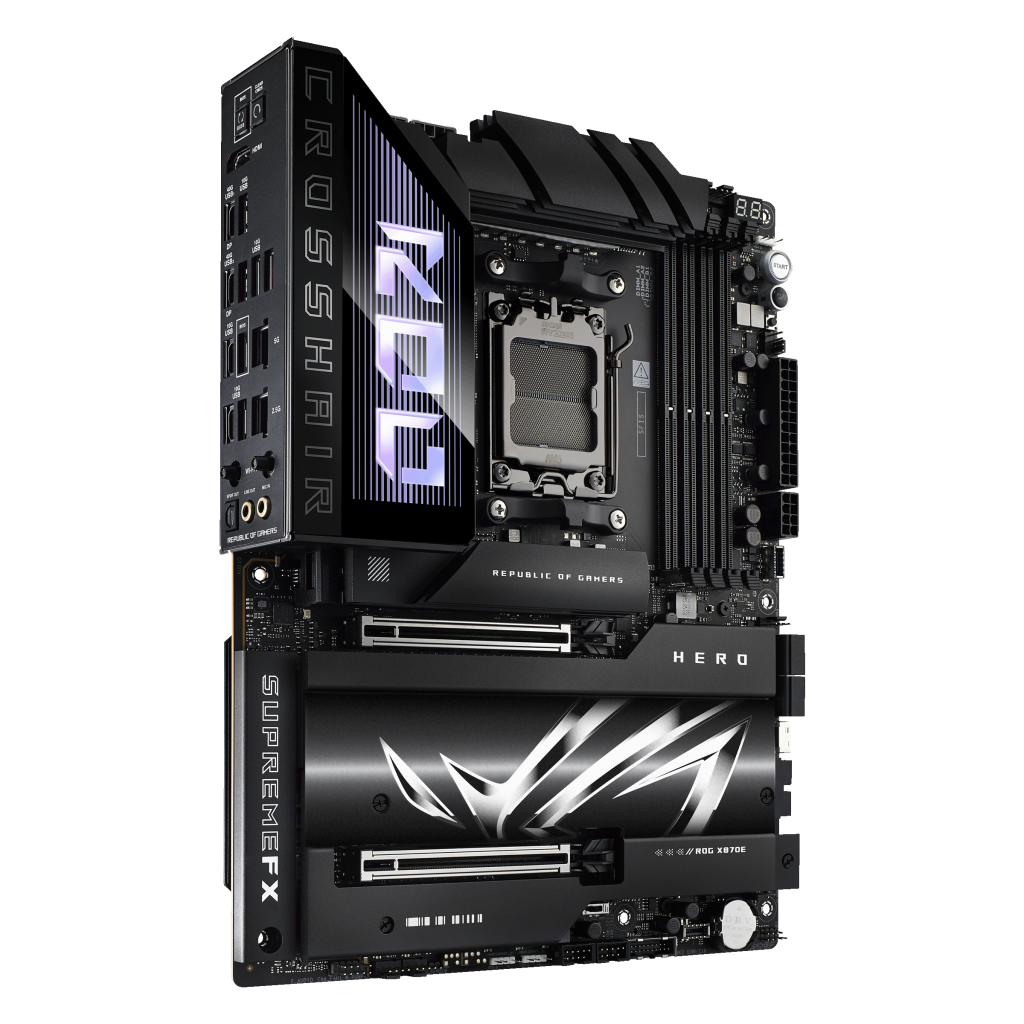

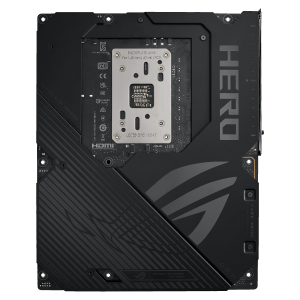

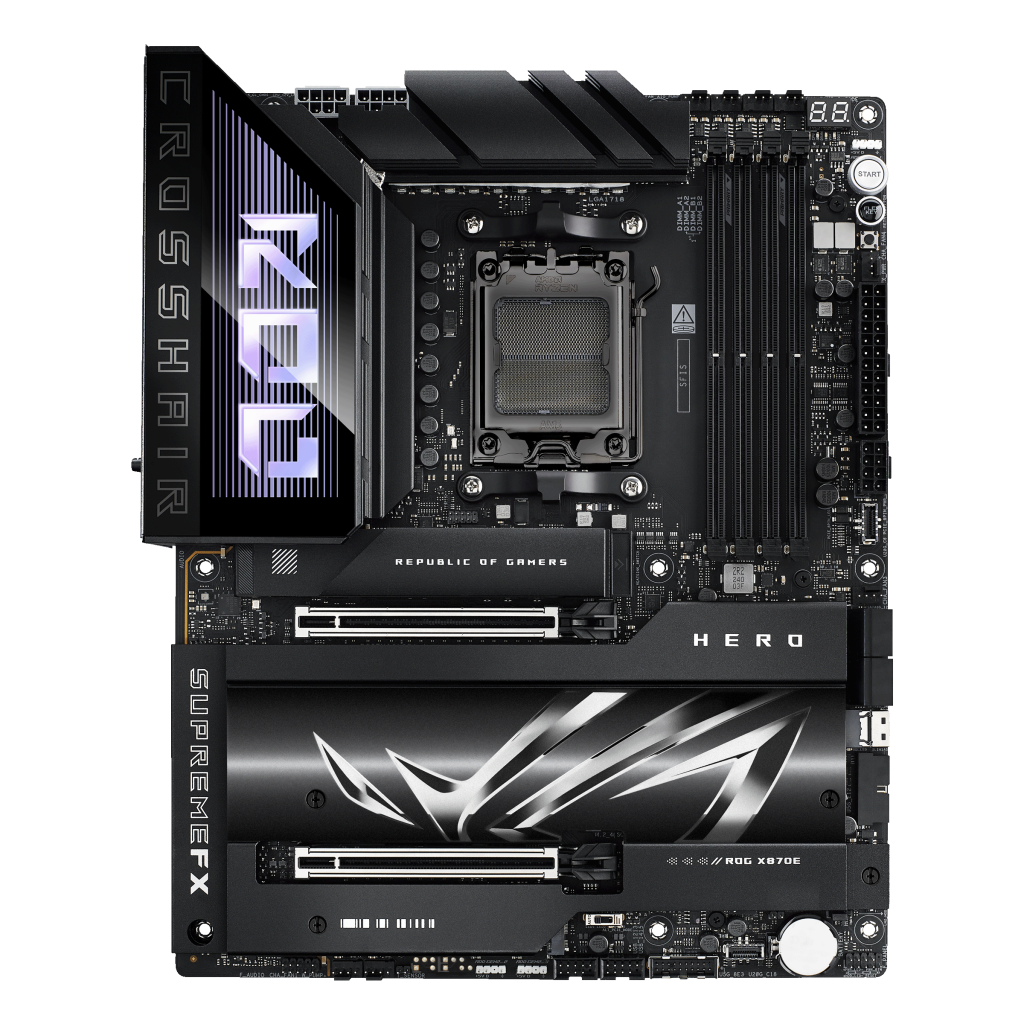

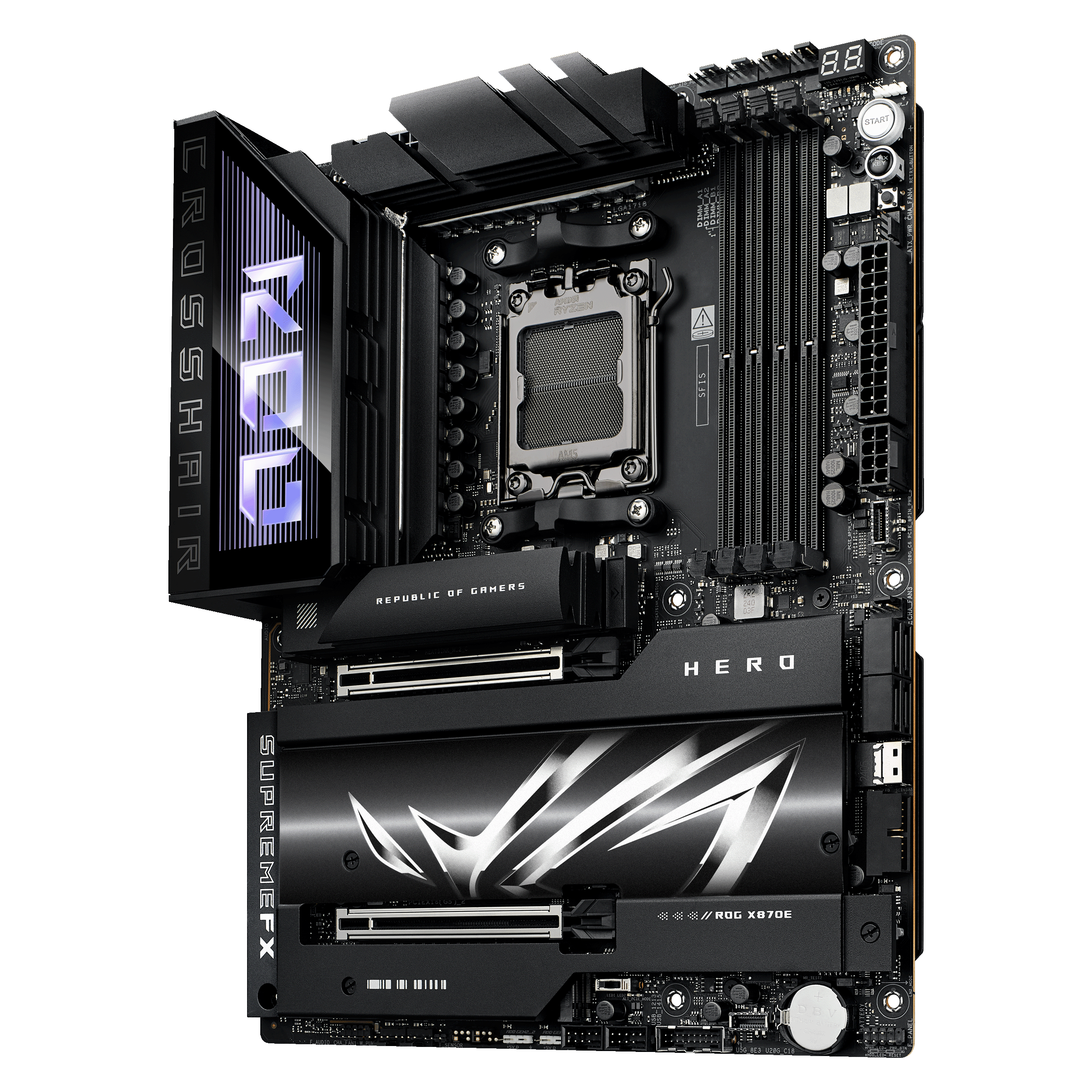

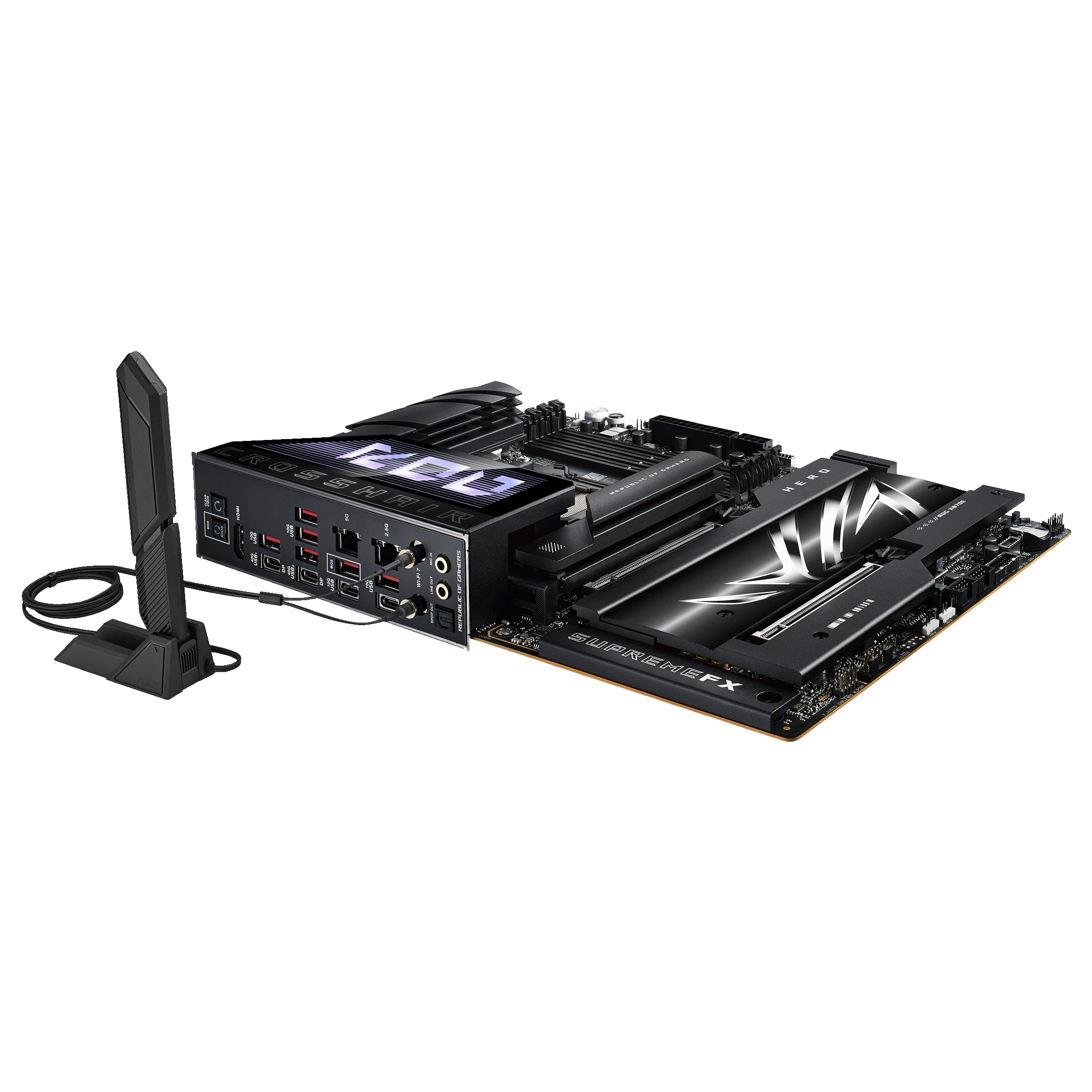

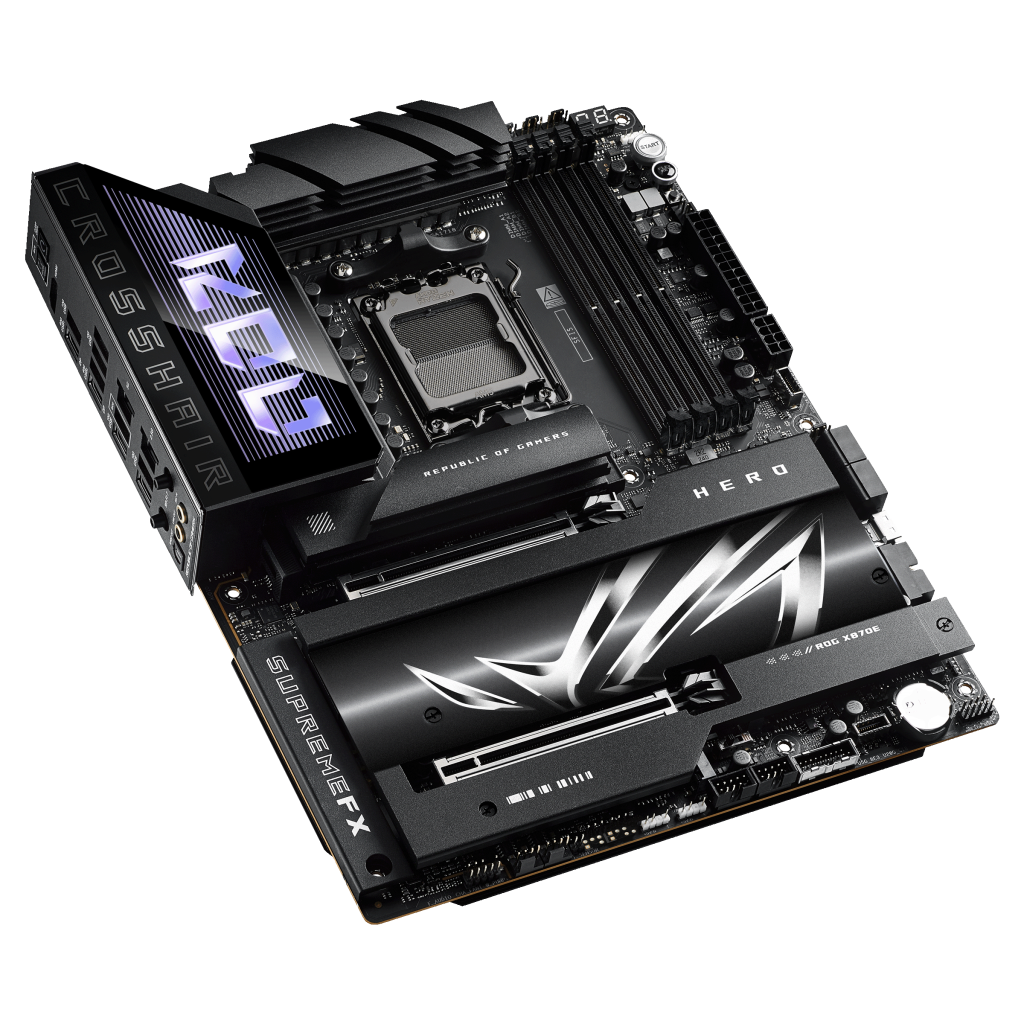

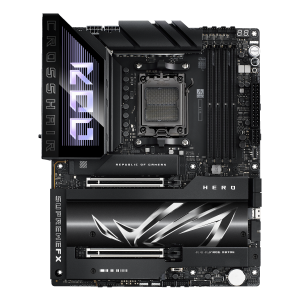

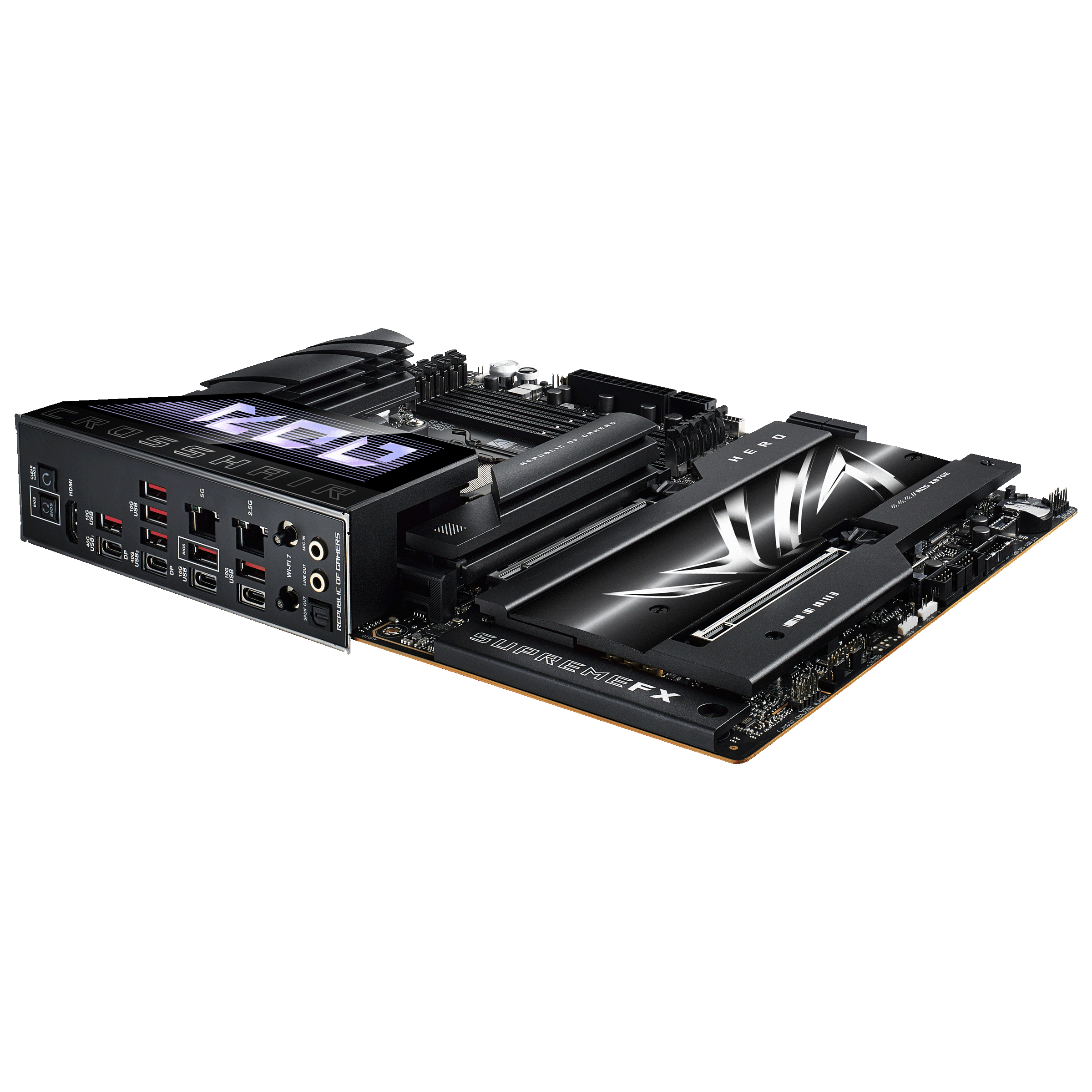

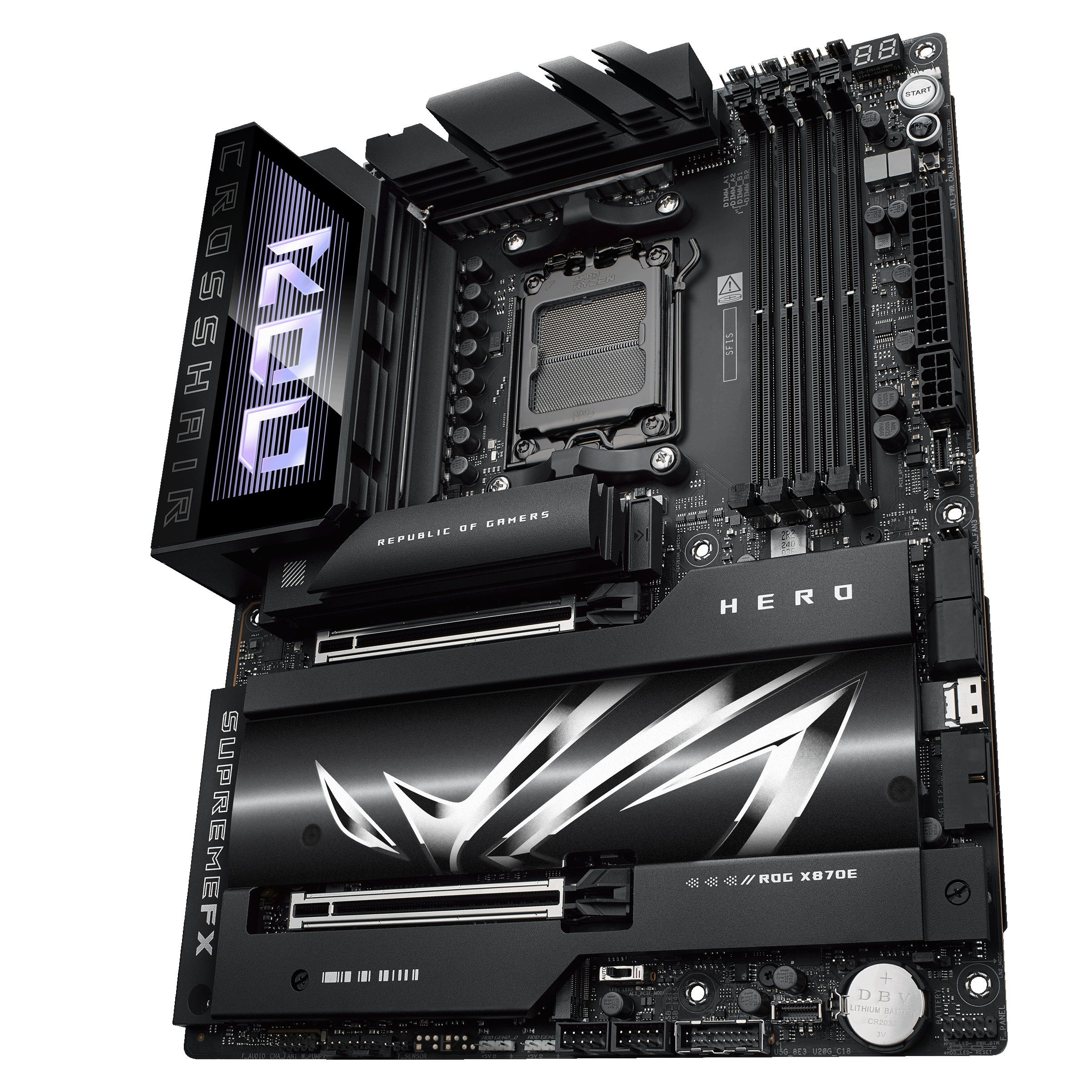

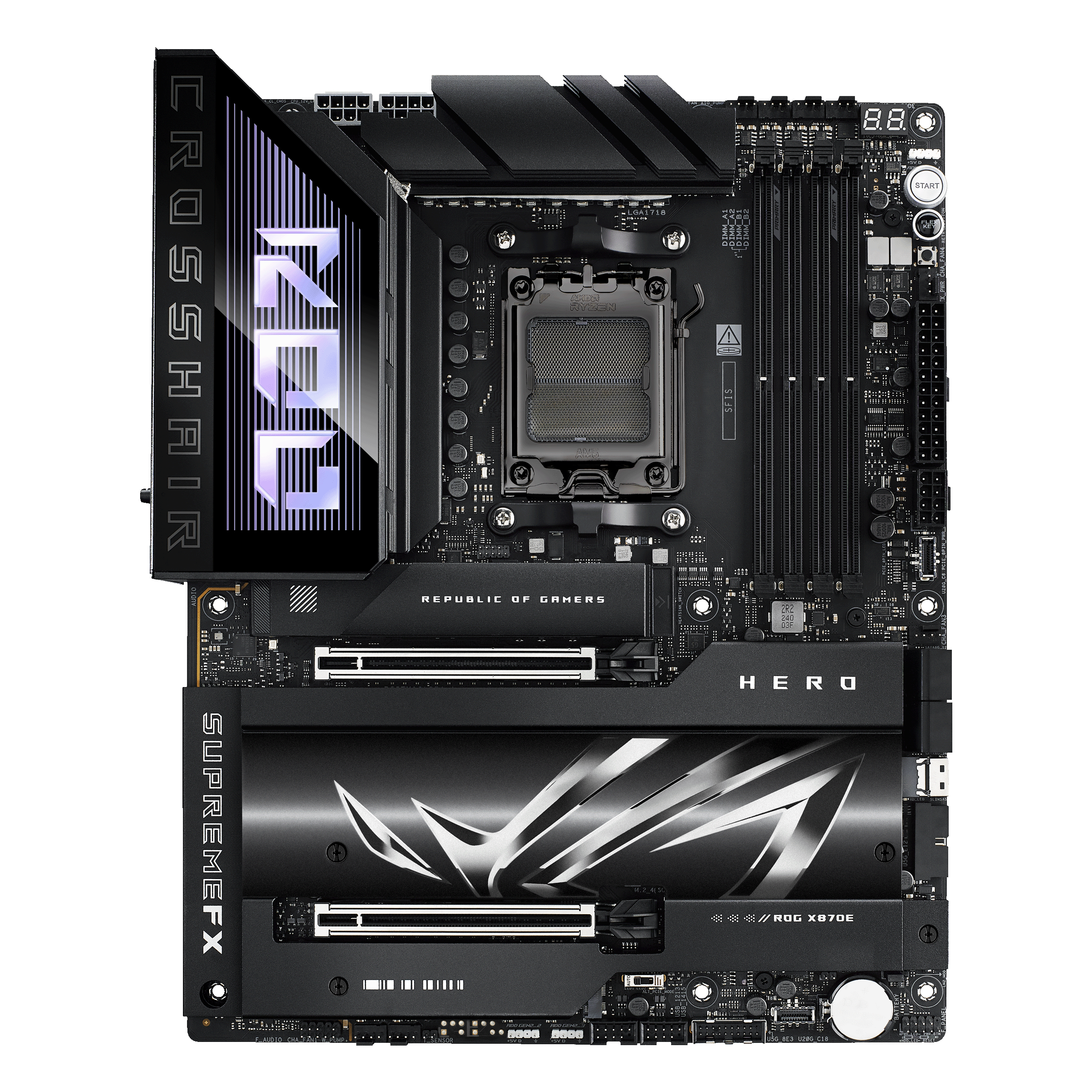

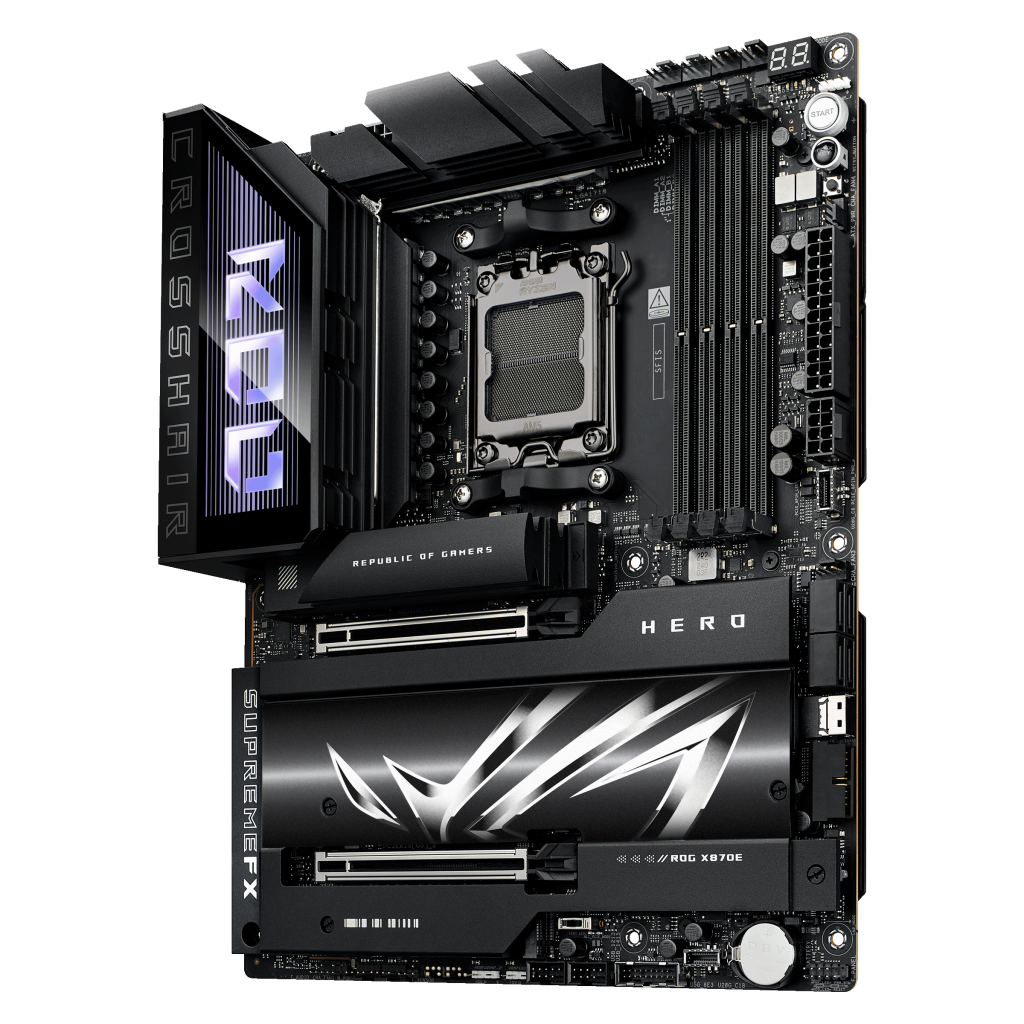

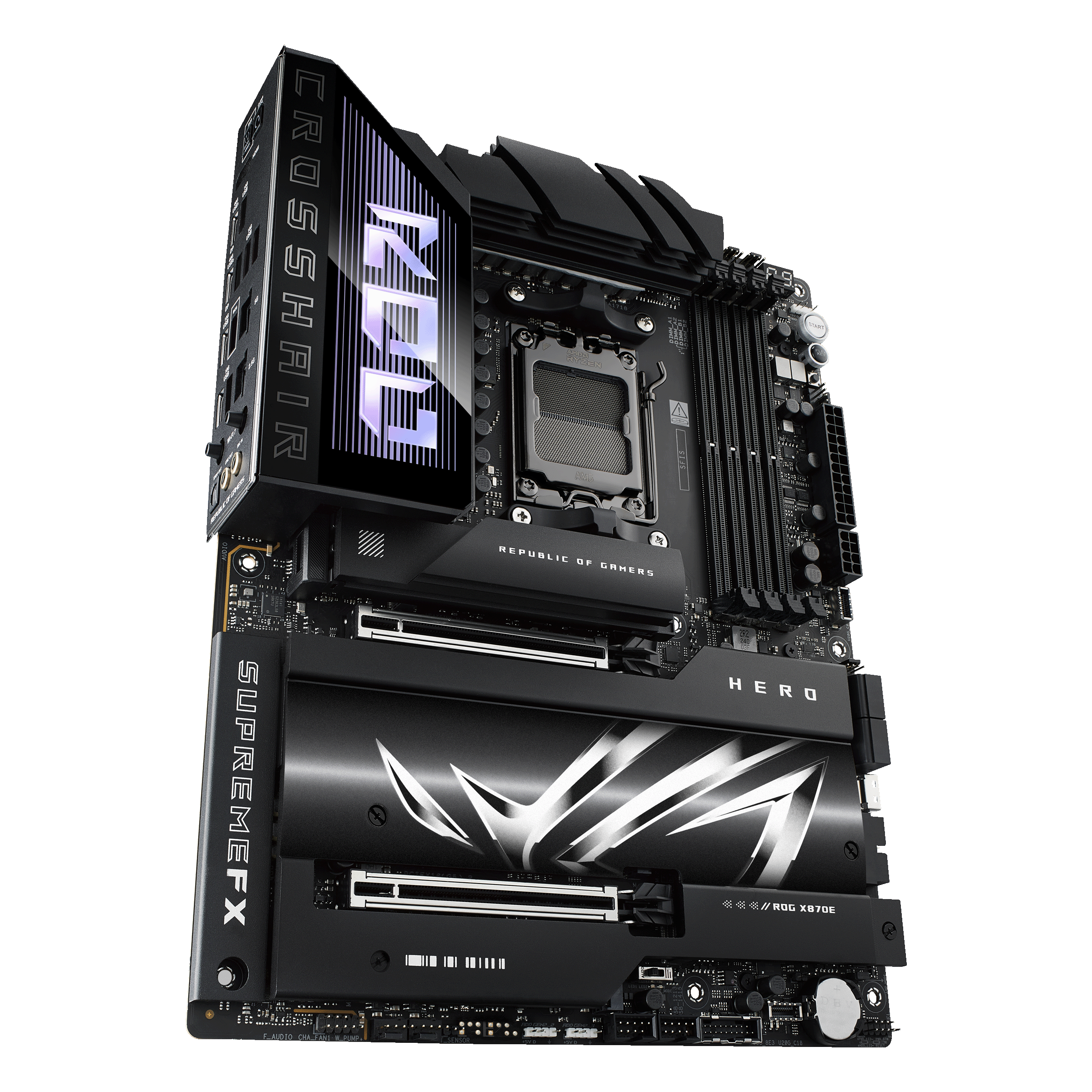

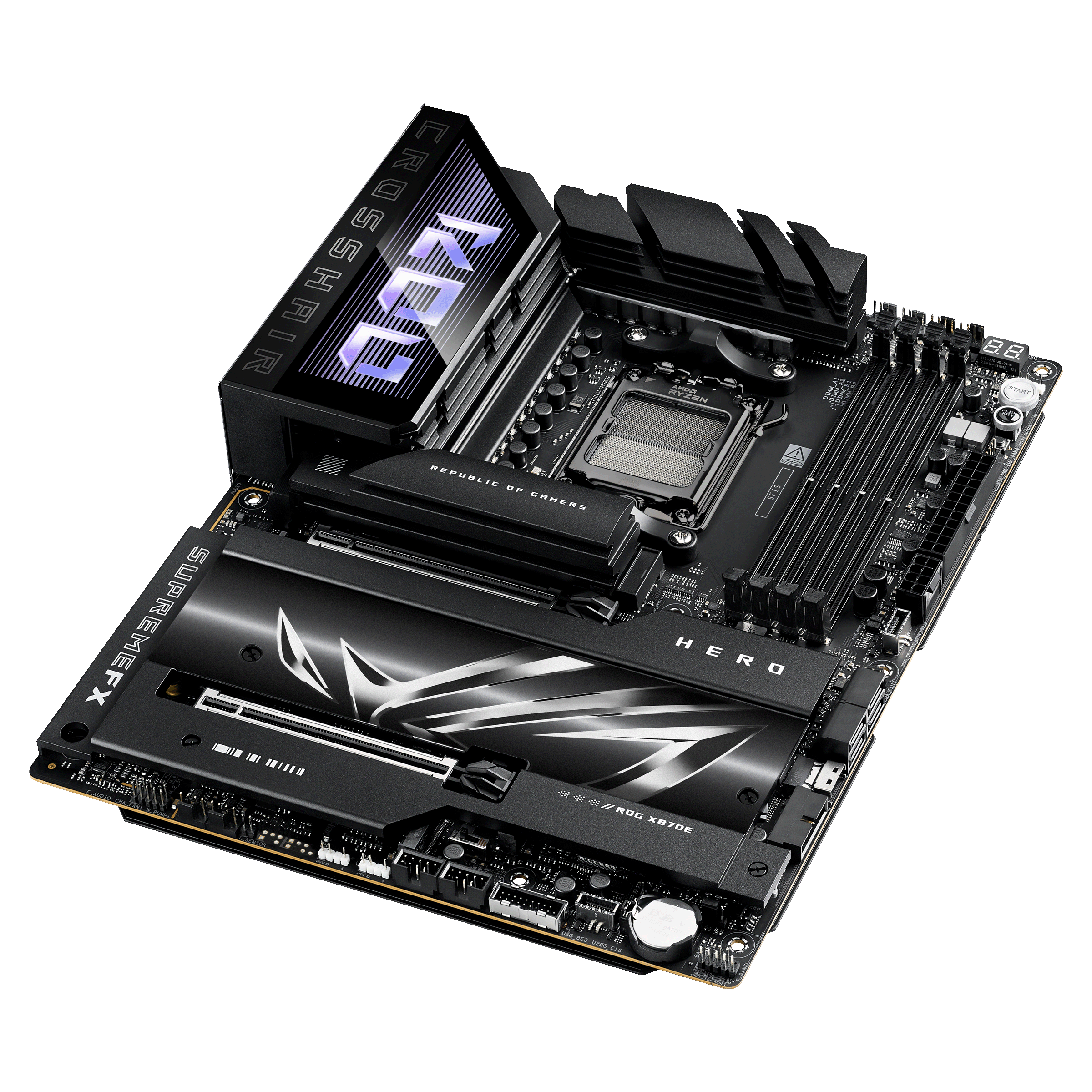

ASUS ROG Crosshair X870E Hero motherboard, AMD X870E, socket AM5, DDR5

– 2x PCIe 5.0 x16 (x16), 2x PCIe 4.0 (x16) with Q-Release
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 8600 MHz (OC)
– 5x M.2 (including 3x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 2x USB 4, 2x USB-C 3.1, and 6x USB 3.1 on the I/O panel
– OC features: 22-phase VRMs, CMOS reset, Digi+ VRM
– A total of 7x 4-pin PWM fans possible

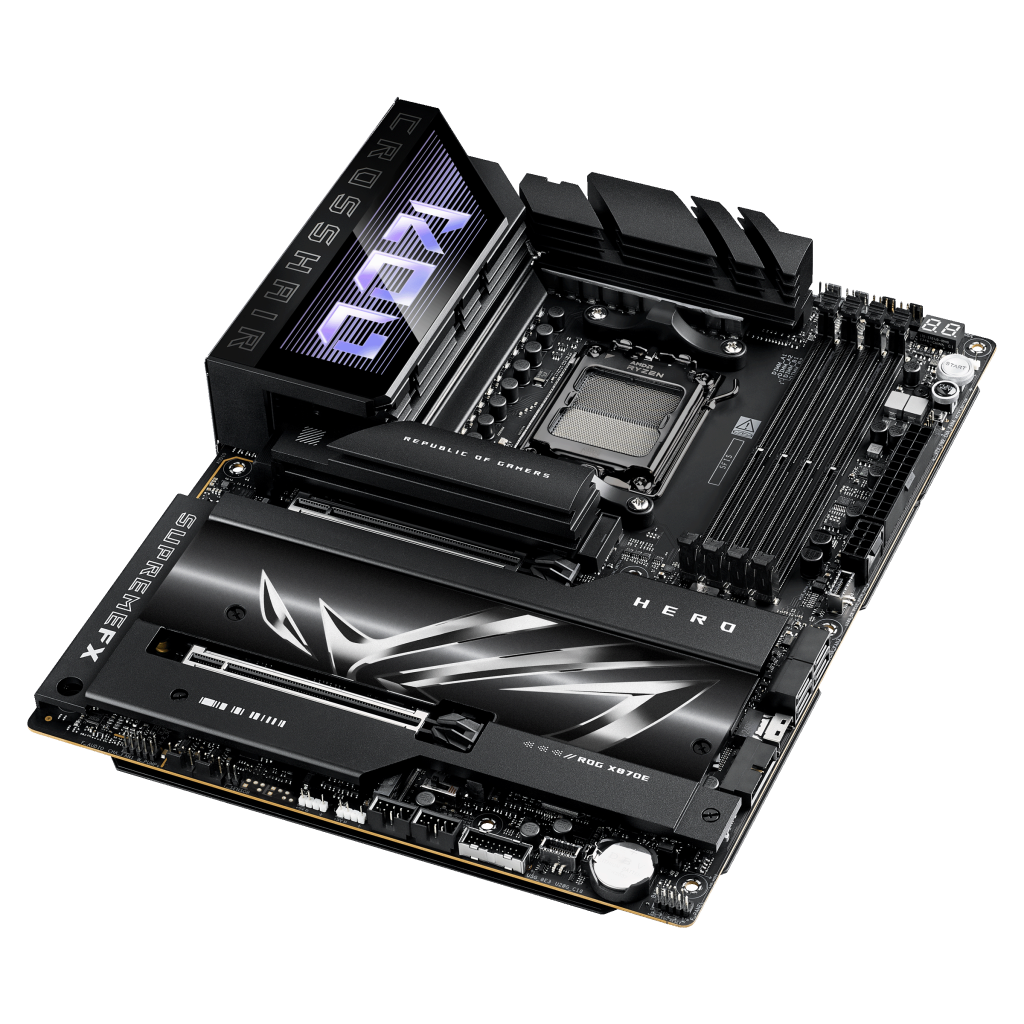

ASUS ROG CROSSHAIR X870E HERO: ATX motherboard with AMD AM5 socket and X870E chipset
The ASUS ROG CROSSHAIR X870E HERO features the high-end chipset The X870E is equipped for AMDs Ryzen 9000 series processors and boasts numerous features for enthusiasts. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASUS ROG CROSSHAIR X870E HERO supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly equipped for overclocking
The motherboard is designed for overclocking so you can enjoy even demanding games. The voltage converters with 22 virtual phases provide 110 A of stable power to the CPU, ensuring its high clock speeds even over extended periods. There are also features like DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as BIOS Flashback and Clear CMOS, so you can get your PC back up and running if something goes wrong. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870E
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (validated up to 8600 via overclocking)
– Dual-Channel
– Max. 192GB
– Slots (Physical):
– 2x PCIe 5.0 x16 (electrical x16, x8/x8, or x8/x4/x4, Q-Release)
– Internal Connectors:
– – Total maximum usable PCIe lanes: 44
– 4x SATA 6G (max.)
– 3x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280)
 -1x M.2 (PCIe 4.0 x4; 2242 / 2260 / 2280) (PCIe 4.0 x4; 2280)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x CPU OPT fan header
– 4x fan header (4-pin)
– 1x AiO pump header
– 1x W_PUMP+ connector (4-pin)
– RGB header:
– 3x 3-pin ARGB headers (5V)

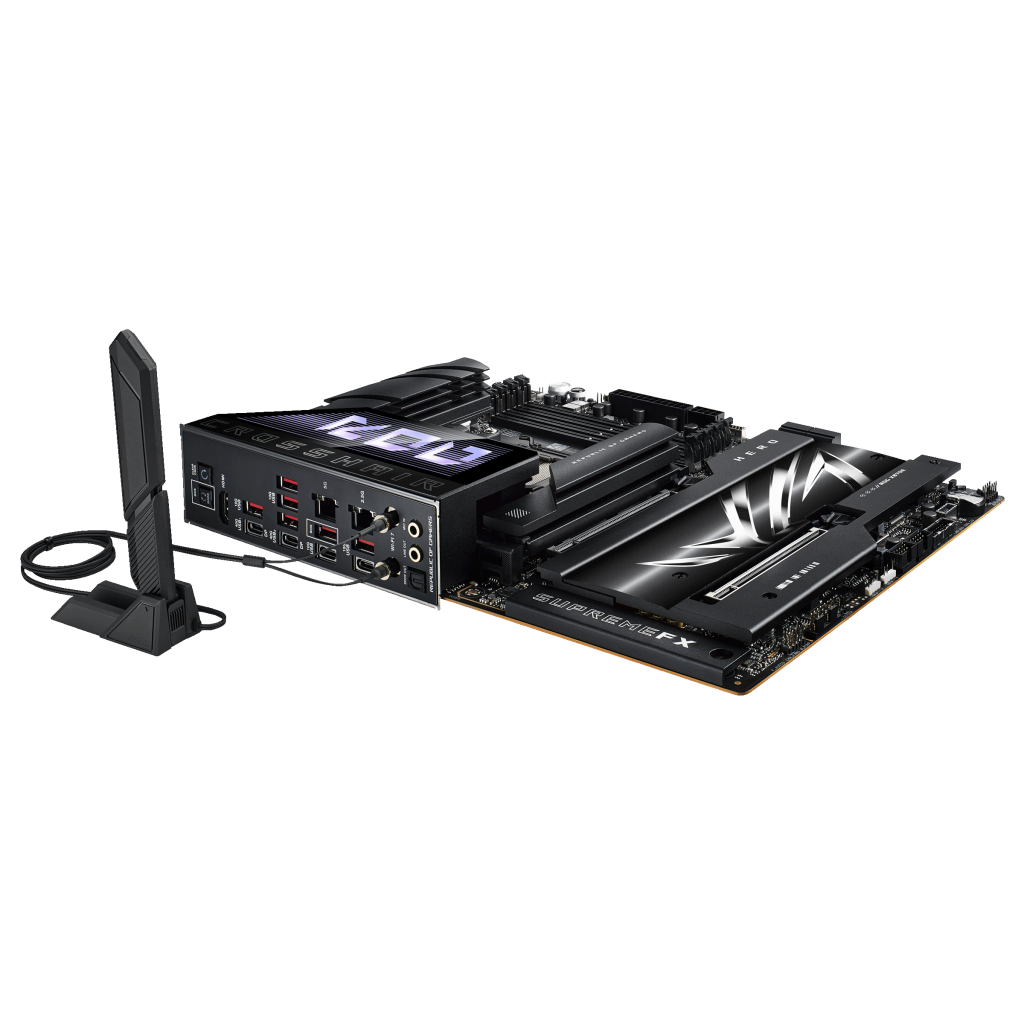

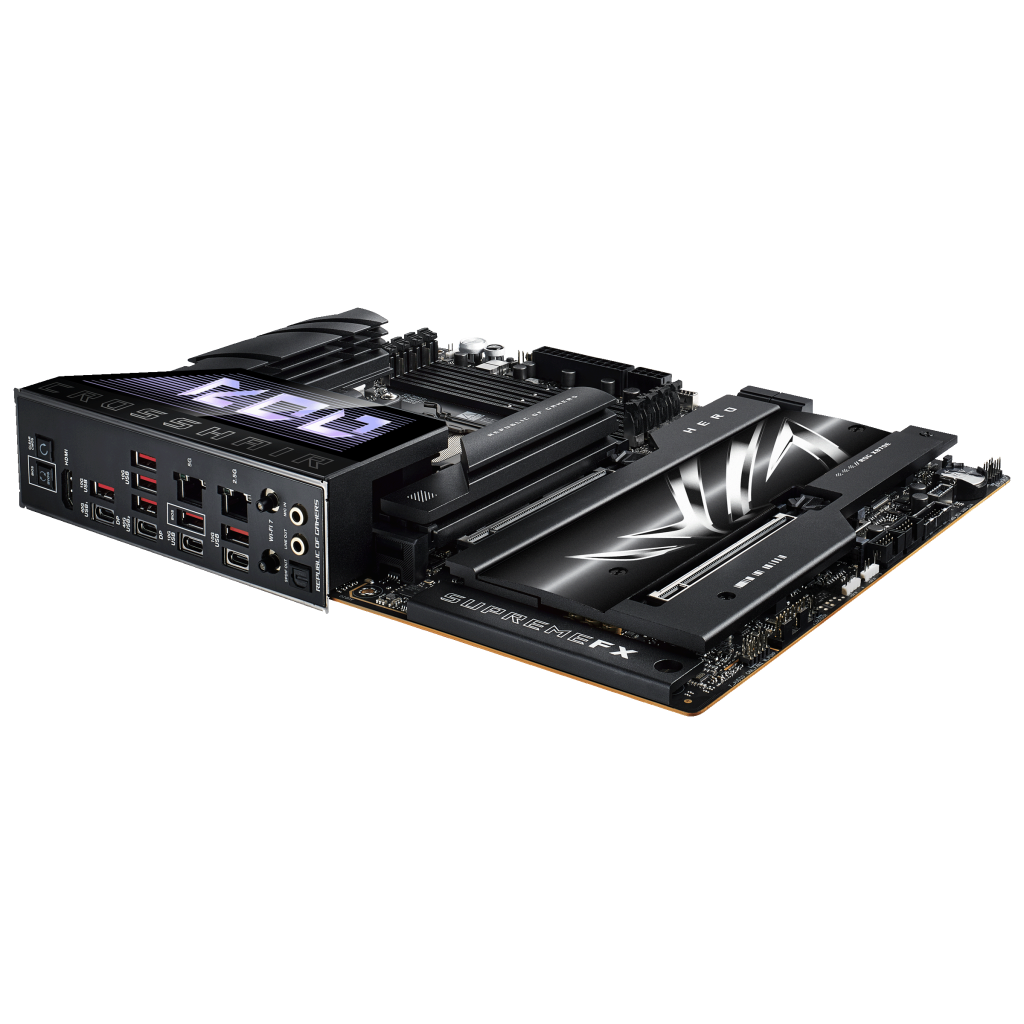

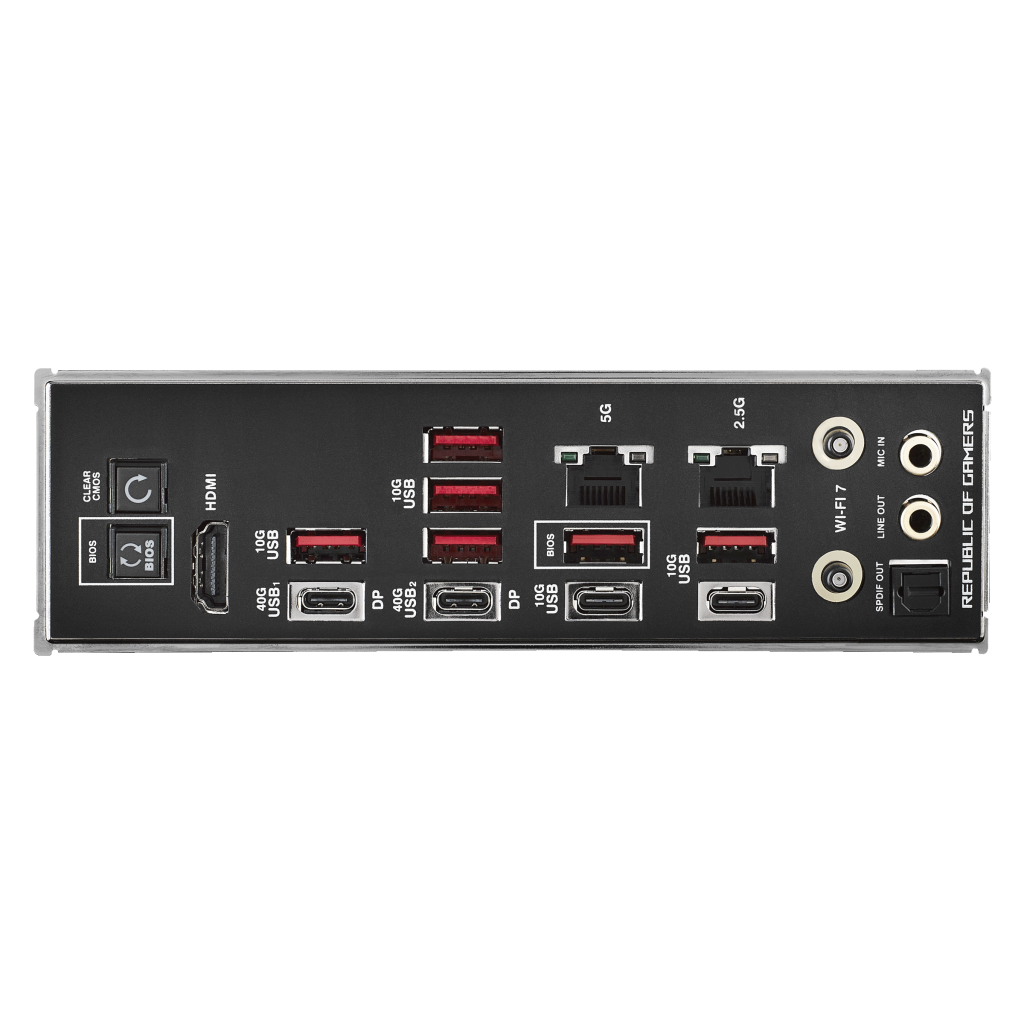

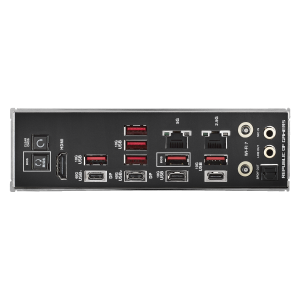

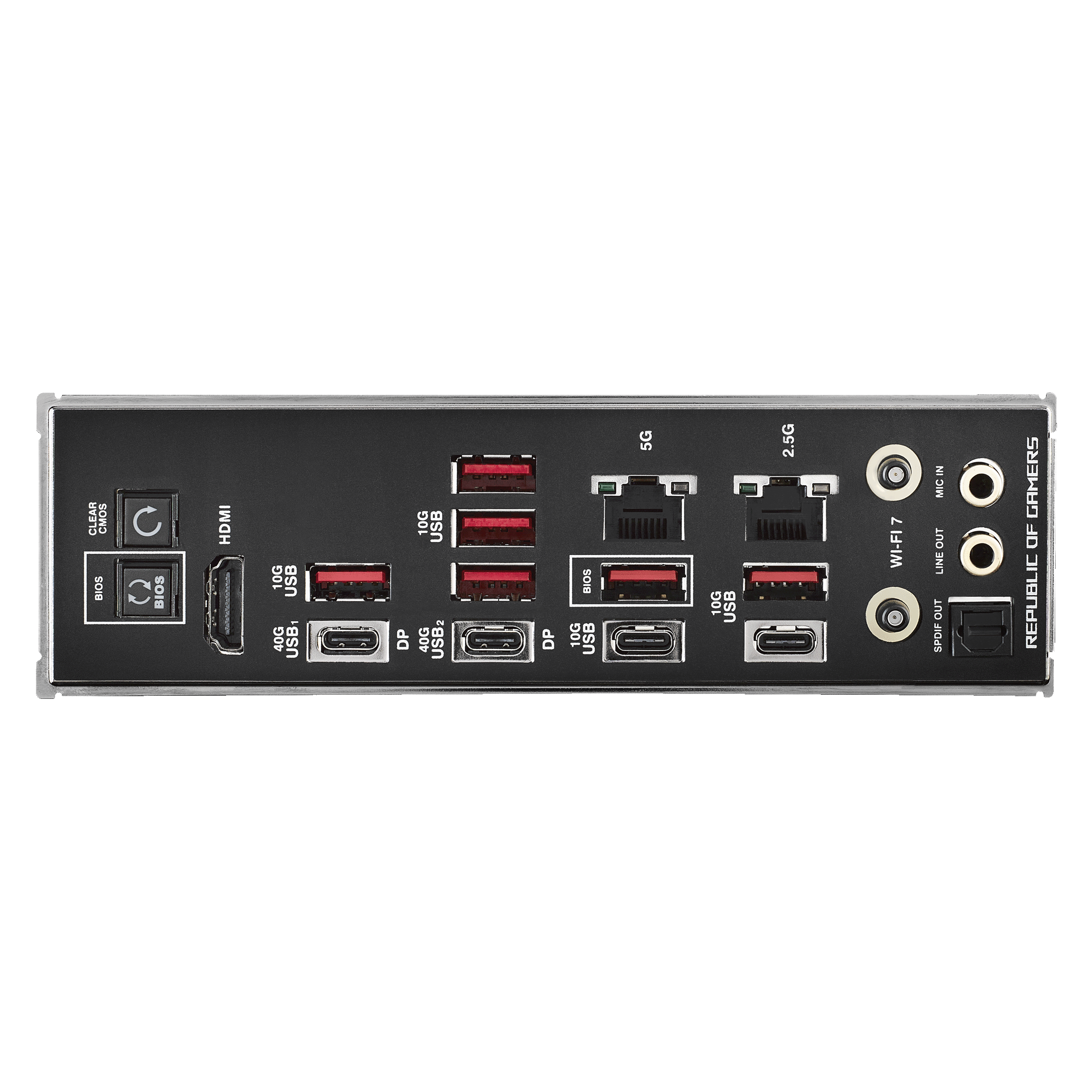

– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
– 2x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
– 6x USB 3.1 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 1x HDMI 2.1
– 1x 5 Gigabit LAN (Realtek)
– 1x 2.5 Gigabit LAN (Intel I226-V) 2x 3.5 mm jack (Realtek ALC 4080)
– 1x Toslink (Realtek ALC4080)
– 2x antenna connector RP-SMA proprietary
– 1x Clear CMOS button
– 1x reset
– 1x BIOS flashback
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V
– 1x 8-pin PCIe

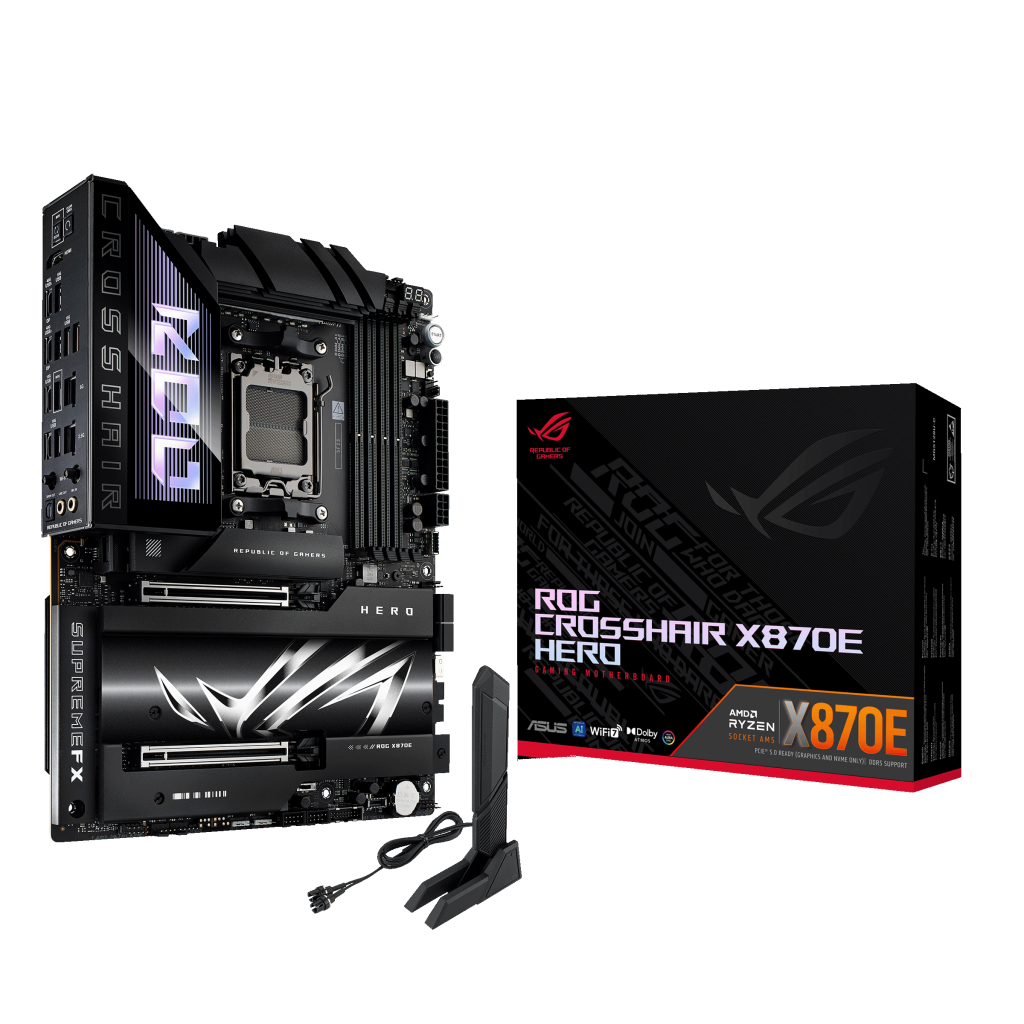

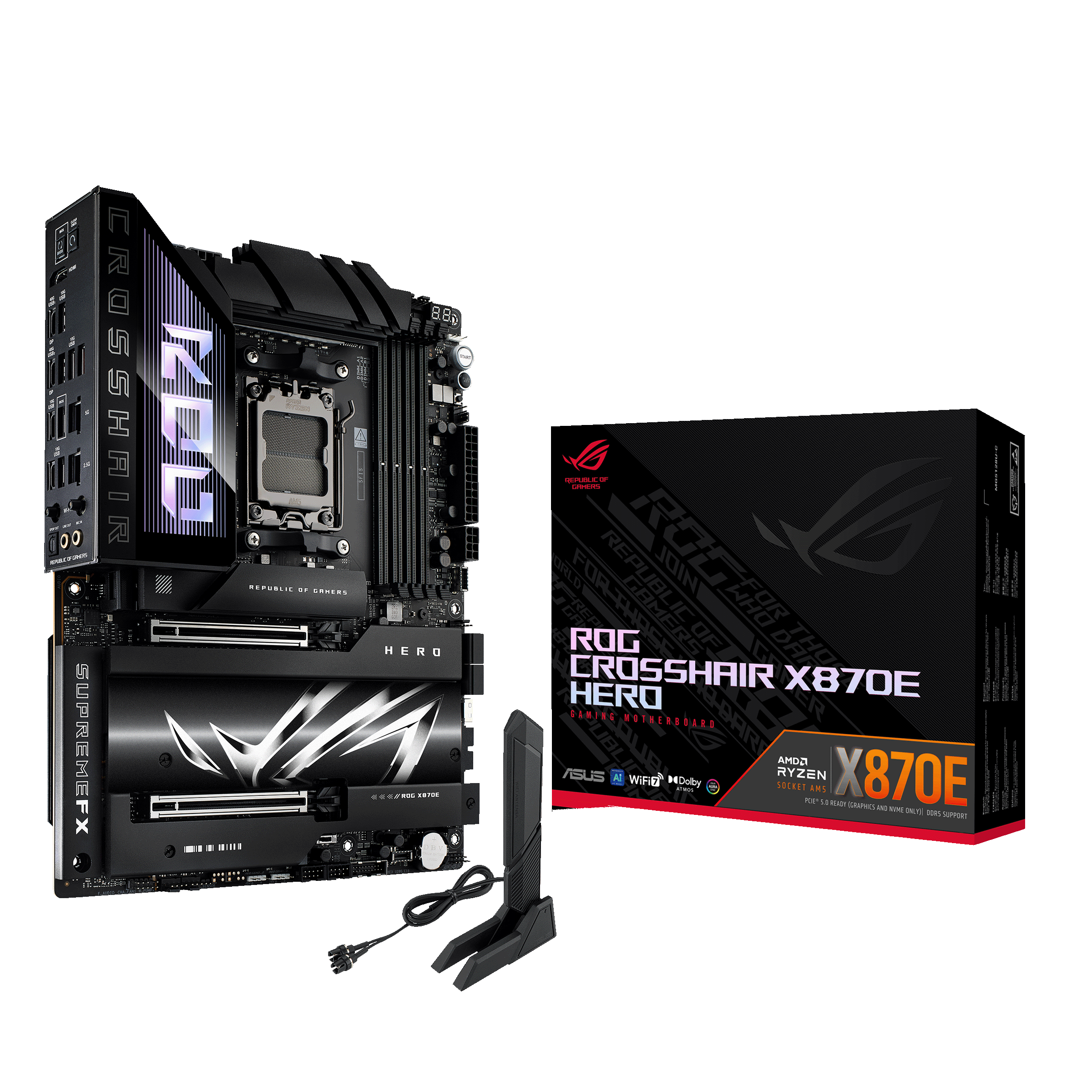

– Accesories:
– 1x ARGB RGB extension cable
– 4 x SATA 6Gb/s cables
– 1 x ASUS WiFi Q-antenna
– 1 x Q-Connector
– 2 x M.2 Q-Latch pack
– 3 x M.2 Q-Slide pack
– 5 x M.2 rubber pack
– 1 x ROG sticker
– 1 x ROG thank you card
– 1 x ROG bottle opener
– 1 x USB flash drive with drivers and utilities
– 1 x Quick start guide
