ASRock B550 PG Riptide, AMD B550 motherboard - Socket AM4

– 1x PCIe 4.0 x16, 2x PCIe 3.0 x16
– 1x USB 3.1 Type-A, 1x USB 3.1 Type-C, 6x USB 3.0 Type-A, 2x USB 2.0 Type-A
– 2x M.2 (PCIe 4.0 x4 / PCIe 3.0 x4 and SATA 6G)
– DDR4 memory up to 4933MHz with overclocking
– Ready for AMD Ryzen 3000 processors
– Subtle RGB lighting

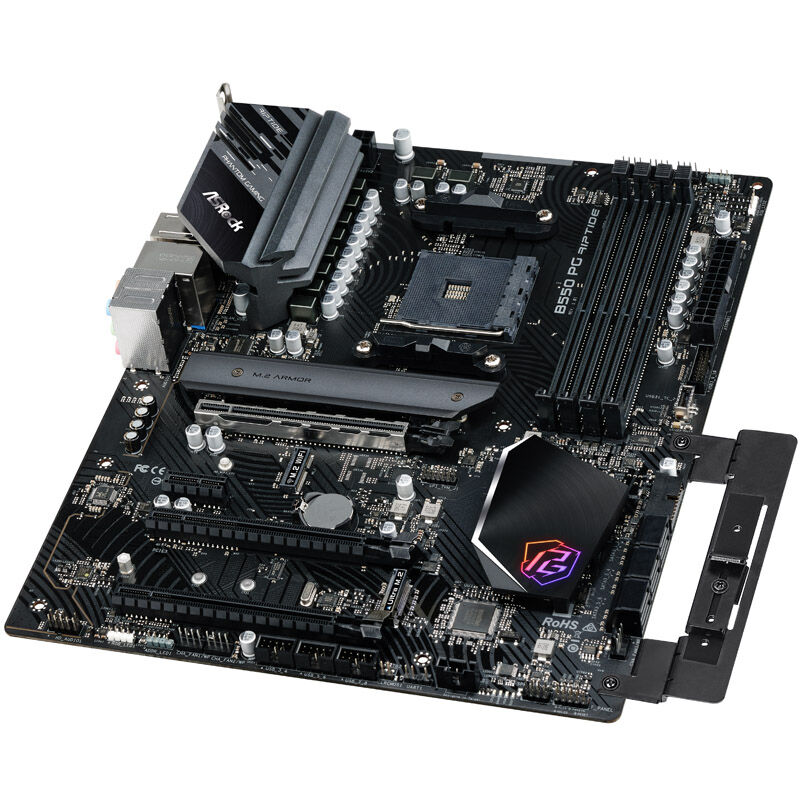

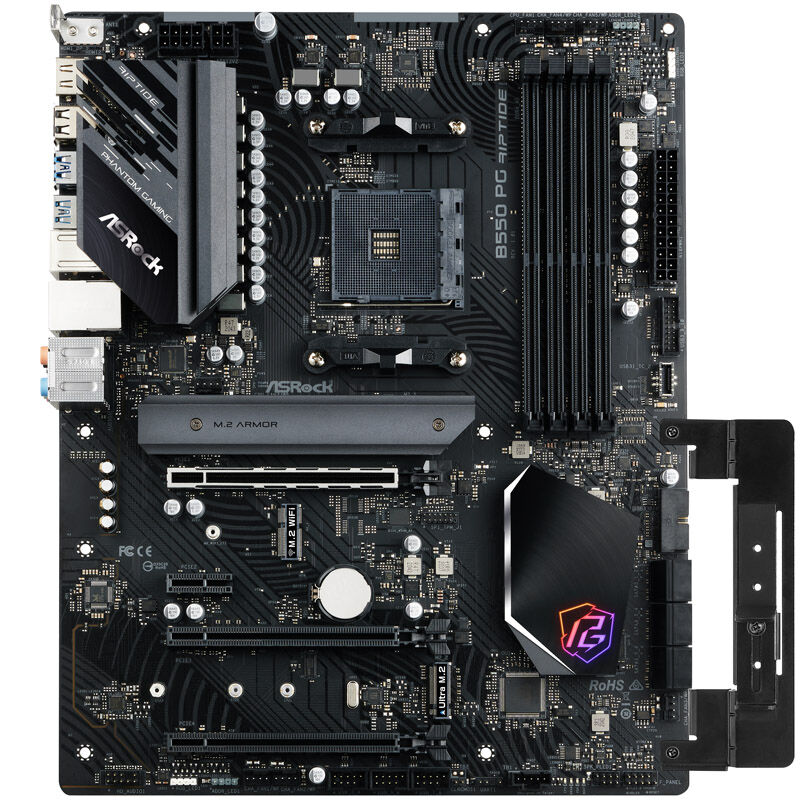

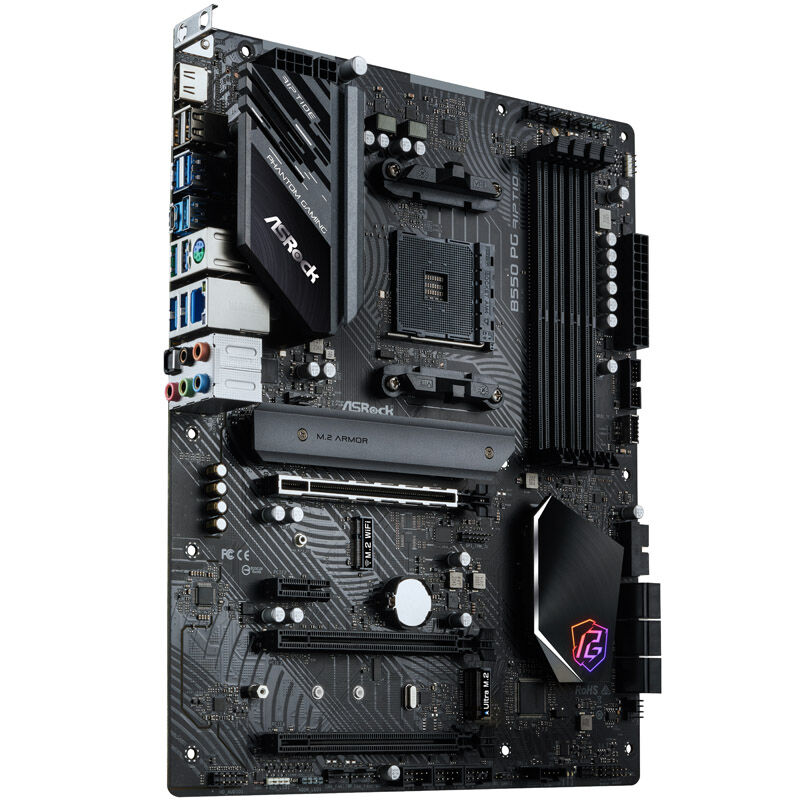

The ASRock B550 PG Riptide features in detail:
The B550 chipset is the heart of the ASRock B550 PG Riptide motherboard and has been specifically optimized for Ryzen 3000 series (Matisse) CPUs. The motherboards also support up to 128 GB of RAM with a guaranteed clock speed of 3,200 MHz. Depending on the motherboard, significantly higher clock speeds are possible through overclocking. The B550 chipset also allows for processor overclocking.

The ASRock B550 PG Riptide is an ATX motherboard and features a PCI Express 4.0 slot with full x16 connectivity for graphics cards. For additional expansion cards, the motherboard provides two PCIe 3.0 x16 slots and one PCIe 3.0 x1 slot. The four RAM banks support up to 128 GB of DDR4 RAM with a clock speed of up to 3,200 MHz and can even handle clock speeds of up to 4,933 MHz when overclocked.

The AM4 motherboard also provides two M.2 slots. The first M.2 slot supports PCIe 4.0, is connected via four PCI Express lanes, and accommodates expansion cards between 42 mm and 80 mm (2242 / 2260 / 2280). A second M.2 slot supports PCIe 3.0 with quad-bay connections and is also connected via the SATA 6G protocol. It accommodates M.2 expansion cards between 60 and 110 mm (2260 / 2280 / 22110).

Modern Connectors and RGB LED Lighting
The ASRock B550 PG Riptide features two USB 3.1 ports (Type A / Type C), six USB 3.0 ports with Type A female connectors, and two USB 2.0 ports (Type A) on the I/O panel. An HDMI port is available for CPUs with integrated graphics.

This B550 motherboard also offers features such as a 2.5 Gigabit LAN port (Killer E3100G), on-board sound (Realtek ALC897 audio codec), reinforced PCIe slots, and numerous internal headers. Also included are overclocking features, an optimized power supply, diagnostic LEDs, and a power and reset button.

A special feature of the ASRock B550 PG Riptide is the RGB lighting, which can be synchronized with other RGB components using the manufacturers software. The motherboard features two 4-pin RGB headers for this purpose. Furthermore, there are seven connectors for fans and pumps.

Technical Details:
Format
– ATX (305 x 244 mm)
– Chipset
– AMD B550
– Socket:
– AM4 (for Matisse)
– RAM:
– 4x DDR4 (max. 3200 MHz, 4933 MHz when overclocked)
– Dual-Channel
– max. 128 GB
– Slots:
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 1x PCIe 3.0 x16 (electrical x4, chipset)
– 1x PCIe 3.0 x16 (electrical x1, chipset)
– Internal Connectors:
– 6x SATA 6G
– 1x M.2 (PCIe 4.0 x4, sizes 2242 to 2280)
– 1x M.2 (PCIe 3.0 x4 and SATA 6G with max. 32 Gbps, sizes 2260 to 22110)
– 1x USB-C (USB 3.2 Gen 2, max. 10 Gbps)
– 4x USB 3.0 (two headers, USB 3.2 Gen 1, max. 5 Gbps)
– 6x USB 2.0 (two headers, max. 480 Mbit/s)
– 1x Thunderbolt connector
– 1x front panel audio connector
– 2x system panel connectors
– 1x TPM connector
– Fan headers:
– 1x CPU fan (4-pin)
– 1x CPU fan/pump (4-pin)
– 5x chassis fans (4-pin)
– RGB headers:
– 2x 3-pin RGB headers (5V)
– 2x 4-pin RGB headers (12VGRB)

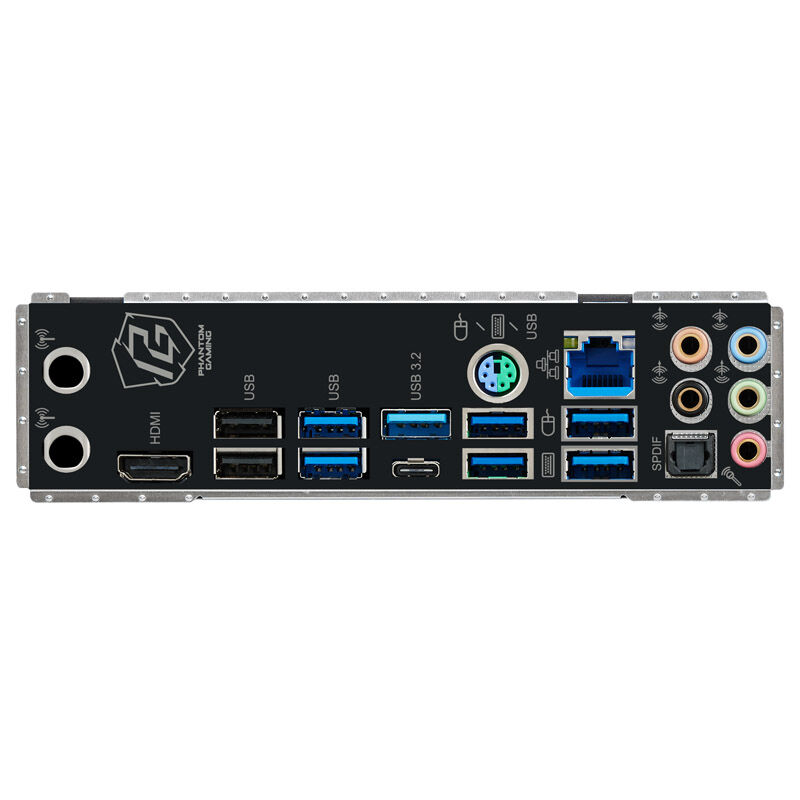

– External ports:
– 1x PS/2 mouse/keyboard
– 1x USB 3.1 (USB 3.2 Gen 2, Type A)
– 1x USB 3.1 (USB 3.2 Gen 2, Type C)
– 6x USB 3.0 (USB 3.2 Gen 1, Type A)
– 2x USB 2.0
– 1x Gigabit LAN (Killer E3100G)
– 1x HDMI 2.1
– 3x Audio (Realtek ALC897 Audio Codec)
– Power Supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
– 1x 4-pin ATX12V

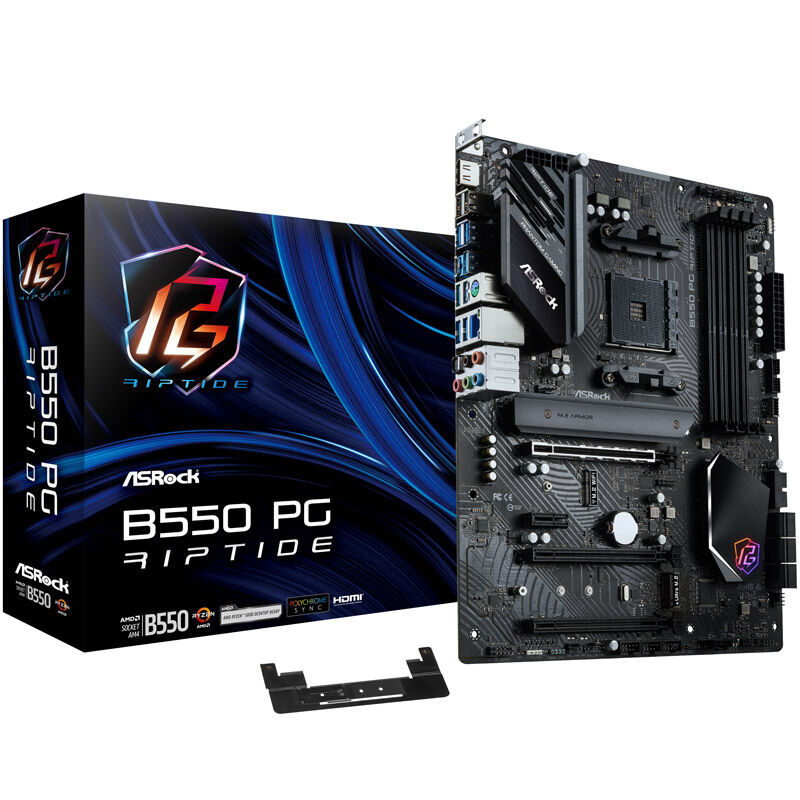

– Included in the Box:
– ASRock B550 PG Riptide Motherboard
– Manual
– I/O Shield
– 1x Graphics Card Bracket
– 2x SATA 6G Cables
– 1x M.2 Screw Kit
