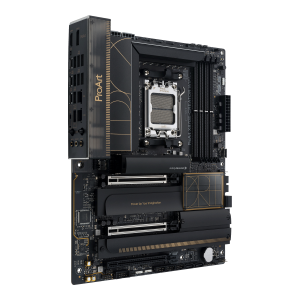

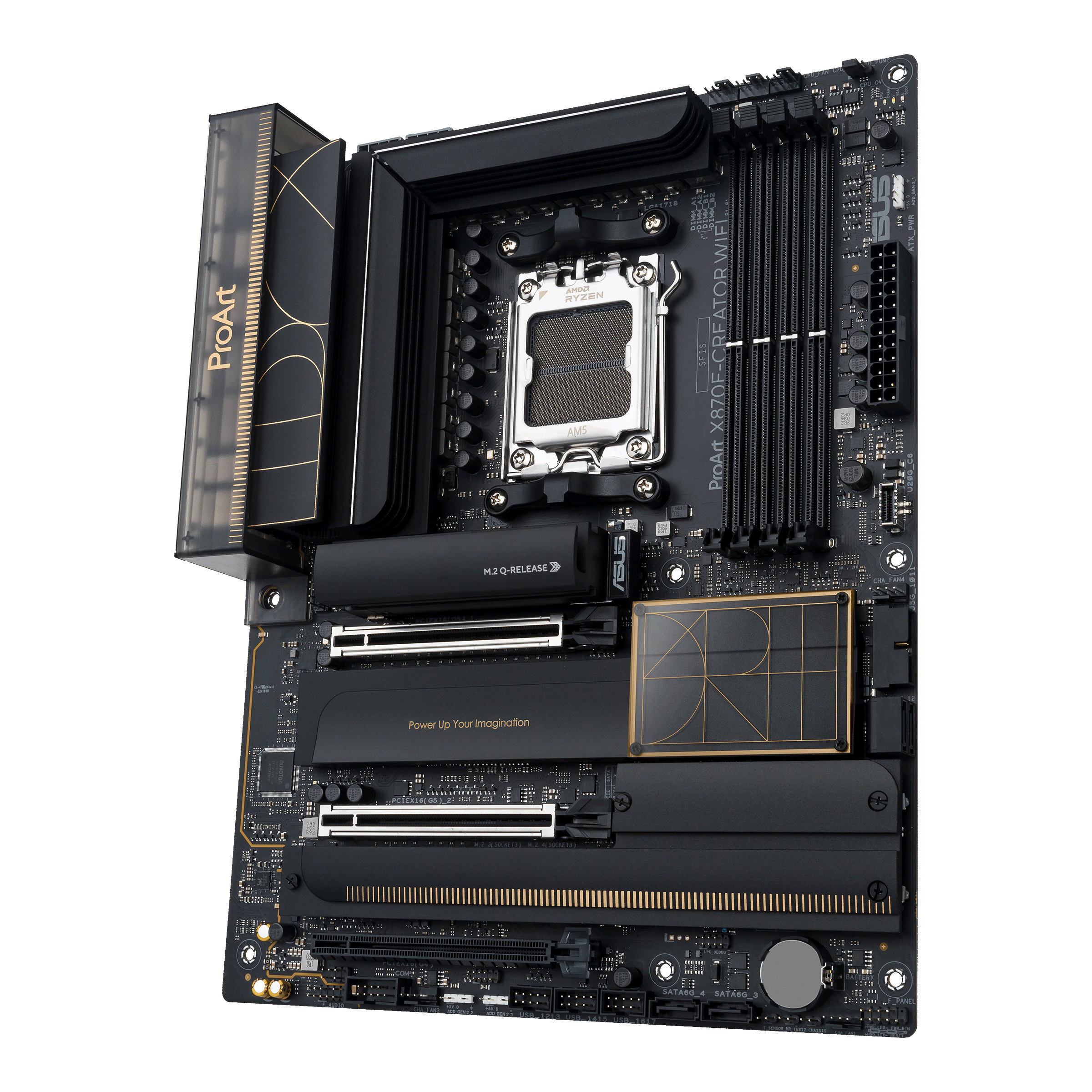

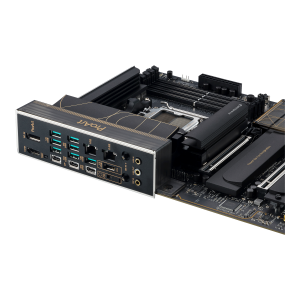

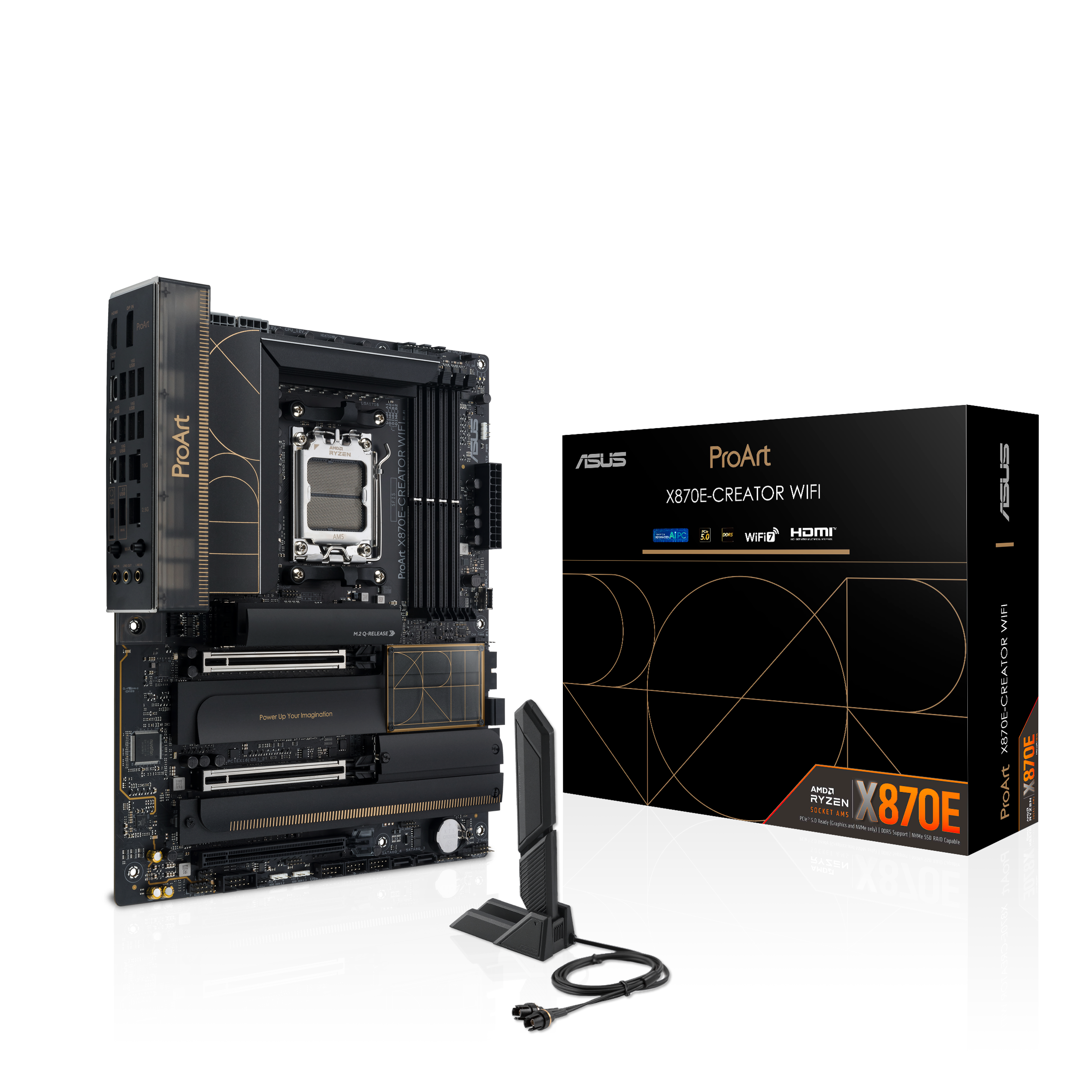

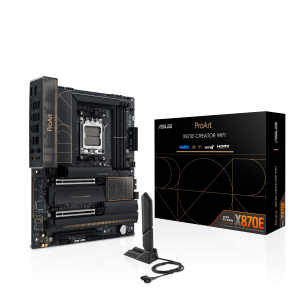

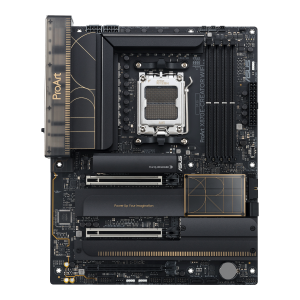

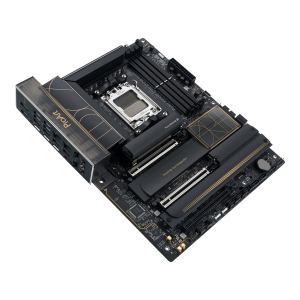

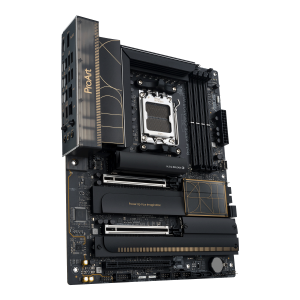

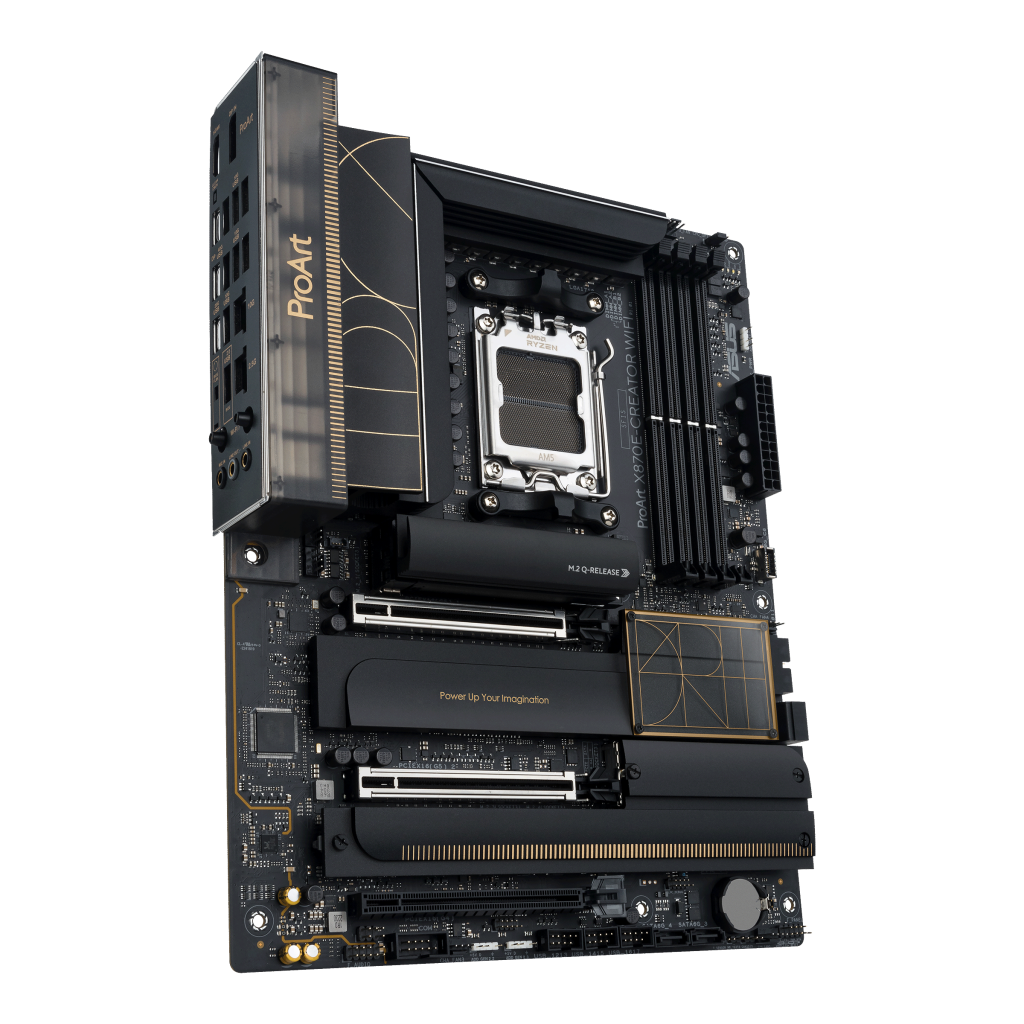

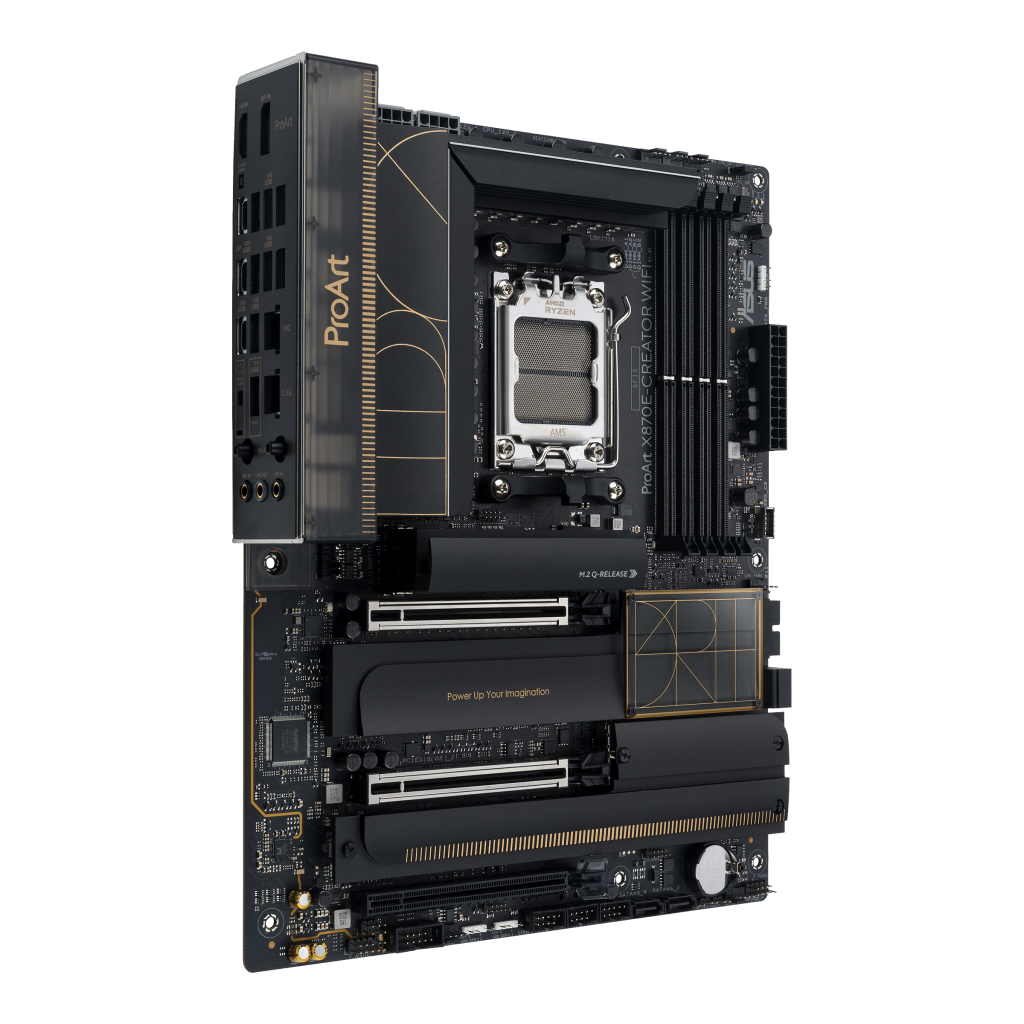

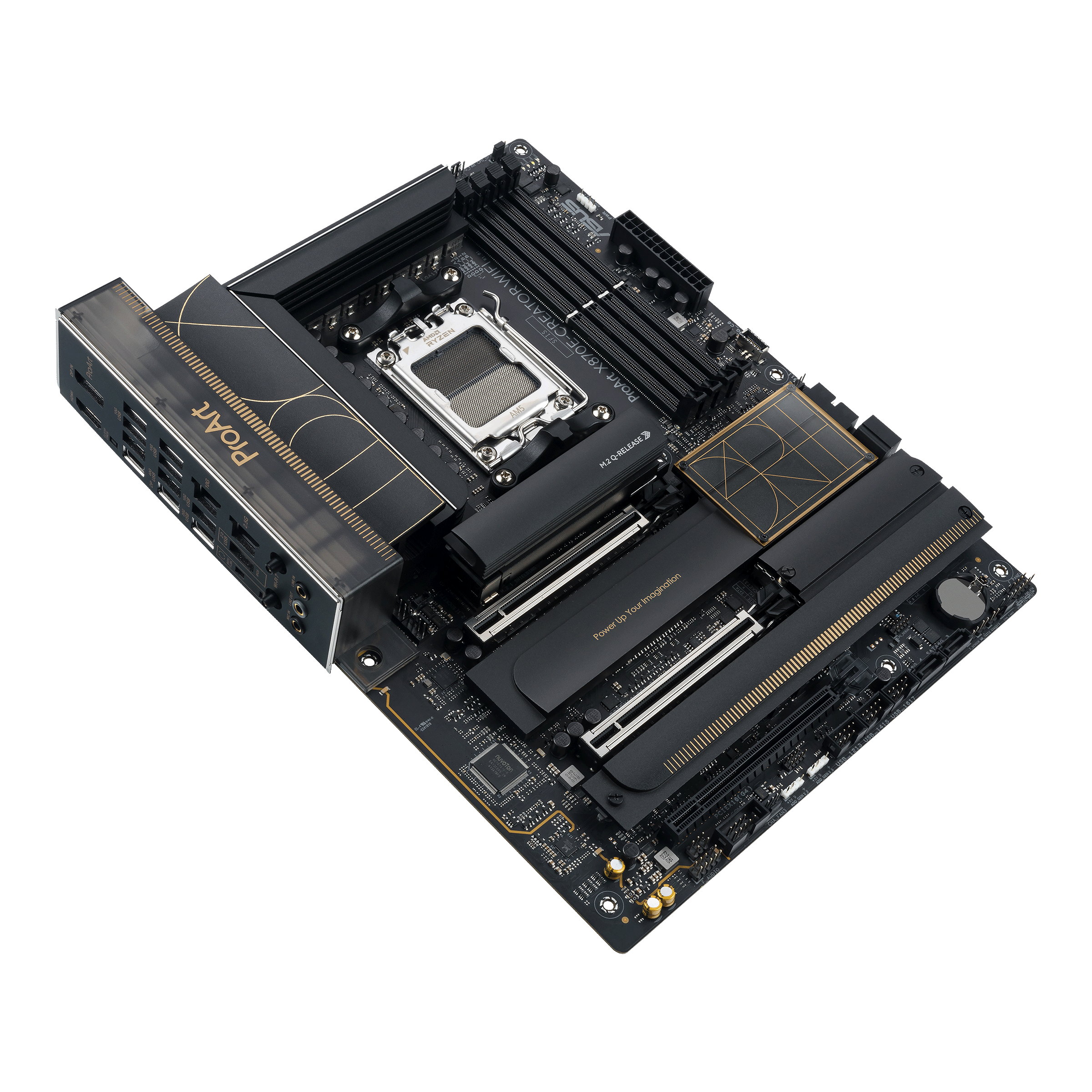

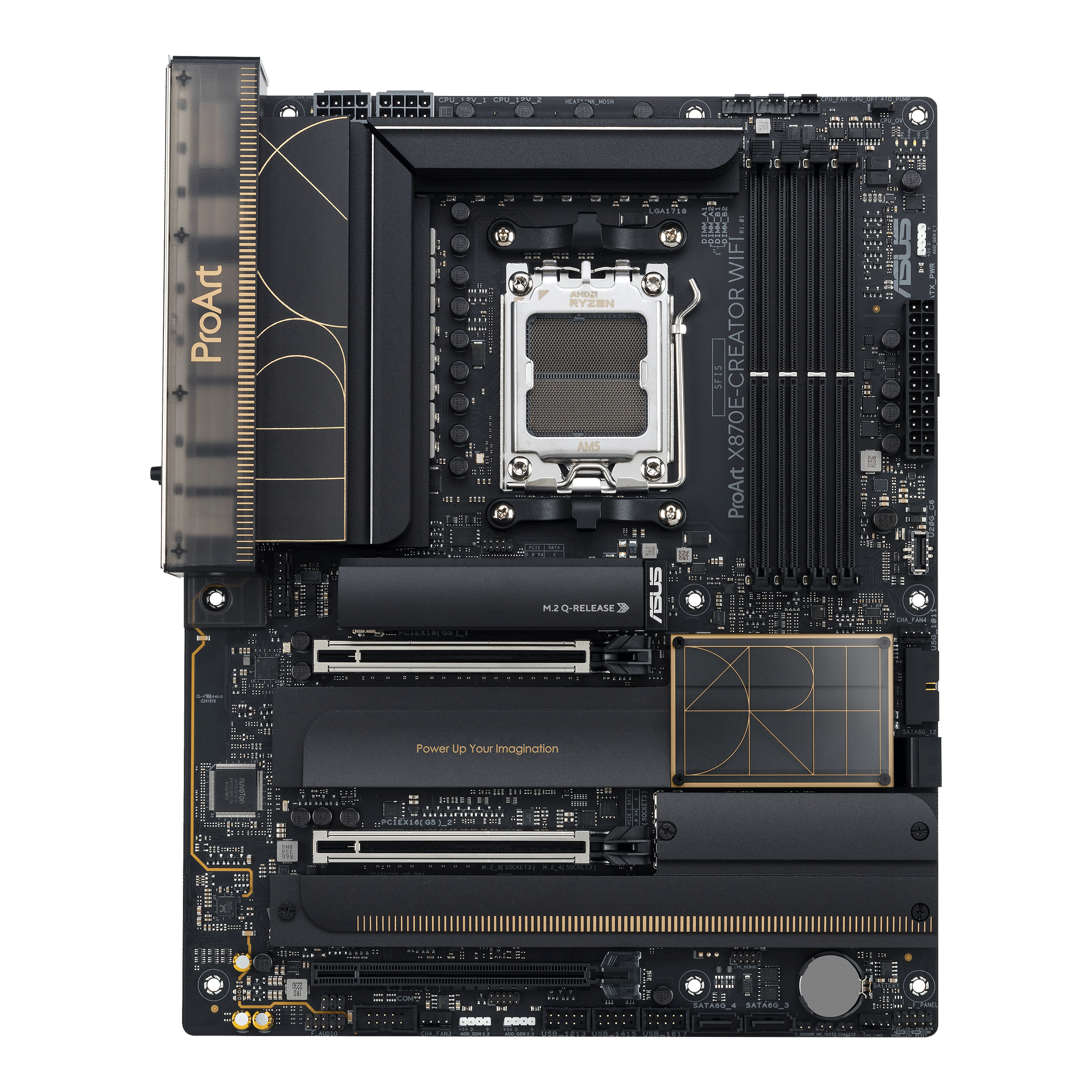

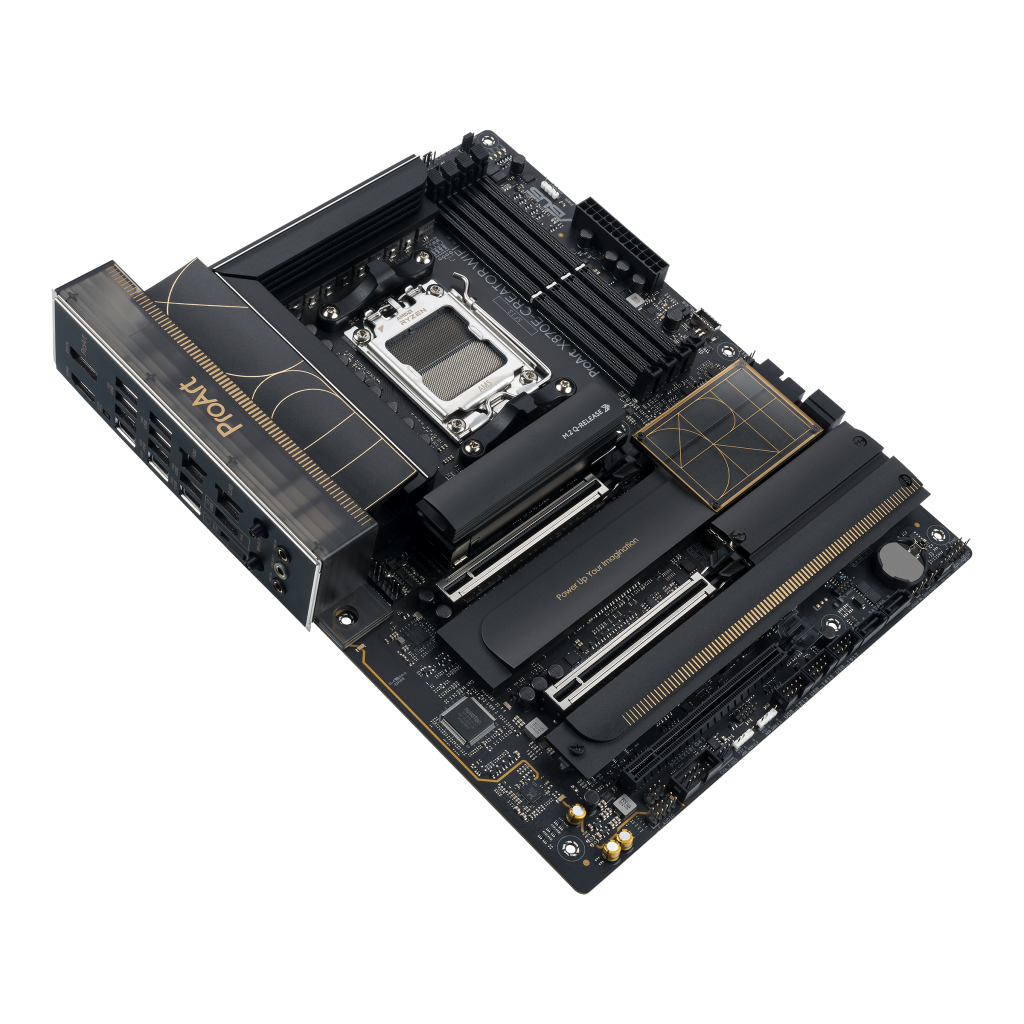

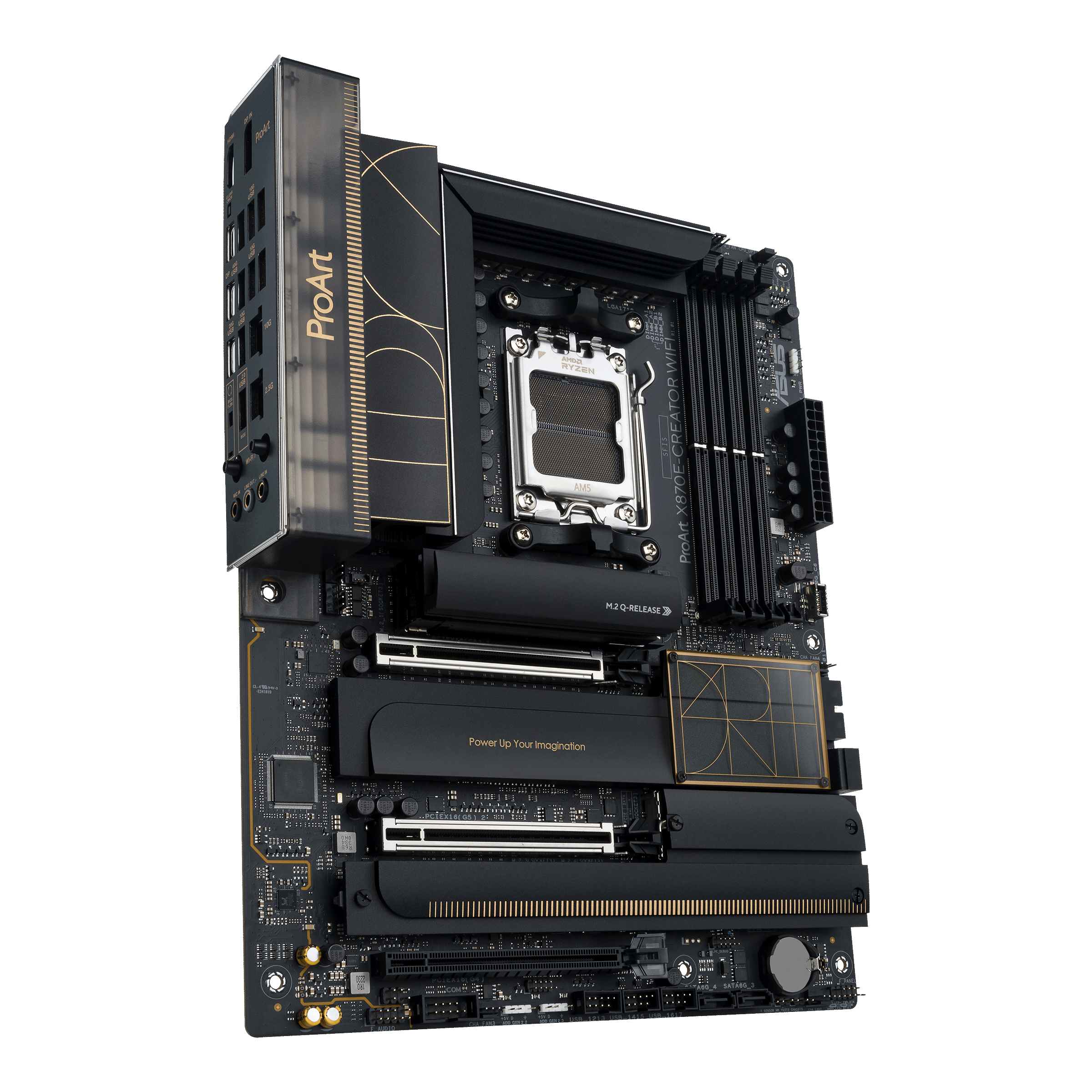

ASUS ProArt X870E-Creator WiFi motherboard, AMD X870E, socket AM5, DDR5

– 2x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 8000 MHz (OC)
– 4x M.2 (including 2x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 2x USB 4, 2x USB-C 3.2, 7x USB 3.1, 1x USB 3.0, and 4x USB 2.0 on the I/O panel
– OC features: 16+2+2 VRMs, Digi+
– A total of 8x 4-pin PWM fans possible

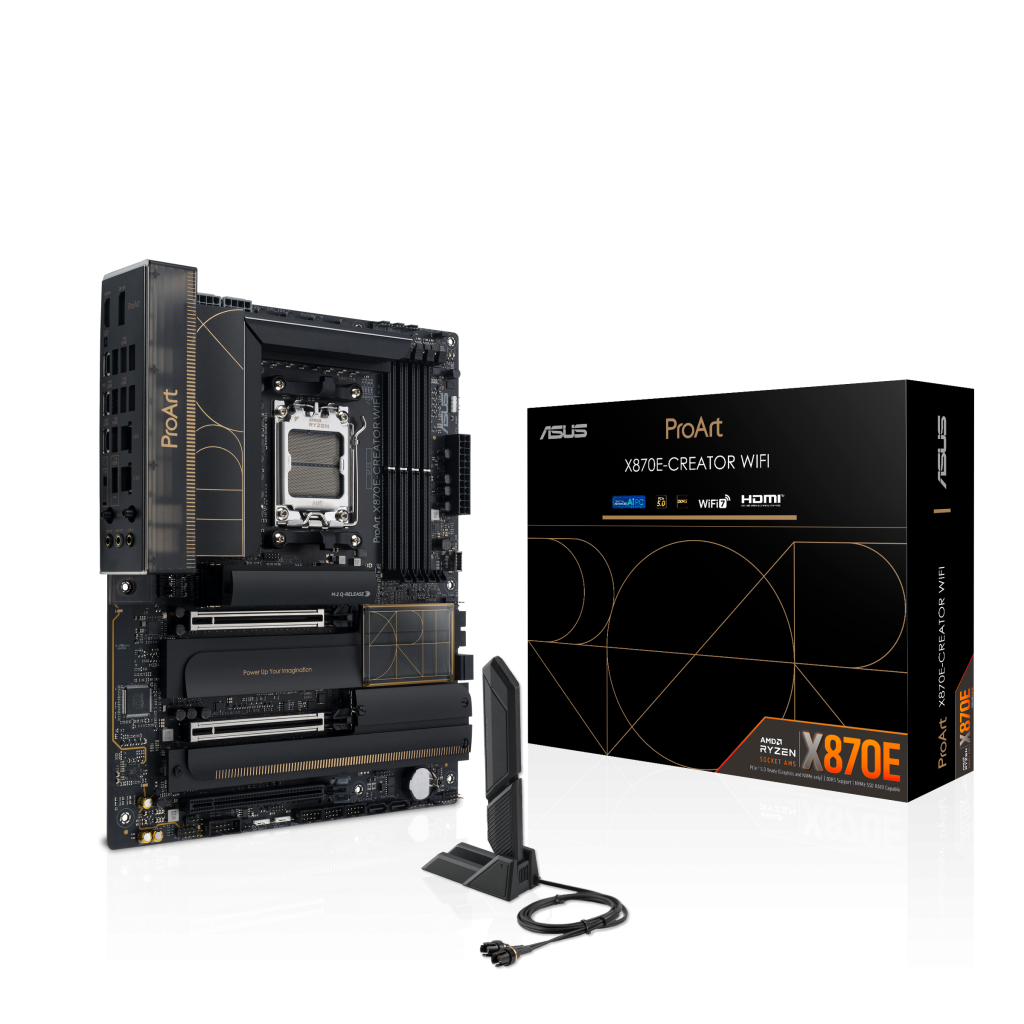

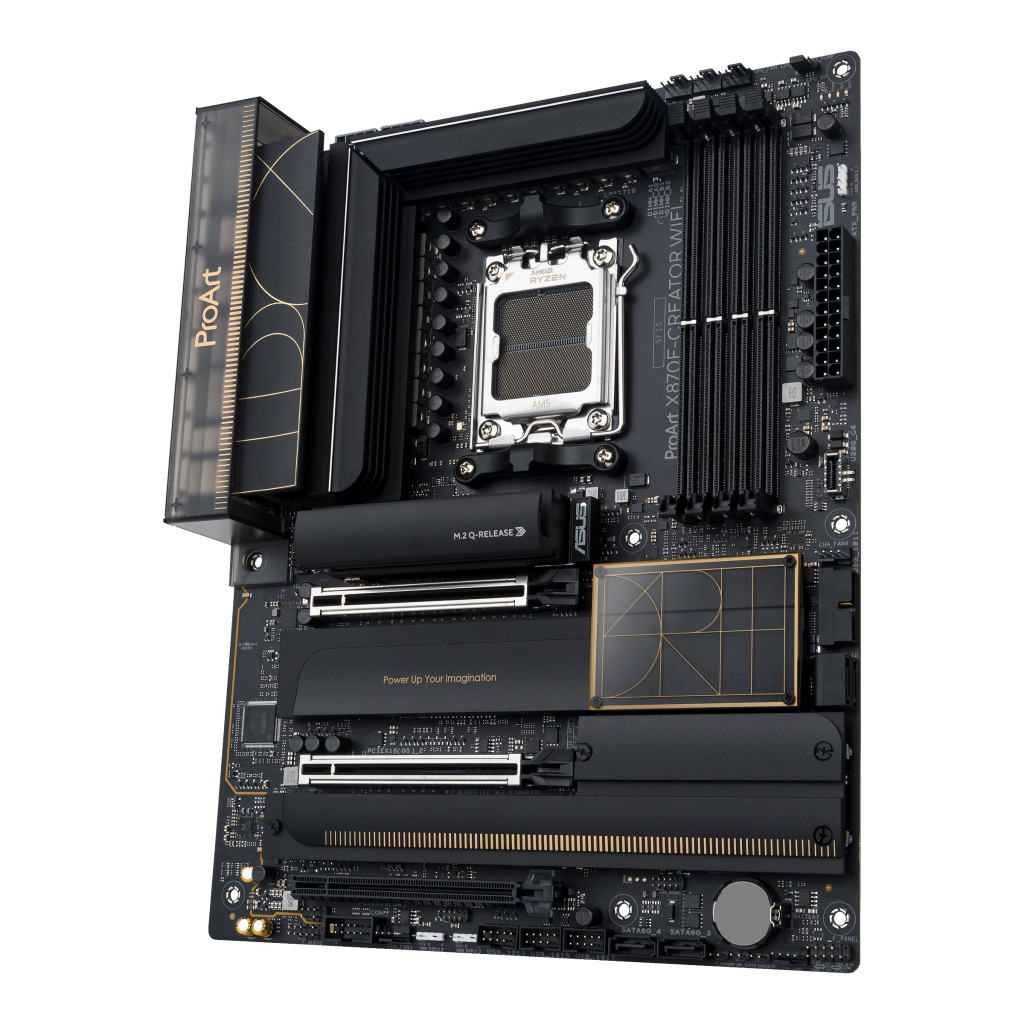

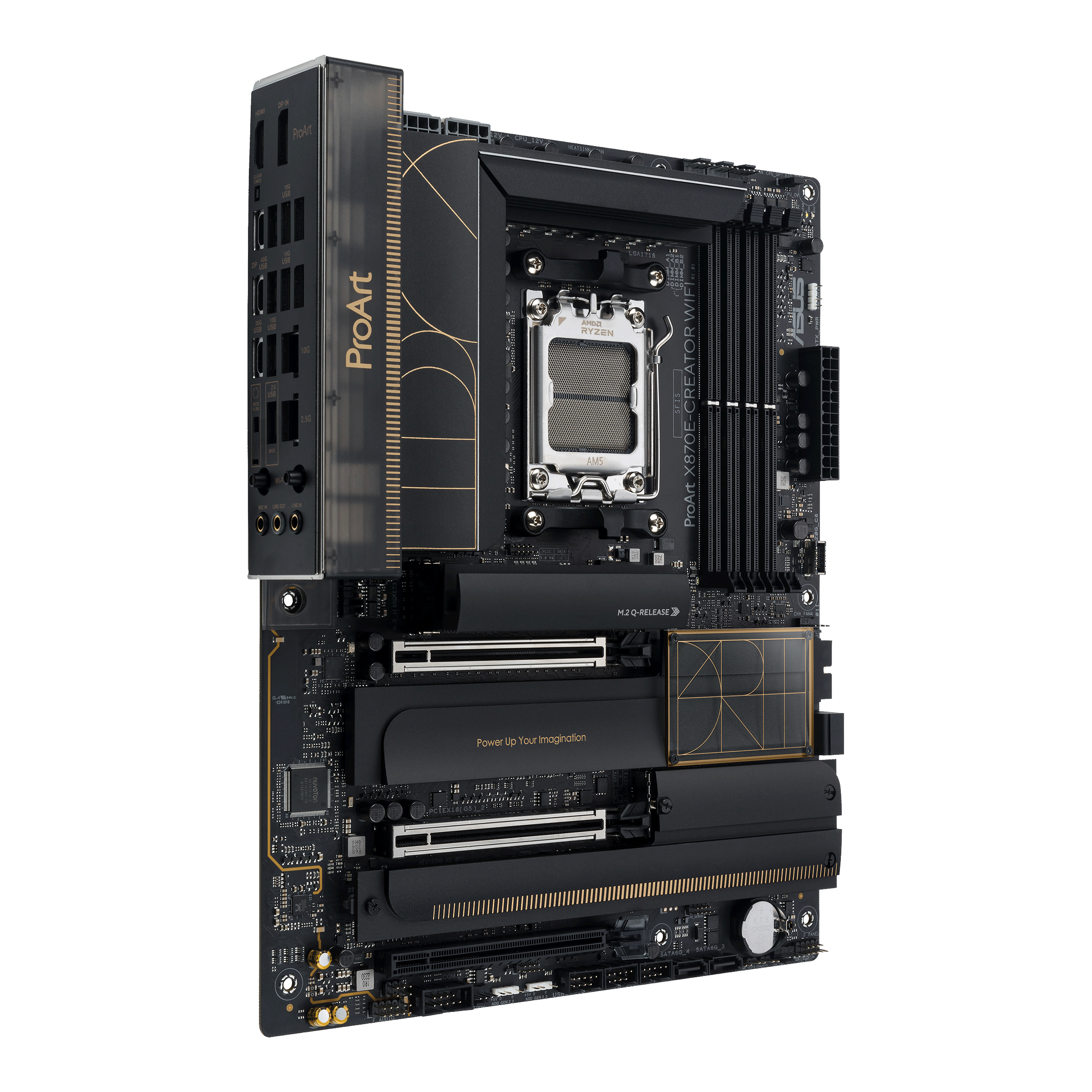

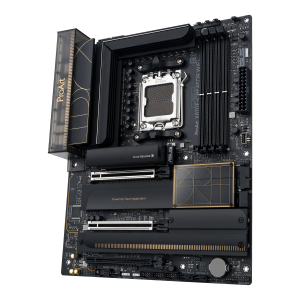

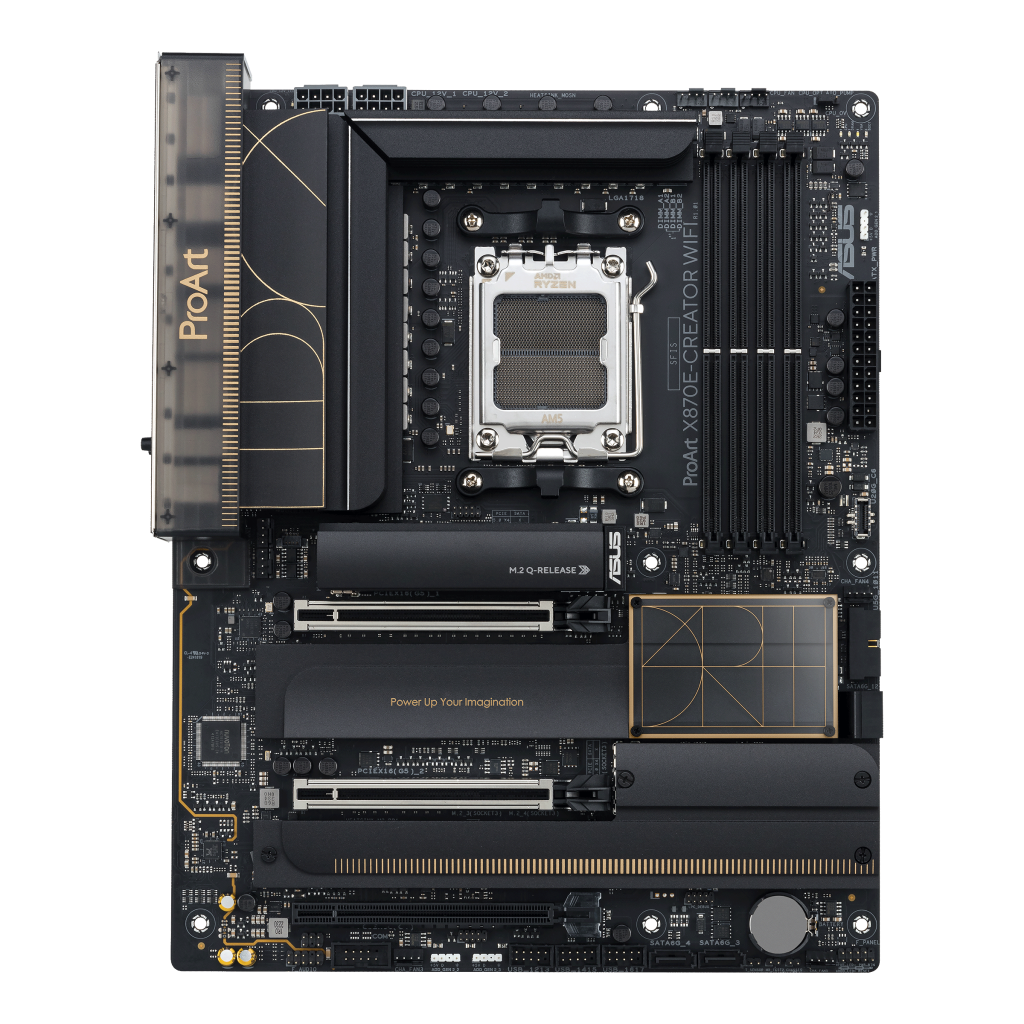

ASUS PROART X870E-CREATOR WIFI: ATX motherboard with AMD AM5 socket and X870E chipset
The ASUS PROART X870E-CREATOR WIFI is Equipped with the high-end X870E chipset for AMDs Ryzen 9000 series processors, it boasts numerous features for enthusiasts, gamers, and content creators. The Ryzen 9000 series processors also utilize the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASUS PROART X870E-CREATOR WIFI supports PCIe 5.0, providing twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Designed for demanding applications and impressive aesthetics
The ASUS PROART X870E-CREATOR WIFI is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 305 mm
– Width
– 244 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD X870E
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 5200 MT/s
– Max. Memory Speed (OC)
– 8000 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 10 Gbps, 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Cooling
– M.2 Cooler
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 (internal) header
– 1
– USB 2.0 (internal) header
– 3
– Front-panel audio header
– Yes

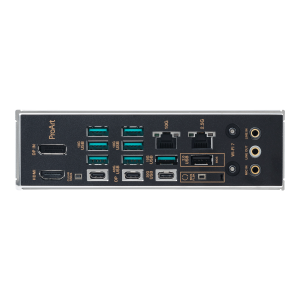

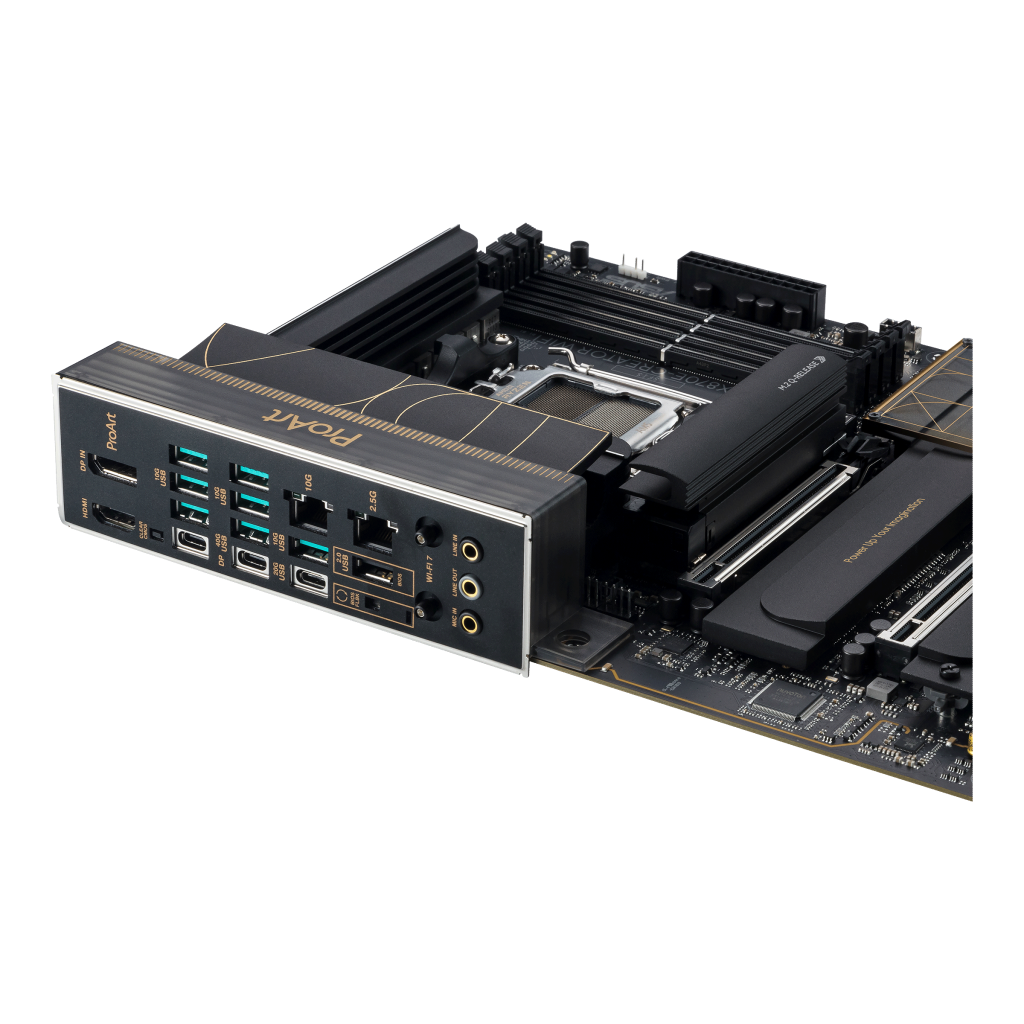

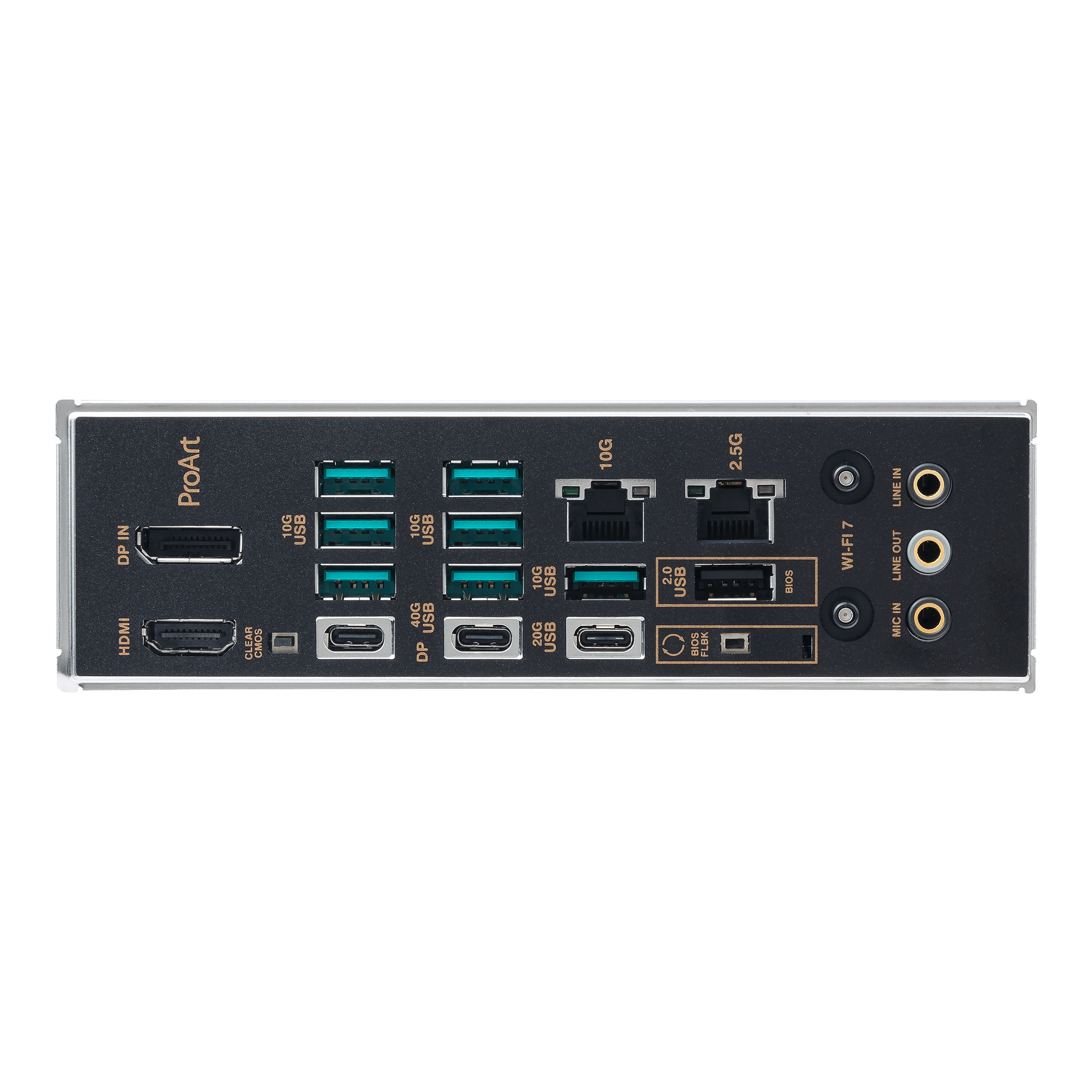

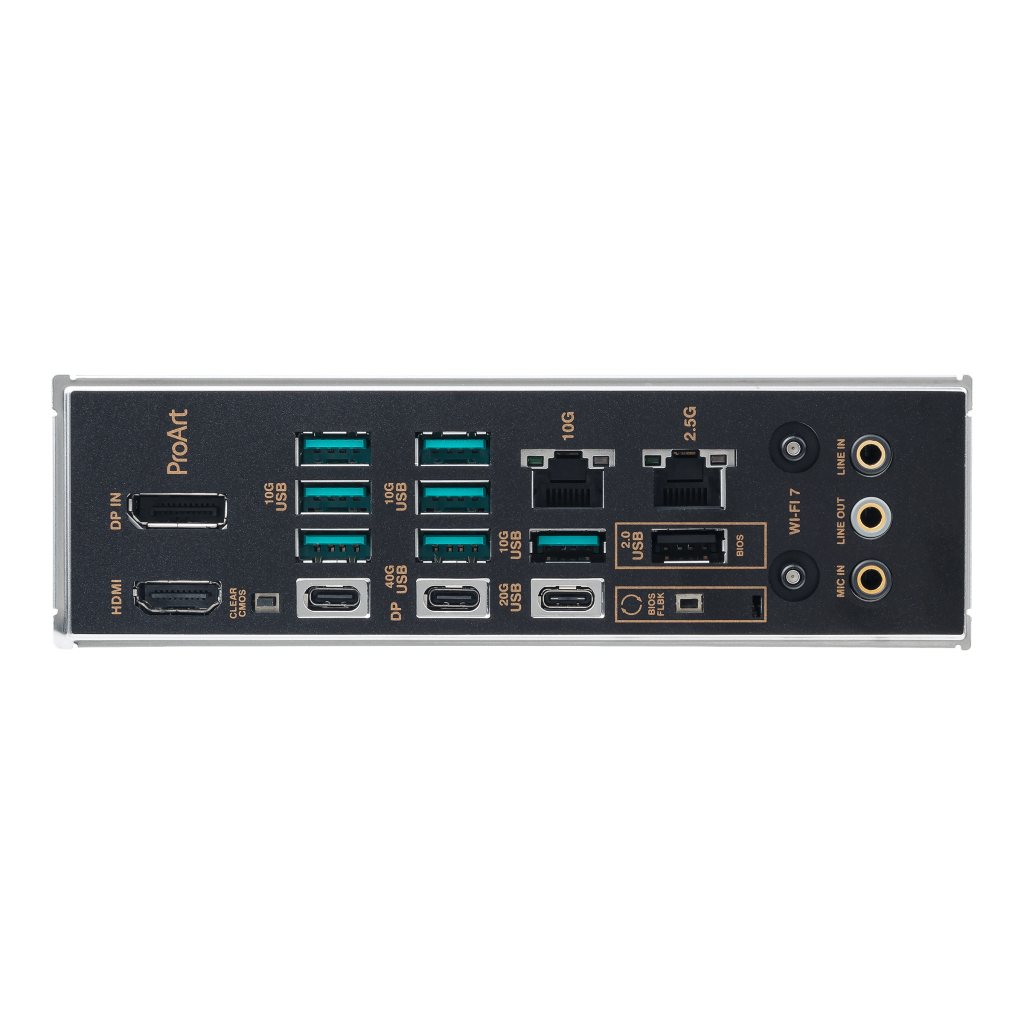

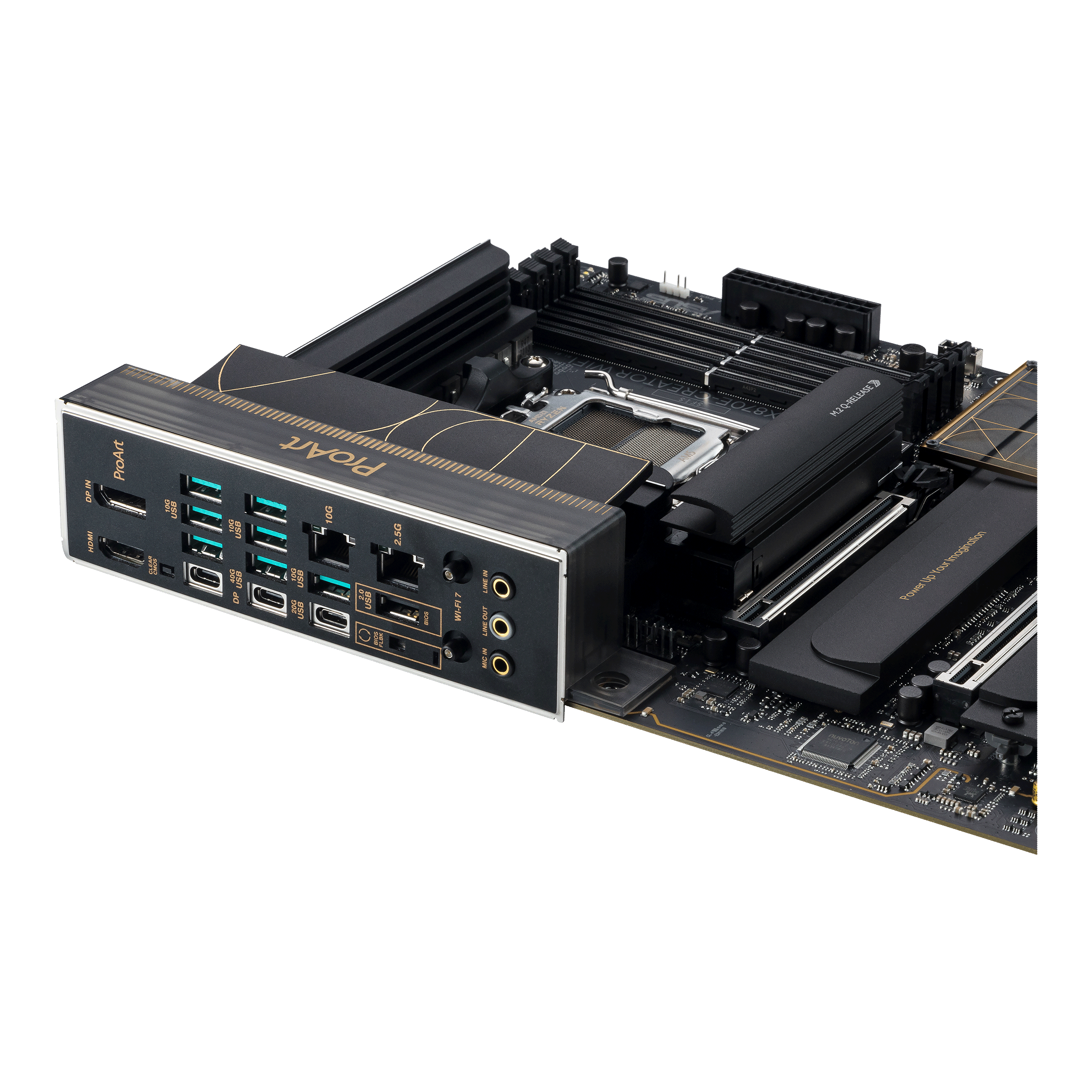

– External ports
– USB 4 Gen 2×2 (external) Type-C
– 2
– USB 3.2 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 7
– USB 2.0 (external) Type-A
– 1
