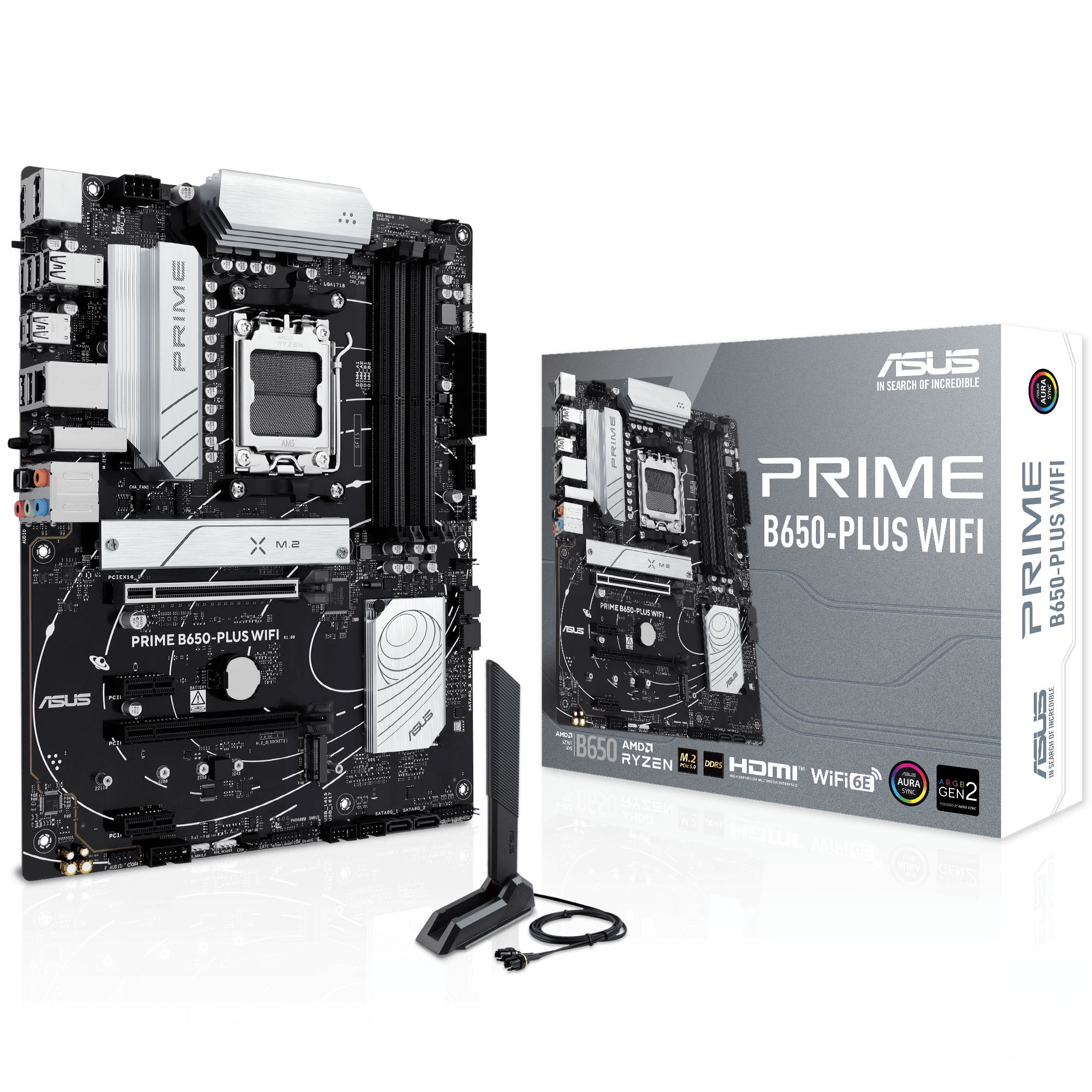

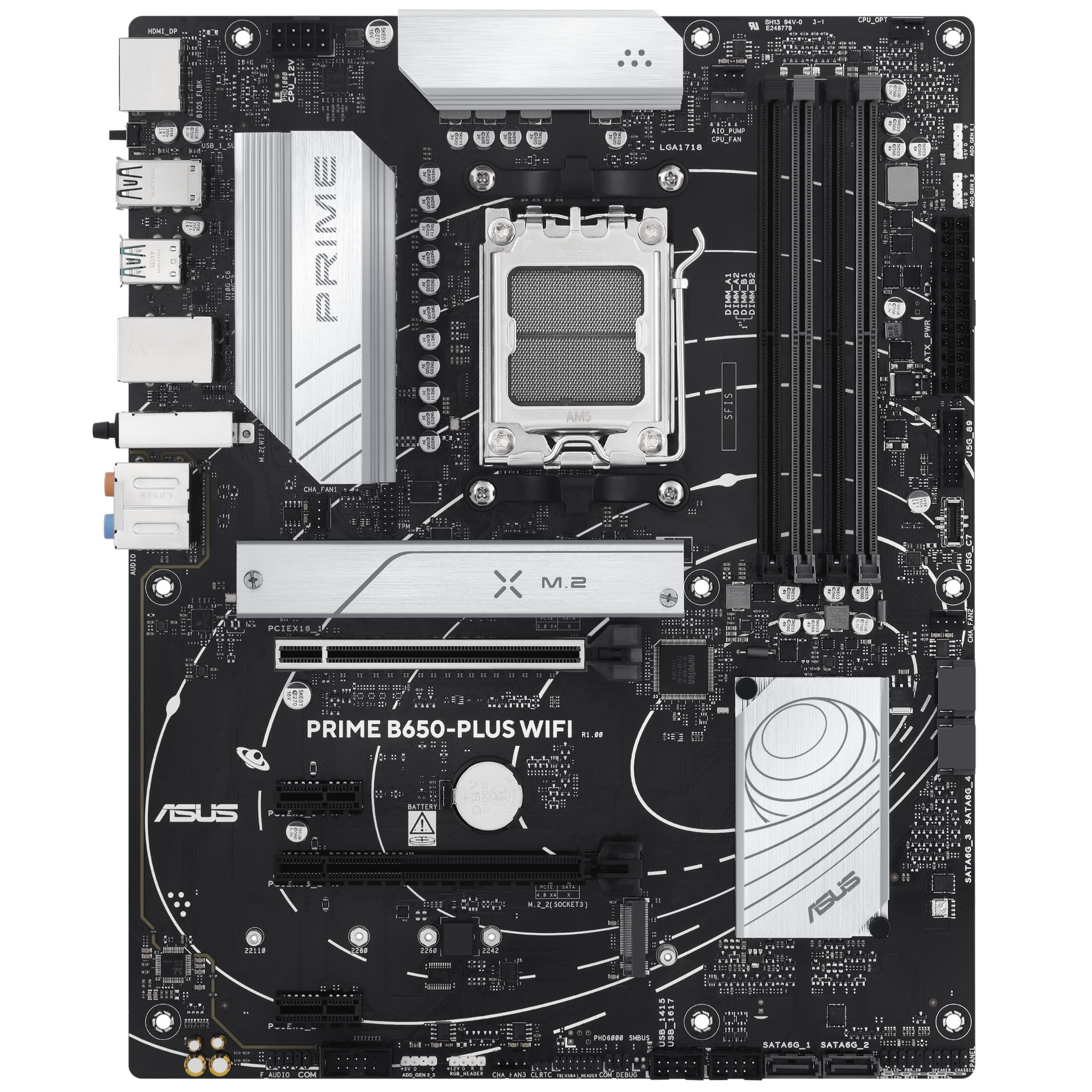

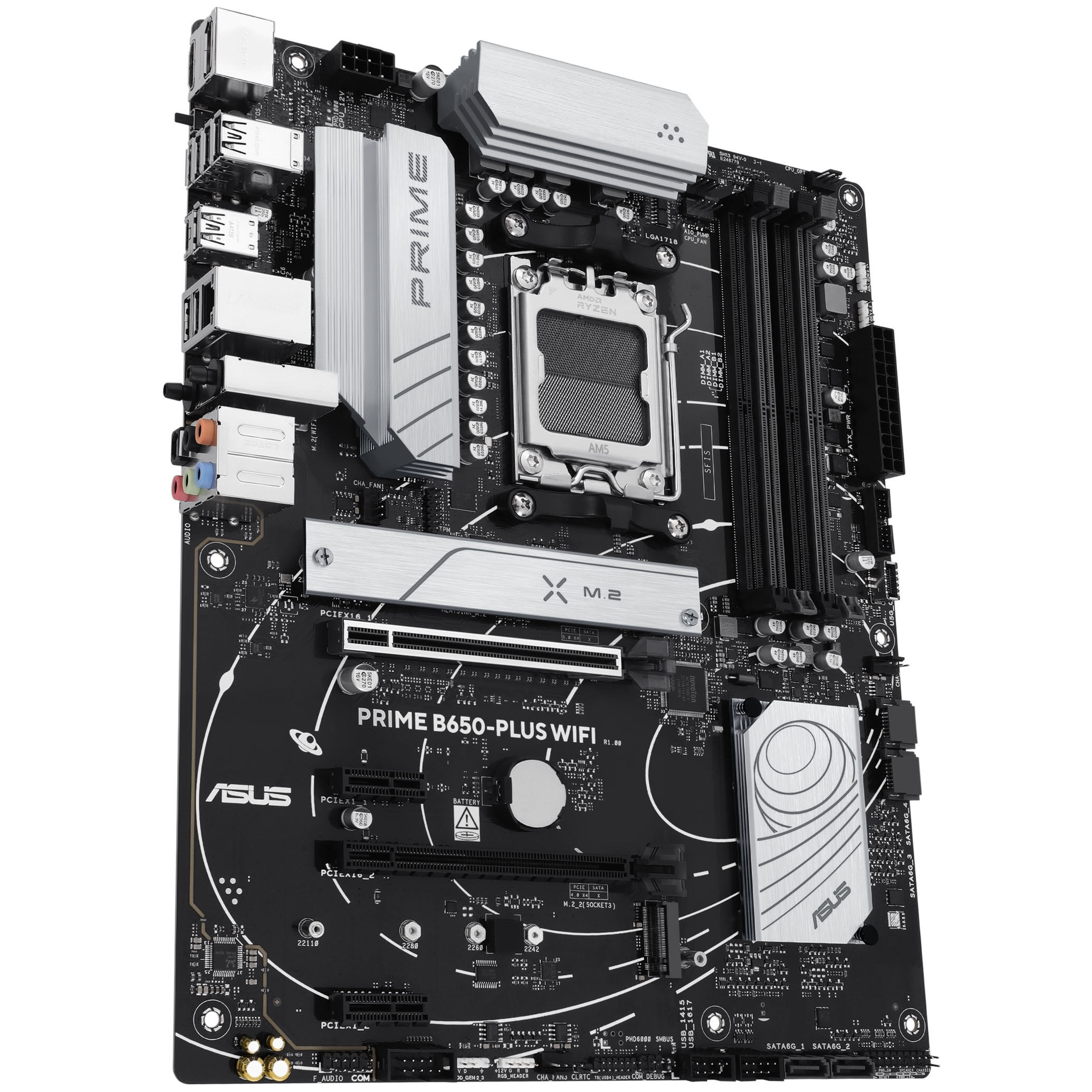

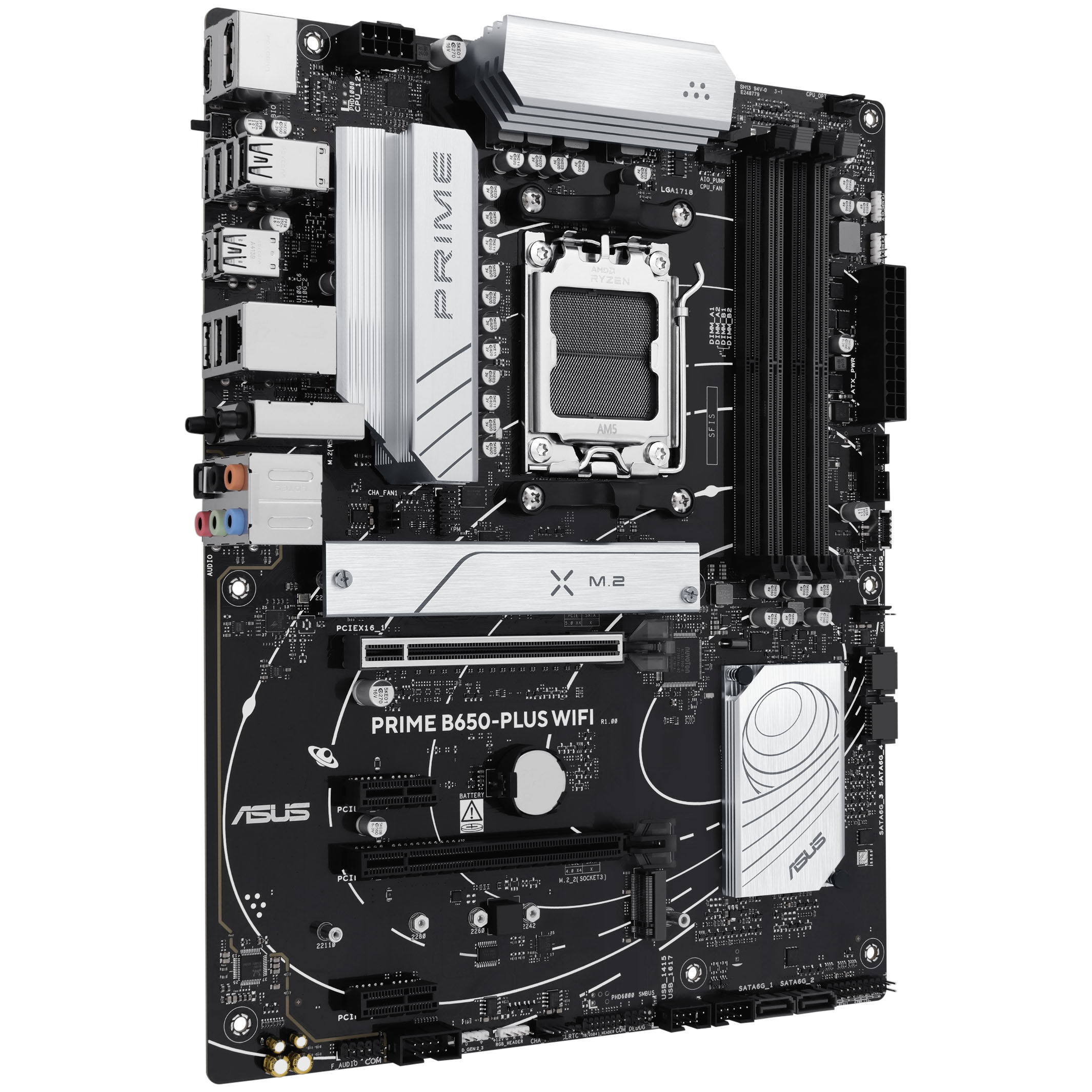

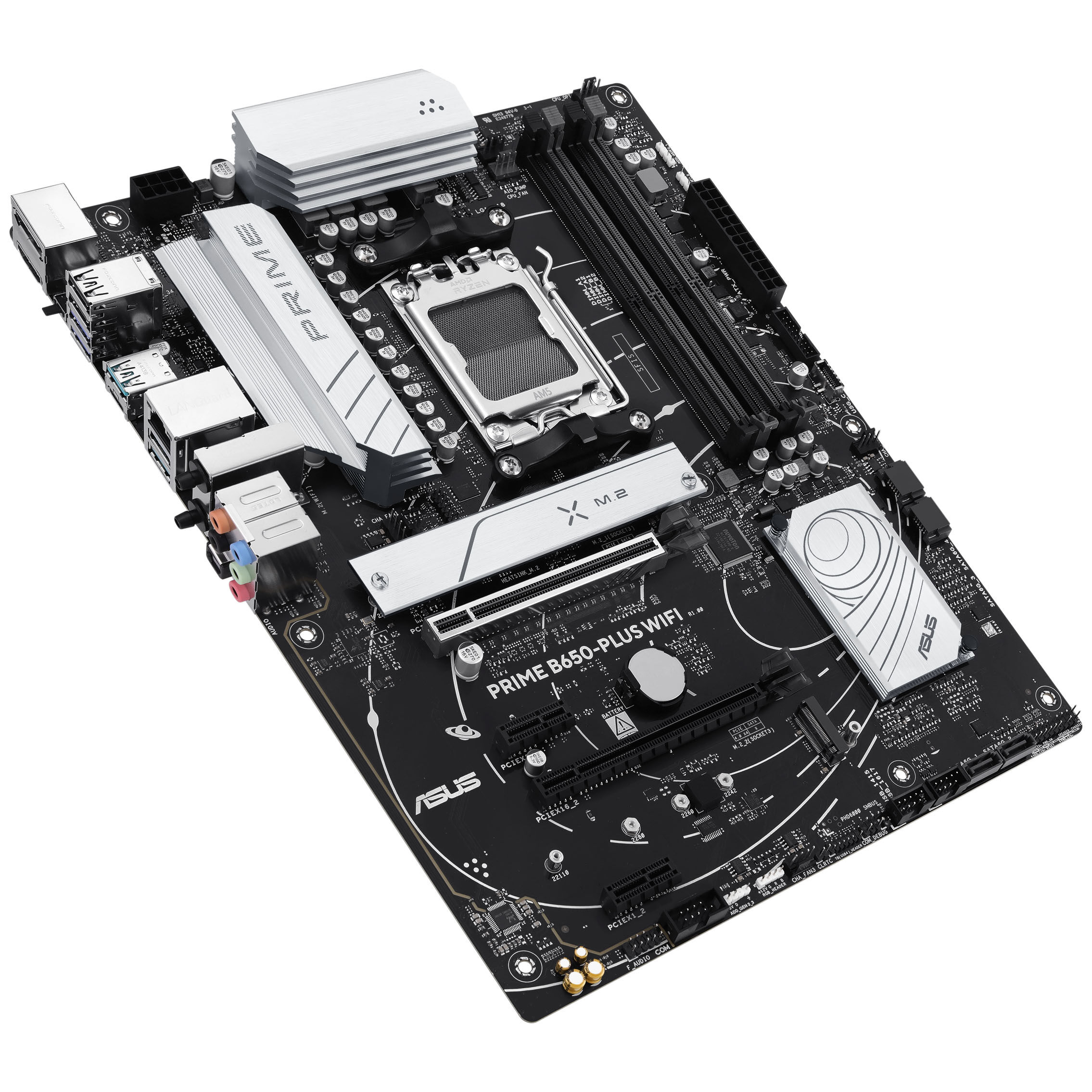

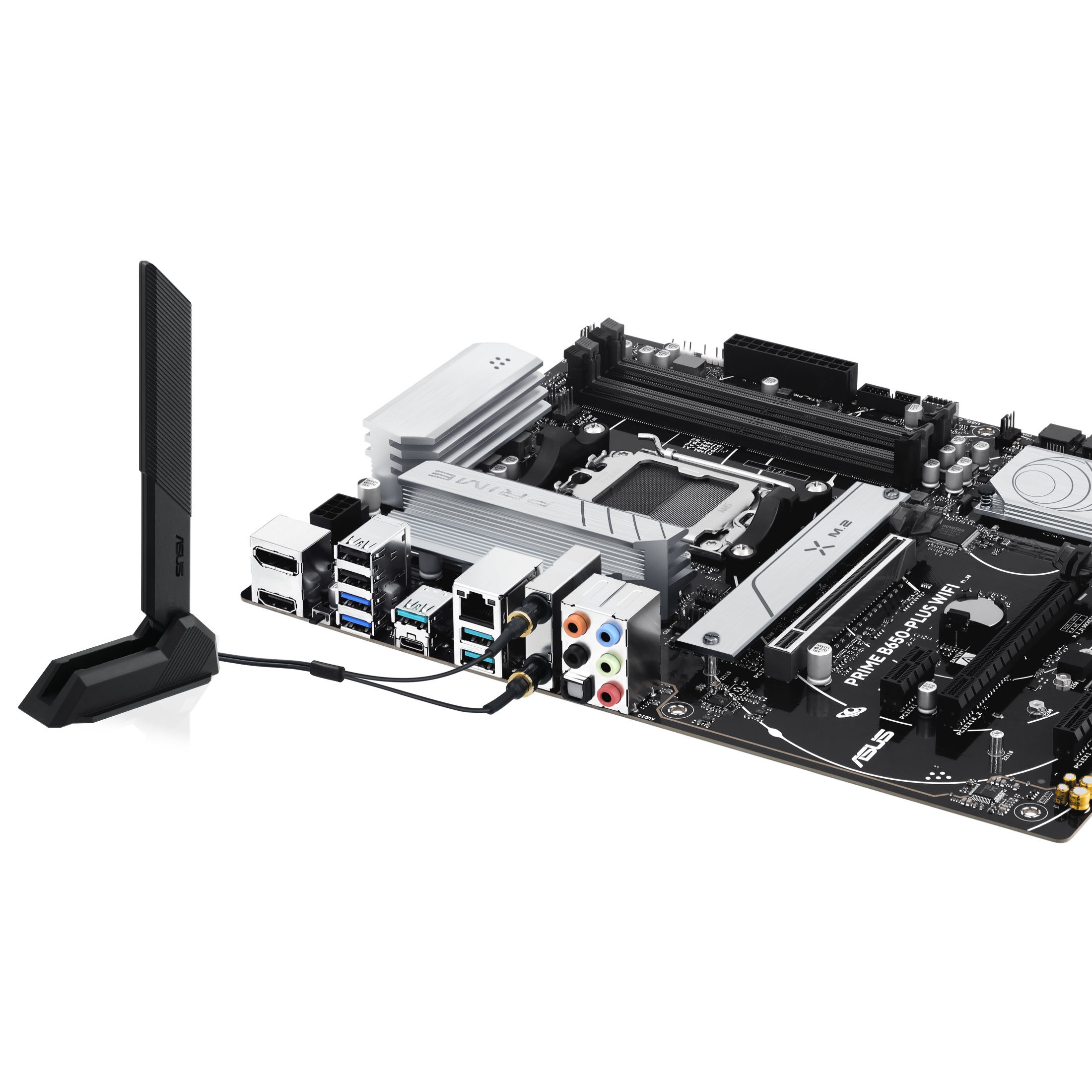

ASUS Prime B650-Plus WiFi motherboard, socket AM5, AMD B650, ATX, DDR5

– 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 2x PCIe x1
– Supports up to 192 GB DDR5 RAM up to 7,600 MHz (OC)
– 1x M.2 PCIe 5.0, 1x M.2 PCIe 4.0, and 4x SATA 6G

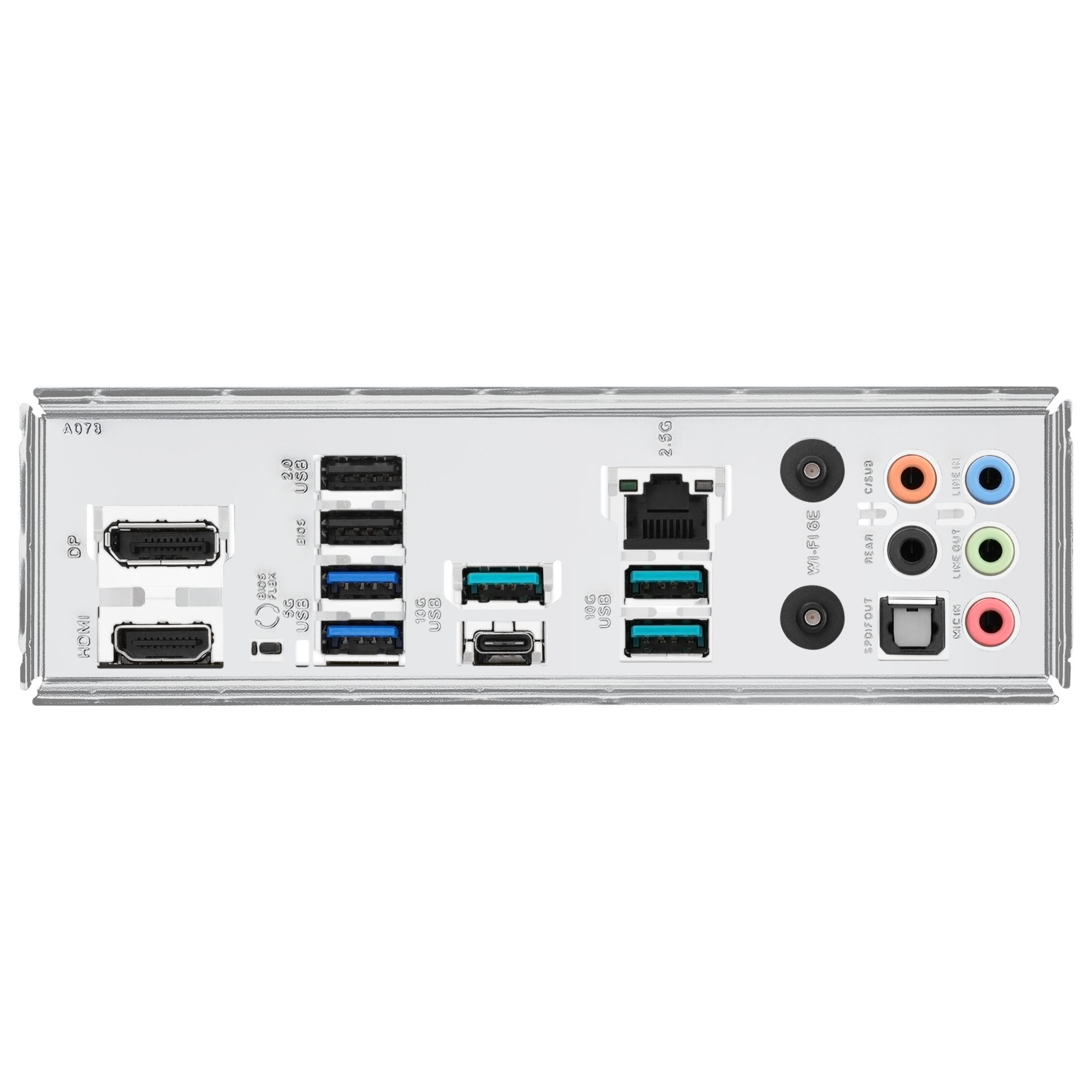

– 1x USB-C 3.1, 3x USB-A 3.1, 2x USB-A 3.0, and 2x USB-A 2.0 on the I/O panel
– A total of 6x 4-pin PWM connectors

ASUS Prime B650-Plus WiFi: ATX motherboard with AMD AM5
The ASUS Prime B650-Plus WiFi is equipped with the B650 chipset for AMDs Ryzen 7000 and 8000 series processors and offers numerous features for Overclockers and gamers are attracted to the new socket. Since the Ryzen 7000/8000 series processors require a new socket due to support for PCIe 5.0 and the enhanced power delivery, the 600 series motherboards use Socket AM5 (LGA 1718). Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most Socket AM4 CPU coolers to be mounted on the motherboard.

Technical Details
– Color
– Main Color
– Black
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B650
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 5200 MT/s
– Max. Memory Speed (OC)
– 7600 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 6E
– Bluetooth Standard
– 5.3
– Cooling
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– No
– Internal Connectors
– CPU Power Supply
– 1x 8-Pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
– 2
– USB 2.0 (internal) possible ports
– 4
– RGB / LED ports
– 1x Digital RGB (3-pin 5VDG), 1x RGB (4-pin 5050 12VGRB)
– Front panel audio header
– Yes
– SPI TPM header
– Yes
– External ports
– USB 3.1 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 3
– USB 3.0 (external) Type-A
– 2
– USB 2.0 (external) Type-A
– 2
– Display ports
– Display Port (1x), HDMI (1x)
– Storage ports
– M.2 PCIe 4.0 x4
– 1
– M.2 PCIe 5.0 x4
– 1
– SATA 6G (internal)
– 4
– Back Connect
– Back Connect
– No
