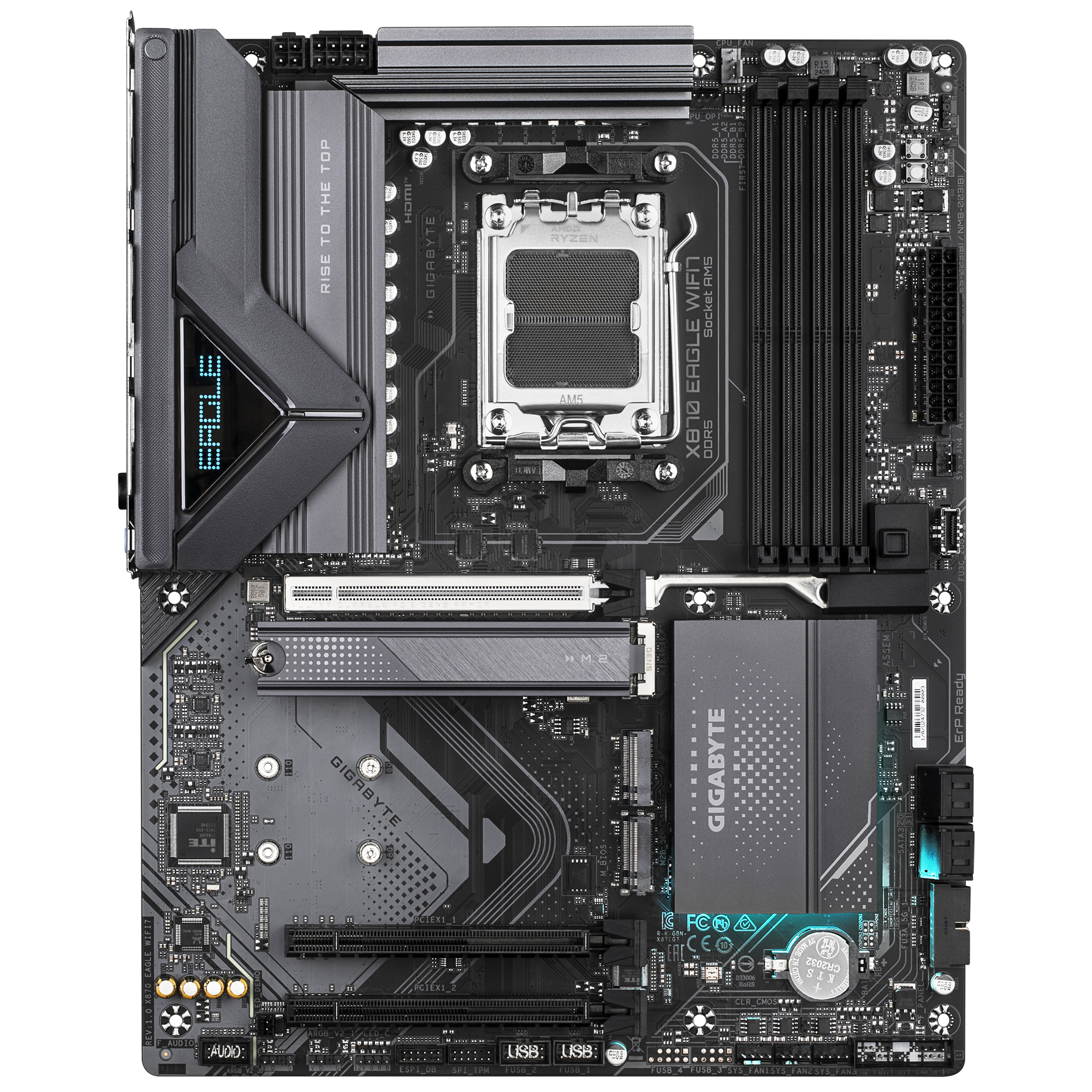

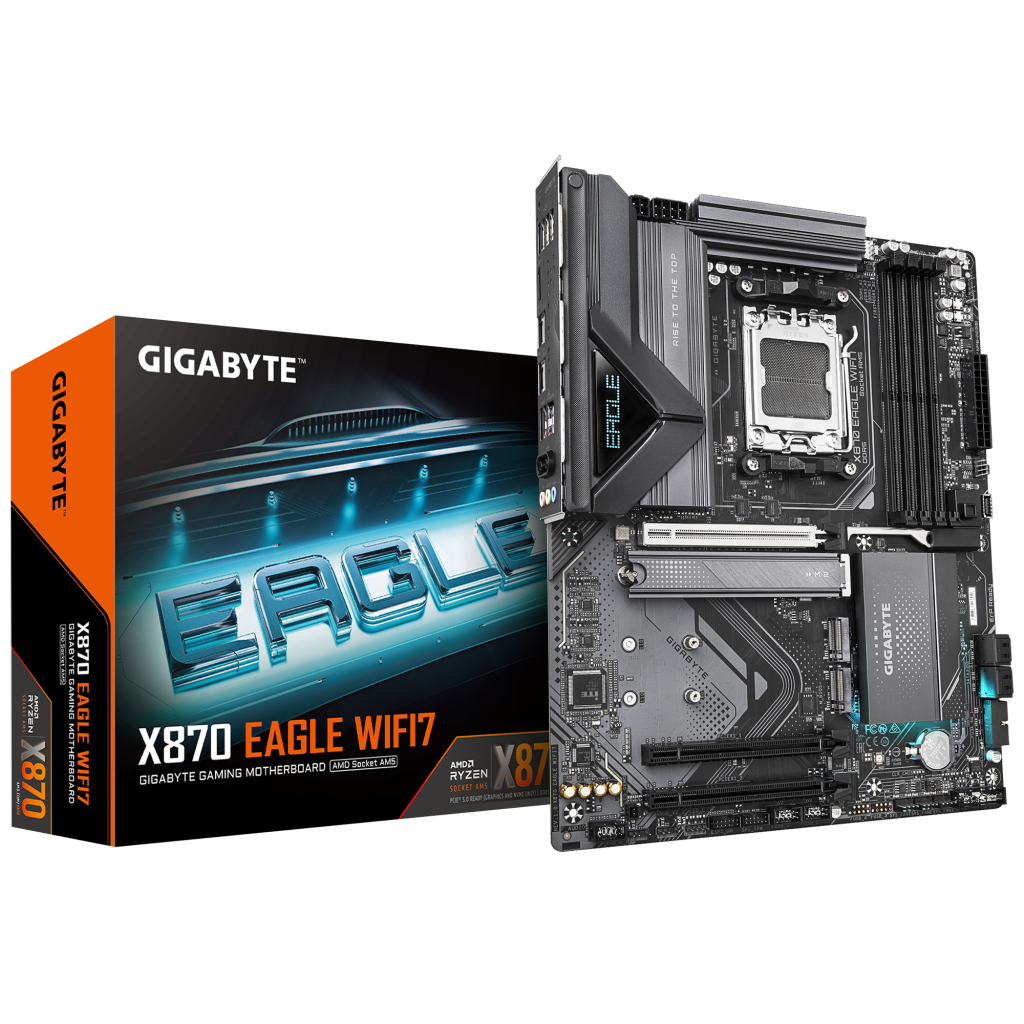

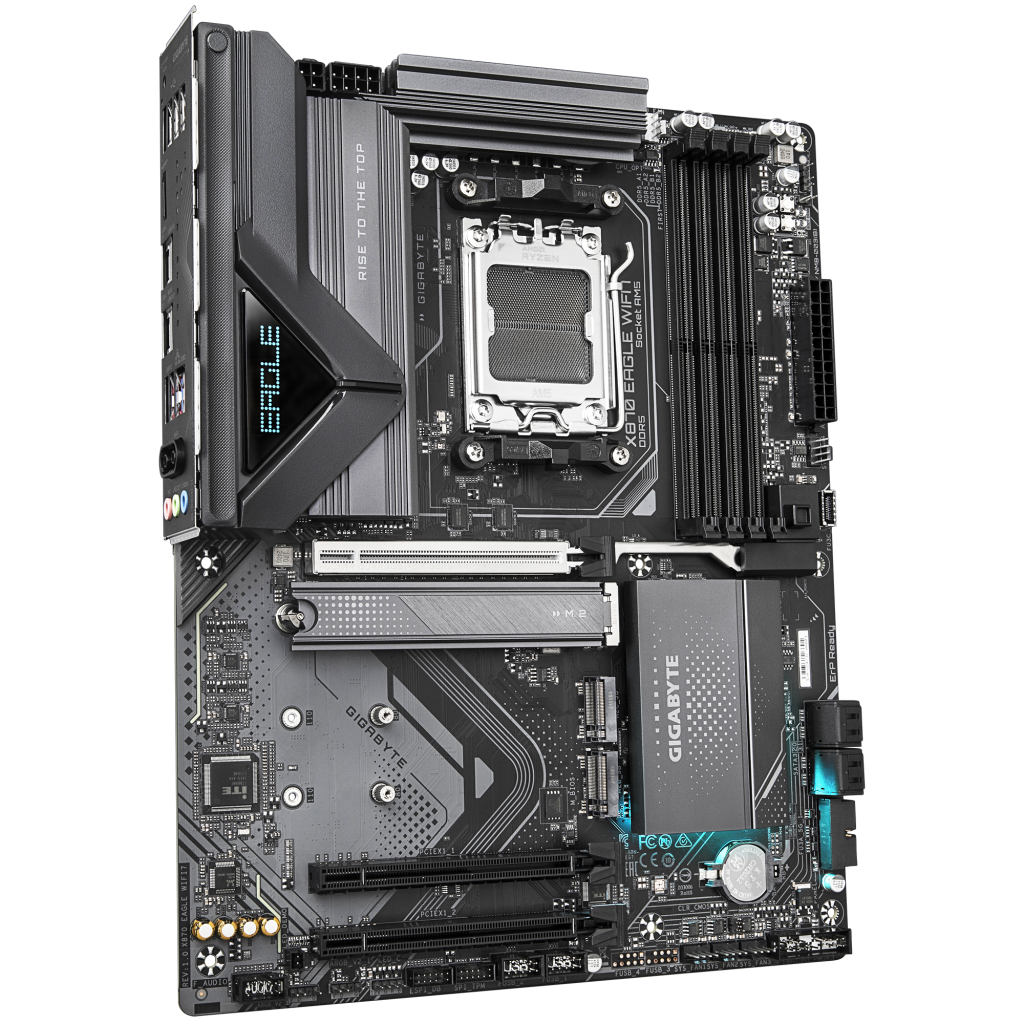

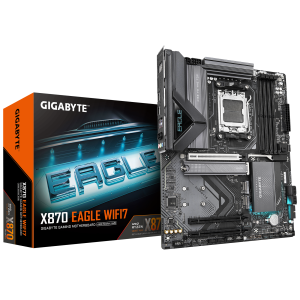

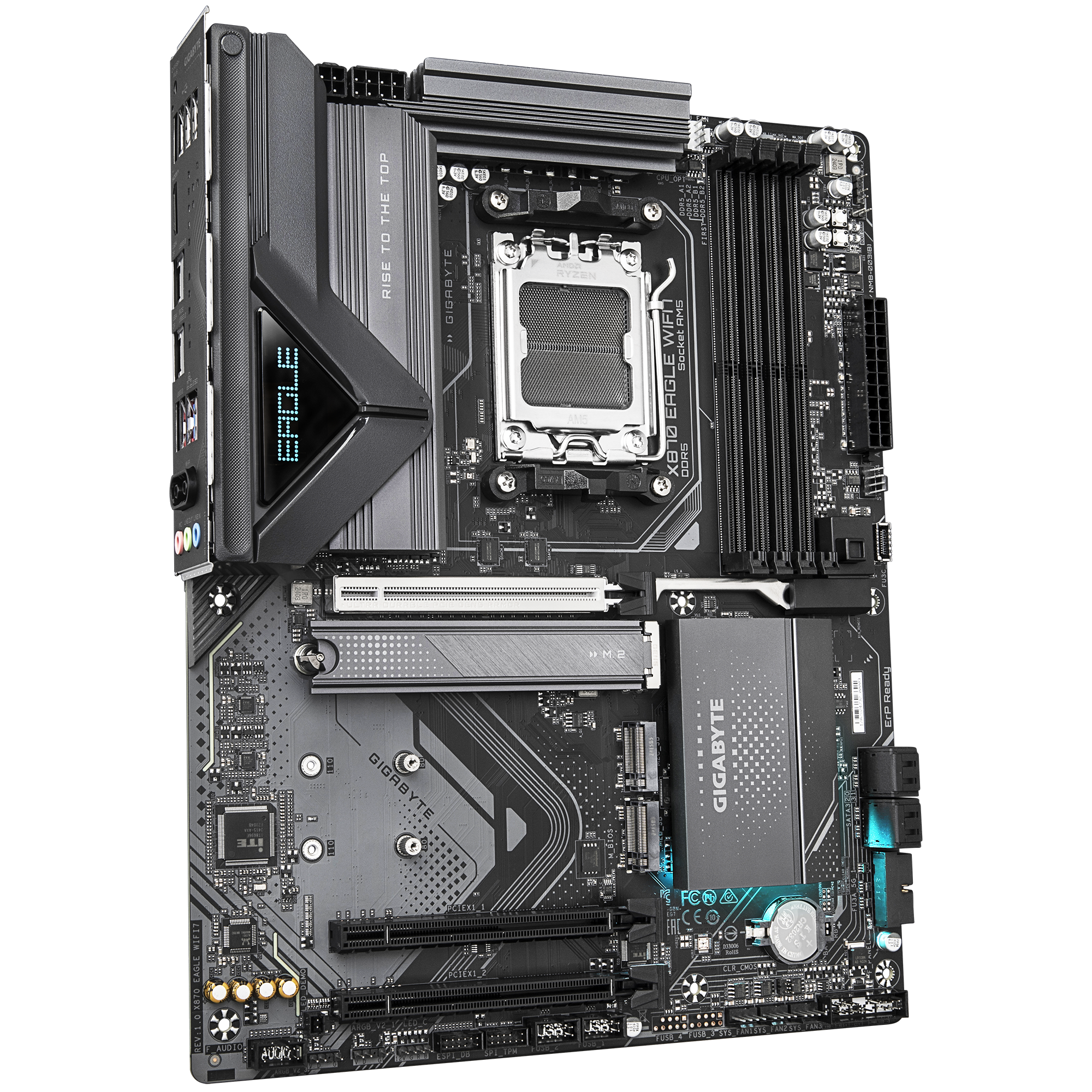

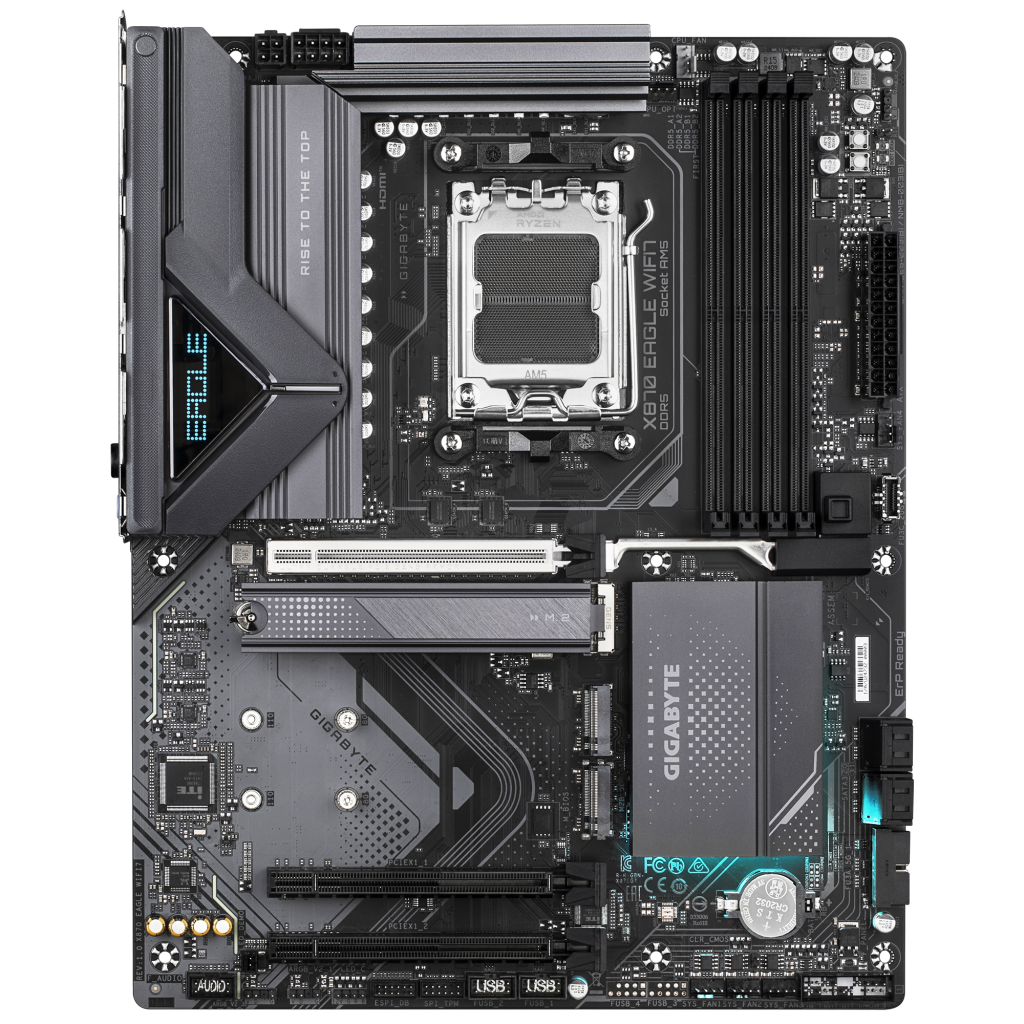

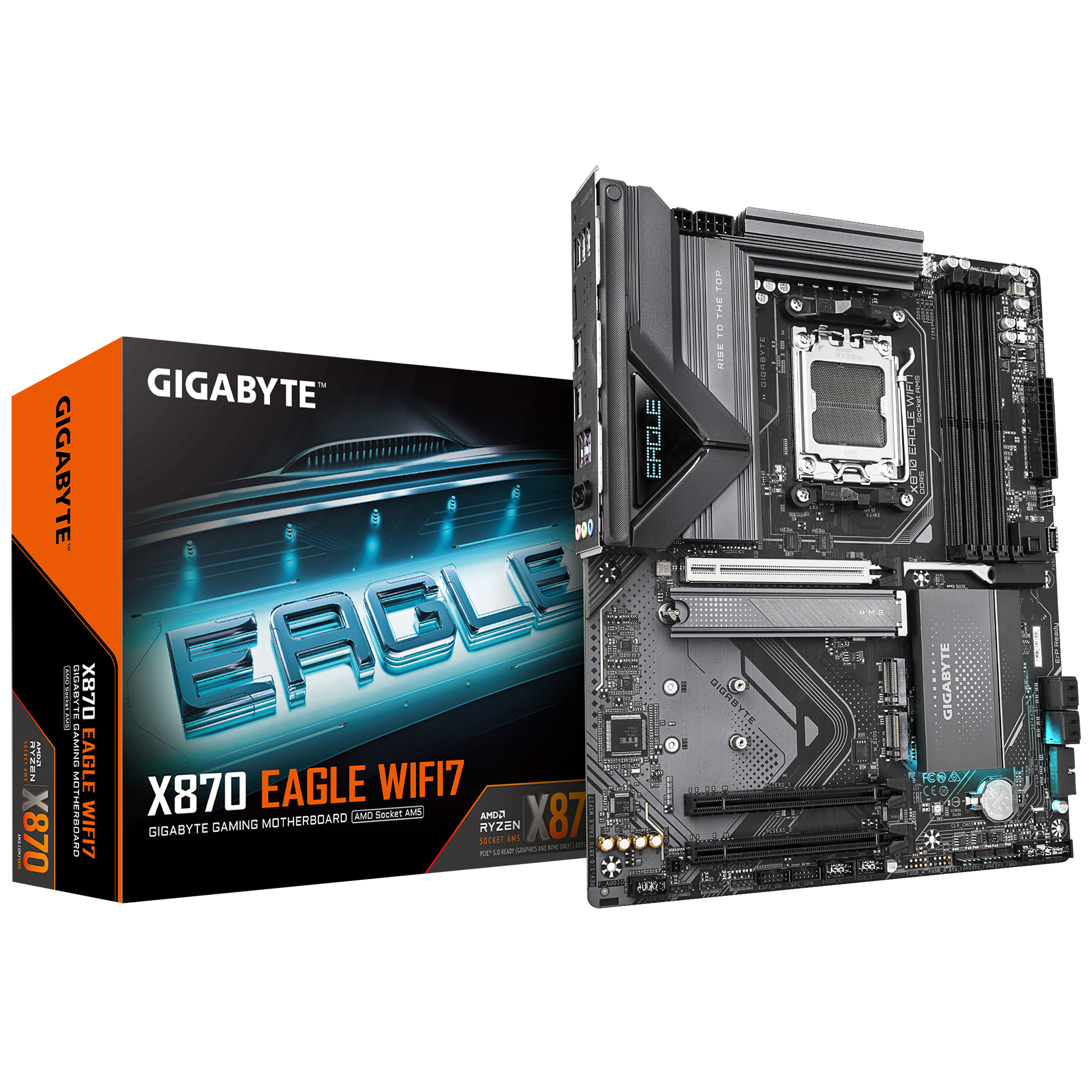

Gigabyte X870 Eagle WiFi7 motherboard, socket AM5, AMD X870, ATX, DDR5

– 1x PCIe 5.0 x16 and 1x PCIe 3.0 x1
– 4x DIMM slots for up to TBA GB of DDR5 RAM up to TBA MHz (OC)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 2x USB 4, 3x USB 3.1, 3x USB 3.0, and 4x USB 2.0 on the I/O panel
– OC features: 14+2+2 phase VRMs
– A total of 5x 4-pin PWM fans possible

Gigabyte X870 Eagle WiFi7: ATX motherboard with AMD AM5 socket and X870 chipset
The Gigabyte X870 Eagle WiFi7 is equipped with the mid-tier X870 chipset for AMDs Ryzen 9000 series processors and features numerous features Features for gamers and content creators. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the Gigabyte X870 Eagle WiFi7 supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly equipped for gaming
The Gigabyte X870 Eagle WiFi7 is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870 (Single Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (TBA MHz, validated up to TBA MHz via overclocking)
– Dual-Channel
– Max. TBA GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 CPU)
– 2x PCIe 3.0 x16 (electrical x1)
– Internal Connectors:
– Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4)
– 2x M.2 (PCIe 4.0 x4)
– 1x (max.) USB-C (1 header, USB 3.2 Gen 2×2) max. 20 Gbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 1x CPU fan header (4-pin)
– 4x fan header (4-pin)
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12V)

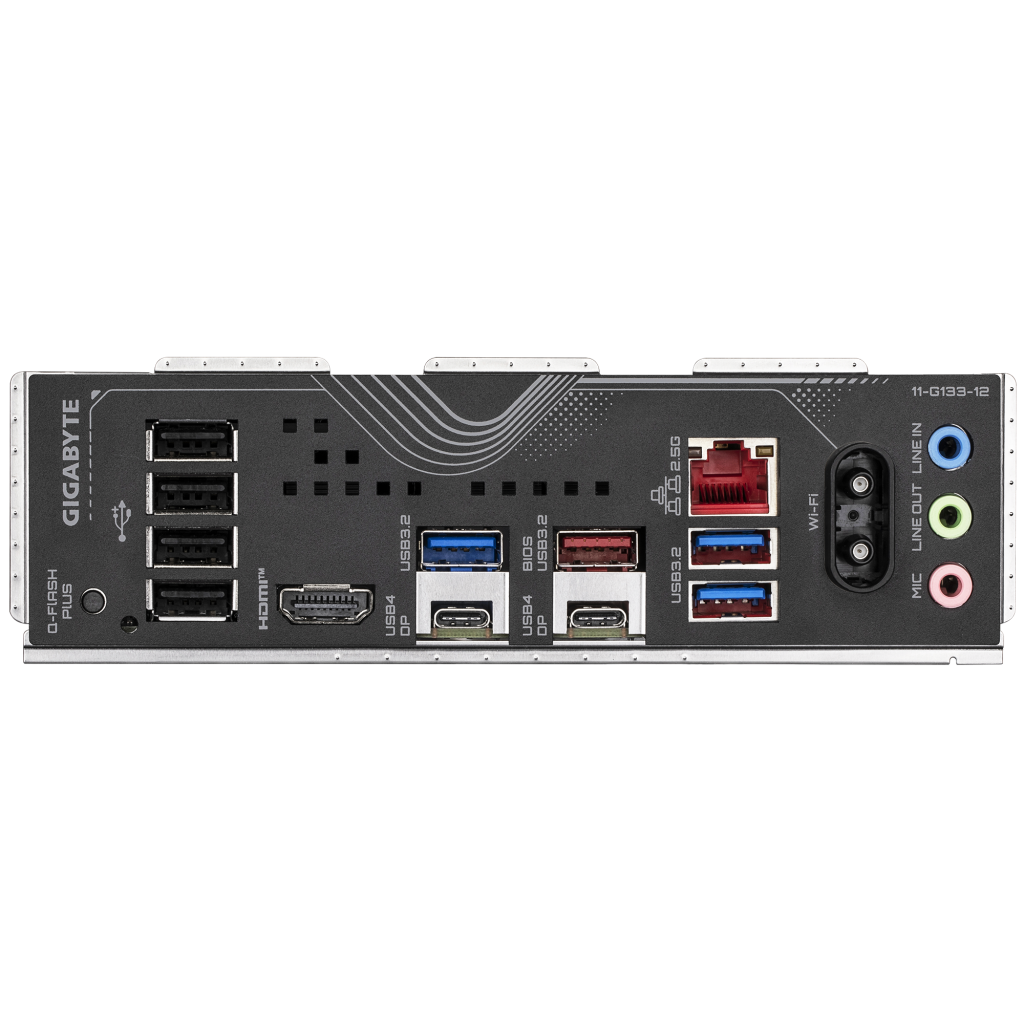

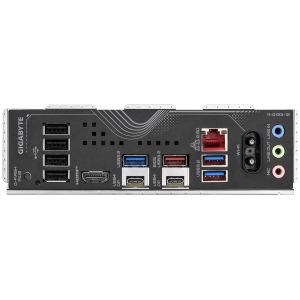

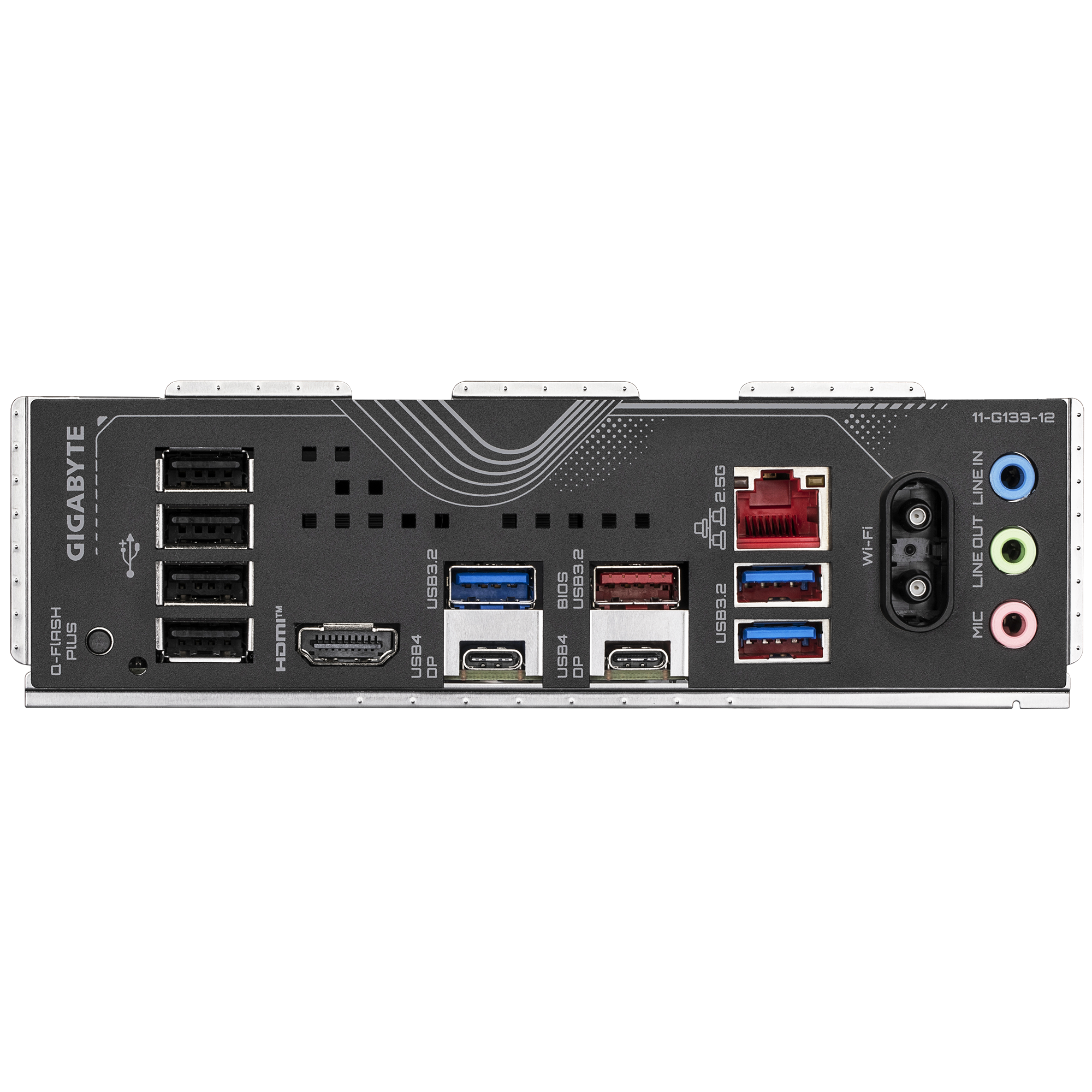

– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s)
– 1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN
– 1x WiFi 7/Bluetooth module
– 5x 3.5 mm jacks and 1x S/PDIF audio
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V
