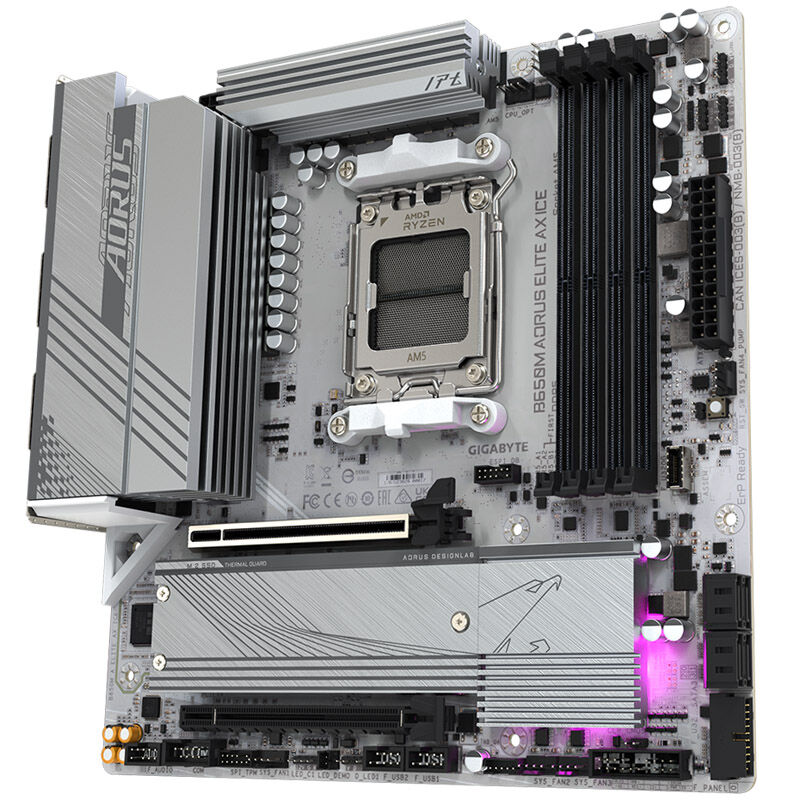

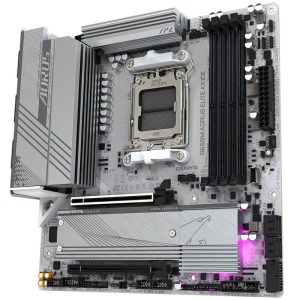

Gigabyte B650M Aorus Elite AX ICE, AMD B650 motherboard - Socket AM5, DDR5

– 1x PCIe 4.0 x16 (x16), 1x PCIe 4.0 x16 (x4)
– Supports up to 192 GB DDR5 RAM up to 8,000 MHz (OC)
– 1x M.2 PCIe 5.0, 1x M.2 with PCIe 4.0 / 4x SATA 6G
– 1x USB-C 3.1, 2x USB-A 3.1, 5x USB-A 3.0, and 4x USB-A 2.0 on the I/O panel
– OC features: 14 virtual and 8 real phase VRMs, BIOS Flashback, Clear CMOS
– A total of 6x 4-pin PWM fans possible

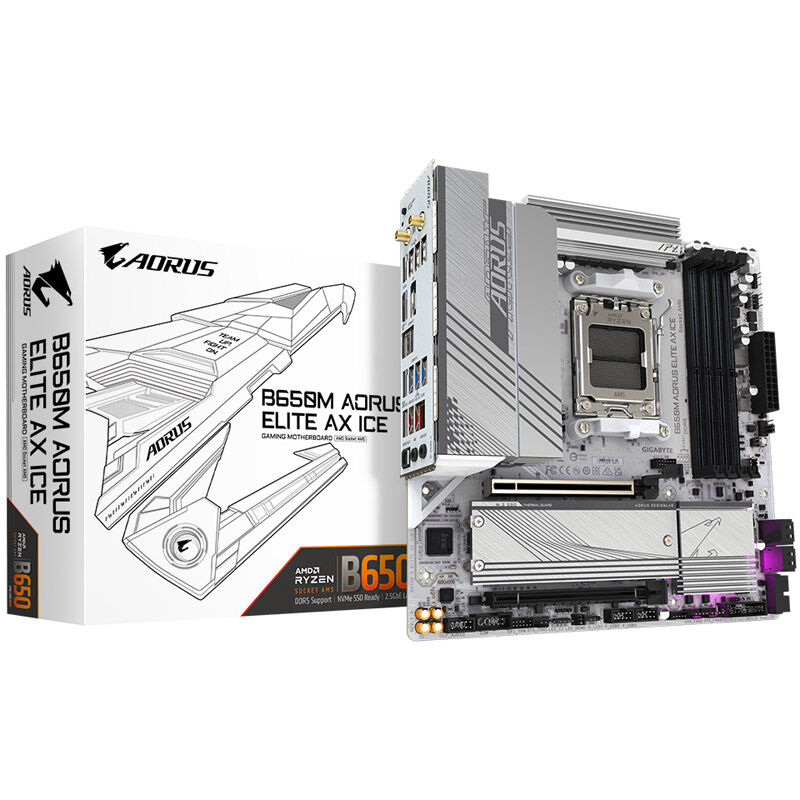

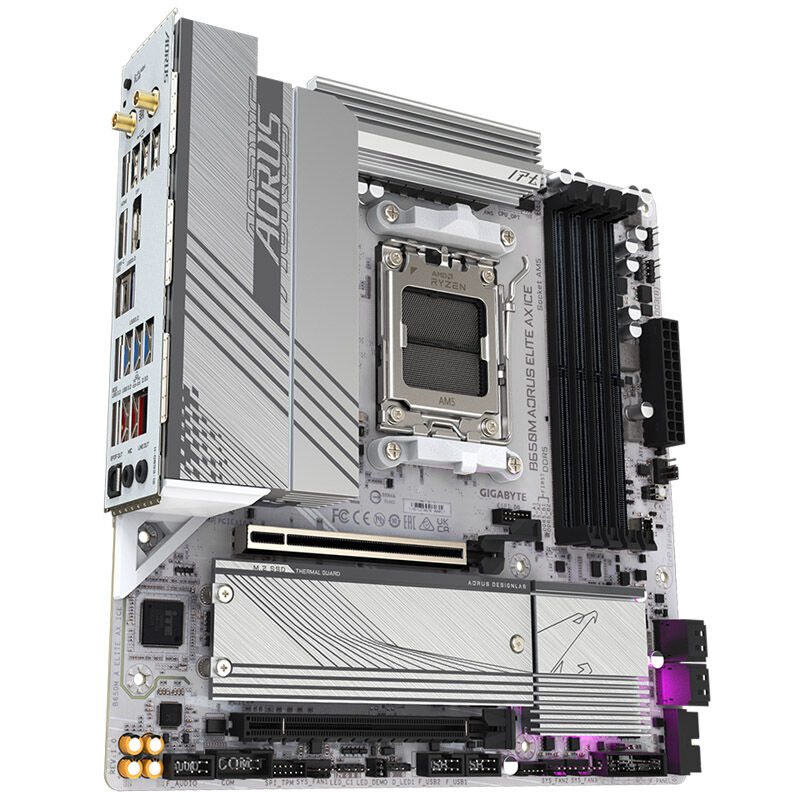

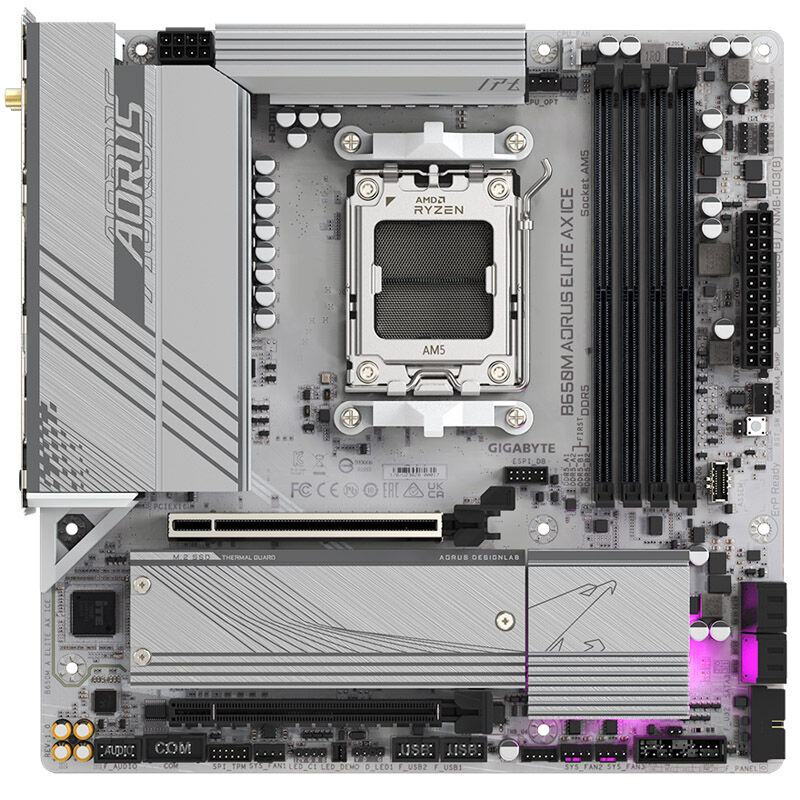

GIGABYTE B650M Aorus Elite AX ICE: Micro-ATX motherboard with AMD AM5
The GIGABYTE B650M Aorus Elite AX ICE is equipped with Equipped with the B650 chipset for AMDs Ryzen 7000 series processors, it offers numerous features for overclockers and gamers. Since the Ryzen 7000 series processors require a new socket due to PCIe 5.0 support and the expanded power delivery, the 600 series motherboards use Socket AM5 (LGA 1718). Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most CPU coolers for Socket AM4 to be installed on the motherboard.

The motherboard is designed for overclocking so you can enjoy even demanding games. The voltage converters with 14 real and 8 virtual phases provide 60 A of stable power to the CPU, ensuring its high clock speeds even over extended periods. Features like BIOS Flashback and Clear CMOS ensure you can use the PC again if something goes wrong. And, as usual, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
Micro-ATX (244 x 244 mm)
– Chipset:
– AMD B650
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (5,200 MHz, validated up to 8,000 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16)
– 1x PCIe 4.0 x16 (electrical x4)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4/x2; 2280/25110, CPU)
– 1x M.2 (PCIe 4.0 x4/x2; 2280/25110, CPU)
– 1x USB-C (1 header, USB 3.2 Gen 1) 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Thunderbolt 4 add-in card connector
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x TPM Module Header (Only for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 modules)
– 1x Serial (COM) port header
– 1x Clear CMOS jumper
– 1x reset jumper
– 1x reset button
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x CPU fan/pump header
– 3x system fan header (4-pin)
– 1x System fan/pump header
– RGB header:
– 2x 3-pin ARGB headers
– 2x 4-pin RGB headers

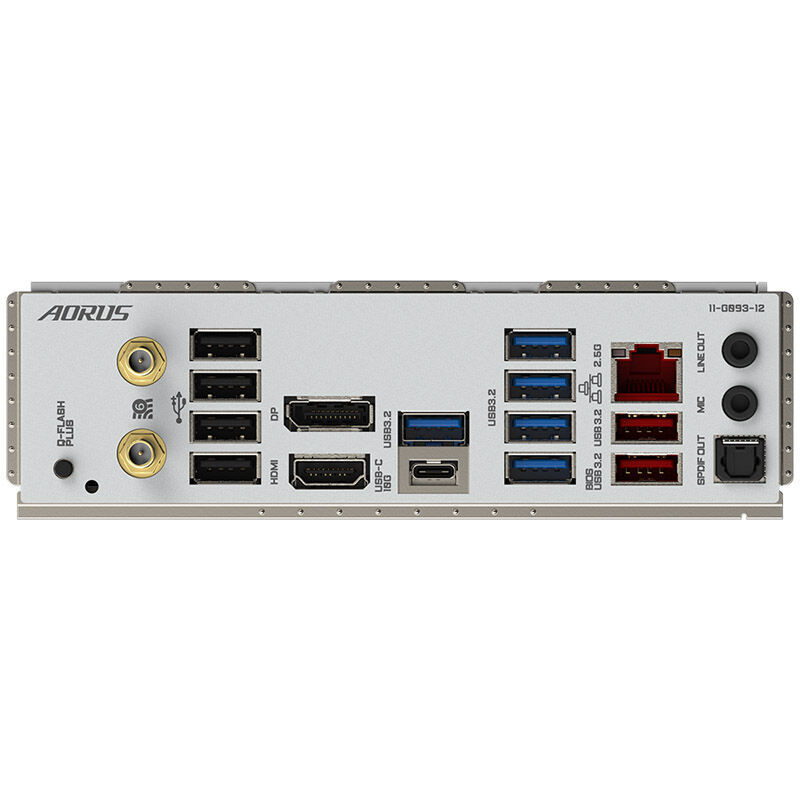

– External connections:
– 1x USB-C 3.1 (USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB-A 3.1 (USB 3.2 Gen 2, max. 10 Gbit/s)
– 5x USB-A 3.0 (USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB-A 2.0 (max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Realtek)
– 2x antenna connection (Realtek RTL8852CE, WiFi 6E, Bluetooth 5.3)
– 2x 3.5 mm jack (Realtek ALC897)
– 1x S/PDIF optical connector
– 1x Q-Flash Plus
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
