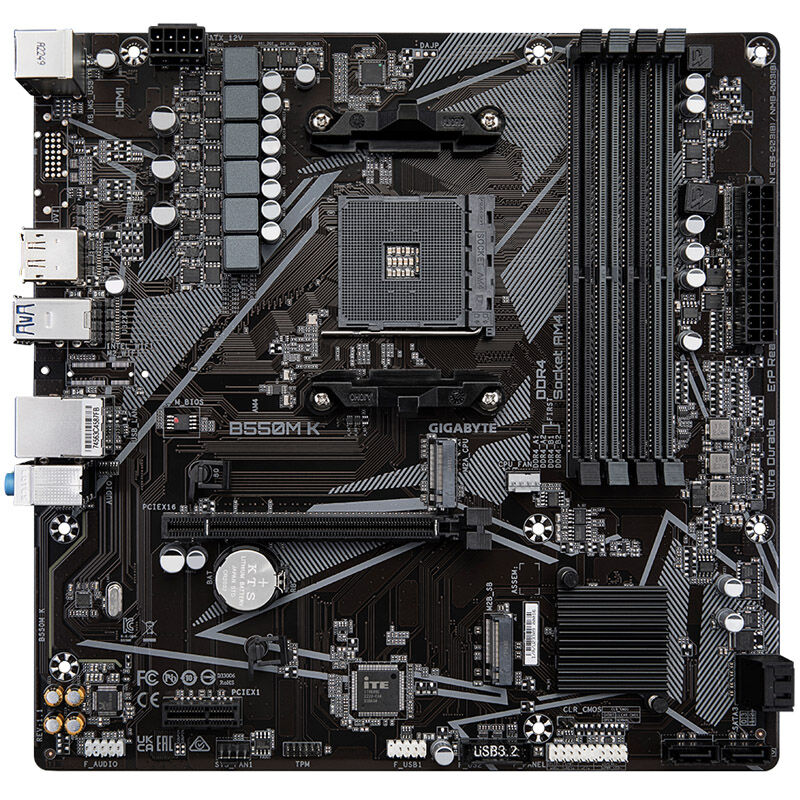

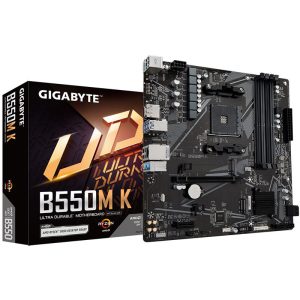

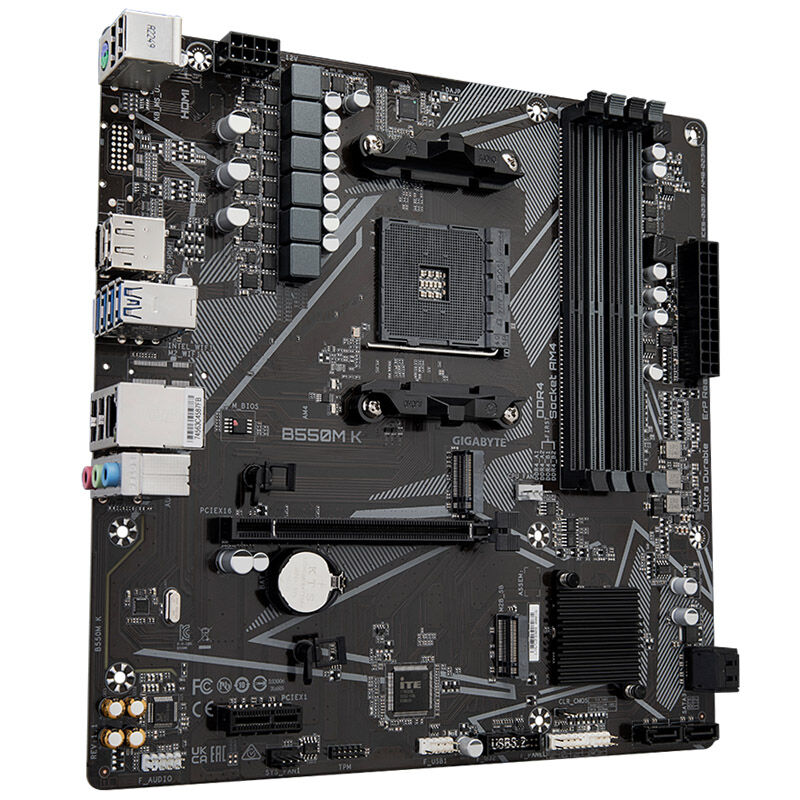

Gigabyte B550M K motherboard, socket AM4, AMD B550, Micro-ATX, DDR4

– 1x PCIe 4.0 x16 (x16), 1x PCIe 3.0 x1
– DDR4 memory up to 3,200 MHz, up to 4,733 MHz with RAM overclocking
– 1x M.2 slot with PCIe 4.0 for fast NVMe SSDs

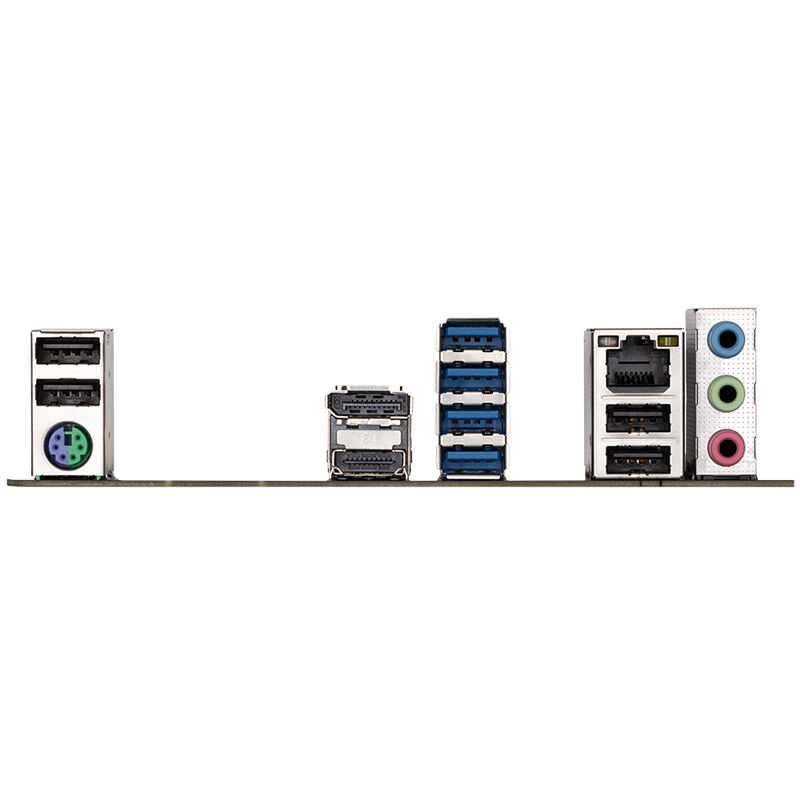

– USB on the I/O panel: 4x USB 3.0, 4x USB 2.0
– Features: Clear CMOS jumper, Q-Flash
– A total of 2 connectors for fans and pumps

Gigabyte B550M K: Micro-ATX motherboard for AMD Ryzen 5000 CPUs
The Gigabyte B550M K is a Micro-ATX motherboard and features a PCI Express 4.0 slot with full x16 connectivity for graphics cards. With the AMD AM4 socket, youre perfectly equipped for powerful processors. The AGigabyte B550M DS3H AC also supports DDR4 memory up to 4733 MHz via overclocking.

For the best possible processor performance, we recommend regularly updating the motherboard BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now.
Please note that this may delay shipping preparation by 1 to 4 business days!

More information about AMD AM4 and the AMD Ryzen 5000 / 5000G / 4000G / 3000 CPUs can be found at the following link:
AMD AM4 Overview

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Gray, Silver
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– AM4
– Motherboard
– Motherboard Chipset
– AMD B550
– RAM
– Max. RAM
– 128 GB
– Memory Type
– DDR4
– Memory Format
– DIMM
– Memory Slots
– 4x
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– Wi-Fi / Bluetooth
– No
– Internal Ports
– CPU Power Supply
– 1x 8-Pin
– USB 3.0 (Internal) Possible Ports
– 2
– External Ports
– USB 3.0 (External) Type A
– 4
– Display Ports
– Display Port (1x), HDMI (1x)
– Storage Ports
– M.2 PCIe 3.0 x2
– 1
– M.2 PCIe 4.0 x4
– 1
– M.2 PCIe 4.0 x4 & SATA 6G
– 1
– SATA 6G (internal)
– 4
– Expansion Slots
– PCIe x16 Slots (total)
– 1
– PCIe x1 Slots (total)
– 1
– PCIe 4.0 x16 (mechanical)
– 1
– PCIe 3.0 x1 (mechanical)
– 1
– Fan Header
– 4-pin Fan Connectors
– 2
– Lighting
– Lighting / RGB
– No
