ASUS Prime B650M-K, AMD B650 motherboard, socket AM5, DDR5

– 1x PCIe 4.0 x16 (x16), 2x PCIe 4.0 x16 (x4)
– Supports up to 96 GB DDR5 RAM up to 6400 MHz (OC)
– 1x M.2 PCIe 5.0 / 1x M.2 PCIe 4.0 / 4x SATA 6G
– 2x USB-A 3.1, 2x USB-A 3.0, and 4x USB-A 2.0 on the I/O panel
– OC features: 12+2 phase VRMs, BIOS Flashback, CMOS Reset
– A total of 3x 4-pin PWM fans possible
– ASUS Prime B650M-K: Micro-ATX motherboard with AMD AM5

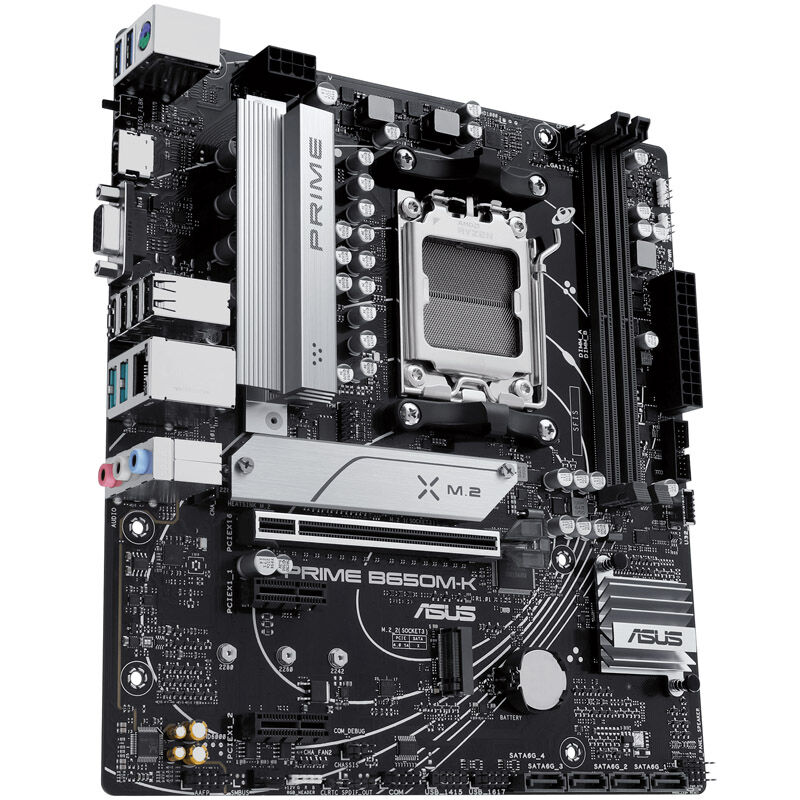

– The image shows the ASUS Prime B650M-K.

The ASUS Prime B650M-K is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for enthusiasts and gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the enhanced power supply, the 600 series motherboards use Socket AM5 (LGA 1718).

Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most Socket AM4 CPU coolers to be installed on the motherboard.

The ASUS Prime B650M-K is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality 12+2 phase voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. There are also features like BIOS Flashback and Clear CMOS, so you can use the PC again if something goes wrong. And, as usual, the DDR5 RAM can be pushed to its limits at higher clock speeds.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– Micro-ATX (244 x 221 mm)
– Chipset:
– AMD B650
– Socket:
– AM5 (LGA 1718)
– RAM:
– 2x DDR5 (4800 MHz, validated up to 6400 MHz with overclocking)
– Dual-Channel
– Max. 96 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 2x PCIe 4.0 x1 (chipset)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4; 2242-2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2242-2280, CPU)
– 1x USB-C (1 header, USB 3.2 Gen 1, max. 5) Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x 10-1 system panel header
– 1x Front Panel Audio Header (AAFP)
– 1x S/PDIF Out Header
– 1x speaker header
– 1x SPI TPM header (14-1 pin)
– Fan connections:
– 1x CPU fan header (4-pin)
– 2x fan header (4-pin)
– RGB header:
– 2x Addressable V2 RGB LED connector (3-pin, 5 V)
– 1x Aura RGB LED connector (4-pin, 12 V)

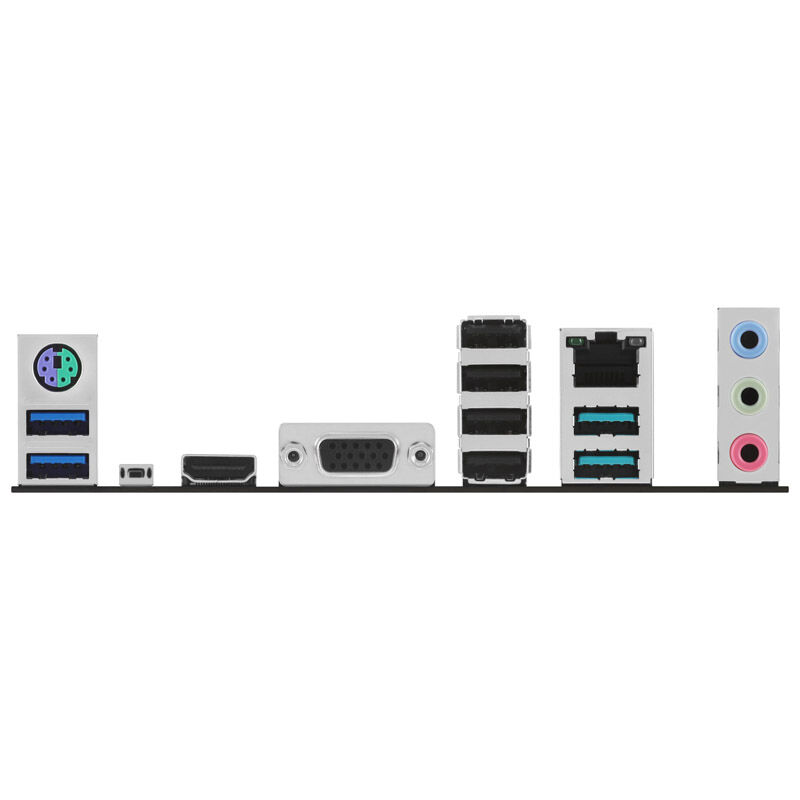

– External connections:
– 1x PS/2 combo for mouse or keyboard
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (Type A, USB 3.2 Gen 2, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x VGA
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Realtek)
– 3x 3.5 mm jack (Realtek ALC897)
– 1x BIOS flashback button
– Power supply:
– 1x 24-pin ATX12V
– 2x 8-pin ATX12V
