ASRock B650 PG Lightning, AMD B650 motherboard - Socket AM5, DDR5

– 2x PCIe x16 slots, including 2x PCIe 4.0
– Supports up to 128 GB DDR5 RAM up to 6400 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0) / 4x SATA 6G
– 1x USB 3.2 (Type-C), 7x USB 3.0, and 4x USB 2.0 on the I/O panel
– OC features: 14+2 phase VRMs, BIOS Flashback
– A total of 6x 4-pin PWM fans possible
– Integrated RGB LED lighting

ASRock B650 PG Lightning: ATX motherboard with AMD AM5

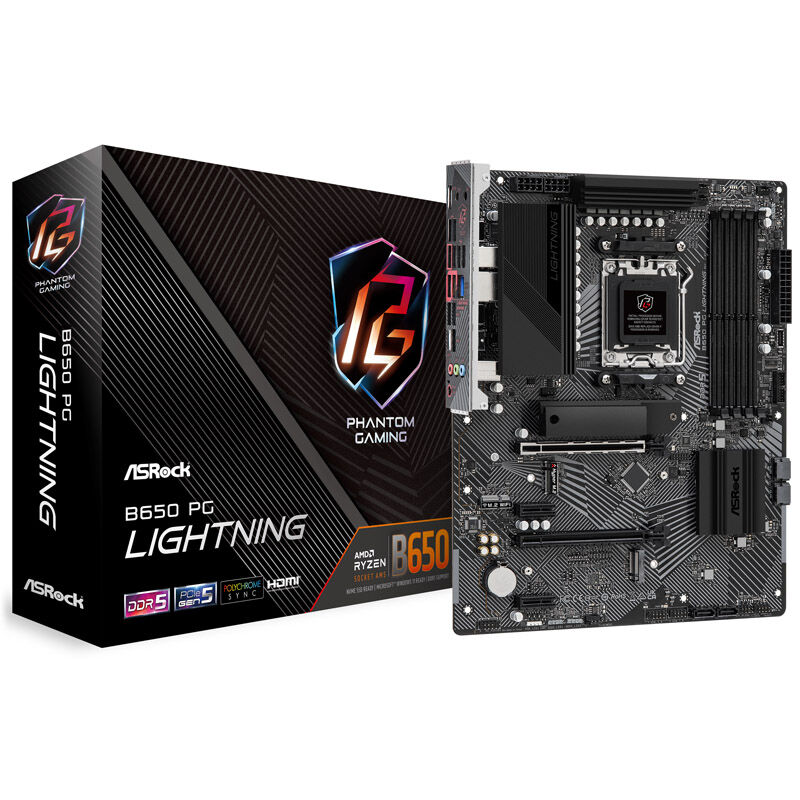

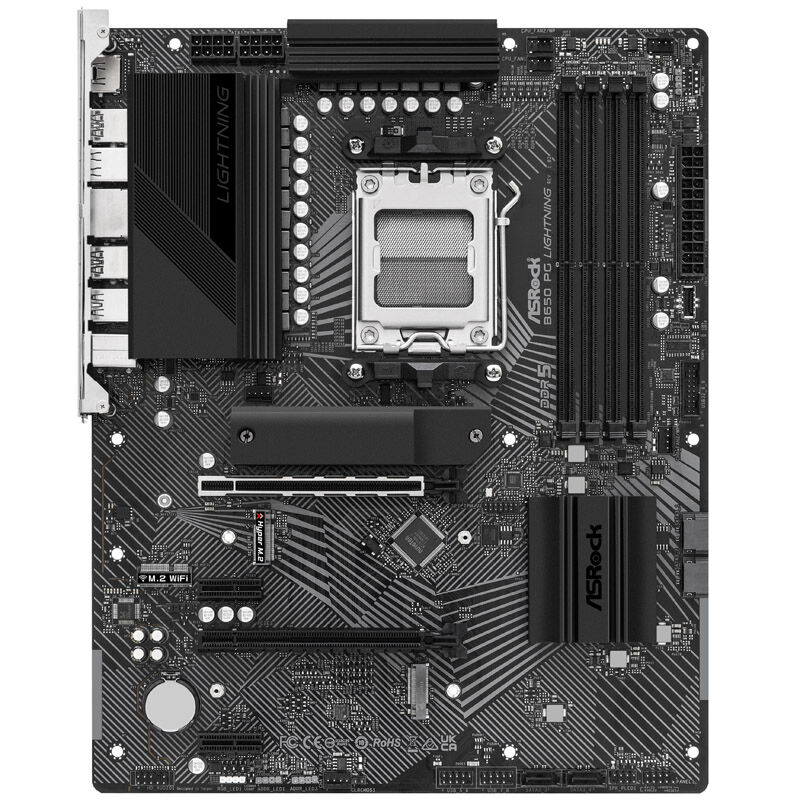

The image shows the ASRock B650 PG Lightning motherboard.
The ASRock B650 PG Lightning is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the enhanced power delivery, the 600 series motherboards use Socket AM5 (LGA 1718).

Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most Socket AM4 CPU coolers to be installed on the motherboard.
The ASRock B650 PG Lightning is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the expanded power supply, Socket AM5 (LGA 1718) is used on the 600 series motherboards. Despite the increased pin count, the actual size of the socket remains identical to older sockets, so most CPU coolers for Socket AM4 can also be installed on the motherboard.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD B650
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (5,600 MHz, validated up to 6,400 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x2, chipset)
– 1x PCIe 4.0 x1 (chipset)
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280; chipset)
– 1x M.2 Key-E (2230, for WLAN module)
– 1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 1x CPU fan header (4-pin)
– 4x fan header (4-pin)
– 1x AiO pump header
– RGB header:
– 1x 3-pin ARGB header
– 3x 4-pin RGB headers

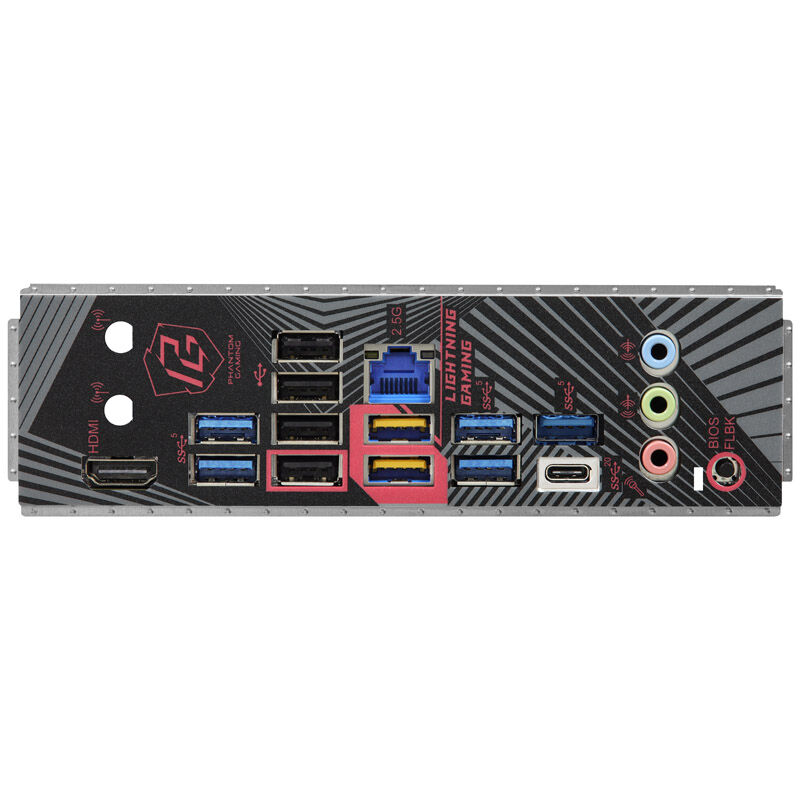

– External connections:
– 1x PS/2 keyboard/mouse
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbps)
– 7x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x HDMI 2.0
– 2x Mounting points for WLAN antennas
– 1x 2.5 Gigabit LAN (Realtek RTL8125BG)
– 5x 3.5 mm jacks (Realtek ALC897)
– 1x Clear CMOS button
– 1x Reset
– 1x BIOS Flashback
– Power supply:
– 1x 24-pin ATX12V
– 2x 8-pin ATX12V
– Accessories:
– 1x Manual
– 2x SATA cables
– 3x Screws for M.2
