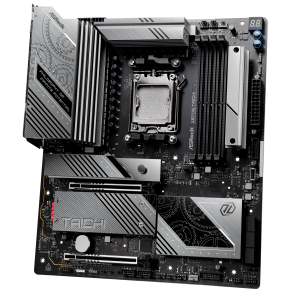

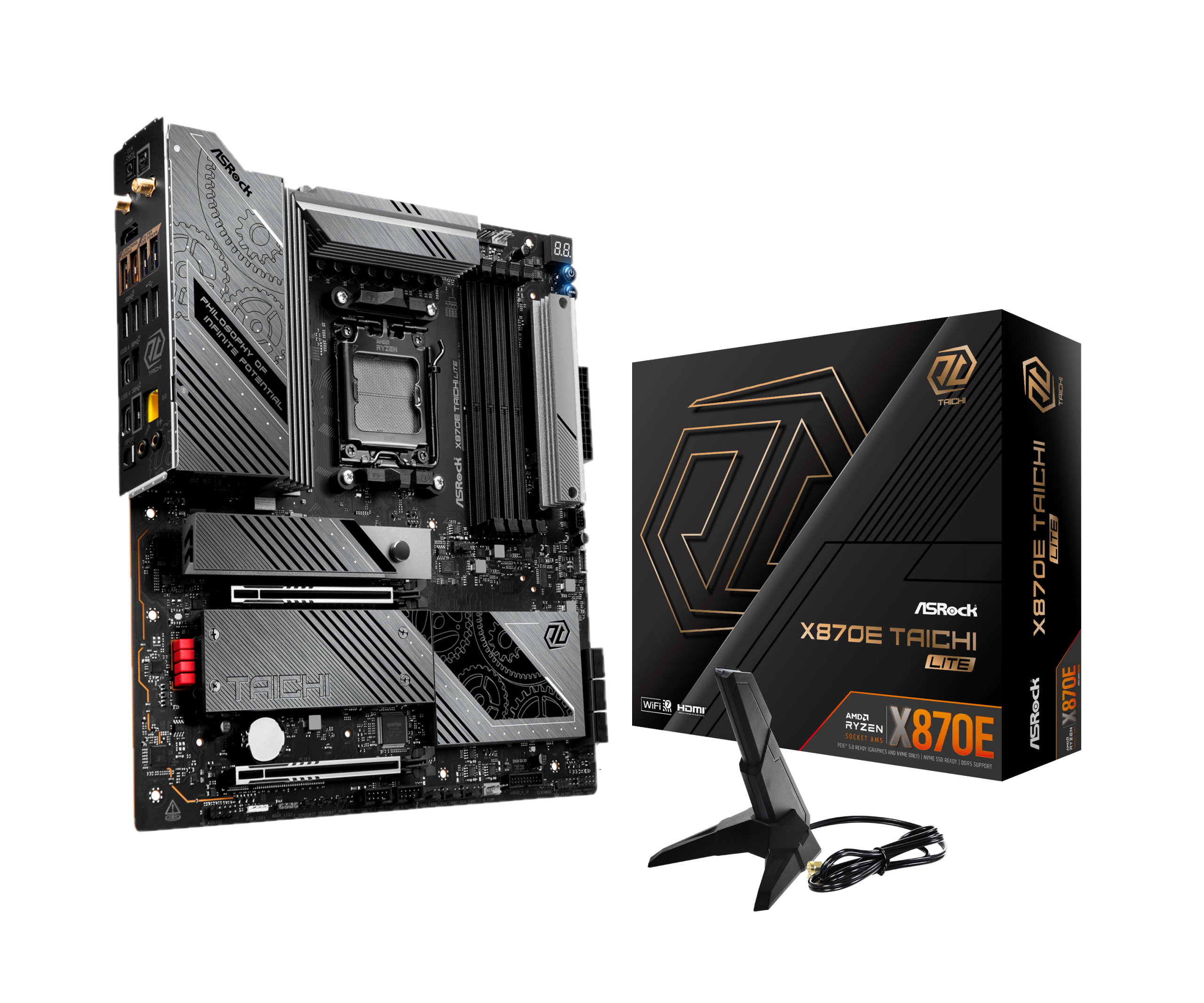

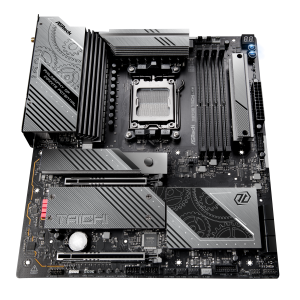

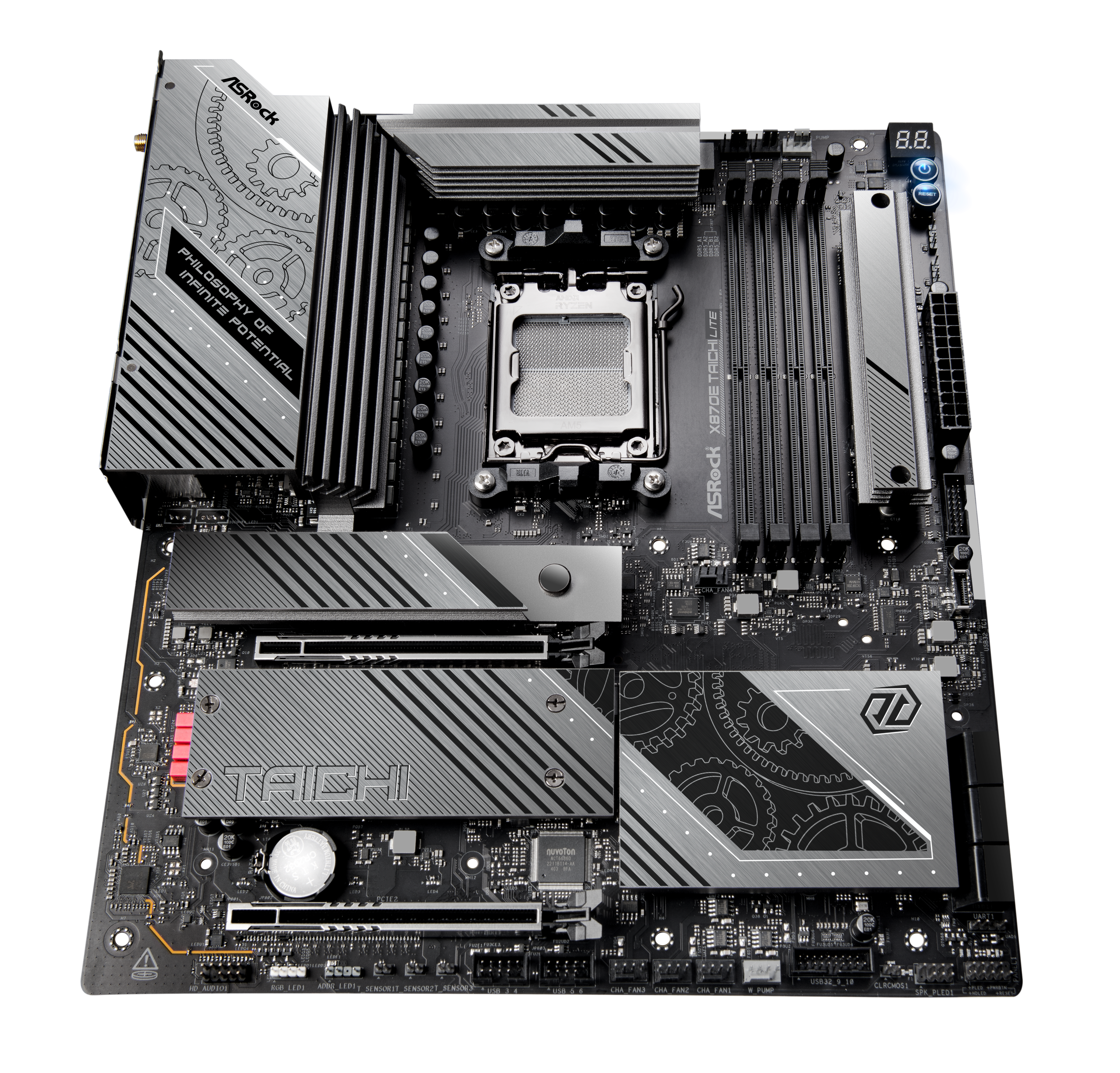

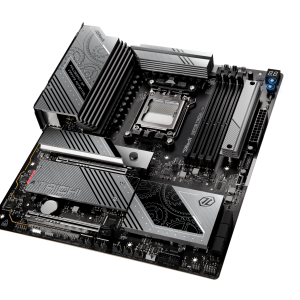

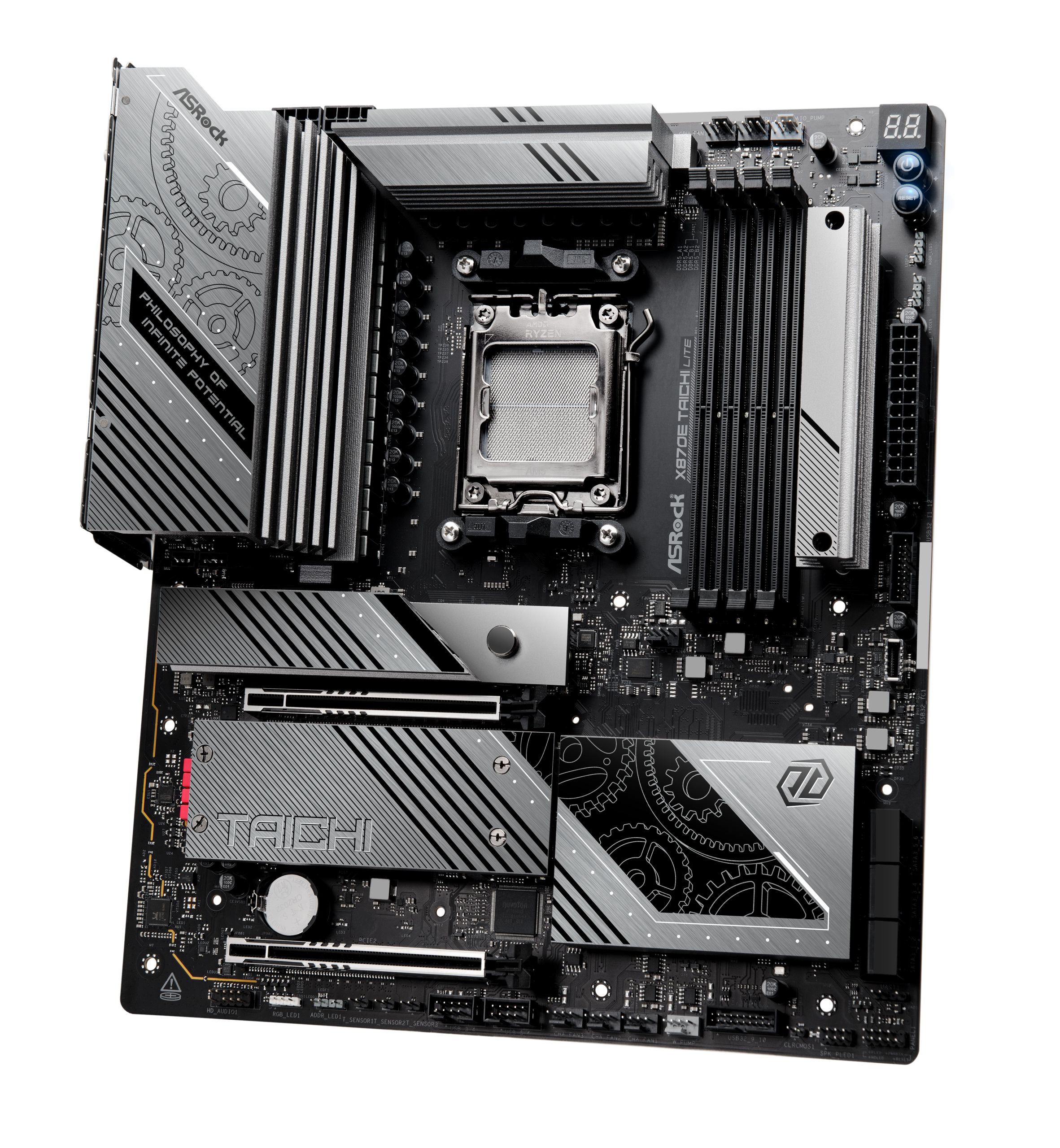

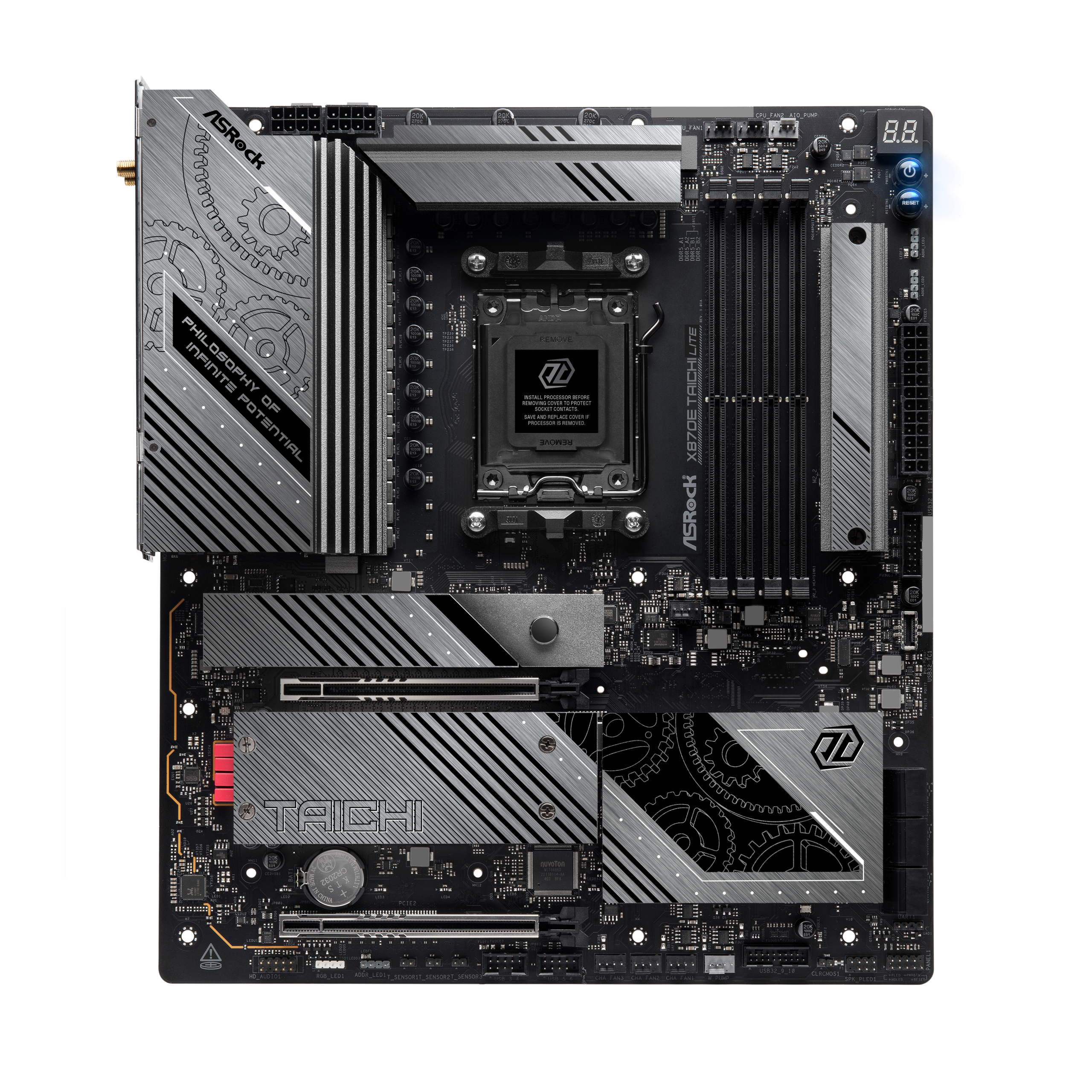

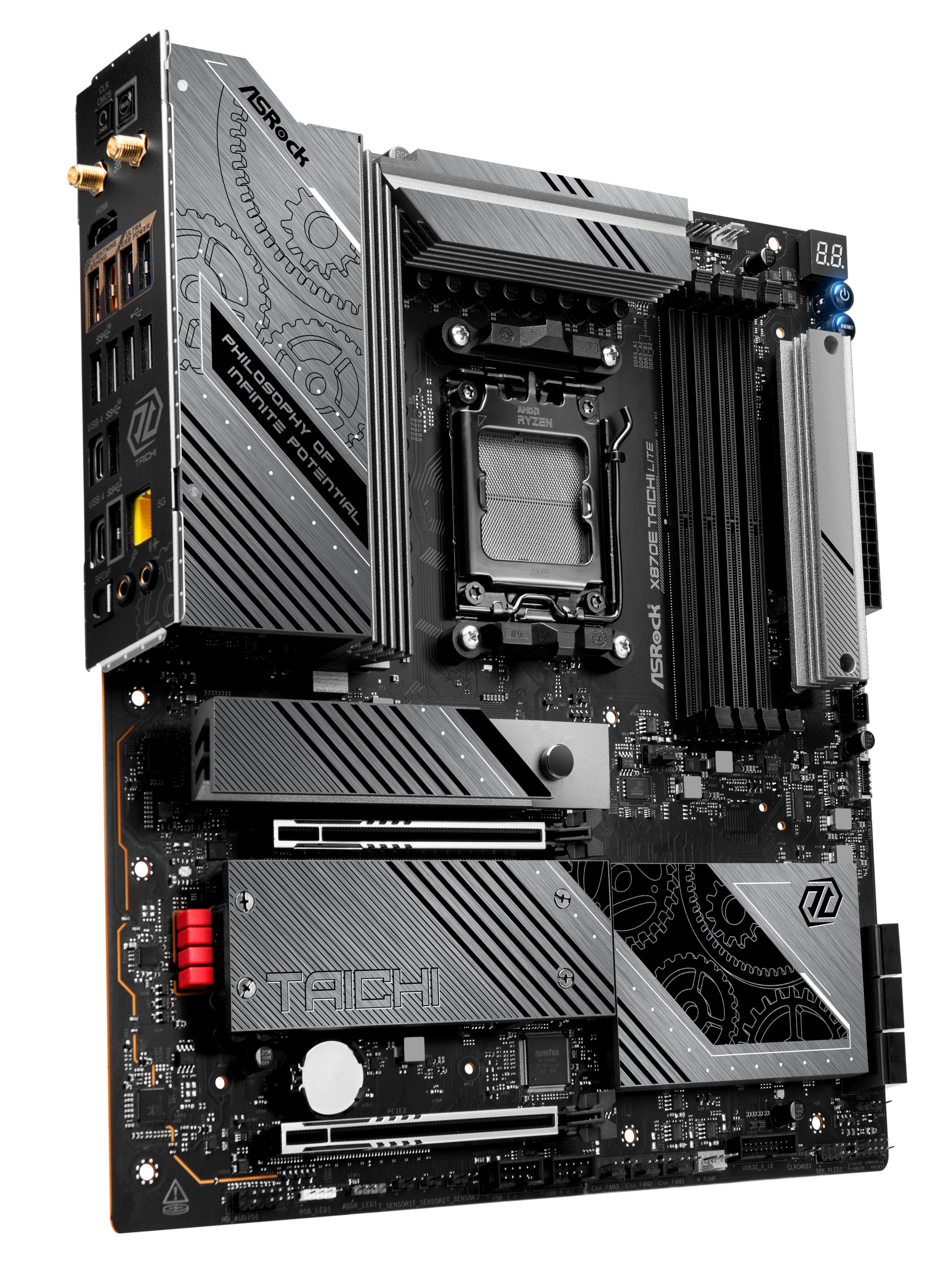

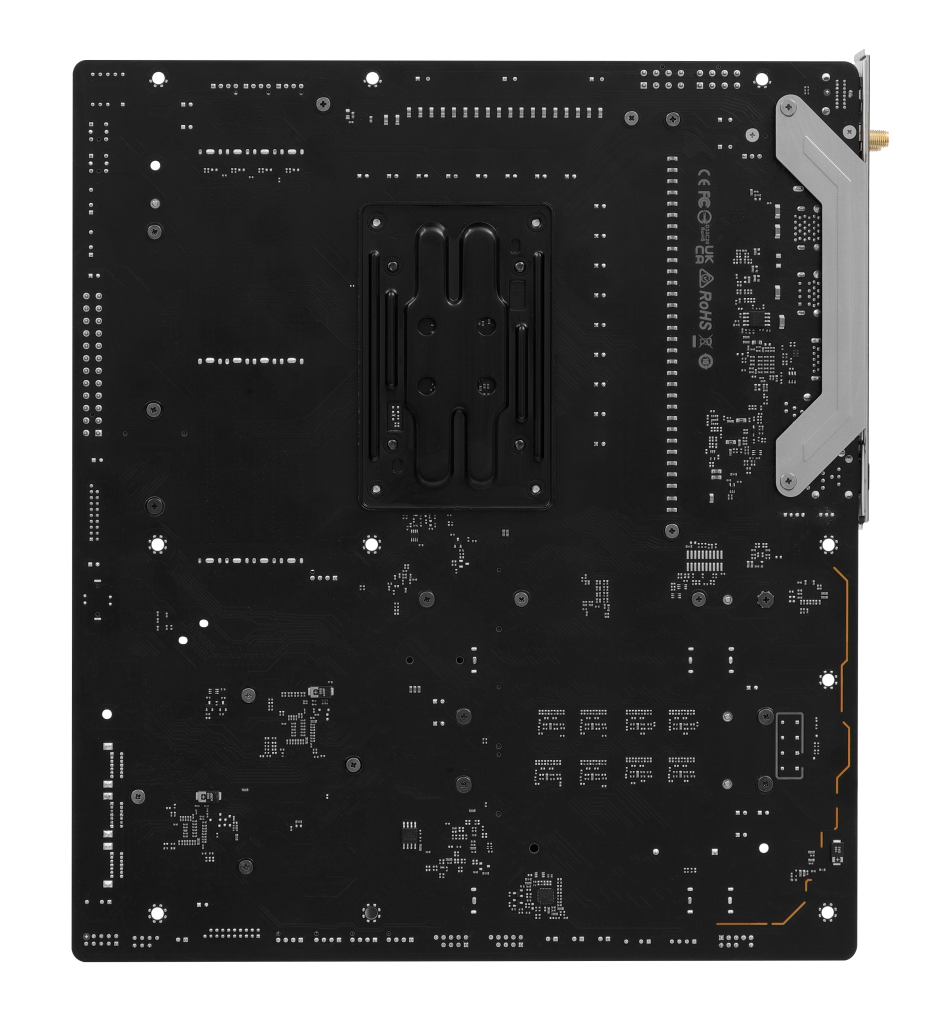

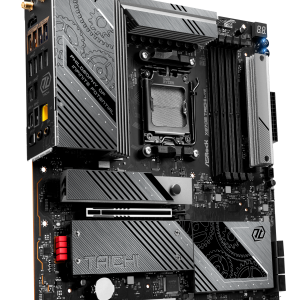

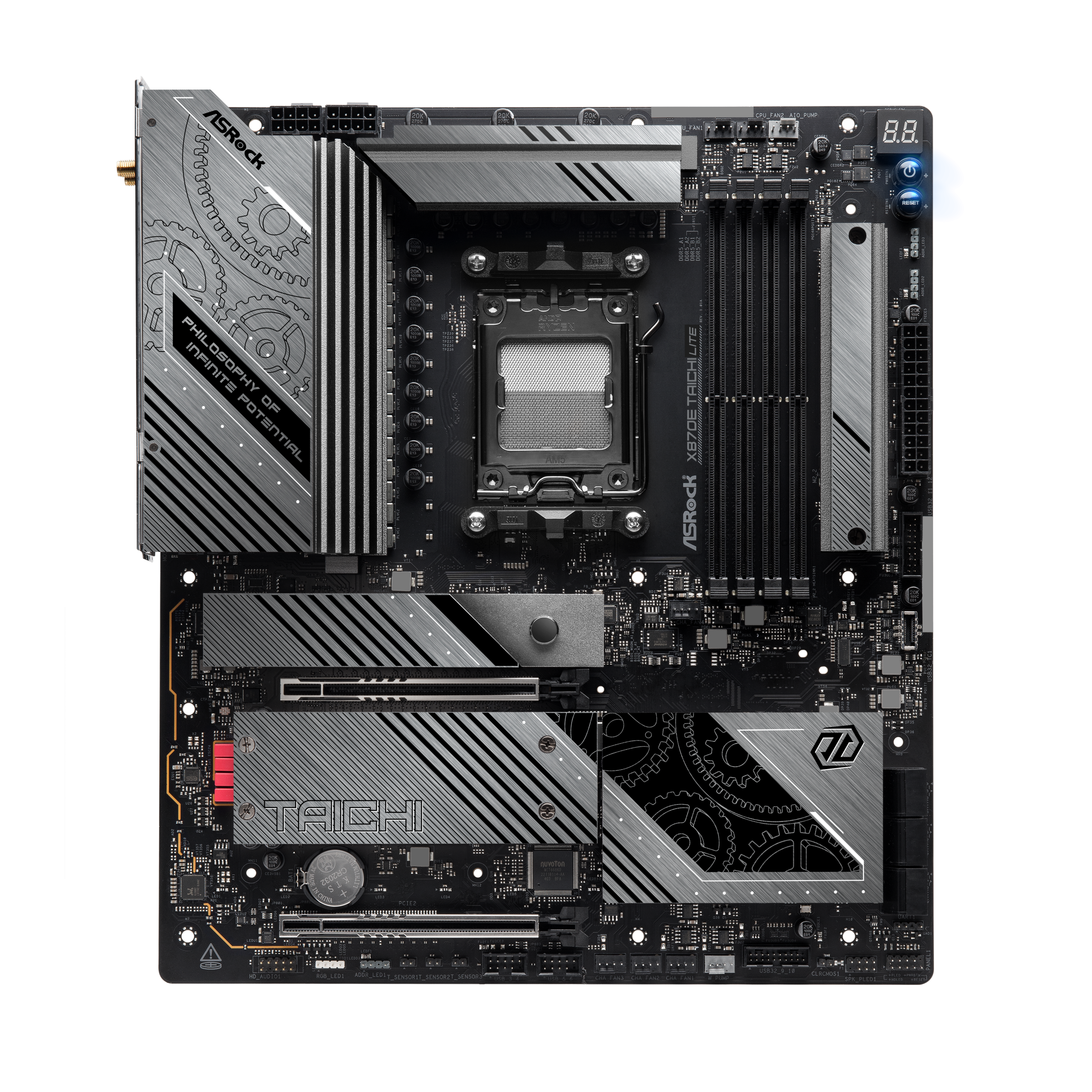

ASRock X870E Taichi Lite motherboard, socket AM5, AMD X870E, EATX, DDR5

– 2x PCIe 5.0 x16 (x16 or x8/x8)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8200 MHz (OC)
– 4x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0) / 6x SATA 6G
– 2x USB 4, 5x USB 3.1, 3x USB 3.0, and 2x USB 2.0 on the I/O panel
– OC features: 27-phase VRMs, CMOS reset, BIOS flashback
– A total of 8x 4-pin PWM fans possible

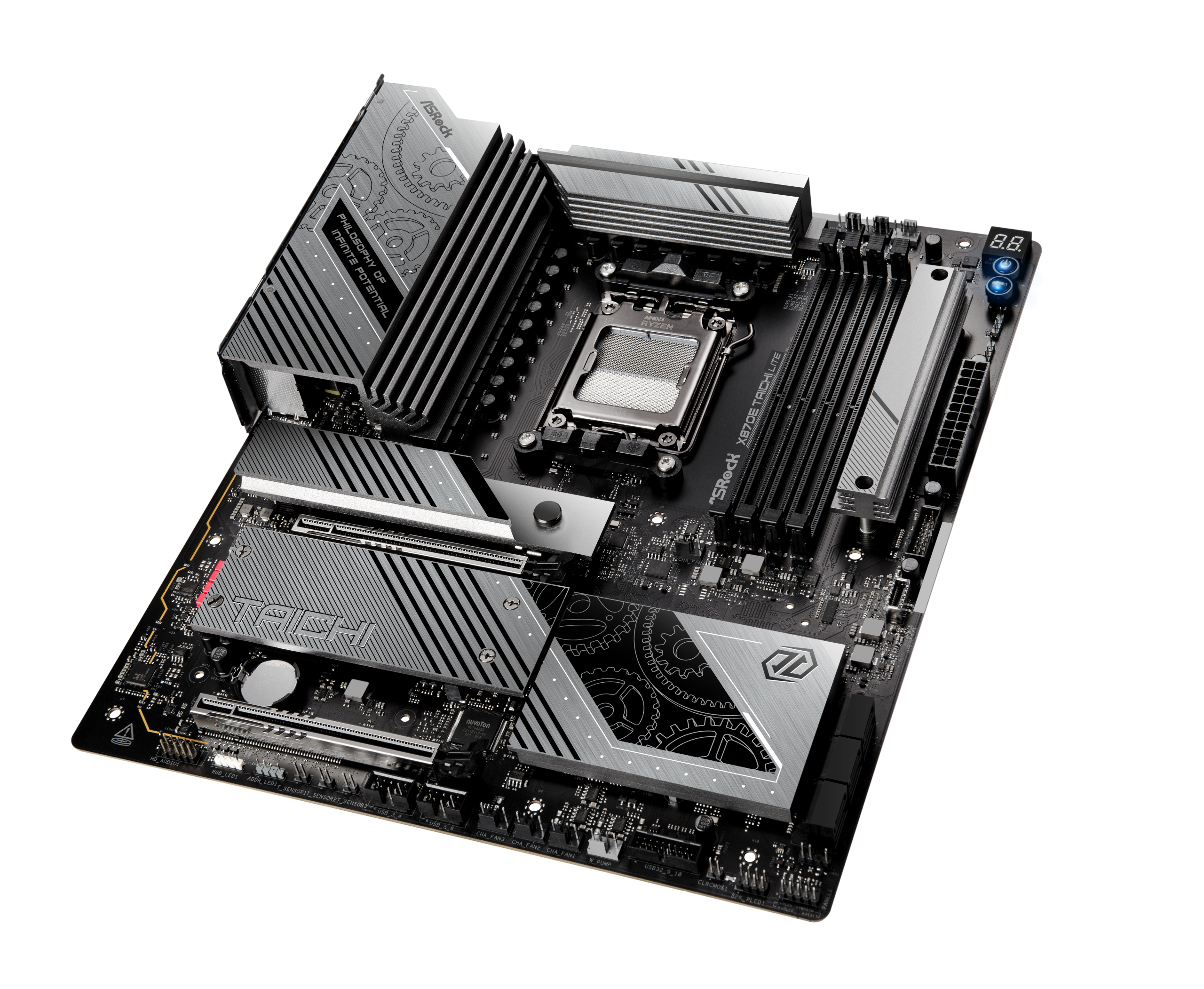

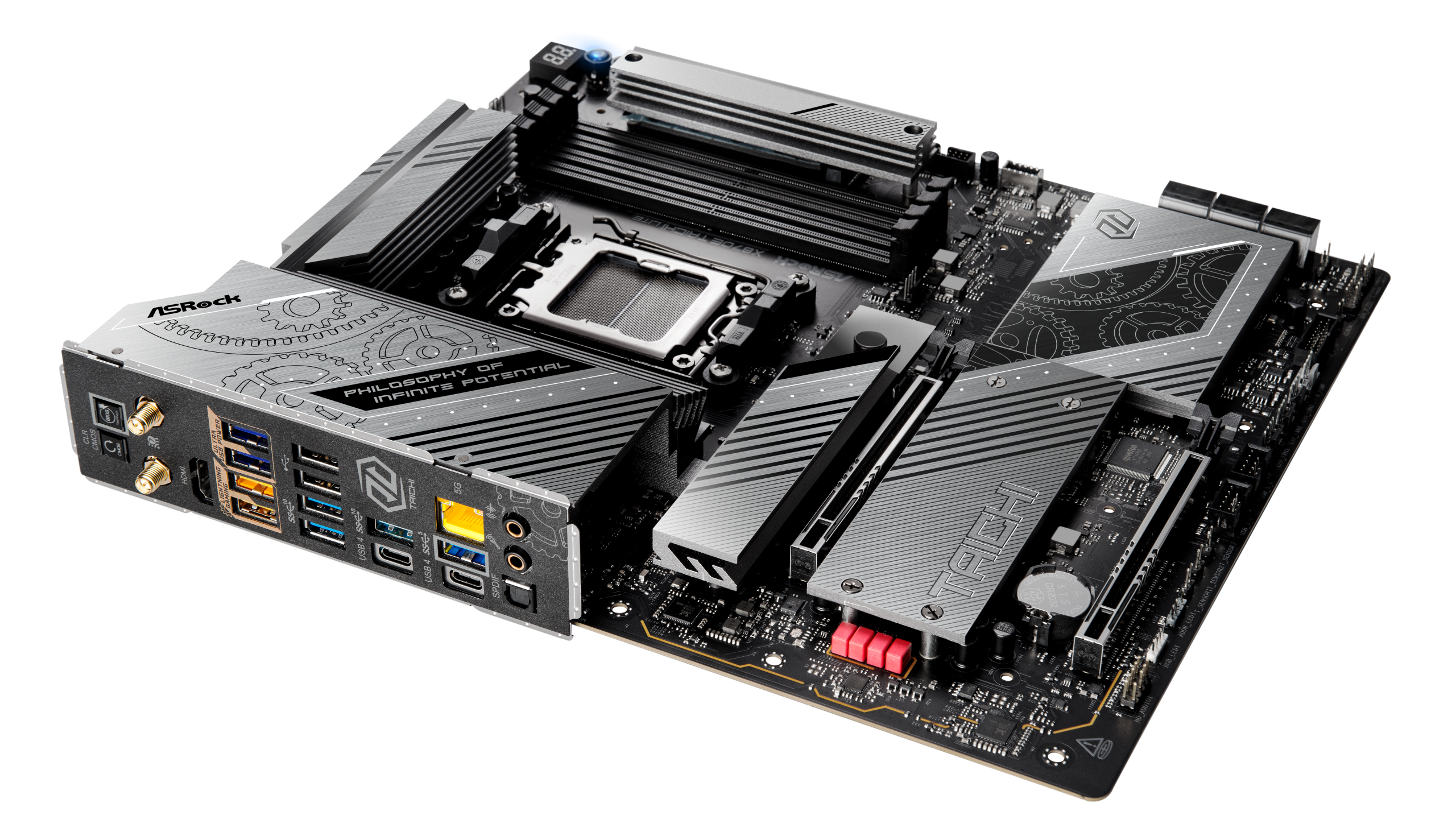

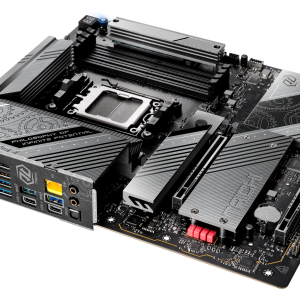

ASROCK X870E TAICHI LITE: EATX motherboard with AMD AM5 socket and X870E chipset
The ASROCK X870E TAICHI LITE features the high-end X870E chipset for AMD Equipped with Ryzen 9000 series processors, it offers numerous features for overclockers. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASROCK X870E TAICHI LITE supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Optimized for Overclocking Performance
The motherboard is designed for overclocking so you can enjoy even demanding games. The voltage converters with 24 native phases provide 110 A of stable power to the CPU, ensuring its high clock speeds even over extended periods. There are also features like BIOS Flashback and Clear CMOS, so you can get your PC back up and running if something goes wrong. And, as usual, the DDR5 RAM can be pushed to its limits with higher clock speeds.

Technical Details
Format:
– EATX (305 x 267 mm)
– Chipset:
– AMD X870E (Dual Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (up to 8200 MHz via overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 2x PCIe 5.0 x16 (electrical x16 or x8/x8, CPU)
– Internal Connectors:
– Total maximum usable PCIe lanes: 44
– 6x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 3x M.2 (PCIe 4.0 x4; 2280, chipset)
– 1x M.2 (E-Key, Vertical; 2230 Wi-Fi / BT Module) chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 3x thermistor cable headers 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 2x CPU fan header (4-pin)
– 4x fan header (4-pin)
– 1x AiO pump header
– 1x W_PUMP+ connector (4-pin)
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12V)

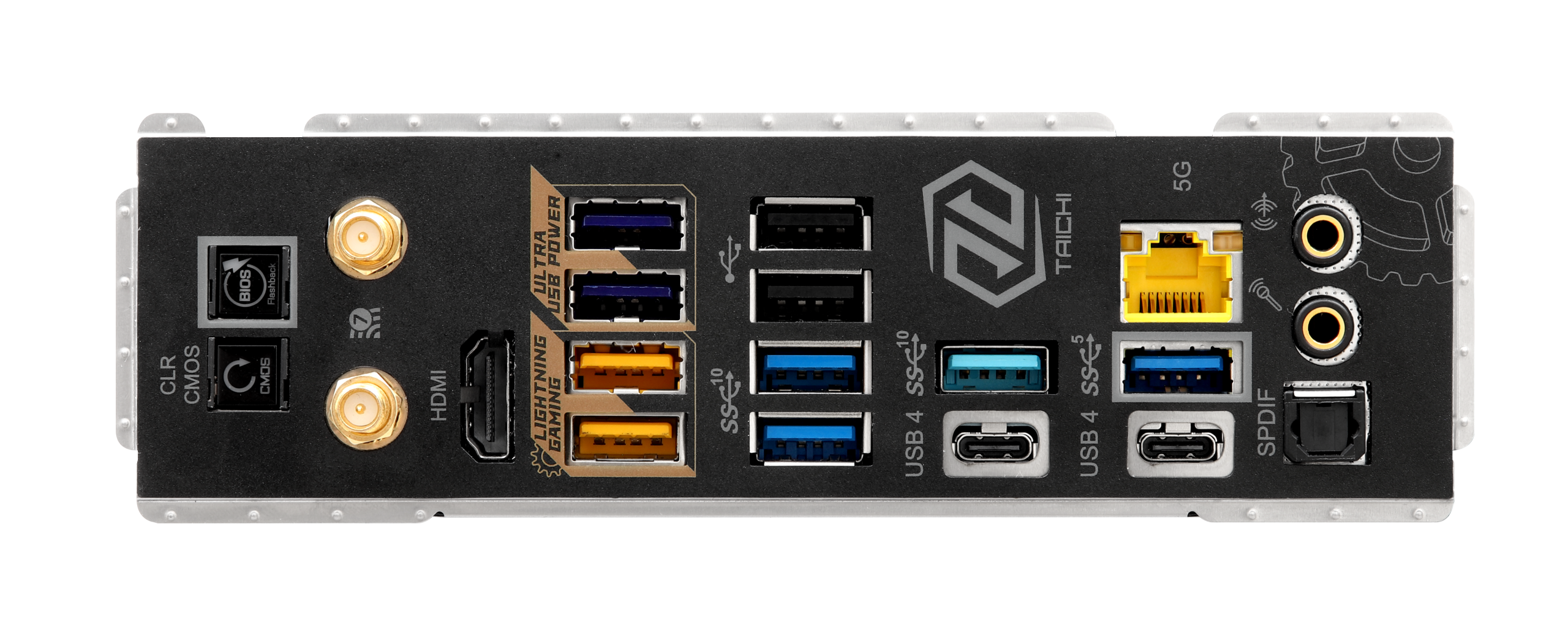

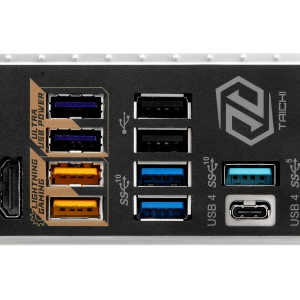

– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbps with DisplayPort)
– 5x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 3x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (Type-A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x 5 Gigabit LAN (Realtek RTL8126CG)
– 2x Antenna Ports
– 2x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC 4082)
– 1x Clear CMOS button
– 1x BIOS Flashback
– Power supply:
– 1x 24-pin EATX
– 2x 8-pin 12V

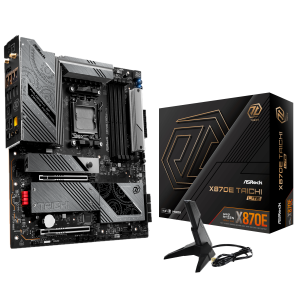

– Accessories:
– 4x SATA data cables
– 1x ASRock WiFi 2.4/5/6 GHz antenna
– 1x ARGB splitter cable
– 3 x Thermistor Cable
