ASUS TUF Gaming B650-Plus motherboard, socket AM5, AMD B650, ATX, DDR5

– 2x PCIe x16 slots, including 2x PCIe 4.0
– Supports up to 128 GB DDR5 RAM up to 6,400 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 1x USB 3.2, 2x USB 3.1, and 4x USB 2.0 on the I/O panel
– A total of 7x 4-pin PWM fans are supported
– ASUS TUF Gaming B650-Plus: ATX motherboard with AMD AM5

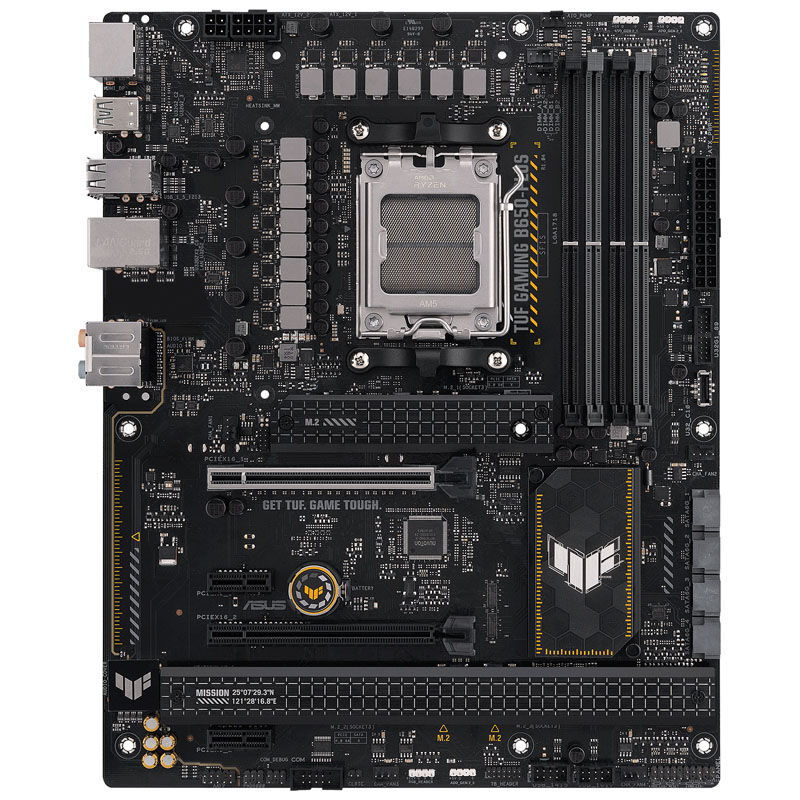

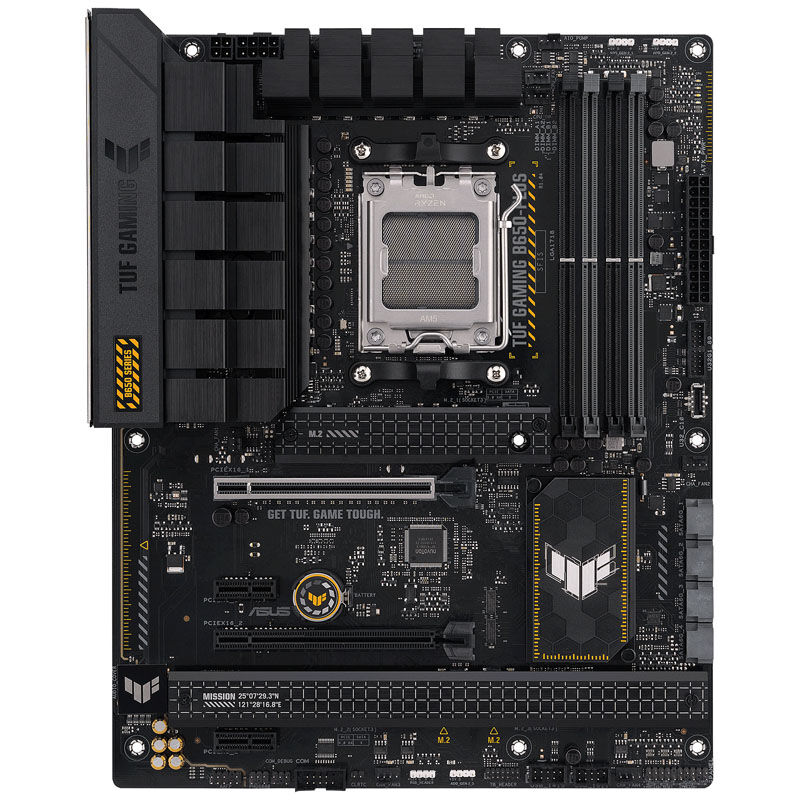

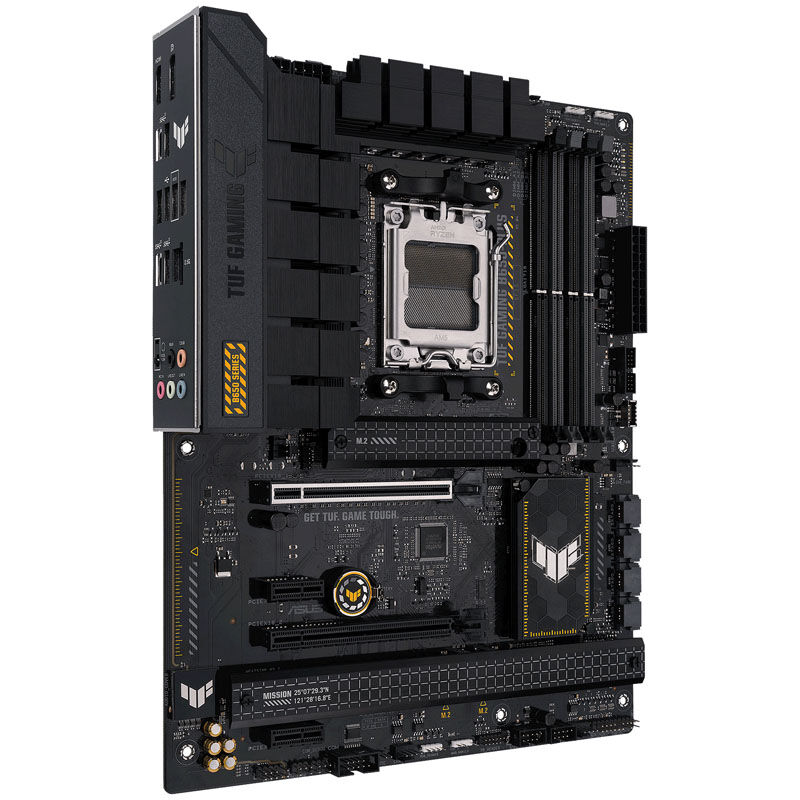

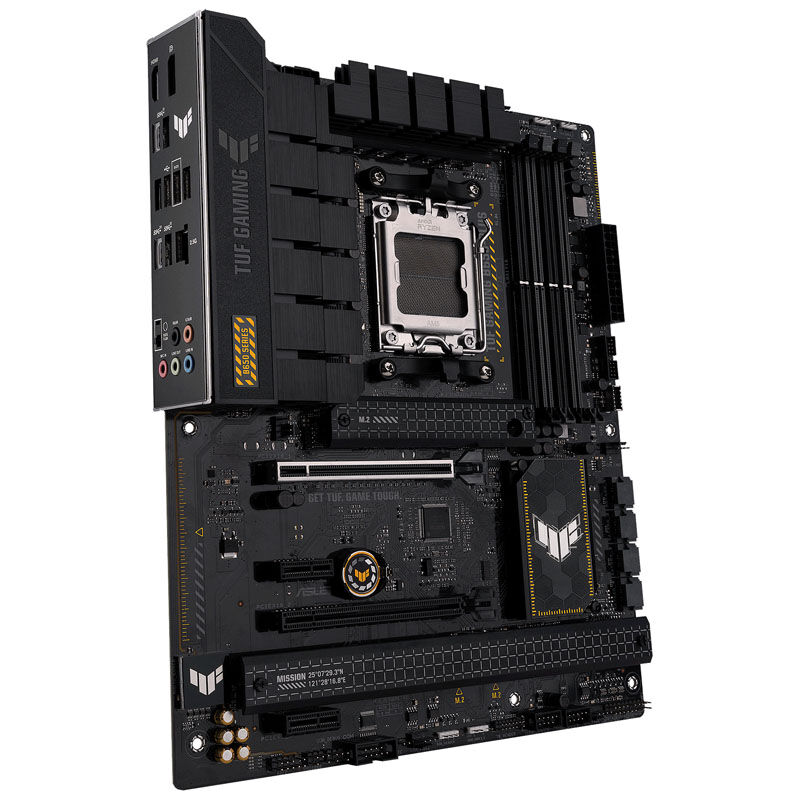

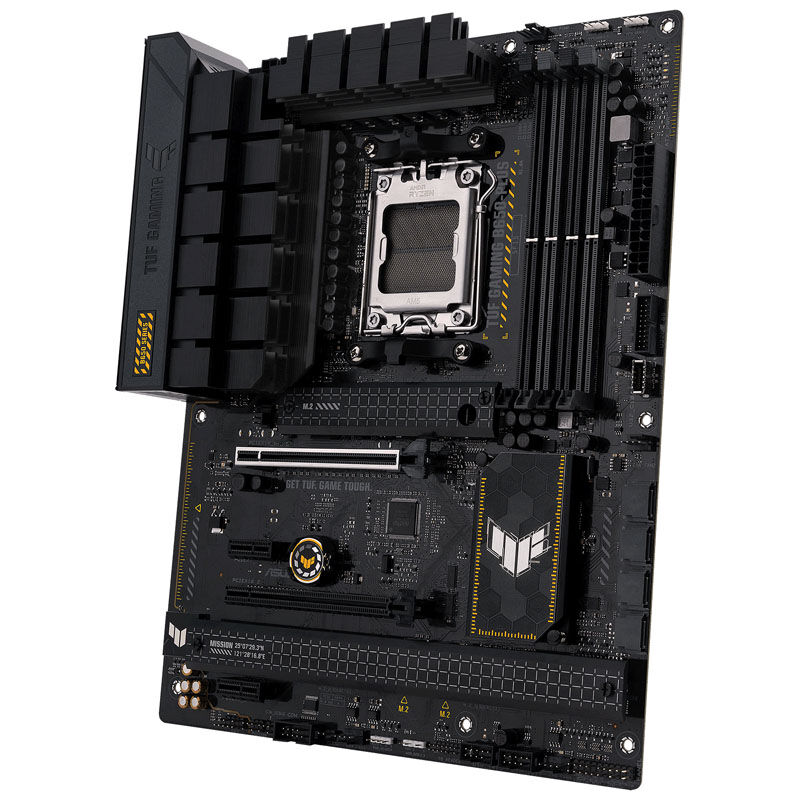

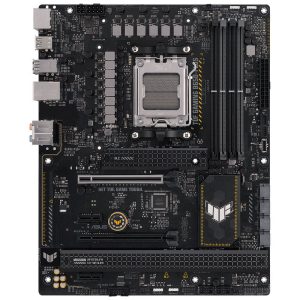

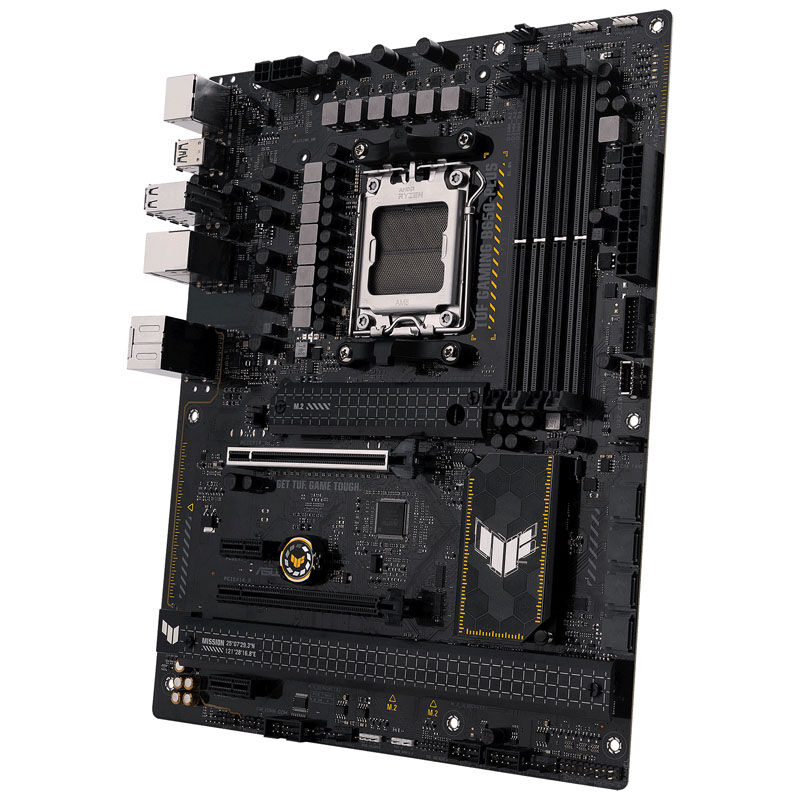

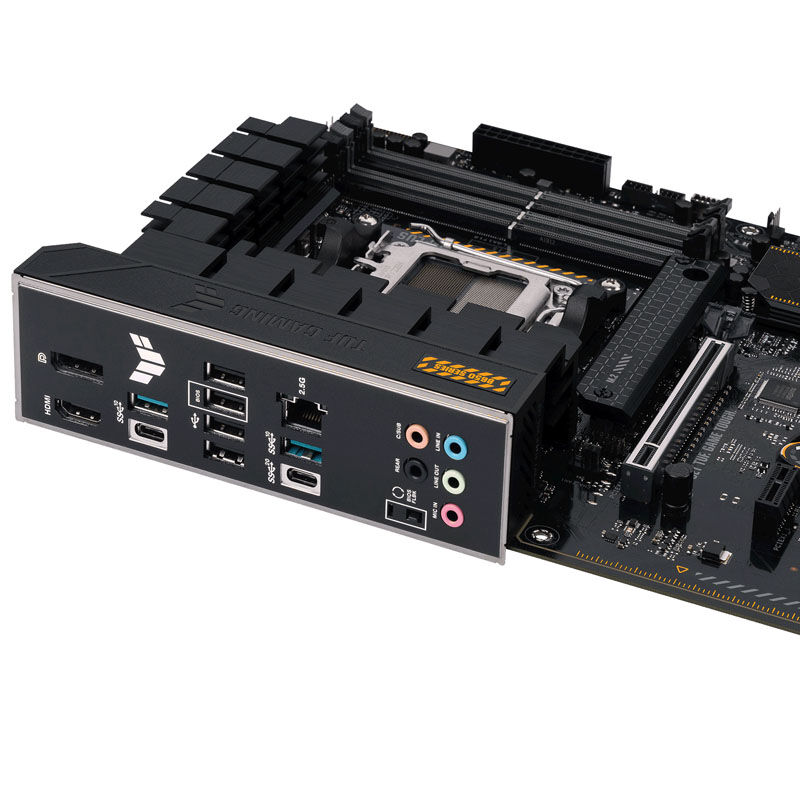

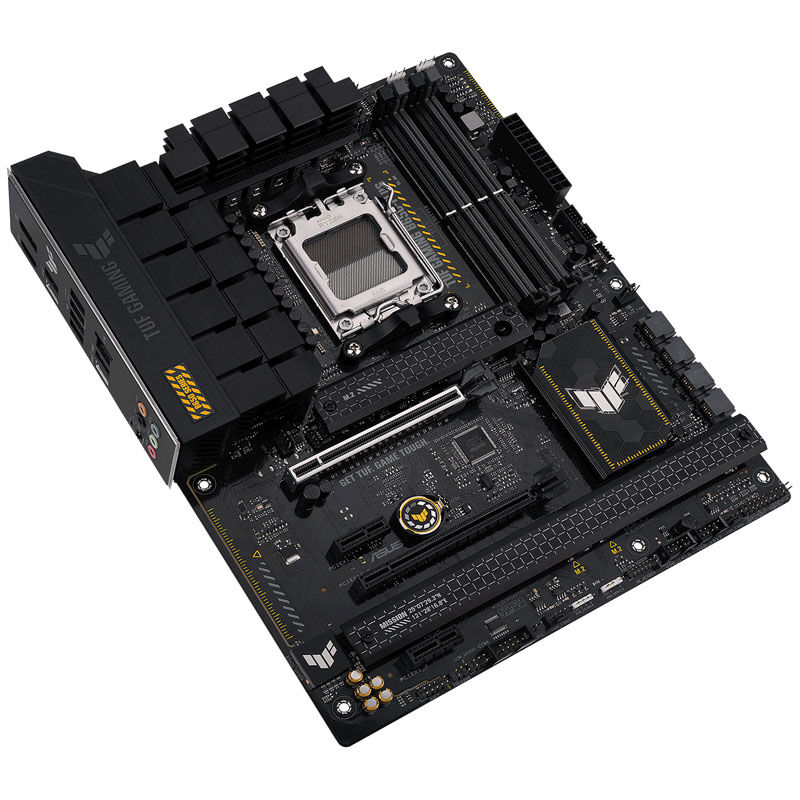

The image shows the ASUS TUF Gaming B650-Plus motherboard.
The ASUS TUF Gaming B650-Plus is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the expanded power supply, Socket AM5 (LGA 1718) is used on the 600 series motherboards.

Despite the increased pin count, the actual size of the socket remains identical to older sockets, so most CPU coolers for Socket AM4 can also be installed on the motherboard.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Silver
– Dimensions
– Length / Depth
– 305 mm
– Width
– 244 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B650
– RAM
– Max. RAM
– 128 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (OC)
– 6400 MT/s
– Memory Slots
– 4x
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– No
– Internal Ports
– CPU Power
– 1x 4-pin, 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
– 1
– USB 3.0 (internal) Possible Ports
– 2
– USB 2.0 (Internal) Possible Connections
– 2
– RGB / LED connectors
– 1x RGB (4-pin 5050 12VGRB), 3x Digital RGB (3-pin 5VDG)

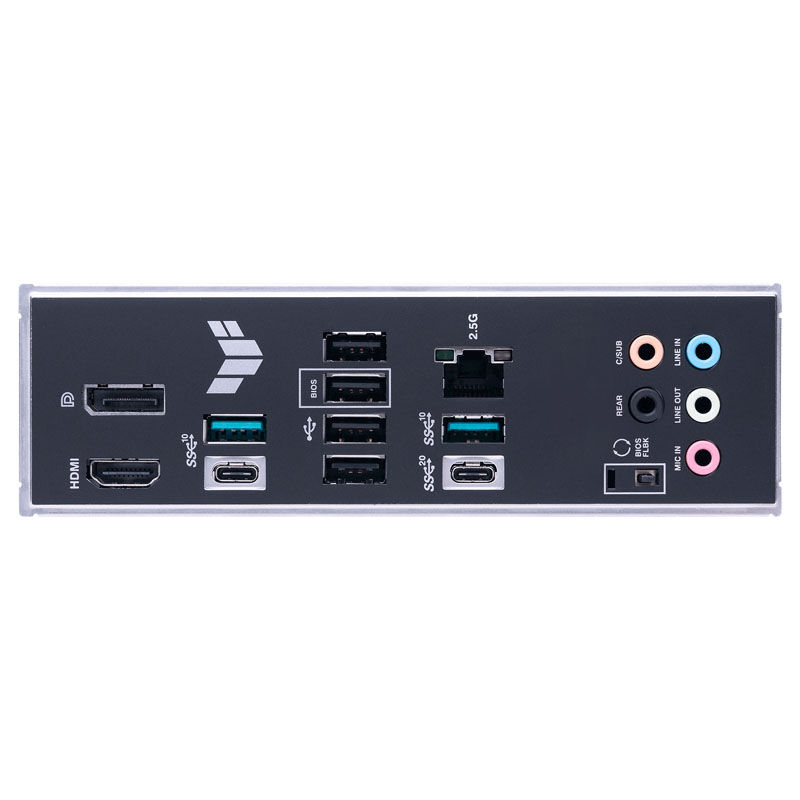

– External Connections
– USB 3.2 (external) Type C
– 2
– USB 3.1 (external) Type C
– 1
– USB 3.1 (external) Type A
– 2
– USB 2.0 (external) Type A
– 4
– Display Ports
– Display Port (1x), HDMI (1x)
– Storage Ports
– M.2 PCIe 4.0 x4
– 2
– M.2 PCIe 4.0 x4 & SATA 6G
– 2
– SATA 6G (internal)
– 4
– Expansion Slots
– PCIe x16 slots (total)
– 2
– PCIe x1 slots (total)
– 1
– PCIe 4.0 x16 (mechanical)
– 2
– PCIe 4.0 x1 (mechanical)
– 1
– PCIe 3.0 x16 (mechanical)
– 1
