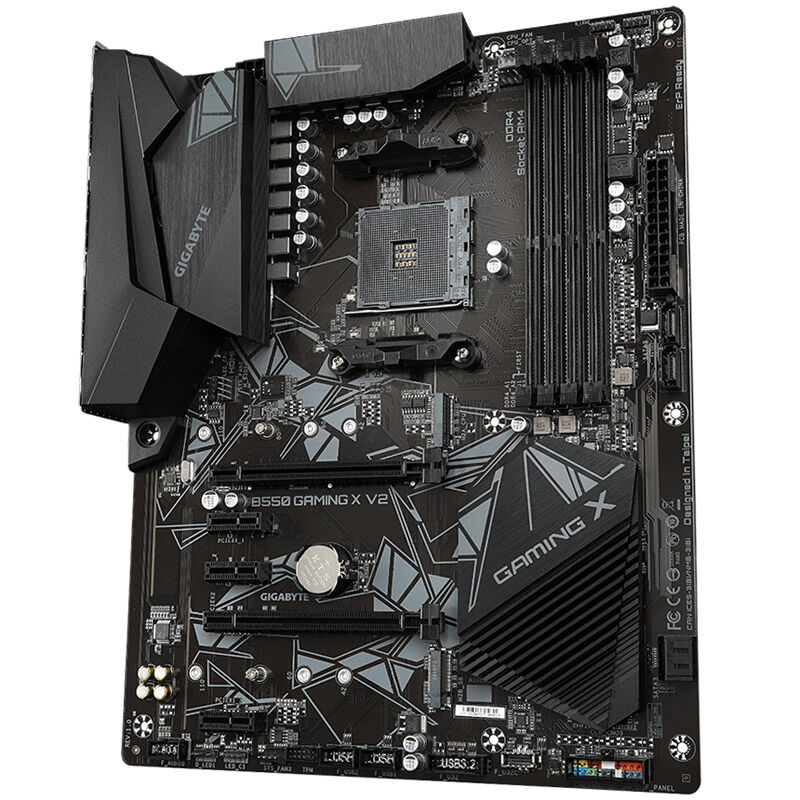

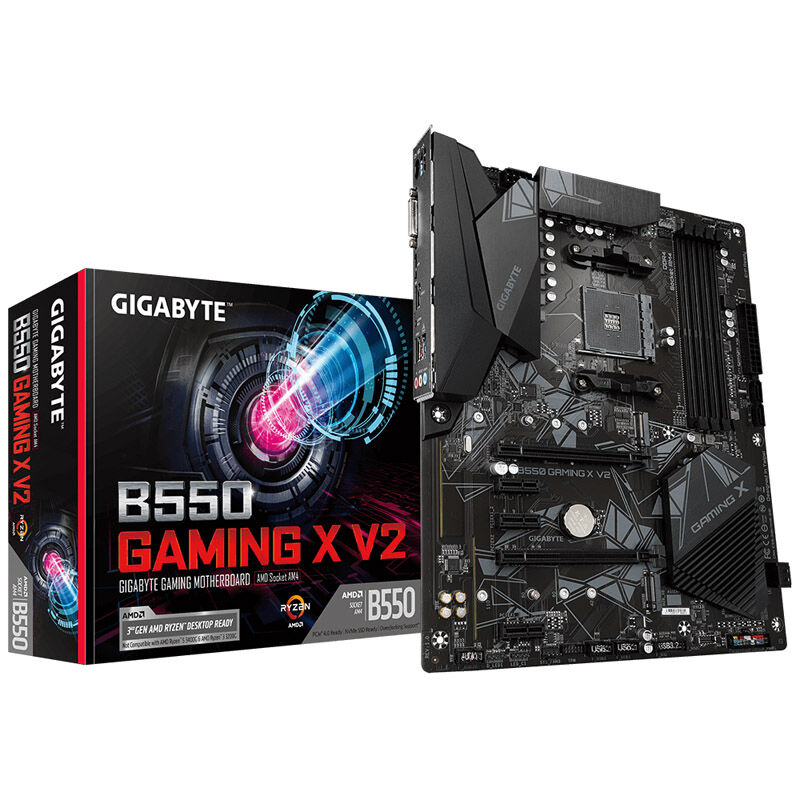

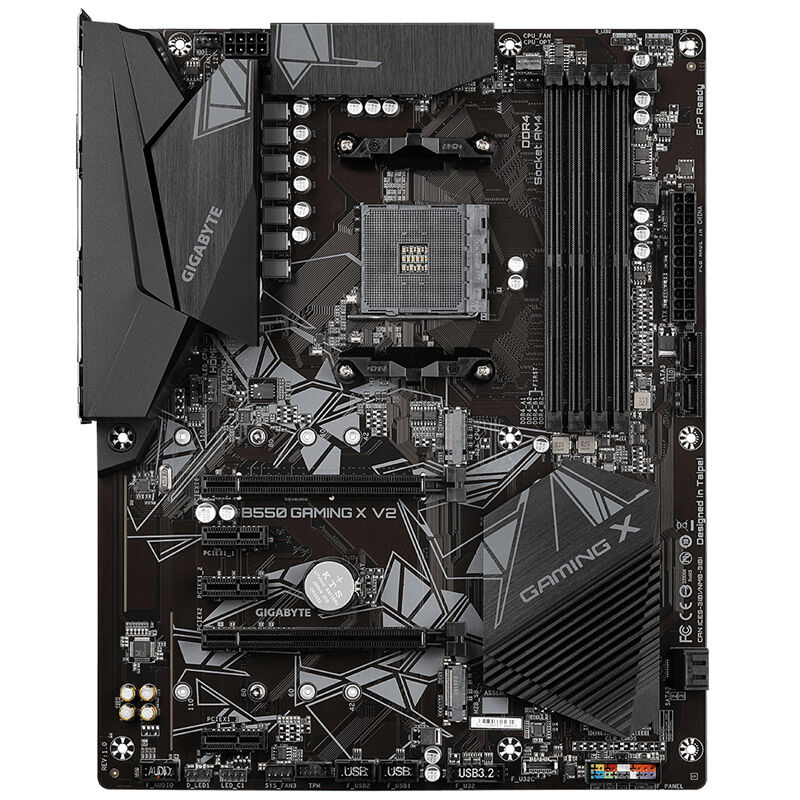

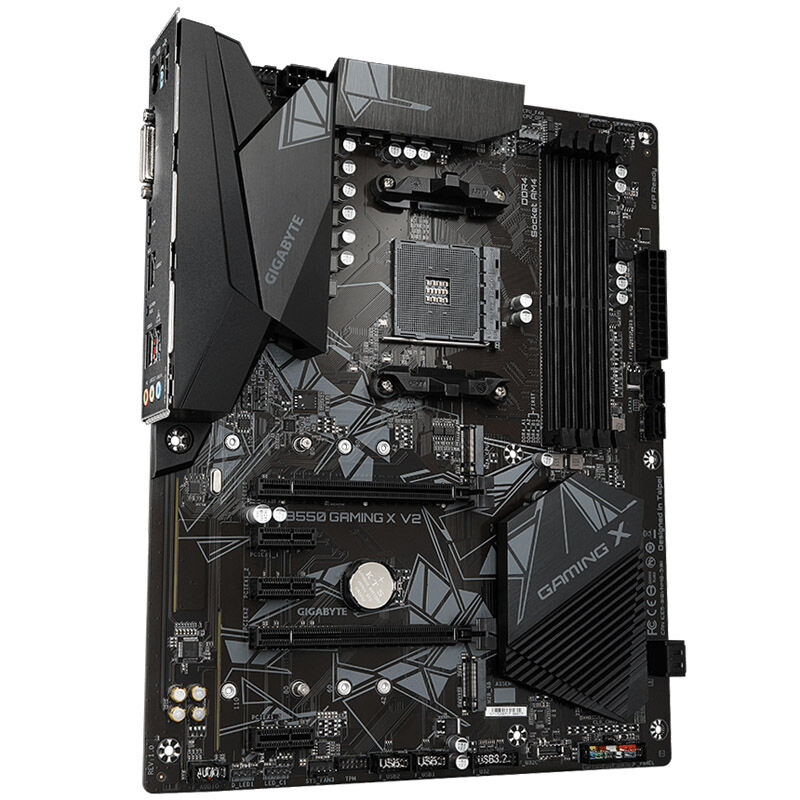

Gigabyte B550 Gaming X V2 motherboard, socket AM4, AMD B550, ATX, DDR4

– 1x PCIe 4.0 x16 (x16), 1x PCIe 3.0 x16 (x2), and 3x PCIe 3.0 x1
– 1x USB 3.0 Type-C (internal) / 1x USB 3.1 Type-A (external) / 5x USB 3.0 (internal, external) / 6x USB 2.0 (internal, external)
– 2x M.2 (1x PCIe 4.0 x4 and SATA / 1x PCIe 3.0 x4 and SATA) / 4x SATA 6G
– DDR4 memory up to 4733 MHz with overclocking
– Ideal for AMD Ryzen 3000 and Ryzen 5000 series CPUs (Matisse/Vermeer)

The GIGABYTE B550 Gaming X V2 rev. 1.1 features in detail
The GIGABYTE B550 Gaming X V2 rev. 1.1 is an ATX motherboard and features one PCI Express 4.0 slot with full x16 connectivity for graphics cards, plus one PCI Express 3.0 x16 slot and three PCIe 3.0 x1 slots. The four RAM banks support up to 128 GB of DDR4 memory with a clock speed of up to 3,200 MHz and can even handle clock speeds of up to 4,733 MHz via overclocking.

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Gray, White
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Socket
– AM4
– Motherboard
– Motherboard Chipset
– AMD B550
– RAM
– Max. RAM
– 128 GB
– Memory Type
– DDR4
– Memory Slots
– 4x
– Wi-Fi & LAN
– LAN Ports
– 1x 1 Gbps, 1x (total)
– Wi-Fi / Bluetooth
– No
– Internal Ports
– USB 3.0 / 3.1 / 3.2 (internal) Type C possible ports
– 1
– USB 3.0 (internal) possible ports
– 1
– RGB / LED Ports
– 2x Digital RGB (3-pin 5VDG), 2x RGB (4-pin 5050 12VGRB), yes

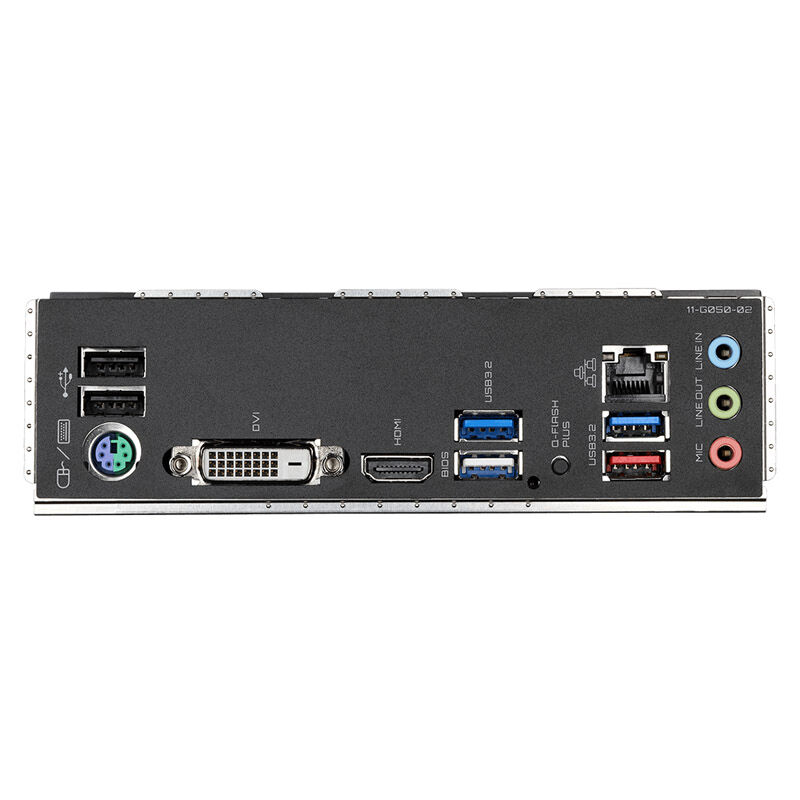

– External Ports
– USB 3.1 (external) Type A
– 1
– USB 3.0 (external) Type A
– 3
– Display Ports
– DVI-D (1x), HDMI (1x)
– Storage Ports
– M.2 PCIe 3.0 x4 & SATA 6G
– 2
– M.2 PCIe 4.0 x4 & SATA 6G
– 1
– SATA 6G (internal)
– 4
– Expansion Slots
– PCIe x16 Slots (total)
– 1
– PCIe x1 Slots (total)
– 3
– PCIe 4.0 x16 (mechanical)
– 1
– PCIe 3.0 x16 (mechanical)
– 1
– PCIe 3.0 x1 (mechanical)
– 3
– Fan Headers
– 4-pin Fan Connectors
– 5
– Lighting
– Lighting / RGB
– No
