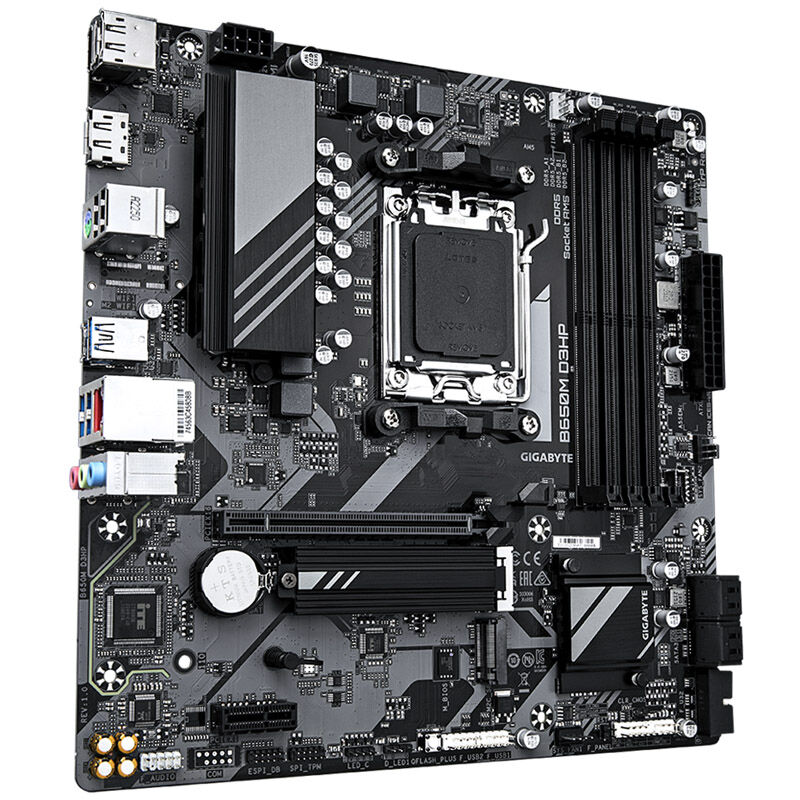

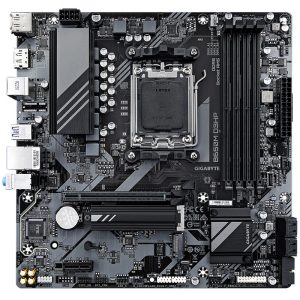

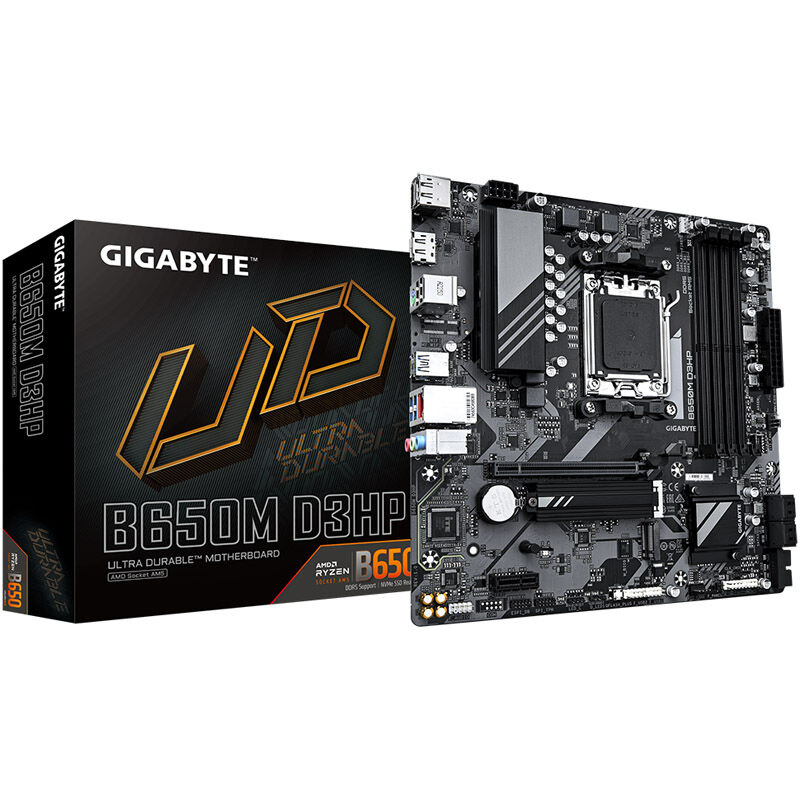

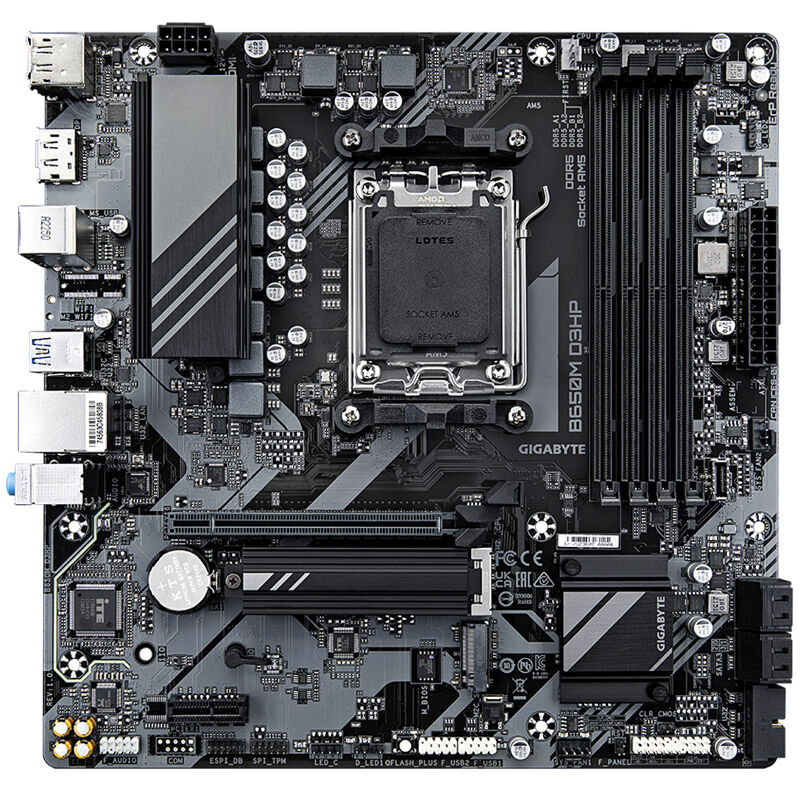

Gigabyte B650M D3HP motherboard, socket AM5, AMD B650, Micro-ATX, DDR5

– 1x PCIe x16 slot with PCIe 4.0, 1x PCIe x1
– Supports up to 192 GB DDR5 RAM up to 7,600 MHz (OC)
– 2x PCIe 4.0 M.2 / 4x SATA 6G

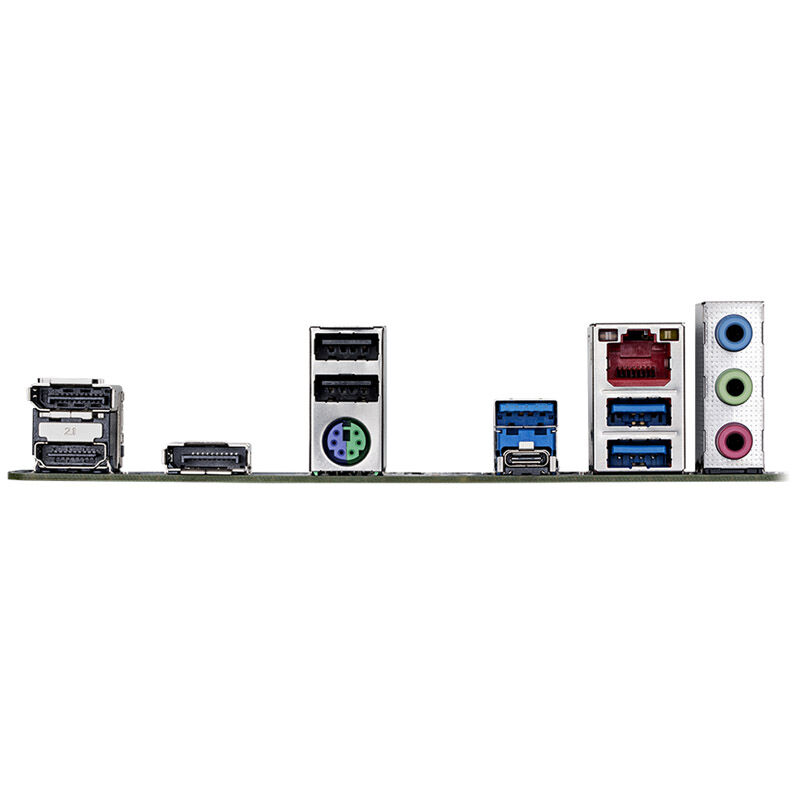

– 1x USB-C 3.0, 3x USB-A 3.0, and 2x USB 2.0 on the I/O panel
– OC features: 5+2+2 phase VRMs
– A total of 3x 4-pin PWM fans possible

GIGABYTE B650M D3HP: Micro-ATX motherboard with AMD AM5
The GIGABYTE B650M D3HP is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the expanded power supply, the 600 series motherboards use Socket AM5 (LGA 1718).

Despite the increased pin count, the actual size of the socket remains identical to older sockets, allowing most CPU coolers for Socket AM4 to be installed on the motherboard.

The GIGABYTE B650M D3HP offers a 5+2 phase power supply, making it suitable for use with powerful Ryzen CPUs. The voltage converters and the M.2 slots are generously equipped with heatsinks. Thanks to Q-Flash Plus, the BIOS can be easily updated via USB flash drive.

Compatible only with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Gray, Silver
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B650
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Slots
– 4x
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– No
– Internal Ports
– CPU Power Supply
– 1x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
– 1
– USB 3.0 (internal) Possible Ports
– 2
– RGB / LED Ports
– 1x RGB (4-pin 5050 12VGRB), 2x Digital RGB (3-pin 5VDG)
– External Ports
– USB 3.0 (external) Type C
– 1
– USB 3.0 (external) Type A
– 3
– Display Ports
– Display Port (1x), Display Port (2x), HDMI (1x)
– Storage Ports
– M.2 PCIe 4.0 x4
– 2
– SATA 6G (internal)
– 4
– Expansion Slots
– PCIe x16 Slots (total)
– 1
– PCIe x1 Slots (total)
– 1
– PCIe 4.0 x16 (mechanical)
– 1
– PCIe 3.0 x1 (mechanical)
– 1
– Fan Header
– 4-pin Fan Connectors
– 3
– Lighting
– Lighting / RGB
– No
