ASUS Prime A620M-E-CSM, AMD A620 motherboard, socket AM5, DDR5

– 1x PCIe 4.0 x16 slot, 2x PCIe 3.0 x1
– Supports up to 96 GB DDR5 RAM up to 6,400 MHz (OC)
– 1x M.2 PCIe 4.0 / 4x SATA 6G
– 4x USB-A 3.0 and 4x USB 2.0 on the I/O panel
– A total of 3x 4-pin PWM fans possible
– ASUS Prime A620M-E-CSM: Micro-ATX motherboard with AMD AM5

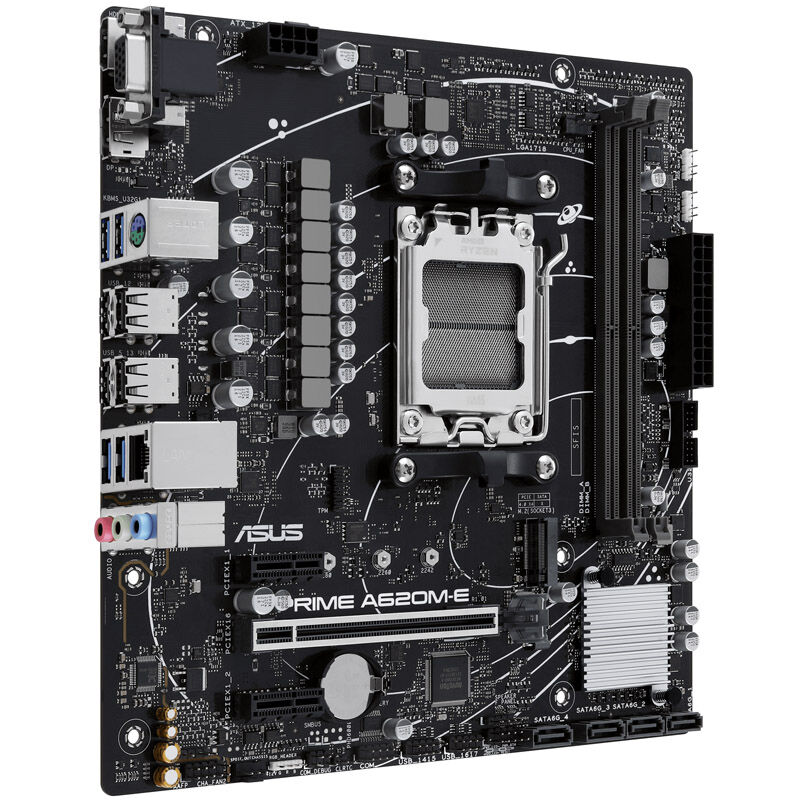

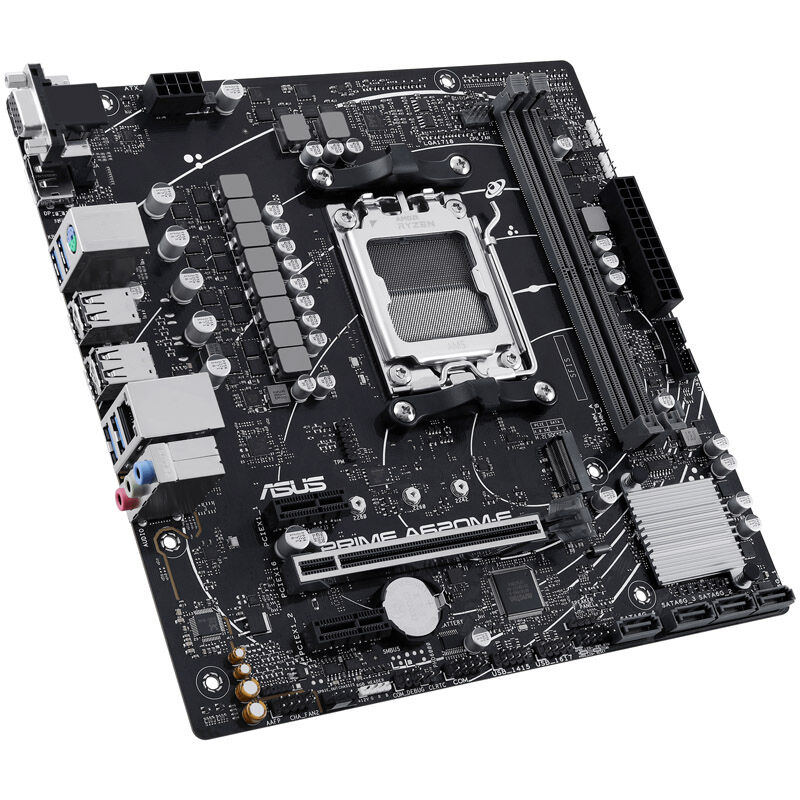

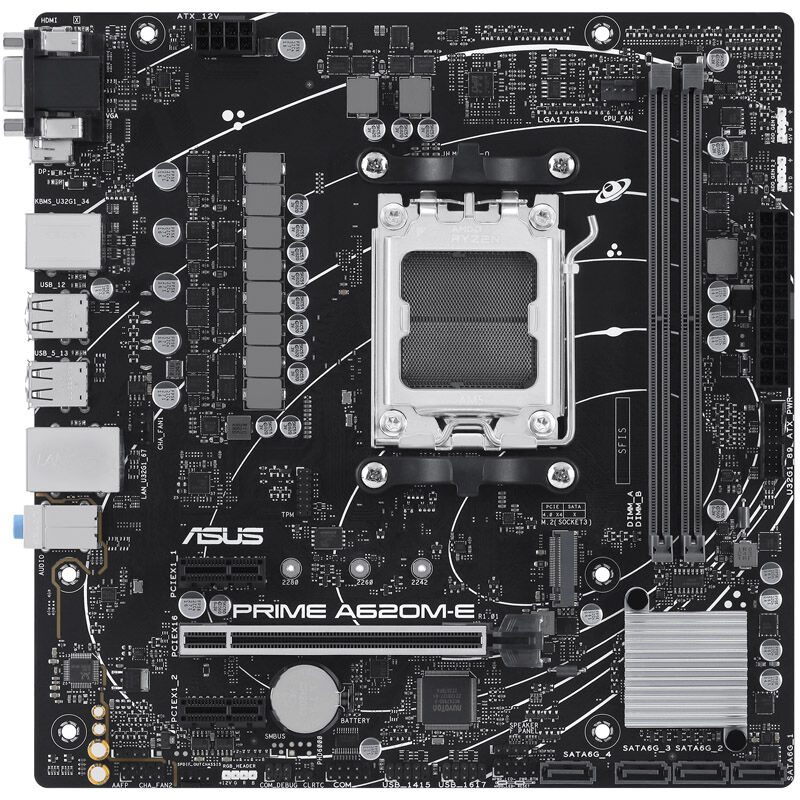

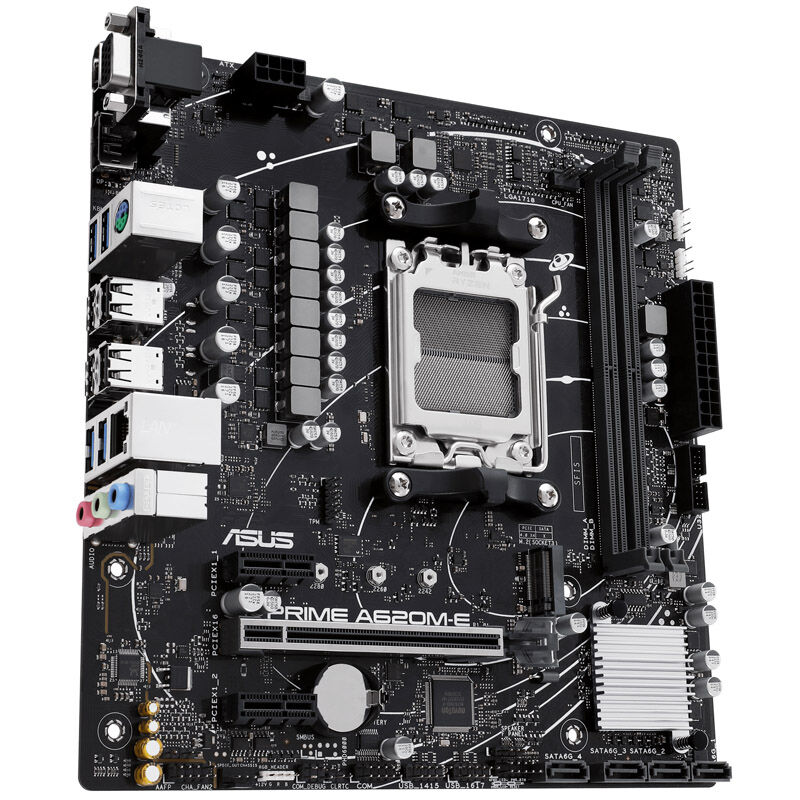

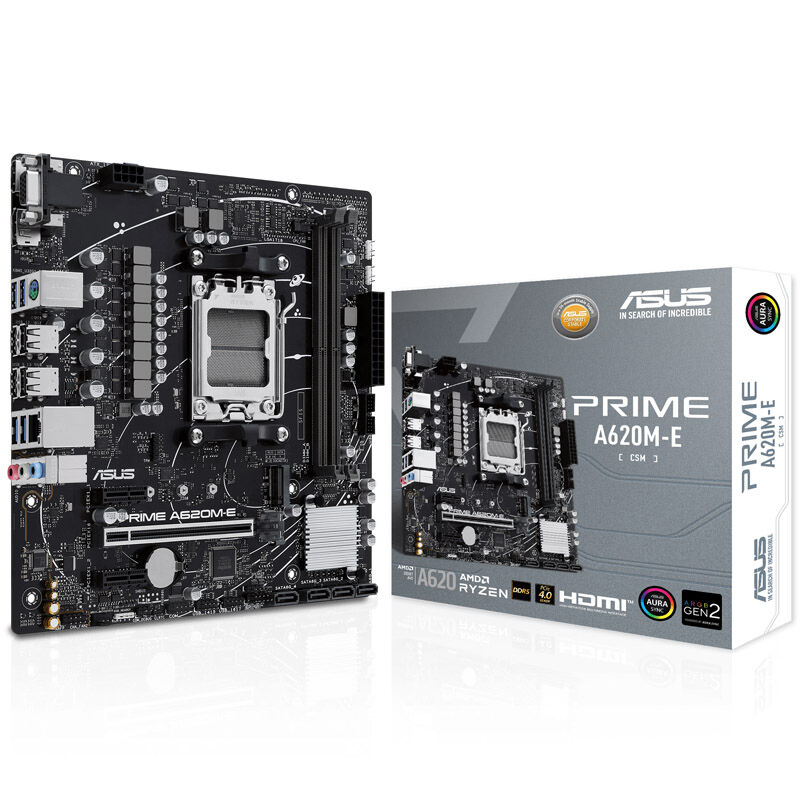

The image shows the ASUS Prime A620M-E-CSM motherboard.
The ASUS Prime A620M-E-CSM is equipped with the A620 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the enhanced power delivery, the 600 series motherboards use Socket AM5 (LGA 1718).

Despite the increased pin count, the actual size of the socket remains the same as older sockets, allowing most Socket AM4 CPU coolers to be installed on the motherboard.

ASUS Corporate Stable Model (CSM) for Enterprise Use
With the Corporate Stable Model (CSM), ASUS offers a special program aimed at delivering stable and reliable motherboards for enterprise use. Every purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software. Along with product lifecycle support, ASUS CSM motherboards deliver comprehensive system protection, high stability, and reliability for 24/7 operation.

Compatible only with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– Micro-ATX (244 x 244 mm)
– Chipset:
– AMD A620
– Socket:
– AM5 (LGA 1718)
– RAM:
– 2x DDR5 (5200 MHz, validated up to 6400 MHz with overclocking)
– Dual-Channel
– Max. 96 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16, CPU)
– 2x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4; 2242 – 2280, CPU)
– 2x USB 3.0 (1 header, Type A, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (2 headers, Type A, max. 480 Mb/s)
– 1x 10-1 System panel header
– 1x Clear CMOS header
– 1x COM port header
– 1x TPM header (14-1 pin)
– 1x Front Panel Audio Header (AAFP)
– 1x S/PDIF Out Header
– 1x speaker header
– Fan connections:
– 1x CPU fan header (4-pin)
– 2x fan header (4-pin)
– RGB header:
– 2x 3-pin ARGB headers
– 1x 4-pin RGB header

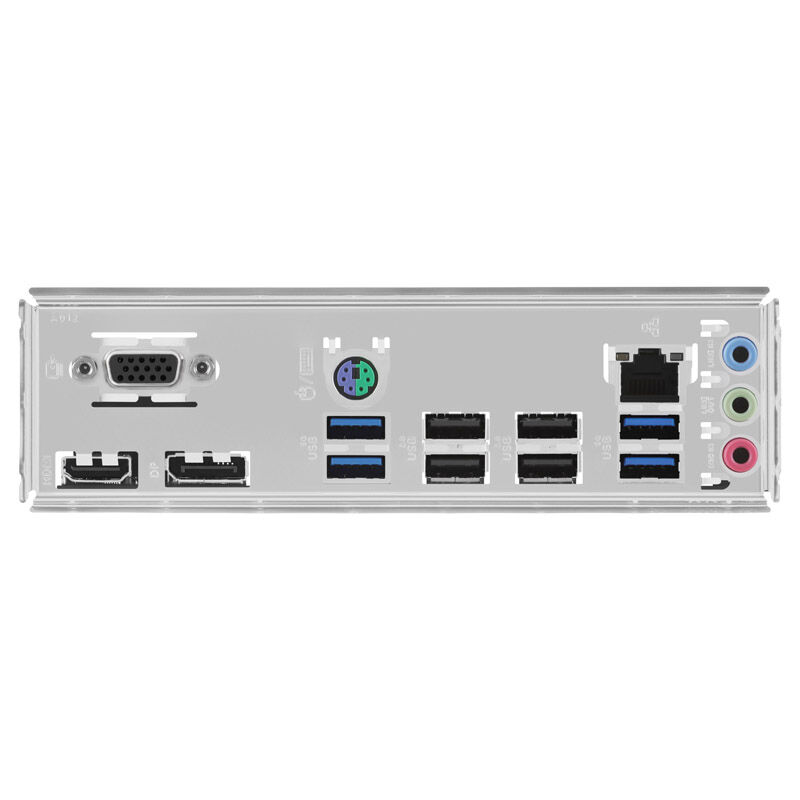

– External connections:
– 1x PS/2 combo for mouse or keyboard
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x VGA
– 1x RJ45 (1 Gbit, Realtek)
– 3×3.5 mm jack (Realtek 7.1 Surround Sound)
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
