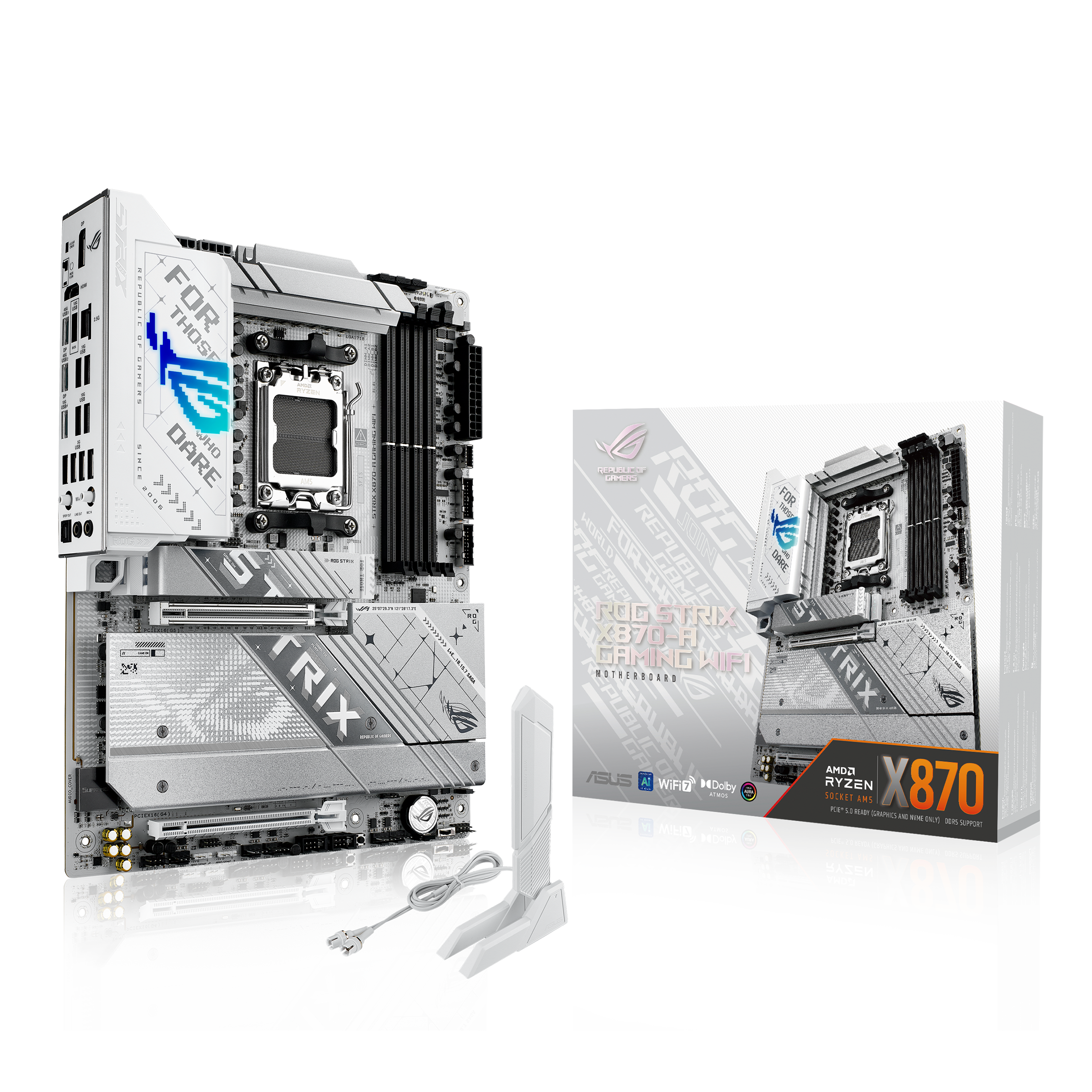

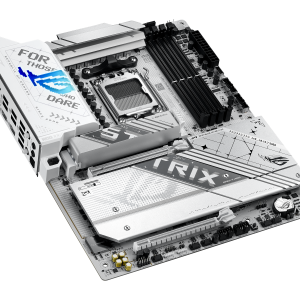

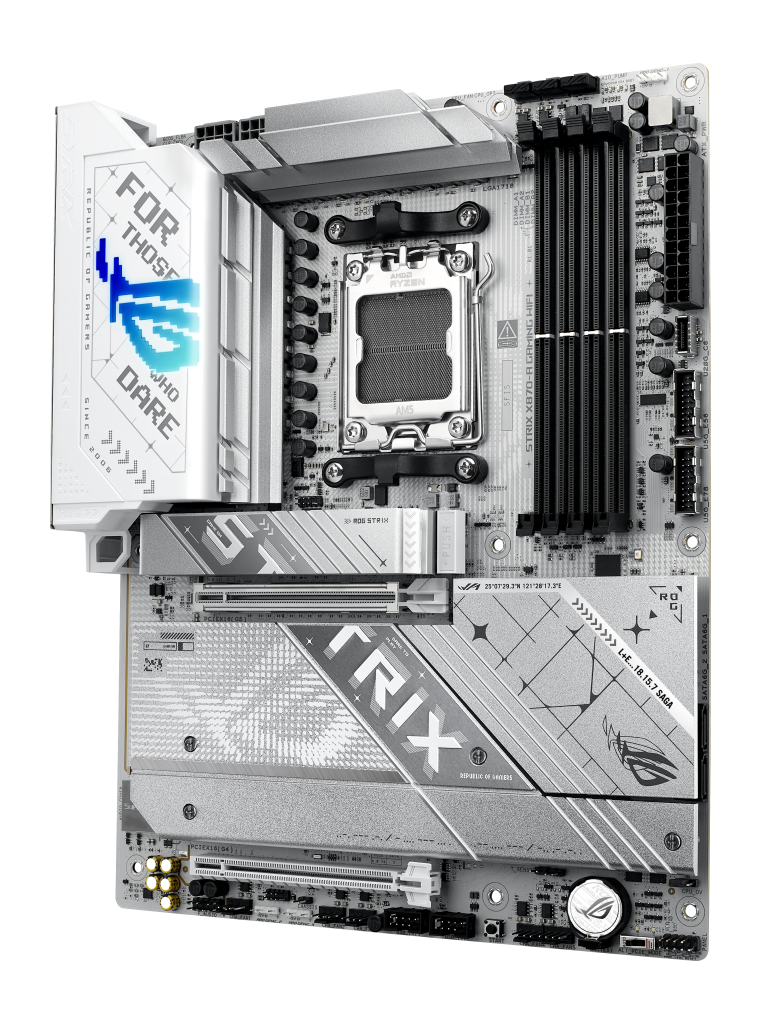

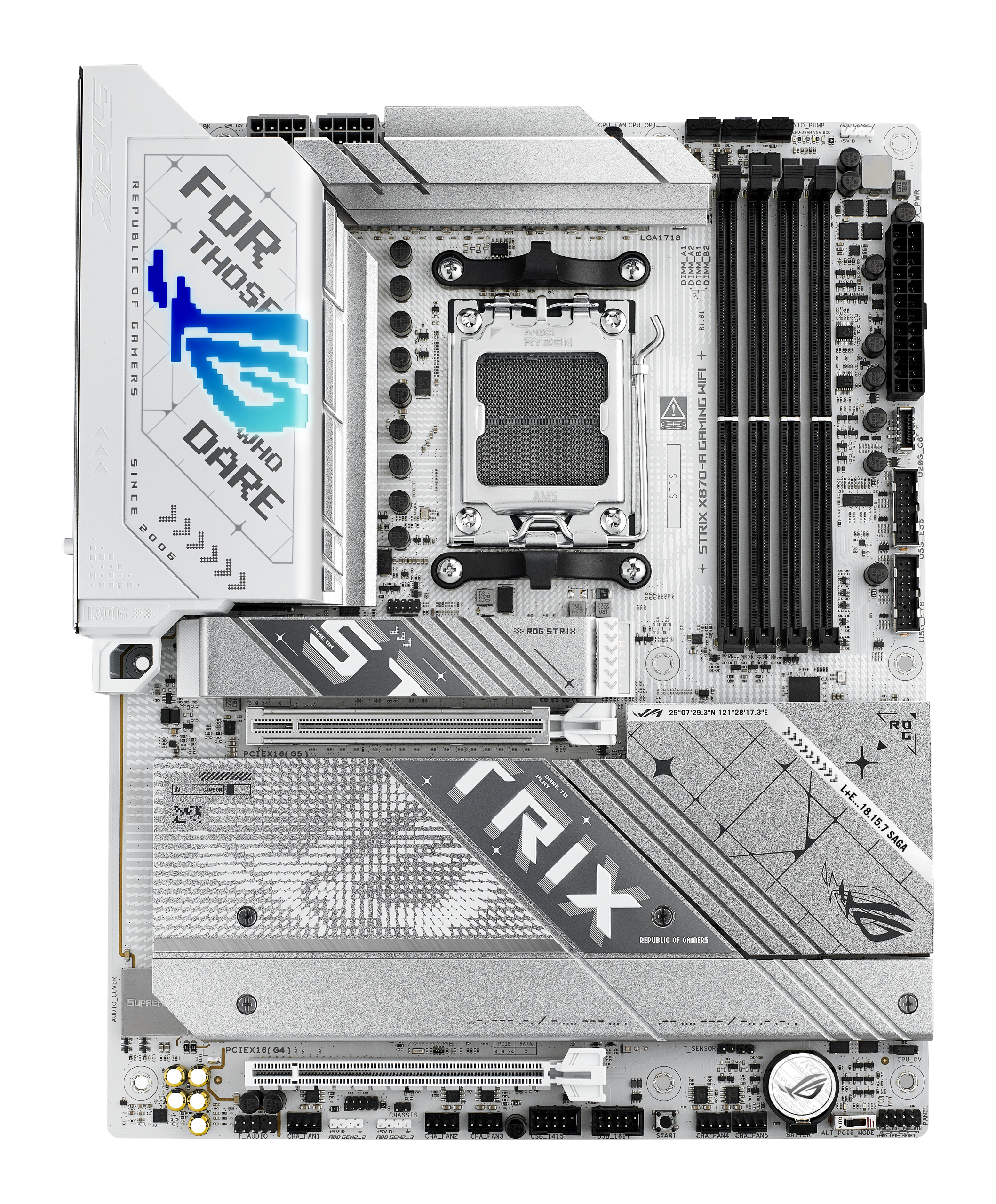

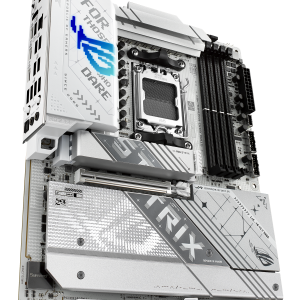

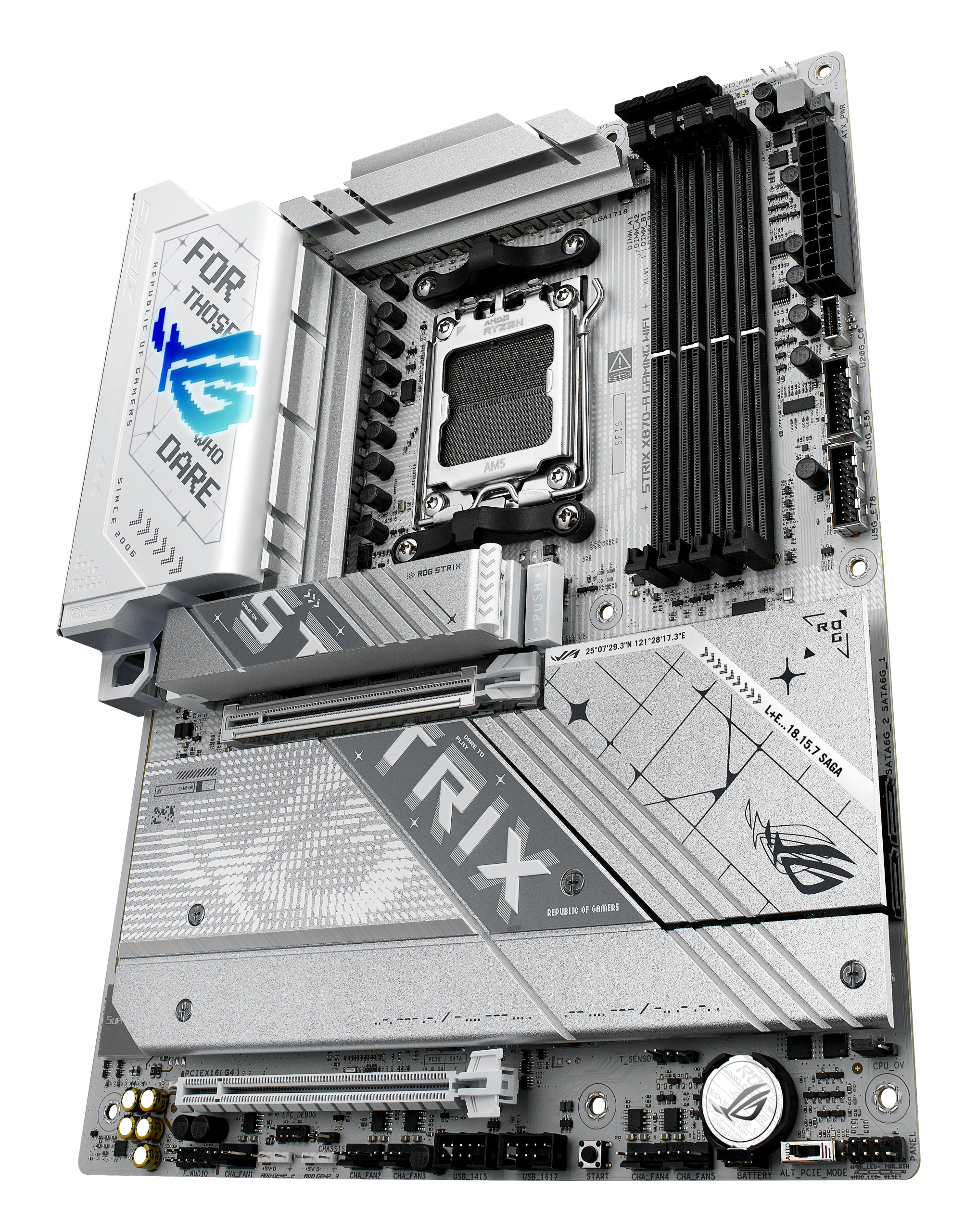

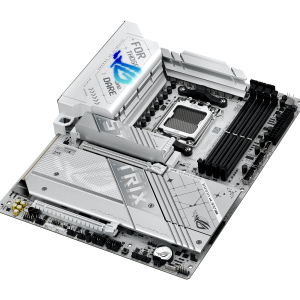

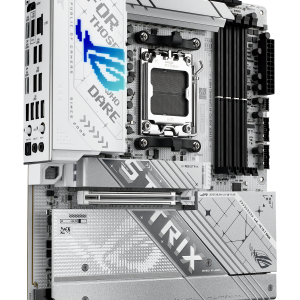

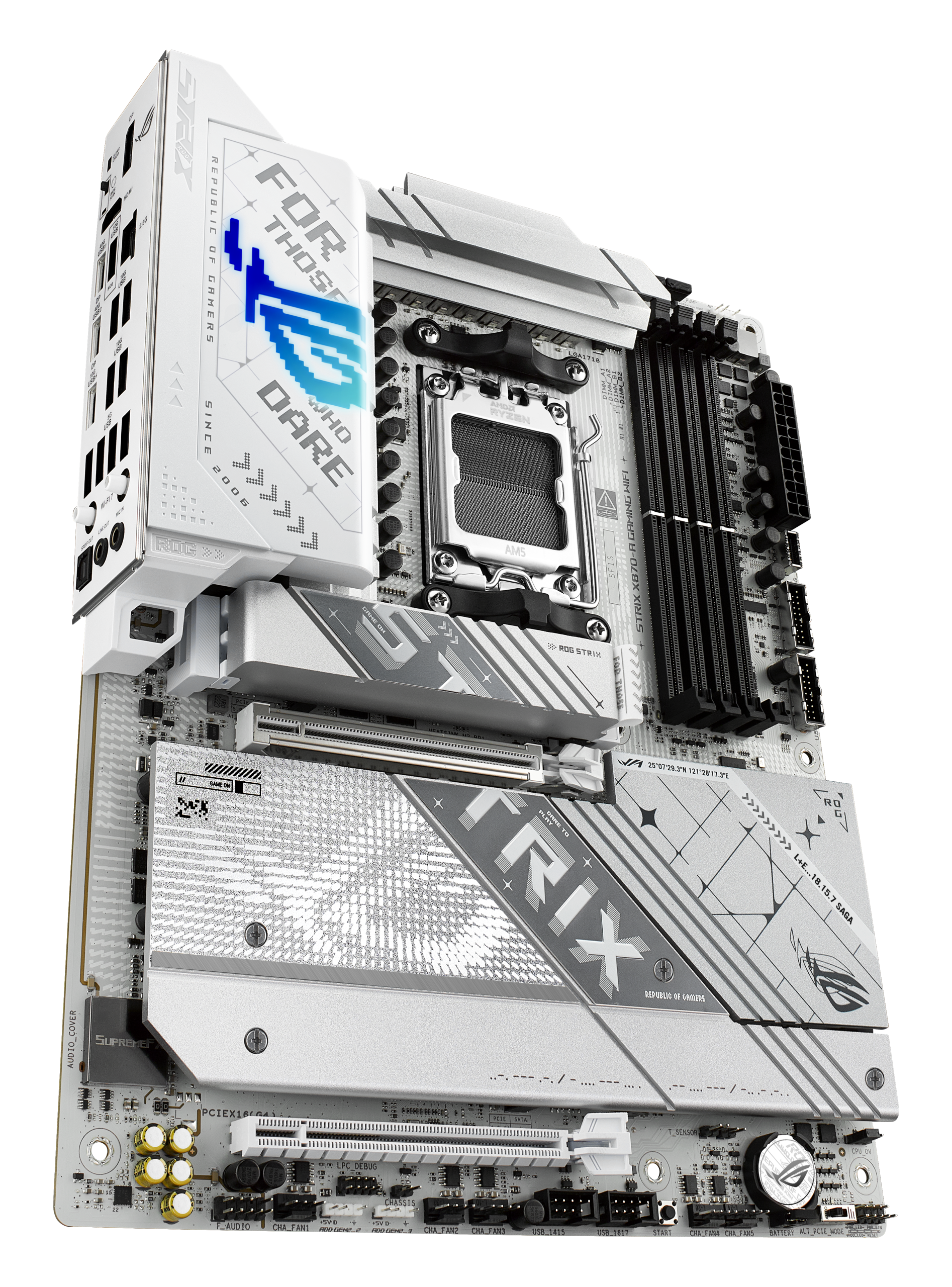

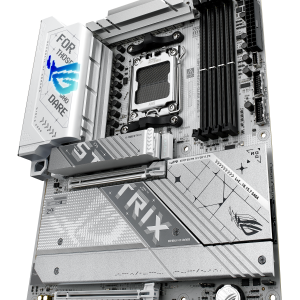

ASUS ROG Strix X870-A Gaming WiFi motherboard, AMD X870, Socket AM5, DDR5

– 1x PCIe 5.0 x16 (x16) and 1x PCIe 5.0 x4 (x2)
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 8000 MHz (OC)
– 4x M.2 (including 2x PCIe 5.0 and 2x PCIe 4.0) / 2x SATA 6G
– – 2x USB 4, 1x USB-C 3.1 (30 W PD), 5x USB 3.1, and 4x USB 3.0 on the I/O panel
– OC features: 18-phase VRMs, CMOS reset, Digi + VRM
– A total of 8x 4-pin PWM fans possible

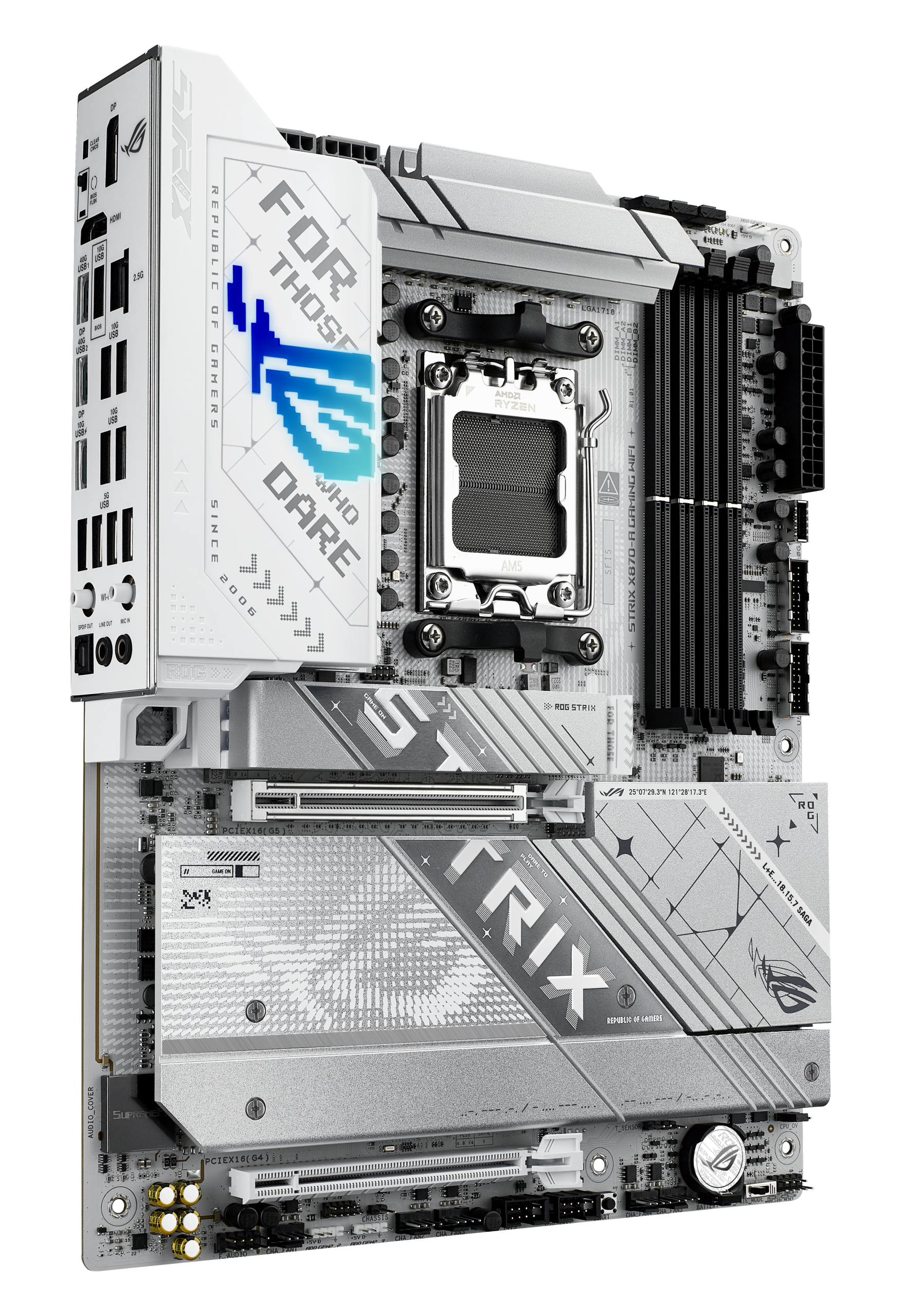

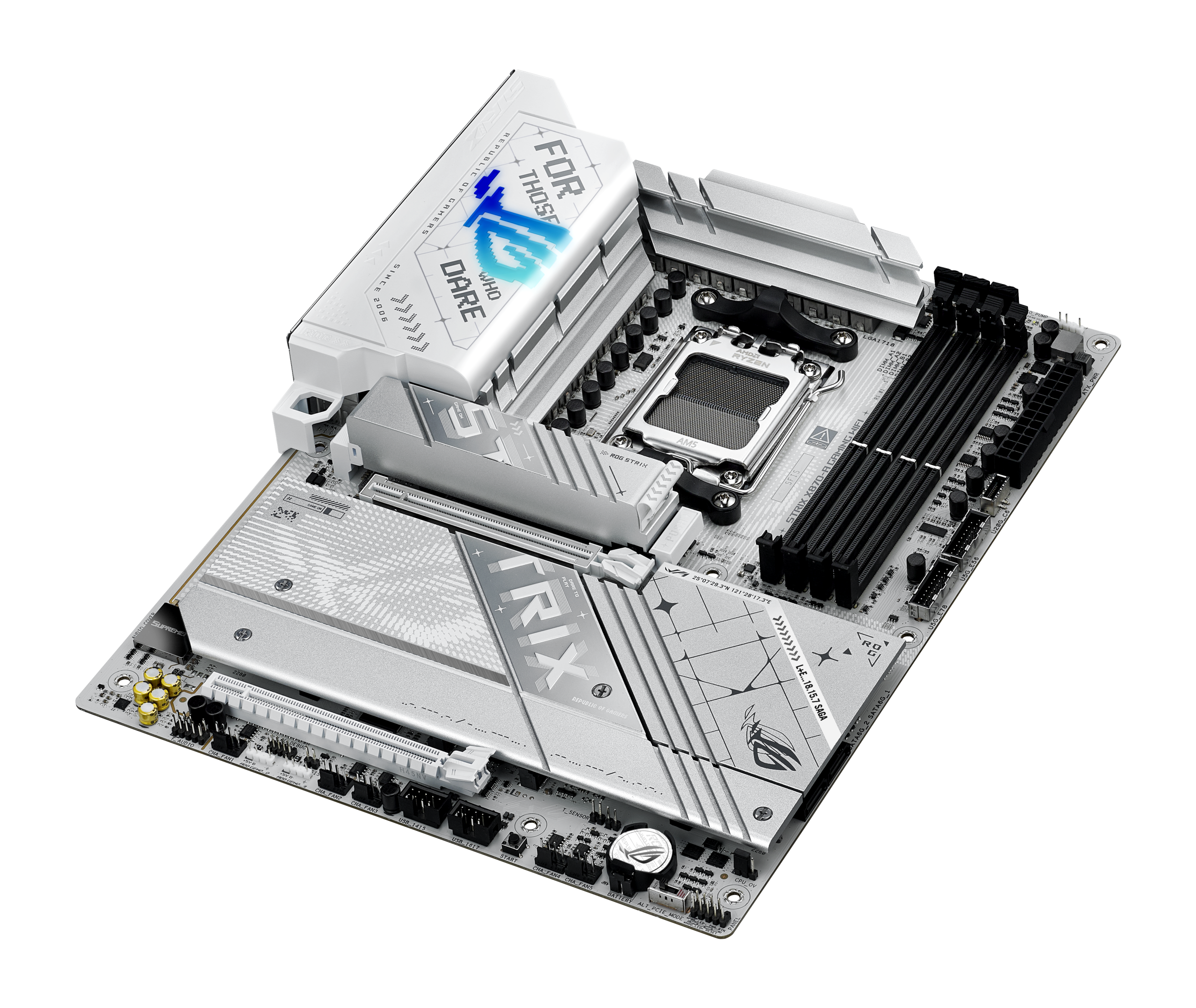

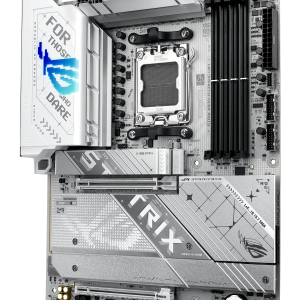

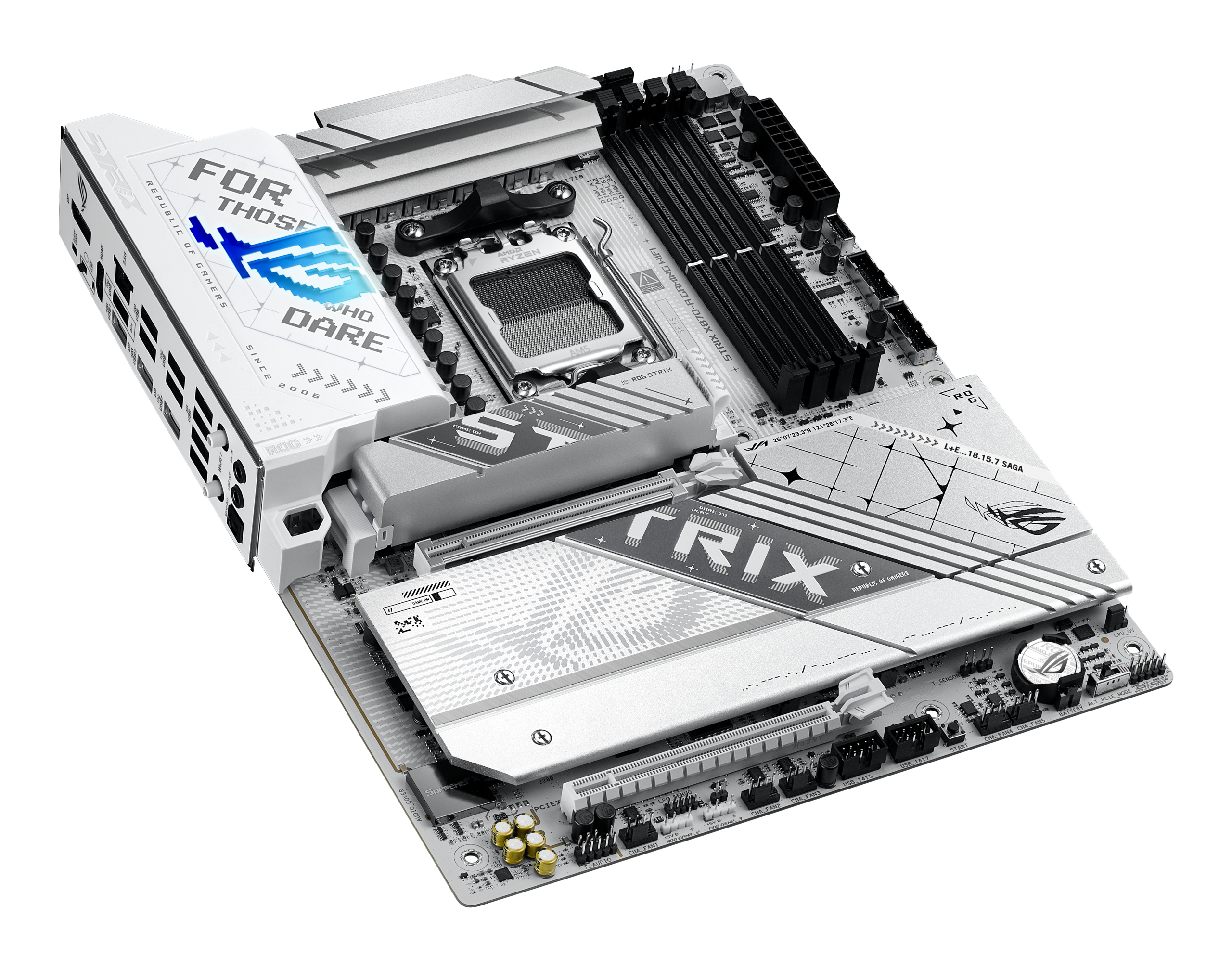

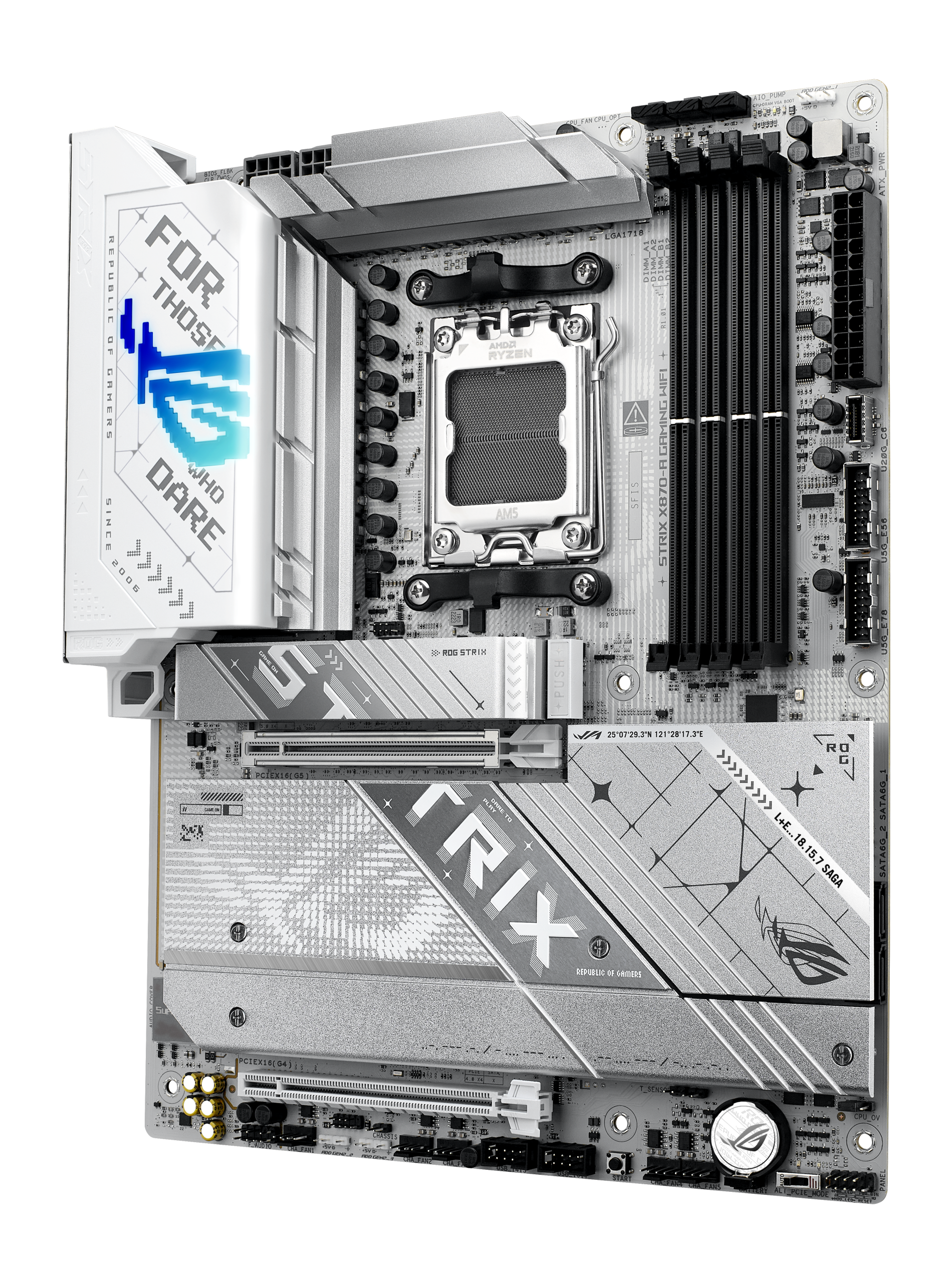

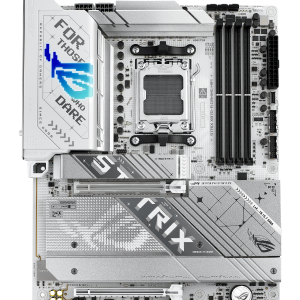

ASUS ROG STRIX X870-A GAMING WIFI: ATX motherboard with AMD AM5 socket and X870 chipset
The ASUS ROG STRIX X870-A GAMING WIFI is equipped with the mid-tier X870 chipset for AMDs Ryzen 9000 series processors and offers numerous features for gamers. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASUS ROG STRIX X870-A GAMING WIFI supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Optimized for Gaming
The ASUS ROG STRIX X870-A GAMING WIFI is designed for high-end gaming, so you can enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Added to that are features like DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as BIOS Flashback and Clear CMOS, so you can get your PC back up and running if something goes wrong. And, as always, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870 (Single Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (up to 8000 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x8, CPU)
– 1x PCIe 4.0 x16 (electrical x16 or x8/x8, chipset)
– Internal Connectors:
– Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 2x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
– 2x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280 / 22110, chipset)
– 1x M.2 (E-Key, 2230, occupied with WiFi+BT module) 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– Fan connections:
– 2x CPU fan header (4-pin)
– 5x Fan header (4-pin)
– 1x AiO pump header
– 1x thermal sensor
– RGB header:
– 3x 3-pin ARGB headers (5V, max. 3A, ASUS Gen2)

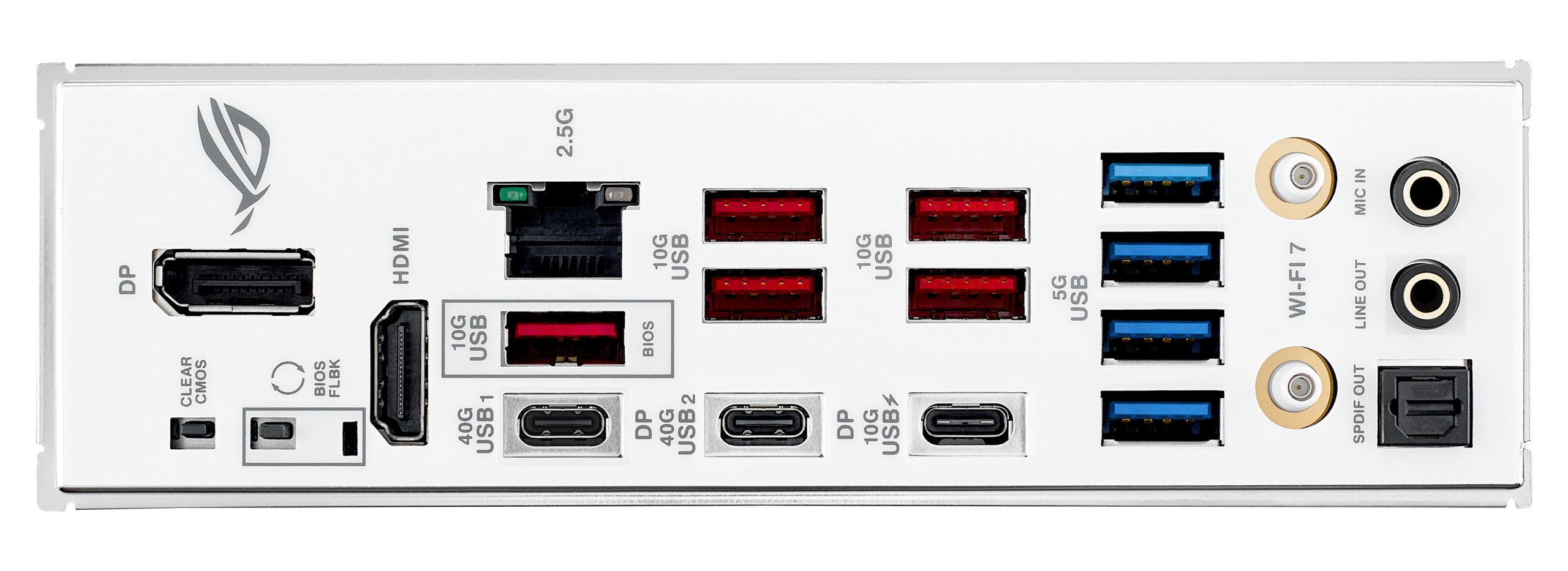

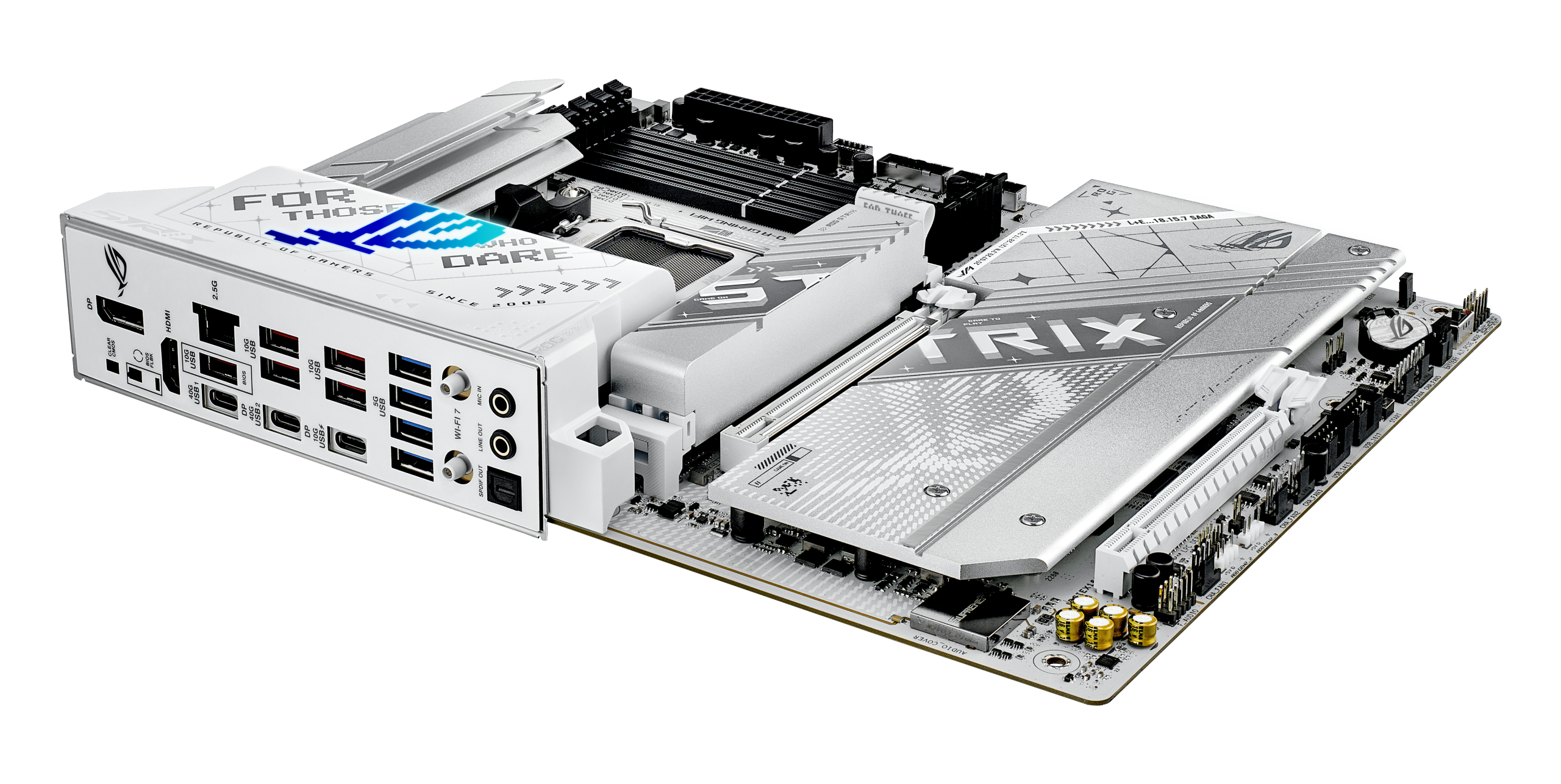

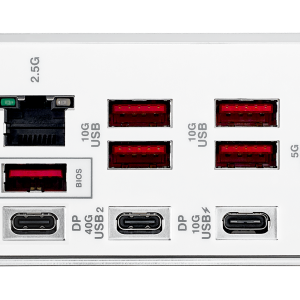

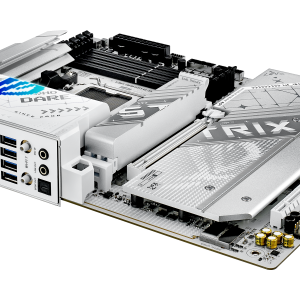

– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
– 1x USB 3.1 (Type A, USB 3.2 Gen 2, PD max. 30W, max. 10 Gbit/s)
– 5x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Intel I226-V)
– 2x 3.5 mm jack (Realtek ALC4080)
– 1x Toslink (Realtek ALC4080) 2x Proprietary RP-SMA Antenna Connector
– 1x Reset
– 1x BIOS Flashback
– Power Supply:
– 1x 24-pin ATX
– 2x 8-pin 12V

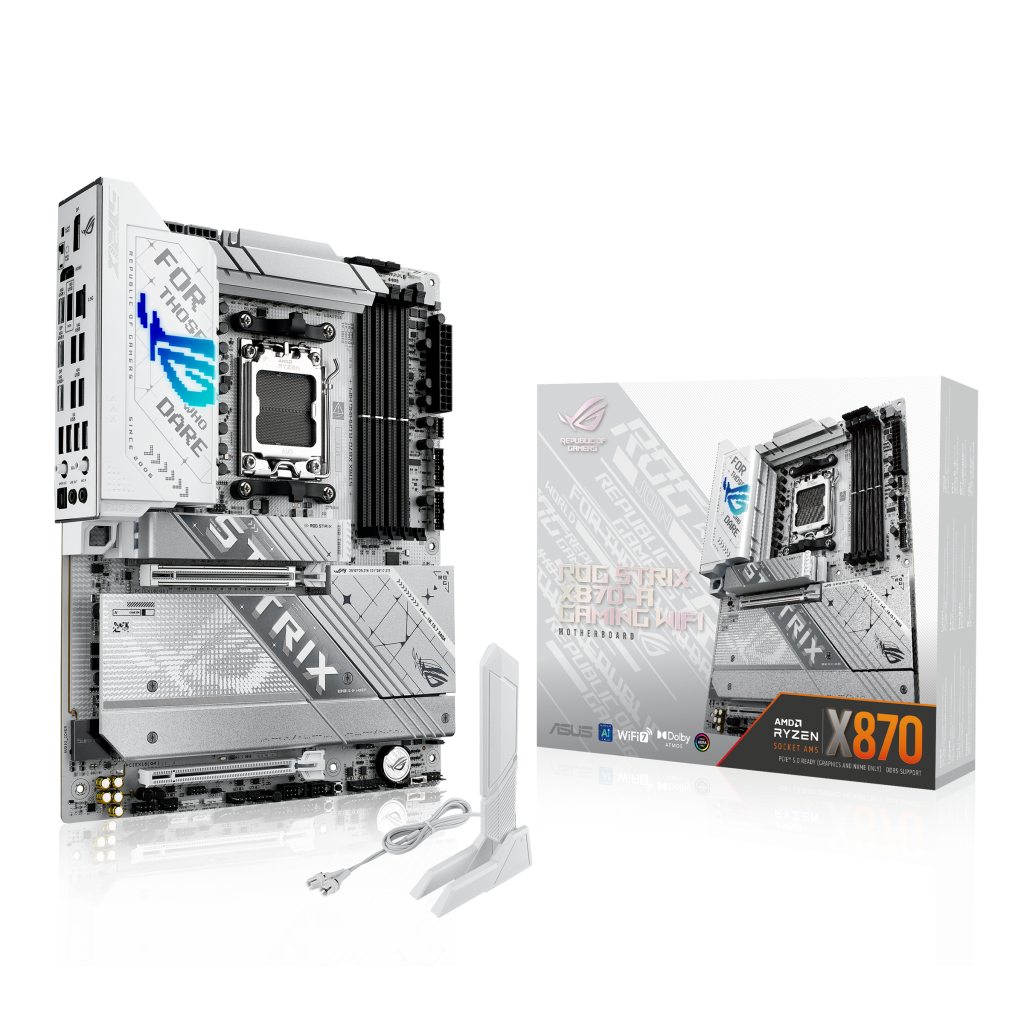

– Accessories:
– 2x SATA 6Gb/s Cables
– 1x Thermal Pad for M.2 22110
– 1x ASUS WiFi Q-Antenna
– 1x Cable Tie Set
– 1x M.2 Q-Latch Set
– 1x M.2 Q-Slide Set
– 1x ROG Keychain
– 1x ROG Strix Sticker
– 4x M.2 Rubber Sets
– 1x Quick Start Guide
