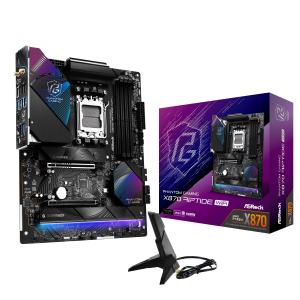

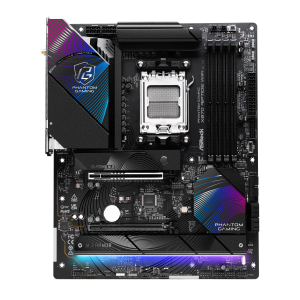

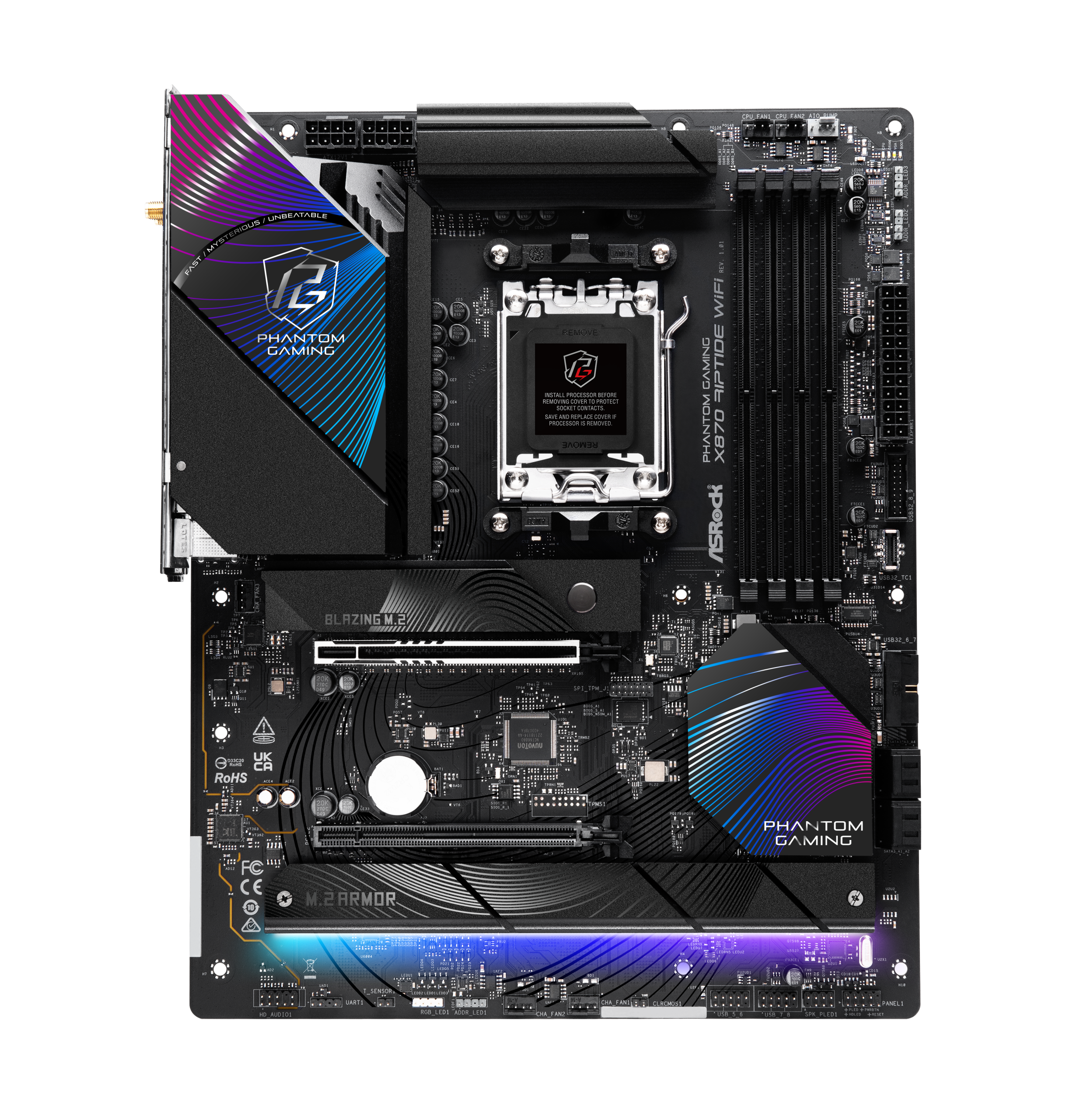

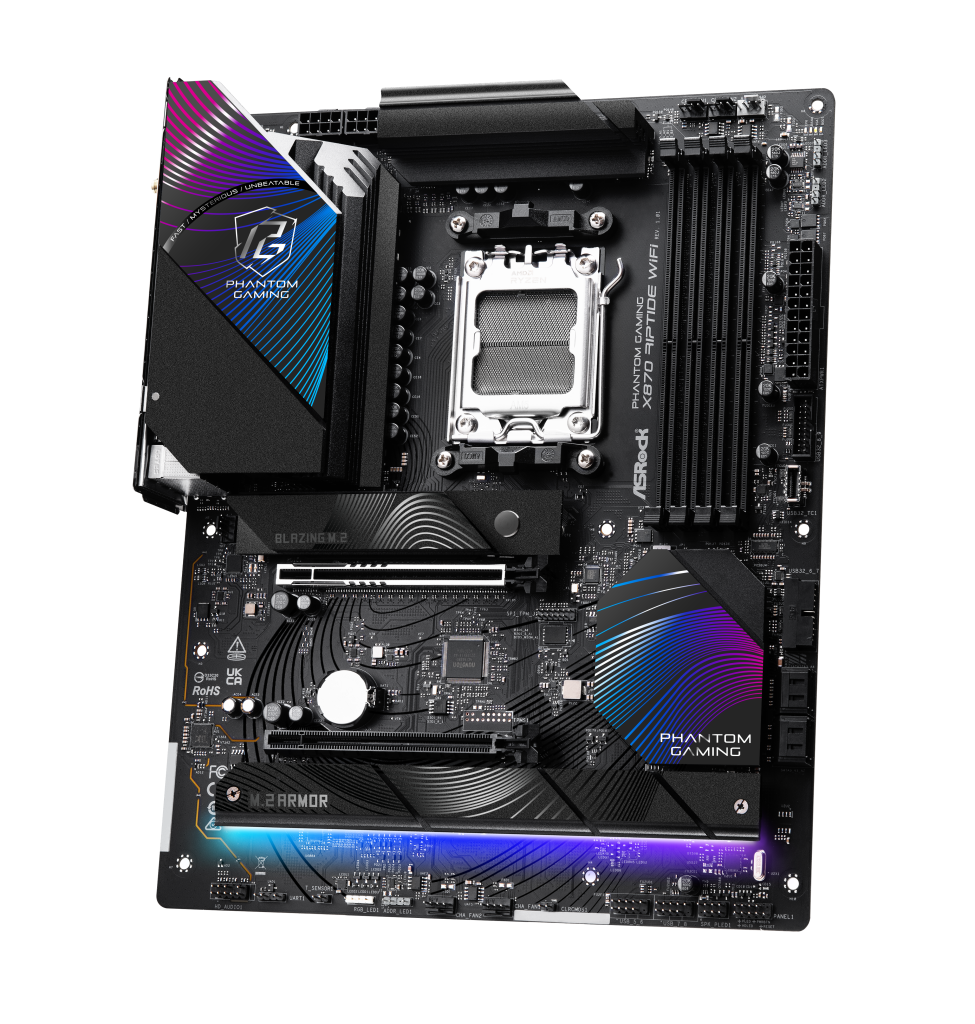

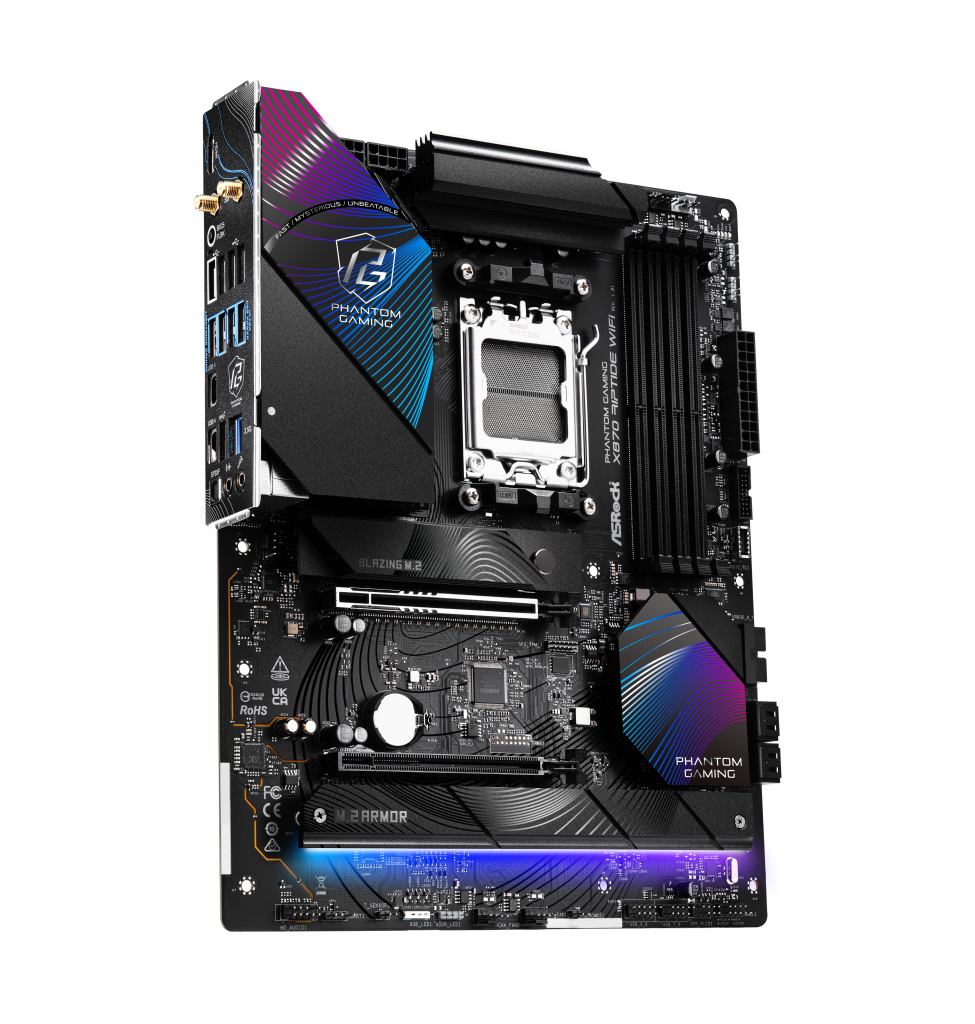

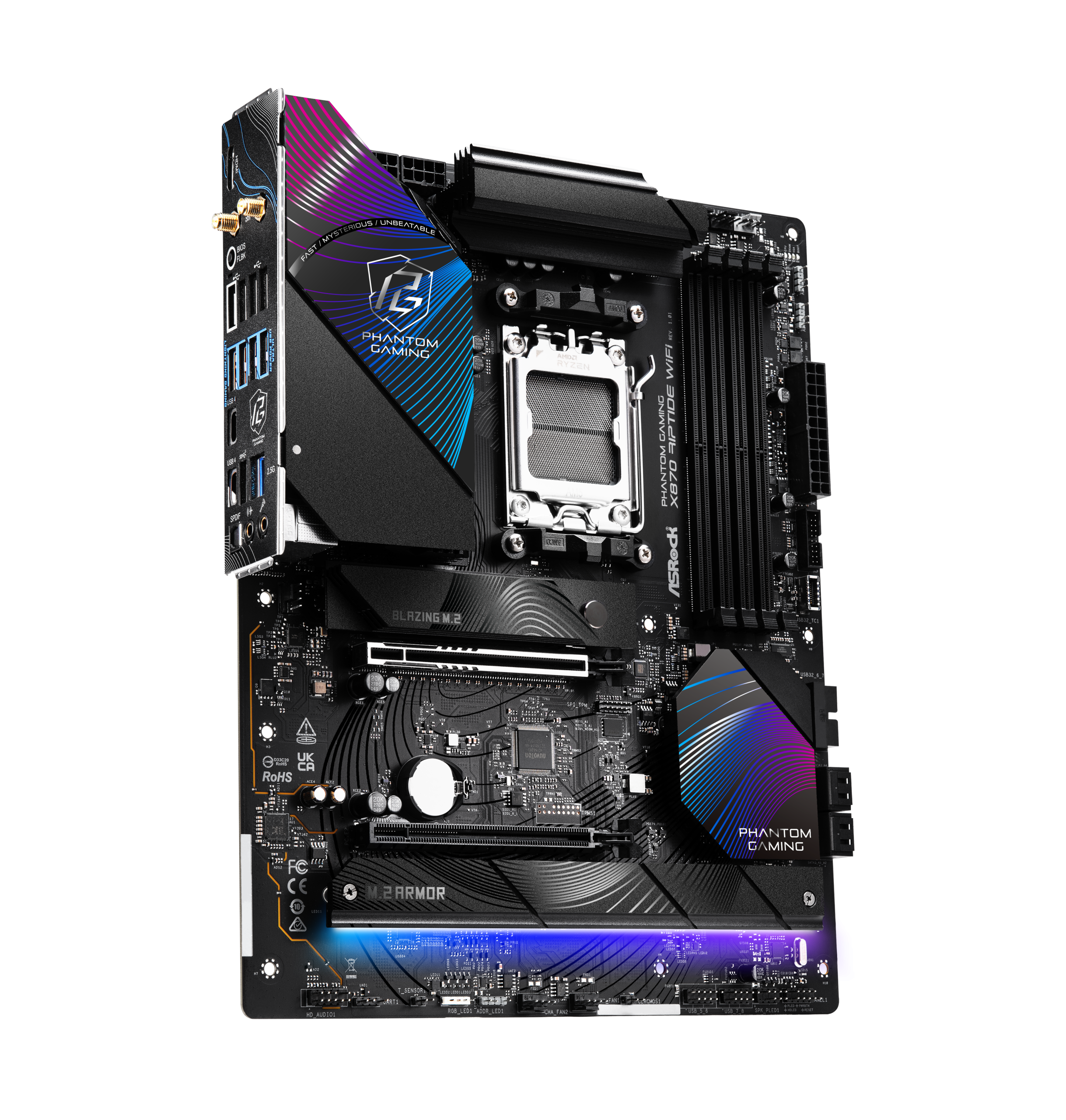

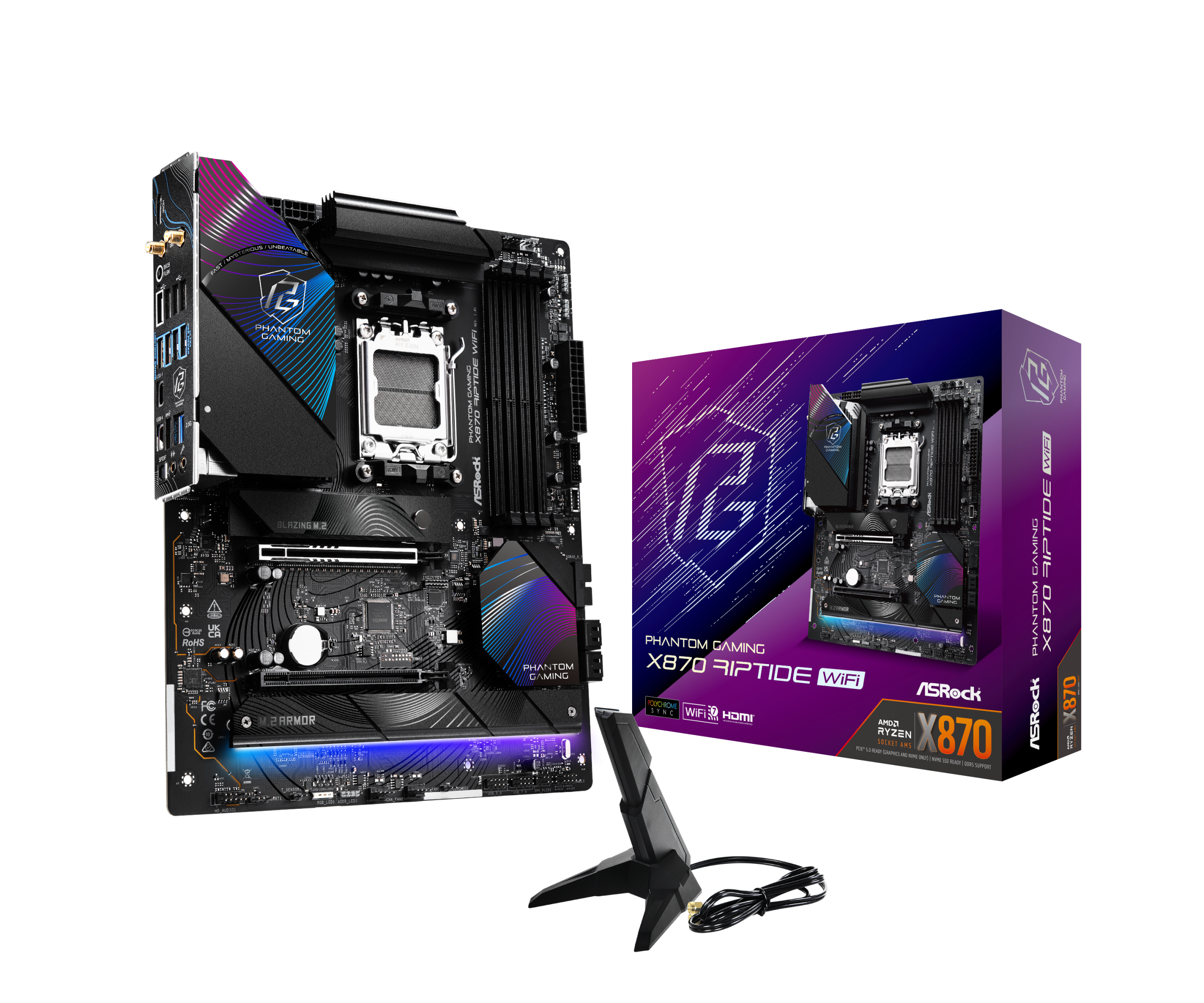

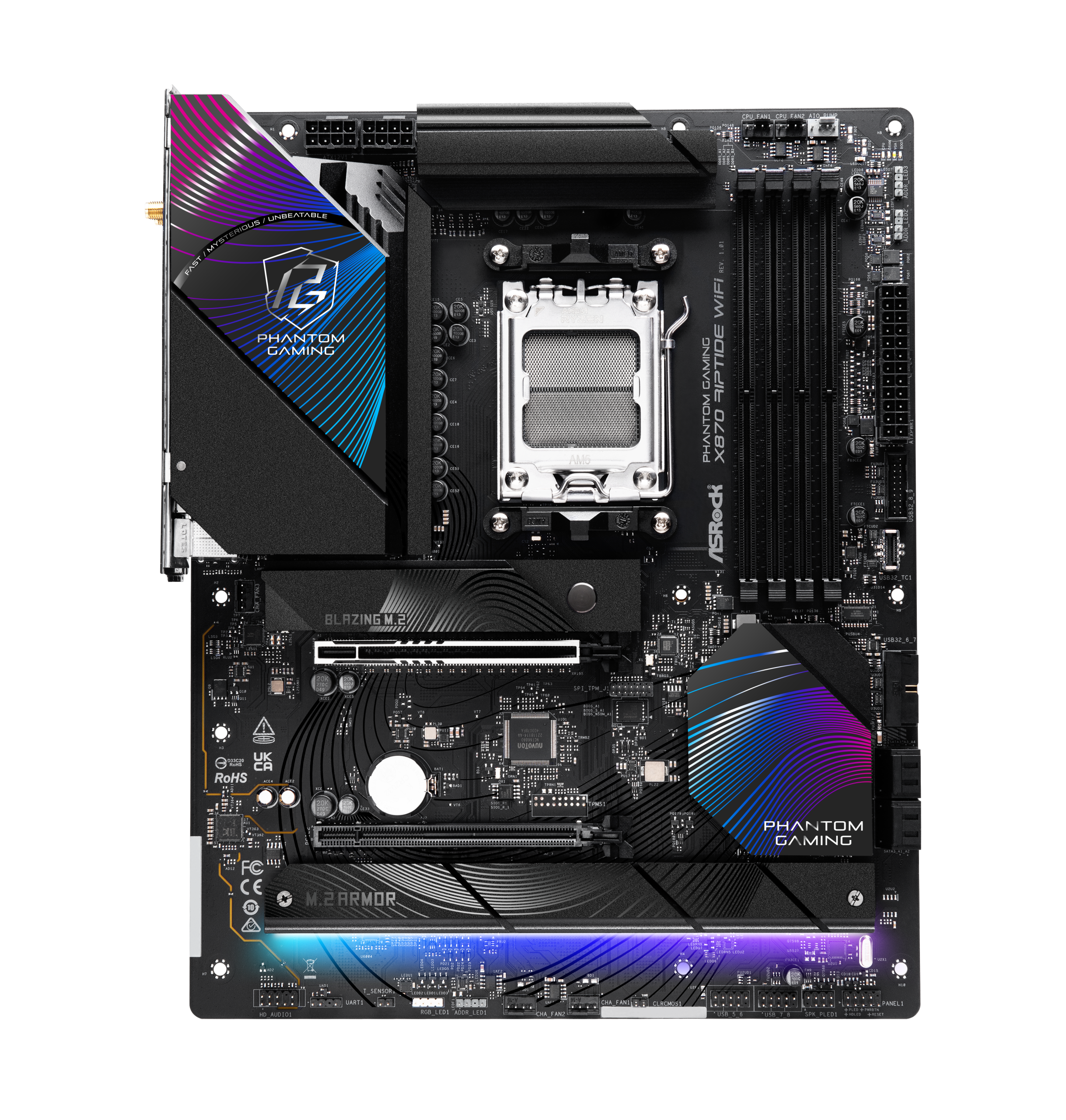

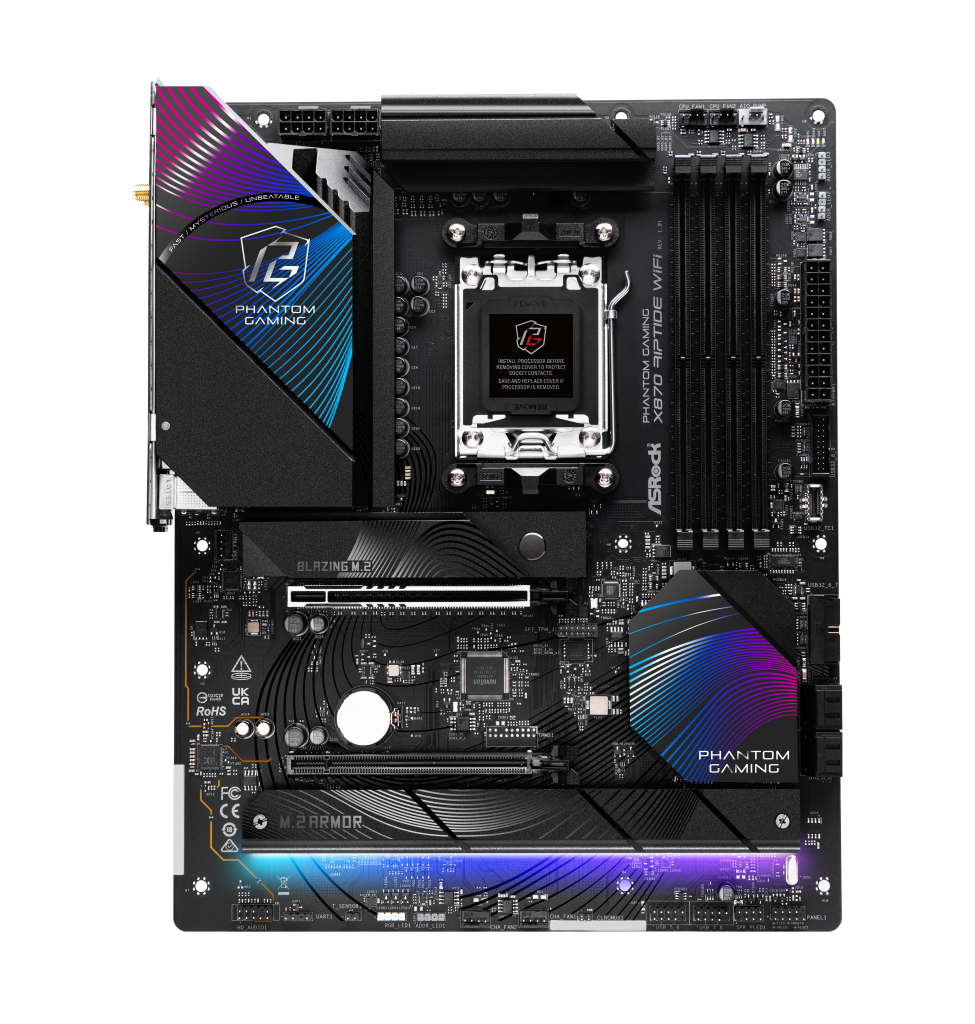

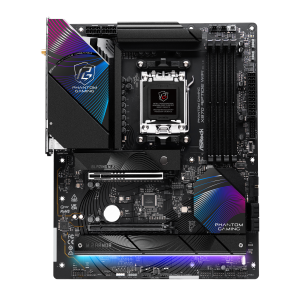

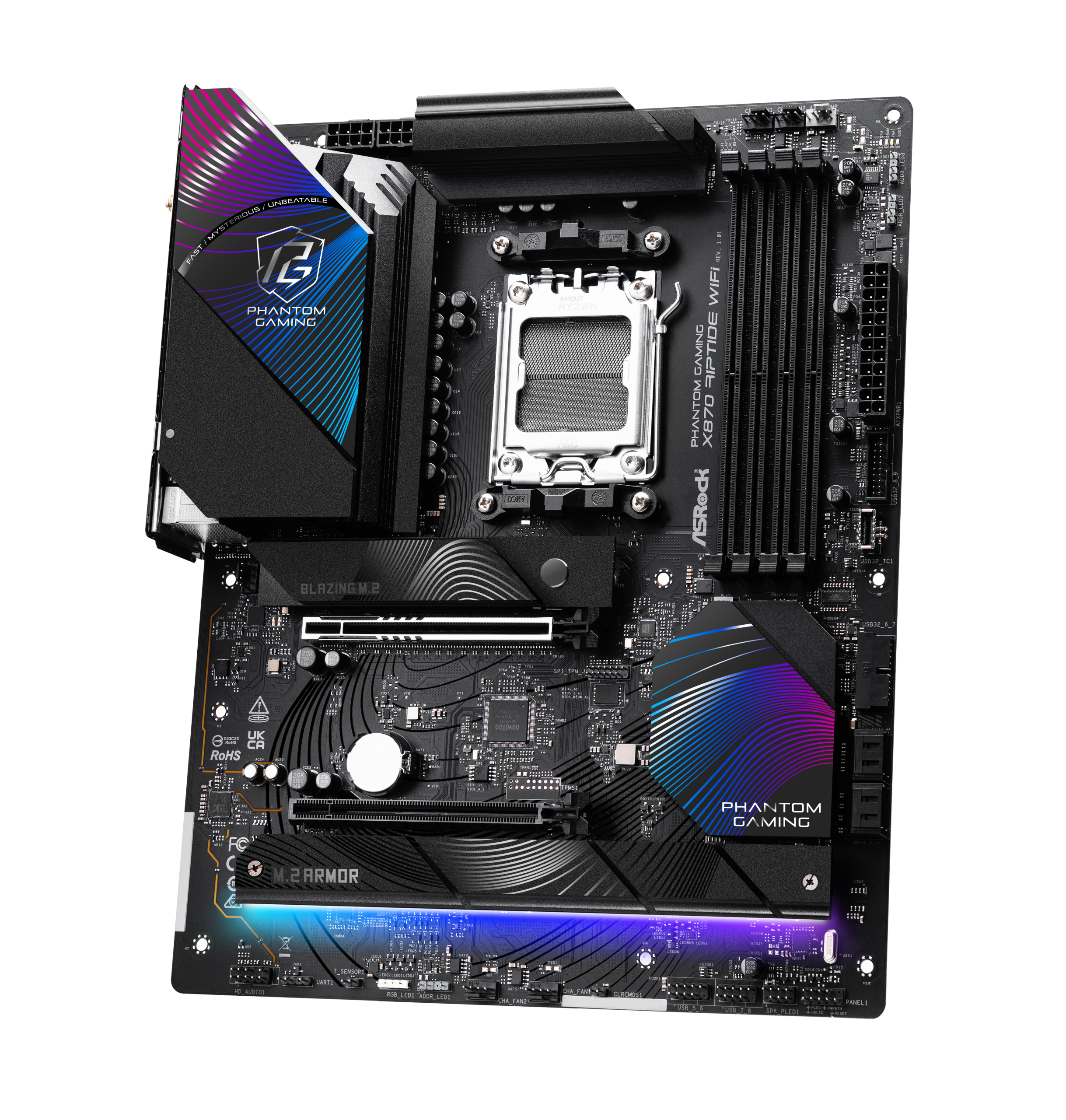

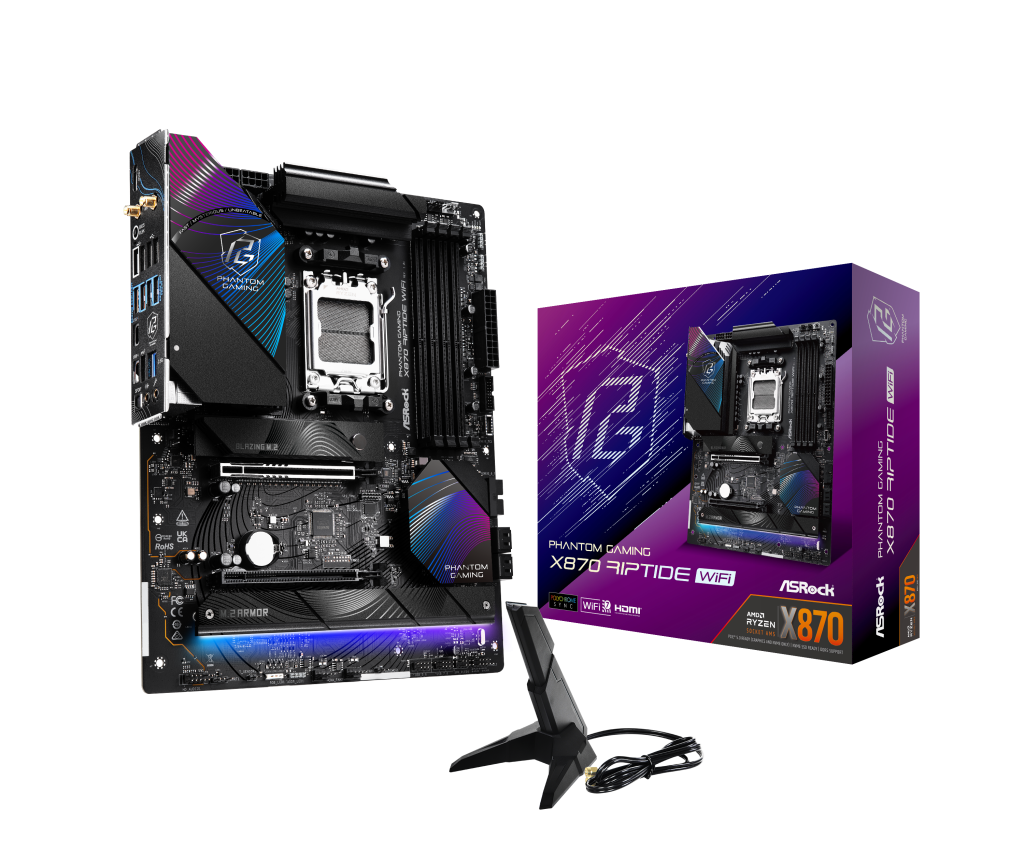

ASRock X870 Riptide WiFi motherboard, socket AM5, AMD X870, ATX, DDR5

– 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 8000 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 2x USB 4, 2x USB 3.2, 4x USB 3.0, and 4x USB 2.0 on the I/O panel
– OC features: 17-phase VRMs, BIOS Flashback, CMOS Reset
– A total of 6x 4-pin PWM fans possible

ASROCK X870 RIPTIDE WIFI: ATX motherboard with AMD AM5 socket and X870 chipset
The ASROCK X870 RIPTIDE WIFI features the mid-tier X870 chipset It is equipped for AMDs Ryzen 9000 series processors and boasts numerous features for enthusiasts. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASROCK X870 RIPTIDE WIFI supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Well-equipped for gaming
The ASROCK X870 RIPTIDE WIFI is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. There are also features like BIOS Flashback so you can use the PC again if something goes wrong. And, as usual, the DDR5 RAM can be pushed to its limits at higher clock speeds.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870 (Single Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (up to 8000 MHz with overclocking)
– Dual-Channel
– Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, CPU)
– Internal Connectors:
– Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2230 / 2260 / 2280, chipset)
– 1x M.2 (PCIe 4.0 x4; 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Thermistor Cable Header
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 2x CPU fan header (4-pin)
– 3x fan header (4-pin)
– 1x AiO pump header
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12 V)

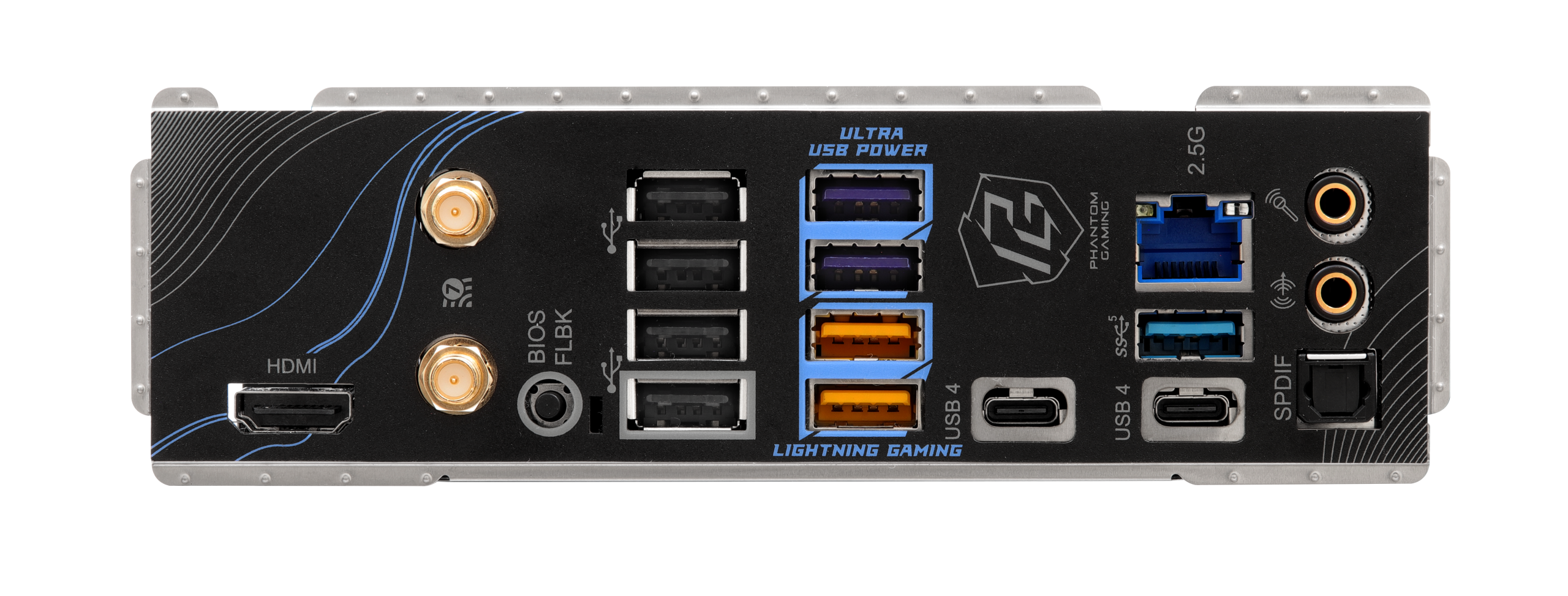

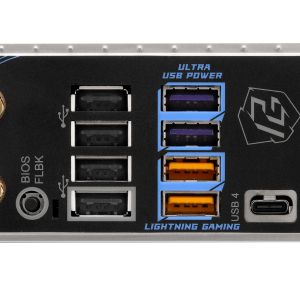

– External ports:
– 2x USB 4 (Type-C, USB 4 Gen 3×2, max. 40 Gbps with DisplayPort)
– 2x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 3x USB 3.0 (Type-A, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (Type-A, max. 480 Mbps)
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (RJ-45)
– 2x Antenna ports
– 2x 3.5 mm jacks and 1x S/PDIF audio (Realtek ALC4082)
– 1x Wi-Fi/Bluetooth module
– 1x Reset
– 1x BIOS Flashback
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V
– Accessories:
– 2 x SATA data cable
– 1 x ASRock WiFi 2.4/5/6GHz Antenna
– 1 x ARGB Splitter Cable
– 1 x Thermistor Cable
