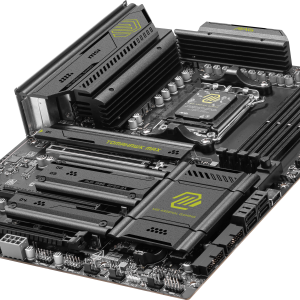

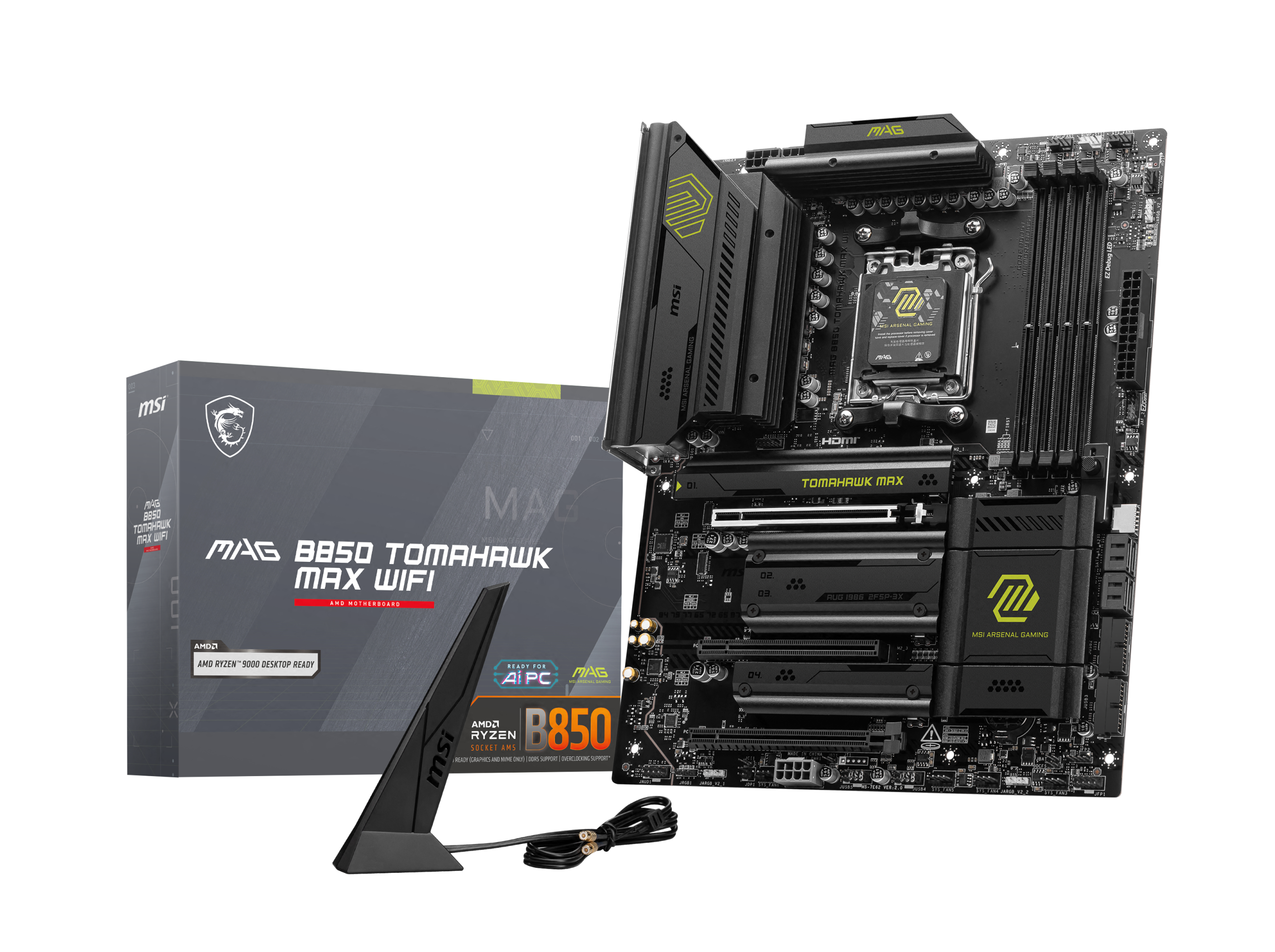

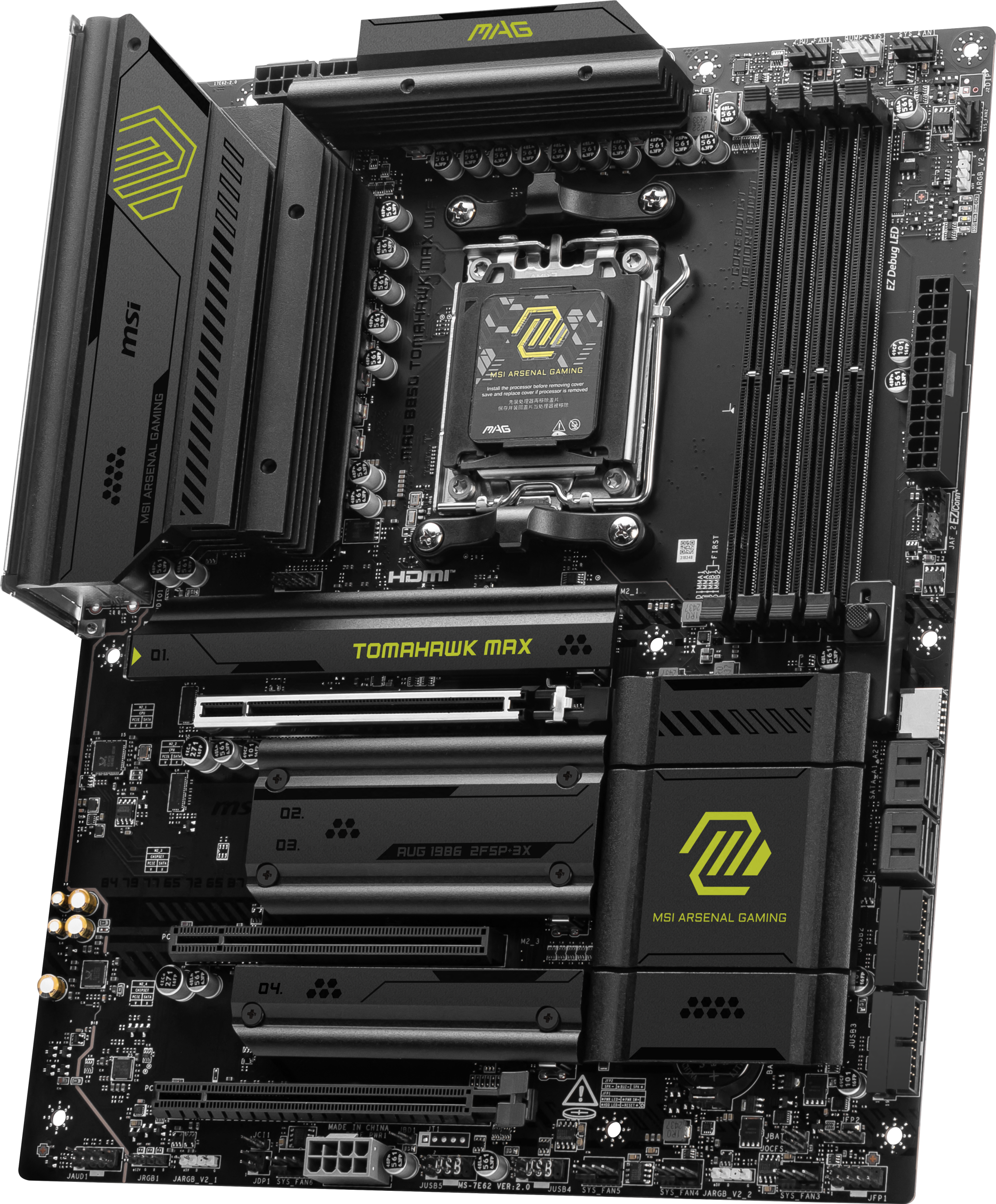

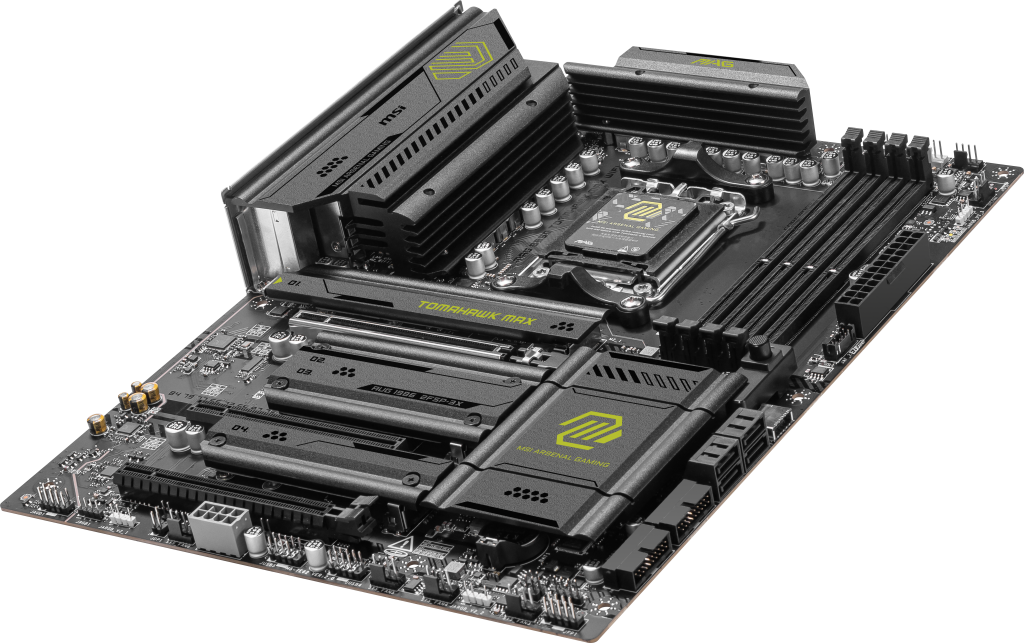

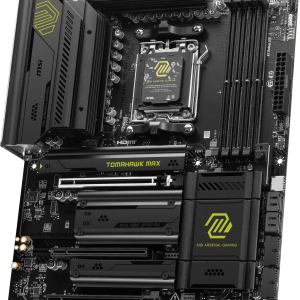

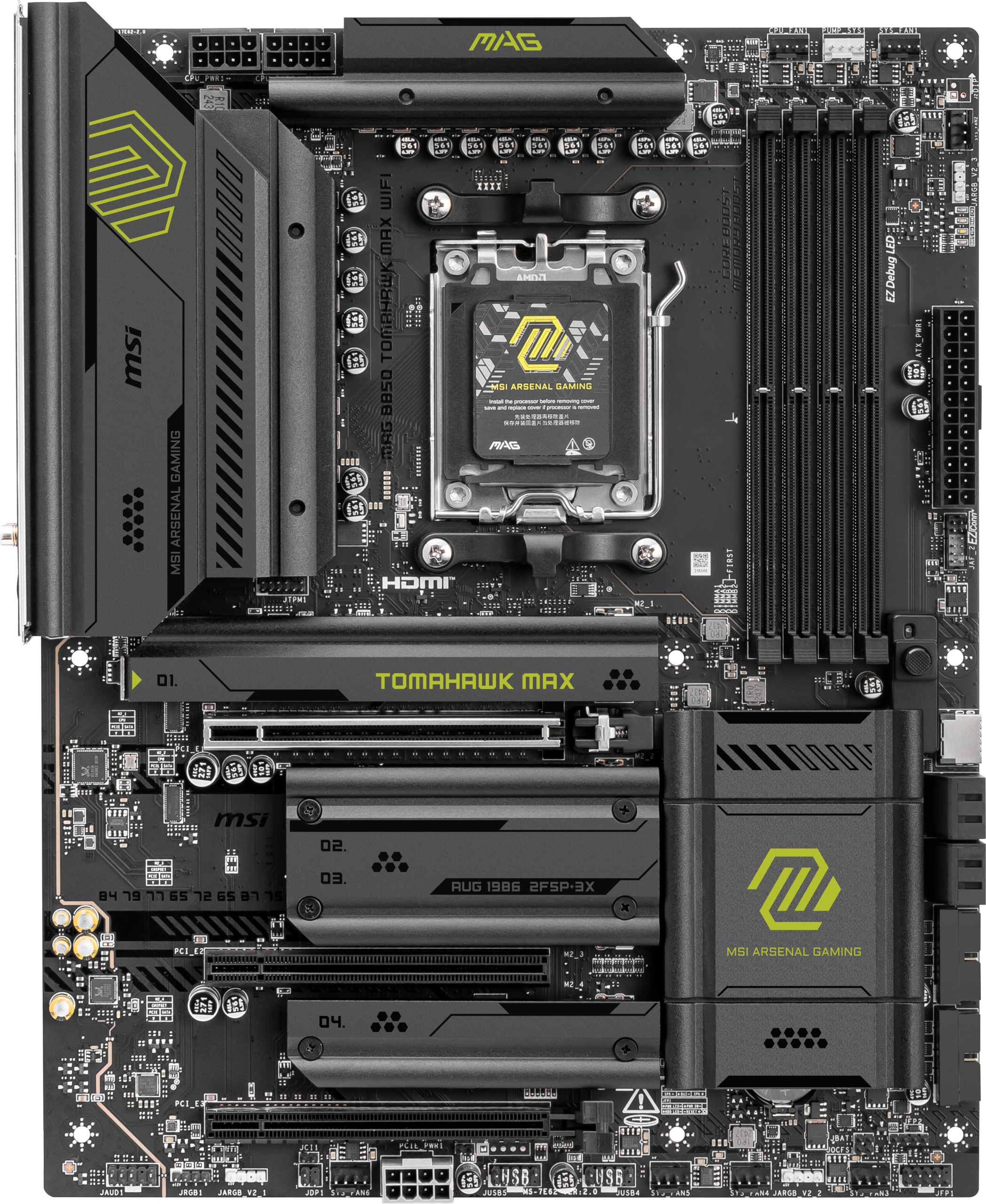

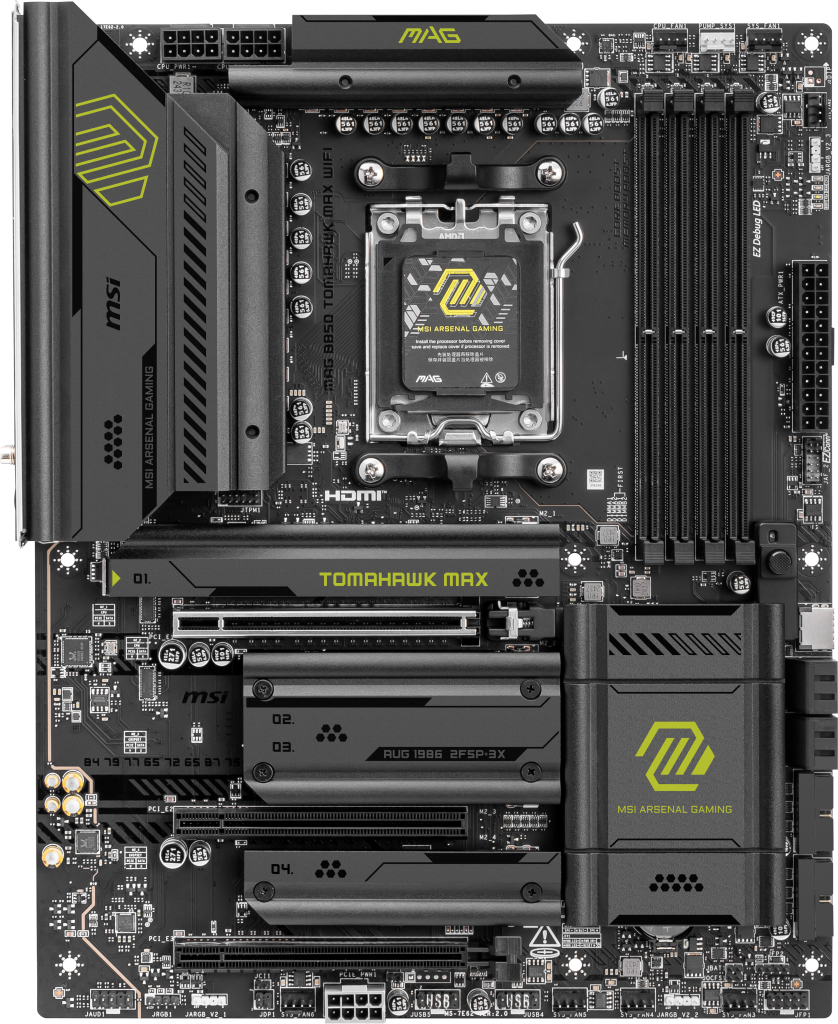

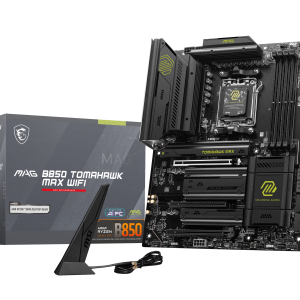

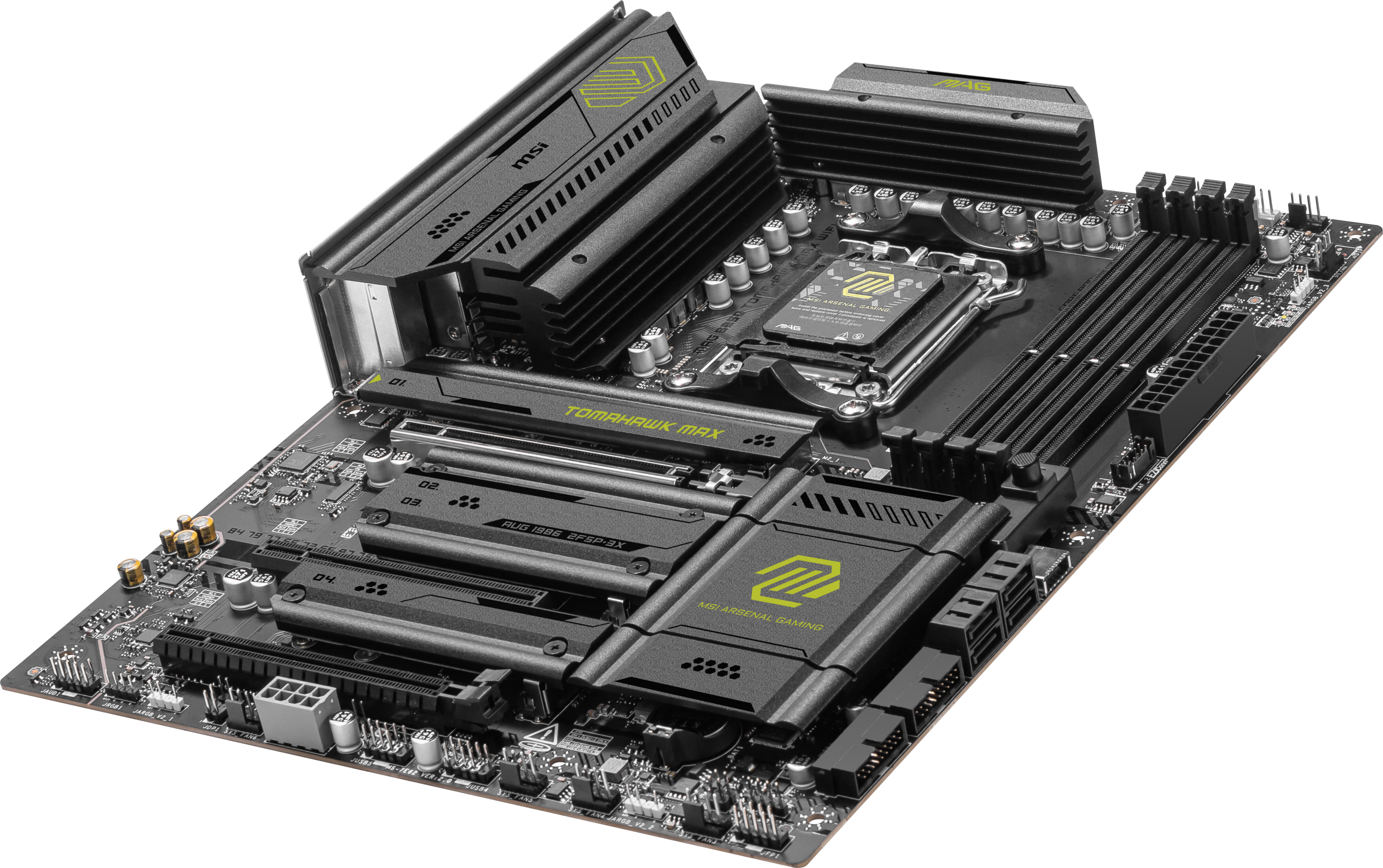

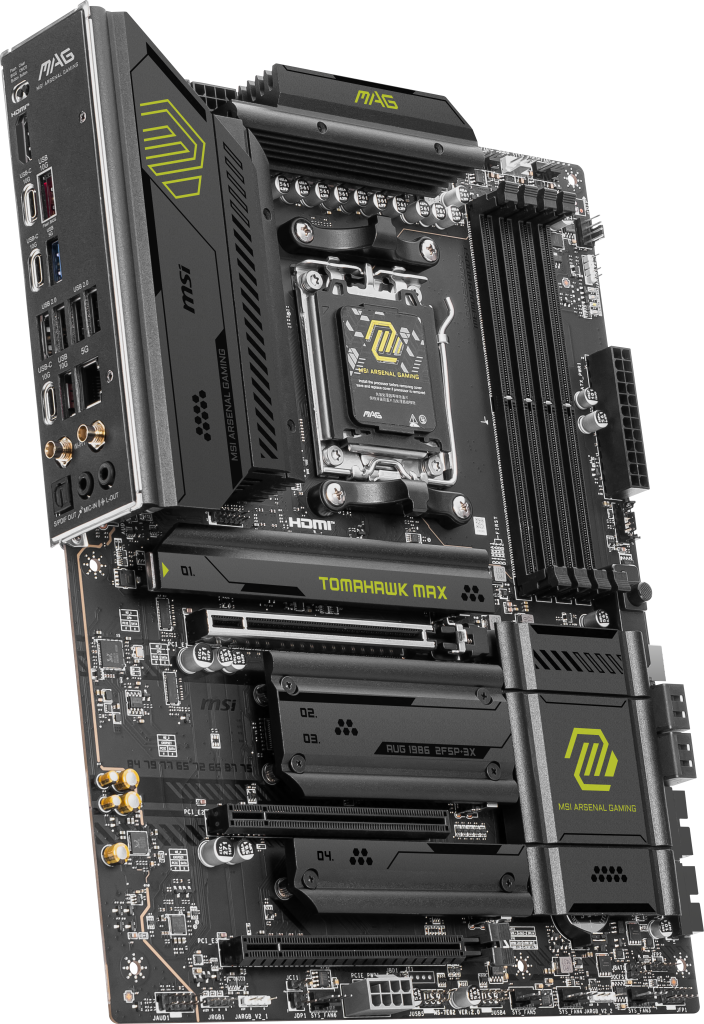

MSI MAG B850 Tomahawk Max WiFi motherboard, socket AM5, AMD B850, ATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), and 1x PCIe 3.0 x16 (x1)
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,400 MT/s
– Storage: 4x M.2 (2x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
– USB: 3x USB-C 3.1, 2x USB 3.1, 1x USB 3.0, and 4x USB 2.0
– Cooling: 8x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 7 and Bluetooth 5.4

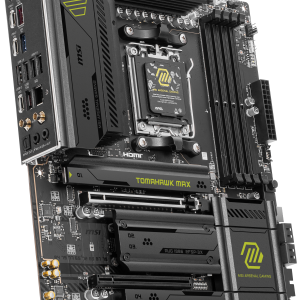

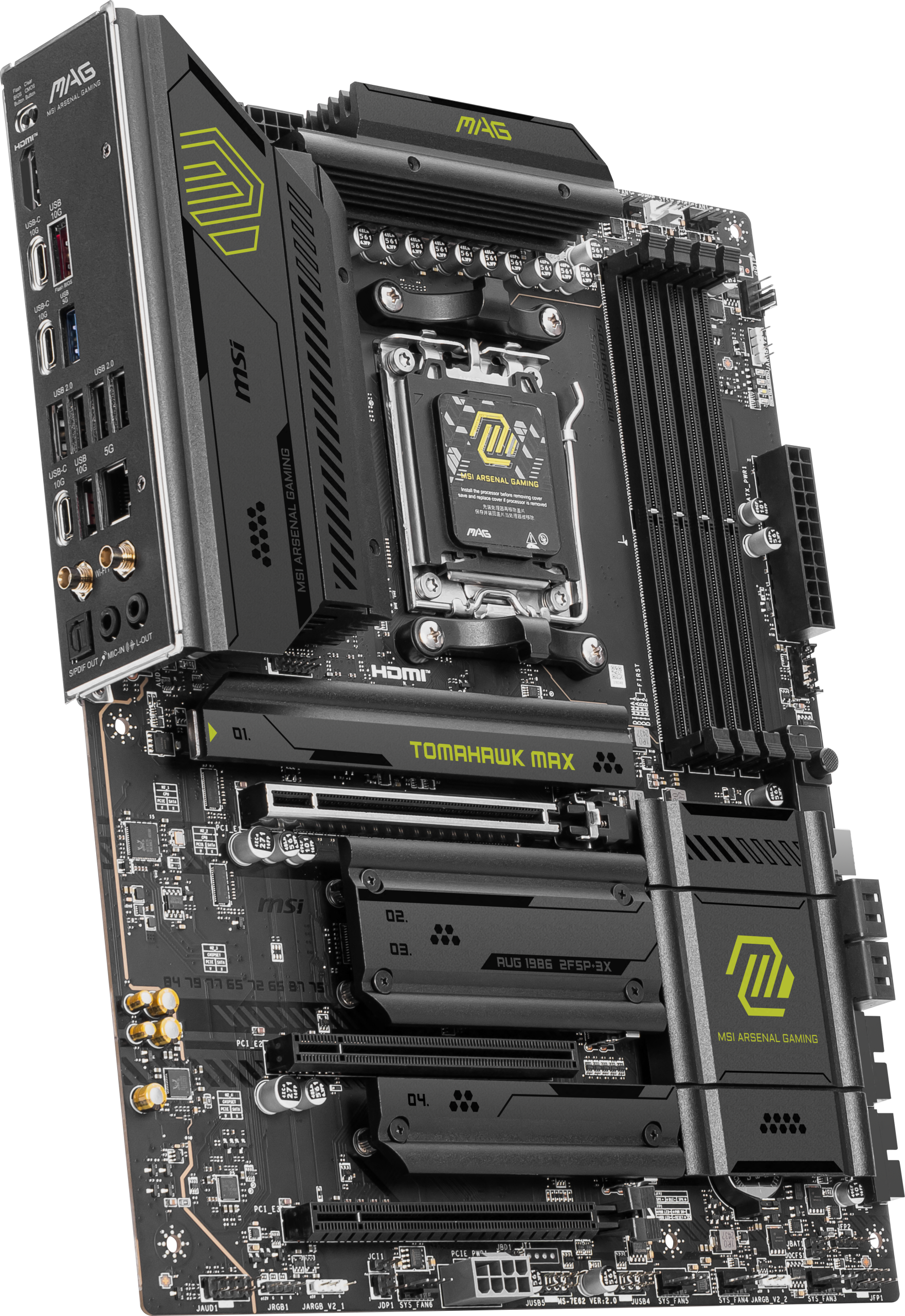

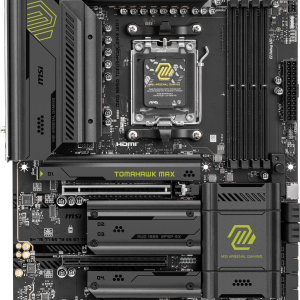

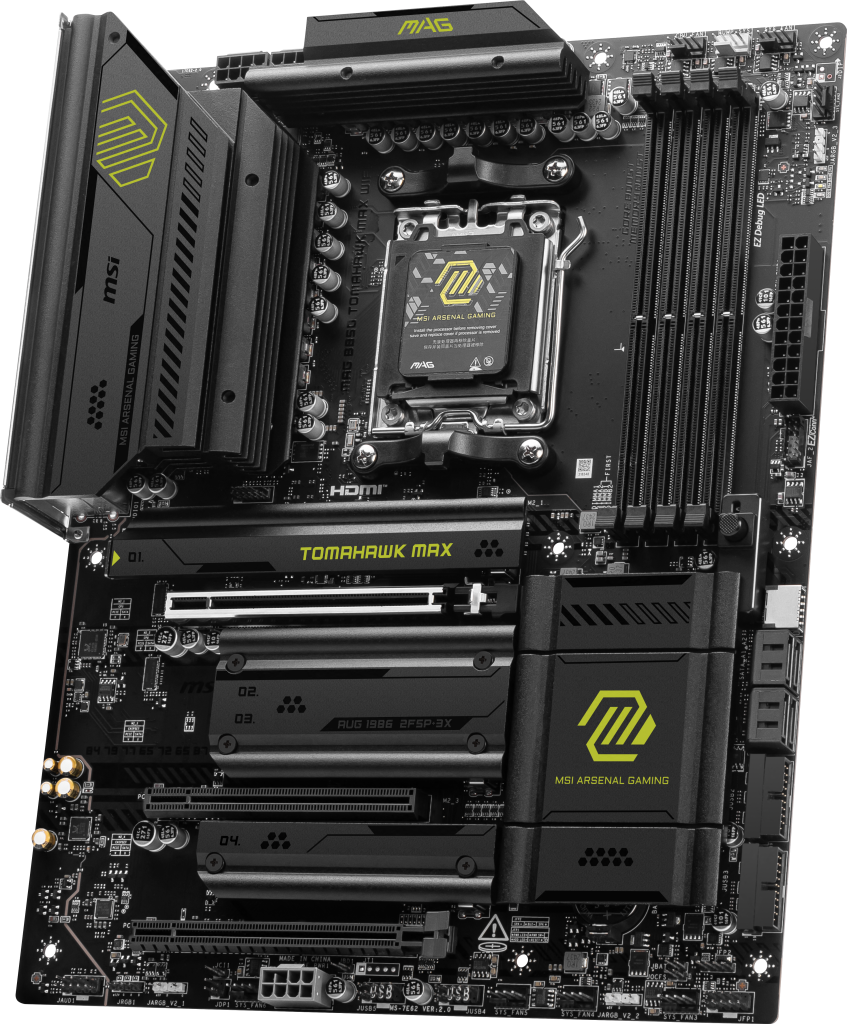

MSI MAG B850 Tomahawk Max WiFi: ATX motherboard with AMD AM5 socket and B850 chipset
The MSI MAG The B850 Tomahawk Max WiFi is an ATX motherboard with the mid-range AMD B850 chipset and the AMD AM5 socket. It supports Ryzen 9000, 8000, and 7000 CPUs.

Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 20 Gbps are possible via USB 3.2.

Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked to higher clock speeds via the motherboard. This ensures a stable power supply to the processor, allowing even high-end CPUs to run at full performance for longer periods. You can also fully utilize the DDR5 memory with overclocking. Just in case, the MSI MAG B850 Tomahawk Max WiFi offers BIOS Flashback and Clear CMOS.

Technical Details
– Color
– Main Color
– Black
– Form Factor
— Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B850
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– CUDIMM, UDIMM
– Max. Memory Speed (Standard)
– 5600 MT/s
– Max. Memory Speed (OC)
– 8400 MT/s
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 5 Gbps
– LAN Chip
– Realtek 8126VB
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 1
– USB 3.0 (internal) header
– 2
– USB 3.0 (internal) possible connectors
– 4
– USB 2.0 (internal) header
– 2
– USB 2.0 (internal) possible connectors
– 4
– RGB / LED connectors
– 1x RGB (4-pin 5050 12VGRB), 3x Digital RGB (3-pin 5VDG)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes

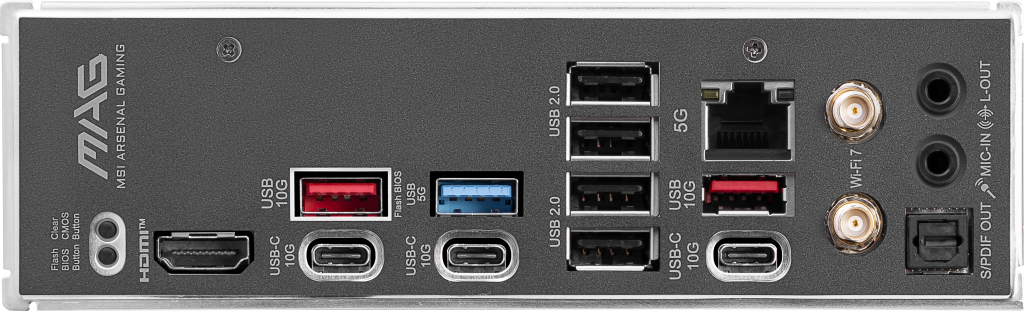

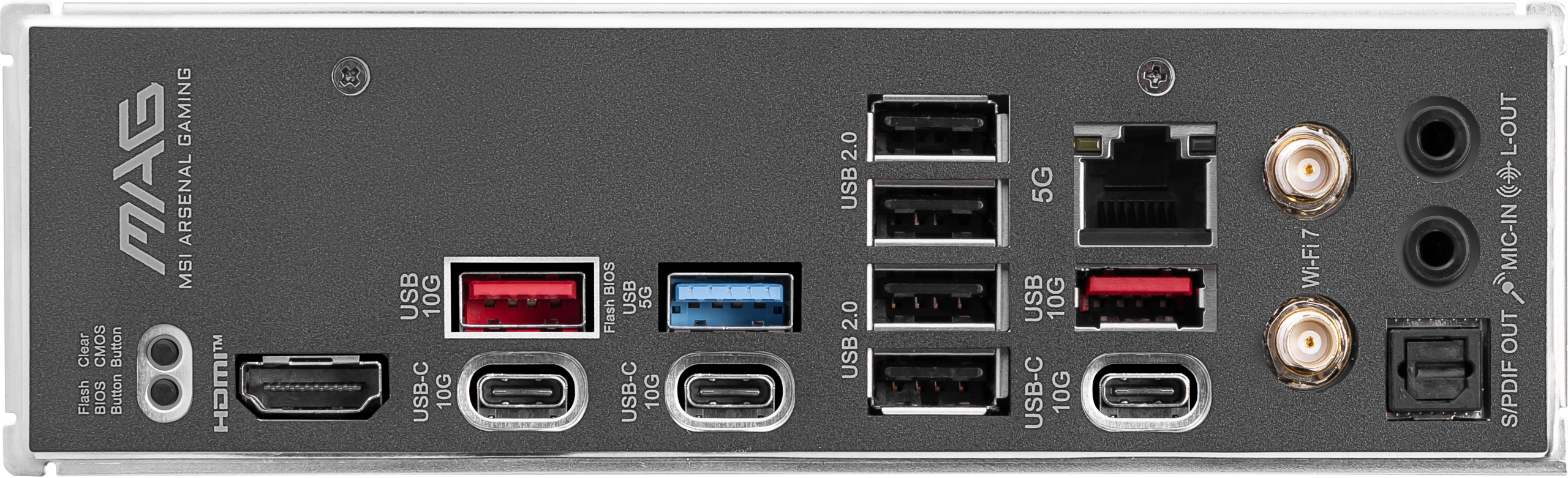

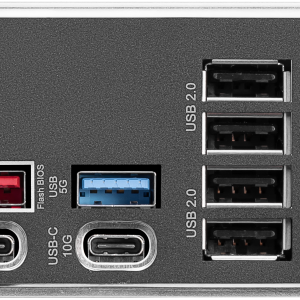

– External Connectors
– USB 3.1 (external) Type-C
– 3
– USB 3.1 (external) Type-A
– 2
– USB 3.0 (external) Type-A
– 1
– USB 2.0 (external) Type A
– 4
– Display Ports
– HDMI (1x)
– Storage Ports
– M.2 PCIe 4.0 x2
– 1
– M.2 PCIe 4.0 x4
– 1
– M.2 PCIe 5.0 x4
– 2
– SATA 6G (internal)
– 4
– Back Connect
– Back Connect
– No
– Expansion Slots
– PCIe x16 Slots (total)
– 1
– PCIe x4 Slots (total)
– 1
– PCIe x1 Slots (total)
 -1
– PCIe 5.0 x16 (mechanical)
– 1
– PCIe 4.0 x16 (mechanical)
– 1
– PCIe 3.0 x16 (mechanical)
– 1
– Fan Headers
– 4-pin Fan Connectors
– 8
– Audio
– Sound Chip
– Realtek ALC4080
– Lighting
– Lighting / RGB
– Yes
– Lighting Color
– RGB
