Gigabyte B650M D3HP AX, AMD B650 motherboard - Socket AM5, DDR5

– 1x PCIe 4.0 x16 (x16), 1x PCIe 3.0 x1
– Supports up to 192 GB DDR5 RAM up to 8,000 MHz (OC)
– 2x M.2 with PCIe 4.0 / 4x SATA 6G
– 1x USB-C 3.0, 3x USB-A 3.0, and 2x USB-A 2.0 on the I/O panel
– OC features: 7 virtual phase VRMs, BIOS Flashback, Clear CMOS
– A total of 3x 4-pin PWM fans possible

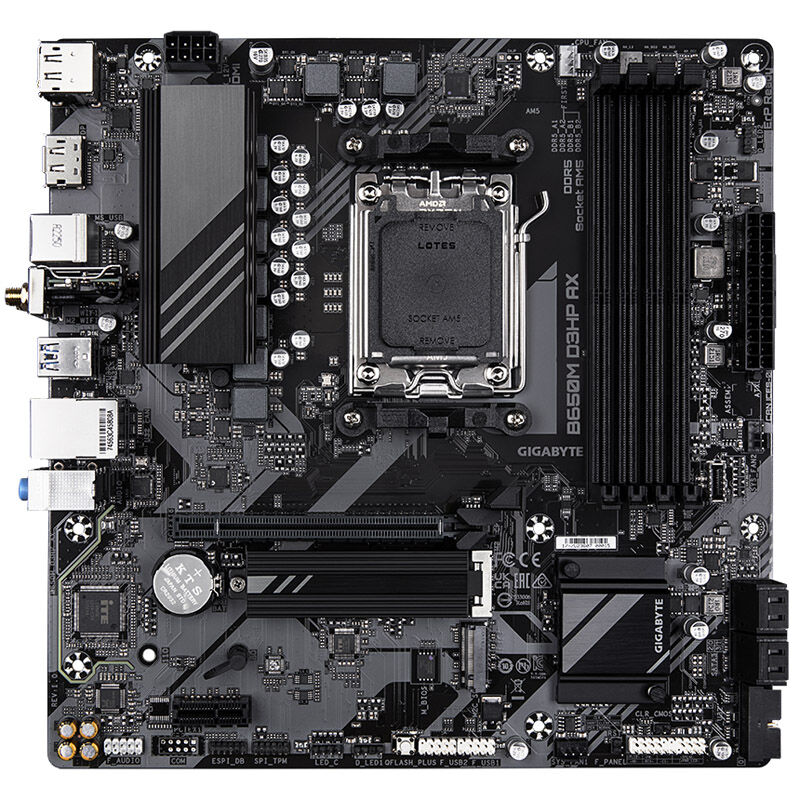

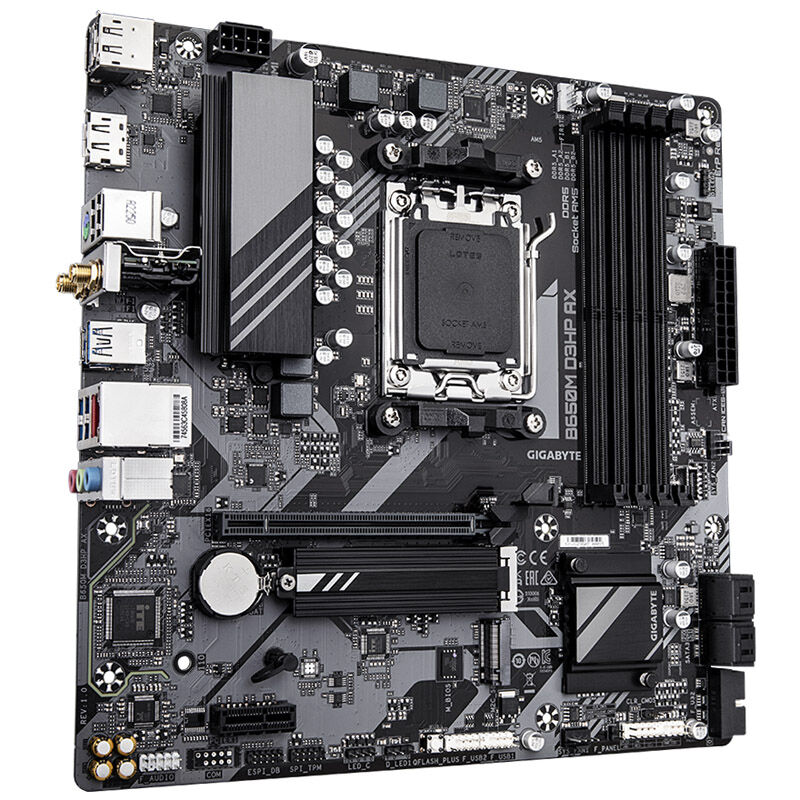

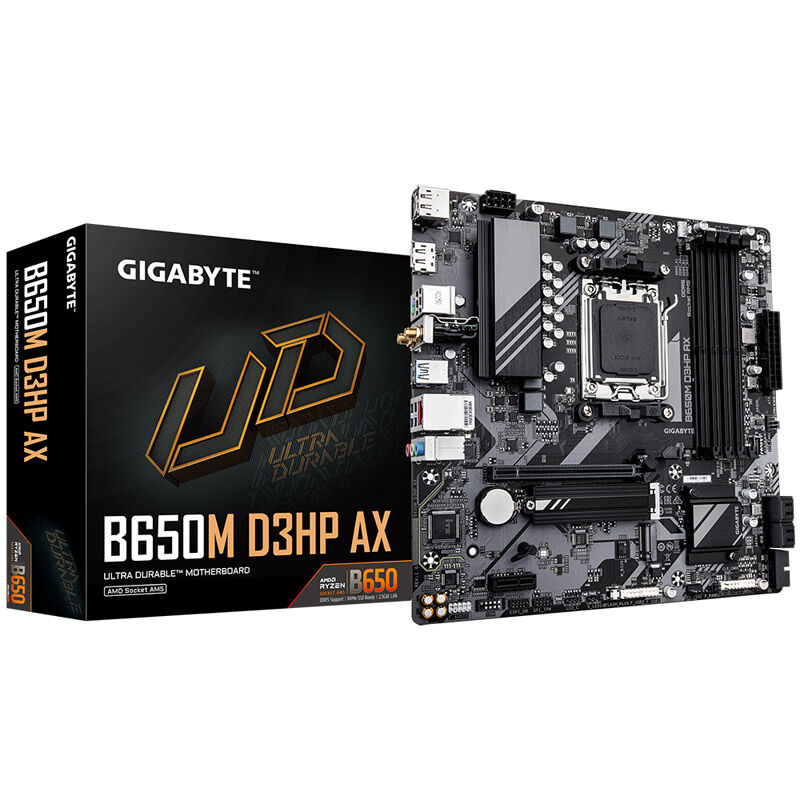

GIGABYTE B650M D3HP AX: Micro-ATX motherboard with AMD AM5
The GIGABYTE B650M D3HP AX is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for overclockers and gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the expanded power supply, Socket AM5 (LGA 1718) is used on the 600 series motherboards. Despite the increased pin count, the actual size of the socket remains identical to older sockets, so most CPU coolers for Socket AM4 can also be installed on the motherboard.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– Micro-ATX (244 x 244 mm)
– Chipset:
– AMD B650
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (5200 MHz, validated up to 8000 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16)
– 1x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 4.0 x4/; 2580, CPU)
– 1x M.2 (PCIe 4.0 x4/; 2280/25110, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbps)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x System panel header
– 1x Front panel audio connector
– 1x TPM module header (only for GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 modules)
– 1x Clear CMOS jumper
– 1x Reset jumper
– 1x Q-Flash Plus button
– Fan connectors:
– 1x CPU fan header (4-pin)
– 2x System fan headers (4-pin)
– RGB headers:
– 2x 3-pin ARGB headers
– 1x 4-pin RGB header

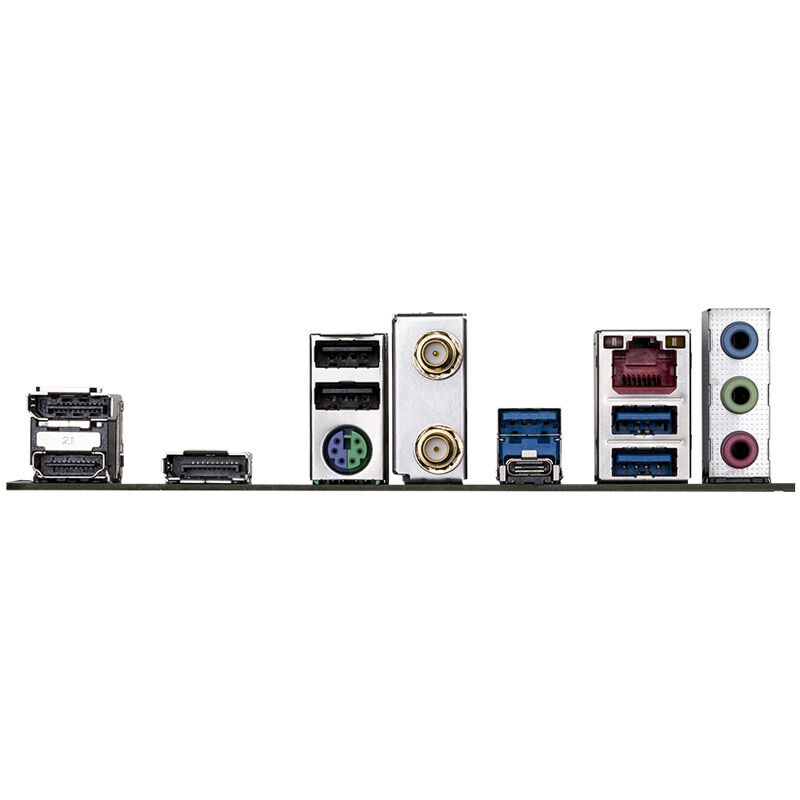

– External connectors:
– 1x PS/2 combo for keyboard or mouse
– 1x USB-C 3.0 (USB 3.2 Gen 1, max. 5 Gbps) Gbit/s)
– 2x USB-A 3.0 (USB 3.2 Gen 1, max. 5 Gbit/s)
– 2x USB-A 2.0 (max. 480 Mbit/s)
– 2x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Realtek)
– 3x 3.5 mm jack (Realtek ALC897)
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
