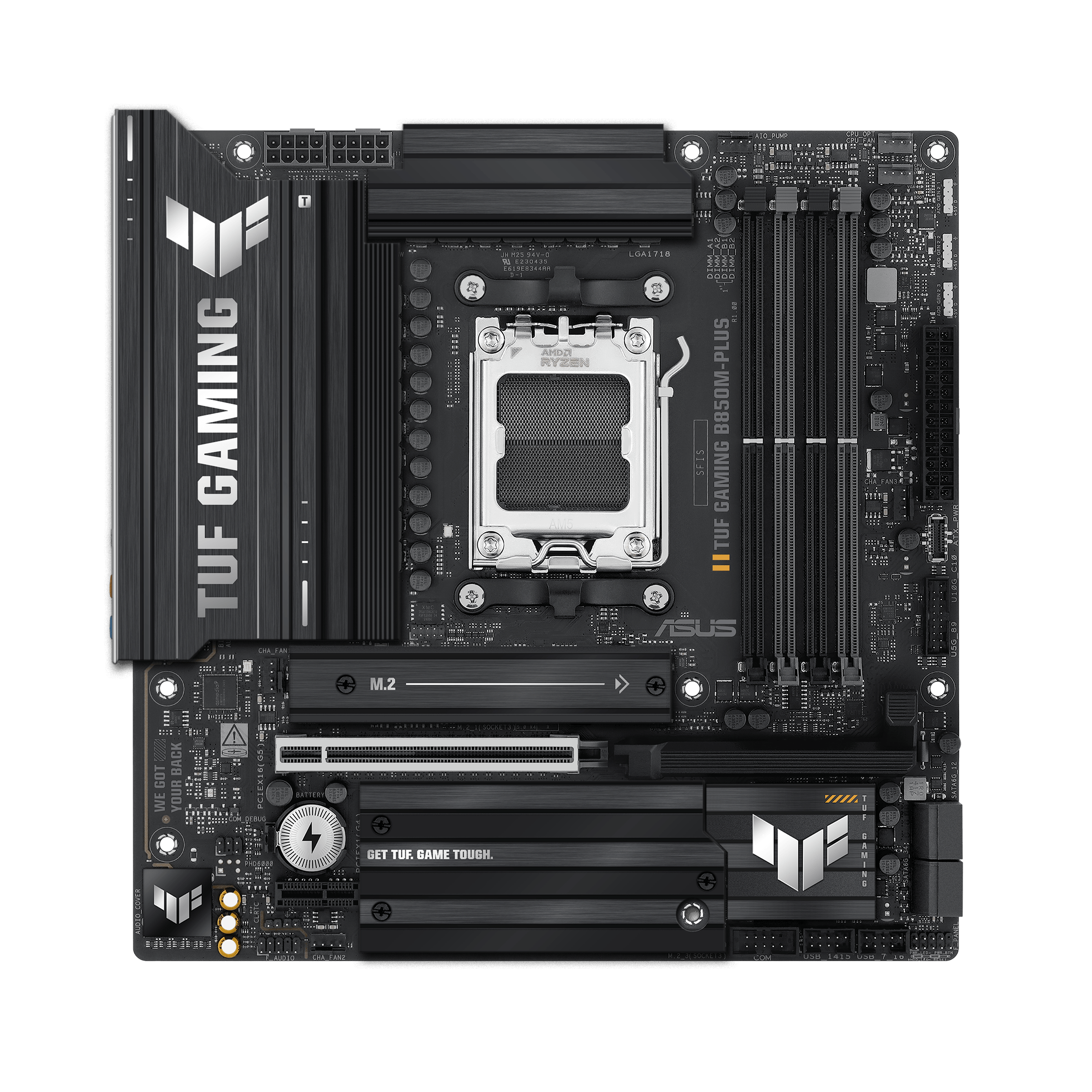

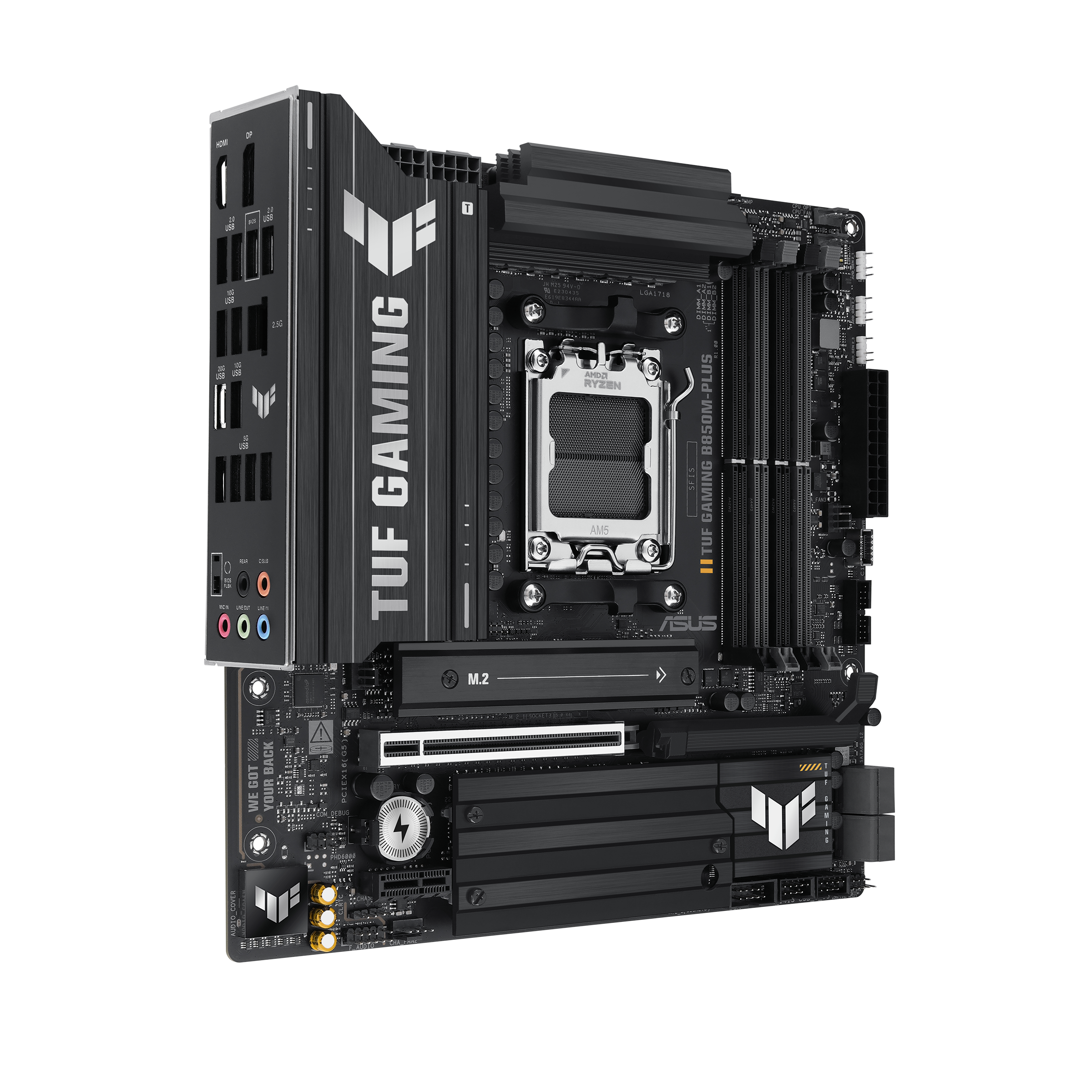

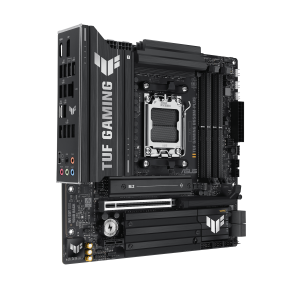

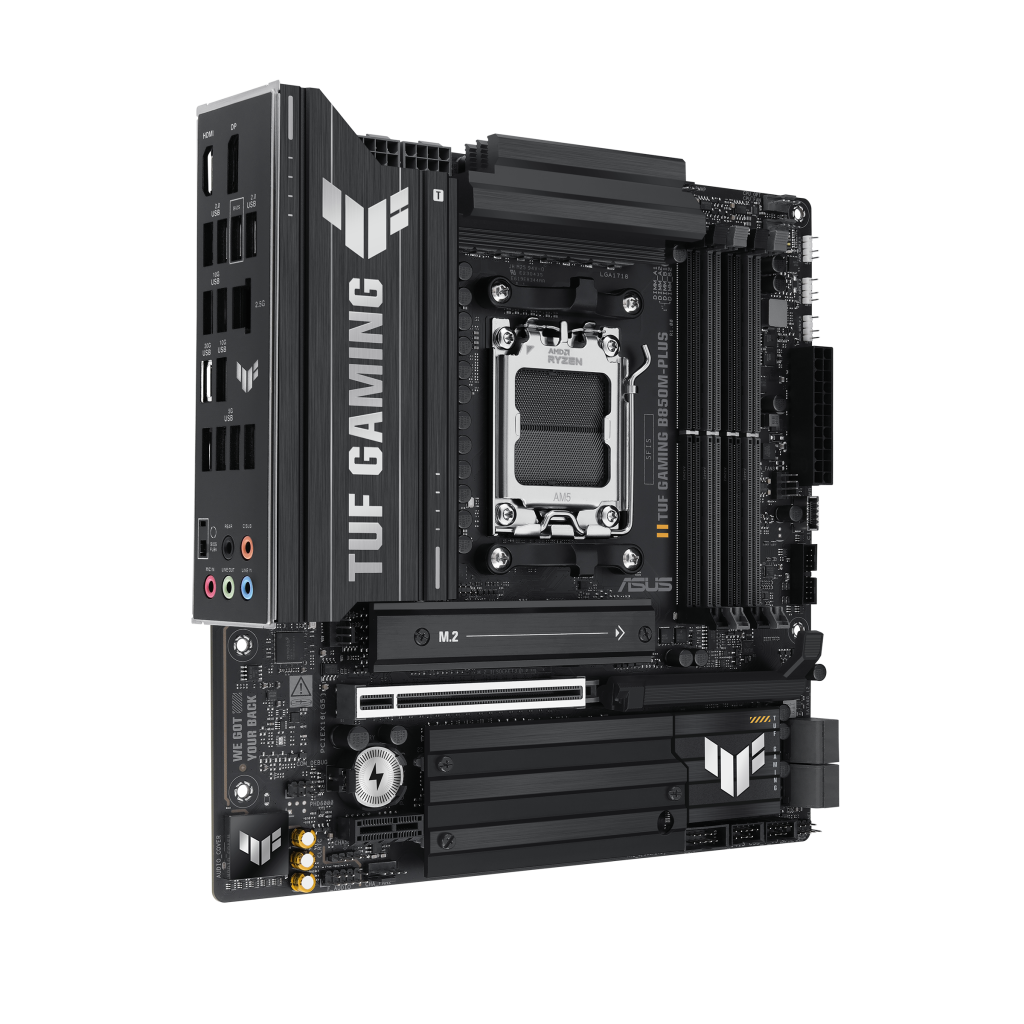

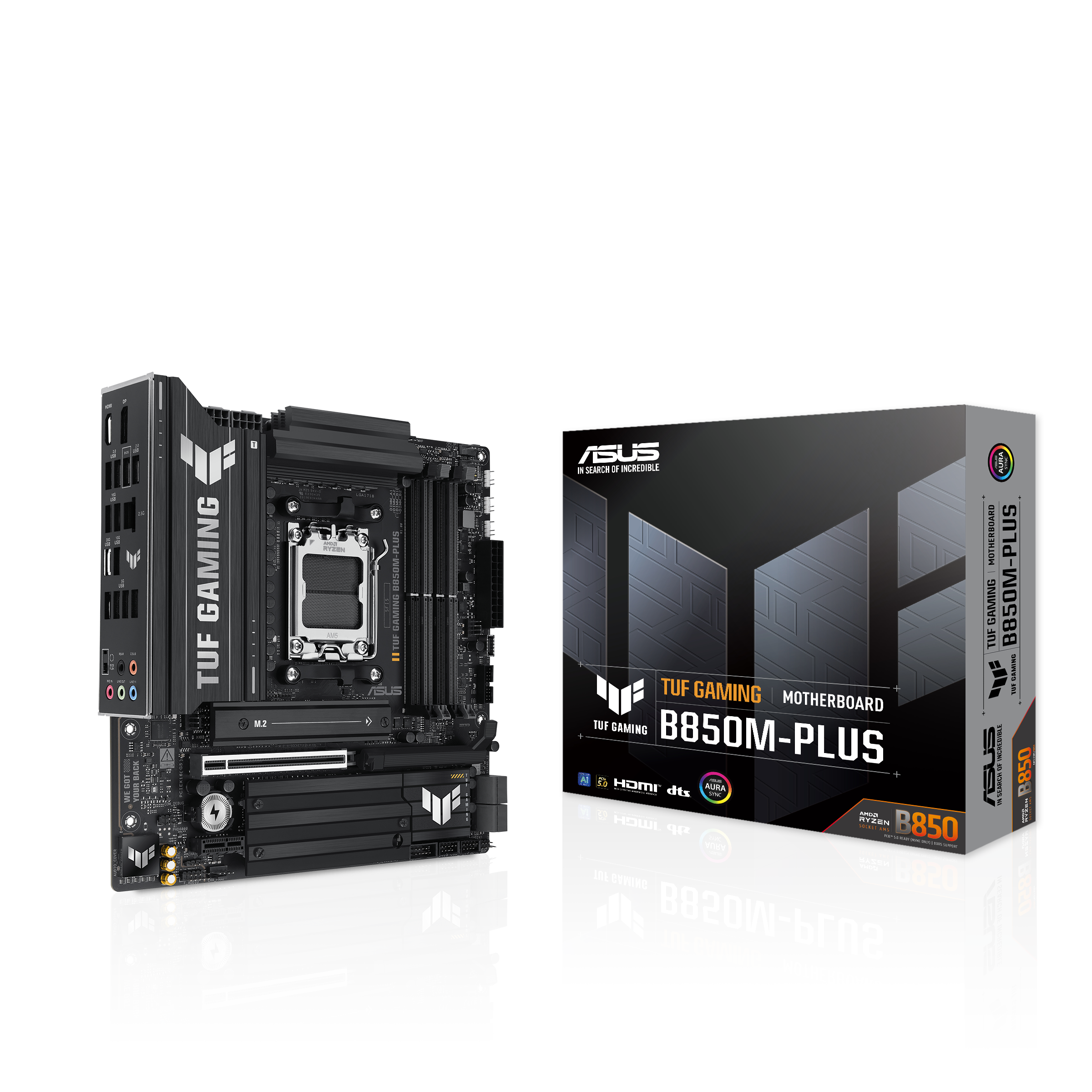

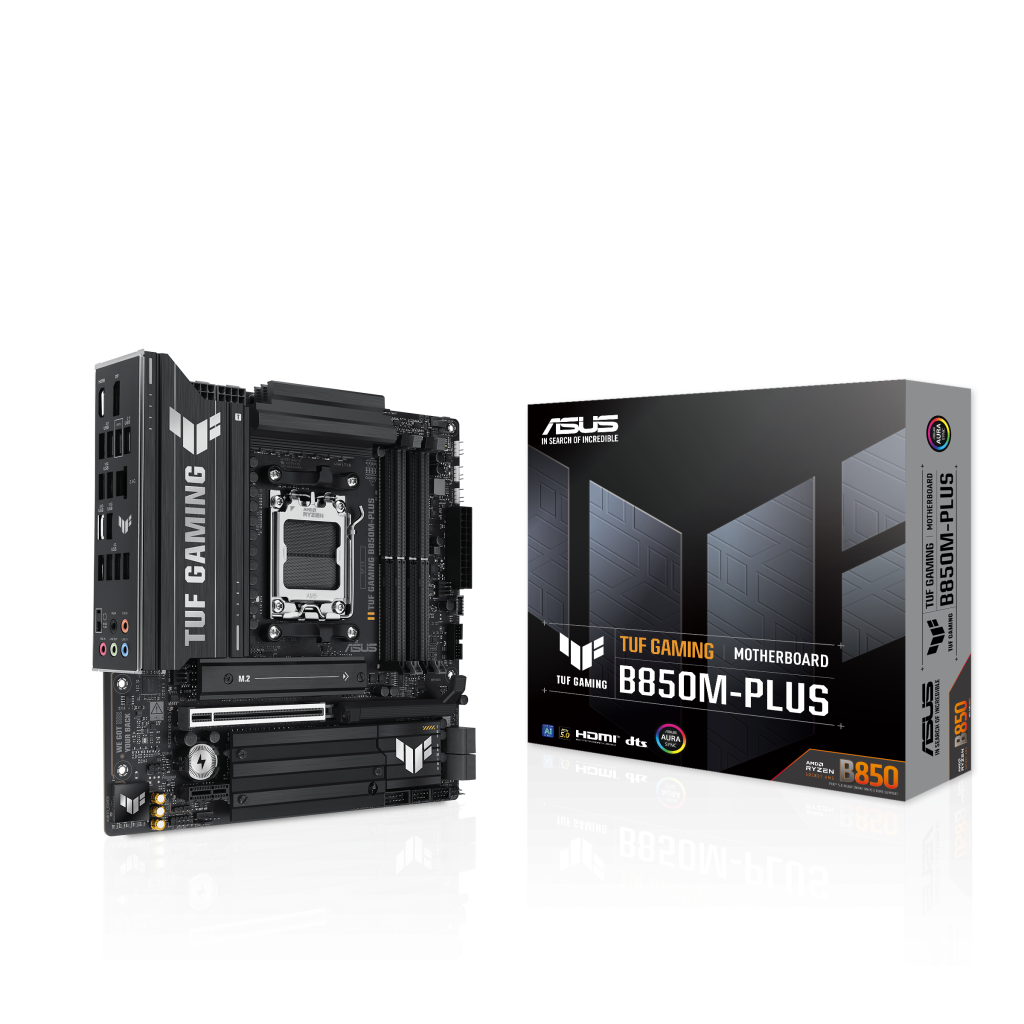

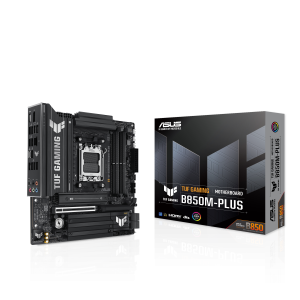

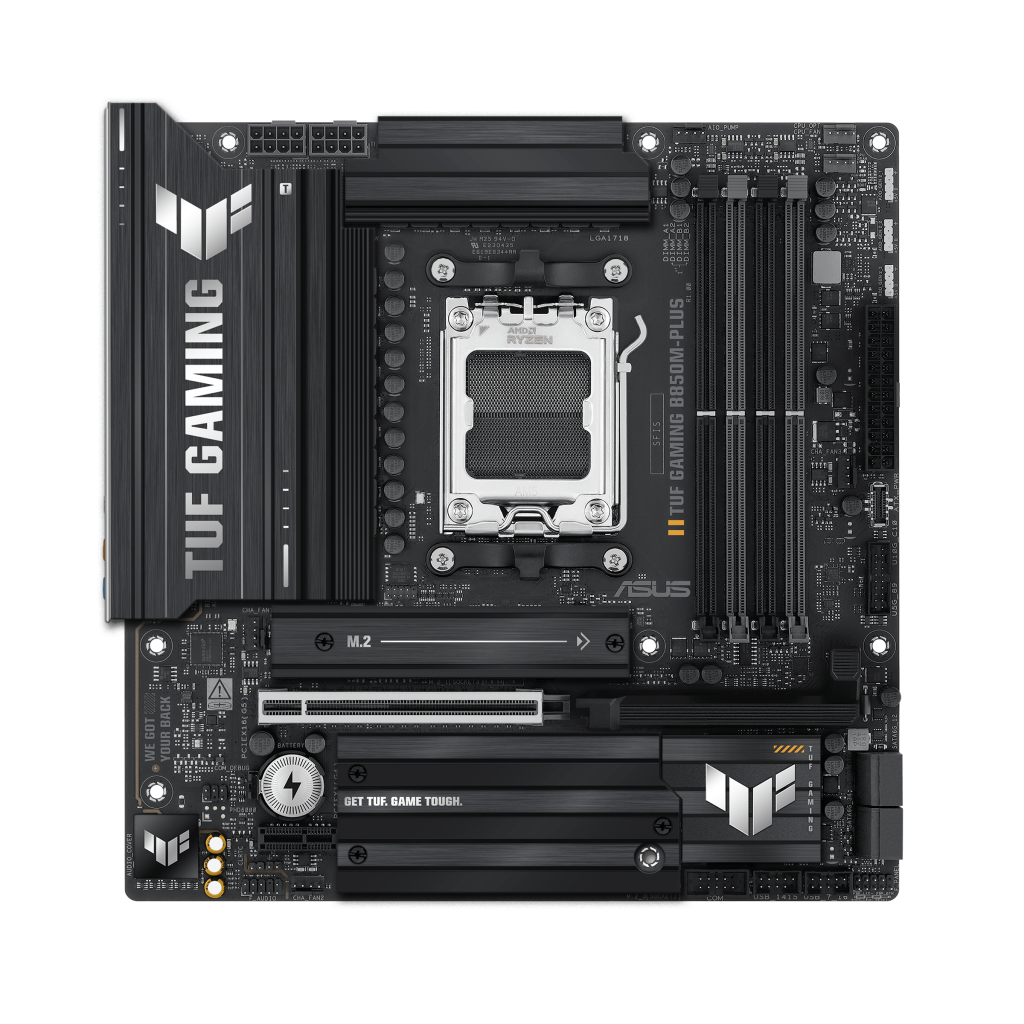

ASUS TUF Gaming B850M-Plus motherboard, socket AM5, AMD B850, Micro-ATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x1
– RAM: 4x DIMM slots for up to 192 GB DDR5 RAM up to 8,000 MT/s
– Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
– USB: 1x USB-C 3.2, 3x USB 3.1, 4x USB 3.0, and 4x USB 2.0
– Cooling: 6x 4-pin PWM connectors for fans and radiators

ASUS TUF Gaming B850M-Plus: Micro-ATX motherboard with AMD AM5 socket and B850 chipset
The ASUS TUF Gaming B850M-Plus is a Micro-ATX motherboard with the mid-range AMD B850 chipset and the AMD AM5 socket. It supports both Ryzen 9000, 8000, and 7000 CPUs.

Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 20 Gbps are possible via USB 3.2.

Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked to higher clock speeds via the motherboard. This ensures a stable power supply to the processor, allowing even high-end CPUs to run at full performance for longer periods. You can also fully utilize the DDR5 memory with overclocking. Just in case, the ASUS TUF Gaming B850M-Plus offers BIOS Flashback and Clear CMOS.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 244 mm
– Width
– 244 mm
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B850
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– UDIMM
– Max. Memory Speed (OC)
– 8000 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– Wi-Fi / Bluetooth
– No
– Cooling
– Backplate
– Yes
– M.2 Heatsink
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible ports
– 1
– USB 3.0 (internal) header
– 1
– USB 3.0 (internal) possible ports
– 2
– USB 2.0 (internal) header
– 2
– USB 2.0 (internal) possible ports
– 4
– RGB / LED ports
– 3x Digital RGB (3-pin 5VDG)
– Front-panel audio header
– Yes
– External ports
– USB 3.2 (external) Type-C
– 1
– USB 3.1 (external) Type-A
– 3
– USB 3.0 (external) Type-C
– 4
– USB 3.0 (external) Type-A
– 4
– Display ports
– Display Port (1x), HDMI (1x)
