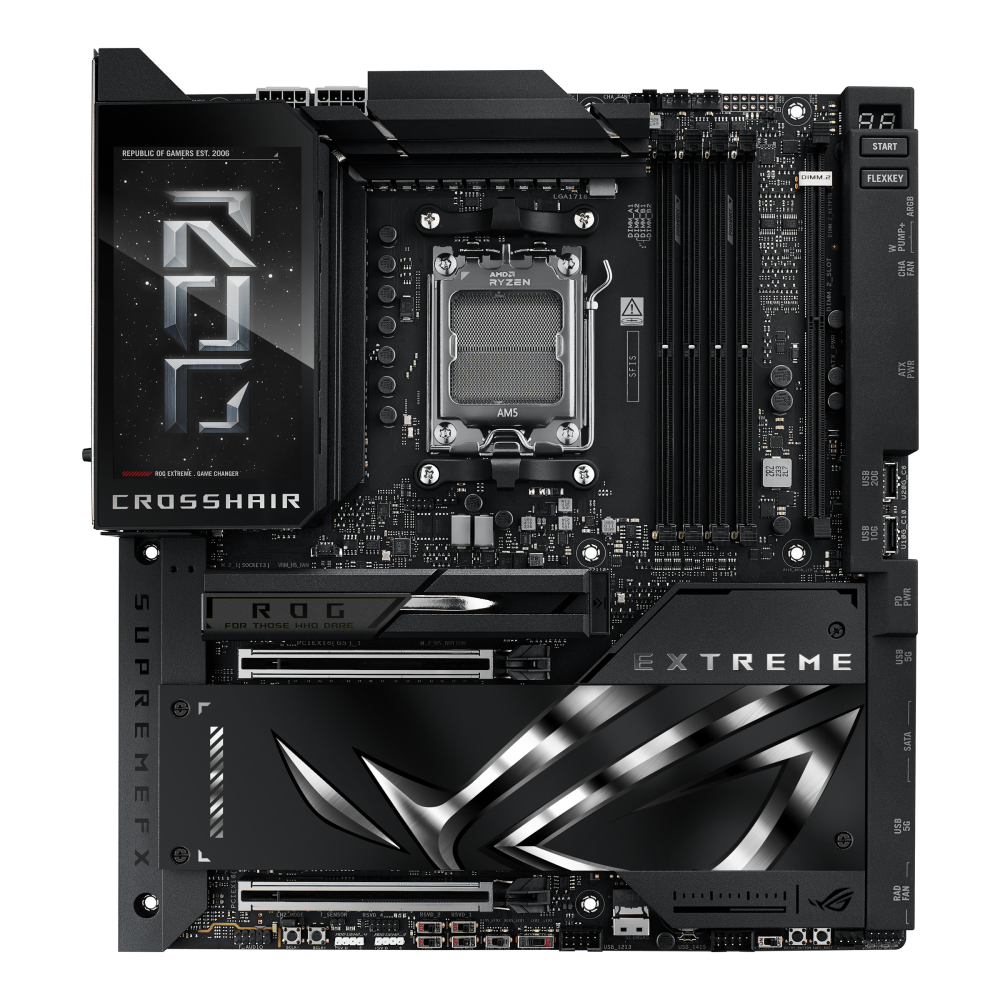

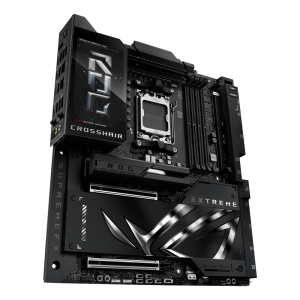

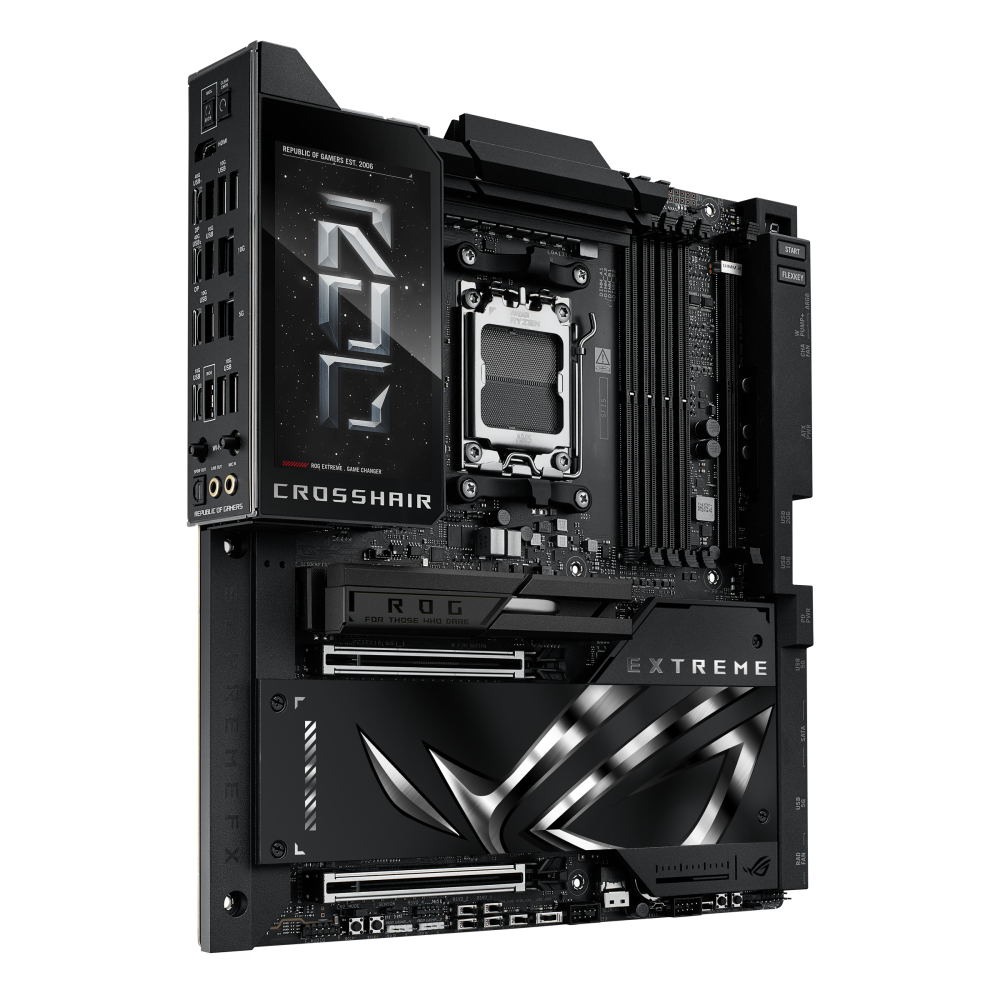

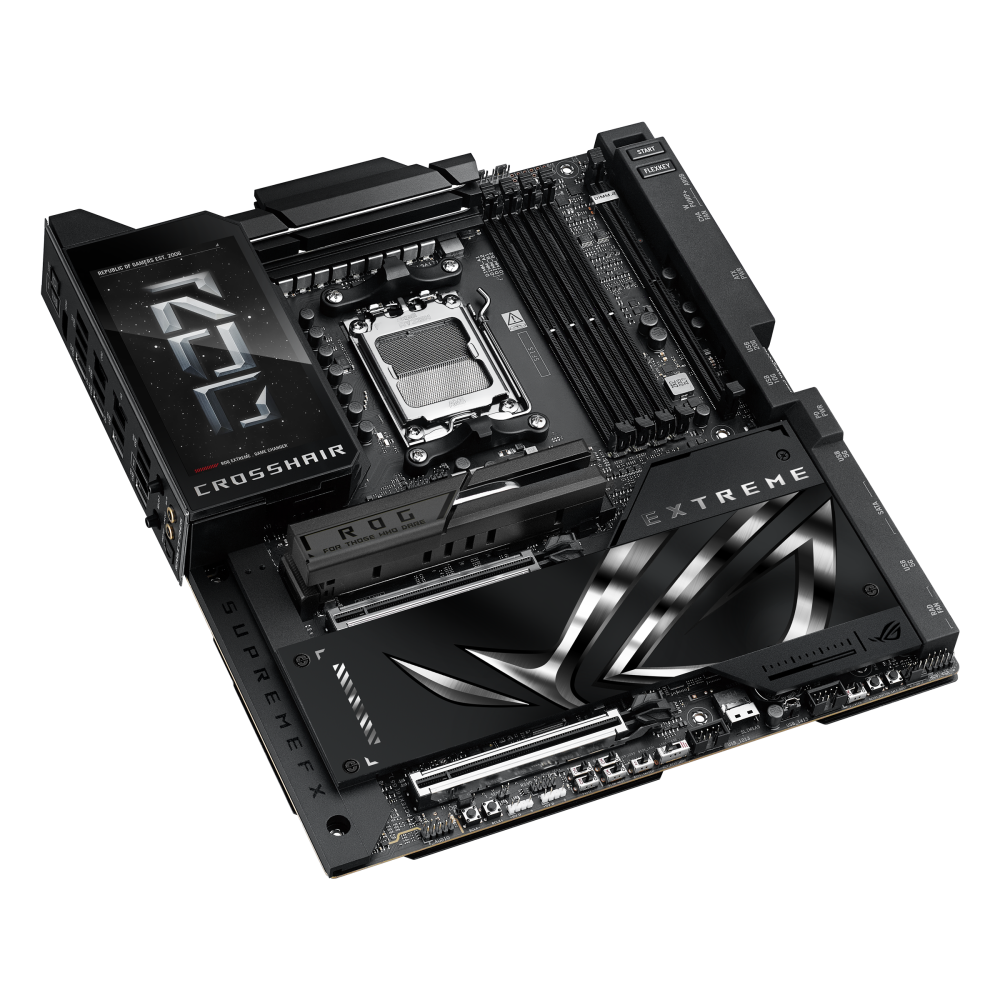

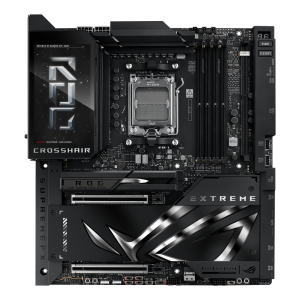

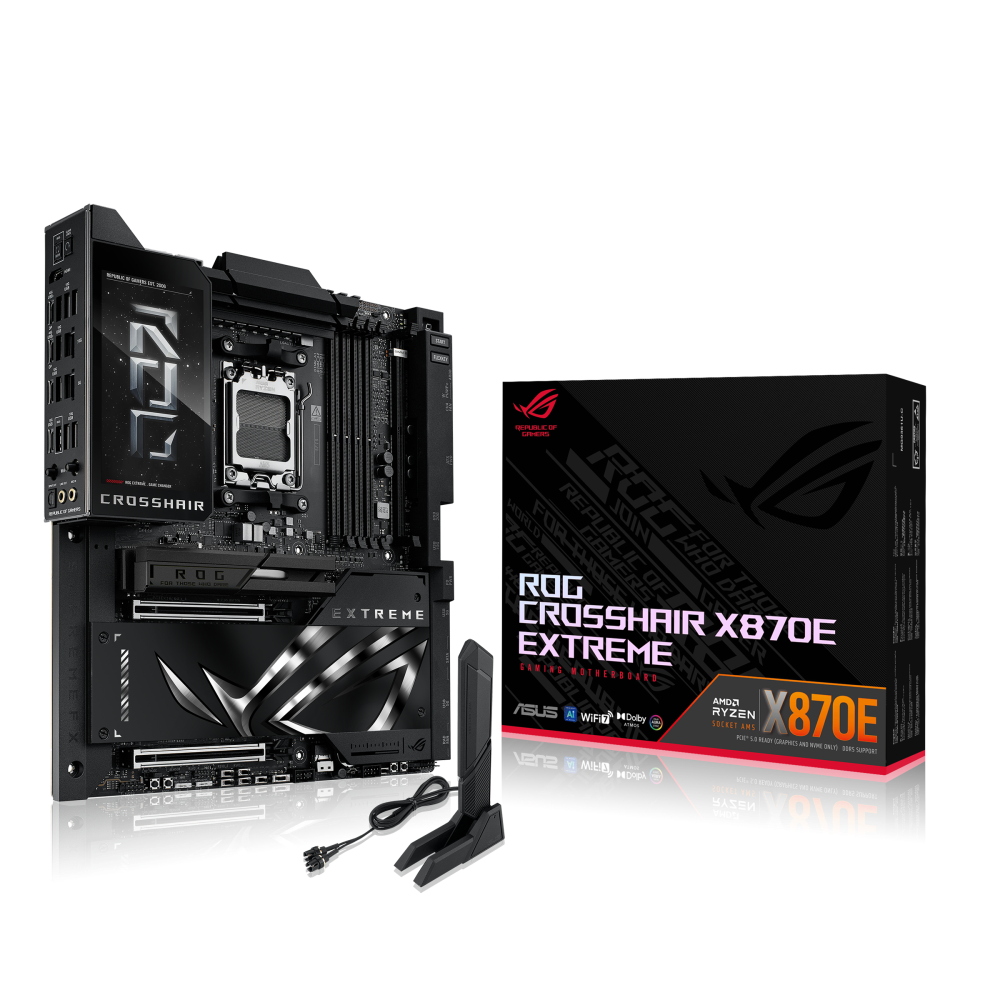

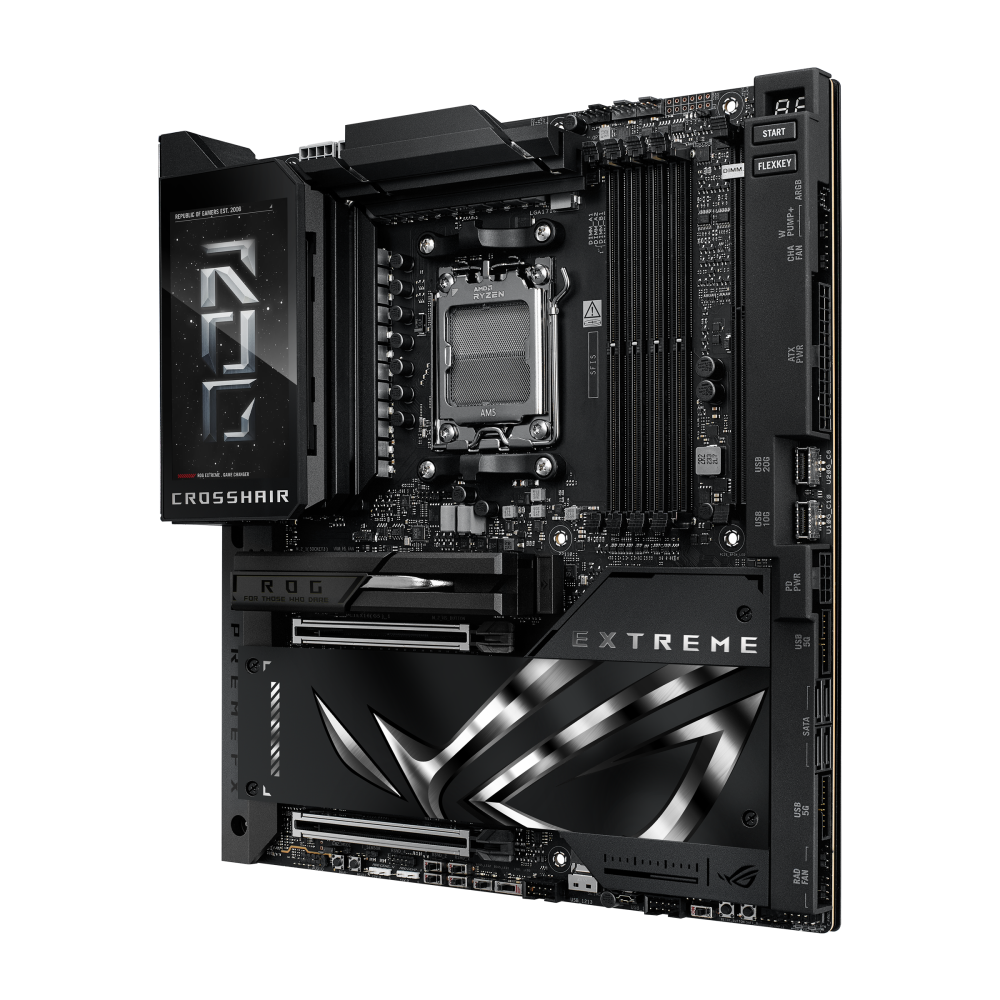

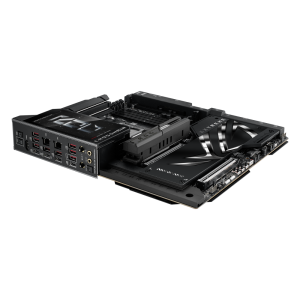

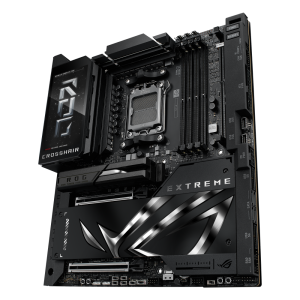

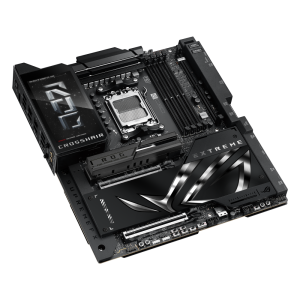

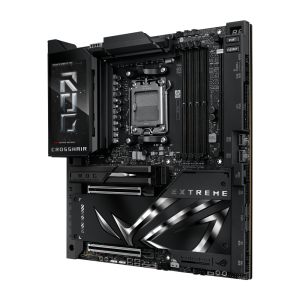

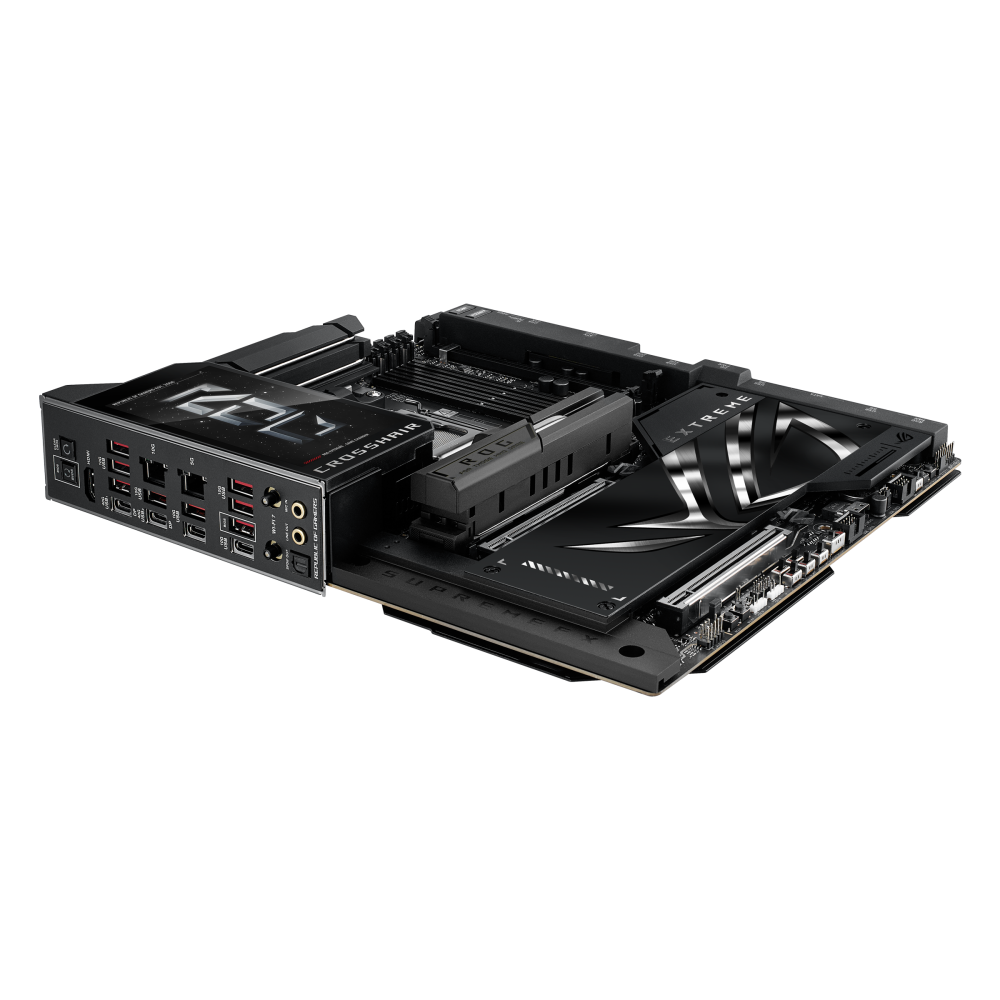

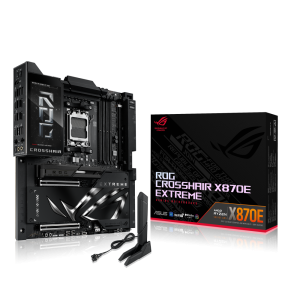

ASUS ROG Crosshair X870E EXTREME motherboard, socket AM5, AMD X870E, E-ATX, DDR5

– 2x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x16 (x4)
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9,000 MT/s (OC)
– 5x M.2 (including 3x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G

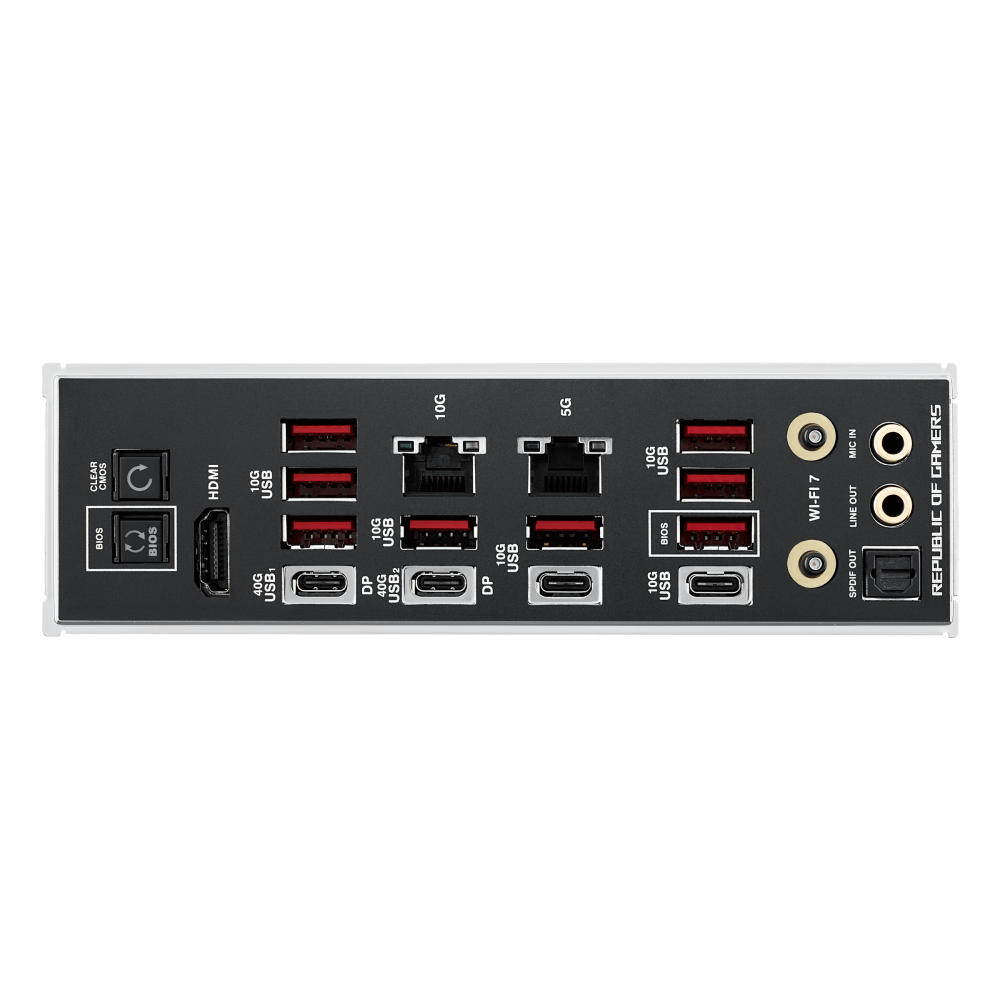

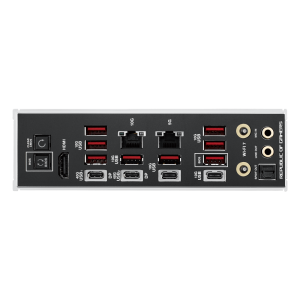

– 2x USB 4, 2x USB-C 3.1, and 8x USB 3.1 on the I/O panel
– OC features: 20+2+2 phase VRMs, CMOS reset
– A total of 9x 4-pin PWM fans possible

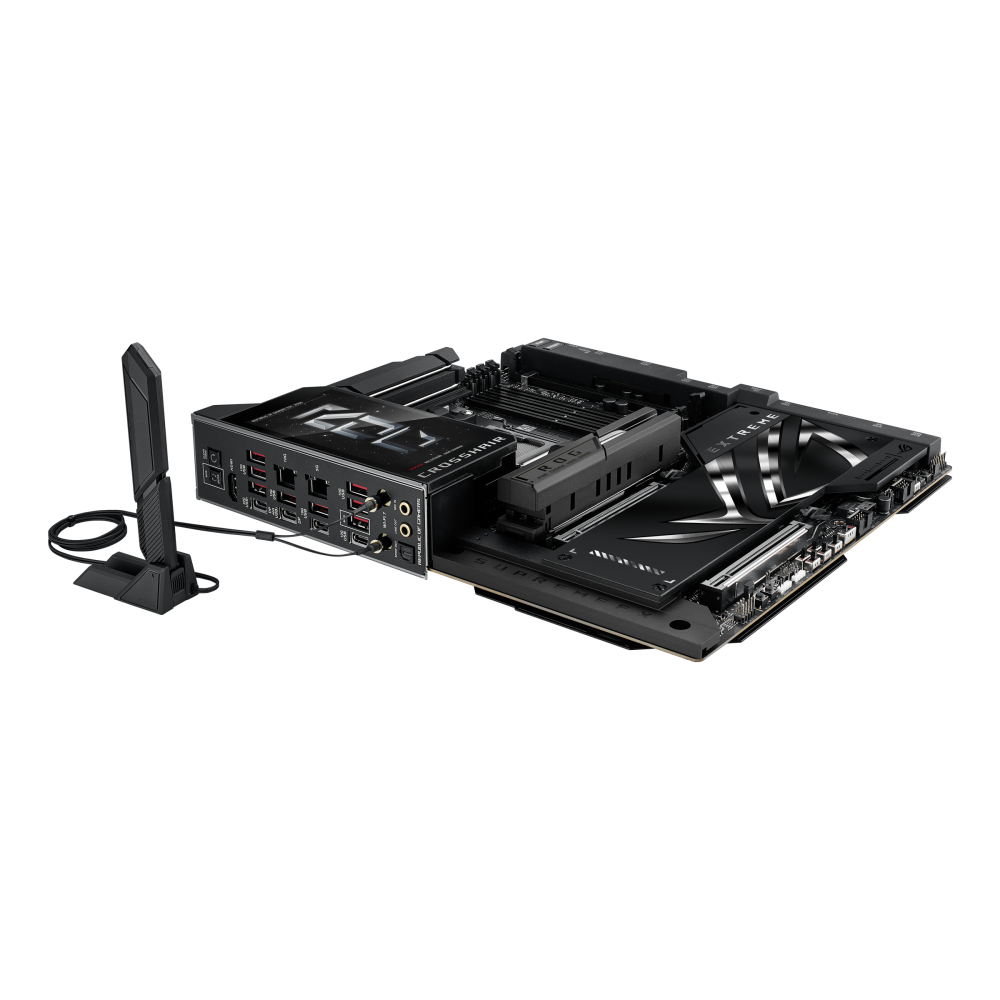

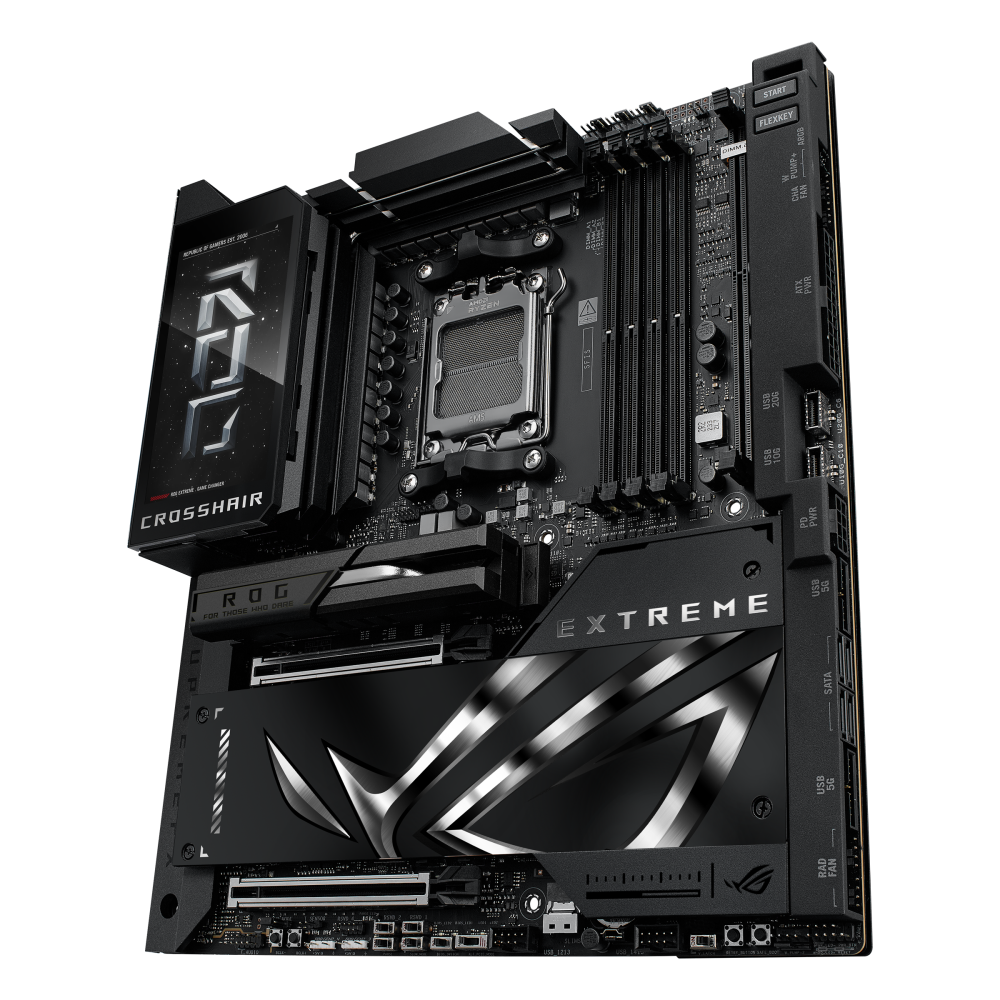

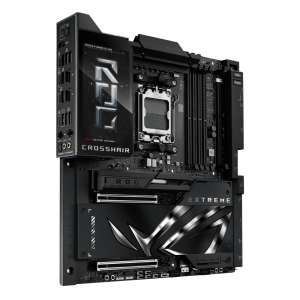

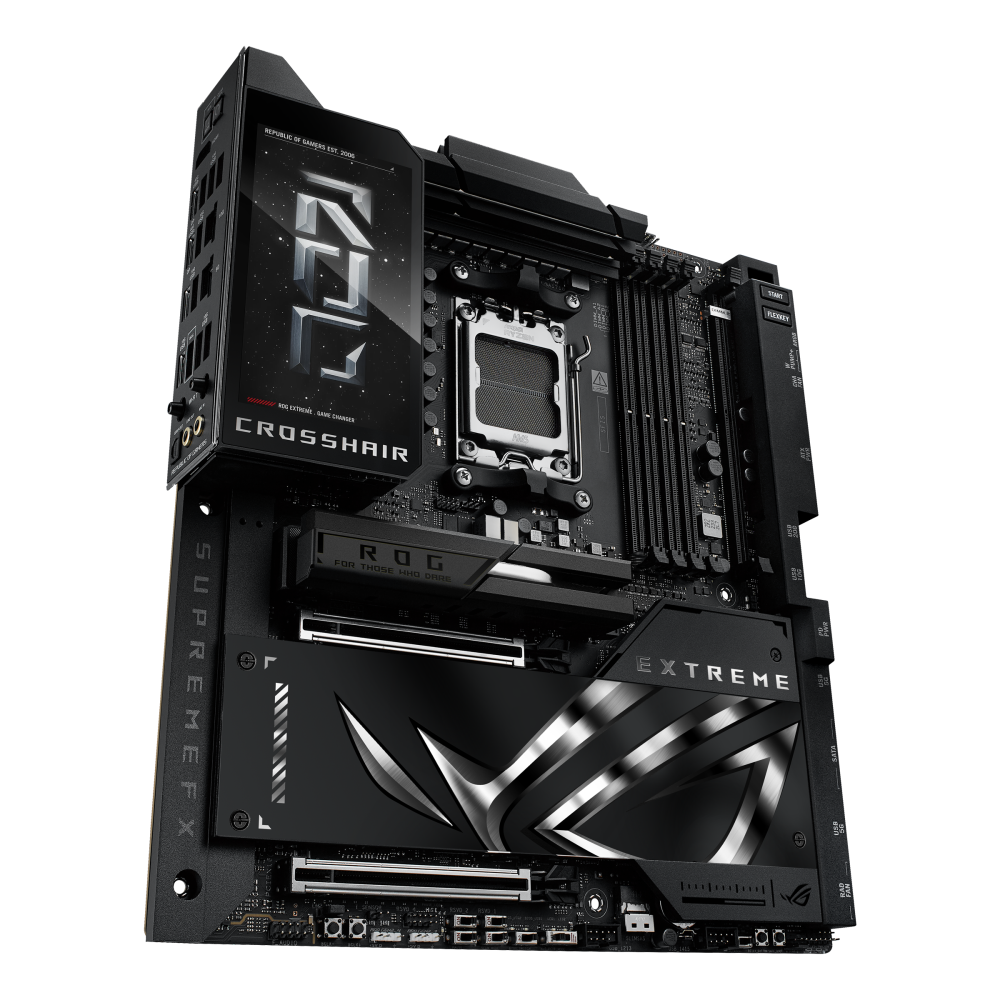

ASUS ROG Crosshair X870E EXTREME: E-ATX motherboard with AMD AM5 socket and X870E chipset
The ASUS ROG Crosshair X870E EXTREME features the high-end chipset The X870E is equipped for AMDs Ryzen 9000 series processors and offers numerous features for overclockers and gaming enthusiasts. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870E motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASUS ROG Crosshair X870E EXTREME supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly Equipped for Gaming
The motherboard is designed for overclocking so you can enjoy even demanding games. The voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Clear CMOS makes it easy to reset these settings if something goes wrong. And, as usual, DDR5 RAM can also be pushed to its limits with higher clock speeds.

Technical Details
– Color
– Main Color
– Black
– Form Factor
– Motherboard Form Factor
– E-ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD X870E
– Dual BIOS
– Yes
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (OC)
– 9000 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 10 Gbps, 1x 5 Gbps
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 7
– Bluetooth Standard
– 5.4
– Cooling

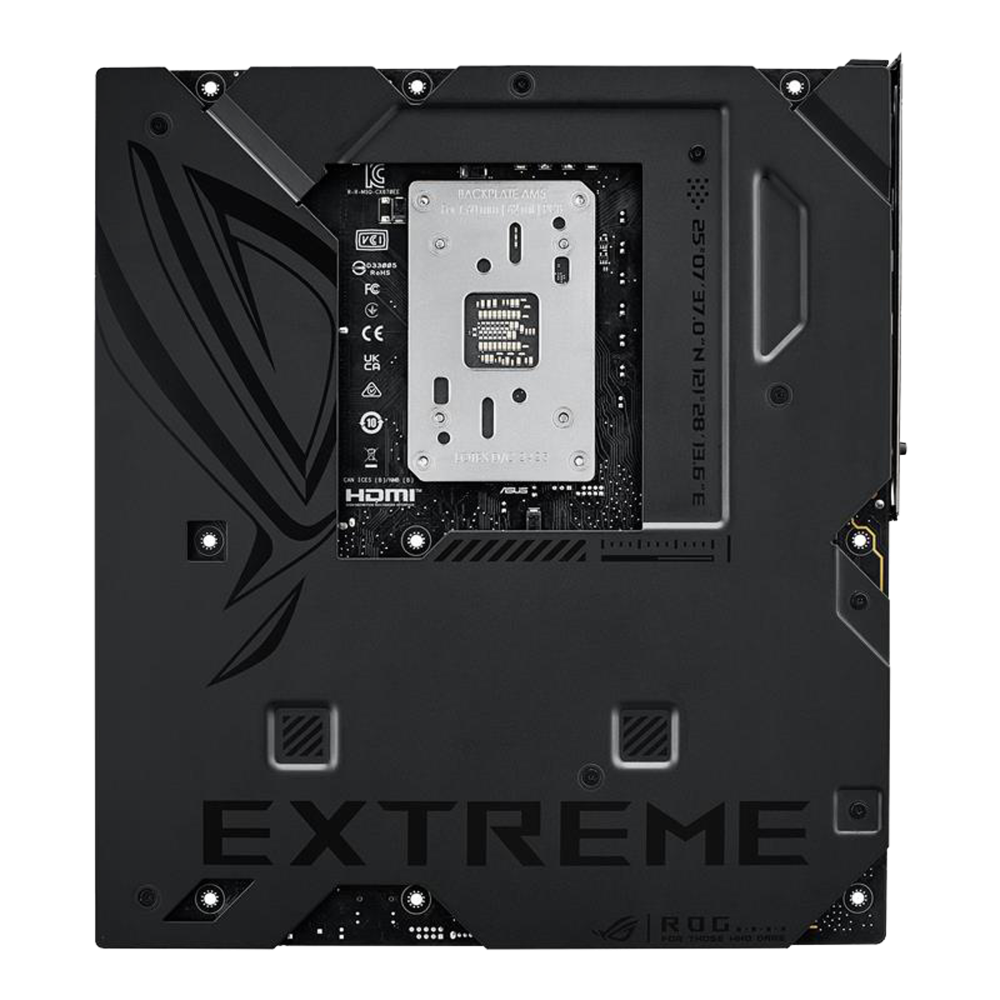

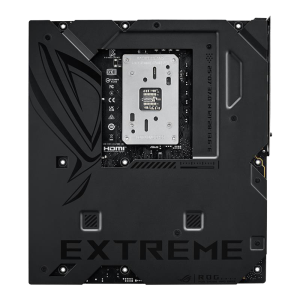

– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 2x 4+4-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 2
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 2
– USB 3.0 (internal) header
– 2
– USB 3.0 (internal) possible connectors
– 4
