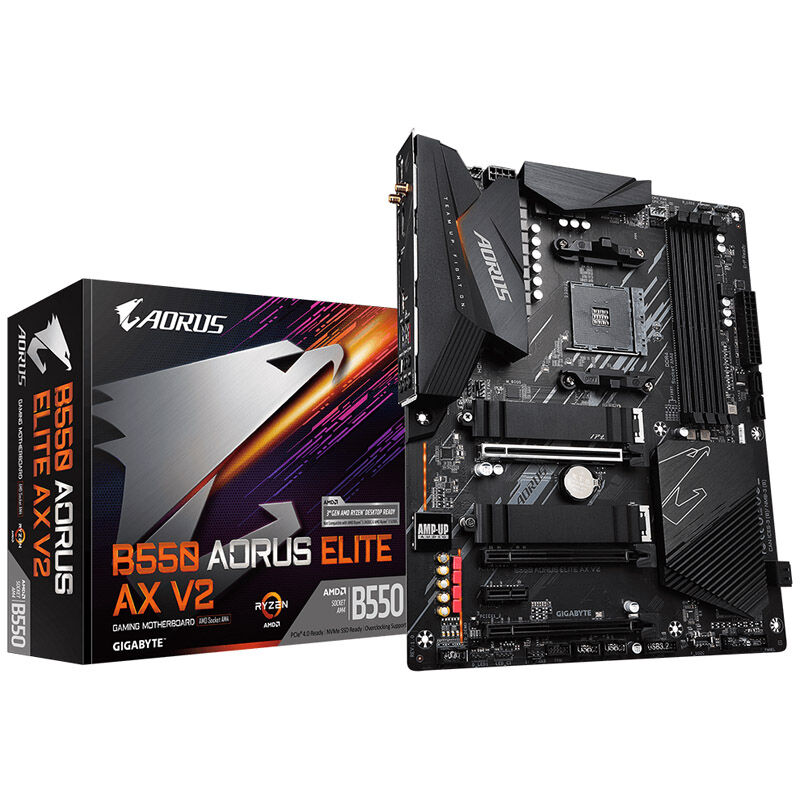

Gigabyte B550 AORUS Elite AX V2, Socket AM4, AMD B550, ATX - DDR4

The B550 chipset is the heart of the GIGABYTE B550 AORUS Elite AX V2 motherboard and has been specifically optimized for the Ryzen 3000 series Matisse and 5000 series Vermeer CPUs. B550 motherboards support all features of the third and fourth generation Ryzen processors, most notably the PCI Express standard version 4.0 (PCIe 4.0). PCIe 4.0 is backward compatible and can be used with all expansion cards from previous generations. Additionally, the motherboards support up to 128 GB of RAM with a guaranteed clock speed of 3,200 MHz. Depending on the motherboard, significantly higher clock speeds are possible with overclocking. The B550 chipset also allows for processor overclocking.

Note: The following specifications regarding PCIe lanes, M.2 slot connections, and PCIe slot connections refer to the combination of the B550 chipset with a third- or fourth-generation Ryzen CPU (Zen 2 Matisse / Zen 3 Vermeer)!

The features of the GIGABYTE B550 AORUS Elite AX V2 at a glance:
– 1x PCIe 4.0 x16 (x16), 2x PCIe 3.0 x16 (x2/x1), and 1x PCIe 3.0 x1
– 1x USB 3.0 Type-C (internal) / 2x USB 3.1 Type-A (external) / 5x USB 3.0 (internal, external) / 6x USB 2.0 (internal, external)
– 2x M.2 (1x PCIe 4.0 x4 and SATA / 1x PCIe 3.0 x4 and SATA) / 4x SATA 6G
– DDR4 memory up to 4733 MHz via overclocking
– With integrated Wi-Fi 6 AX200 and Bluetooth 5
– Ideal for AMD Ryzen 3000 and Ryzen 5000 series CPUs (Matisse/Vermeer)
– RGB Lighting

The GIGABYTE B550 AORUS Elite AX V2s Features in Detail

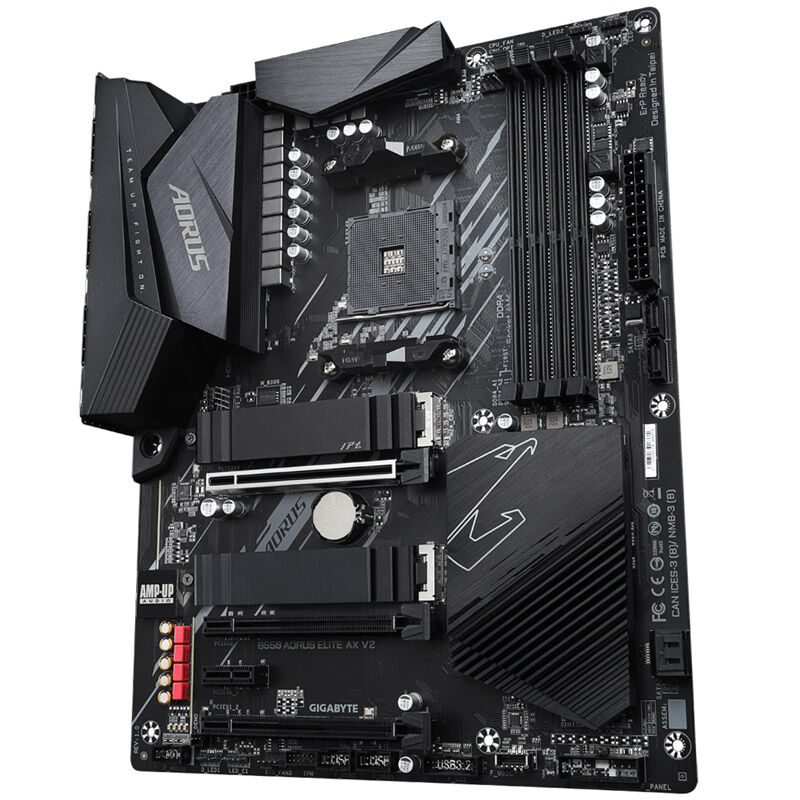

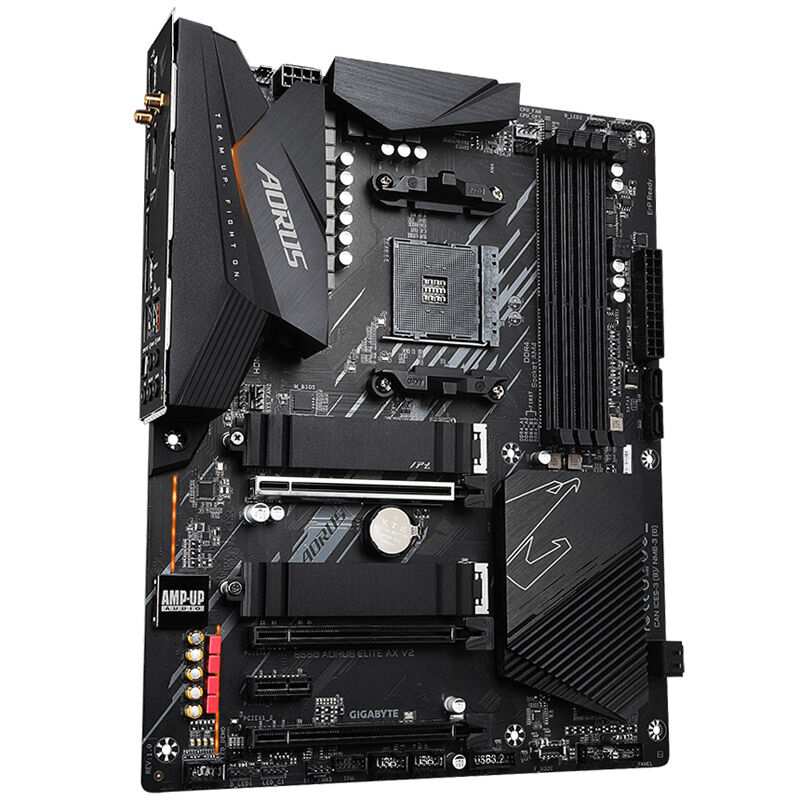

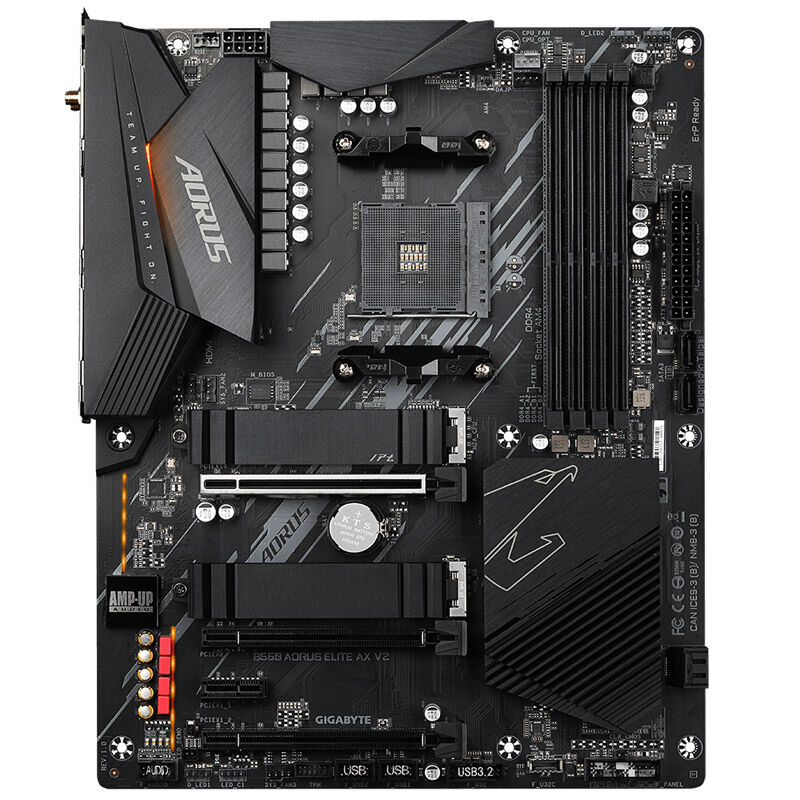

The GIGABYTE B550 AORUS Elite AX V2 is an ATX motherboard and features one PCI Express 4.0 slot with full x16 connectivity for graphics cards, plus two PCI Express 3.0 x16 slots and one PCIe 3.0 x1 slot. The four RAM slots support up to 128 GB of DDR4 memory with a clock speed of up to 3,200 MHz and can even handle clock speeds of up to 4,733 MHz via overclocking.

The AM4 motherboard provides two M.2 slots. One slot is connected via four PCI Express 4.0 lanes. M.2 SSDs with the advanced NVMe (NVMe) protocol and a connection via four PCI Express 4.0 lanes support data transfer rates of up to 8 GB/s, twice as fast as PCI Express 3.0. The other is connected via four PCI Express 3.0 lanes. Both slots are also connected via the SATA 6G protocol and accommodate expansion cards up to 110 mm (22110).

Modern Connectors and RGB LED Lighting
The GIGABYTE B550 AORUS Elite AX V2 features two USB 3.1 Type-A ports, three USB 3.0 ports, and two USB 2.0 Type-A ports on the I/O panel. USB 3.1 achieves maximum speeds of 10 Gbps per port. An HDMI and a DisplayPort port are available for CPUs with integrated graphics.

This B550 motherboard also offers features such as a WLANax/BT module, a 2.5 Gigabit LAN port (Realtek RTL8125B-CG), on-board sound (Realtek ALC1220 audio codec), reinforced PCIe slots, and numerous internal headers. Overclocking features and an optimized power supply are also included.

A special feature of the GIGABYTE B550 AORUS Elite AX V2 is the RGB lighting, which can be synchronized with other RGB components via the manufacturers software. The motherboard has three 4-pin RGB headers and two 3-pin RGB headers. Furthermore, up to six fans can be connected directly to the board.

Technical Details:
Format
– ATX (305 x 244 mm)
– Chipset
– AMD B550
– Socket:
– AM4 (for Matisse / Vermeer)
– RAM:
– 4x DDR4 (max. 3200 MHz, 4733 MHz when overclocked with an AMD CPU with integrated graphics)
– Dual-Channel
– max. 128 GB
– Slots:
– 1x PCIe 4.0 x16 (x16)
– 2x PCIe 3.0 x16 (electrical x2/x1)
– 1x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G (RAID 0, 1, 10)
– 1x M.2 (M-Key PCIe 4.0 x4 and SATA, 22110/2280/2242)
– 1x M.2 (M-Key PCIe 3.0 x4 and SATA, 22110/2280/2242)
– 1x USB 3.0 (USB 3.2 Gen1, Type-C, one header)
– 2x USB 3.0 (USB 3.2 Gen1, one header)
– 4x USB 2.0 (two headers)
– 1x Front Panel Audio Connector
– 1x Front Panel Connector
– 1x Clear CMOS Jumper
 -1x TPM Connector (2x 6-pin, for GC-TPM2.0_S module only)
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x CPU Cooler / Pump (4-pin)
– 3x System Fans
– RGB Header:
– 2x 4-pin RGB Header (12VGRB)
– 2x 3-pin RGB Header (5VDG)
– 1x CPU Cooler LED Strip / RGB LED Strip (12VGRB)

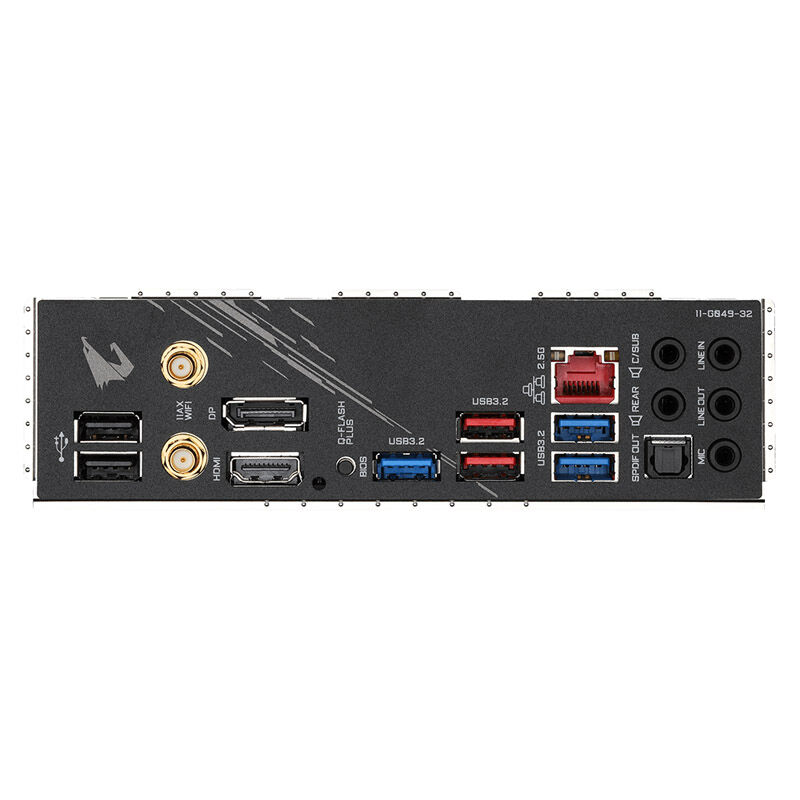

– External Connectors:
– 2x USB 3.1 (USB 3.2 Gen 2, Type A)
– 3x USB 3.0 (USB 3.2 Gen 1, Type A)
– 2x USB 2.0
– 1x Gigabit LAN (2.5GbE, Realtek RTL8125B-CG)
– 1xHDMI
– 1x DisplayPort
– 5x audio (Realtek ALC1200, 7.1 sound)
– 1x Q-Flash Plus button
– 1x Optical S/PDIF
– 2x SMA antenna (802.11ax, 2T2R, Intel AX200, Bluetooth 5)
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
– Warranty: 3 years
