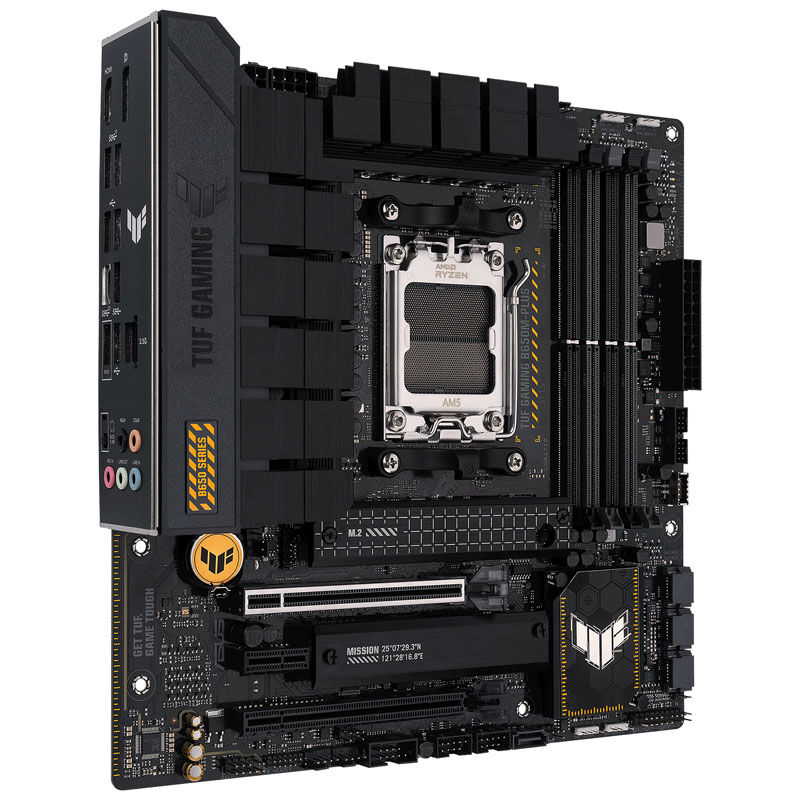

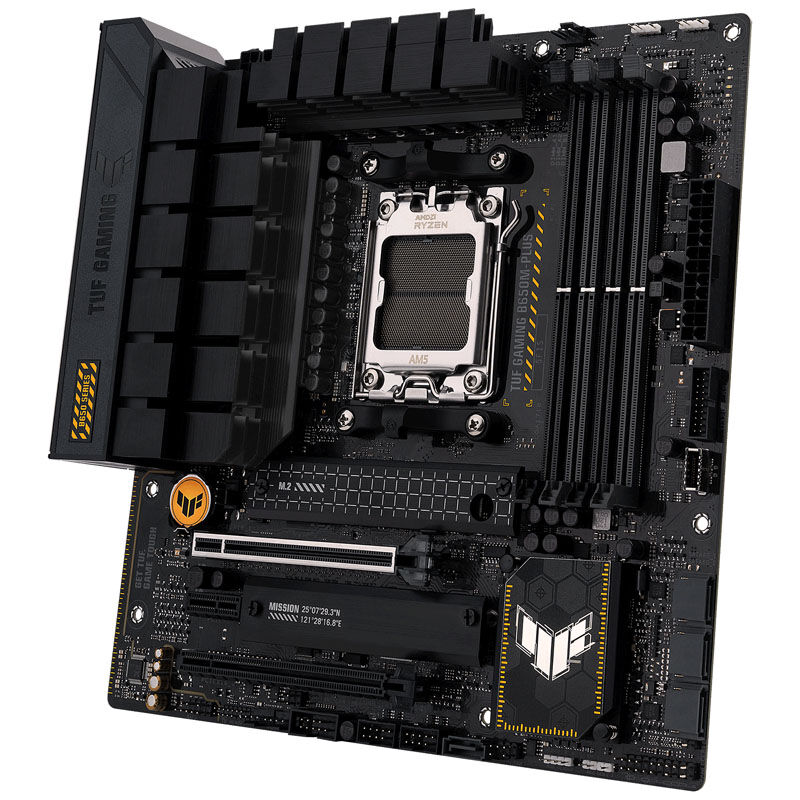

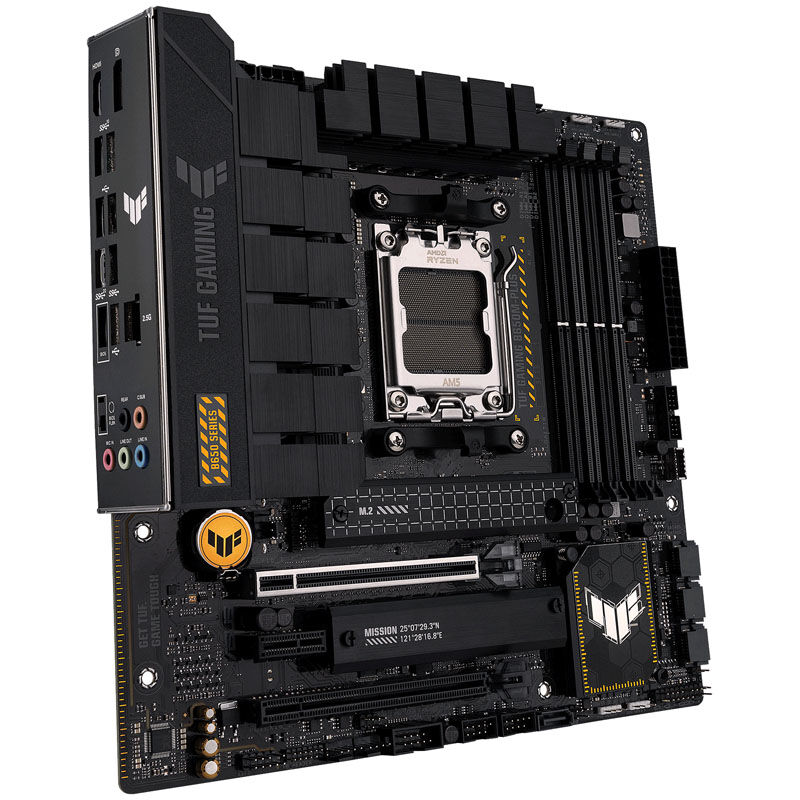

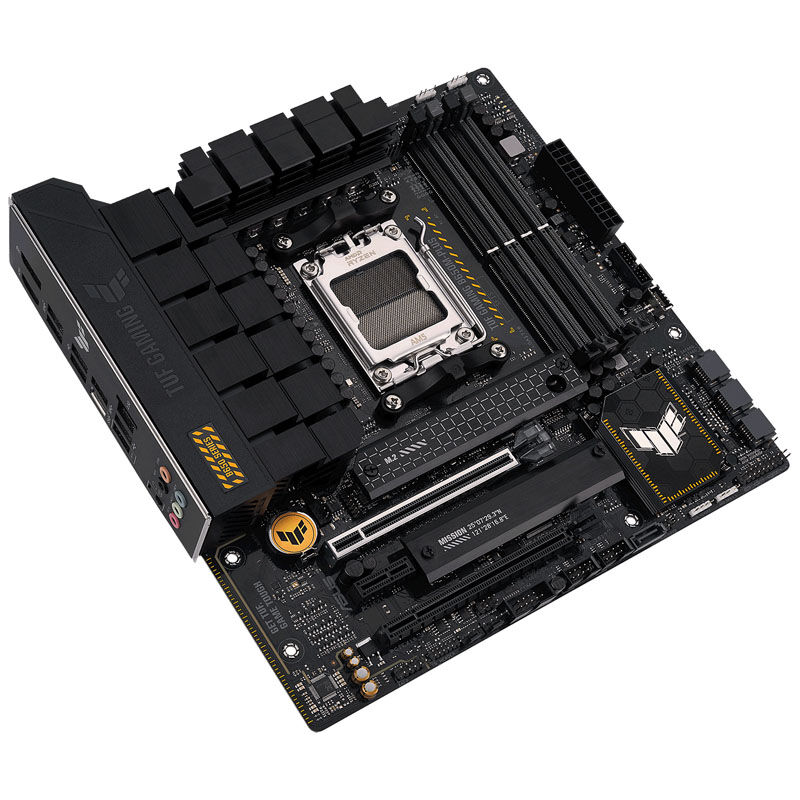

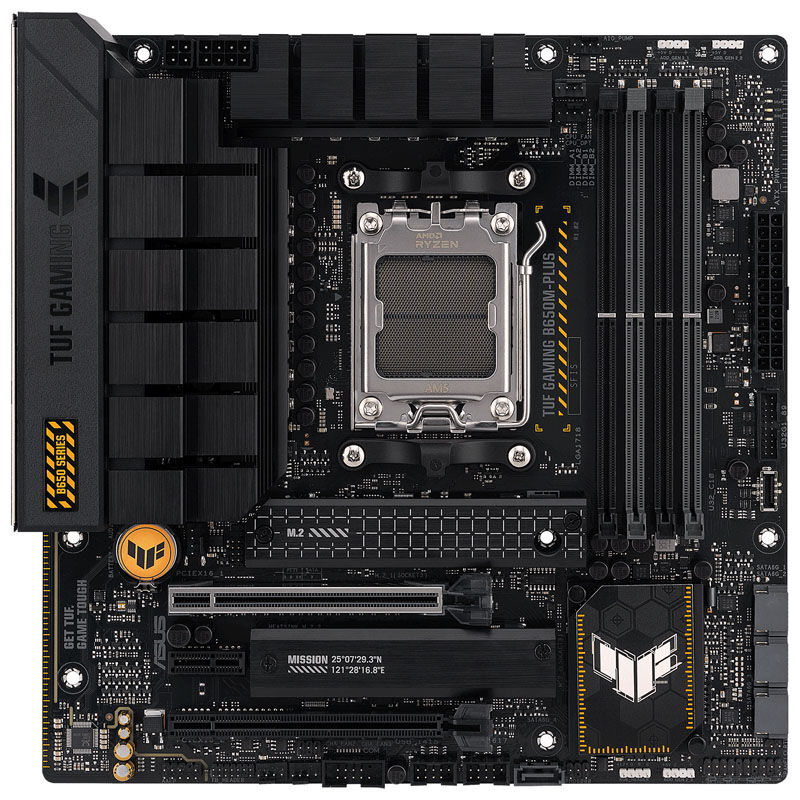

ASUS TUF Gaming B650M-Plus, AMD B650 motherboard - Socket AM5, DDR5

– 2x PCIe x16 slots, including 2x PCIe 4.0
– Supports up to 128 GB DDR5 RAM up to 6,400 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 1x USB 3.2, 2x USB 3.1, 1x USB 3.0, and 4x USB 2.0 on the I/O panel
– A total of 5x 4-pin PWM fans are supported

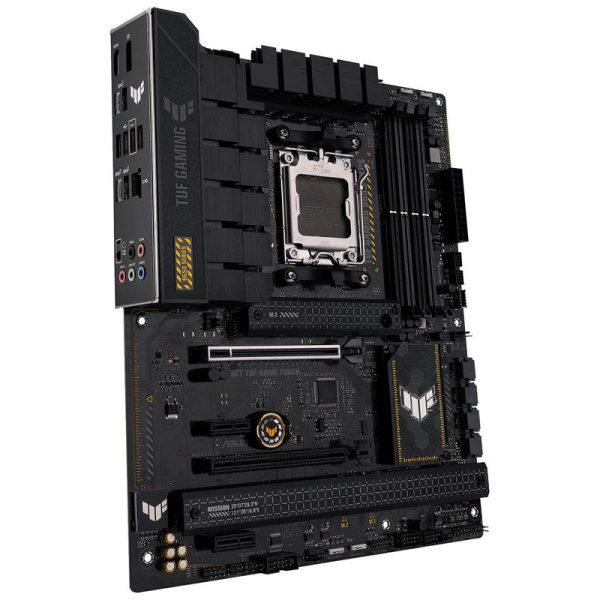

– ASUS TUF Gaming B650-Plus WiFi: ATX motherboard with AMD AM5

The image shows the ASUS TUF Gaming B650-Plus WiFi motherboard.
The ASUS TUF Gaming B650-Plus WiFi is equipped with the B650 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the expanded power supply, Socket AM5 (LGA 1718) is used on the 600 series motherboards.

Despite the increased pin count, the actual size of the socket remains identical to older sockets, so most CPU coolers for Socket AM4 can also be installed on the motherboard.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
Format:
– Micro-ATX (244 x 244 mm)
– Chipset:
– AMD B650
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 (5600 MHz, validated up to 6400 MHz with overclocking)
– Dual-Channel
– Max. 128 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (electrical x16)
– 1x PCIe 4.0 x16 (electrical x4)
– 1x PCIe 4.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280)
– 2x M.2 (PCIe 4.0 x4 & SATA; 2242 / 2260 / 2280 / 22110)
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x system panel header (20-3 pin)
– 1 x Clear CMOS header
– 1 x COM port header
– 1 x Front Panel Audio header (AAFP)
– Fan connections:
– 1x CPU fan header (4-pin)
– 3x fan header (4-pin)
– 1x AiO pump header
– RGB header:
– 1x 3-pin ARGB header
– 1x 4-pin RGB Headers

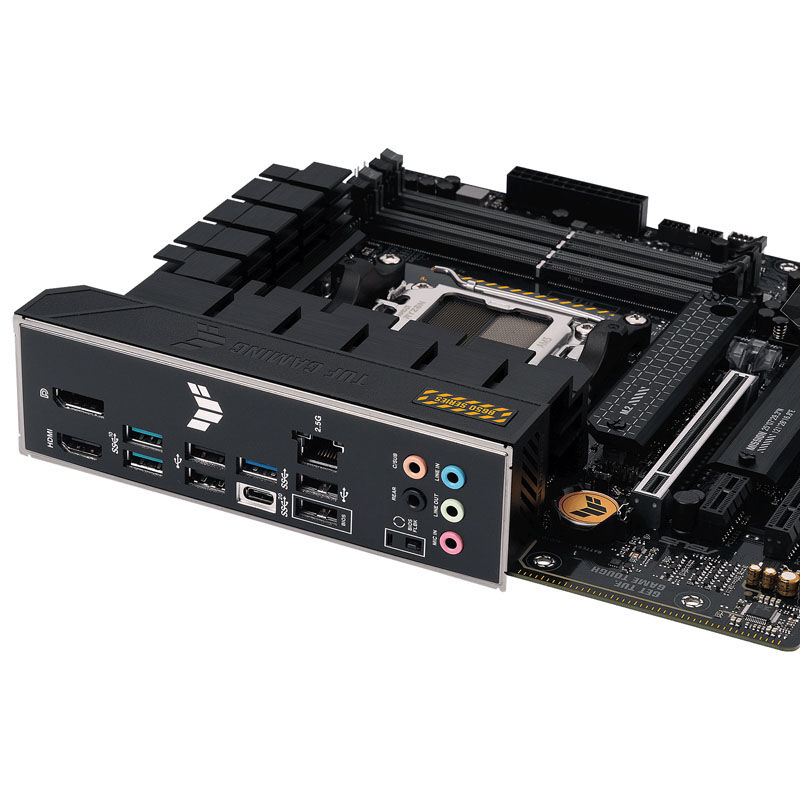

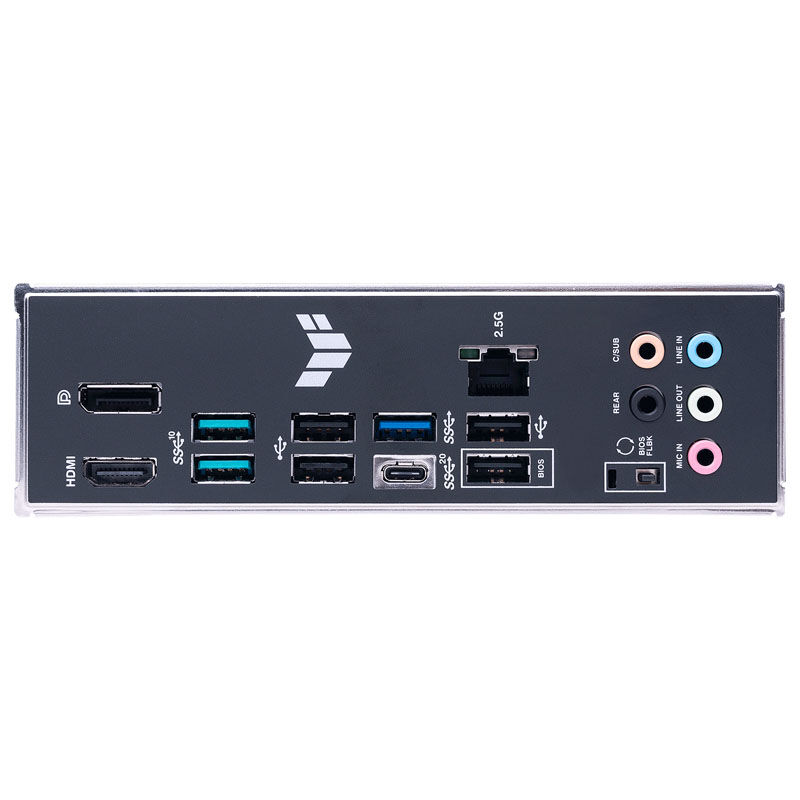

– External connections:
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x USB 3.1 (Type C, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x DisplayPort 1.4
– 1x HDMI 2.0
– 1x RJ45
– 5x 3.5 mm jack (Realtek ALC 1220)
– 1x Clear CMOS button
– Power supply:
– 1x 24-pin ATX12V
– 1x 8-pin ATX12V
– 1x 4-pin ATX12V
