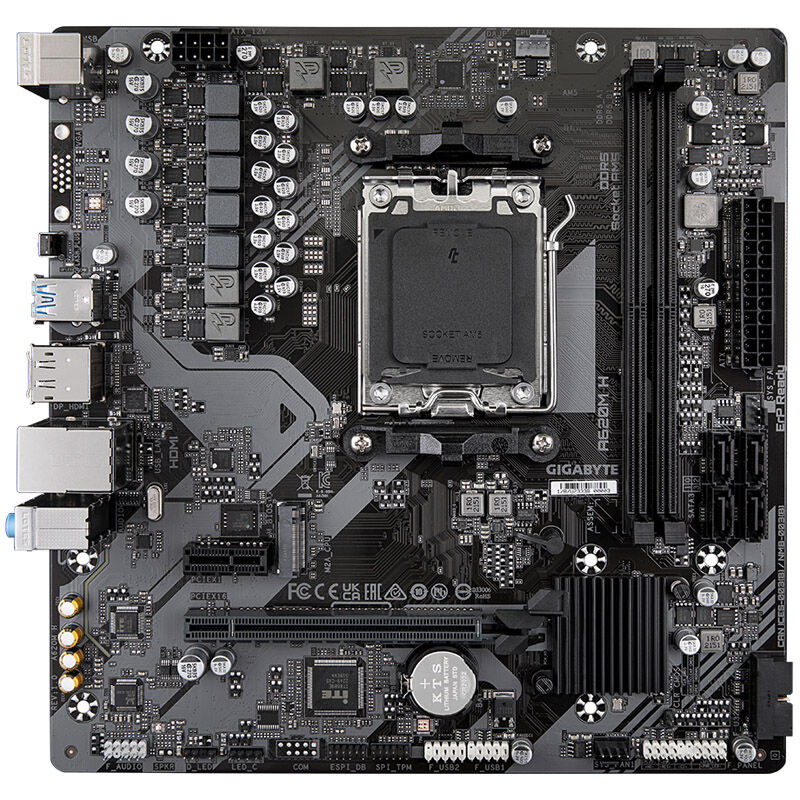

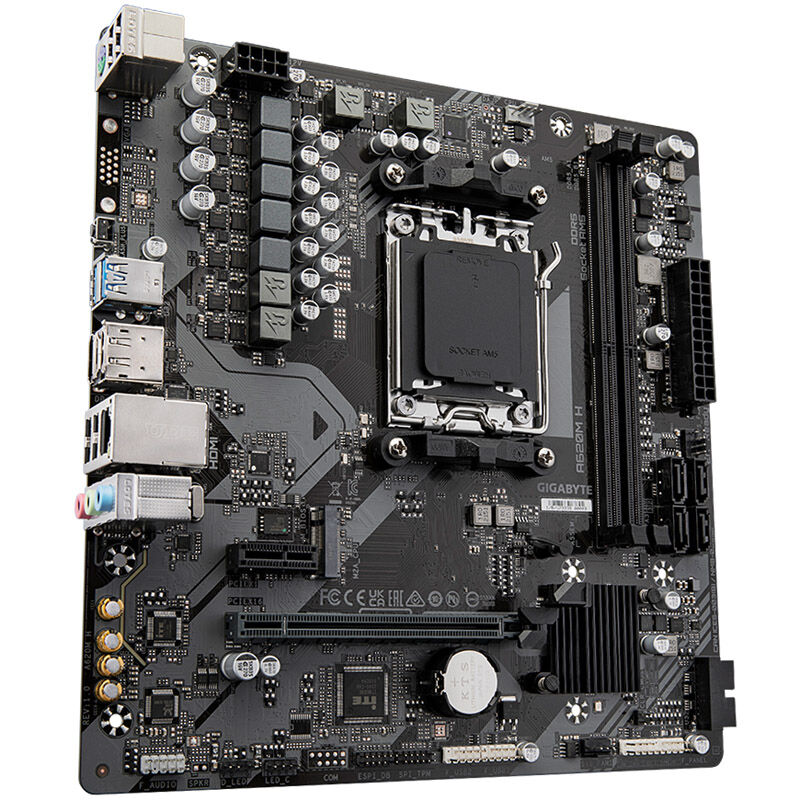

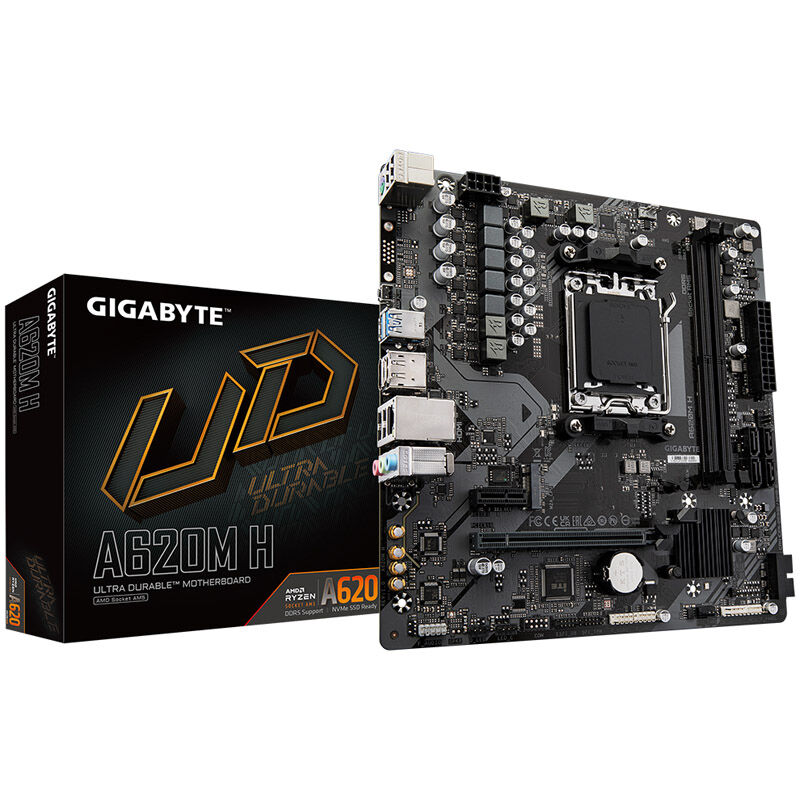

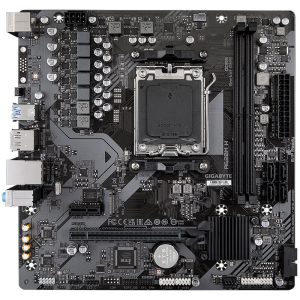

Gigabyte A620M H, AMD A620 motherboard - Socket AM5, DDR5

– 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1
– Supports up to 96 GB DDR5 RAM up to 6,400 MHz (OC)
– 1x M.2 PCIe 4.0 / 4x SATA 6G

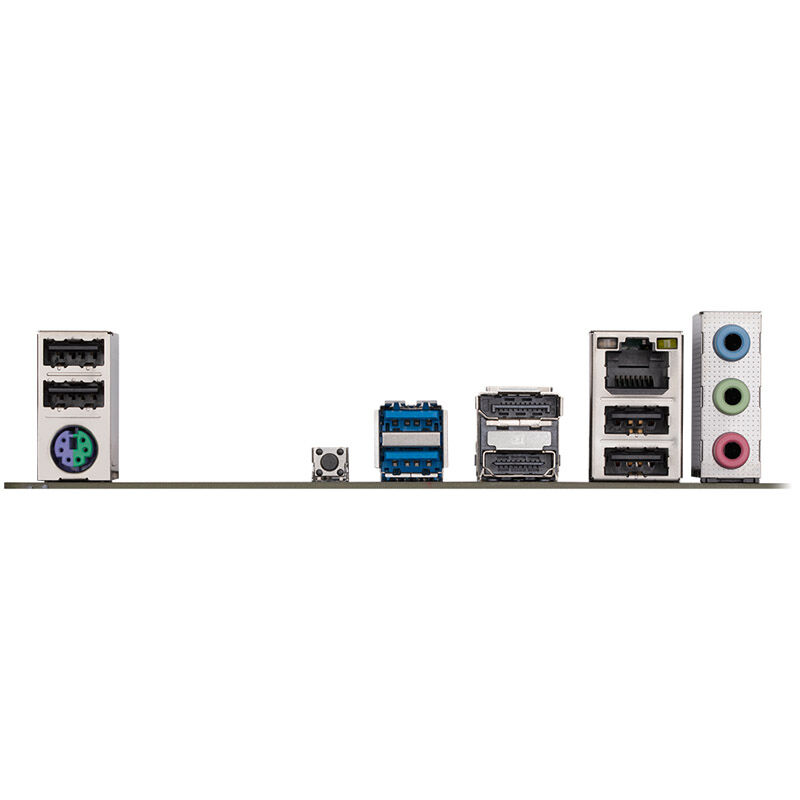

– 2x USB-A 3.0 and 4x USB-A 2.0 on the I/O panel
– A total of 3x 4-pin PWM fans possible

Gigabyte A620M M: Micro-ATX motherboard with AMD AM5
The Gigabyte A620M M is equipped with the A620 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the expanded power supply, Socket AM5 (LGA 1718) is used on the 600 series motherboards.

Despite the increased pin count, the actual size of the socket remains identical to older sockets, so most CPU coolers for Socket AM4 can also be installed on the motherboard.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details:
– Processor
– Processor Manufacturer: AMD
– Processor Socket: AM5
– Compatible Processors: AMD Ryzen 5, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen
– Supported Processor Slots: AM5
– Memory
– Supported Memory: DDR5-SDRAM
– Number of Memory Slots: 2
– Memory Type: DIMM
– Memory Channels: Dual-Channel
– Non-ECC
– Supported Memory Speed: 4400, 4800, 5200, 5600, 6000, 6200, 6400 MHz
– Supported Memory Clock Speed (Max.): 6400 MHz
– Maximum RAM: 96 GB
– Unbuffered Memory
– Storage Controller
– Supported Storage Drives: HDD & SSD
– Supported Storage Drive Interfaces: M.2, SATA III
– Number of Supported Storage Drives: 5
– RAID Support:
– RAID Level 0, 1 10
– Graphics
– Parallel processing technology not supported
– Maximum resolution 4096 x 2160 pixels
