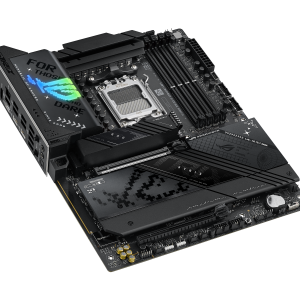

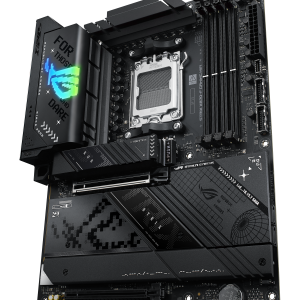

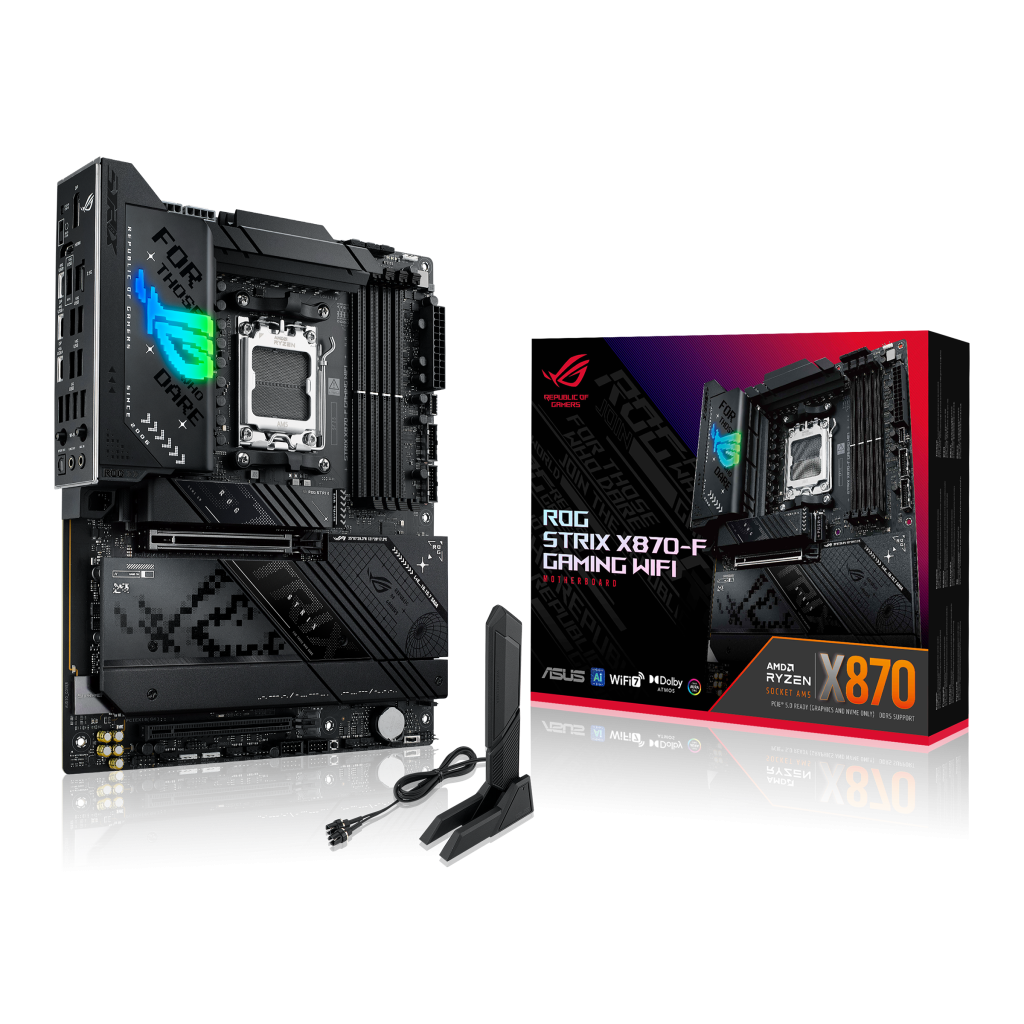

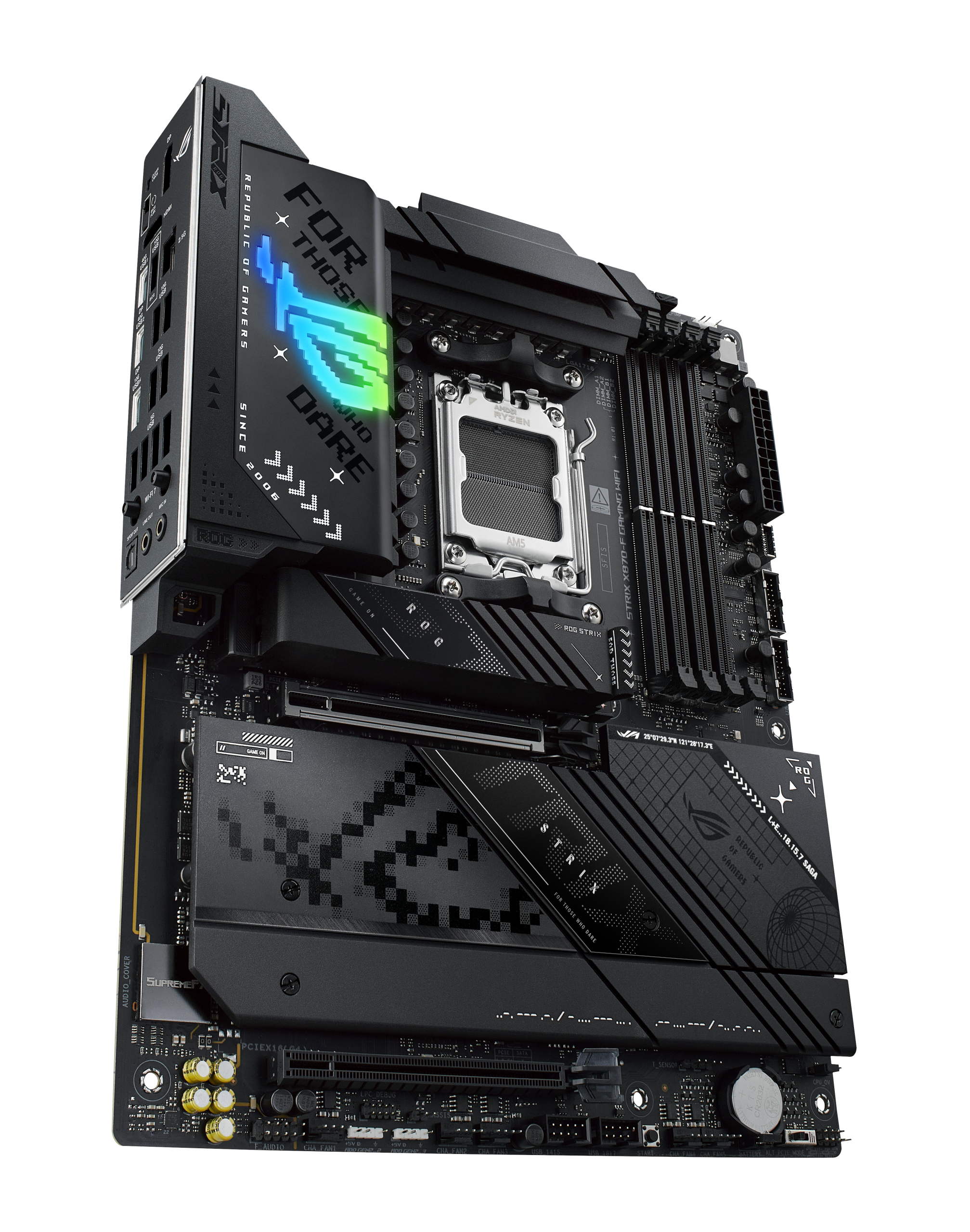

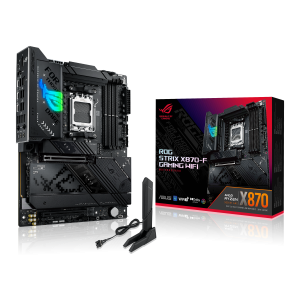

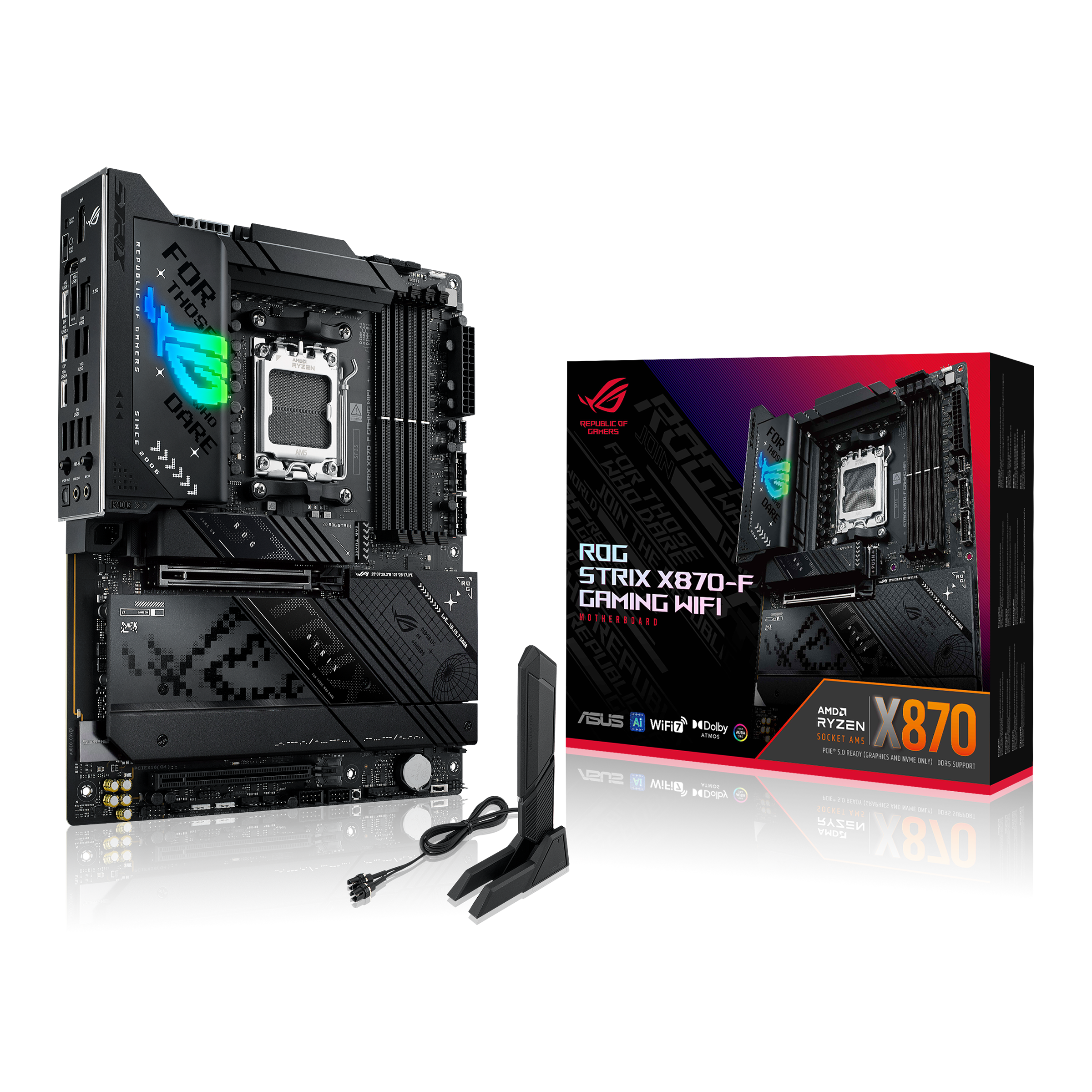

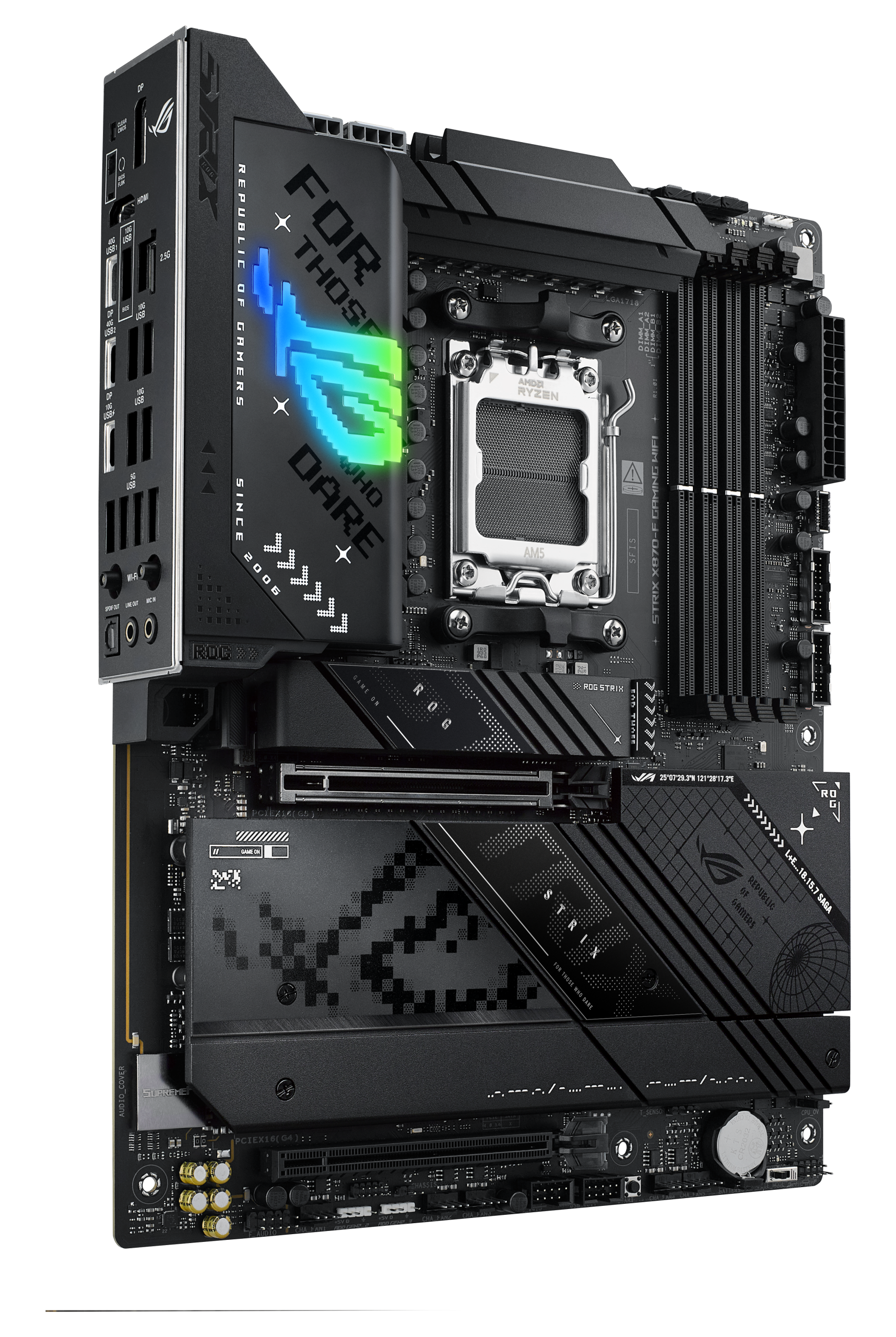

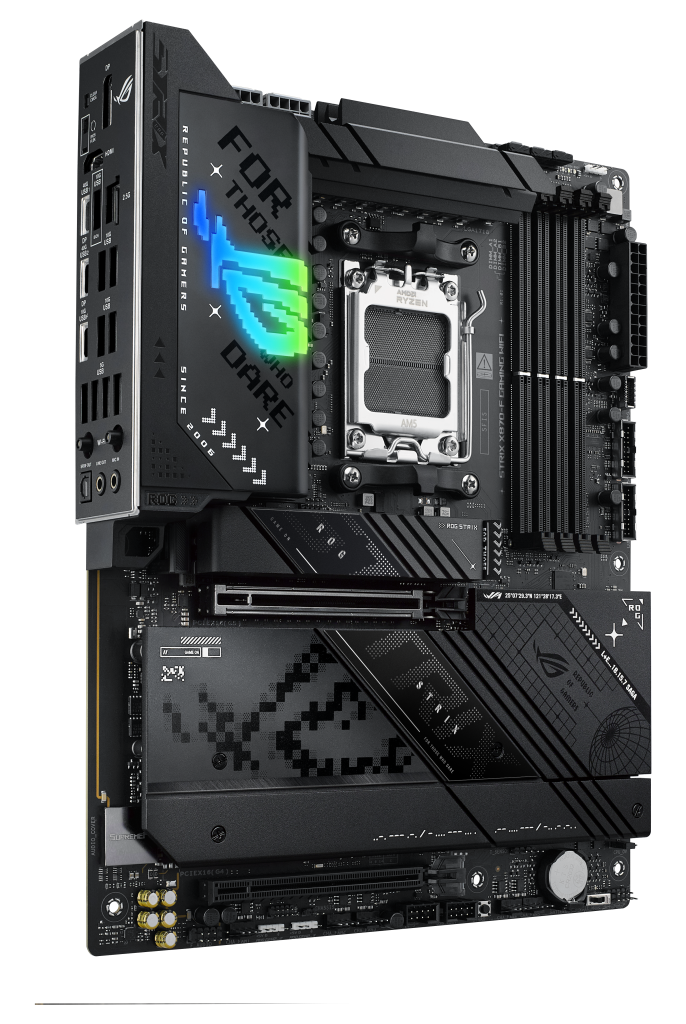

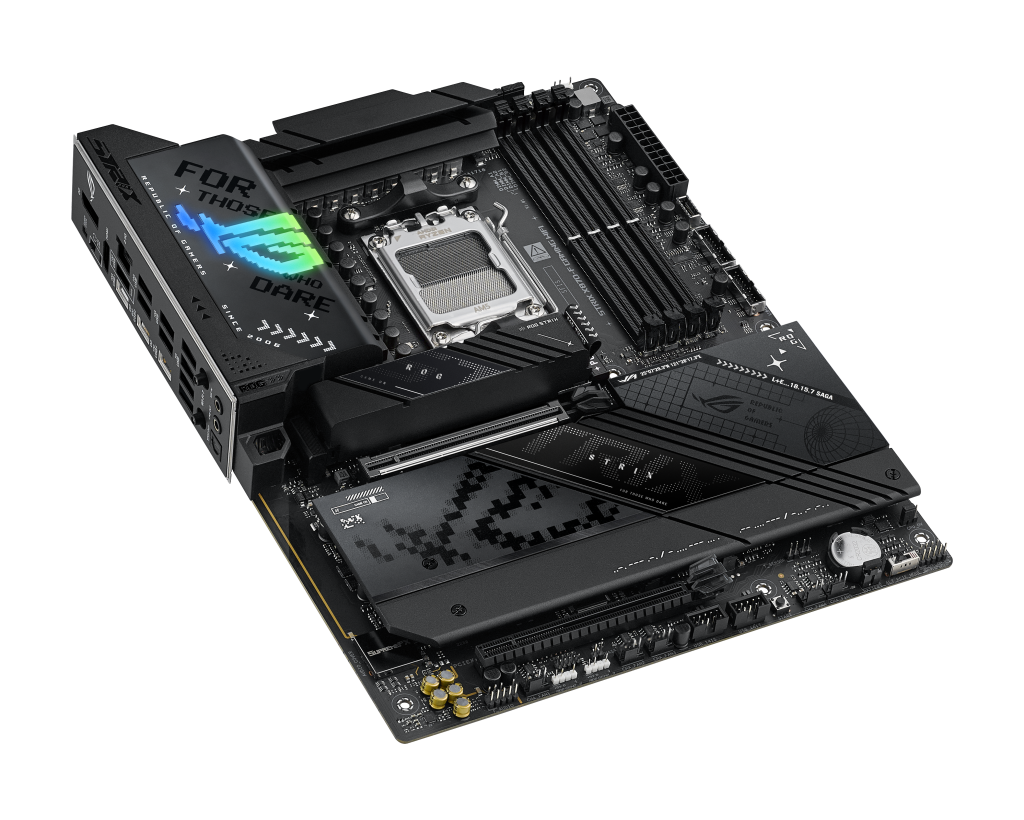

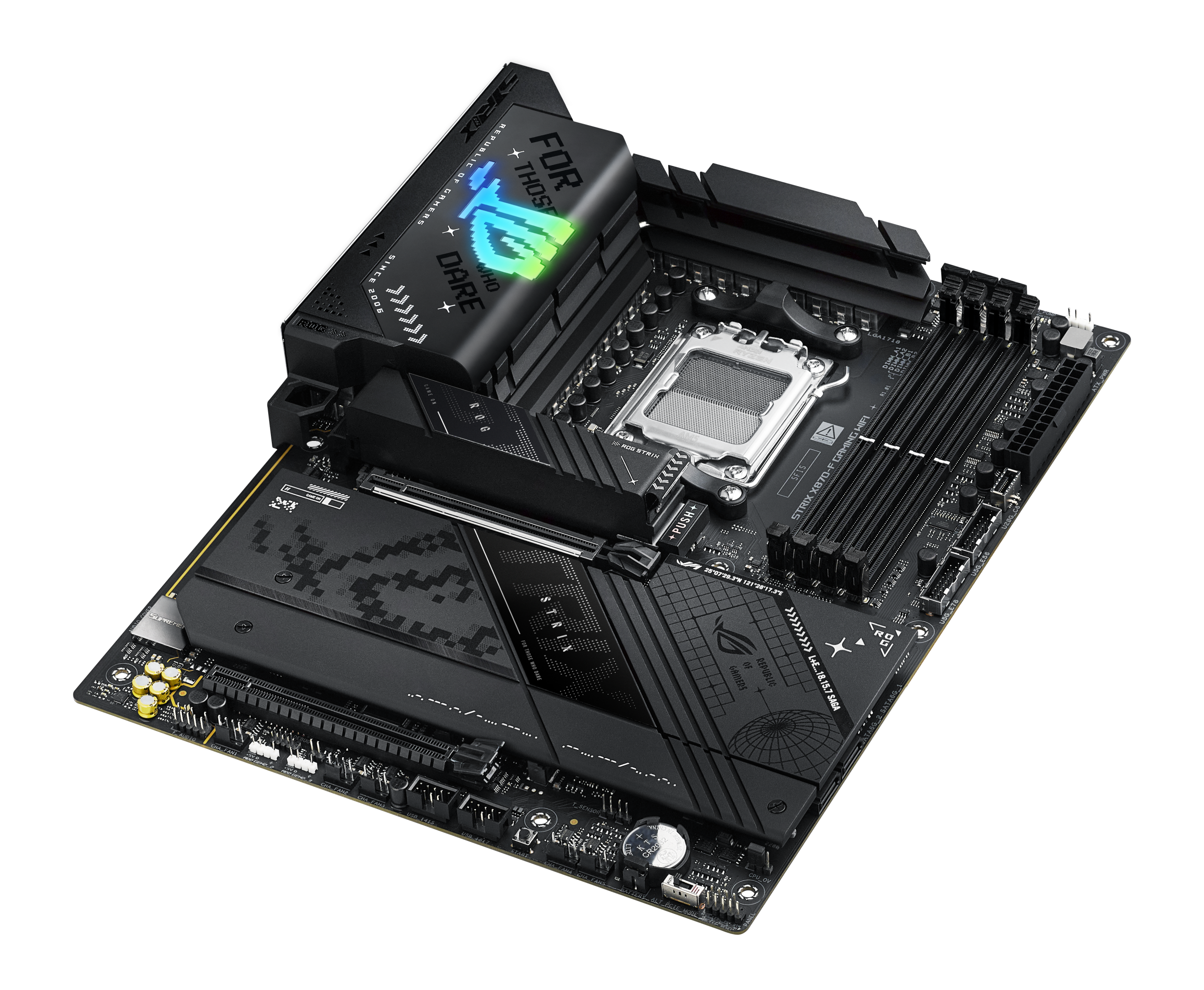

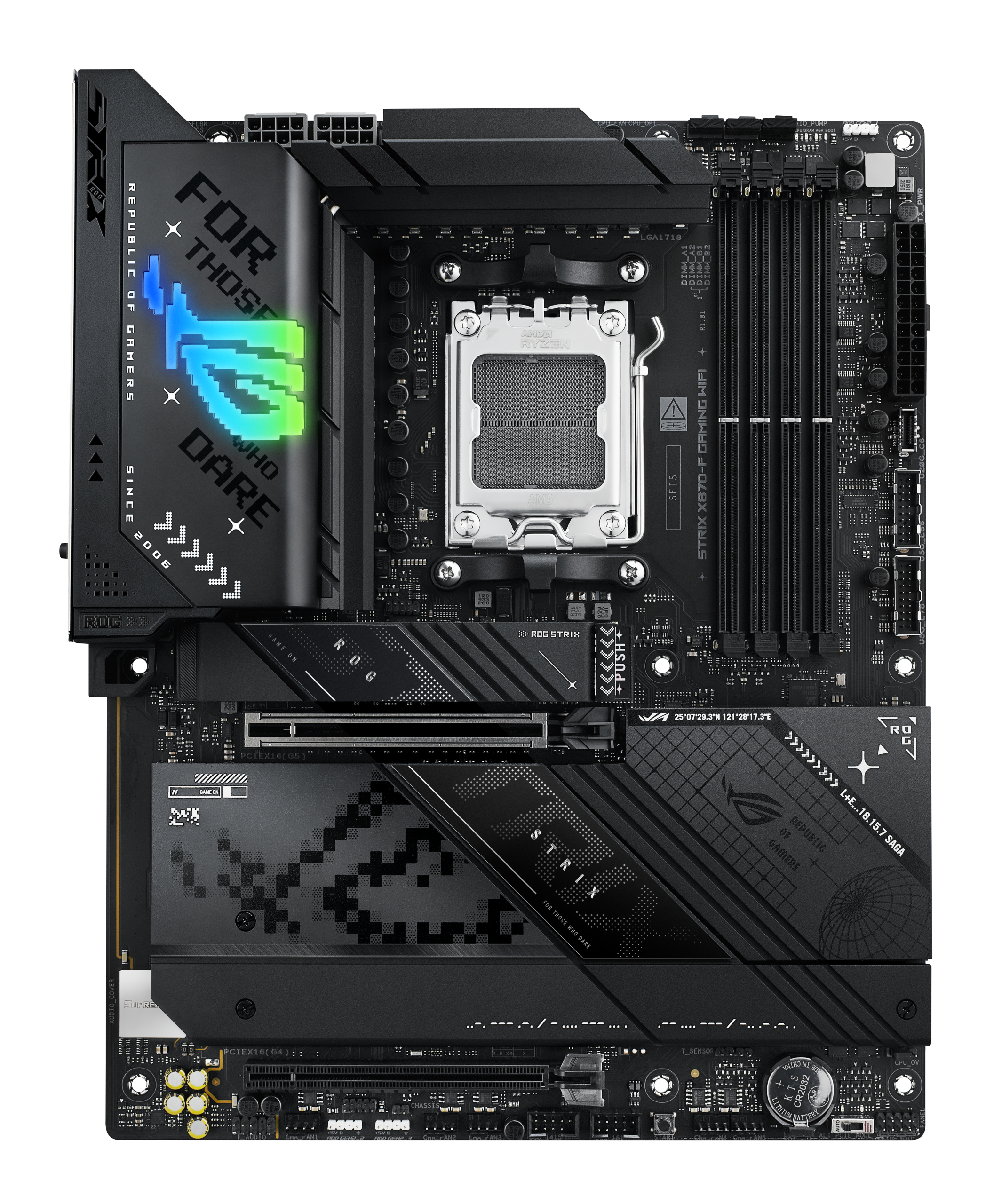

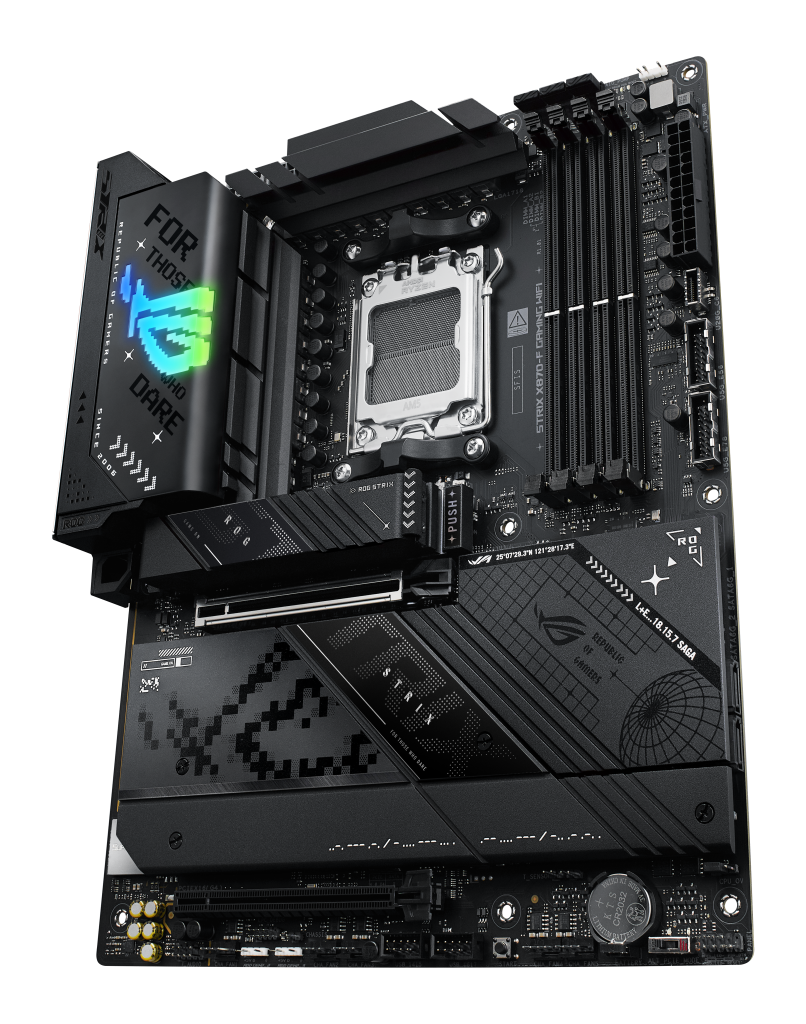

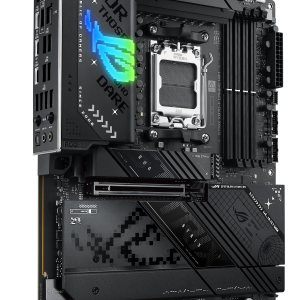

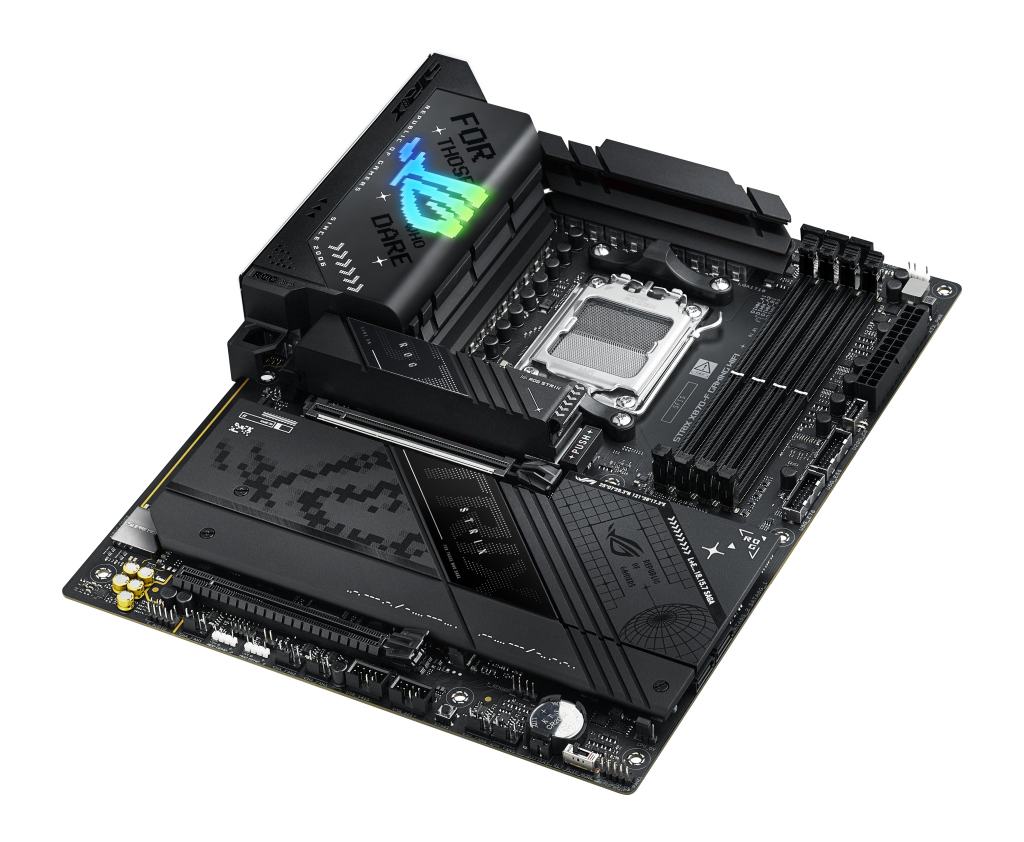

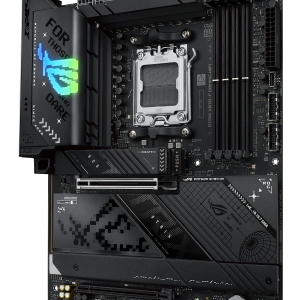

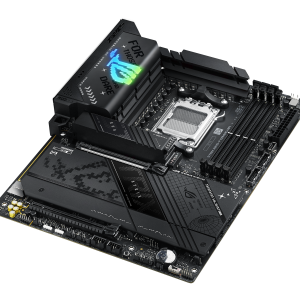

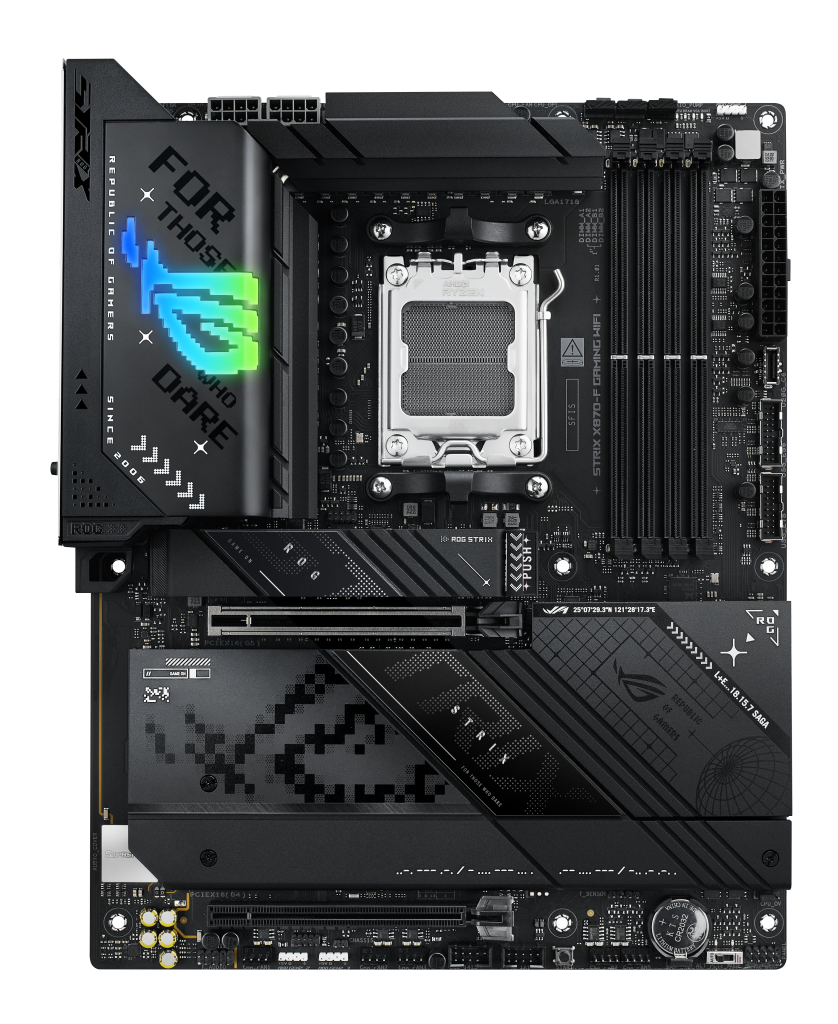

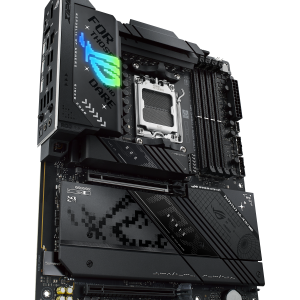

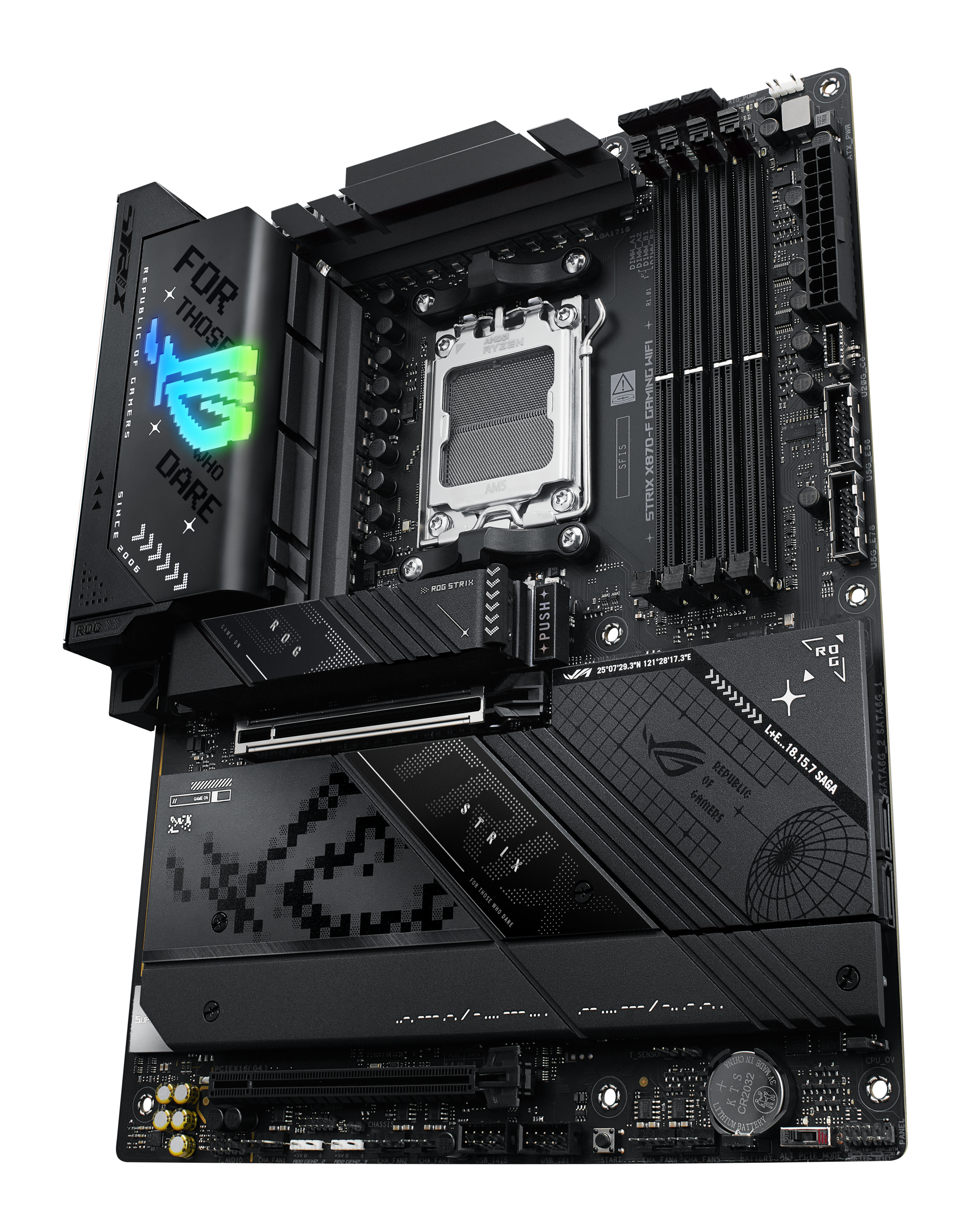

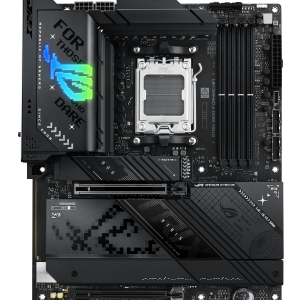

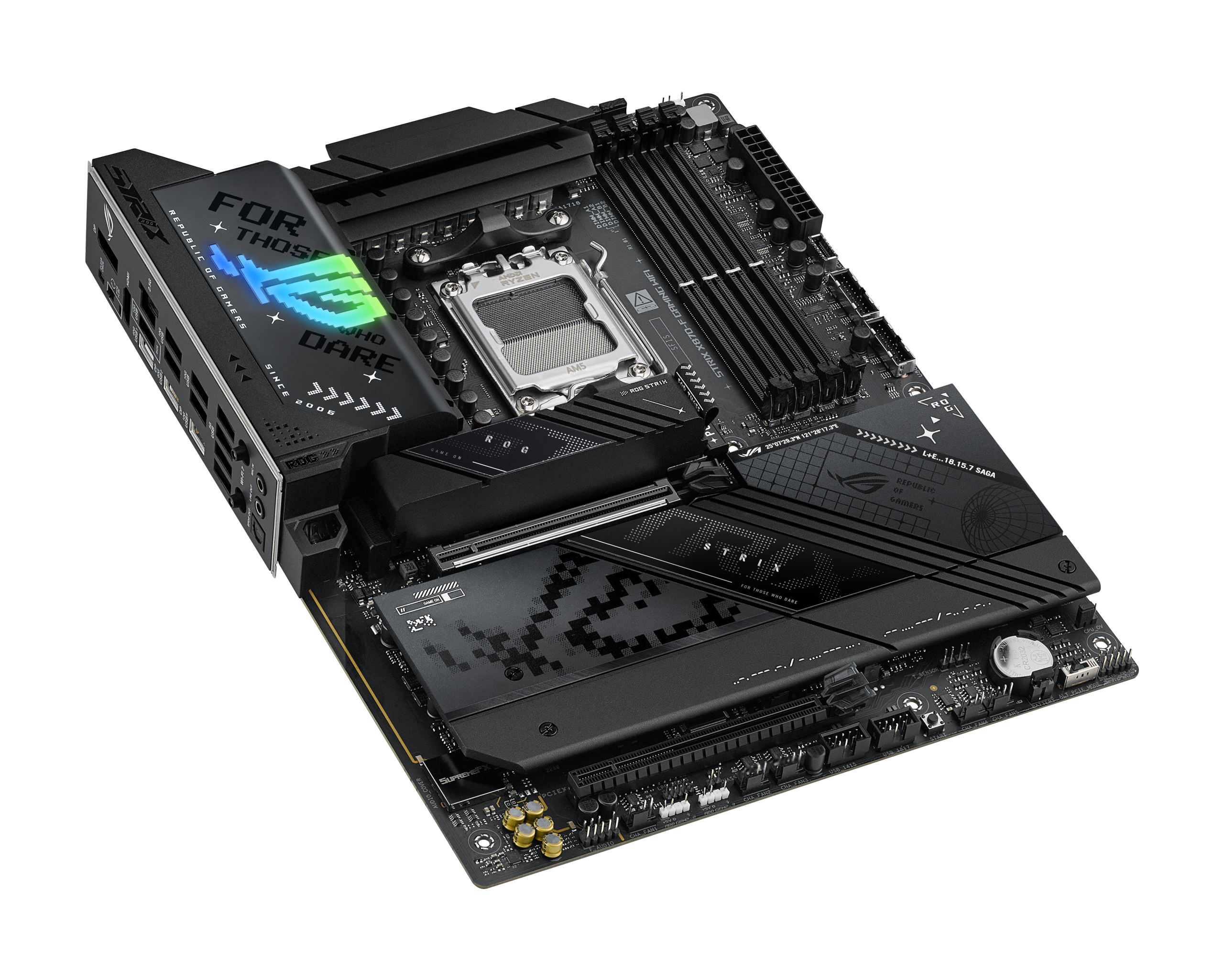

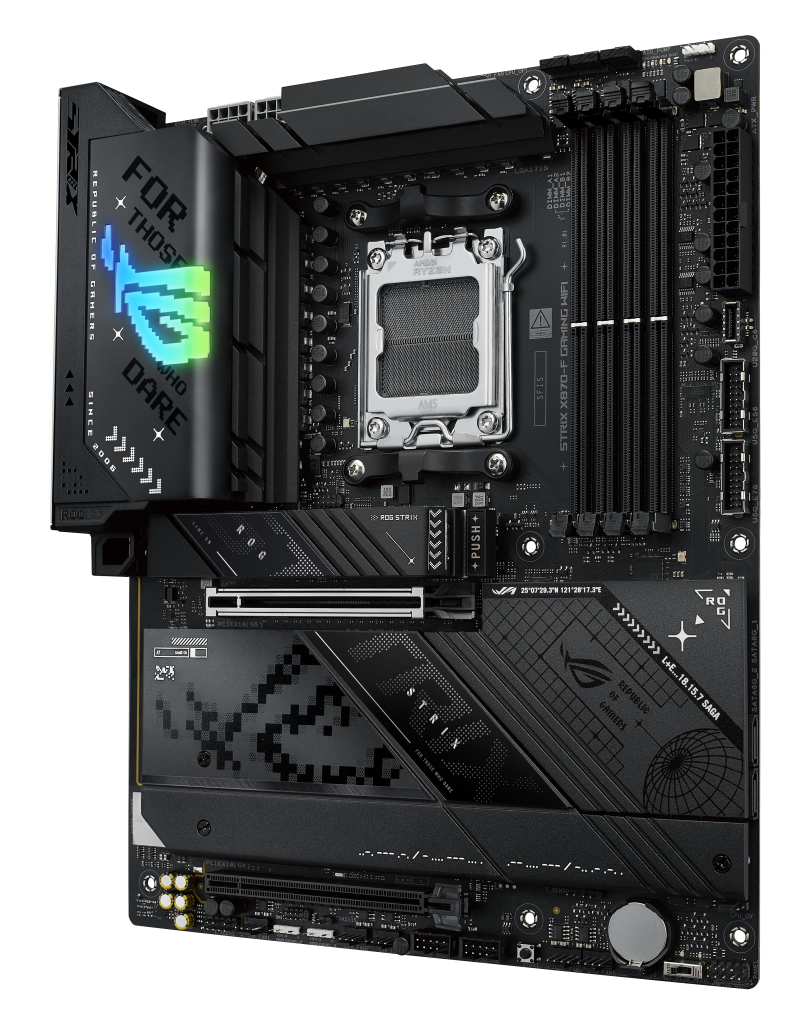

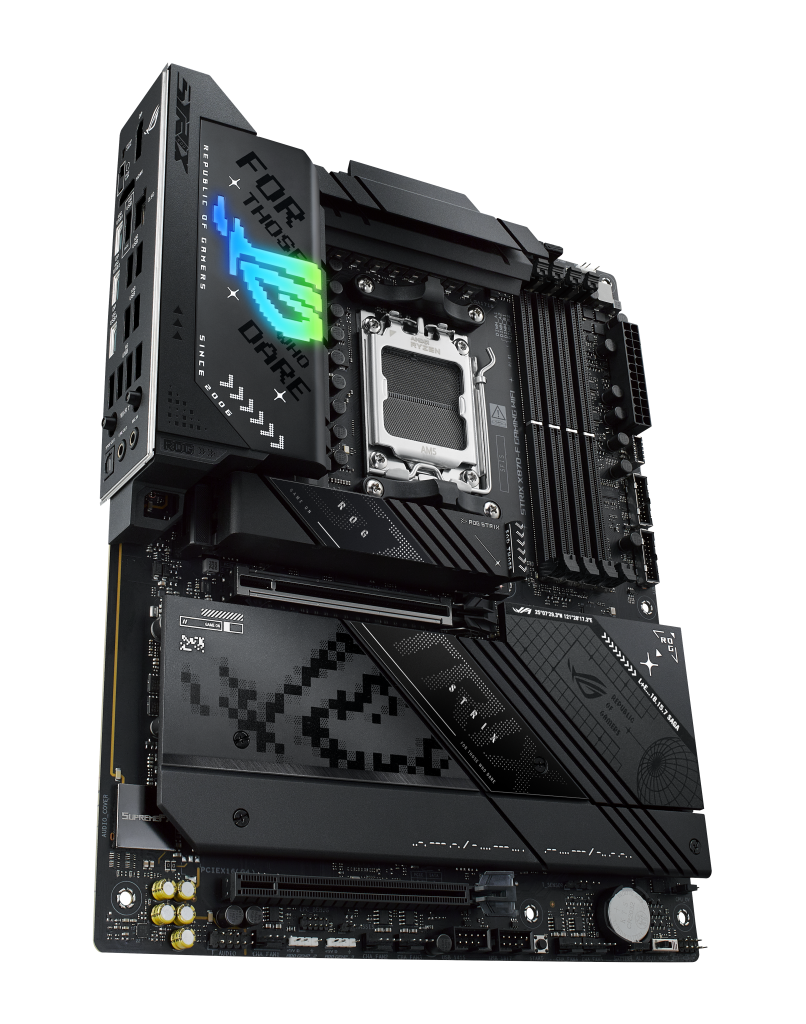

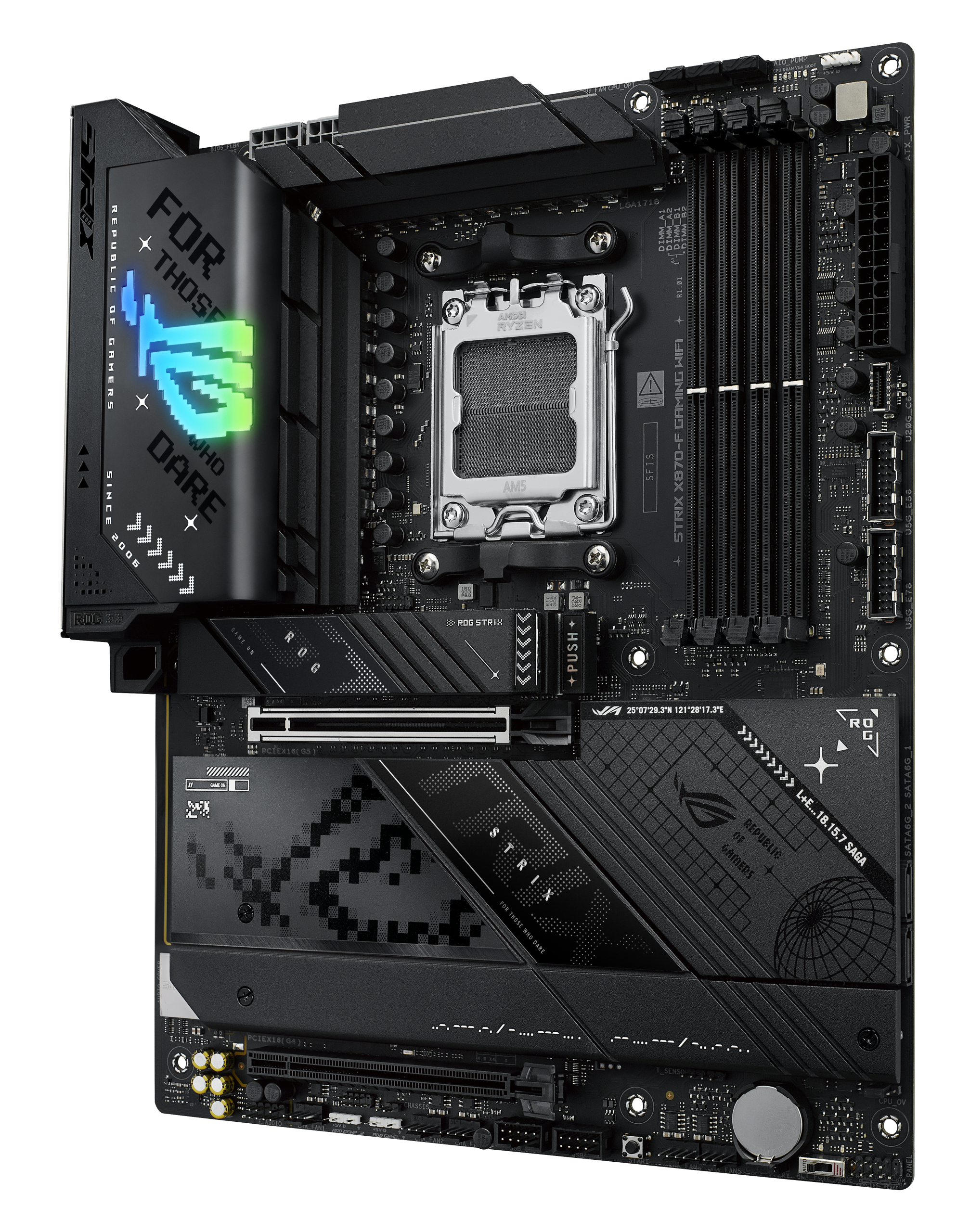

ASUS ROG Strix X870-F Gaming WiFi motherboard, AMD X870, Socket AM5, DDR5

– 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x16
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 8000 MHz (OC)
– 4x M.2 (including 2x PCIe 5.0 and 2x PCIe 4.0) / 2x SATA 6G
– 2x USB 4, 1x USB-C 3.1, 5x USB 3.1, and 4x USB 3.0 on the I/O panel
– OC features: 19-phase VRMs, CMOS reset, Digi+ VRM
– A total of 8x 4-pin PWM fans possible

ASUS ROG STRIX X870-F GAMING WIFI: ATX motherboard with AMD AM5 socket and X870 chipset
The ASUS ROG STRIX X870-F GAMING WIFI is equipped with the The mid-tier X870 chipset for AMDs Ryzen 9000 series processors is equipped with numerous features for gamers. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASUS ROG STRIX X870-F GAMING WIFI supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Optimized for Gaming
The ASUS ROG STRIX X870-F GAMING WIFI is designed for high-end gaming, so you can enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Added to that are features like DIGI+ VRM for adjusting VRM voltage and frequency modulation, as well as BIOS Flashback and Clear CMOS, so you can get your PC back up and running if something goes wrong. And, as always, the DDR5 RAM can also be pushed to its limits at higher clock speeds.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870 (Single Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (up to 8000 MHz with overclocking)
– – Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 4.0 x16 (electrical x4, chipset)
– Internal Connectors:
– Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 2x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280, CPU)
– 1x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
– 2x M.2 (PCIe 4.0 x4; 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x CPU OPT fan header
– 5x fan header (4-pin)
– 1x AiO pump header
– RGB header:
– 3x 3-pin ARGB headers (5 V)

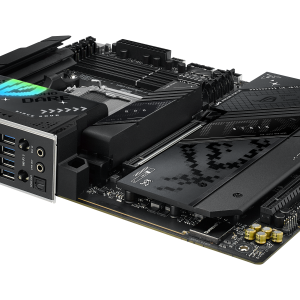

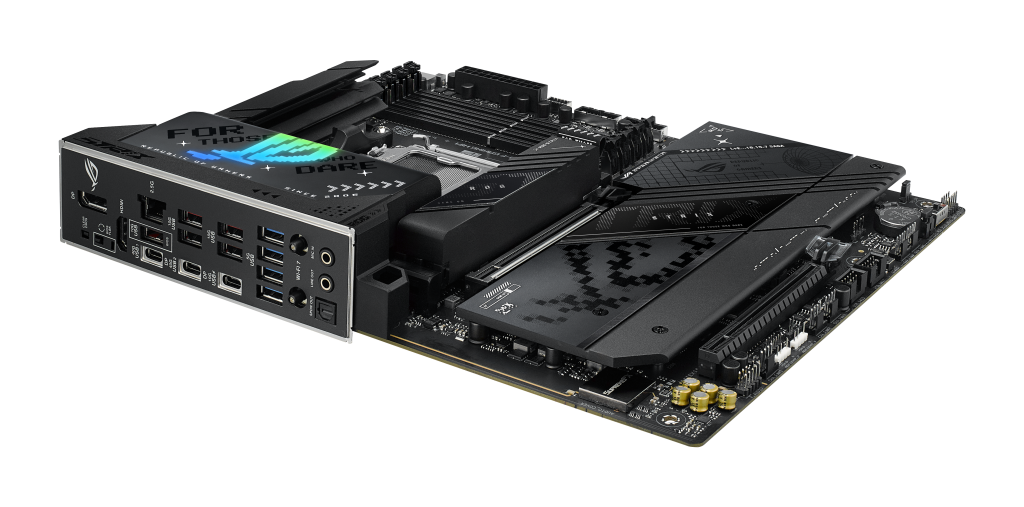

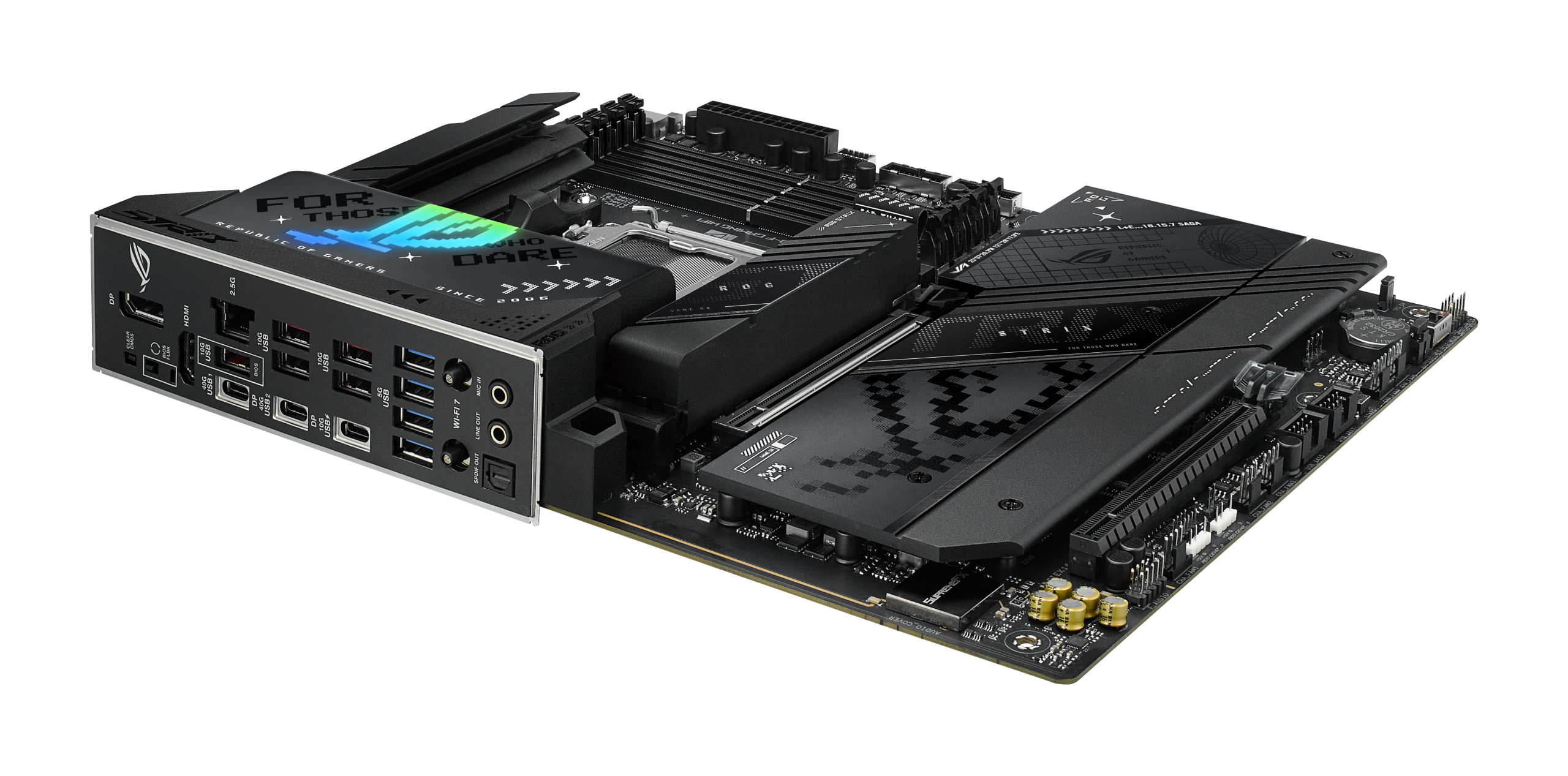

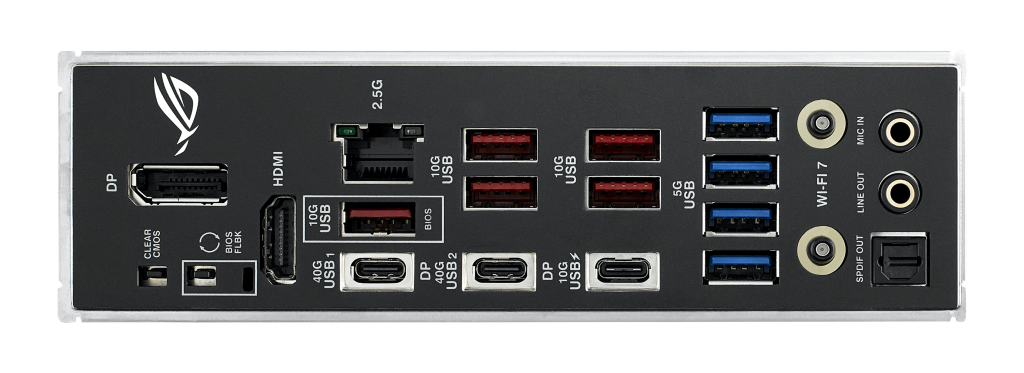

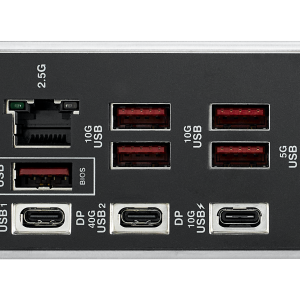

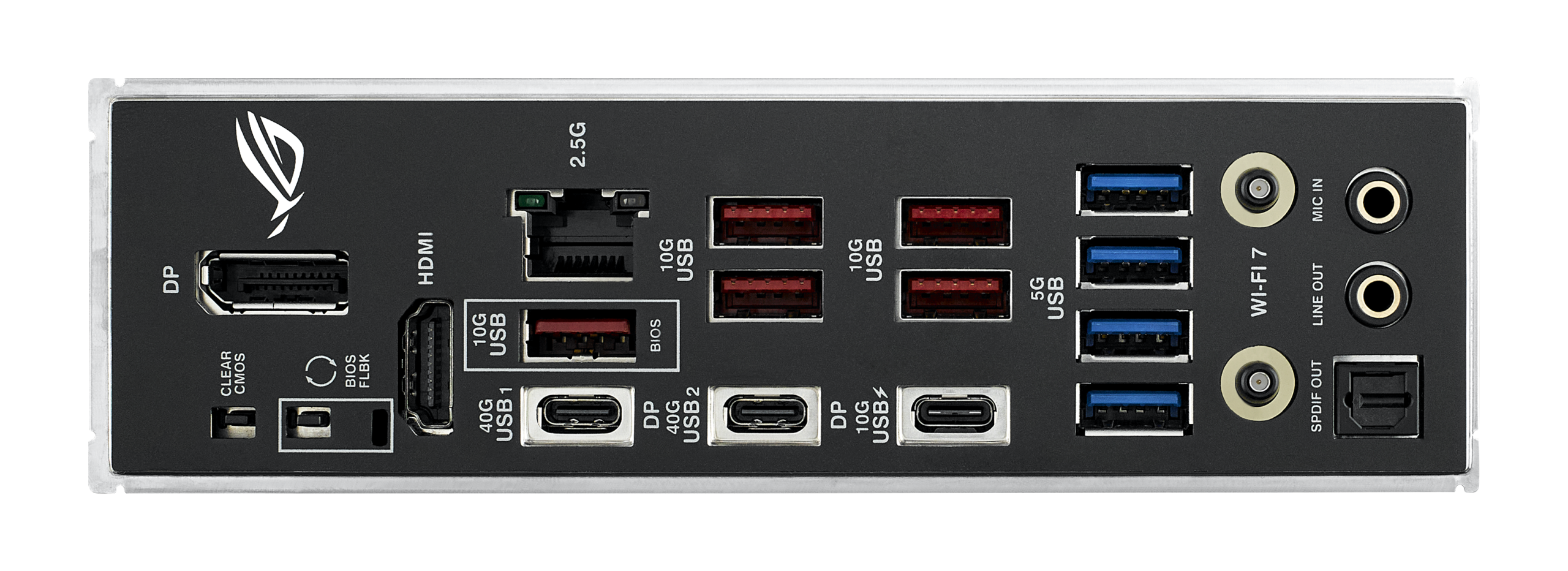

– External ports:
– 1x USB 4 (Type-C, USB 4 Gen 3×2, max. 40 Gbps with DisplayPort)
– 5x USB 3.1 (Type-A, USB 3.2 Gen 2, max. 10 Gbps)
– 1x USB 3.1 (Type-C, USB 3.2 Gen 2, max. 10 Gbps)
– 4x USB 3.0 (Type-C, USB 3.2 Gen 1, max. 5 Gbps)
– 1x DisplayPort 1.4
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Intel I226-V)
– 2x 3.5 mm jack and 1x S/PDIF audio (Realtek ALC4080)
– 2x RP-SMA Quick Connect antenna connectors
– 1x Clear CMOS button
– 1x Reset button
– 1x BIOS Flashback button
– Power supply:
– 1x 24-pin ATX
– 2 x 8-pin 12V
– Accessories:
– 2 x SATA 6Gb/s cables
– 1 x Thermal pad for M.2 22110
– 1 x ASUS WiFi Q-antenna
– 1 x Cable tie pack
– 1 x M.2 Q-Latch pack
– 1 x M.2 Q-Slide pack
– 1 x ROG keychain
– 1 x ROG Strix sticker
– 4 x M.2 rubber pack
– 1 x Quick start guide
