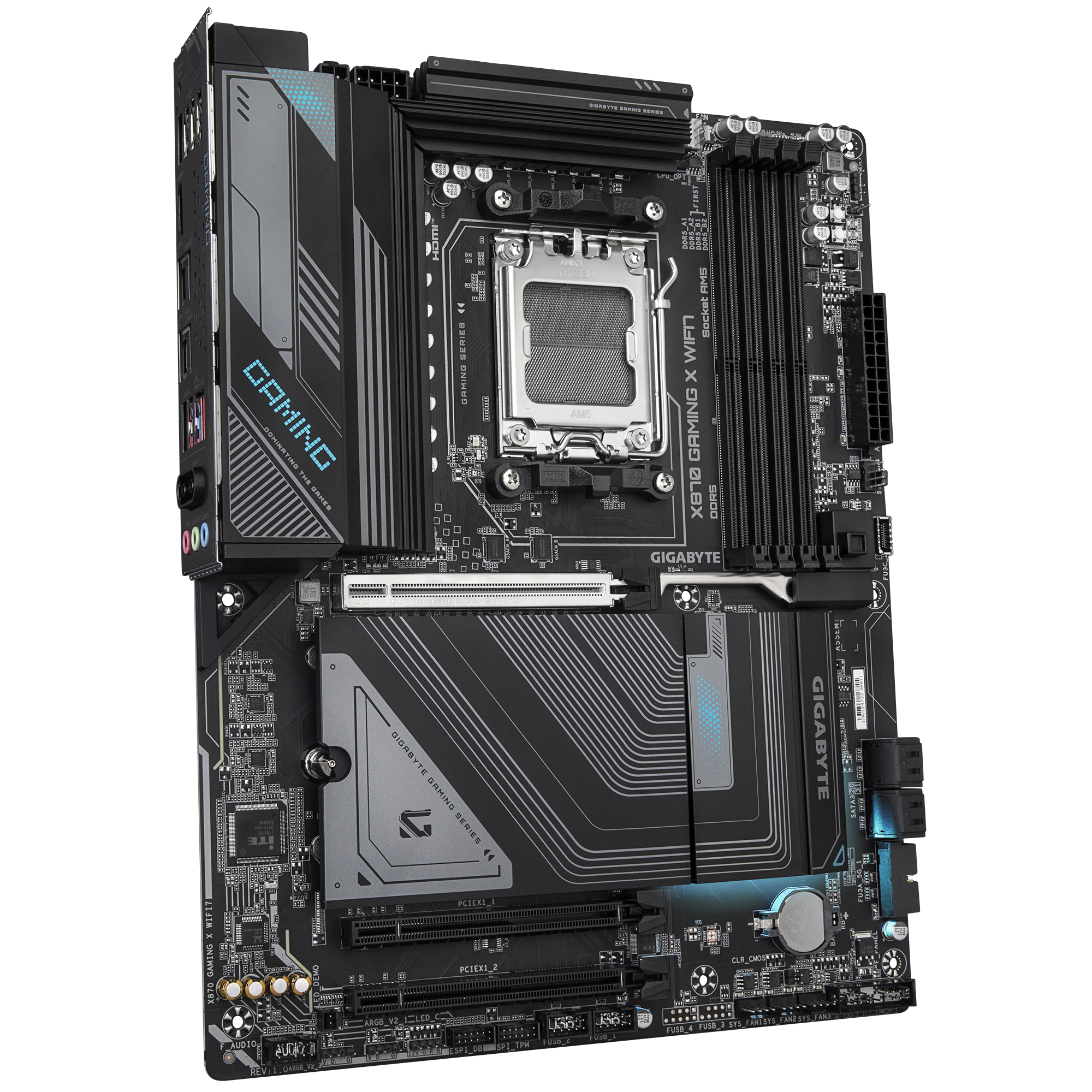

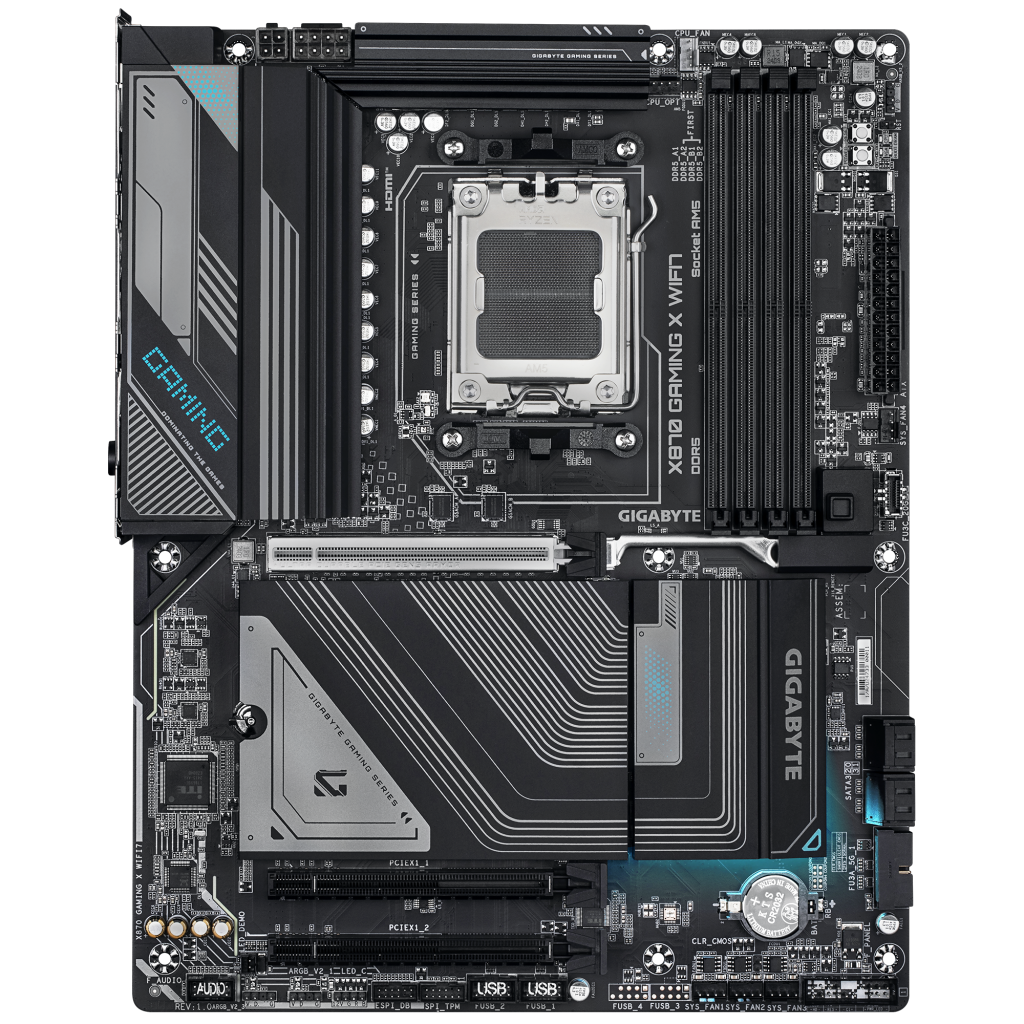

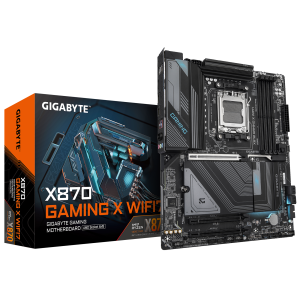

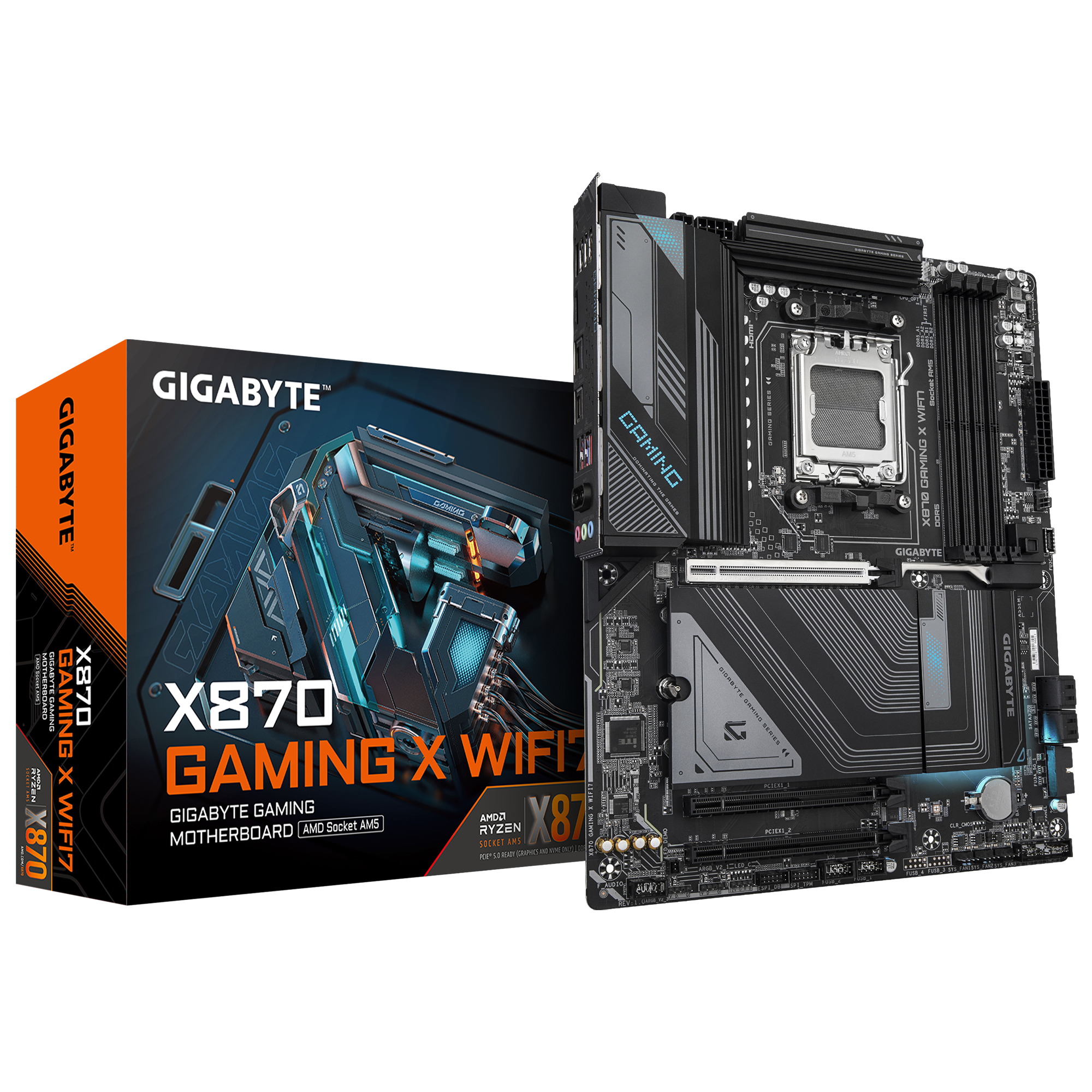

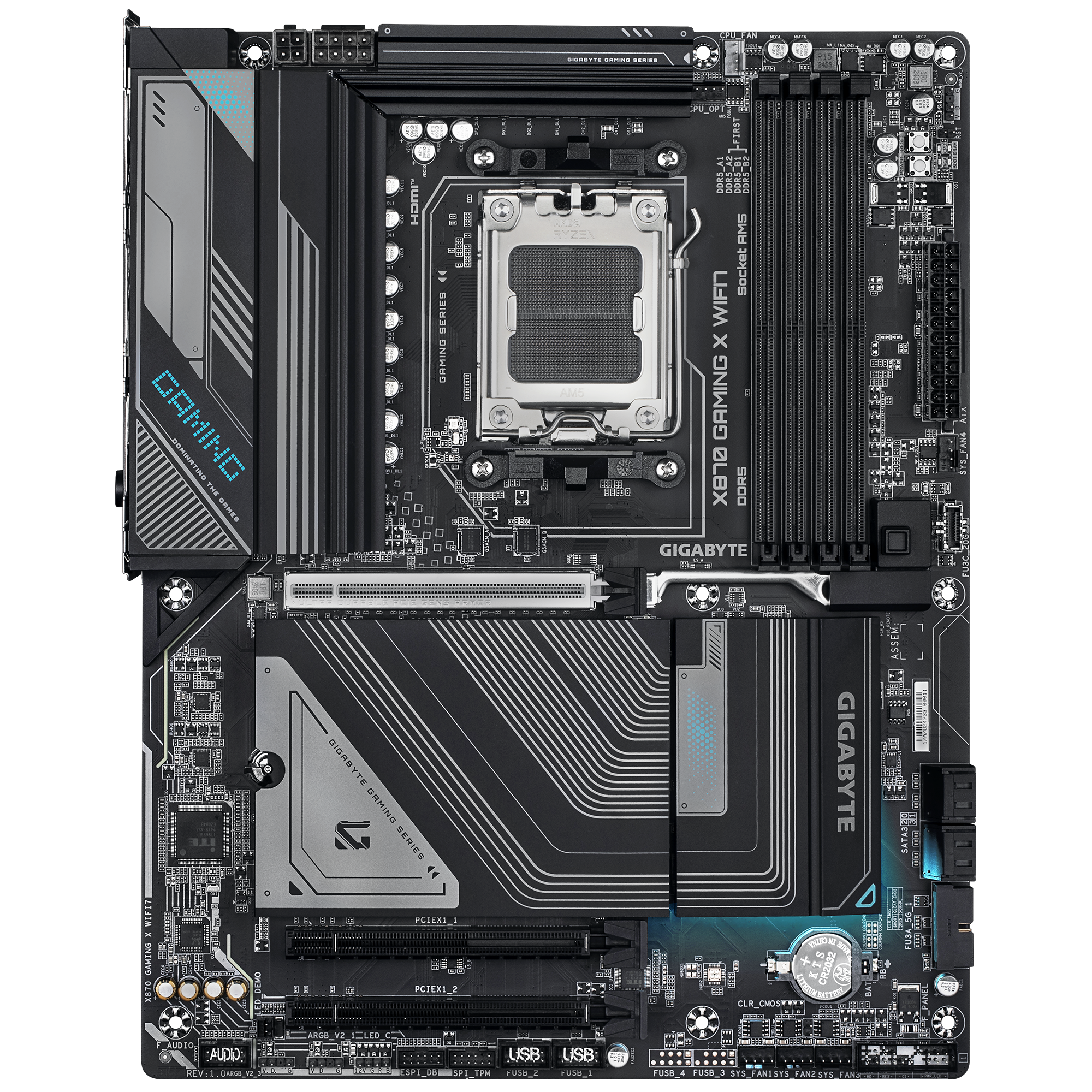

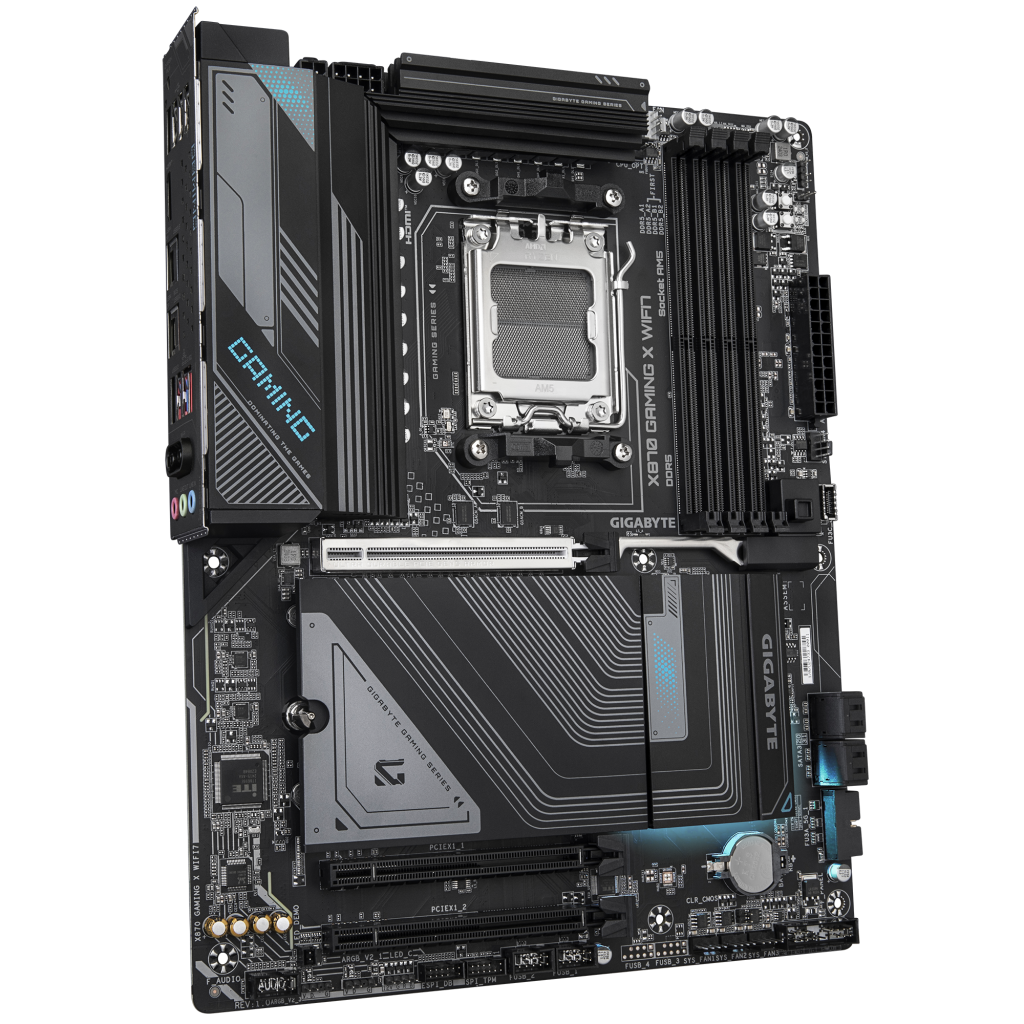

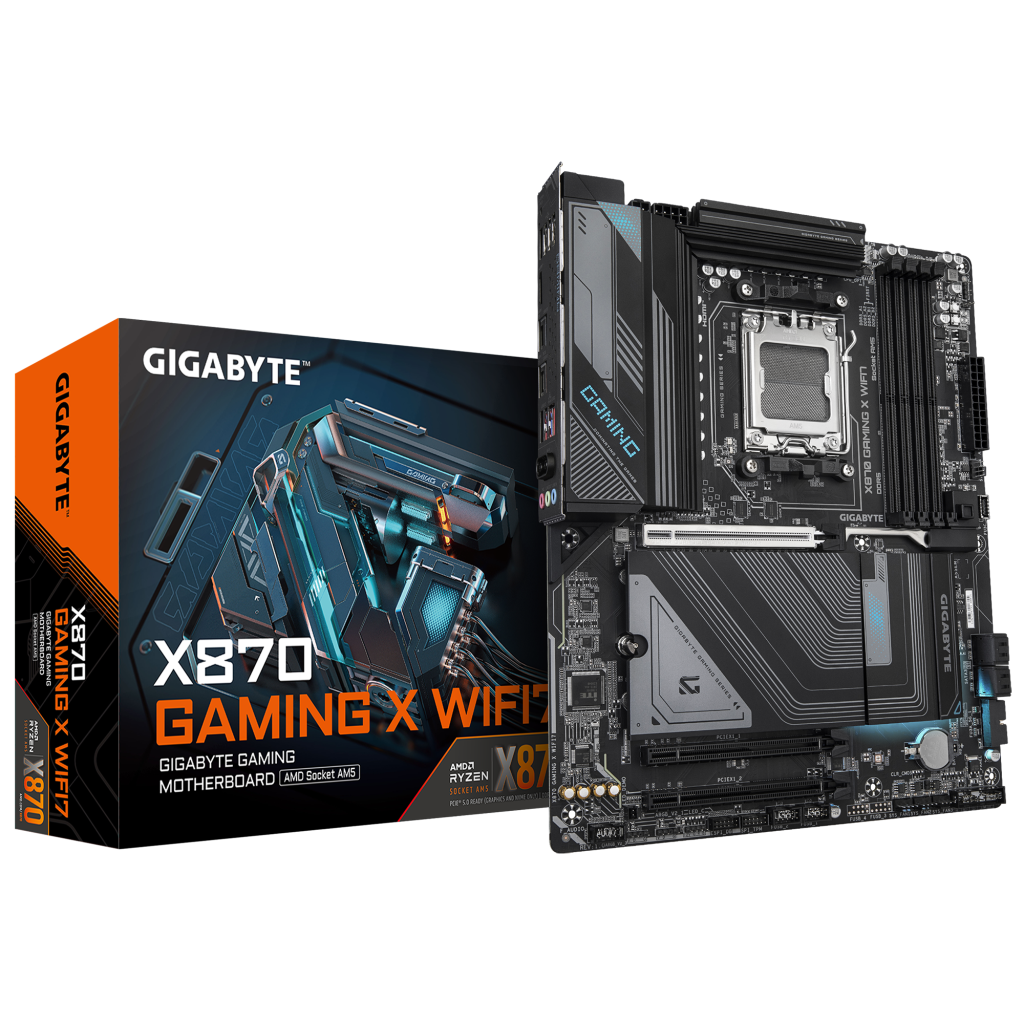

Gigabyte X870 Gaming X Wifi 7 motherboard, socket AM5, AMD X870, ATX, DDR5

– 1x PCIe 5.0 x16 (x16) and 2x PCIe 3.0 x16 (x1)
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 8000 MHz (OC)
– 3x M.2 (including 1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G
– 2x USB 4, 1x USB 3.1, 3x USB 3.0, and 4x USB 2.0 on the I/O panel
– OC features: 20-phase VRMs
– A total of 6x 4-pin PWM fans possible

GIGABYTE X870 GAMING X WIFI7: ATX motherboard with AMD AM5 socket and X870 chipset
The GIGABYTE X870 GAMING X WIFI7 features the mid-tier X870 chipset for AMD Equipped with Ryzen 9000 series processors, it boasts numerous features for gamers. The Ryzen 9000 series processors also utilize the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the GIGABYTE X870 GAMING X WIFI7 supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Made for Gaming
The GIGABYTE X870 GAMING X WIFI7 is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. There are also features like BIOS Flashback, so you can get your PC back up and running if something goes wrong. And, as usual, the DDR5 RAM can be pushed to its limits with higher clock speeds.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (up to 8000 MHz with overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 or x8/x8, CPU)
– 2x PCIe 3.0 x16 (electrical x1, chipset)
– Internal Connectors:
– Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2280 / 2580 / 22110 / 25110, CPU)
– 1x M.2 (PCIe 4.0 x4; 2280 / 2580 / 22110 / 25110, chipset)
– 1x M.2 (PCIe 4.0 x2; 2280 / 2580 / 22110 / 25110, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 2x USB 3.0 (1 header, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 1x CPU fan header (4-pin)
– 1x CPU fan/pump header (4-pin)
– 4x fan headers (4-pin)
– RGB header:
– 3x 3-pin ARGB headers (5V)
– 1x 4-pin RGB header (12V)
– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s with DisplayPort)
– 1x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbit/s)
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN (Realtek)
– 3x 3.5 mm jack (Realtek ALC1220)
– 2x antenna connection RP-SMA Quick Connect
– 1x WiFI/Bluetooth module
– 1x reset
– 1x BIOS Flashback
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V
