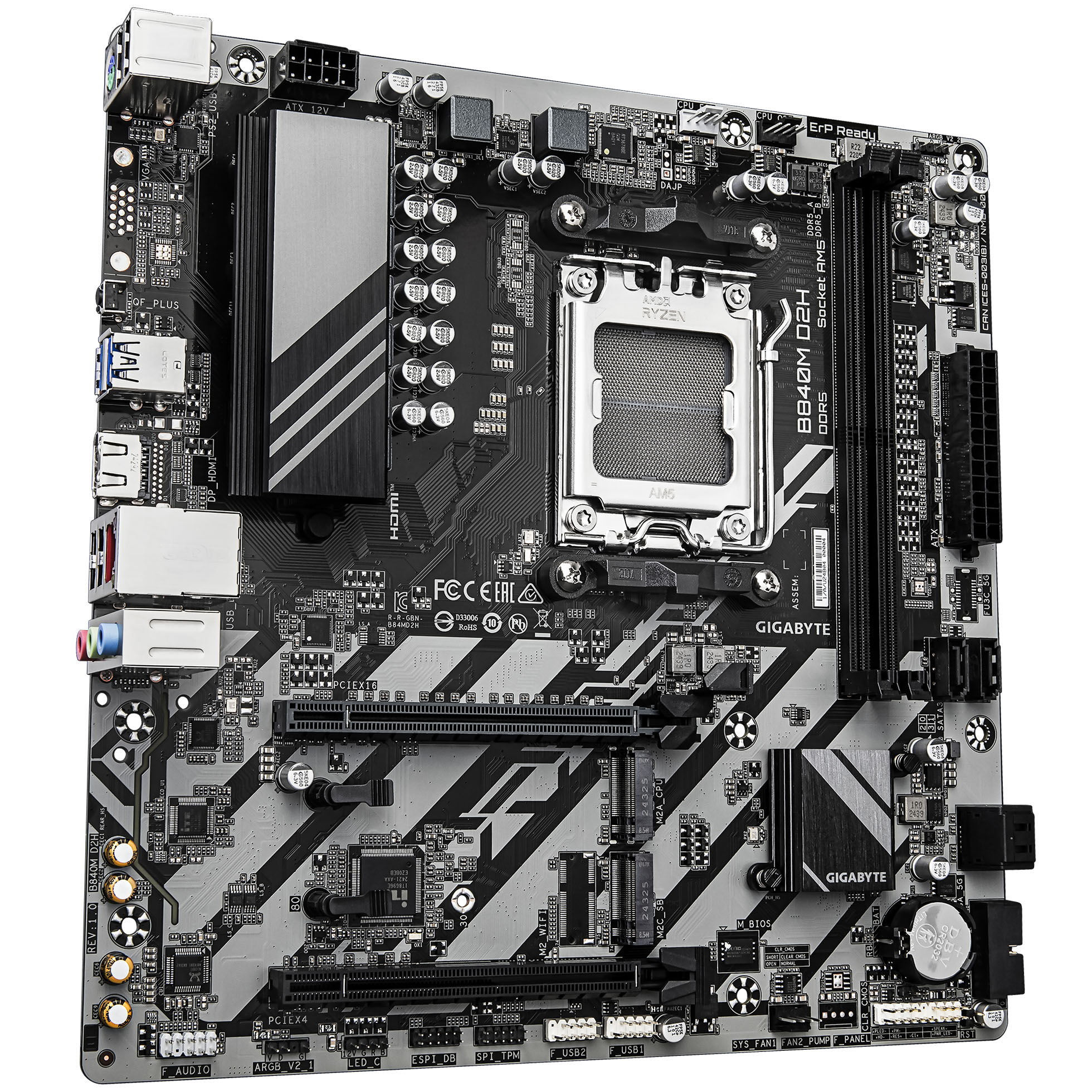

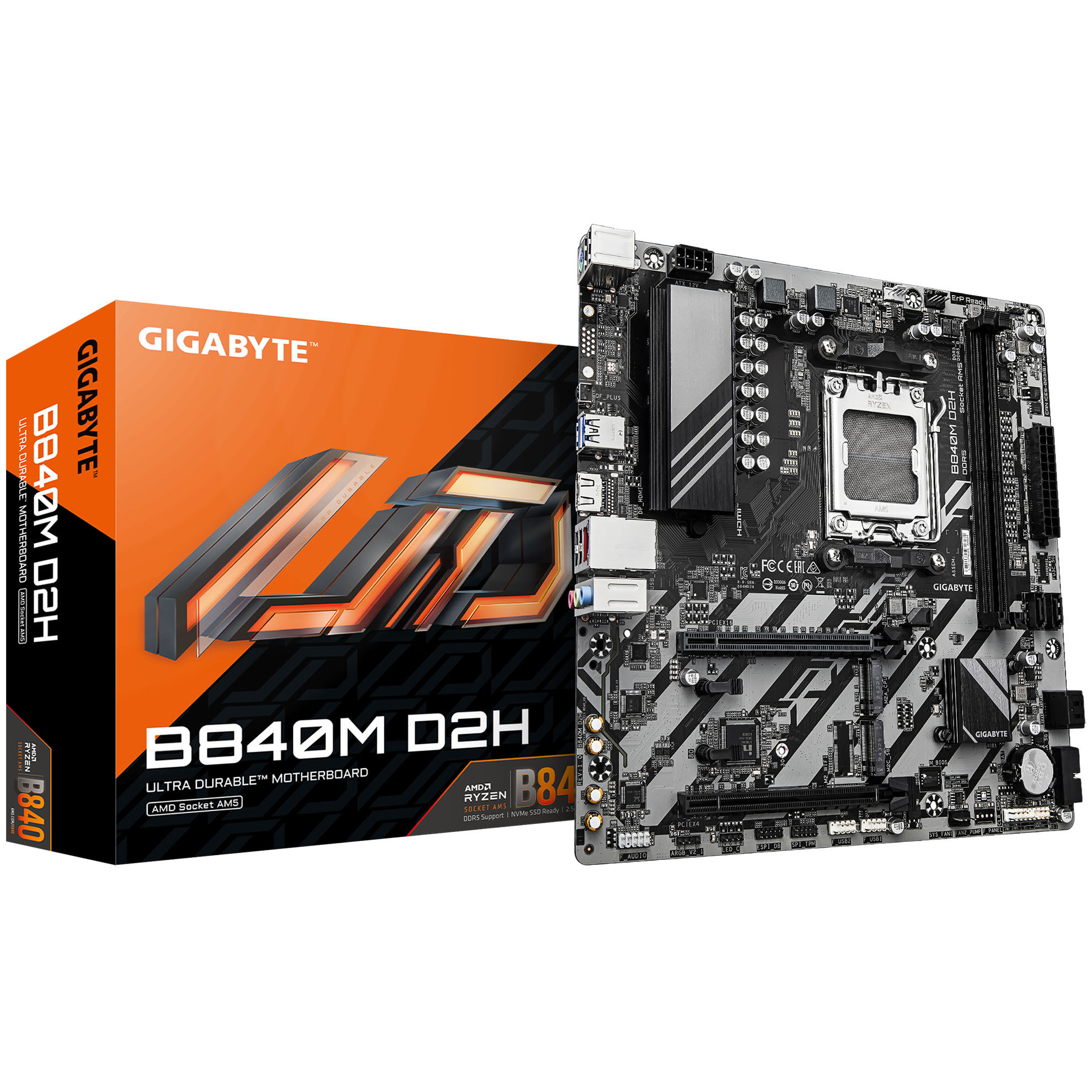

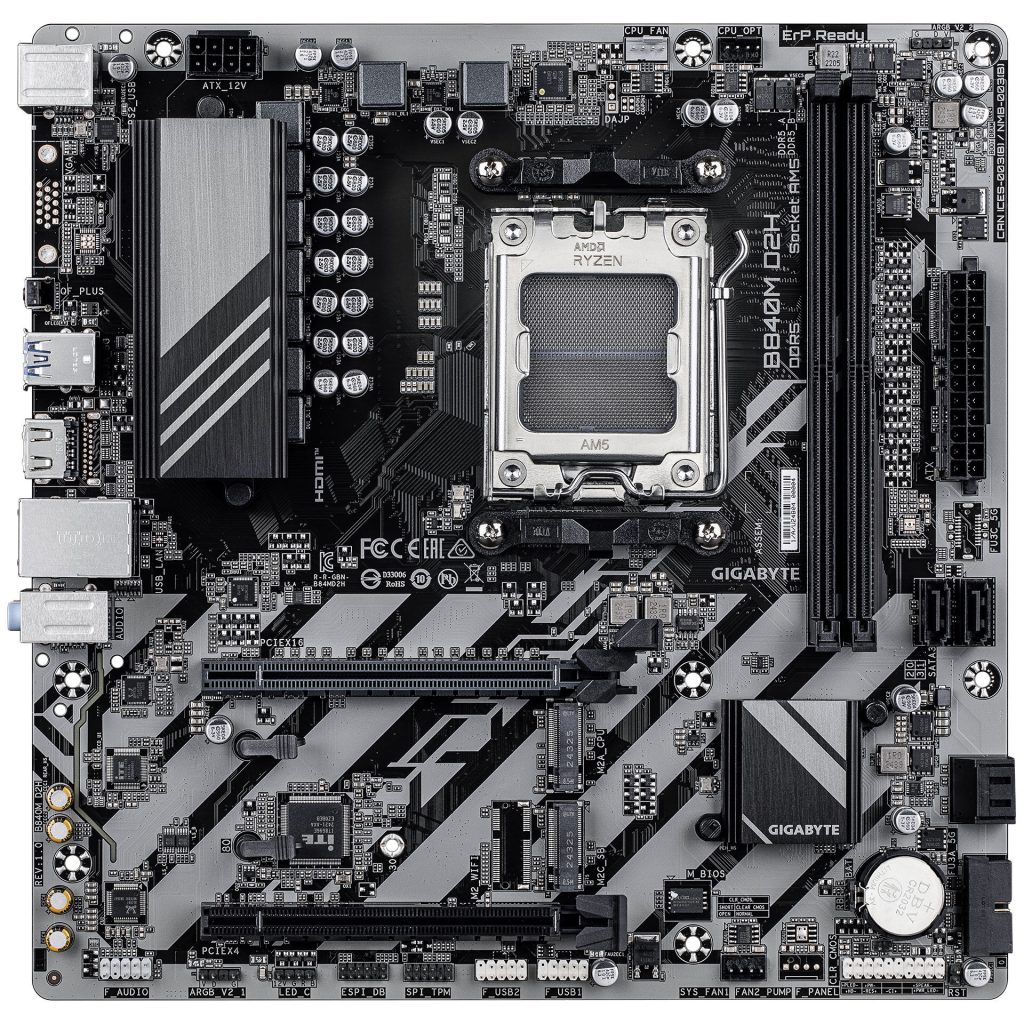

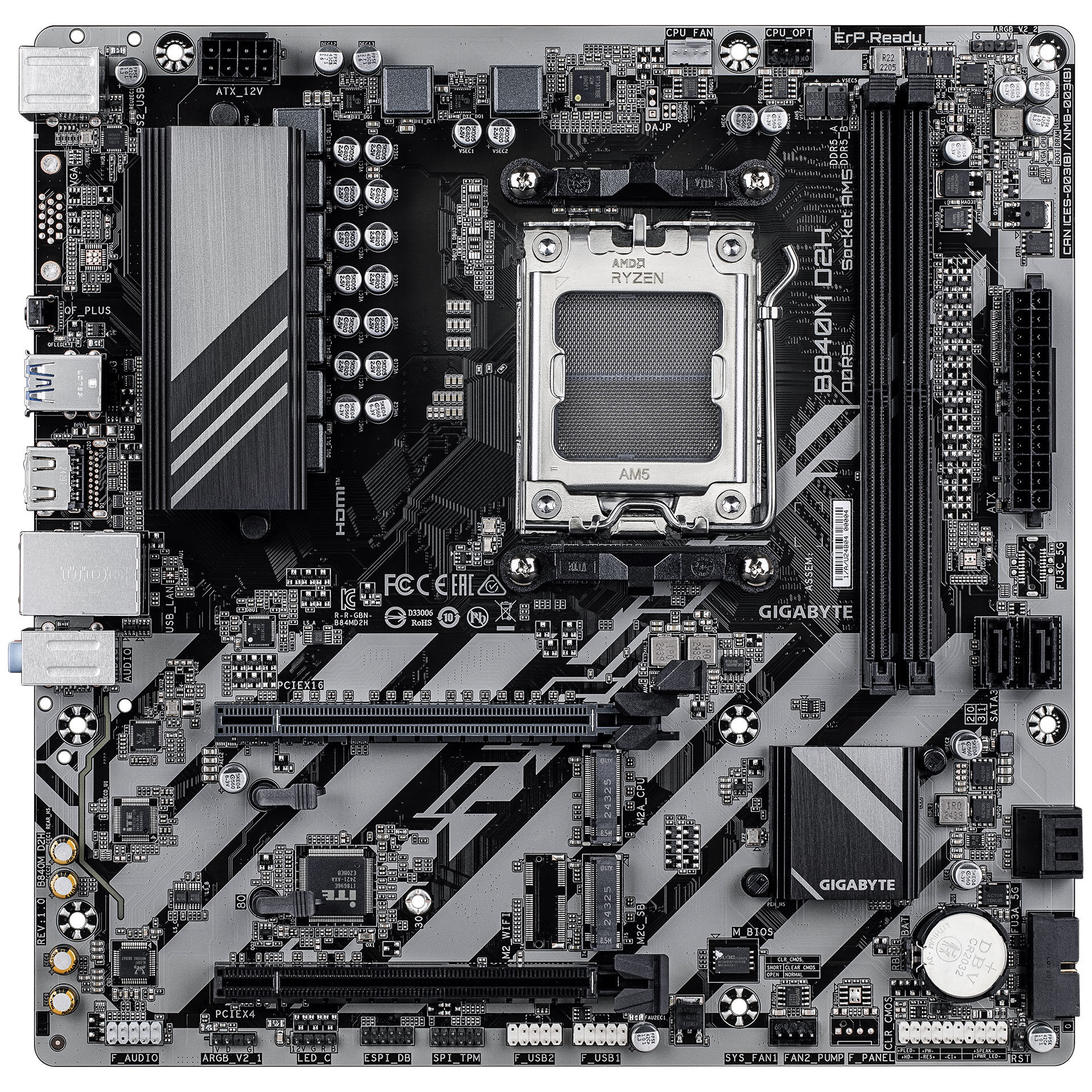

Gigabyte B840M D2H motherboard, Socket AM5, AMD B840, Micro-ATX, DDR5

The GIGABYTE B840M D2H is a Micro-ATX motherboard with the AMD B840 chipset, designed for AMD Ryzen 7000, 8000, and 9000 series processors with the AM5 socket. It provides a solid foundation for modern gaming and work PCs.

– Supports Ryzen 7000–9000 CPUs – a future-proof platform
– Up to 192 GB RAM at up to 7,200 MT/s (OC)
– 2x M.2 PCIe slots for fast NVMe SSDs
– 2.5 Gb LAN for fast network connections
– Q-Flash Plus for CPU-free BIOS updates
– Powerful platform for modern applications

With support for current-generation AMD Ryzen processors and DDR5 memory, the B840M D2H provides a powerful foundation for demanding applications. The 5+2+2 phase VRM ensures stable power delivery, even under high loads.

Fast Storage and Expansion Options
Four DDR5 slots allow for up to 192 GB of high-speed memory. One M.2 PCIe 4.0 and one M.2 PCIe 3.0 slot offer space for fast NVMe SSDs, while four SATA 6 Gb/s ports provide additional storage options.

Modern Connectivity and Ease of Use

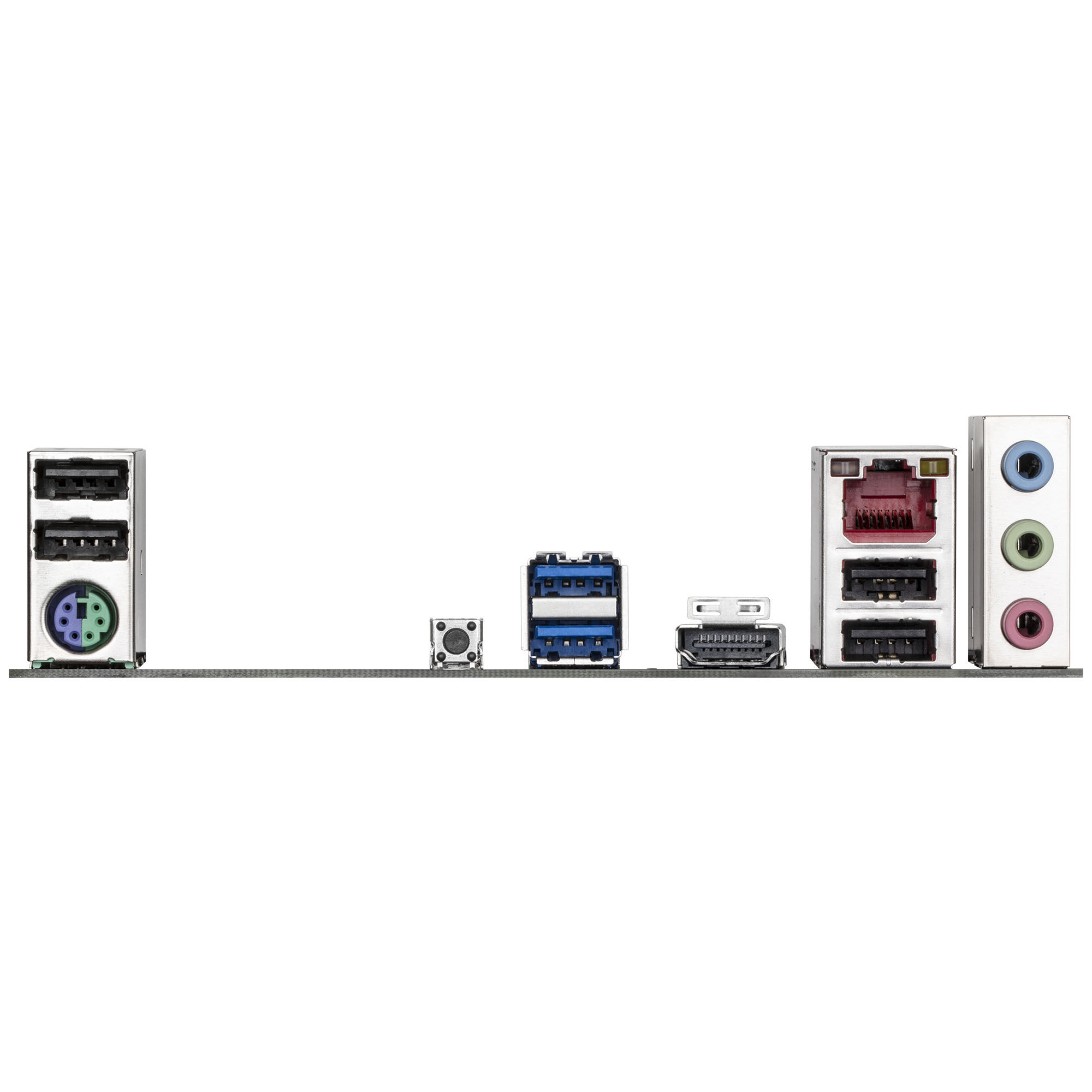

The motherboard features an HDMI 2.1 output for high-resolution displays and a 2.5 Gb LAN port for fast network connections. X3D Turbo Mode and Q-Flash Plus make performance enhancements and BIOS updates easy. The motherboard features two USB-A 3.0 and four USB-A 2.0 ports for seamlessly connecting your peripherals.

Technical Details
– Color
– Main Color
– Silver
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B840
– Dual BIOS
– No
– Built-in IO Shield
– No
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 5200 MT/s
– Max. Memory Speed (OC)
– 7600 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x (Total)
– Wi-Fi / Bluetooth
– No
– Cooling
– Backplate
– No
– M.2 Heatsink
– No
– VRM Heatsink
– No
