Gigabyte TRX50 AI Top Motherboard, Socket sTR5, AMD TRX50, E-ATX - DDR5

– 3x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x16) for multiple GPUs
– Up to 2 TB of DDR5 ECC memory up to 7800 MHz for large and fast data processing
– 4x M.2 PCIe 5.0 slots for fast data connections
– USB on the I/O panel: 2x USB 4 Type-C, one with DP, 6x USB 3.2 Type-C
– OC features: 16+8+4 phase VRMs with heat spreader, BIOS Flashback, Clear CMOS
– A total of 8 connectors for fans and pumps
– Optimized for AI training with tools like AI Top Utility

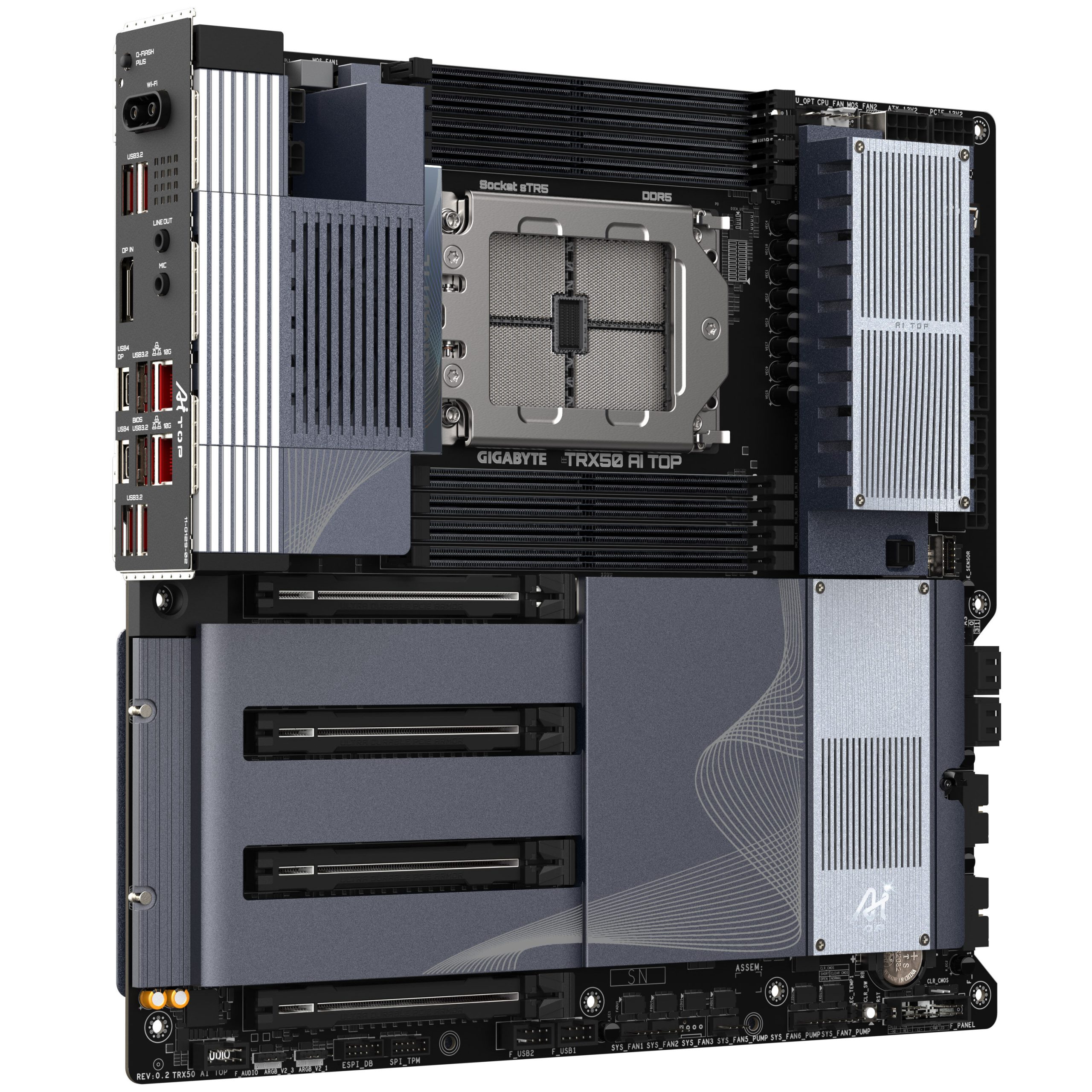

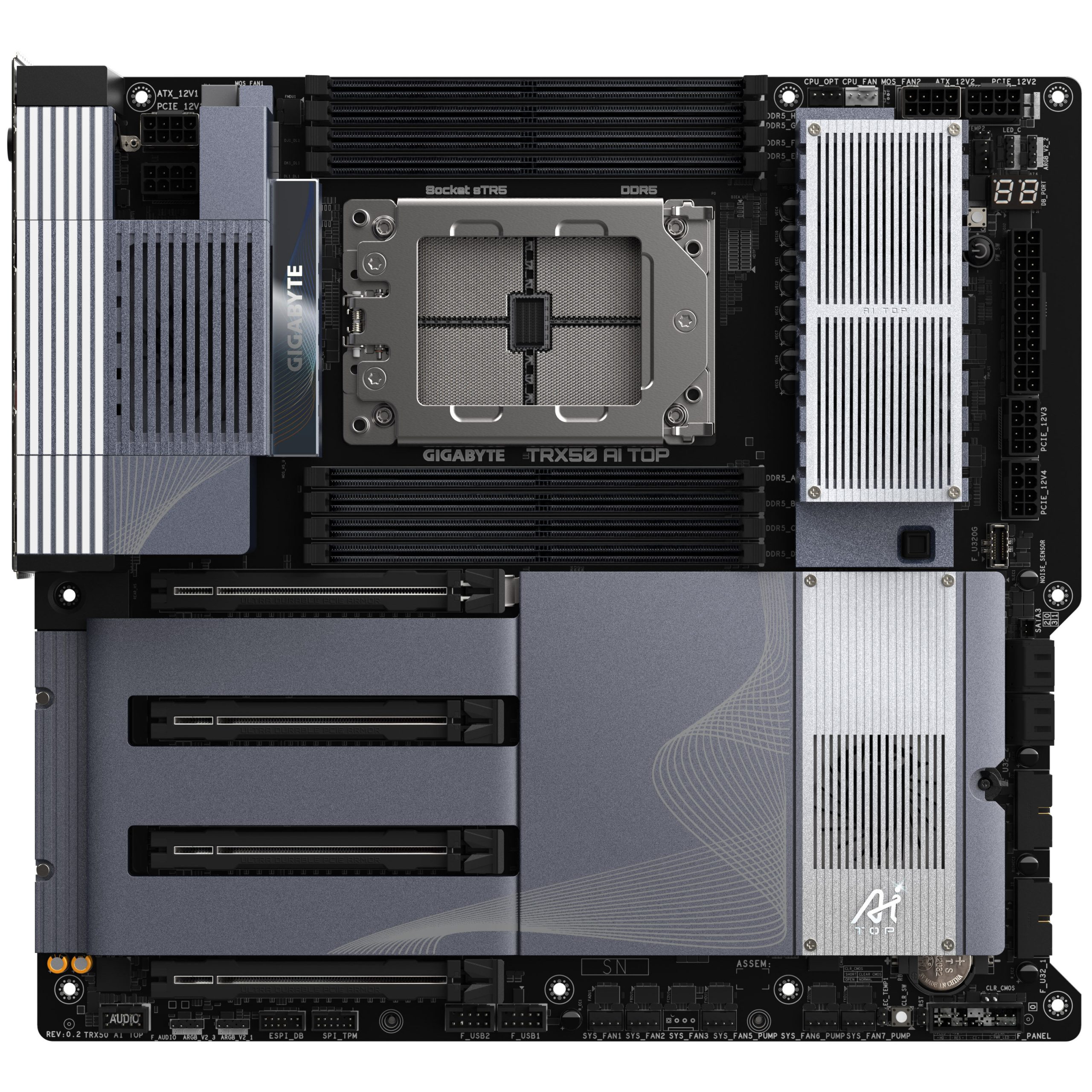

The GIGABYTE TRX50 AI Top in detail:
The GIGABYTE TRX50 AI Top is one of the workstation motherboards for AMDs Ryzen Threadripper 7000 CPUs and offers a wealth of features for The desktop workstation platform and AI training. The combination of the sTR5 socket and the TRX50 chipset is required for the Threadripper 7000 series prosumer processors to support their numerous business and professional features.

Other key features of the GIGABYTE TRX50 AI Top motherboard include a Wi-Fi/BT module (Qualcomm Wi-Fi 7 QCNCM865, 802.11be) and two 10 Gbps LAN ports (Marvell AQtion AQC113C). For audio, the manufacturer relies on the Realtek ALC4080 audio codec. This provides two 3.5mm jacks on the I/O panel.

Ports for every need
The motherboard has two USB 4 ports. These always come in the form of a USB Type-C port and achieve a maximum data transfer rate of 40 Gbps. One of them also supports DisplayPort. The I/O panel also features six USB 3.2 Type-A ports, each with a maximum speed of 10 Gbps.

The motherboard also features an internal USB 3.2 Type-C port (Key A header) for modern PC cases. Furthermore, four USB 3.0 ports (two headers) and four USB 2.0 ports (two headers) are provided.

Expansion Slots and Drive Connectors
For plug-in and expansion cards, the E-ATX motherboard provides three PCIe x16 slots in the 5.0 standard and one with the PCIe 4.0 standard. Four M.2 slots are provided for connecting storage devices such as SSDs and hard drives, each with four PCI Express 5.0 lanes directly connected to the CPU. There are also four SATA 6G ports.

Perfect for AI Training
The GIGABYTE TRX50 AI Top offers several features that optimize the motherboard for AI training. First, DDR5 ECC R-DIMM RAM support up to 2 TB, which offers immense data storage. Furthermore, four PCIe 5.0 x16 slots support multiple GPUs and thus more computing power. All this is rounded out by the AI Top Utility, a software package for easy fine-tuning and management of AI model training.

Please note:
TRX50 motherboards are only compatible with AMD Threadripper 7000 series processors. The sTR5 (SP6) socket differs from other Threadripper sockets due to its different pin assignment and is not compatible with older Threadripper CPUs or all CPUs in the Threadripper 7000 Pro series!

Note: Due to the size of the Ryzen Threadripper CPU, the sTR5 (SP6) socket differs significantly from conventional sockets. When installing the CPU, please carefully follow the instructions in the CPU or motherboard installation manual! This is an LGA socket! The pins are located on the socket, not the CPU.

Technical Details
– Format: E-ATX, SSI-EEB (305 x 330 mm)
– Chipset: AMD TRX50
– Socket: sTR5 (SP6, LGA4844, for Ryzen Threadripper 7000 series)
– RAM:
– 8x DDR5 (7800 MHz OC)
– Quad-Channel
– Max. 2 TB
– RDIMM with ECC support
– Slots:
– 3x PCIe 5.0 x16
– 1x PCIe 4.0 x16
– Internal Connectors:
– 4x SATA 6G (RAID 0, 1, 10)
– 3x M.2 (M-Key, PCIe 5.0 x4, 2280)
– 1x M.2 (M-Key, PCIe 5.0 x4, 2280, only with Pro Threadripper CPUs)
– 1x USB 3.2 Type-C (USB 3.2 Gen 1) 2×2, one header, max. 20 Gbps)
– 4x USB 3.0 (USB 3.2 Gen 1, two headers, max. 5 Gbps)
– 4x USB 2.0 (two headers, max. 480 Mbit/s)
– 1x Front Panel Audio Header (Realtek ALC897)
– 1x System Panel Header
– 1x Power Button
– 1x Reset Button
– 1x Reset Jumper
– 1x Clear CMOS Button
– 1x Noise Detection Header
– 2x Thermal Sensor Headers
– Fan Headers:
– 1x 4-pin CPU Fan
– 1x 4-pin CPU Fan/Pump
– 2x 4-pin Fans
– 4x 4-pin Fans/Pump
– RGB Headers:
– 1x 4-pin RGB (12V)
– 3x 3-pin ARGB (5V)

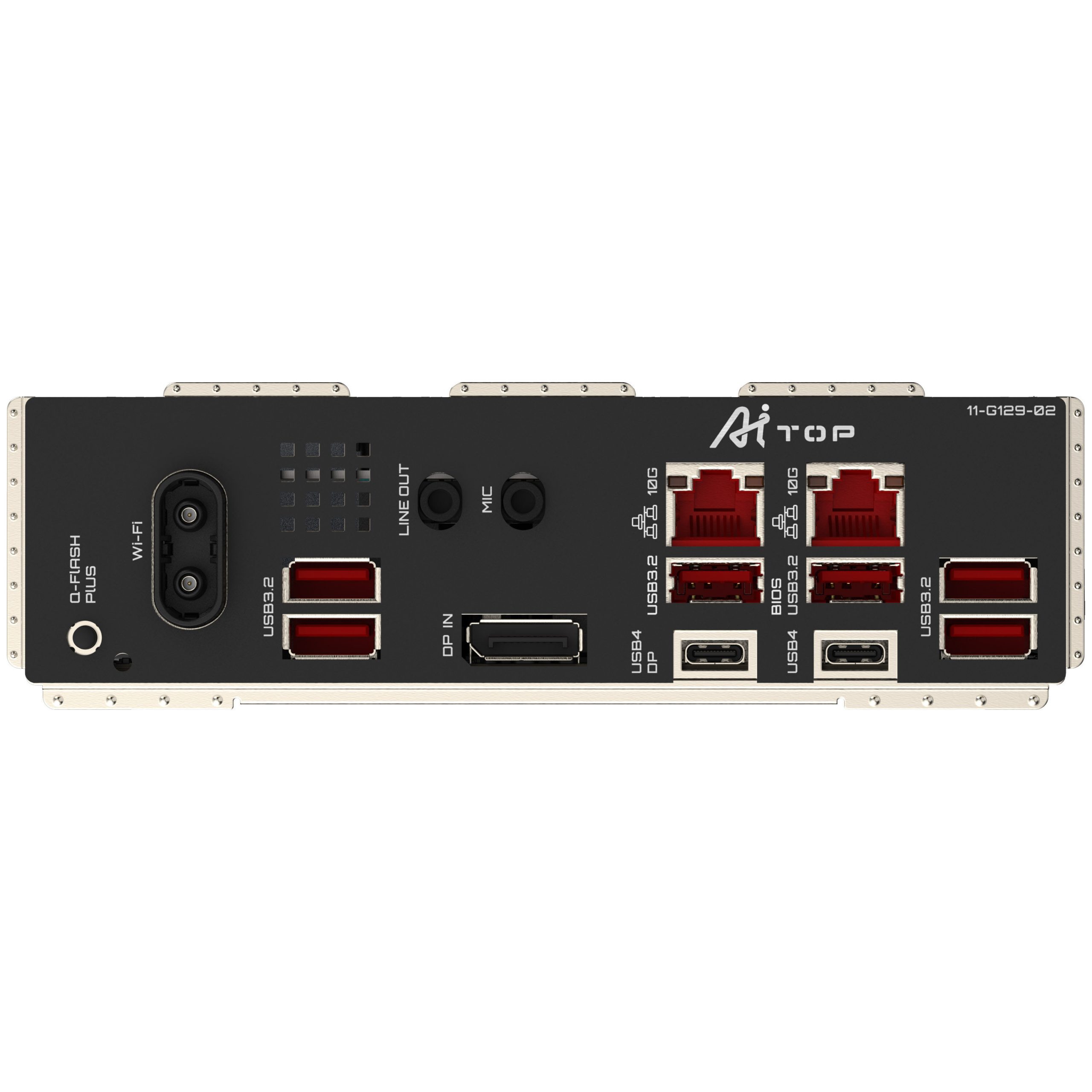

– External Connectors:
– 1x USB4 Type-C (max. 40 Gbit/s)
– 1x USB4 Type C with DisplayPort (max. 40 Gbit/s)
– 6x USB 3.1 Type A (USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x DisplayPort In 1.4
– 2x 10 Gigabit LAN (Marvel AQtion AQC113C)
– 2x 3.5 mm jack (Realtek ALC4080)
– 2x WLAN antenna (Qualcomm Wi-Fi 7 QCNCM865, Bluetooth 5.3)
– 1x Q Flash Button
– Power supply:
– 1x 24-pin ATX12V
– 2x 8-pin ATX12V
