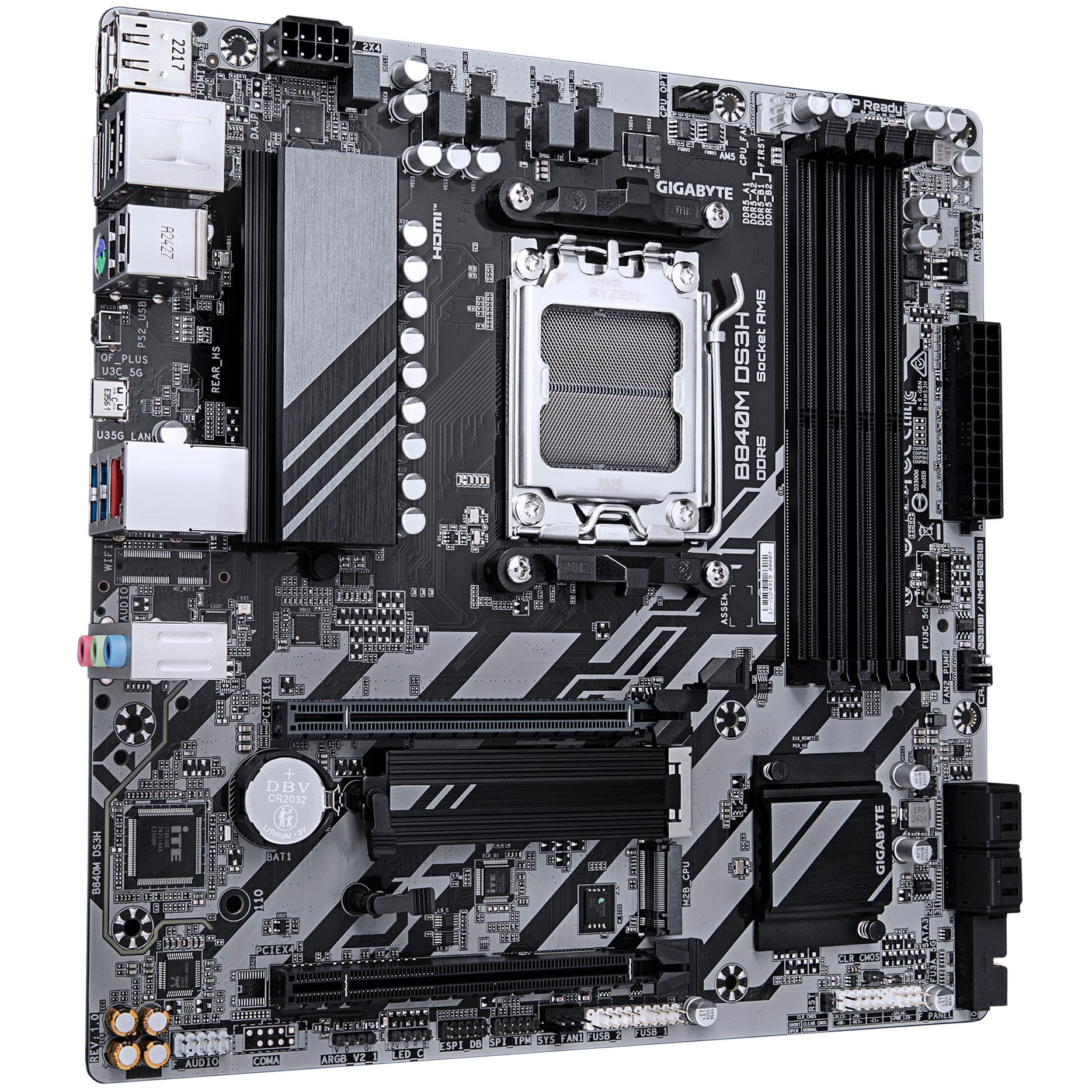

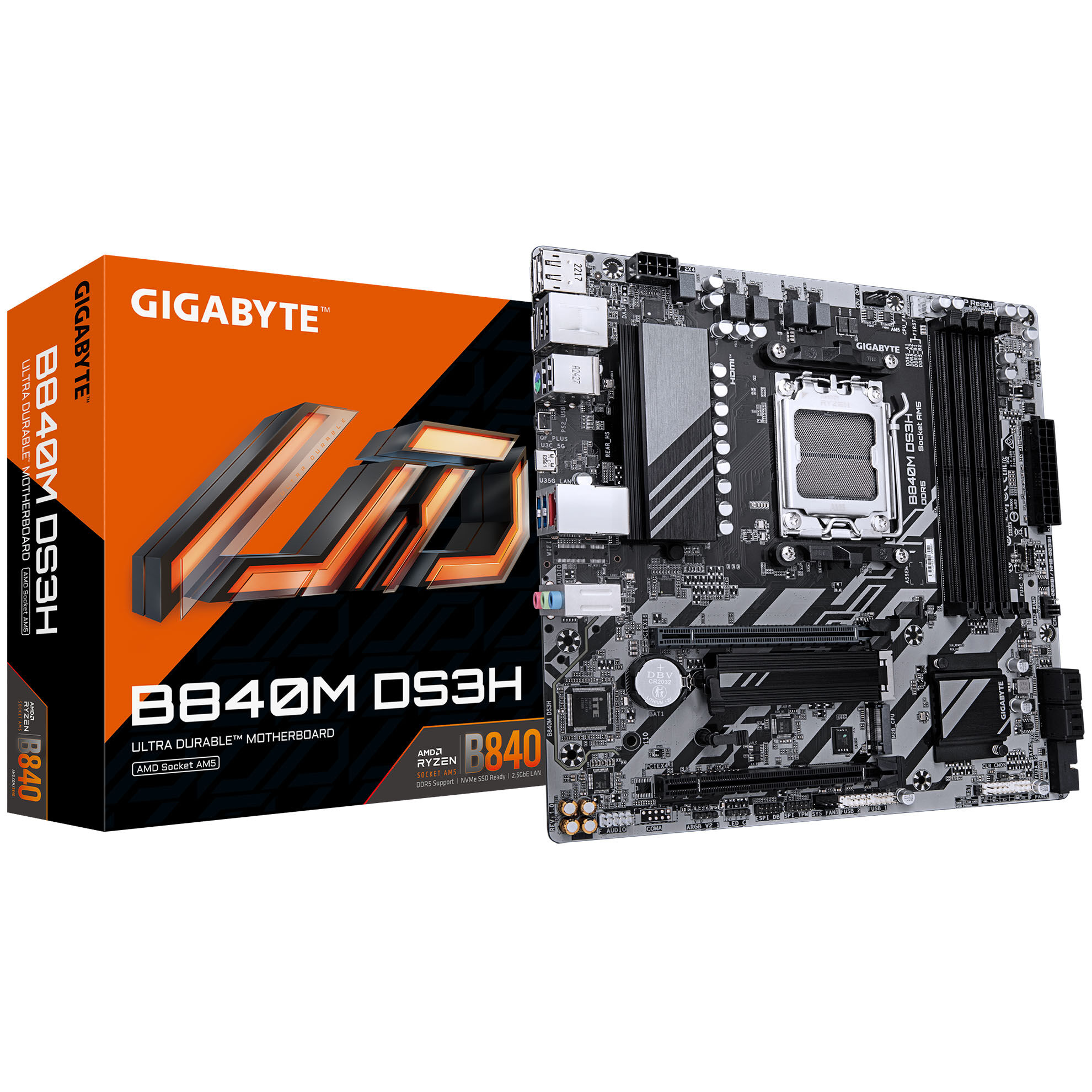

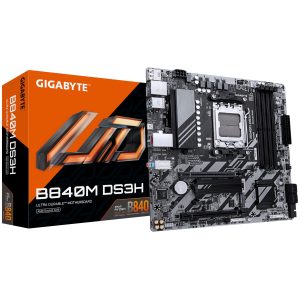

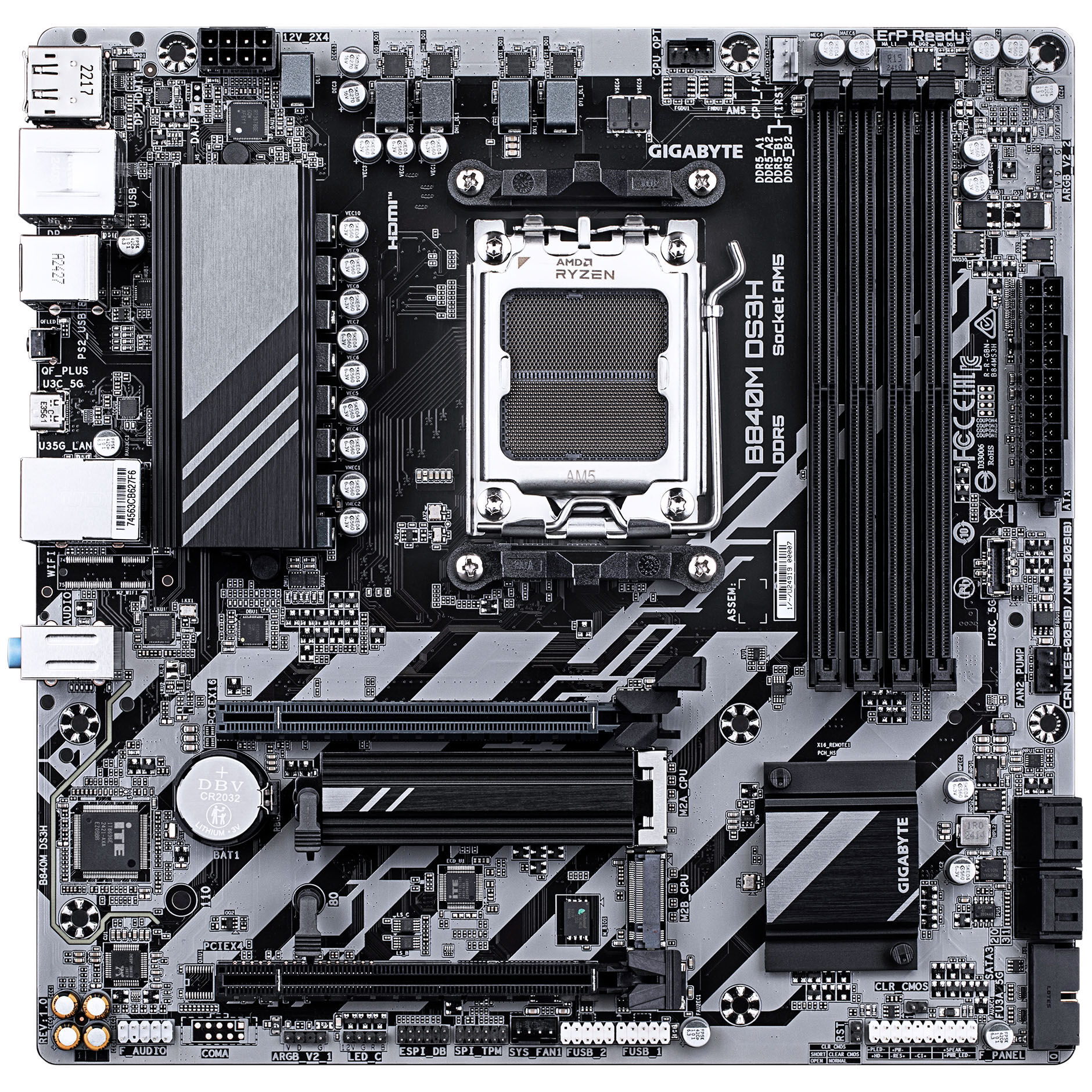

Gigabyte B840M DS3H motherboard, Socket AM5, AMD B840, Micro-ATX, DDR5

The GIGABYTE B840M DS3H is a compact Micro-ATX motherboard with the modern AMD B840 chipset for AM5 processors. It is aimed at gamers, creators, and PC enthusiasts looking for a reliable board with the latest features and solid specifications.

– Compatible with Ryzen 7000-9000 – ideal for current AM5 CPUs
– Supports ultra-fast DDR5 RAM up to 8,200 MT/s
– Two M.2 PCIe 4.0 slots for lightning-fast NVMe SSDs
– 2.5 Gb LAN for fast network connections
– Q-Flash Plus and EZ-Latch for convenient updates and installation
– Current platform for powerful performance

The B840M DS3H offers full support for the latest generation of AMD Ryzen processors with Socket AM5. Thanks to the modern 8+2+2 phase VRM design, your CPU receives a stable and efficient power supply – perfect for gaming, streaming, and productive work.

Fast Memory and Flexible Expansion
Four DDR5 slots offer space for up to 256 GB of RAM with high clock speeds of up to 8,200 MT/s (OC). Two PCIe 4.0 x4 M.2 slots and four SATA ports are available for storage solutions – ideal for large games and creative projects.

Easy Setup and Powerful Connectivity
Thanks to practical features like EZ-Latch for quick installation and removal of GPUs and Q-Flash Plus for BIOS updates without the CPU, installation and maintenance are particularly user-friendly. Common ports such as HDMI 2.1, USB-C 3.0, USB-A, and 2.5 Gb LAN ensure future-proof equipment.

Technical Details
– Color
– Main Color
– Silver
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B840
– Dual BIOS
– No
– Built-in IO Shield
– No
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Max. Memory Speed (Standard)
– 5200 MT/s
– Max. Memory Speed (OC)
– 8200 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x (total)
– Wi-Fi / Bluetooth
– No
– Cooling
– Backplate
– No
– M.2 Heatsink
– No
– VRM Heatsink
– No
– Water Cooling
– Water Cooling
– No
– Internal Connectors
– CPU Power Supply
– 1x 8-Pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C Header
– 1
– USB 3.0 (internal) Header
– 1
– USB 2.0 (internal) Header
– 2
– Front-Panel Audio Header
– Yes

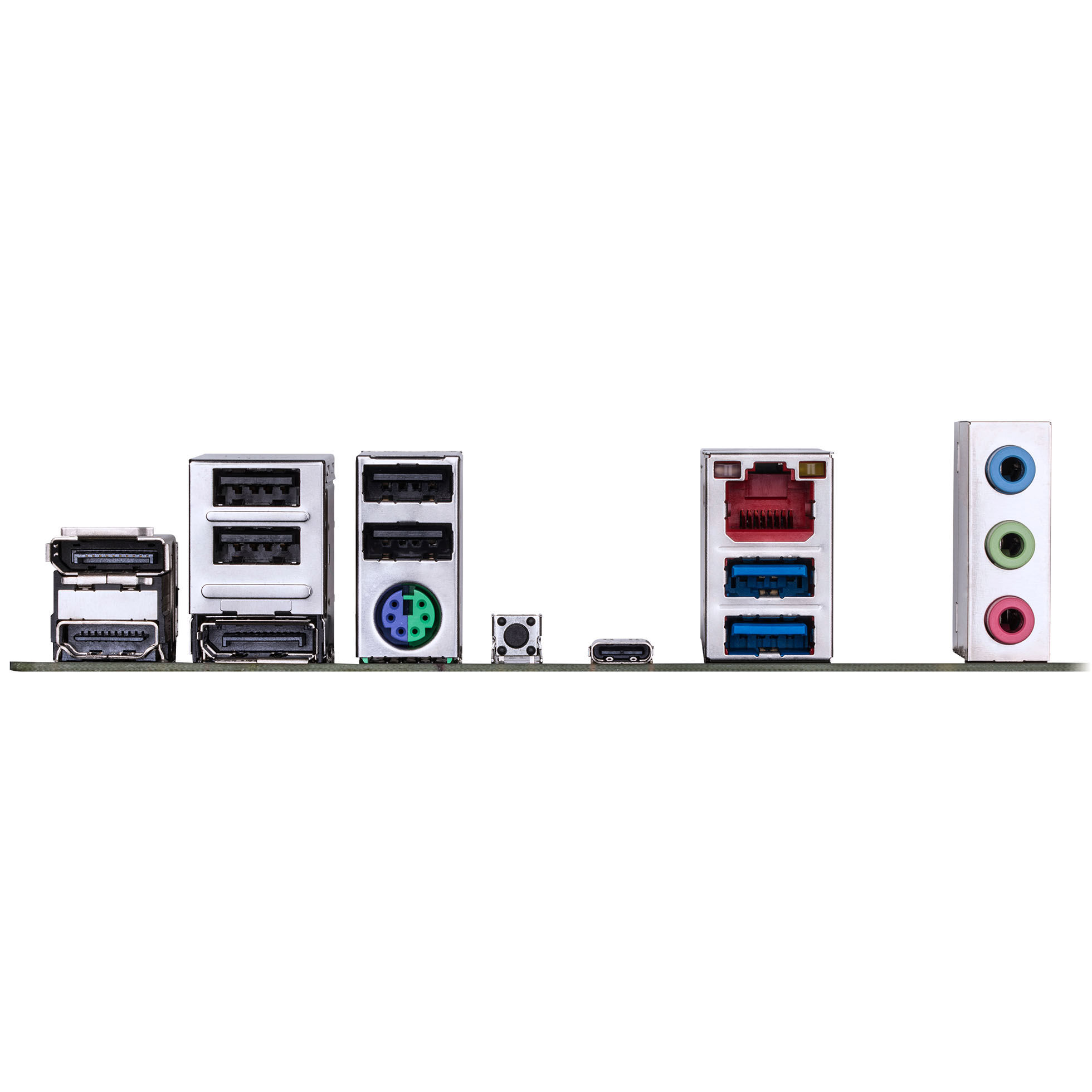

– External Ports
– USB 3.0 (external) Type-C
– 1
– USB 3.0 (external) Type-A
– 2
– USB 2.0 (external) Type-A
– 4
– Display Ports
– Display Port (2x), HDMI (1x)
– Storage Ports
– M.2 PCIe 4.0 x4
– 2
– SATA 6G (internal)
– 4
– Back Connect
– Back Connect
– No
