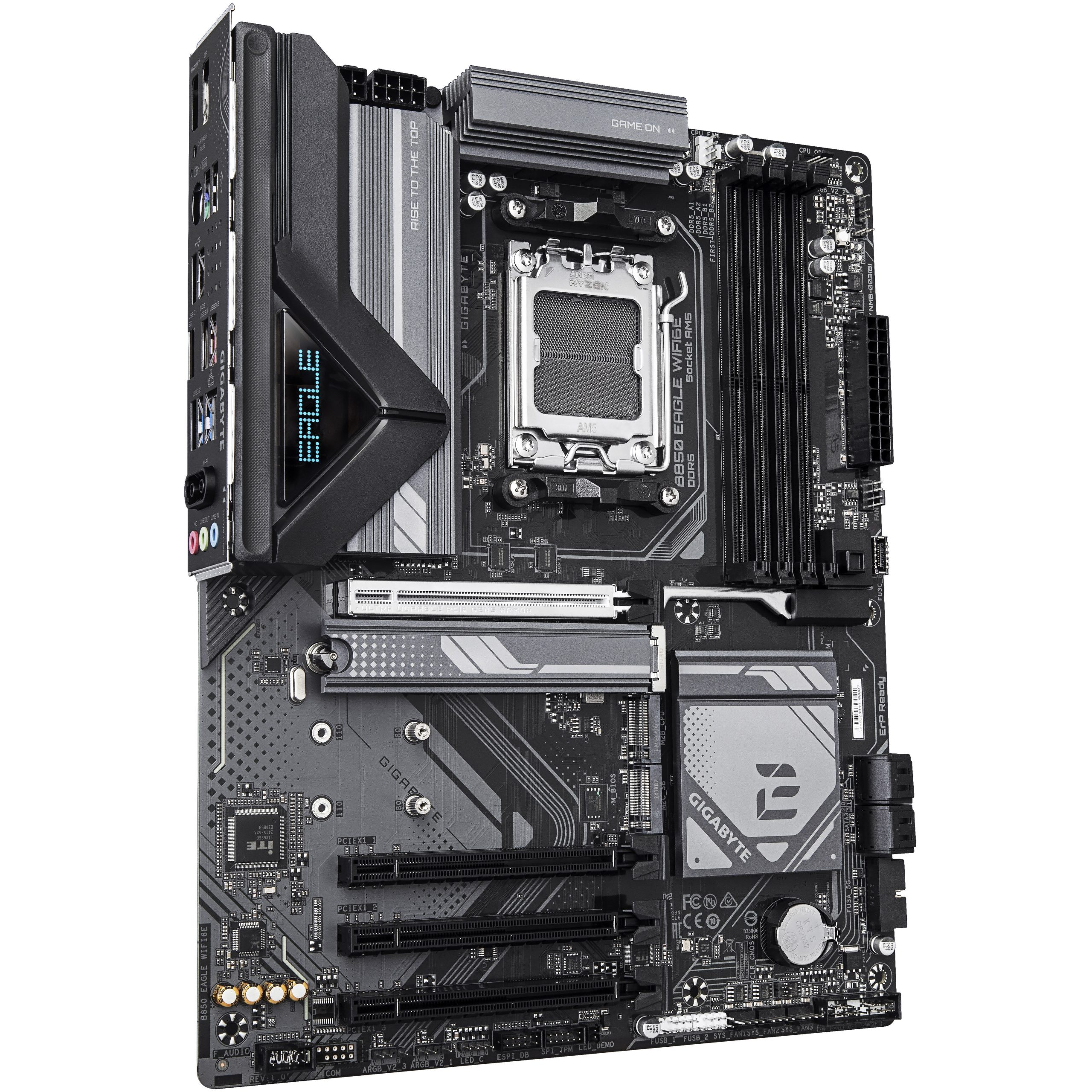

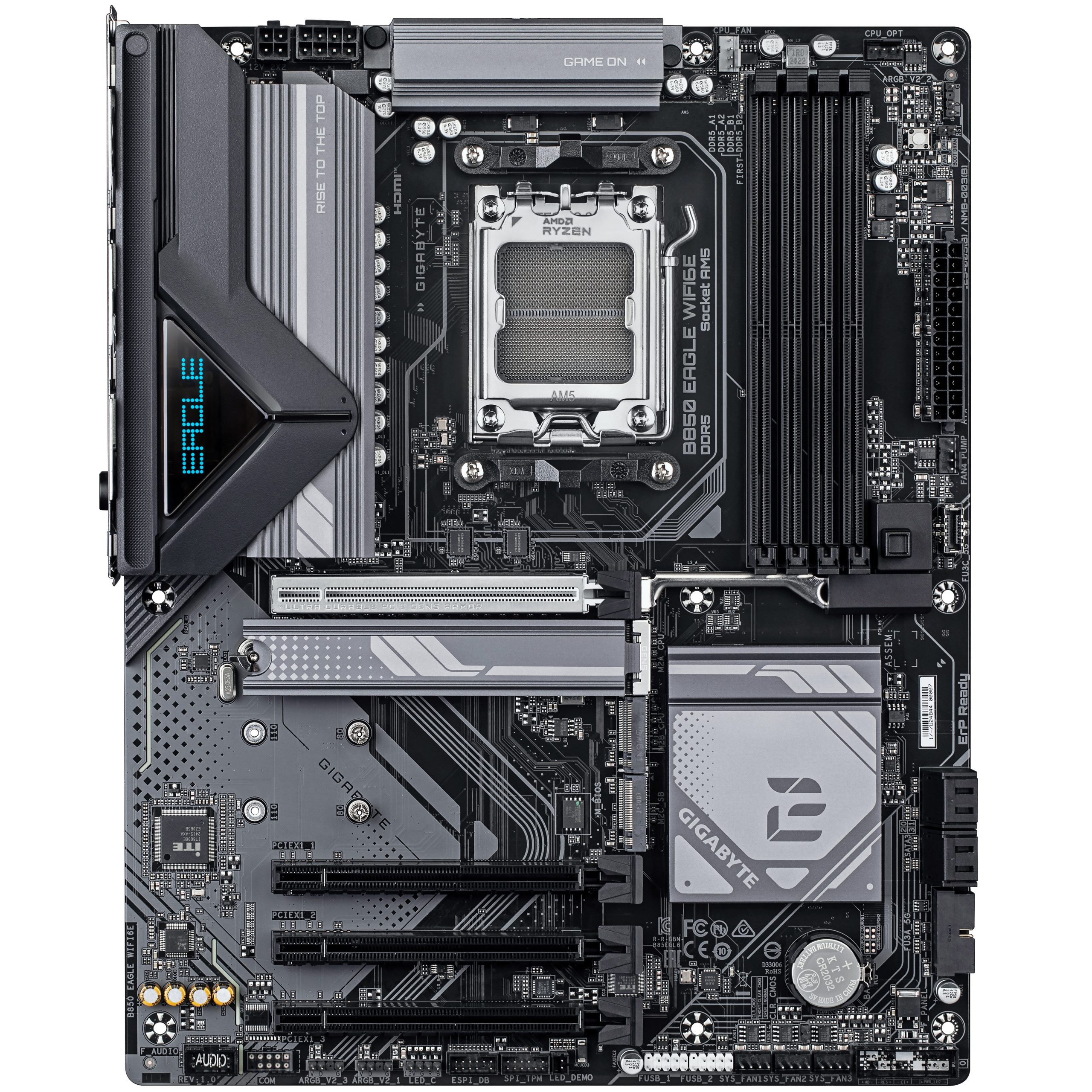

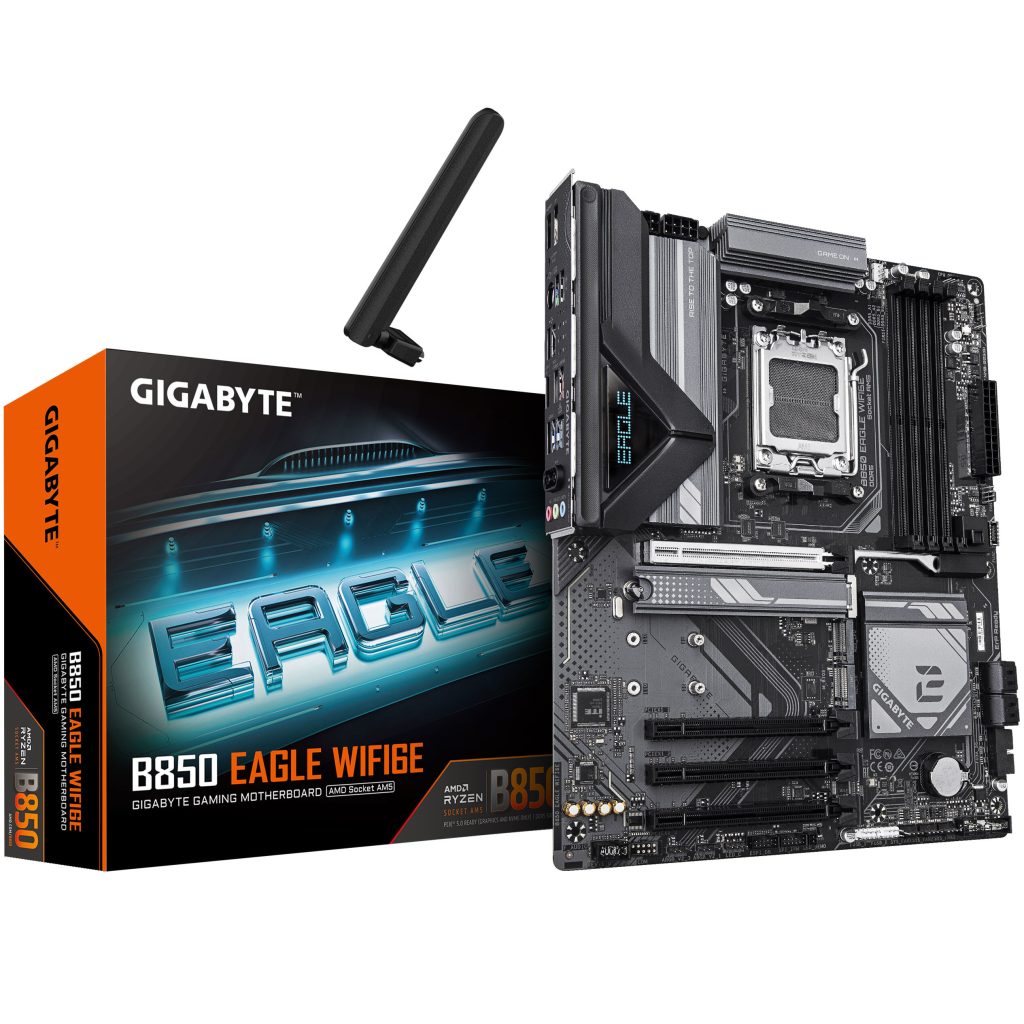

Gigabyte B850 Eagle WiFi6E motherboard, socket AM5, AMD B850, ATX, DDR5

– Slots: 1x PCIe 5.0 x16 (x16) and 3x PCIe 3.0 x16 (x1)
– RAM: 4x DIMM slots for up to 256 GB DDR5 RAM up to 8,200 MT/s
– Storage: 2x M.2 (1x PCIe 5.0 & 1x PCIe 4.0) and 4x SATA

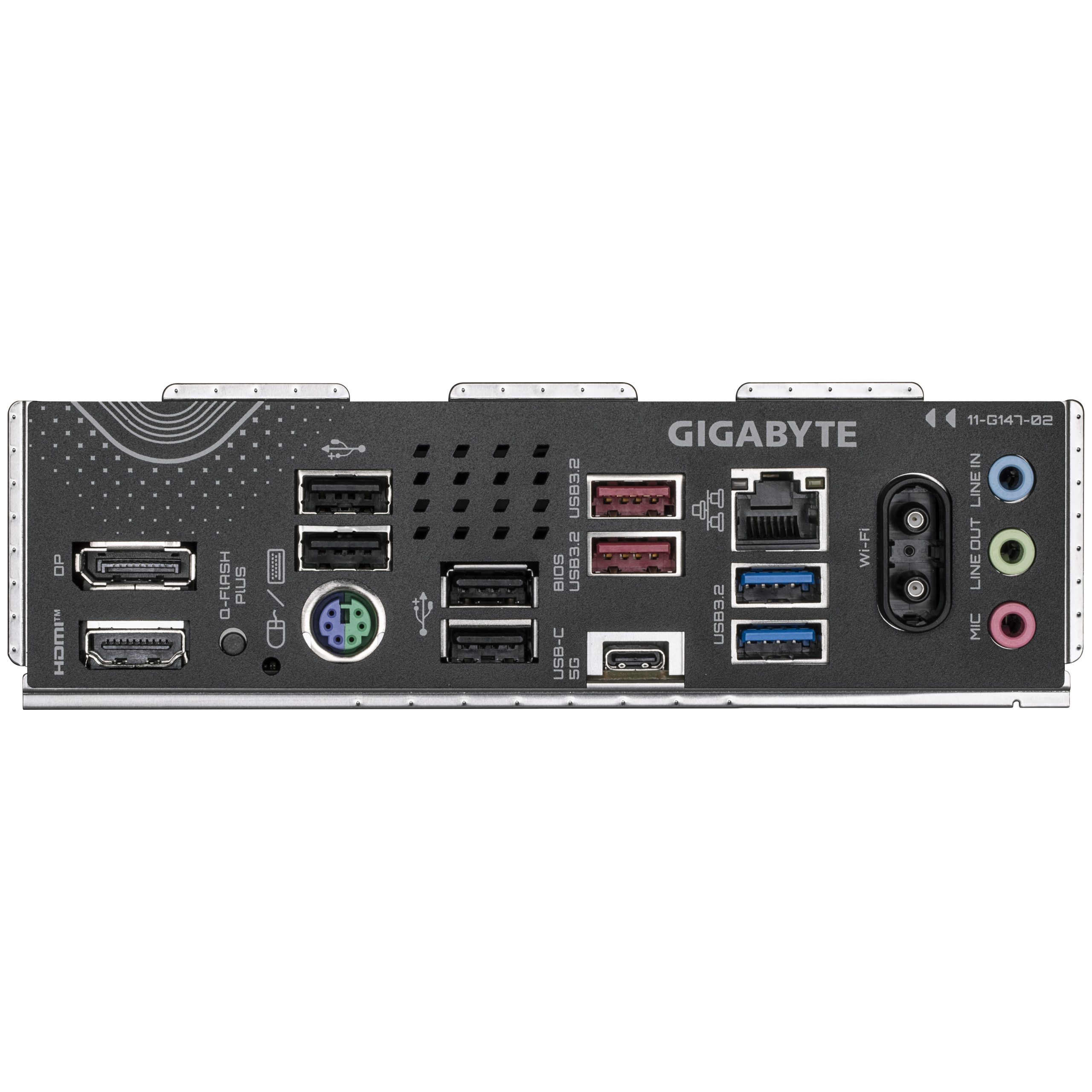

– USB: 1x USB-C 3.0, 2x USB 3.1, 2x USB 3.0, and 4x USB 2.0
– Cooling: 6x 4-pin PWM connectors for fans and radiators

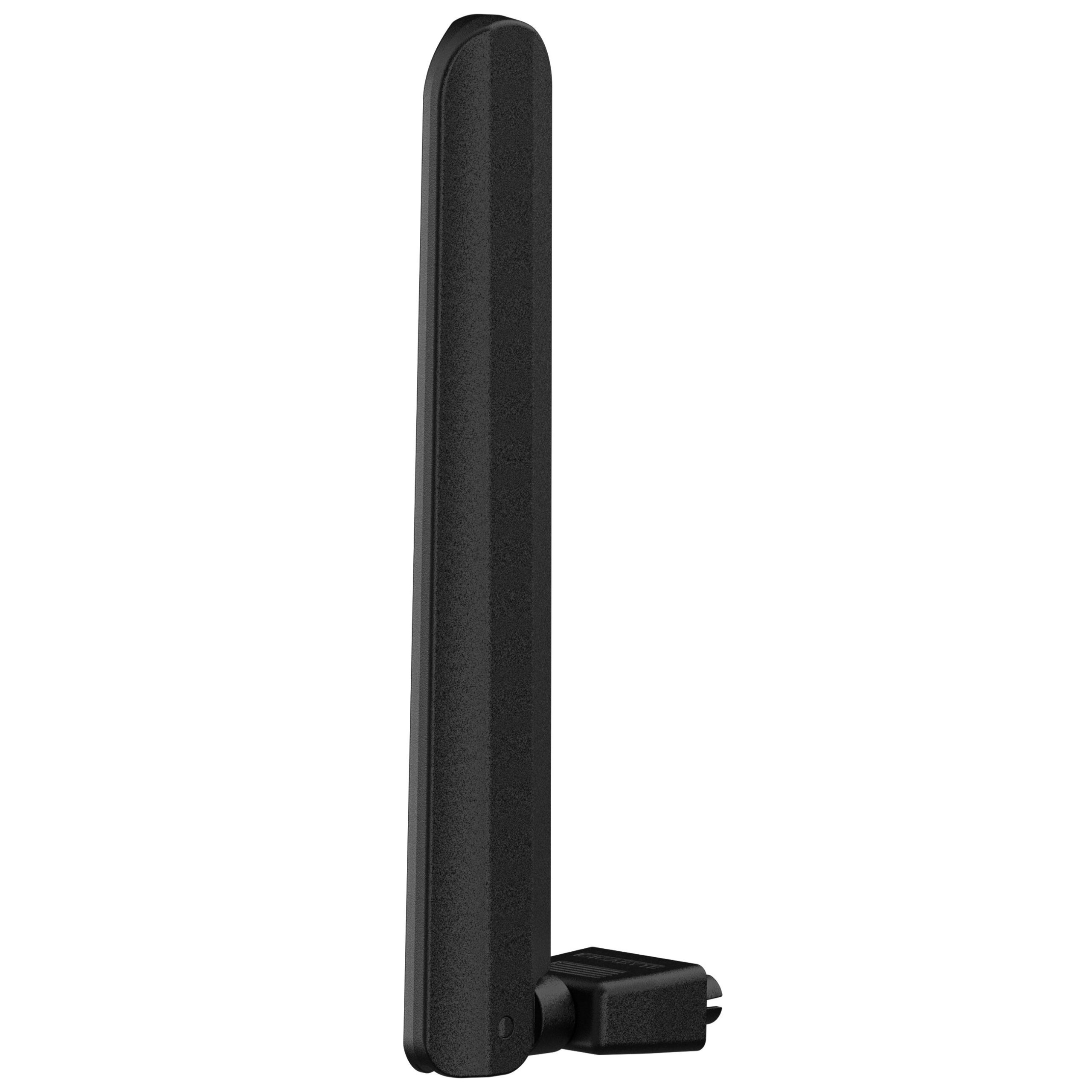

– Connectivity: Wi-Fi 6E and Bluetooth 5.3

GIGABYTE B850 Eagle WiFi6E: ATX motherboard with AMD AM5 socket and B850 chipset
The GIGABYTE B850 Eagle WiFi6E is an ATX motherboard with the Mid-range AMD B850 chipset and AMD Socket AM5. It supports Ryzen 9000, 8000, and 7000 CPUs.

Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 10 Gbps are possible via USB 3.1.

Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked to higher clock speeds via the motherboard. This ensures a stable power supply to the processor, allowing even high-end CPUs to run at full performance for longer periods. You can also fully utilize the DDR5 memory with overclocking. Just in case, the GIGABYTE B850 Eagle WiFi6E offers Clear CMOS.

Technical Details
– Color
– Main Color
– Black
– Dimensions
– Length / Depth
– 305 mm
– Width
– 244 mm
– Form Factor
– Motherboard Form Factor
– ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B850
– Built-in IO Shield
– Yes
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Subtype
– UDIMM
– Max. Memory Speed (Standard)
– 5200 MT/s
– Max. Memory Speed (OC)
– 8200 MT/s
– ECC Support
– No
– Memory Slots
– 4x
– Performance Profile
– AMD EXPO
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– LAN Chip
– Realtek RTL8111H
– Wi-Fi / Bluetooth
– Yes
– Wi-Fi Standard
– Wi-Fi 6E
– Bluetooth Standard
– 5.3
– Wi-Fi Chip
– Intel AX210NGW
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 4-pin, 1x 8-pin
