ASROCK B850M Pro RS WiFi motherboard, socket AM5, AMD B850, Micro-ATX, DDR5

Micro-ATX motherboard with AMDs B850 chipset, supports PCI Express 5.0, supports DDR5 RAM, and features Wi-Fi and Bluetooth.
– Slots: 1x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x4 (x4)
– RAM: 4x DIMM slots for up to 256 GB of DDR5 RAM up to 8,000 MT/s
– Storage: 3x M.2 (1x PCIe 5.0 & 2x PCIe 4.0) and 4x SATA
– USB: 1x USB-C 3.1, 1x USB 3.1, 2x USB 3.0, and 4x USB 2.0
– Cooling: 5x 4-pin PWM connectors for fans and radiators
– Connectivity: Wi-Fi 6E and Bluetooth 5.2

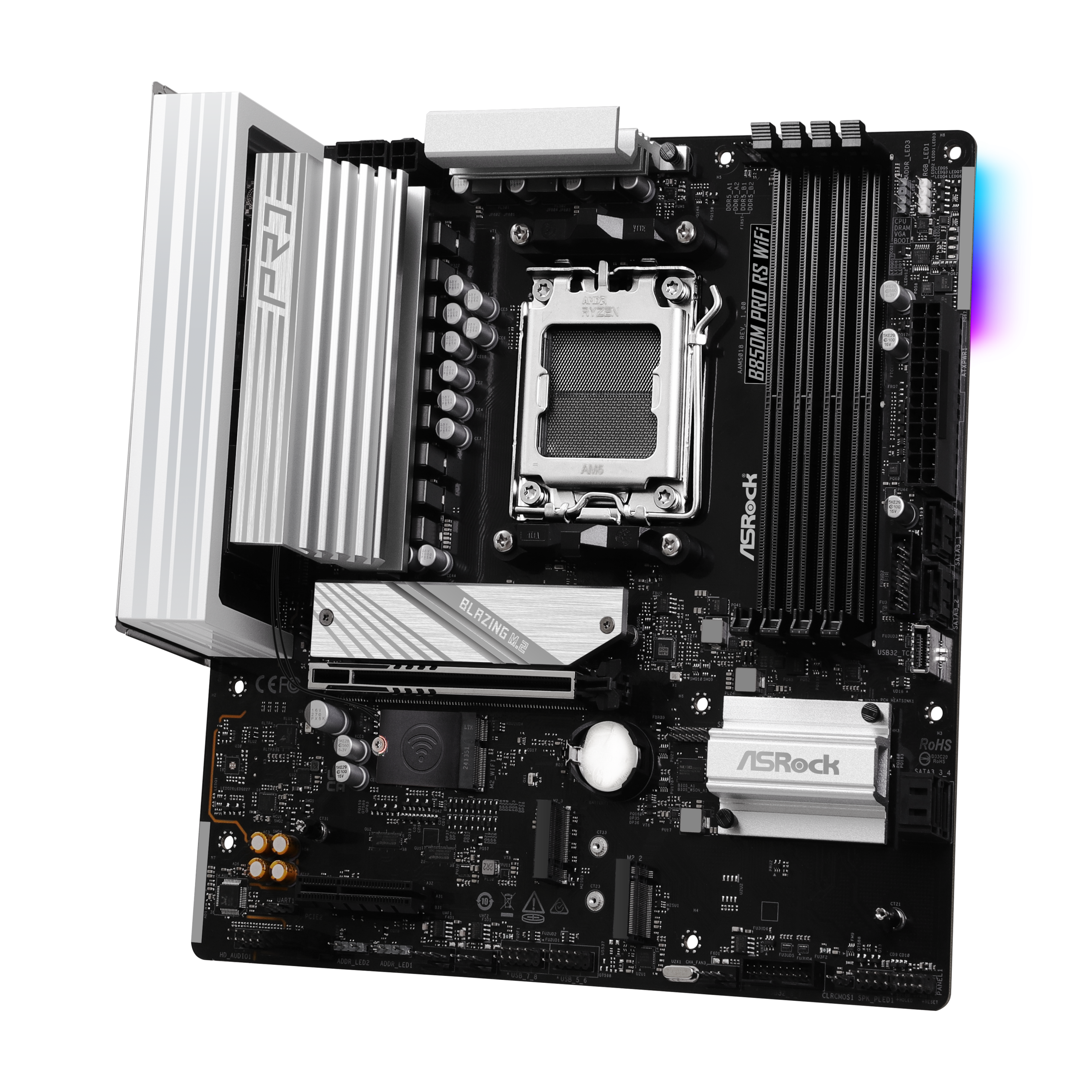

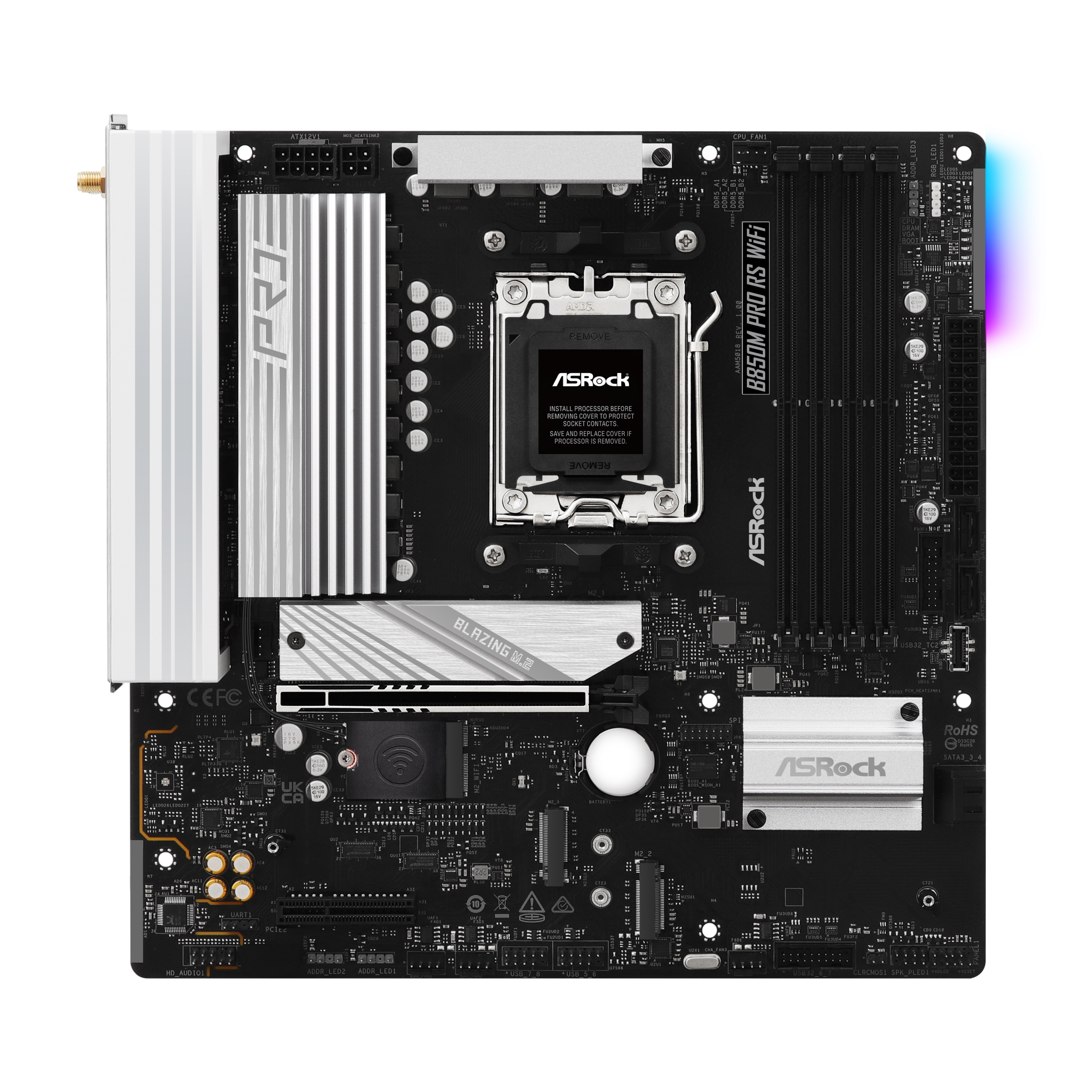

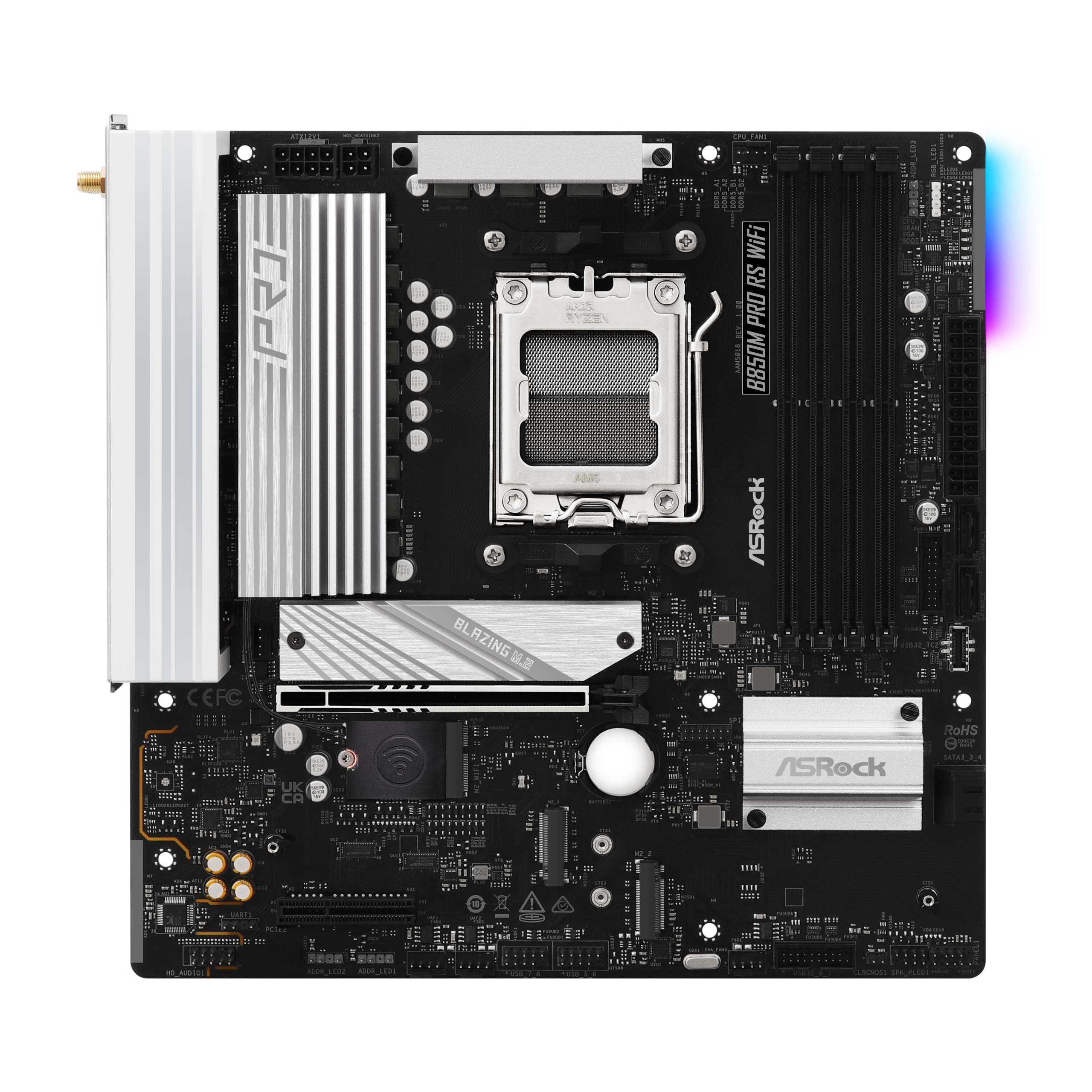

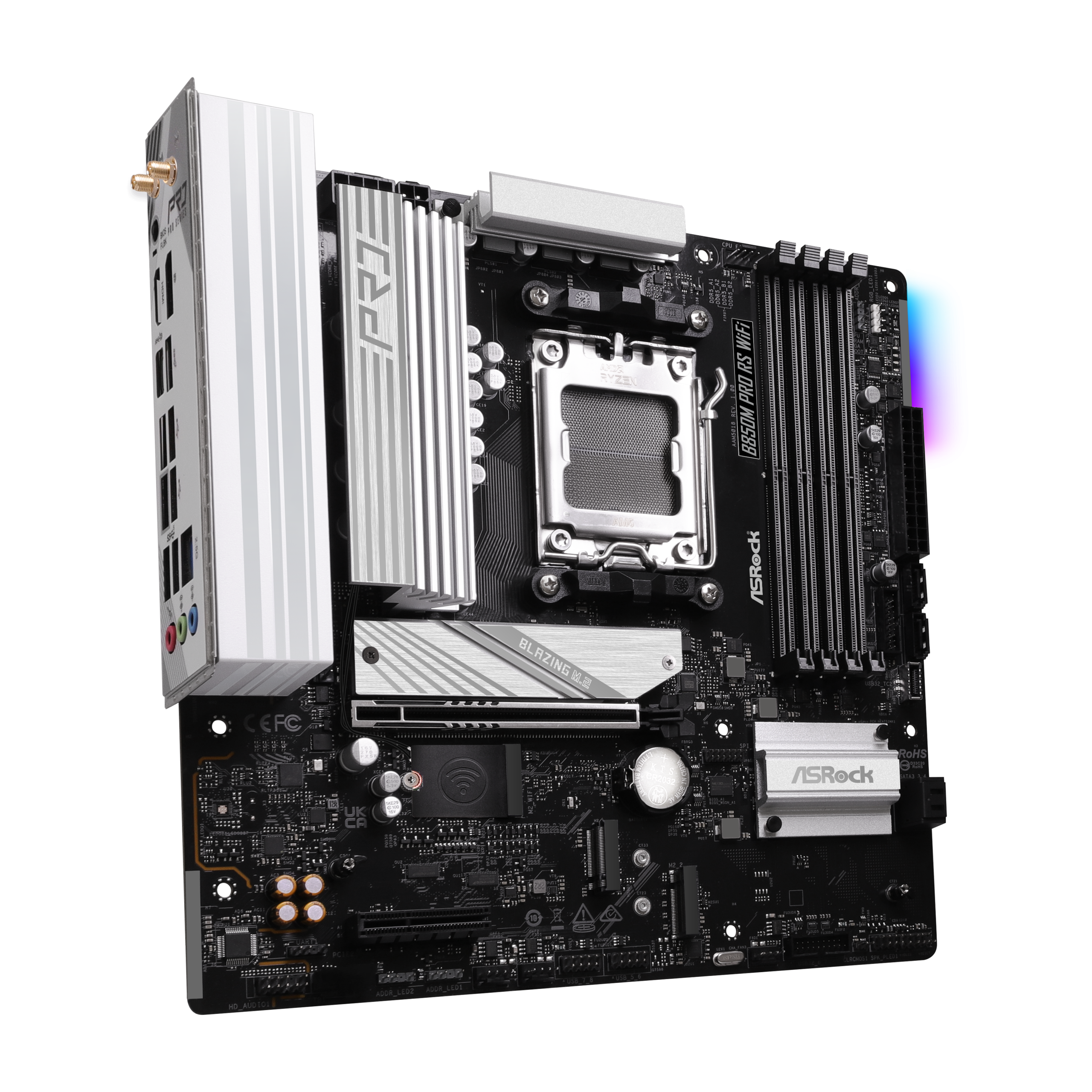

ASROCK B850M Pro RS WiFi: Micro-ATX motherboard with AMD AM5 socket and B850 chipset
The ASROCK B850M Pro RS WiFi is a Micro-ATX motherboard with the mid-range AMD B850 chipset and the AMD AM5 socket. It supports both Ryzen 9000, 8000, and 7000 CPUs.

Connection to graphics cards and NVMe SSDs is via PCIe 5.0. Data transfer rates of up to 10 Gbps are possible via USB 3.1.

Overclocking for Gamers
To get the most out of your gaming PC, the CPU can be overclocked to higher clock speeds via the motherboard. This ensures a stable power supply to the processor, allowing even high-end CPUs to run at full performance for longer periods. You can also fully utilize the DDR5 memory with overclocking. Just in case, the ASROCK B850M Pro RS WiFi offers BIOS Flashback.

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– White
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– AMD
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD B850
– RAM
– Max. RAM
– 256 GB
– Memory Type
– DDR5
– Memory Format
 -DIMM
– Max. Memory Speed (OC)
– 8000 MT/s
– ECC Support
– Yes
– Memory Slots
– 4x
– Performance Profile
– Intel XMP
– WLAN & LAN
– LAN
– Yes
– LAN Ports
– 1x 2.5 Gbps
– LAN Chip
– Dragon RTL8125BG
– WLAN / Bluetooth
– Yes
– WLAN Standard
– Wi-Fi 6E
– Bluetooth Standard
– 5.2
– Cooling
– Backplate
– Yes
– M.2 Cooler
– Yes
– VRM Heatsink
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 4-Pin + 1 x 8-pin
– USB 3.0 / 3.1 / 3.2 (internal) Type-C header
– 1 x
– USB 3.0 / 3.1 / 3.2 (internal) Type-C possible connectors
– 1 x
– USB 3.0 (internal) header
– 2 x
– USB 3.0 (internal) possible connectors
– 4 x
– USB 2.0 (internal) headers
– 2 x
– USB 2.0 (internal) possible connectors
– 4 x
– RGB / LED connectors
– 1 x RGB (4-pin 5050 12VGRB), 3 x Digital RGB (3-pin 5VDG)
