Gigabyte A620M DS3H motherboard, Socket AM5, AMD A620, Micro-ATX, DDR5

– 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x1
– Supports up to 192 GB DDR5 RAM up to 6,400 MHz (OC)
– 1x M.2 PCIe 4.0 / 4x SATA 6G

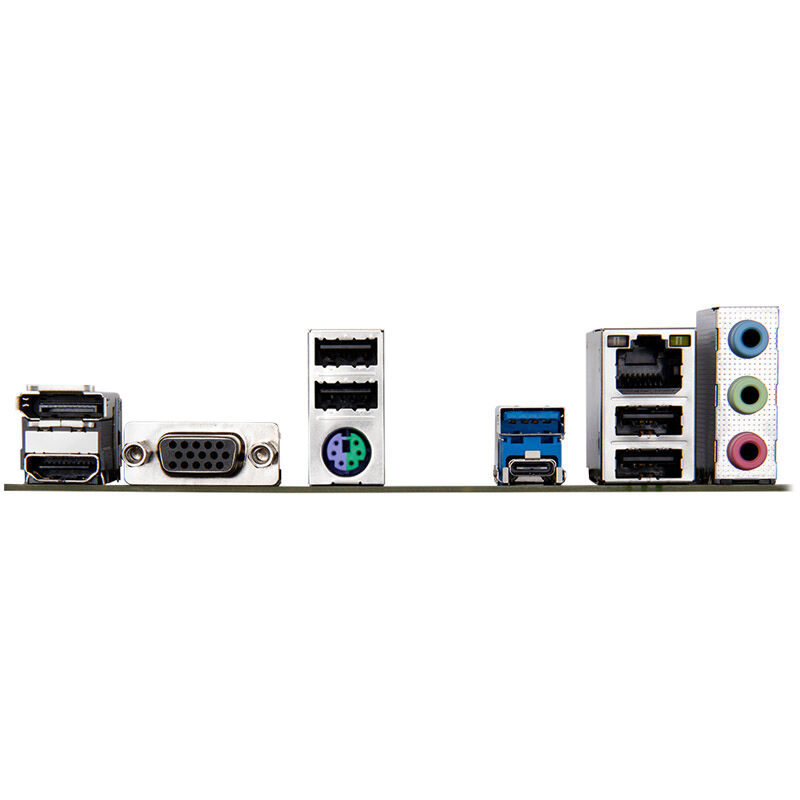

– 1x USB-C 3.0, 2x USB-A 3.0, and 4x USB-A 2.0 on the I/O panel
– A total of 3x 4-pin PWM fans possible

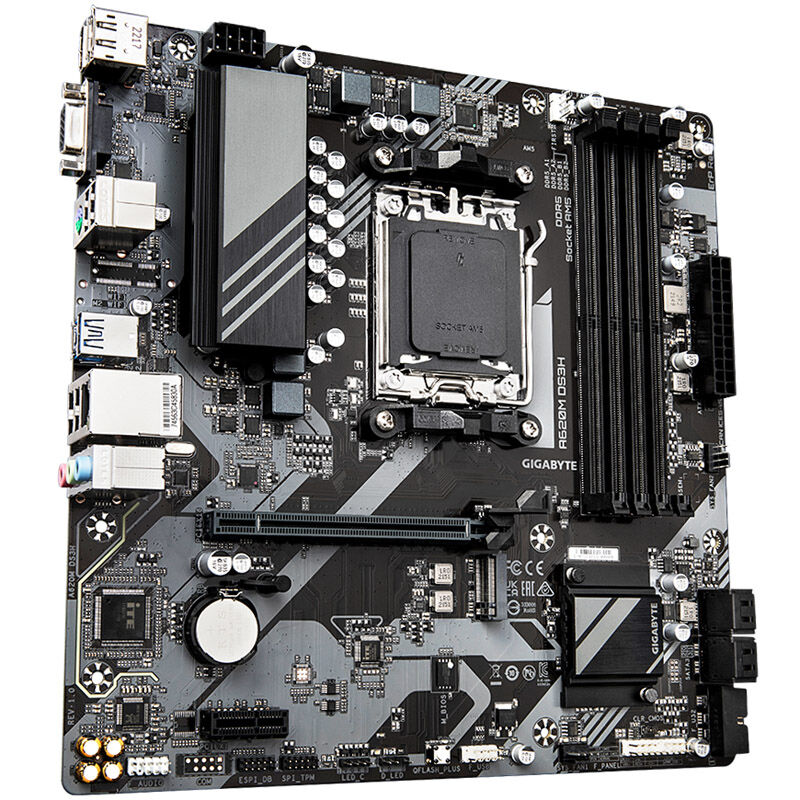

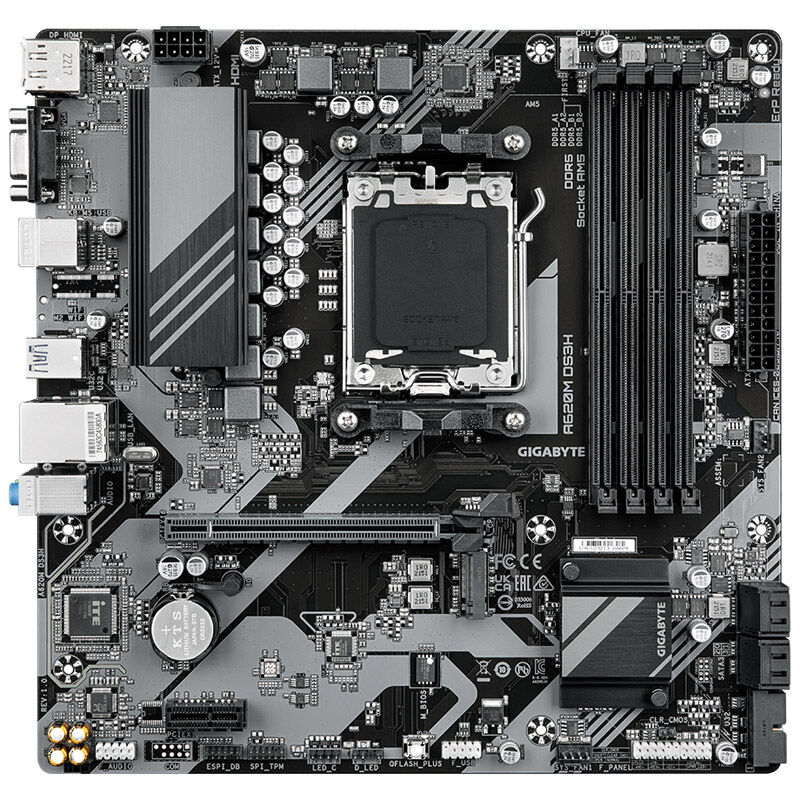

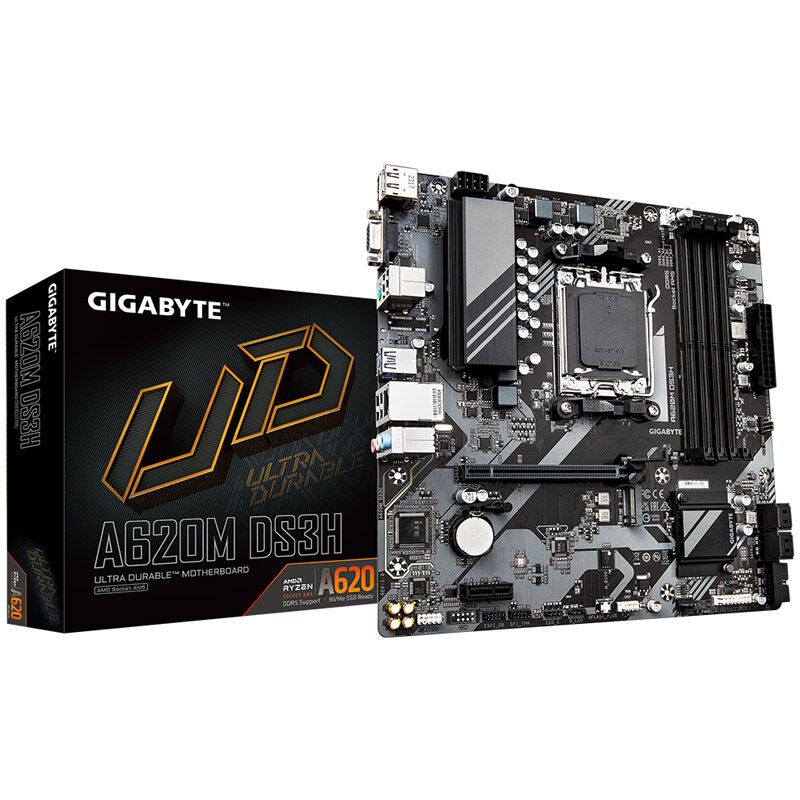

Gigabyte A620M DS3H: Micro-ATX motherboard with AMD AM5
The Gigabyte A620M DS3H is equipped with the A620 chipset for AMDs Ryzen 7000 series processors and offers numerous features for gamers. Since the Ryzen 7000 series processors require a new socket due to support for PCIe 5.0 and the expanded power supply, Socket AM5 (LGA 1718) is used on the 600 series motherboards.

Despite the increased pin count, the actual size of the socket remains identical to older sockets, so most CPU coolers for Socket AM4 can also be installed on the motherboard.

Only compatible with AMD Ryzen 7000 series CPUs!
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed when a motherboard is shipped. Updates can also include fixes and optimizations.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:

Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

Technical Details
– Color
– Primary Color
– Black
– Secondary Color
– Gray, Silver
– Form Factor
– Motherboard Form Factor
– Micro-ATX
– CPU
– CPU Manufacturer
– Intel
– CPU Socket
– AM5
– Motherboard
– Motherboard Chipset
– AMD A620
– RAM
– Max. RAM
– 192 GB
– Memory Type
– DDR5
– Memory Format
– DIMM
– Memory Slots
– 4x
– Wi-Fi & LAN
– LAN
– Yes
– LAN Ports
– 1x 1 Gbit/s
– Wi-Fi / Bluetooth
– No
– Water Cooling
– Water Cooling
– Yes
– Internal Connectors
– CPU Power Supply
– 1x 8-pin
– USB 3.0 (internal) Possible Ports
– 2
– RGB / LED Connectors
– 1x Digital RGB (3-pin 5VDG), 1x RGB (4-pin 5050 12VGRB)
– Front Panel Audio Header
– Yes
– SPI TPM Header
– Yes
– External Ports
– USB 3.0 (external) Type C
– 1
– USB 3.0 (external) Type A
– 2
– Display Ports
– Display Port (1x), HDMI (1x), VGA (D-Sub) (1x)
– Storage Ports
– M.2 PCIe 4.0 x4
– 1
– SATA 6G (internal)
– 4
– Expansion Slots
– PCIe x16 Slots (total)
– 1
– PCIe x1 Slots (total)
– 1
– PCIe 4.0 x16 (mechanical)
– 1
– PCIe 3.0 x1 (mechanical)
– 1
– Fan Header
– 4-pin Fan Connectors
– 3
– Lighting
– Lighting / RGB
– No
