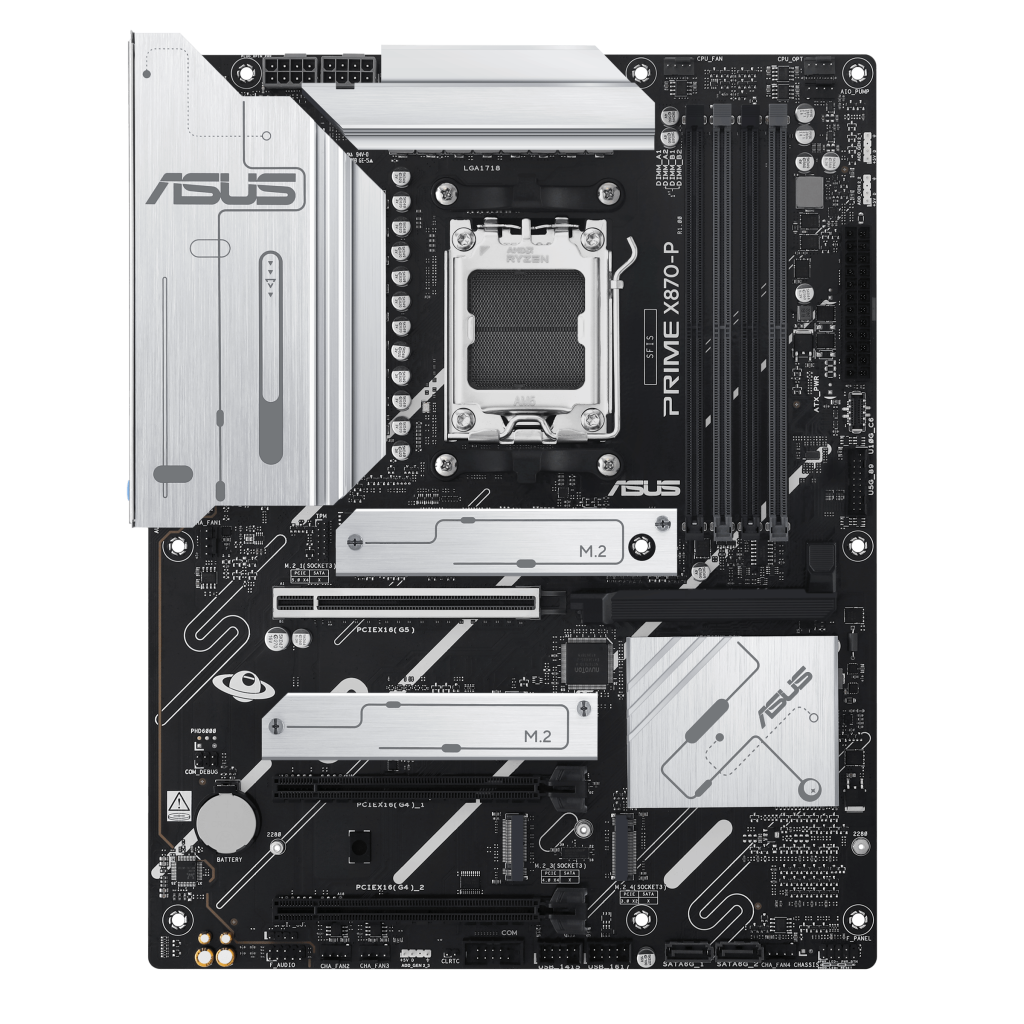

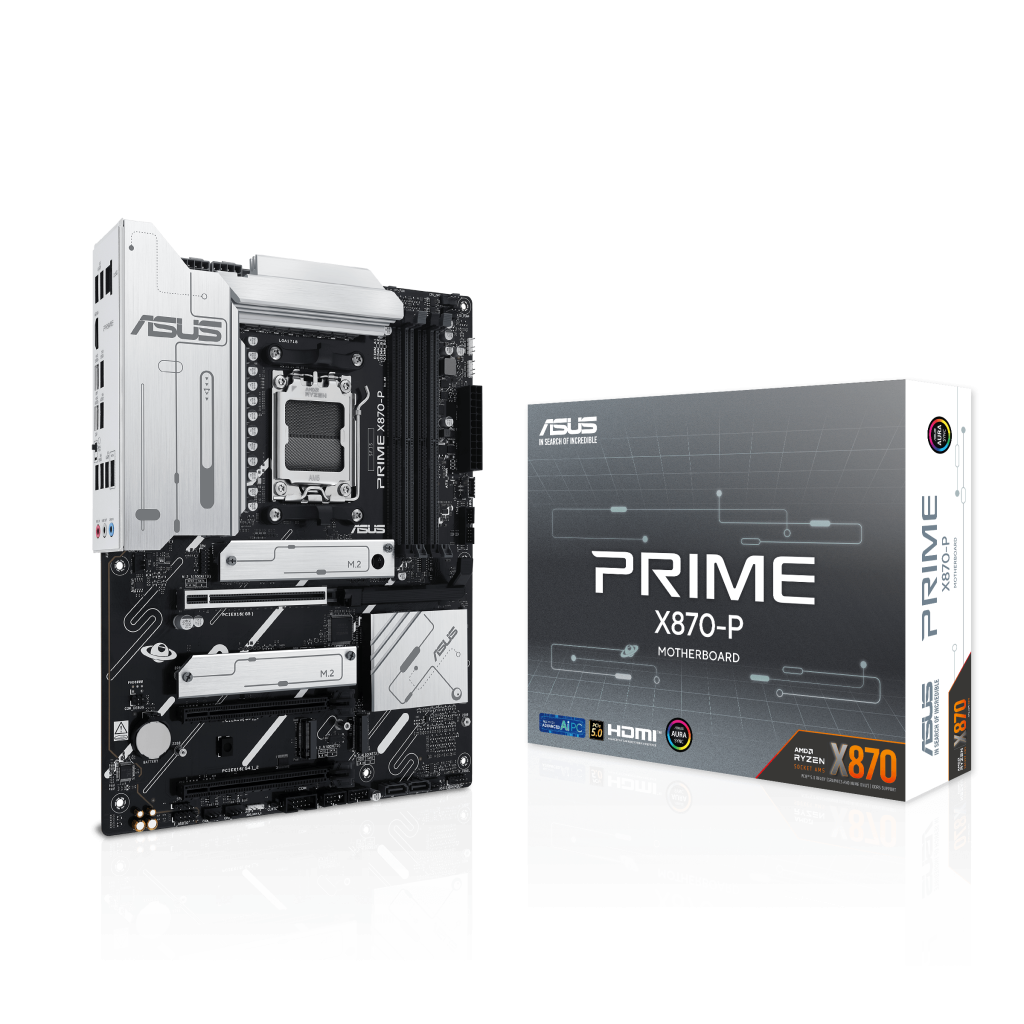

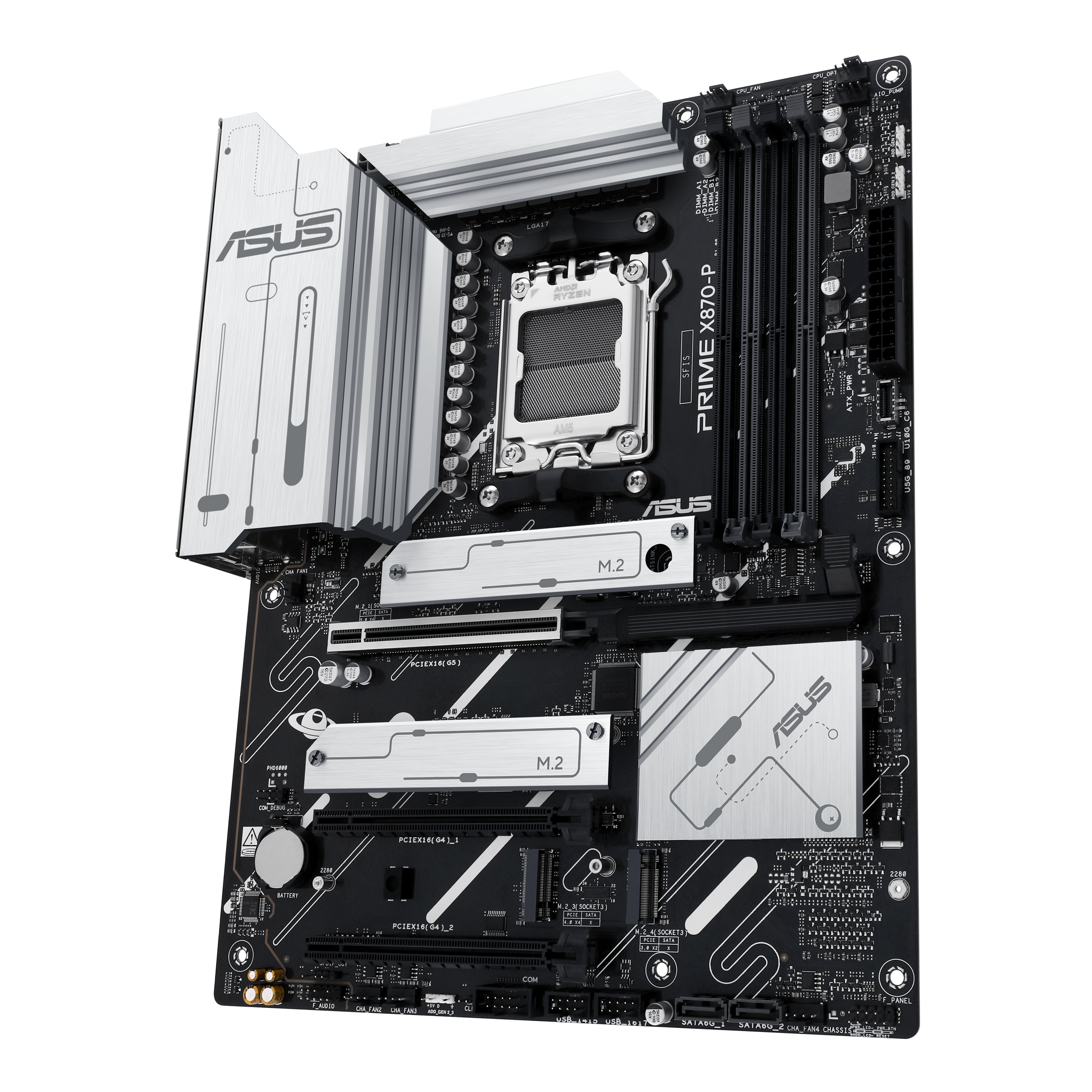

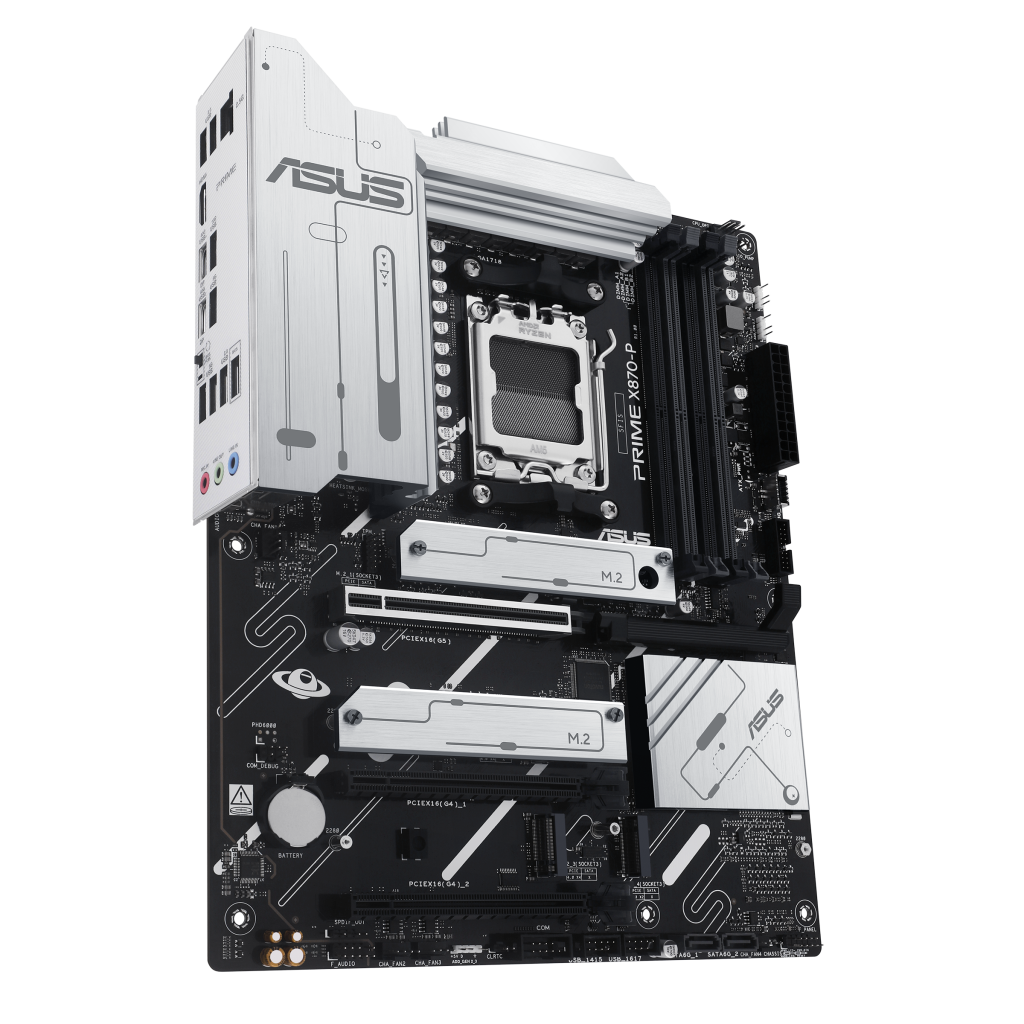

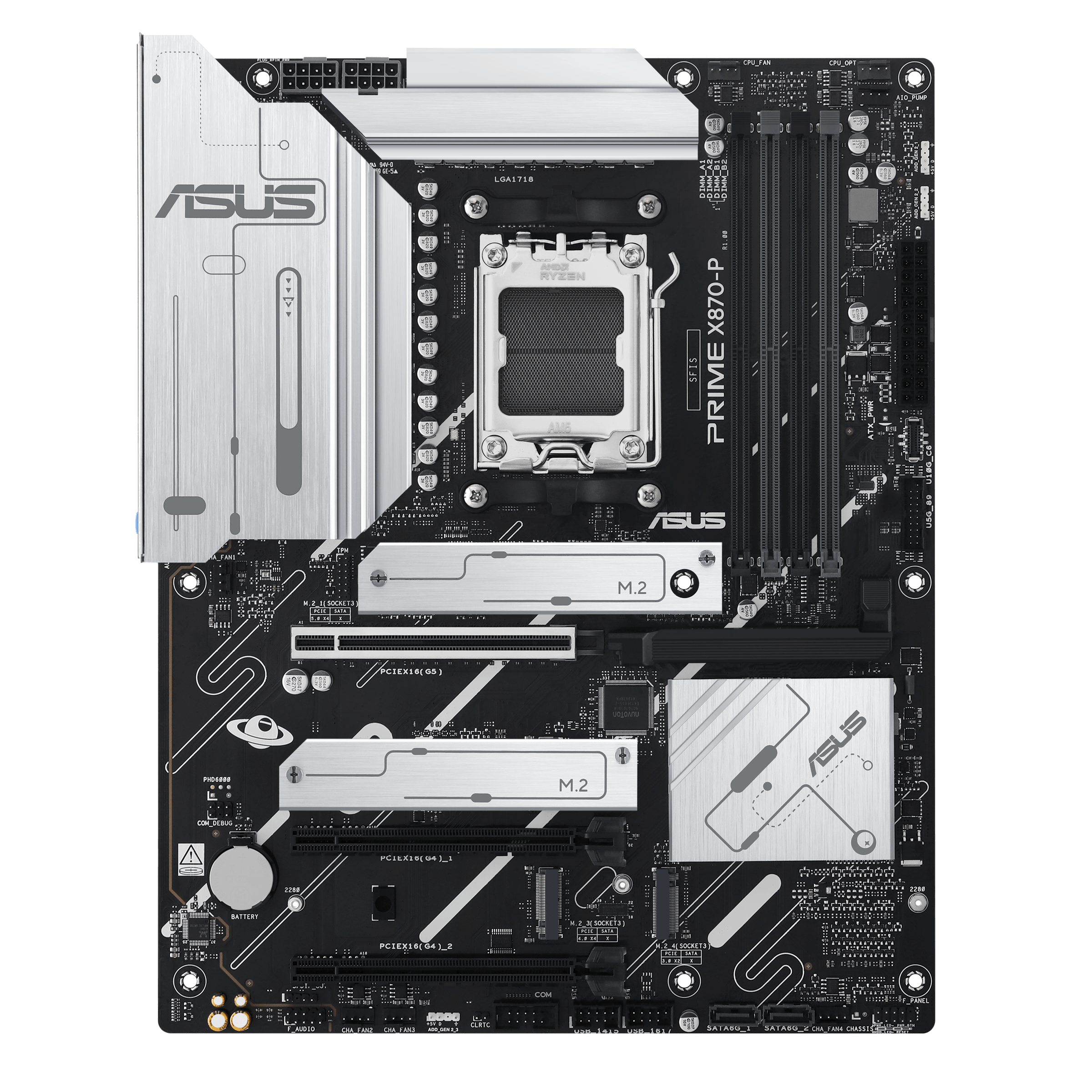

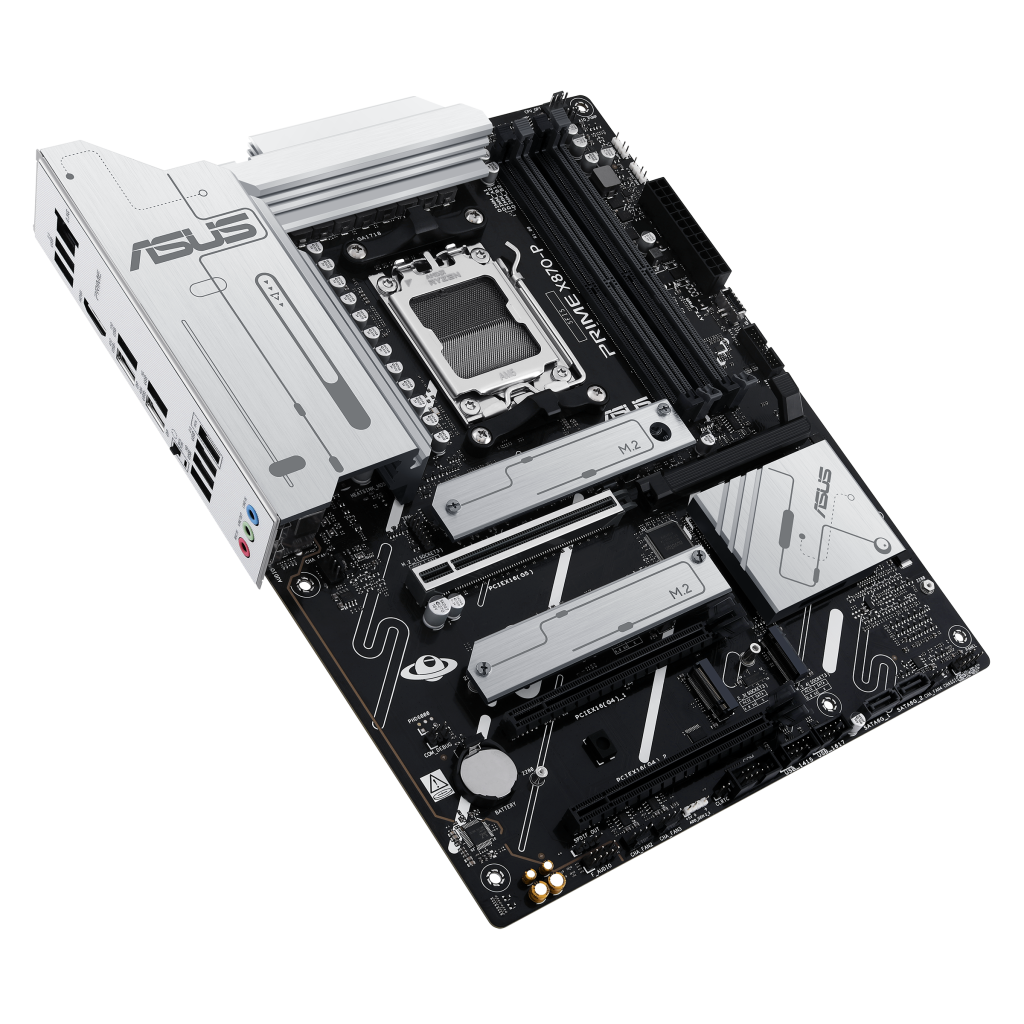

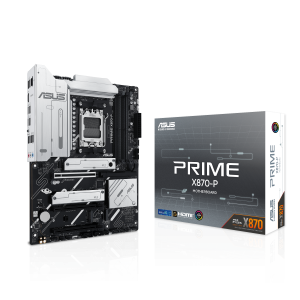

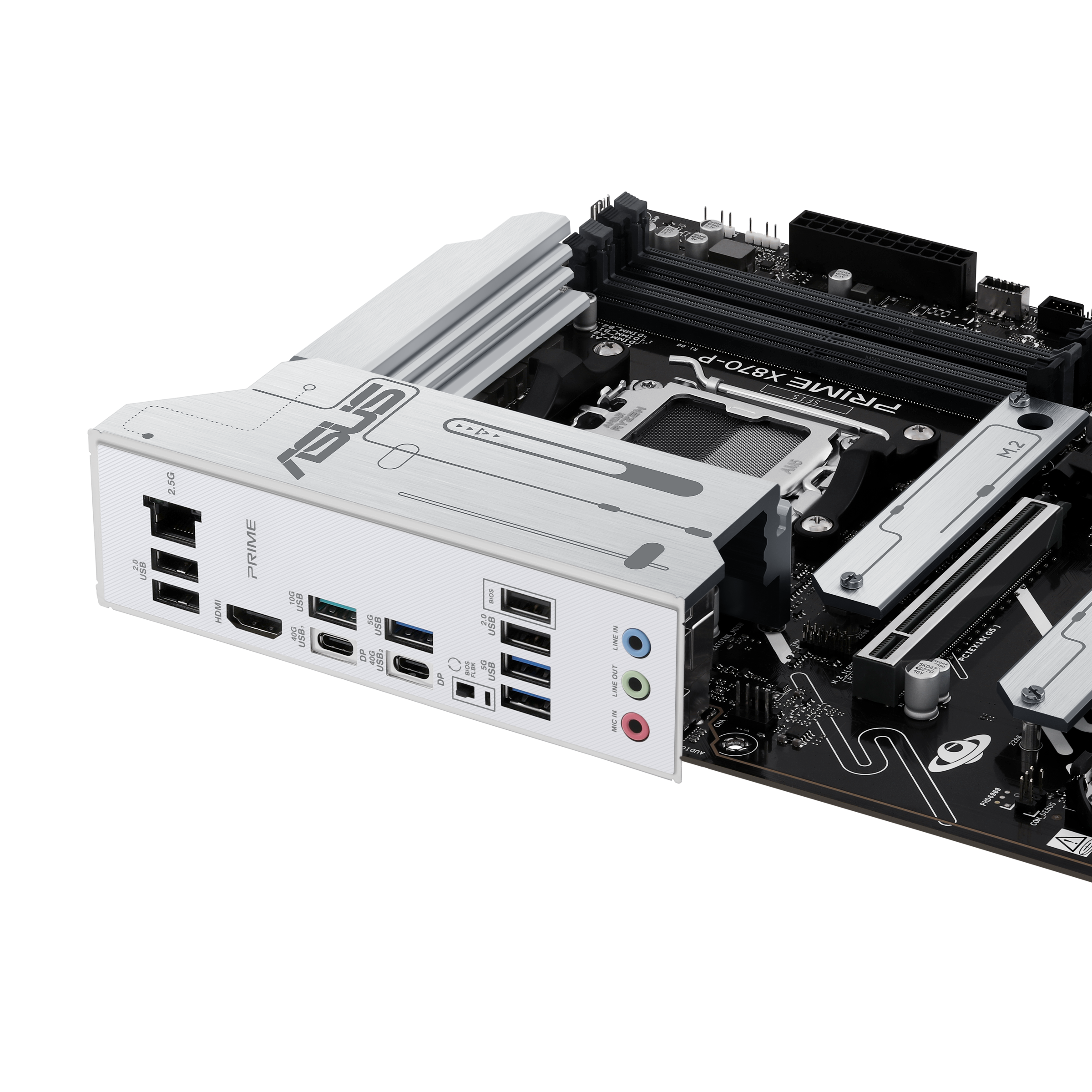

ASUS Prime X870-P motherboard, AMD X870, socket AM5, DDR5

– 1x PCIe 5.0 x16, 2x PCIe 4.0 x1
– 4x DIMM slots for up to 192 GB DDR5 RAM up to 8000 MHz (OC)
– 5x M.2 (including 1x PCIe 5.0 and 3x PCIe 4.0 and 1x PCIe 3.0) / 2x SATA 6G
– 2x USB 4, 1x USB 3.1, 3x USB 3.0, and 4x USB 2.0 on the I/O panel
– OC features: 14+2+1 phase VRMs
– A total of 7x 4-pin PWM fans possible

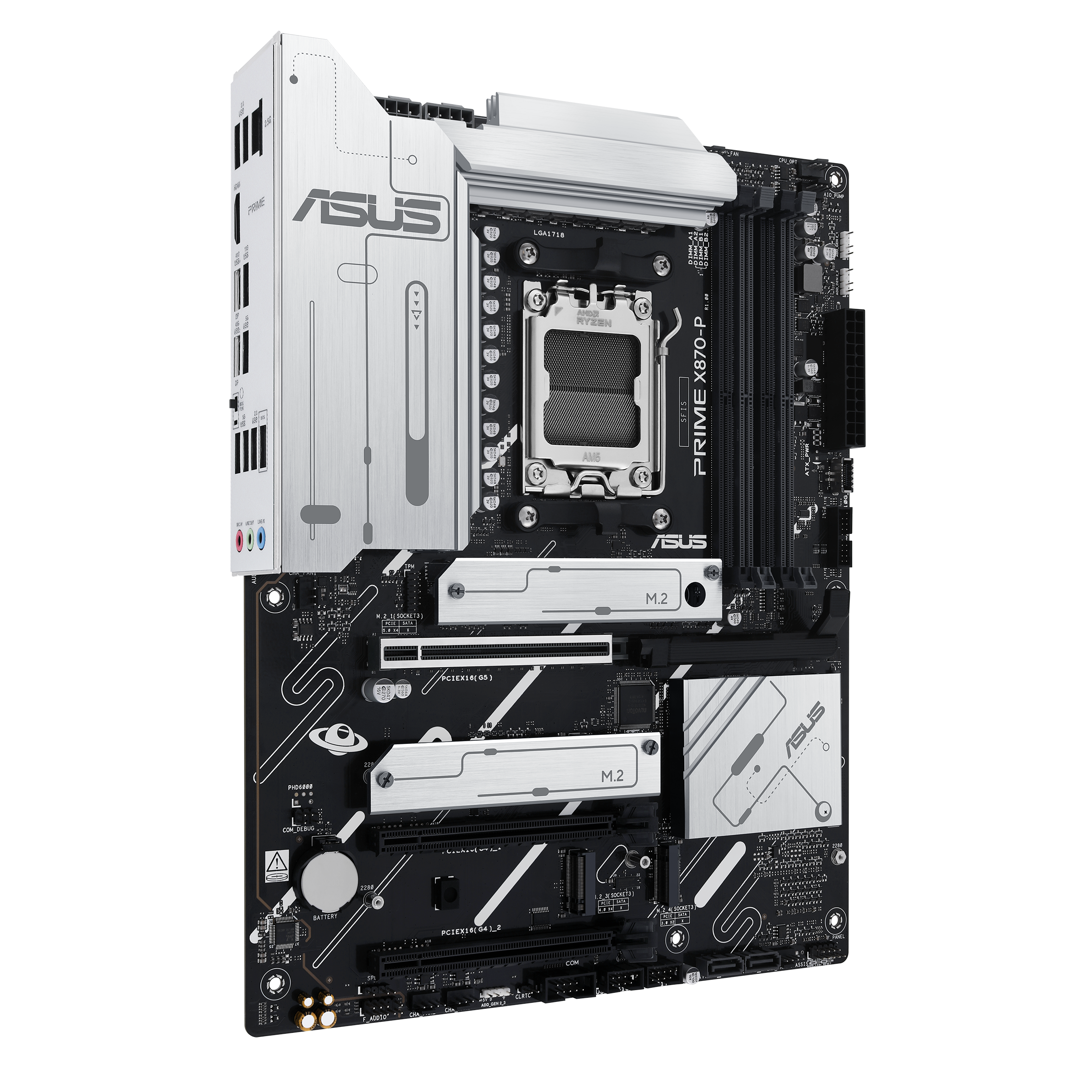

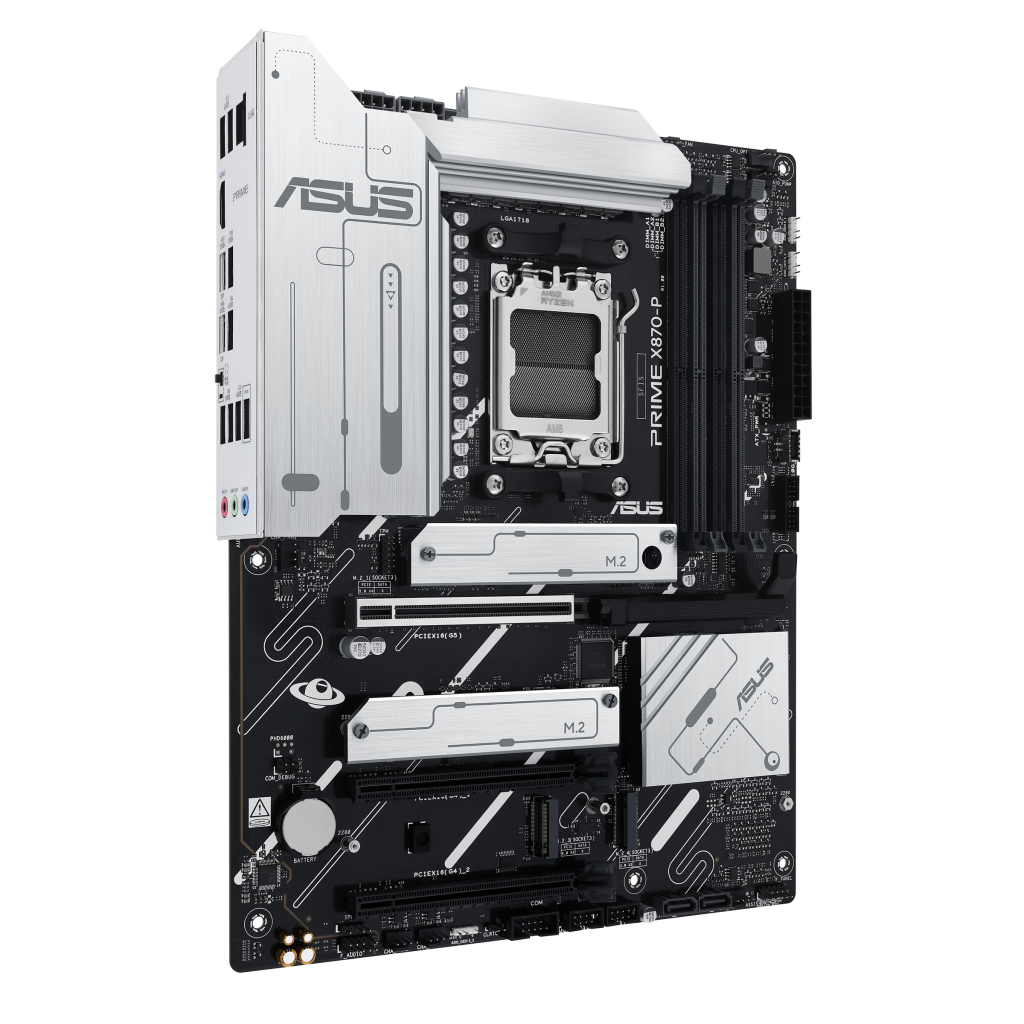

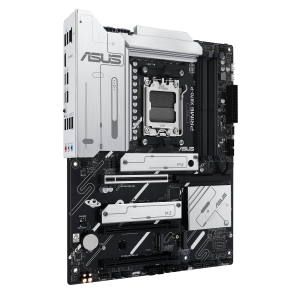

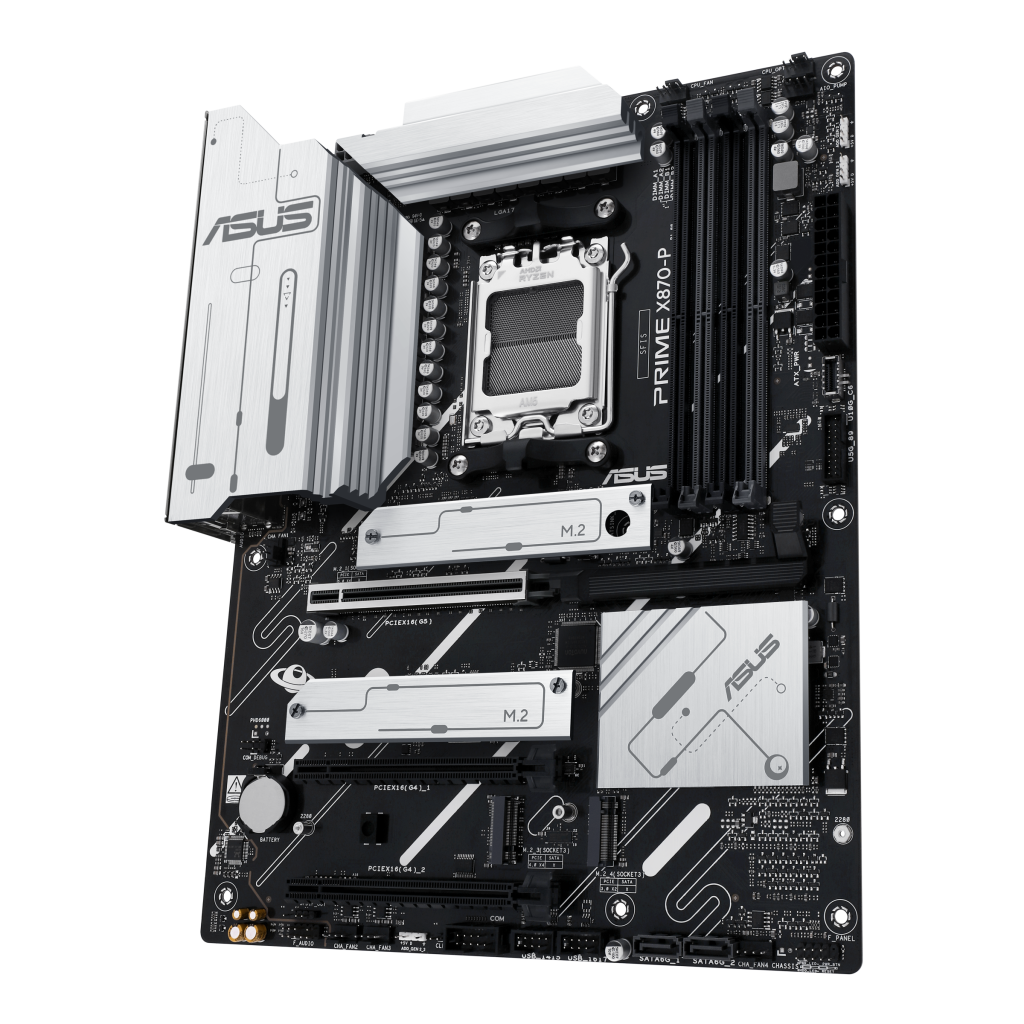

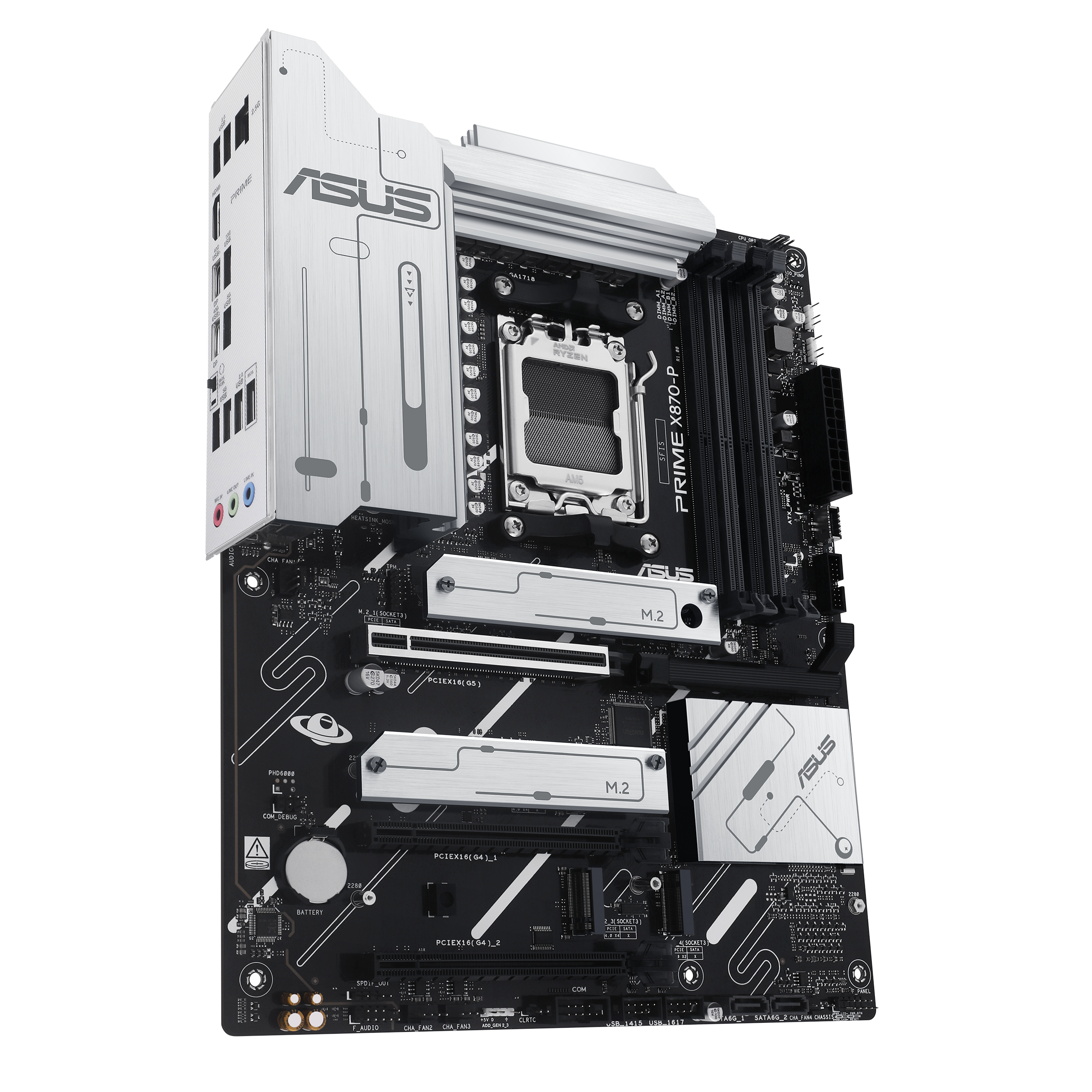

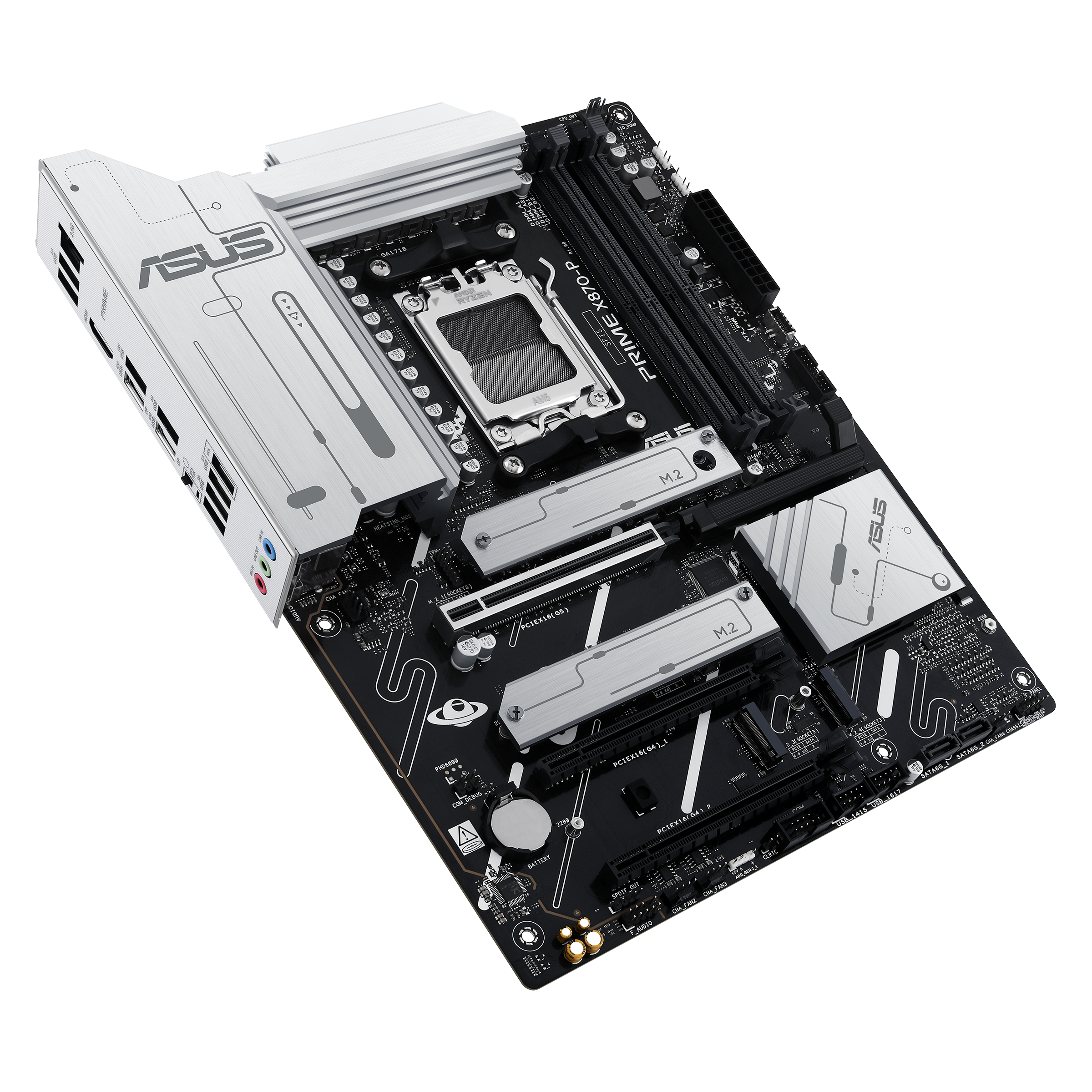

ASUS Prime X870-P: ATX motherboard with AMD AM5 socket and X870 chipset
The ASUS Prime X870-P features the mid-tier X870 chipset for AMDs Ryzen processors Its equipped with the Ryzen 9000 series and boasts numerous features for gamers and content creators. The Ryzen 9000 series processors also use the proven AM5 socket (LGA 1718).

The AMD X870 motherboard also offers USB 4.0, which is now available as standard and achieves data transfer rates of up to 40 Gbps. Furthermore, the ASUS Prime X870-P supports PCIe 5.0, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Perfectly Equipped for Gaming
The ASUS Prime X870-P is designed for high-end gaming, allowing you to enjoy even demanding games without interruption. The high-quality voltage converters provide a stable power supply to the CPU, ensuring its high clock speeds even over extended periods. Features such as HD audio processors deliver precise sound for your games.

Technical Details
Format:
– ATX (305 x 244 mm)
– Chipset:
– AMD X870 (Single Promontory 21)
– Socket:
– AM5 (LGA 1718)
– RAM:
– 4x DDR5 DIMM (validated up to 8000 MHz via overclocking)
– Dual-Channel
– Max. 192 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16 CPU)
– 1x PCIe 4.0 x16 (electrical x1)
– Internal Connectors:
– Total maximum usable PCIe lanes: 36 (24 CPU and 12 PCIe)
– 2x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4)
– 2x M.2 (PCIe 4.0 x4 & SATA)
– 1x M.2 (PCIe 3.0 x2)
– 1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 2x USB 2.0 (1 header, max. 480 Mbit/s)
– 1x system panel header
– 1x Front Panel Audio Connector
– 1x start button
– 1x reset button
– Fan connections:
– 3x CPU fan header (4-pin)
– 4x fan header (4-pin)
– RGB header:
– 3x 4-pin RGB headers (12 V)

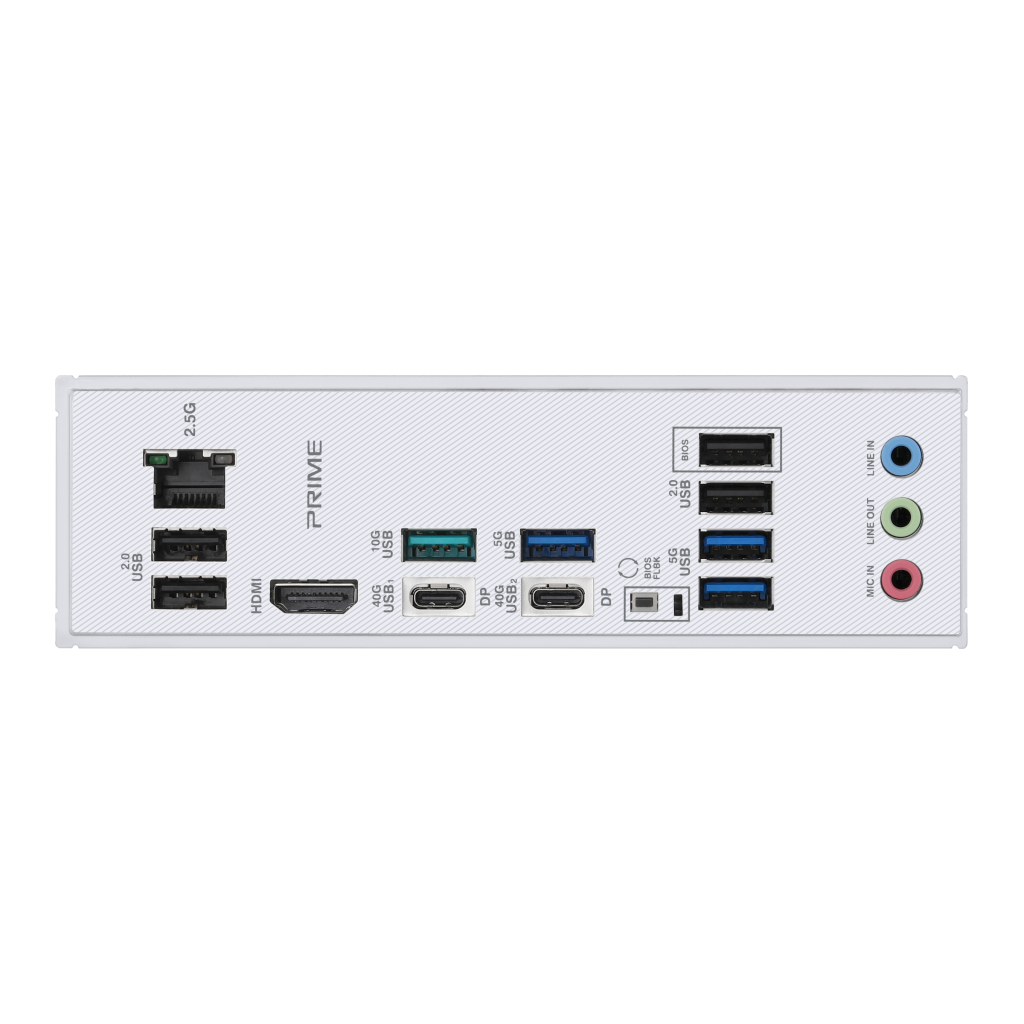

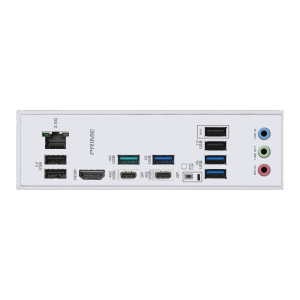

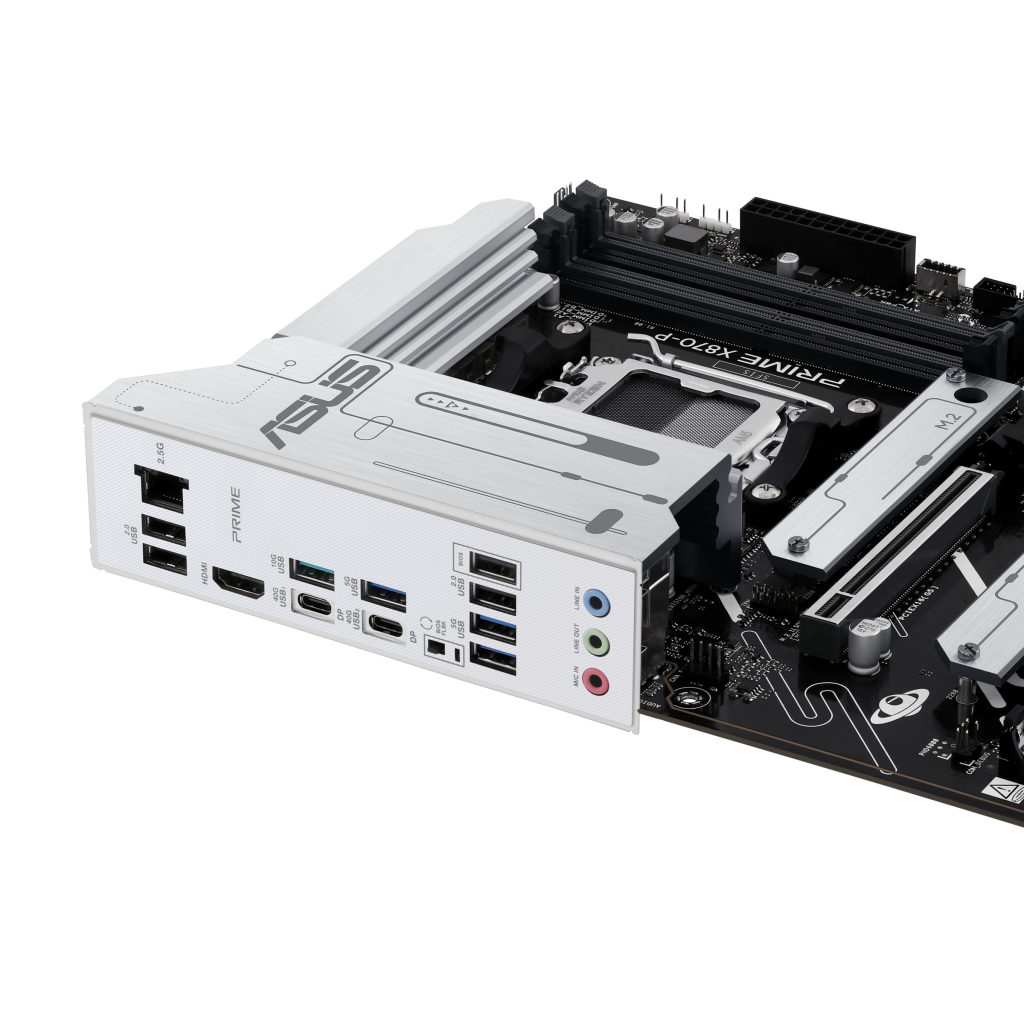

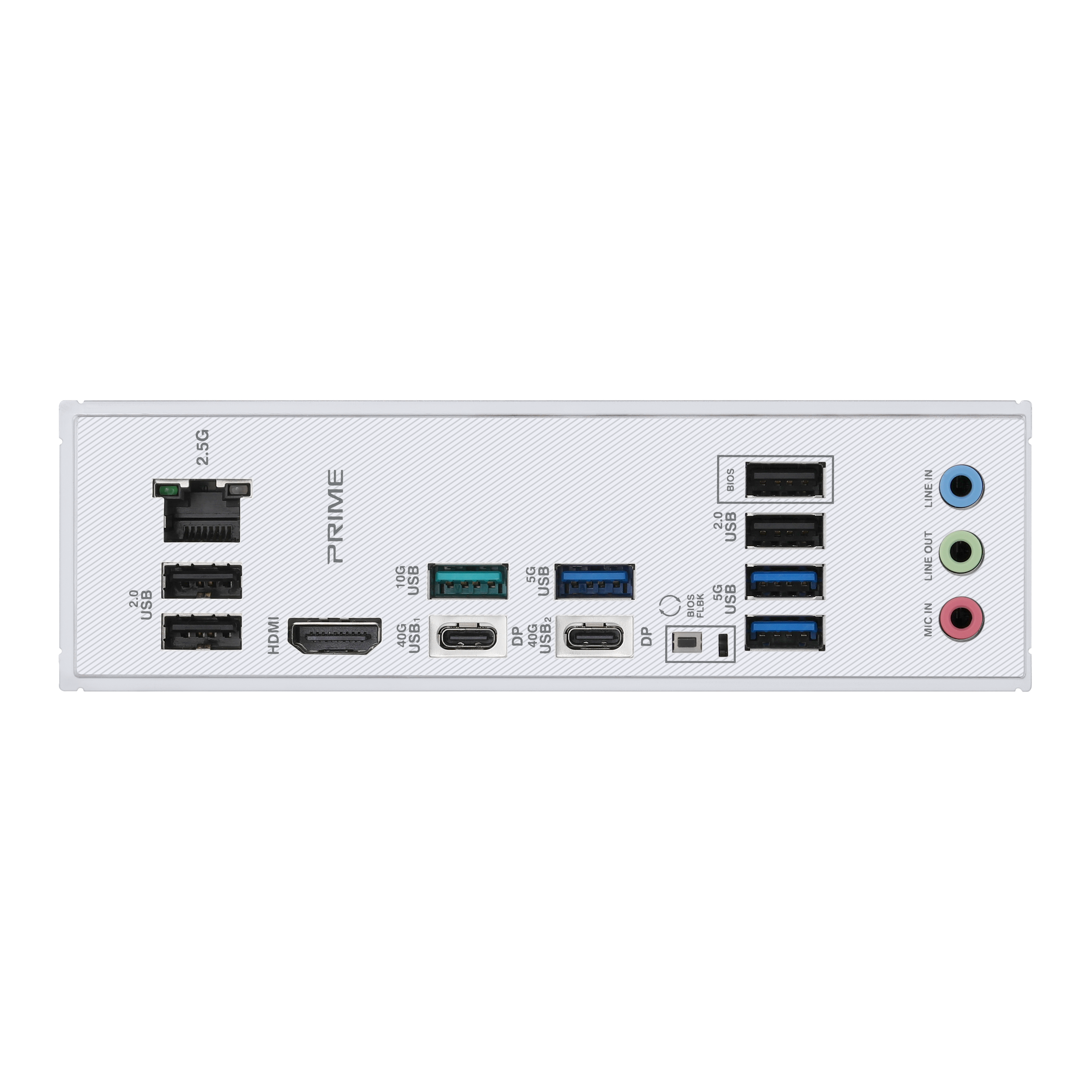

– External connections:
– 2x USB4 (Type C, USB4 Gen 3×2, max. 40 Gbit/s)
– 2x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 3x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (Type A, max. 480 Mbps)
– 1x HDMI 2.1
– 1x 2.5 Gigabit LAN
– 3x 3.5 mm jacks and
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin 12V
