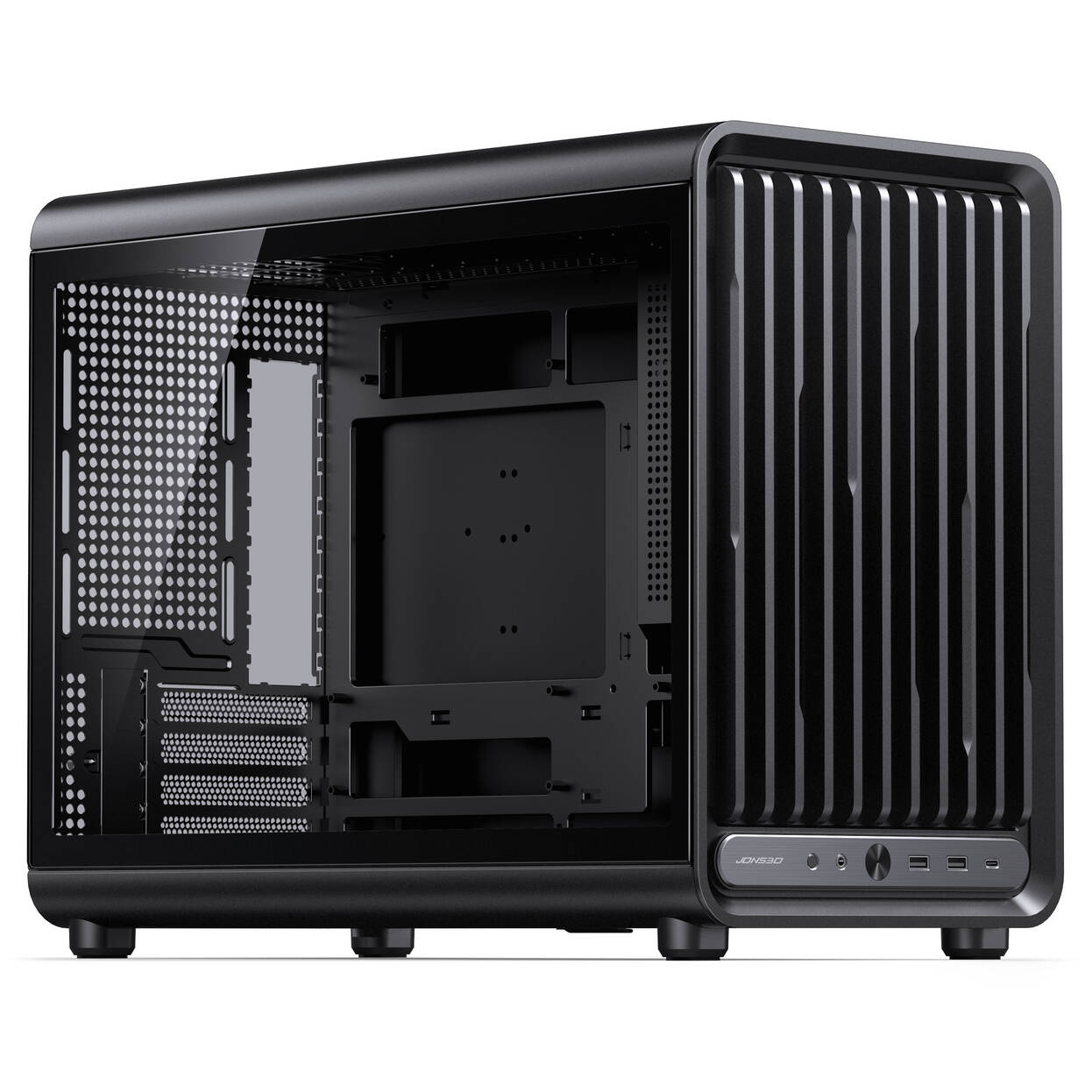

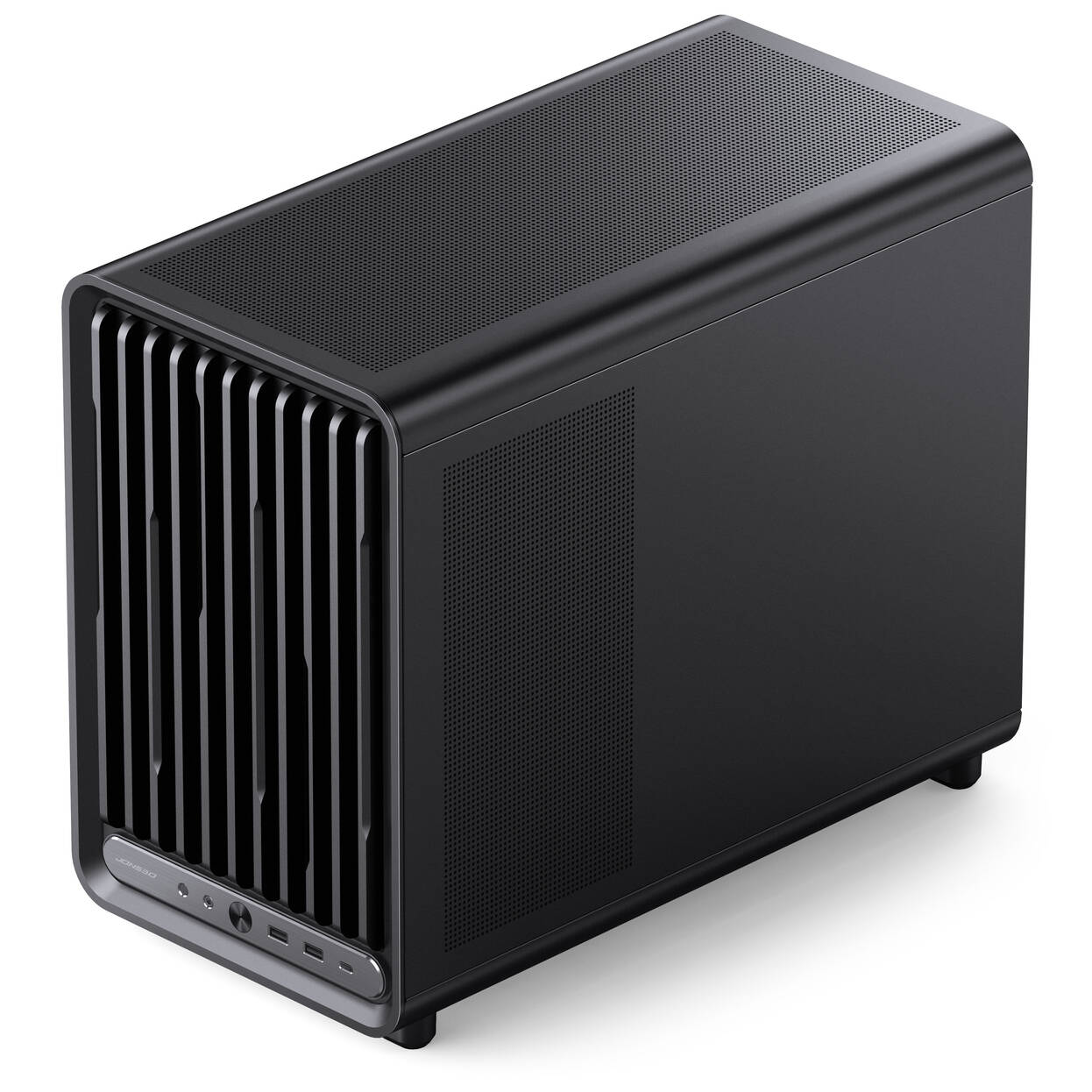

With the Jonsbo D33 STD, you get a mini case that can be integrated into any setup.
With the Jonsbo D33 STD, you get a mini case that can be integrated into any setup.
With the Jonsbo D33 STD, you get a mini case that can be integrated into any setup.
With the Jonsbo D33 STD, you get a mini case that can be integrated into any setup.

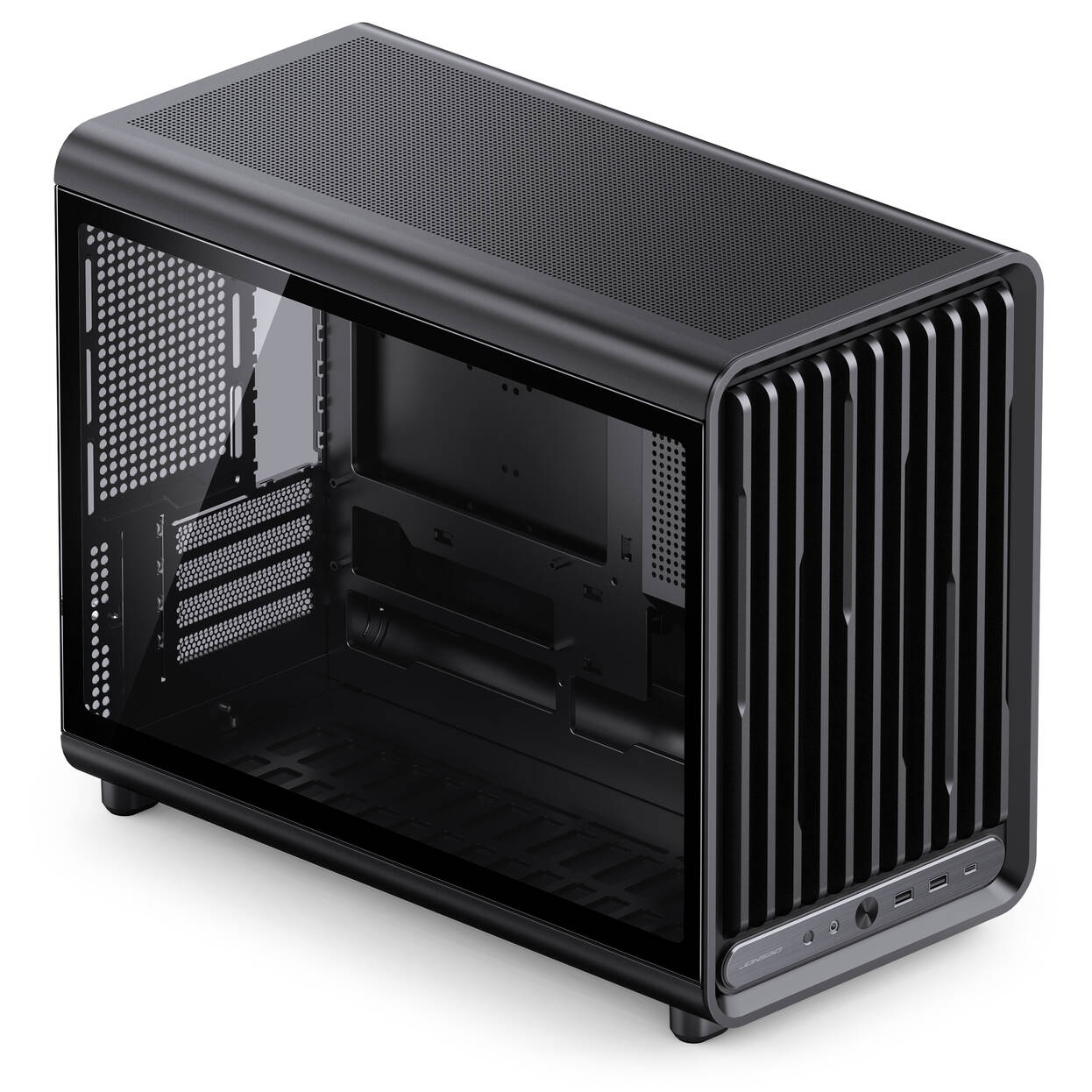

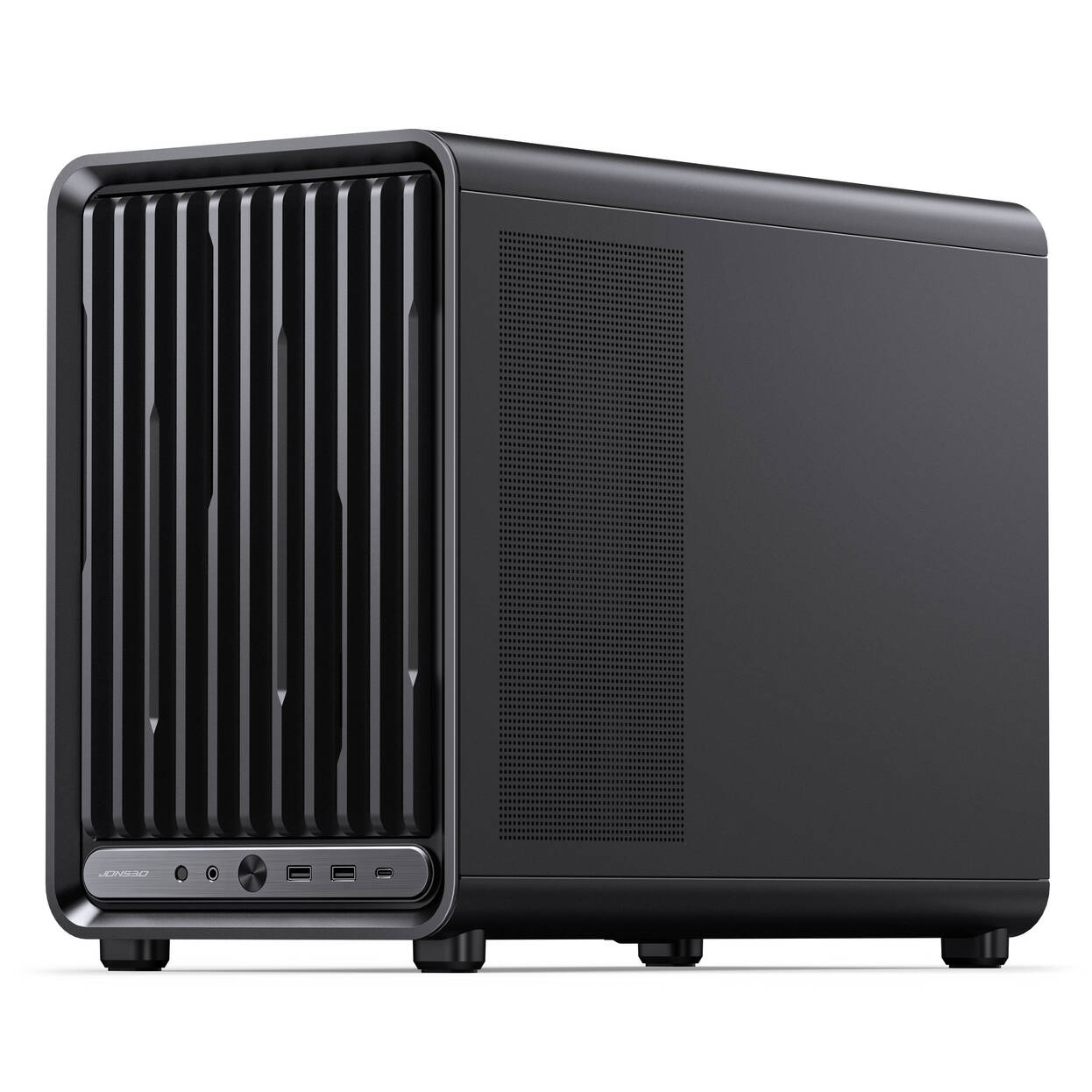

– Black mATX tower
– Numerous fan and radiator mounts for effective cooling performance
– Supports motherboards up to mATX and with back-connect design
– Space for graphics cards up to 435mm and CPU coolers up to 172mm in height
– Jonsbo D33 STD: Space-saving PC Case

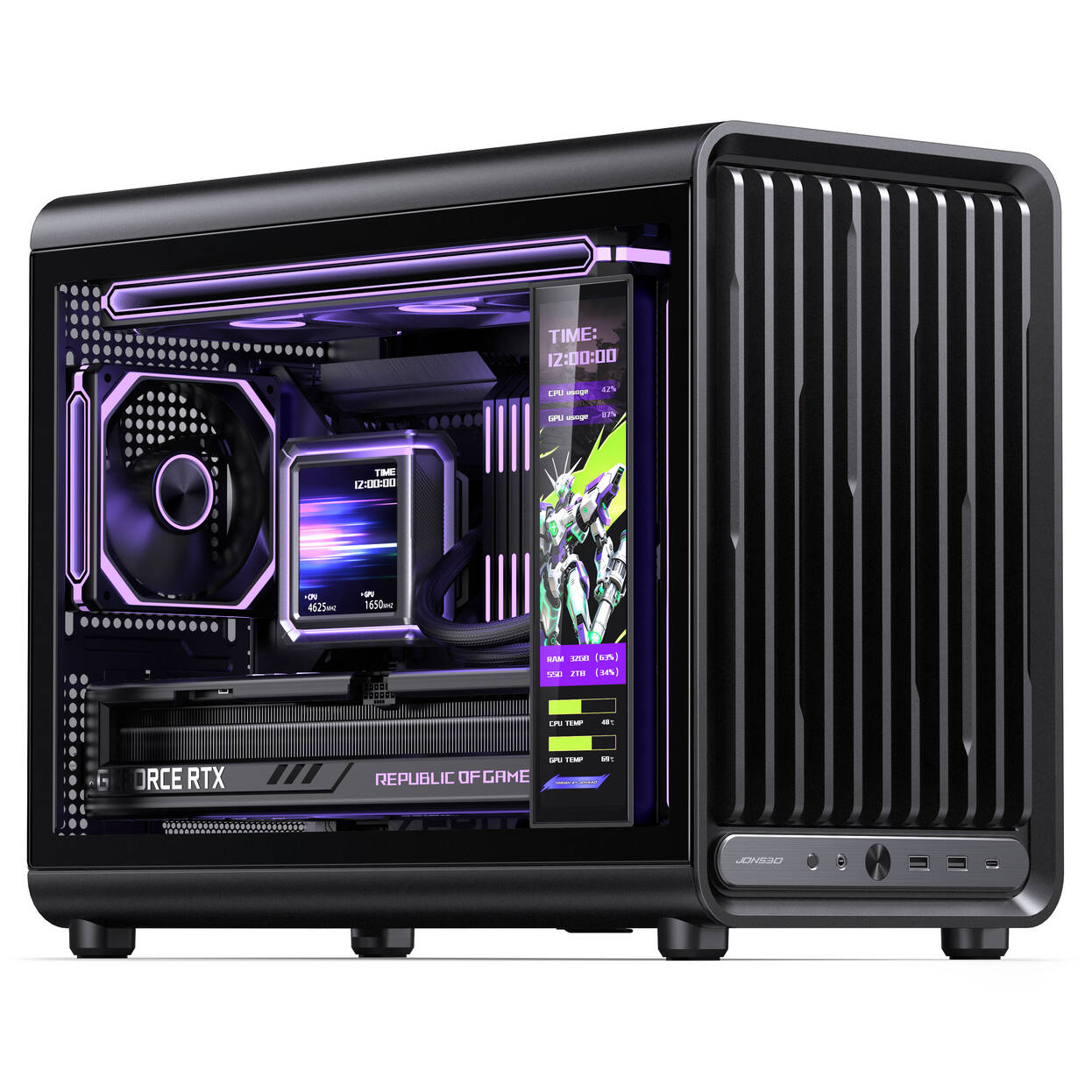

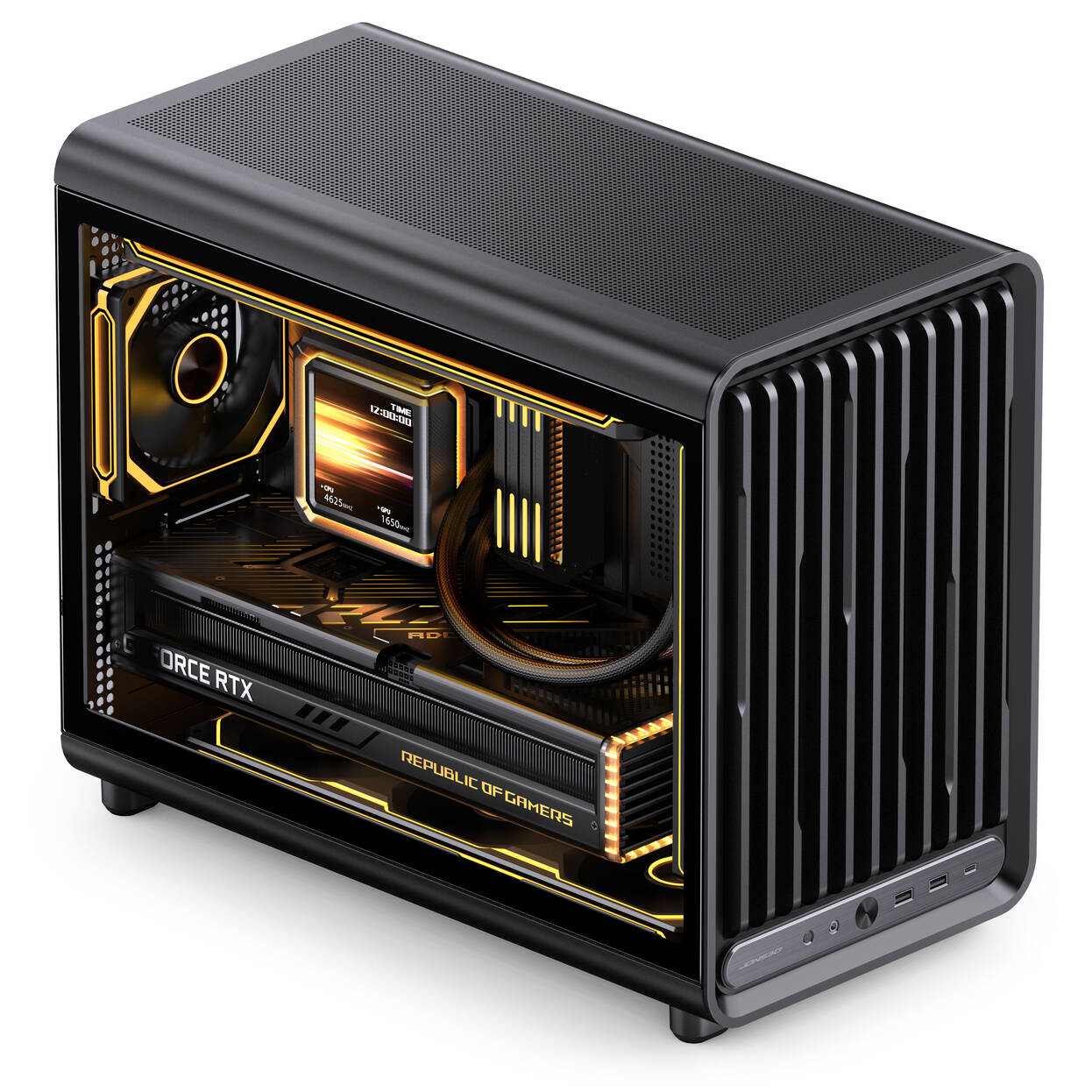

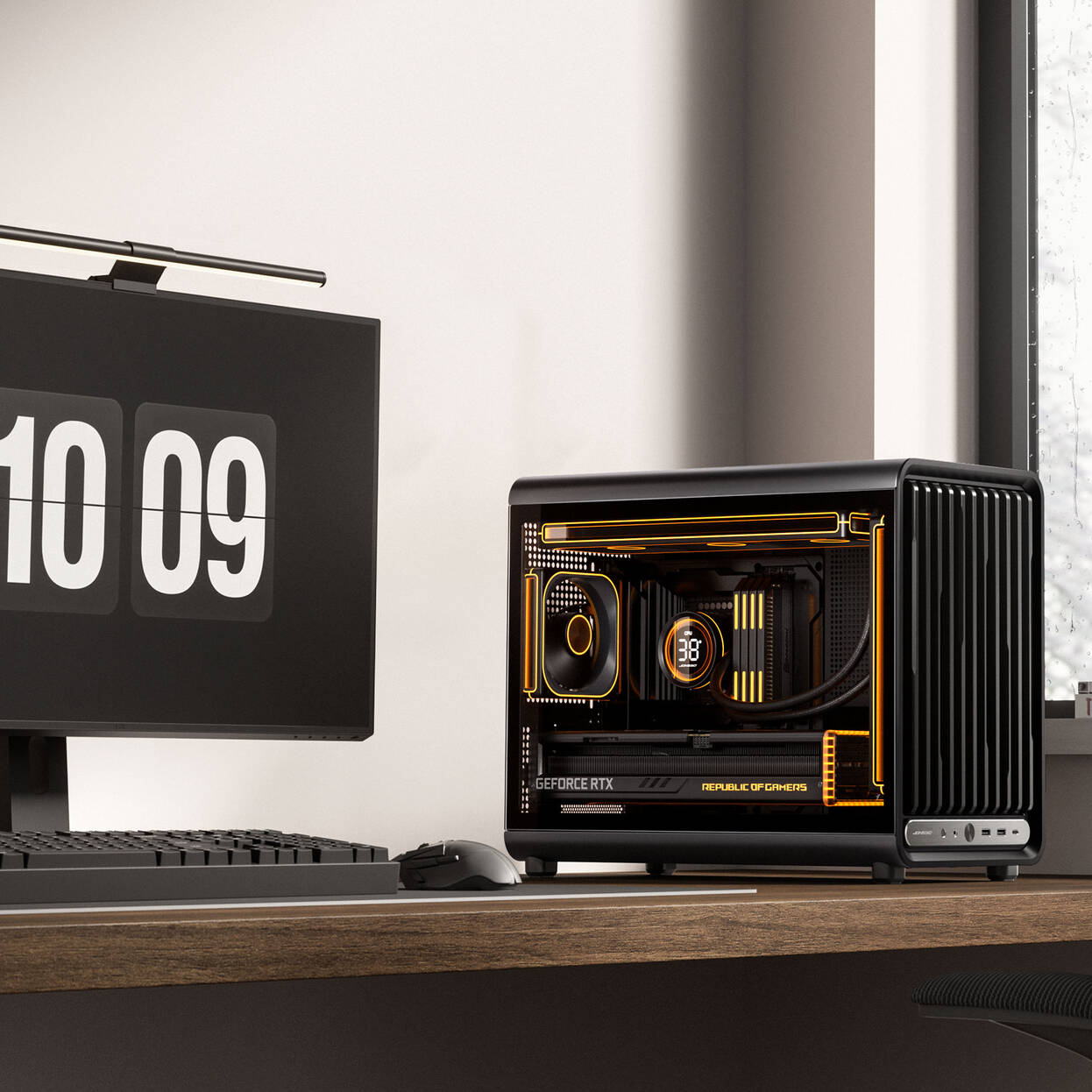

The Jonsbo D33 STD offers plenty of room for powerful gaming hardware despite its compact size. Ideal for living room setups.
Extensive cooling options with fans and radiators
To keep your hardware cool under any load, the Jonsbo D33 STD can accommodate up to nine fans simultaneously. The case allows for three 120mm fans at the top and bottom, two 120 or 140mm fans at the front, and one 120mm fan at the rear. Note that only two 140mm fans are possible at the front if you install an SFX power supply.

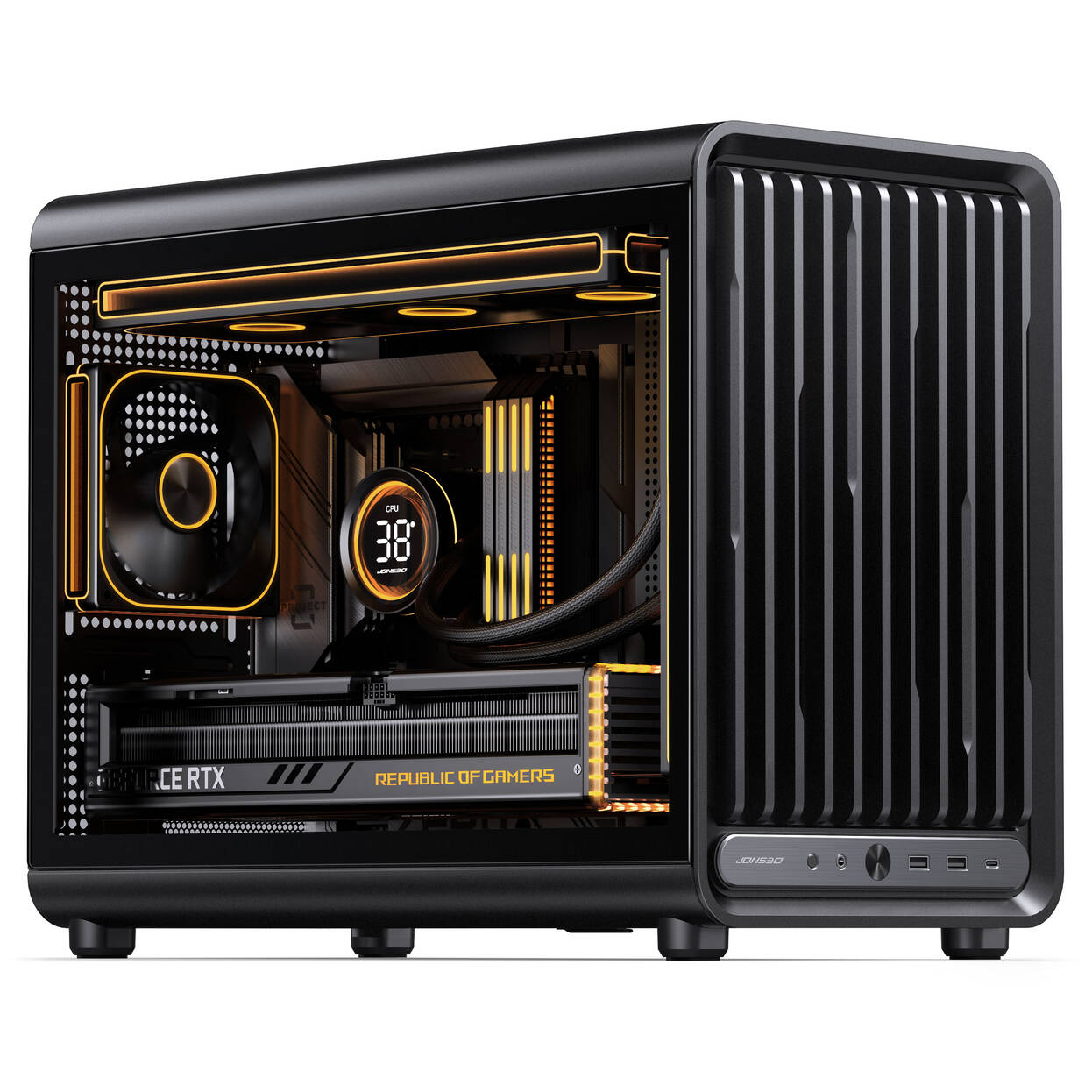

An AiO water cooling system can also be easily installed if you prefer to cool your powerful hardware with water cooling. There is space for a 360mm water cooling radiator at the top.

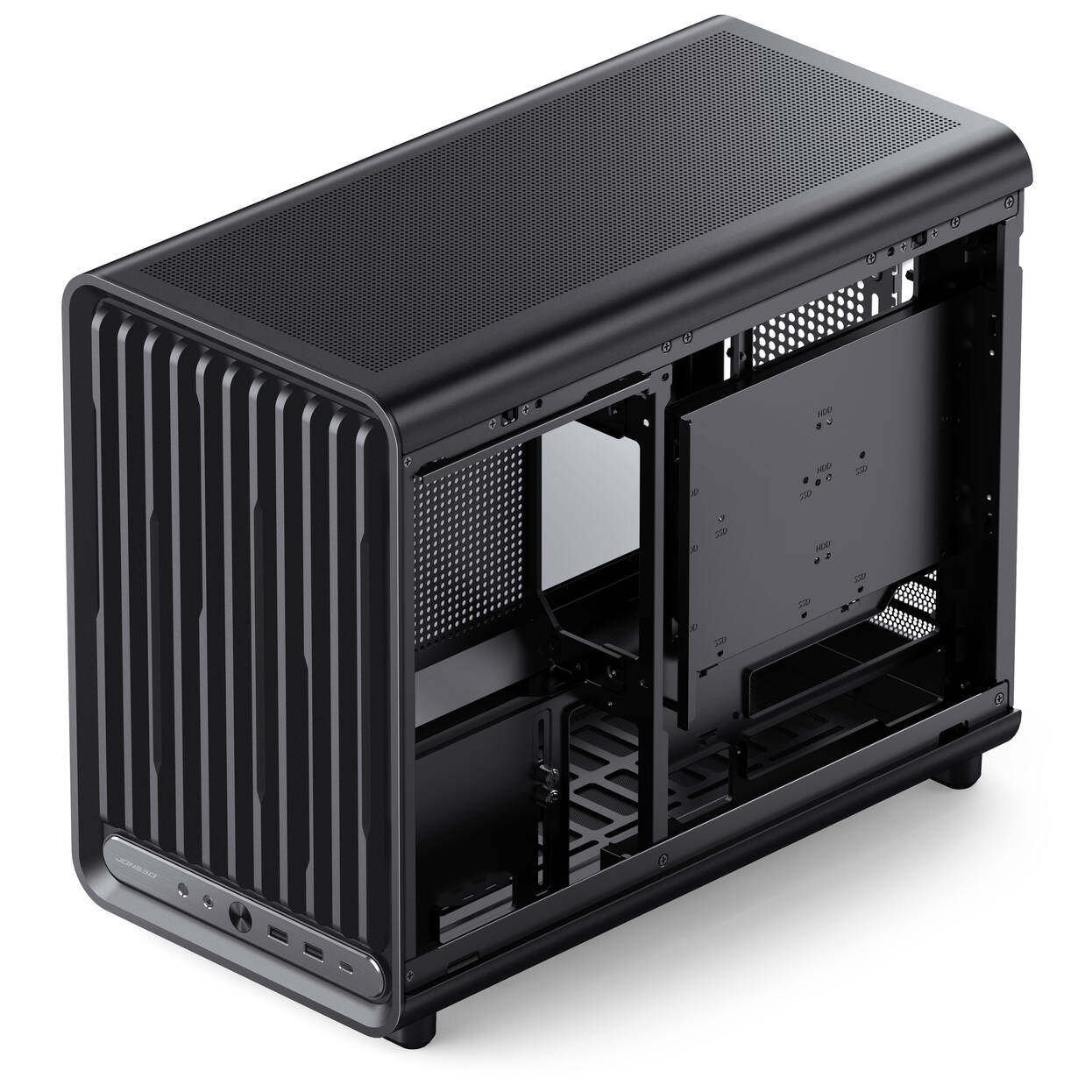

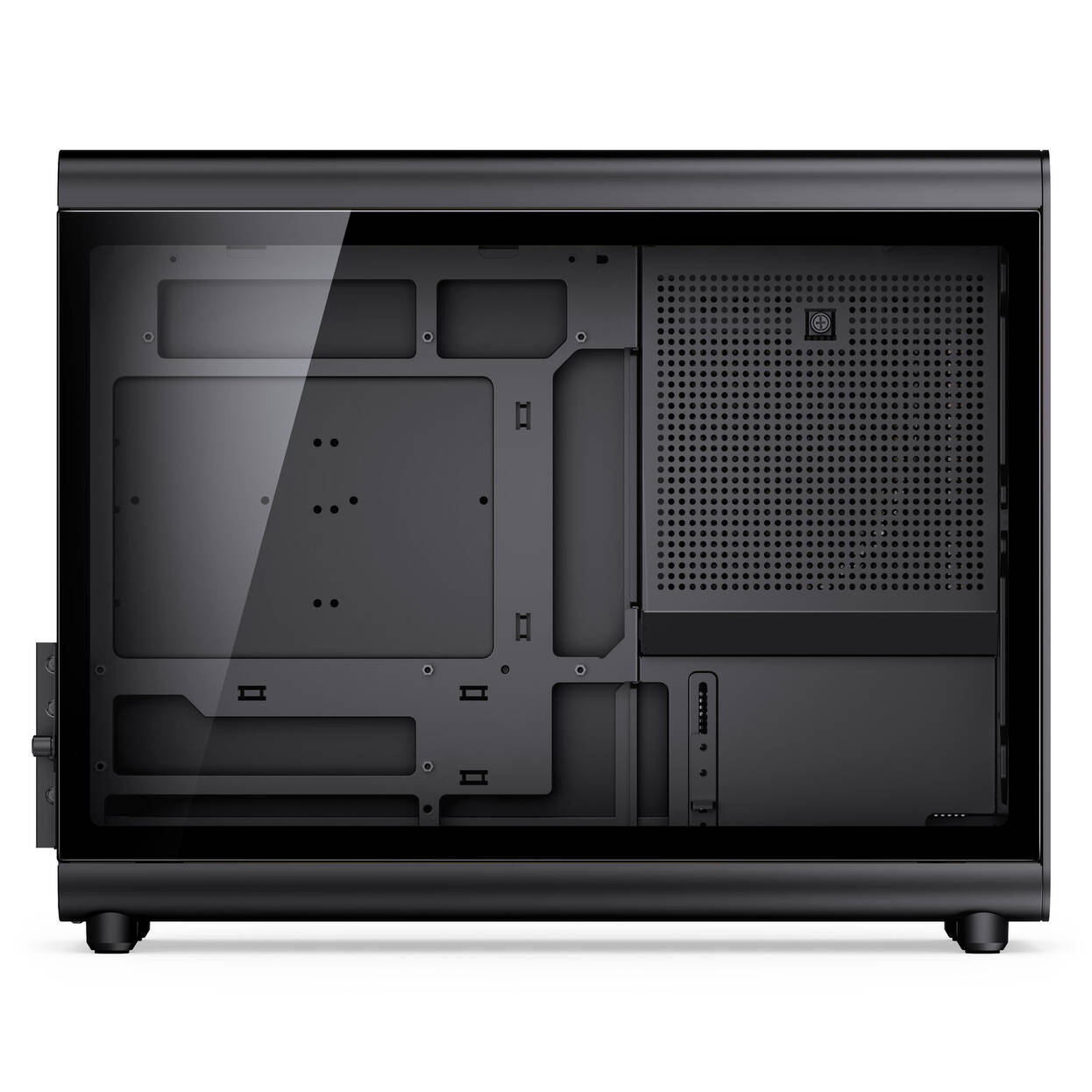

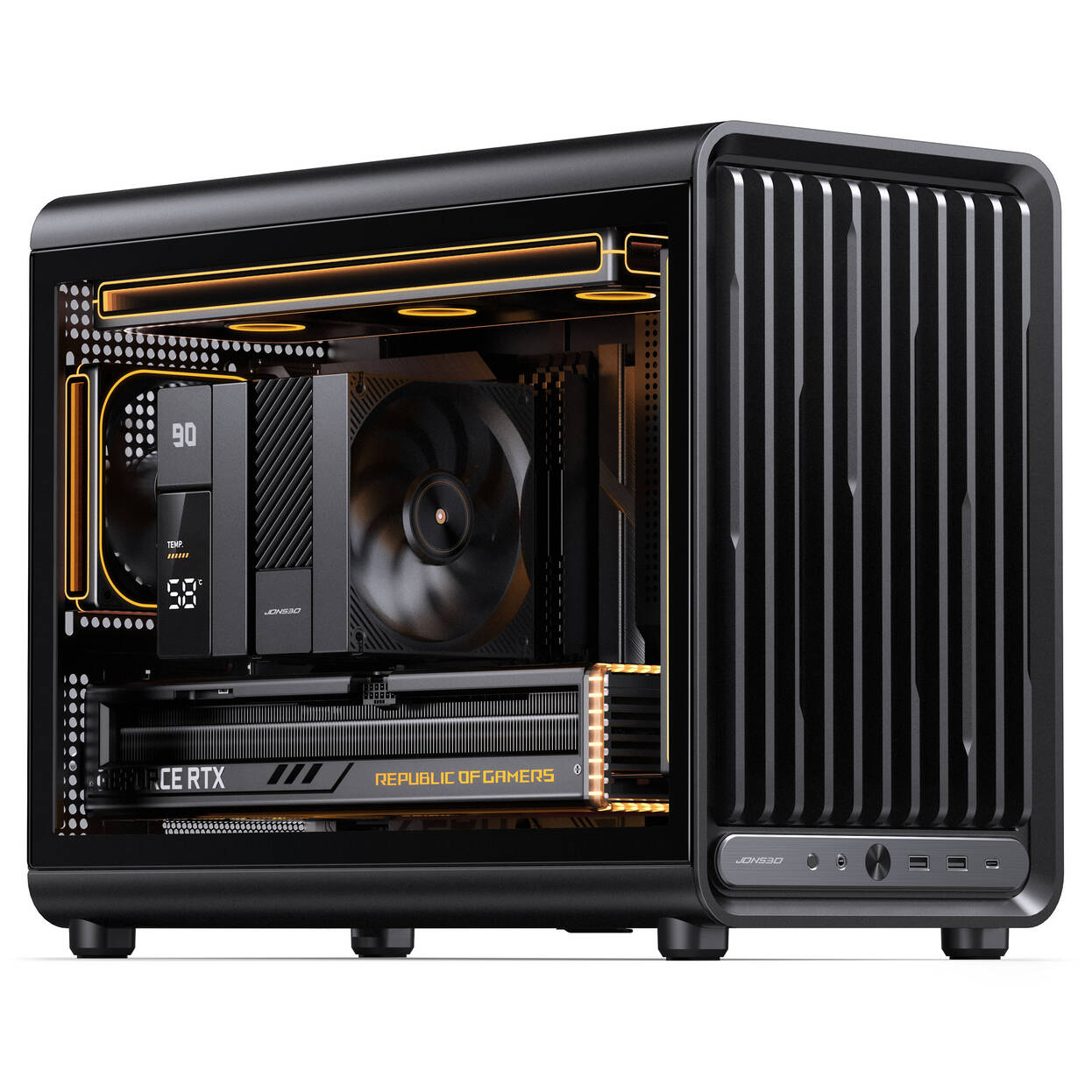

Installing Your Hardware
The case provides enough room for powerful gaming hardware. It supports the installation of long graphics cards up to 435mm. The CPU cooler should not exceed a height of 172mm.
Specifications
| General | |
|---|---|
| Case Type | Mini Case |
| Colour | Black |
| Materials | Tempered Glass |
| Weight | 6.7 kg |
| Dimensions | |
| Length | 455 mm |
| Width | 238.2 mm |
| Height | 368.4 mm |
| Motherboard Support | |
| Supported Form Factors | Micro-ATX, Mini-ITX |
| Maximum Motherboard Size | Micro-ATX |
| Component Clearance | |
| Max CPU Cooler Height | 172 mm |
| Max GPU Length | 435 mm |
| Max PSU Length | 160 mm |
| Power Supply | |
| PSU Included | No |
| Supported PSU Format | ATX |
| PSU Position | Front Mounted |
| Cooling Support | |
| Maximum Fan Capacity | Up to 9 Fans |
| Front Fan Support | 2 × 120 mm or 2 × 140 mm |
| Top Fan Support | 3 × 120 mm |
| Bottom Fan Support | 3 × 120 mm |
| Rear Fan Support | 1 × 120 mm |
| Pre-Installed Fans | None |
| Radiator Support | |
| Maximum Radiator Size | 360 mm |
| Top Radiator Support | 240 mm / 360 mm |
| Storage Support | |
| 2.5″ Drive Bays | 2 |
| 3.5″ Drive Bays | 2 |
| Hot-Swap Support | No |
| Front I/O Ports | |
| USB Type-C | 1 × USB 3.2 Type-C |
| USB Type-A | 2 × USB 3.0 Type-A |
| Audio | 1 × 3.5 mm Combo Audio Jack |
| Case Features | |
| Side Panel | Windowed Tempered Glass Panel |
| Cable Management | Yes |
| Dust Filters | Included (Bottom) |
| Back-Connect Support | Yes |
| Vertical GPU Mount | No |
| Noise Dampening | No |
| Expansion & Connectivity | |
| Expansion Slots | 4 |
| Card Reader | No |
| Fan Hub / Controller | No |
| Riser Cable Included | No |
| Additional Information | |
| Display Included | No |
| RGB Lighting | No |
| VESA Mountable | No |
| Internal Monitor Mount | No |
| Compatibility Note | Refer to the manufacturer’s website for the latest hardware compatibility information. |
£79.91£66.59 Inc VatEx Vat
