Thermal Grizzly WireView Pro II Wired GPU TFT-IPS Power Monitor

The WireView Pro II has been specifically designed for the demanding use of modern high-end graphics cards with 12V-2×6 connectors and represents the advanced version of the WireView Pro. As a patented development by Thermal Grizzly, it is protected by the European patent EP4250057. The “Wired” variant of the WireView Pro II is not plugged directly into the graphics card but can be freely positioned inside the case thanks to a 40 cm long power cable with a 12V-2×6 connector. Several included mounting brackets offer extensive options for attachment.

The WireView Pro II measures the current not only as a total value but per conductor of the 12V-2×6 connector. This allows potential contact issues between the cable and graphics card to be identified immediately. The WireView Pro II was specifically developed to enable precise monitoring of the 12V-2×6 connector, allowing early detection of load distribution problems and helping to prevent possible damage to the graphics card and the 12V-2×6 connector.

All safety-relevant parameters such as currents (A), voltages (V), temperatures (°C), and power consumption (W) are continuously measured. Thermal Grizzly defines limit values that should not be exceeded during normal operation, as otherwise there is an increased risk of thermal damage to the connector. If these limits are exceeded, a visual warning appears on the display along with an audible alarm. Optionally, automatic system shutdown is possible via the supplied splitter cable. The preset limit values can be changed via the configuration menu.

Cooling

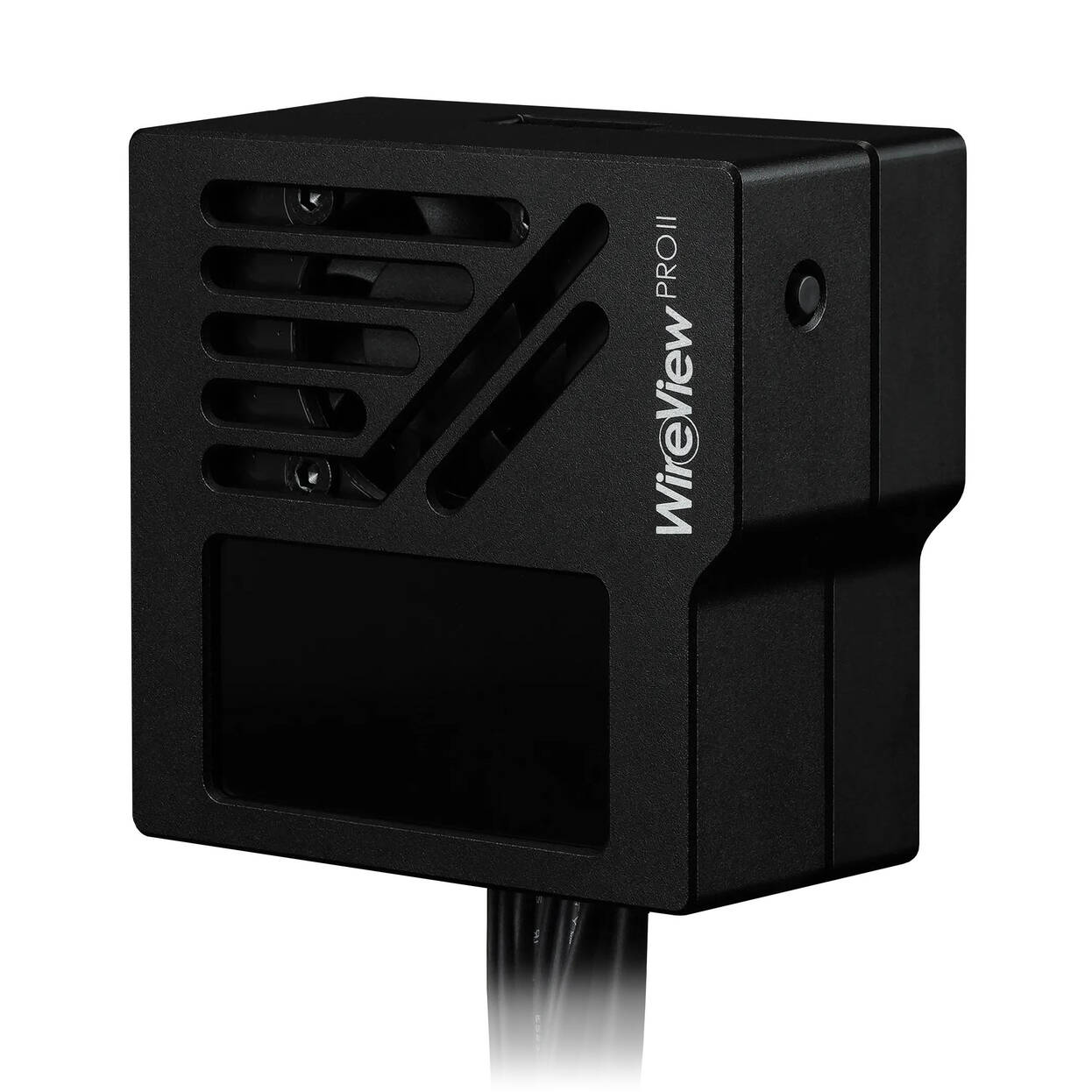

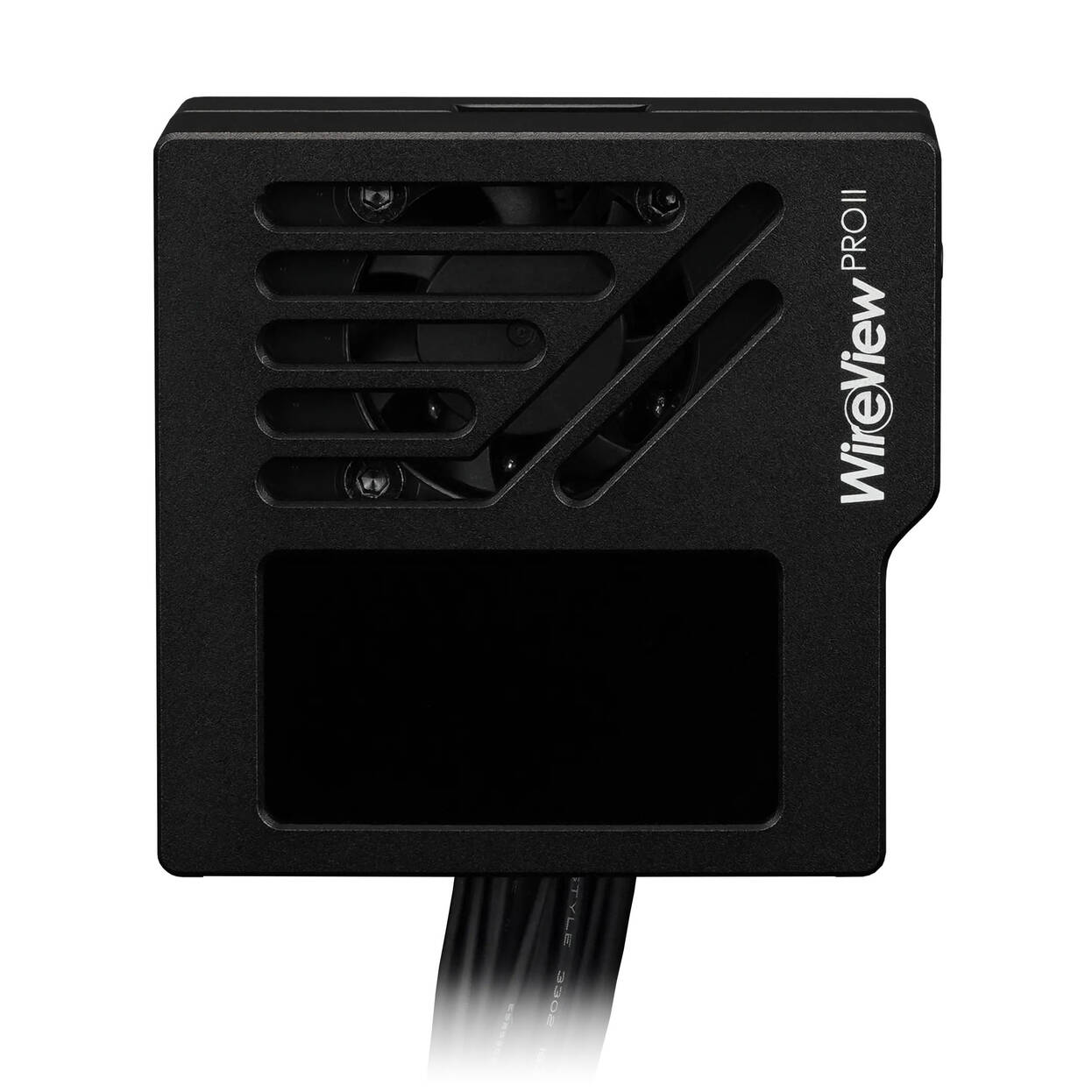

Due to unavoidable contact resistances at connector joints, additional waste heat is generated during the operation of high-performance GPUs. For controlled heat dissipation, a semi-passive fan has been integrated, which operates silently at idle and is automatically activated with increasing power consumption or temperature. The CNC-milled aluminium housing features ventilation openings and serves as an active heat sink. Optimised airflow is supported by openings in the rear circuit board, directing air along all heat-relevant components.

The cooling of the WireView Pro II Wired can benefit from mounting the device on one of the intake case fans. The additional airflow supports the dissipation of waste heat, so the WireView Pro II Wired usually operates in passive mode.

User-Friendliness

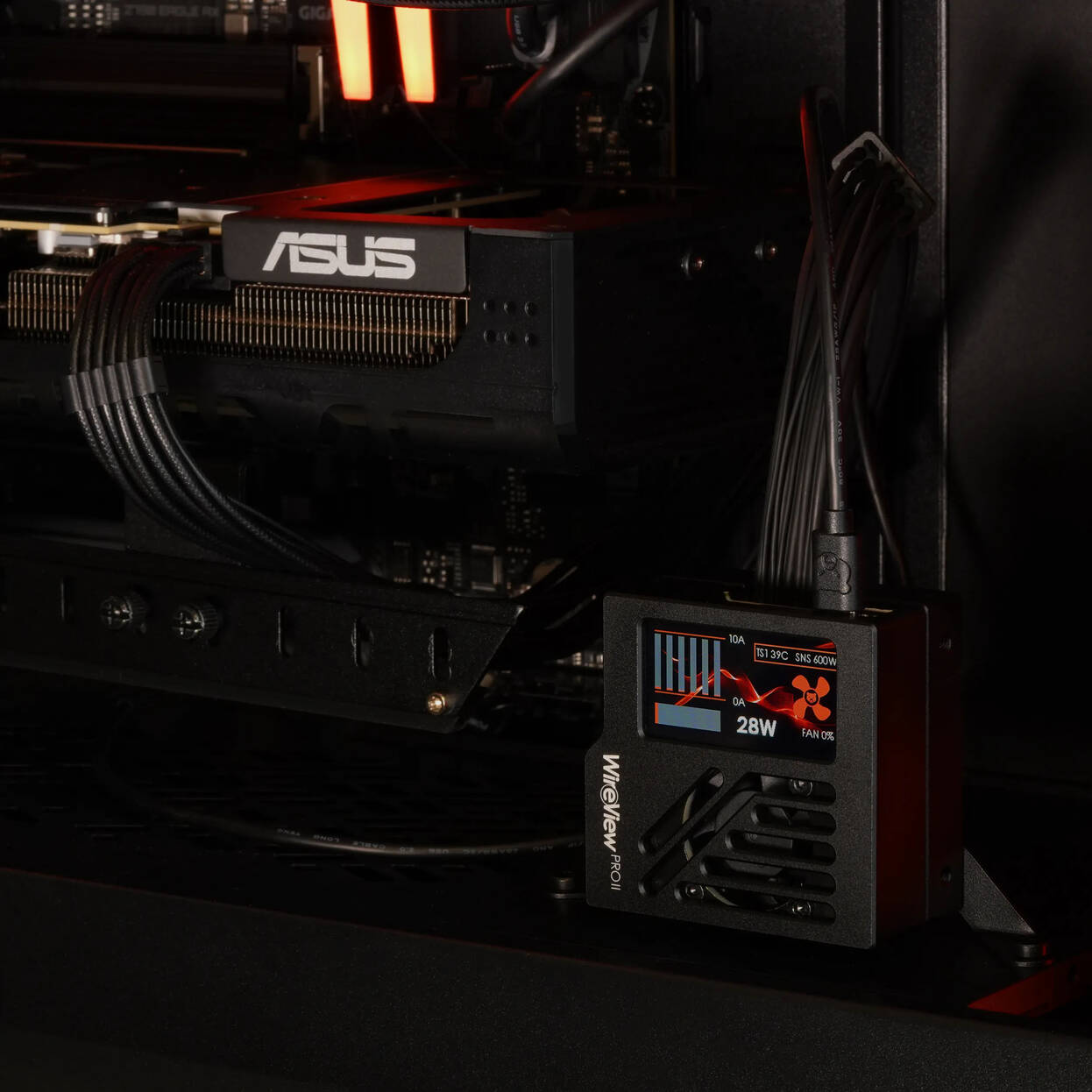

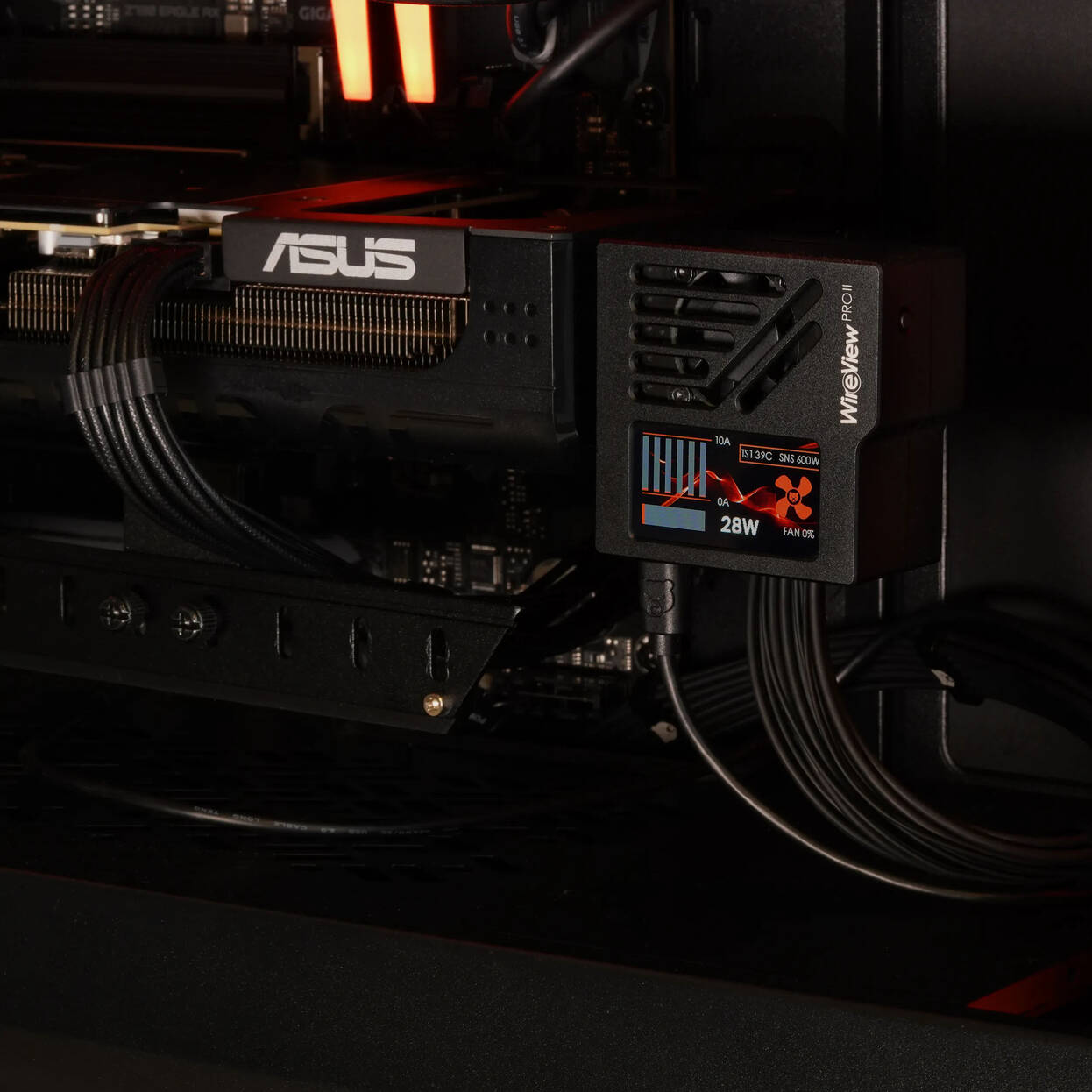

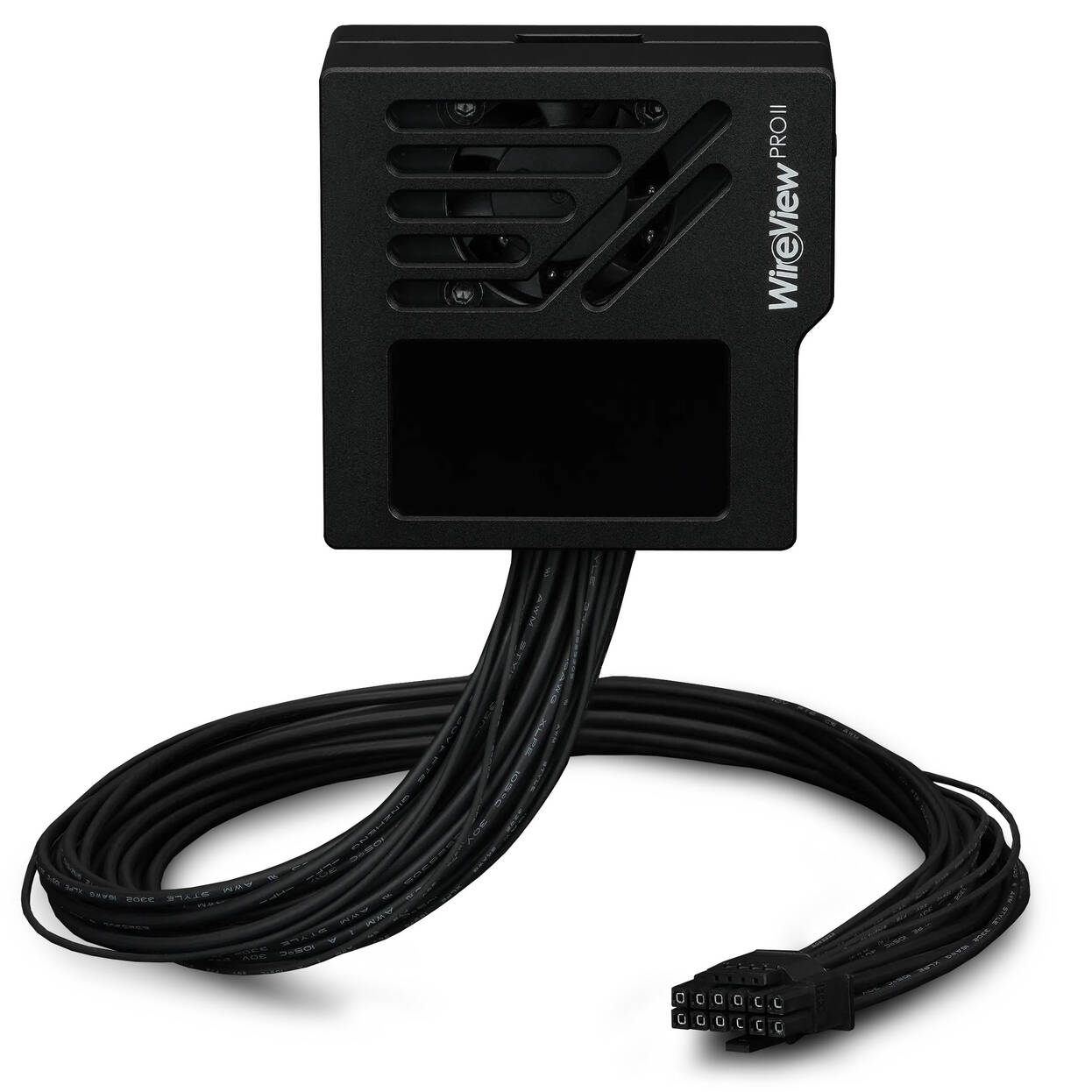

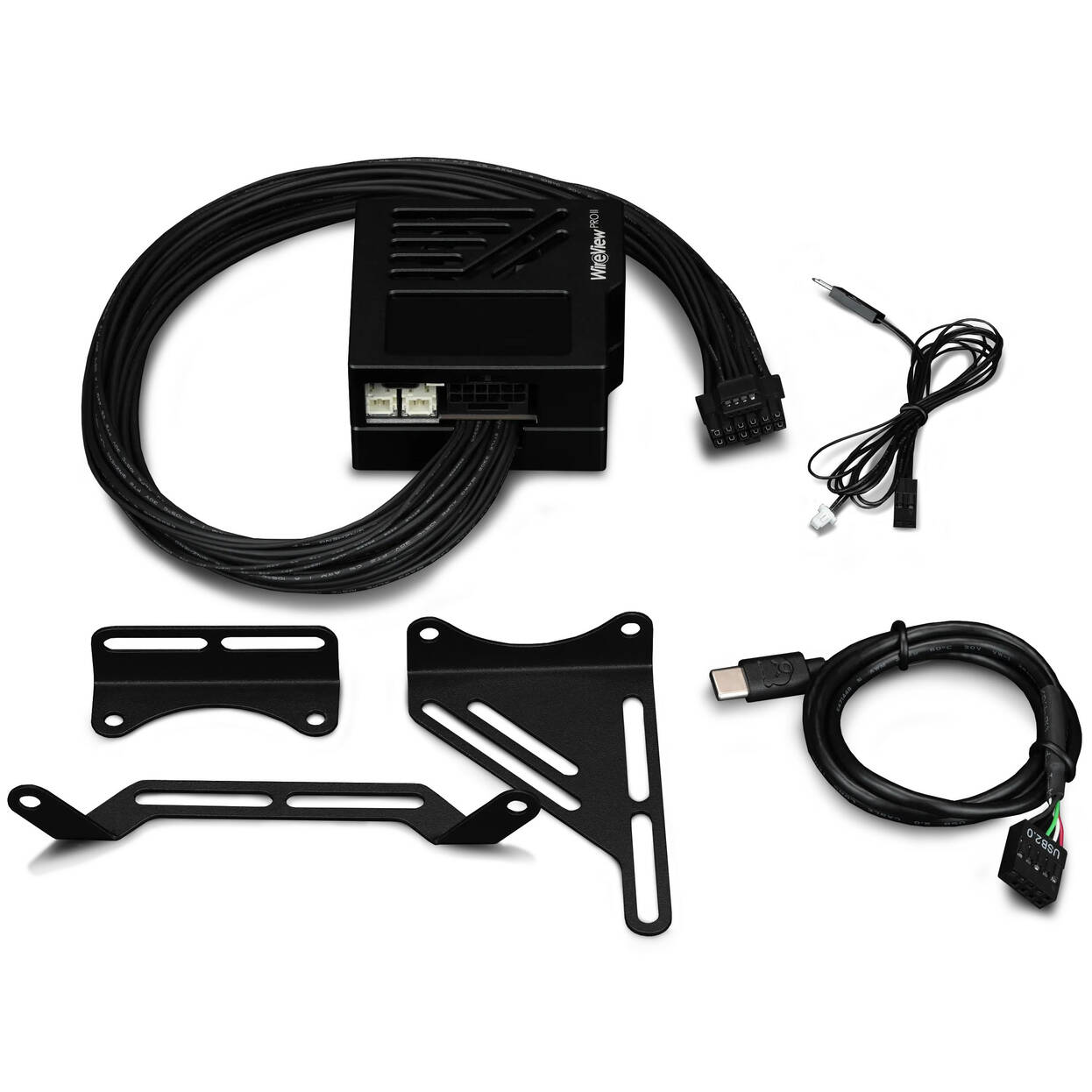

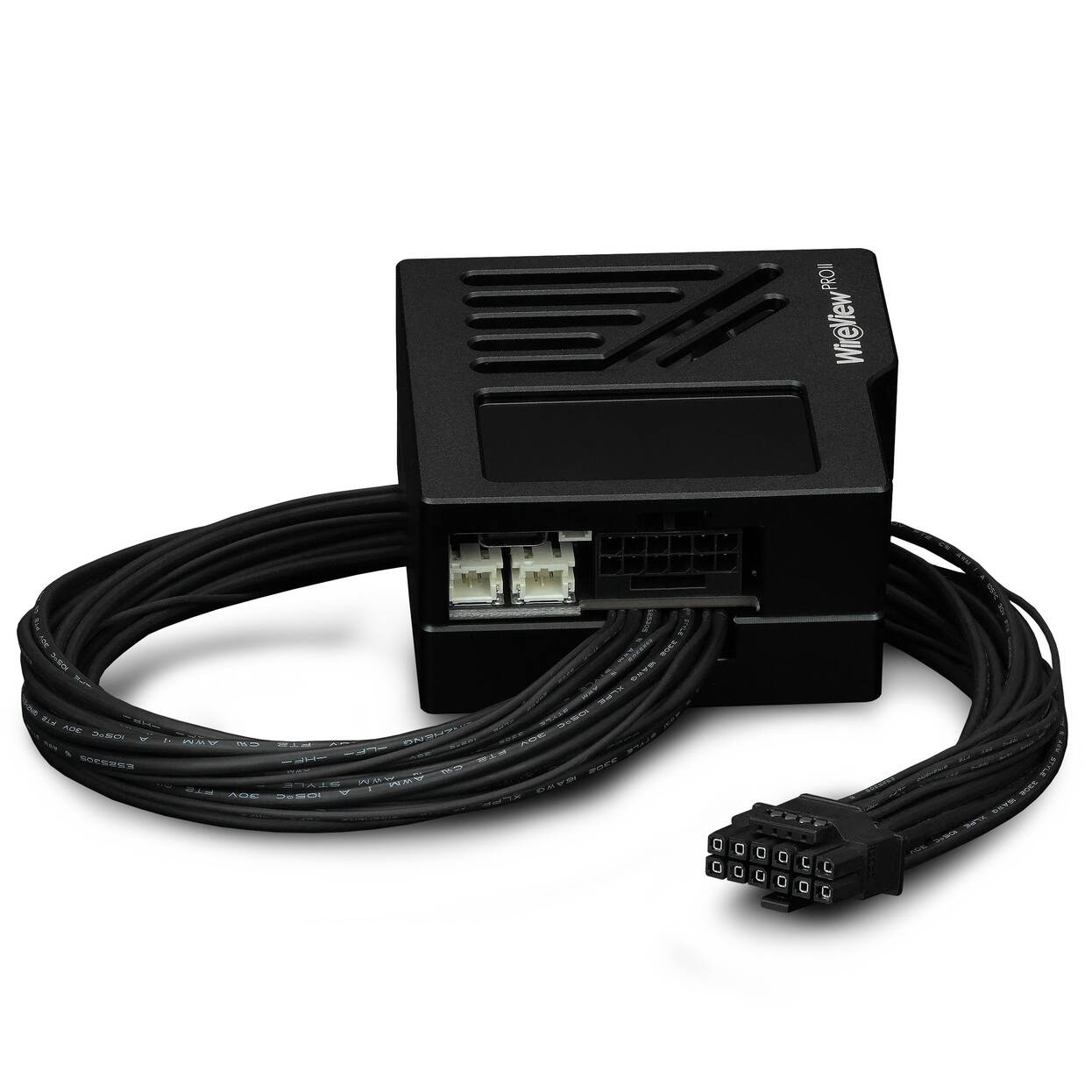

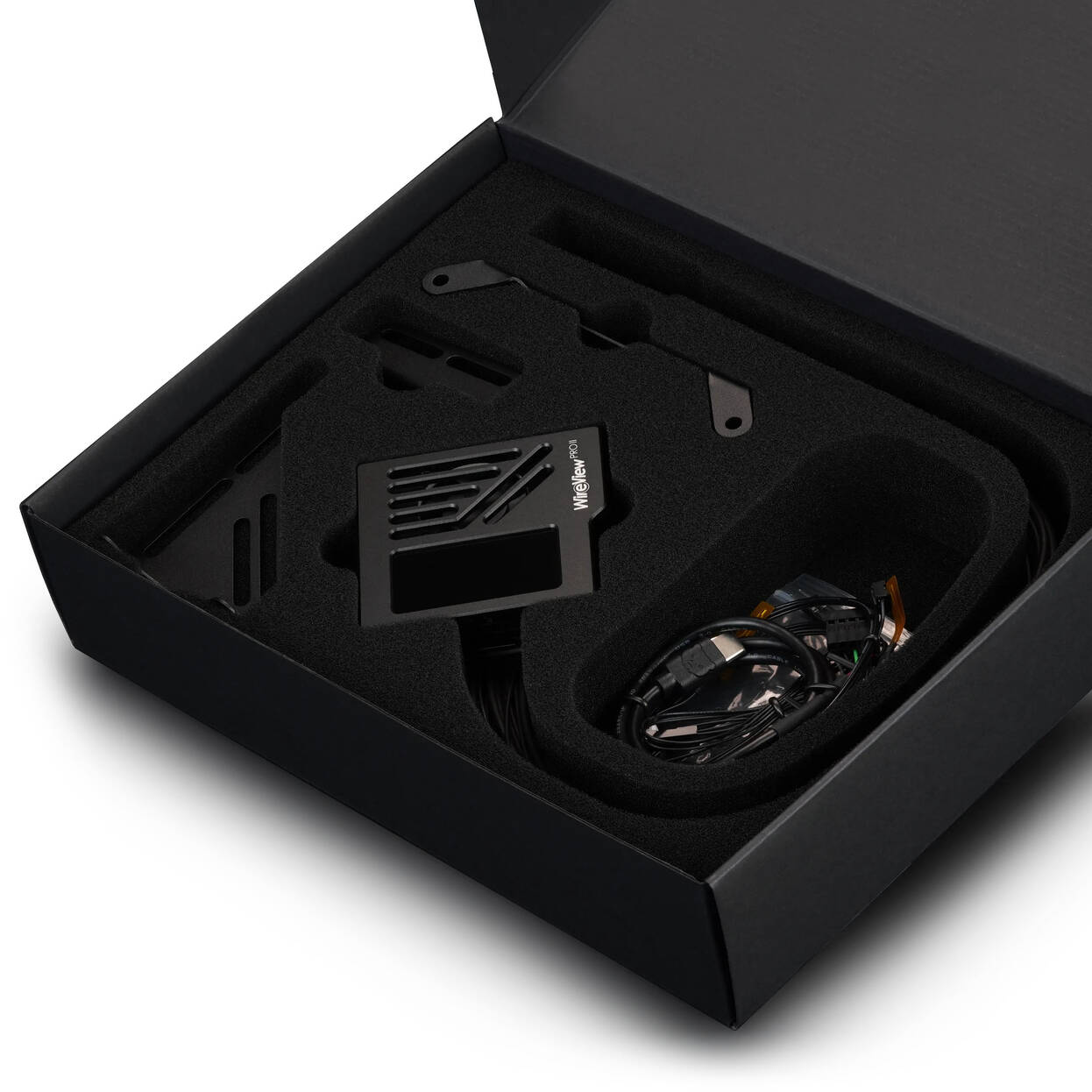

The WireView Pro II Wired features a fixed, 40 cm long power cable that plugs into the 12V-2×6 connector of the graphics card. This makes the WireView Pro II Wired compatible with all available graphics cards with a 12V-2×6 connection, including NVIDIA’s Founder Editions. The WireView Pro II Wired can be mounted in various locations inside the case or on the graphics card itself using the included mounting brackets, while three cable combs on the power cable facilitate cable management and improve the appearance.

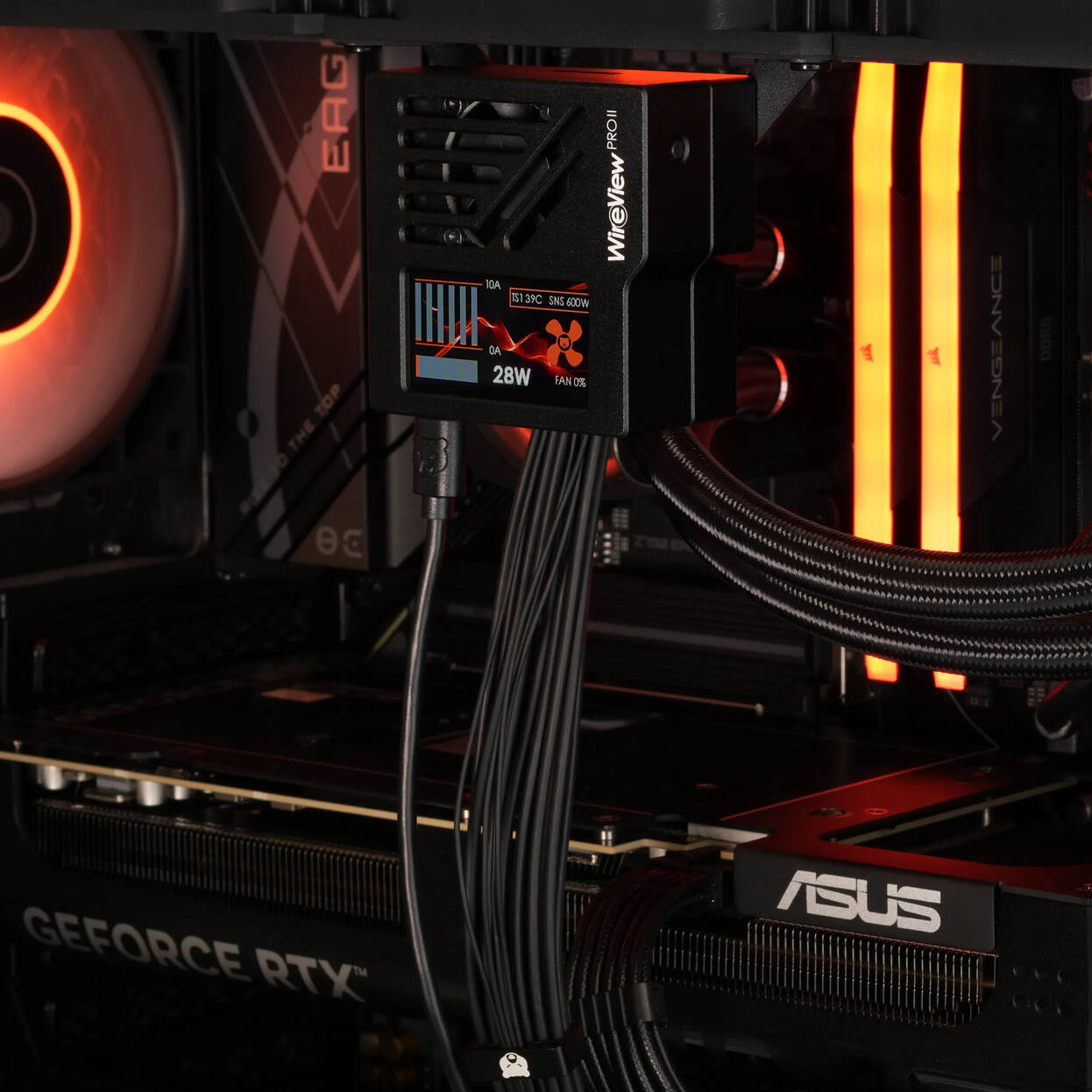

The integrated TFT IPS display offers several views that can be configured directly on the device. The device can be used entirely as a hardware solution and is additionally complemented by software (WireView2-SW-1.0.3), which is available in the product’s download area.

Automatic Data Logging

An integrated memory regularly logs relevant operating data to trace possible error events. Recorded data include the 12-volt currents measured per pin, total power consumption, and temperature at the 12V-2×6 output (T-Out) near the connector. A data set is saved every 60 seconds. The memory allows for approximately 340 days of full load or around 3-4 years of typical operation before older entries are automatically overwritten. The collected data support both fault analysis and the further development of safer connector solutions within the community.

Extended Warranty and Clarity for the End User

To ensure a high level of operational safety, the WireView Pro II is equipped with an extended warranty that goes beyond the statutory warranty and the standard manufacturer’s warranty. If damage to the graphics card’s 12VHPWR or 12V-2×6 connector occurs despite the integrated protective mechanisms, repairs will be carried out by Thermal Grizzly, or an equivalent replacement will be provided if repair is not possible. This protection also applies after the original graphics card warranty has expired. To make a claim, the device must have been used as intended in accordance with the user manual and within the operating parameters specified by the GPU manufacturer. The extended warranty period is 2 years from the date of purchase.

With this guaranteed protection package, we provide maximum transparency and safety: customers invest in state-of-the-art monitoring technology and can rely on Thermal Grizzly to provide fast, straightforward support in the event of damage, enabling sustained maximum performance without unnecessary risks.

Features:

– Advanced version of the WireView Pro with additional functionality
– Per-pin current measurement for maximum monitoring precision
– Extended warranty with 2-year GPU connector coverage
– Automatic data logging for fault case analysis
– 40 cm power cable with 12V-2×6 connector (GPU side)
– Numerous mounting options for increased compatibility
– Three cable combs on the power cable for cable management
– Full functionality possible without software
– Plug and play use possible without configuration
– CNC machined aluminum housing with active cooling function
– Semi-passive 30mm fan controlled by temperature and power consumption
– Temperature measurement at the input and output of the 12V-2×6 connector
– Two external 10k NTC temperature sensors included
