The Thermal Grizzly WireView Pro II GPU monitors the power supply of high-performance graphics cards with a 12V-2×6 connector. The second Pro generation measures current, voltage and power for individual pins, helping you to detect problematic load distributions early. An integrated display shows the most important operating data directly inside the PC.
– Per-pin measurement: Detects unevenly distributed loads early
– TFT IPS: Displays current, voltage, power and temperatures
– Alarms: Provides visual and acoustic warnings at limit values
– 90-degree: Routes the 12V-2×6 cable in a space-saving way
– Data logging: Stores measurement values for fault analysis
– Per-pin monitoring for GPU power supply
The WireView Pro II records current not only as a total value but separately for each conductor of the 12V-2×6 connector. This makes it easier to identify unusual loads on individual contacts. In addition, the device monitors voltage, power consumption and several temperature values. Thermal Grizzly specifies the measurement tolerance as ±4 percent.
Display and warning functions directly in the PC

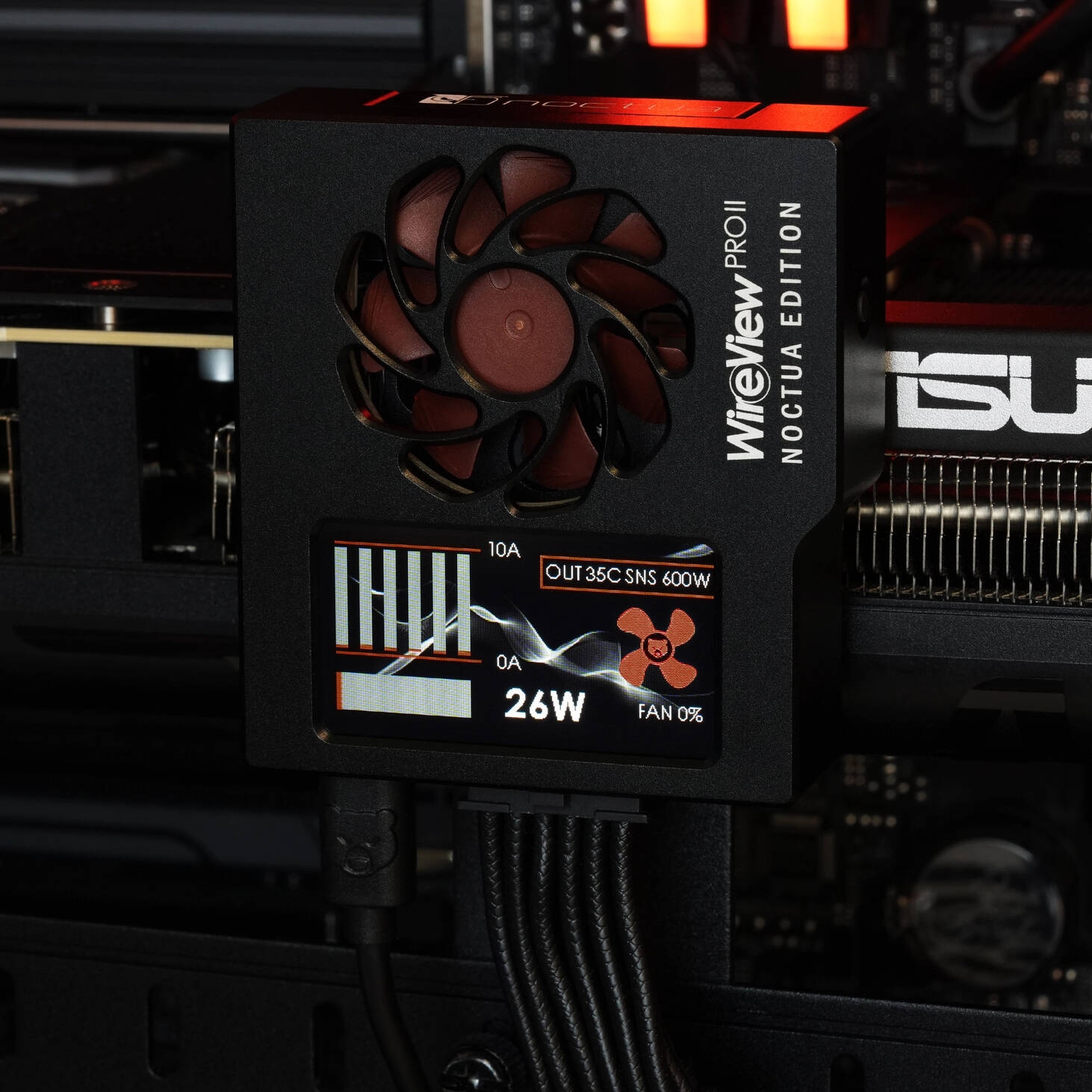

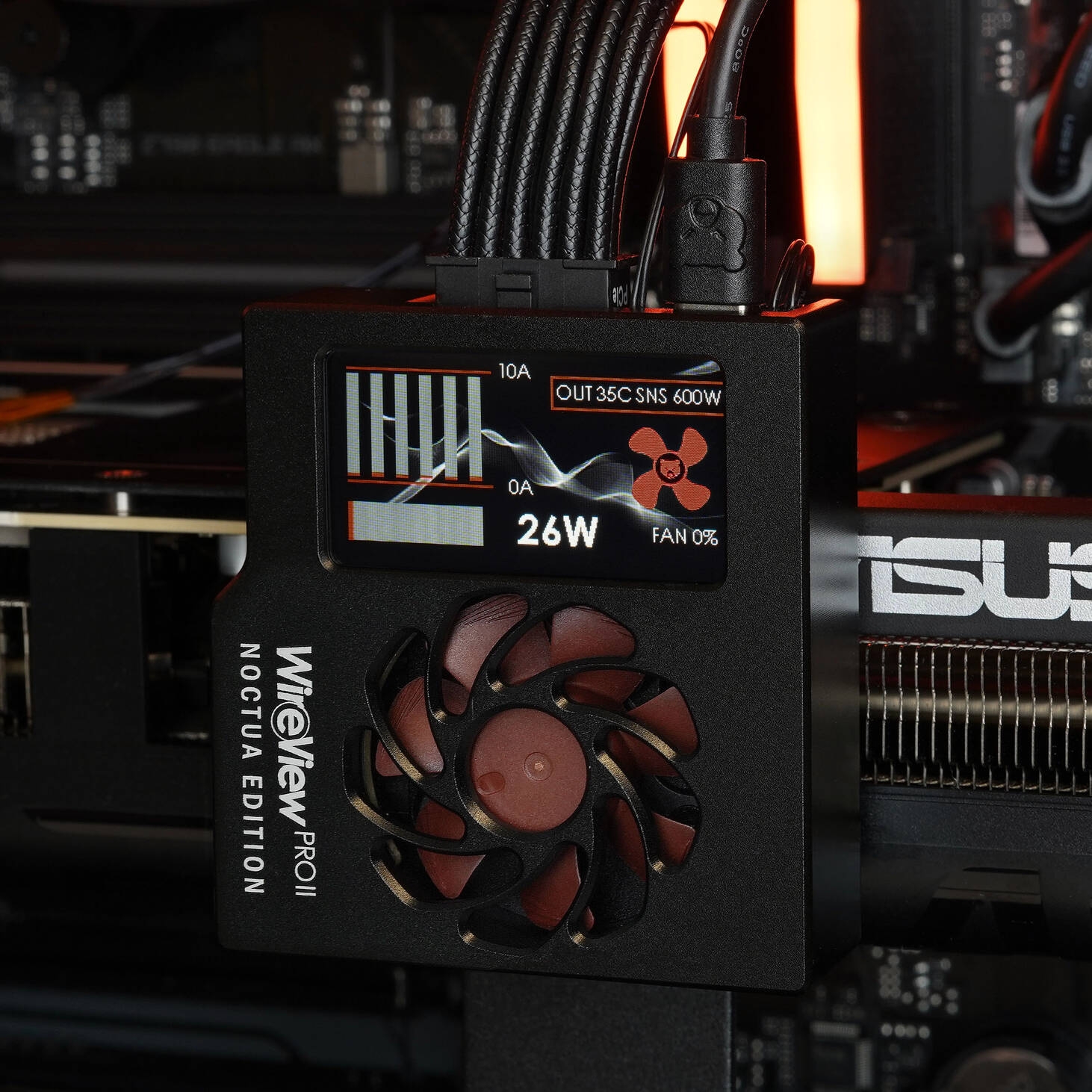

The 320 x 170 pixel TFT IPS color display offers various views for the monitored values. In addition to total power and voltage, you can display, among other things, the most heavily loaded pin and the highest measured temperature. When limit values are exceeded, the device warns both visually and acoustically. Optionally, an automatic system shutdown can be set up via the supplied splitter cable.
90-degree connector and automatic data recording

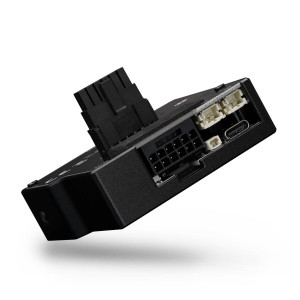

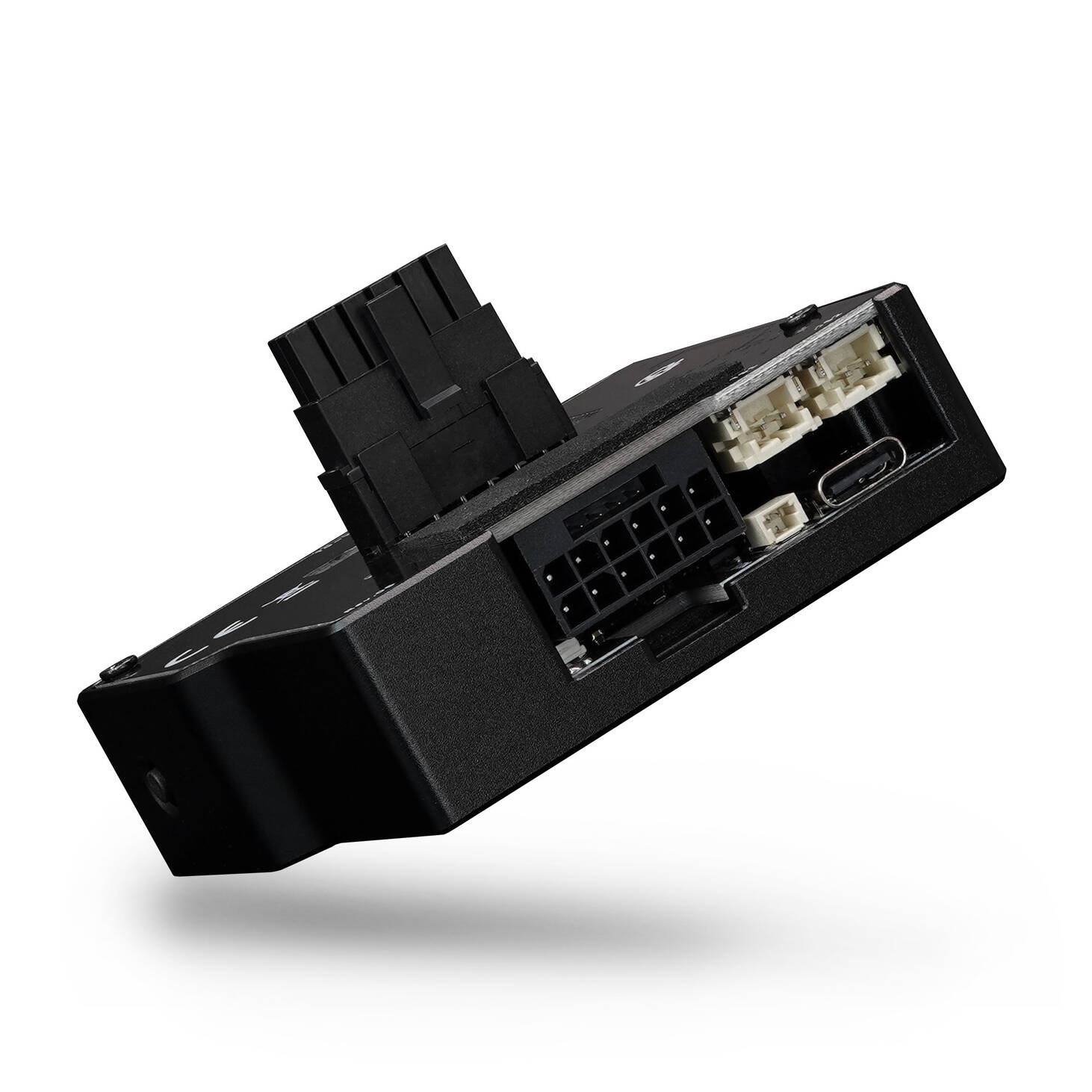

The standard version features a 12V 2×6 power cable routed at a 90-degree angle, simplifying cable management within the case. Internal memory automatically records relevant operating data, aiding in later troubleshooting. Firmware updates can be performed via USB-C, and the internal USB 2.0 connection allows for integration into the PC. Before installation, compatibility with the graphics card, case, and CPU cooler should be checked against the manufacturer’s compatibility list.
| Technical Data | |
|---|---|
| Colour | |
| Primary Colour | Black |
| Cable Primary Colour | Black |
| Connector / Socket Primary Colour | Black |
| Dimensions | |
| Length / Depth | 39.5 mm |
| Width | 65 mm |
| Height | 70 mm |
| Weight | 120 g |
| Display | |
| Display Included | Yes |
| Cable Specifications | |
| Cable Type | Connection Cable |
| Angle | |
| Angled Connector | No |
| Compatibility | |
| Please observe the manufacturer’s compatibility information. You can find the latest overview on the manufacturer’s website. | |
| Materials | |
| Materials | Aluminium |
| Lighting | |
| Lighting / RGB | No |
