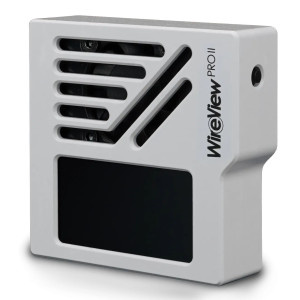

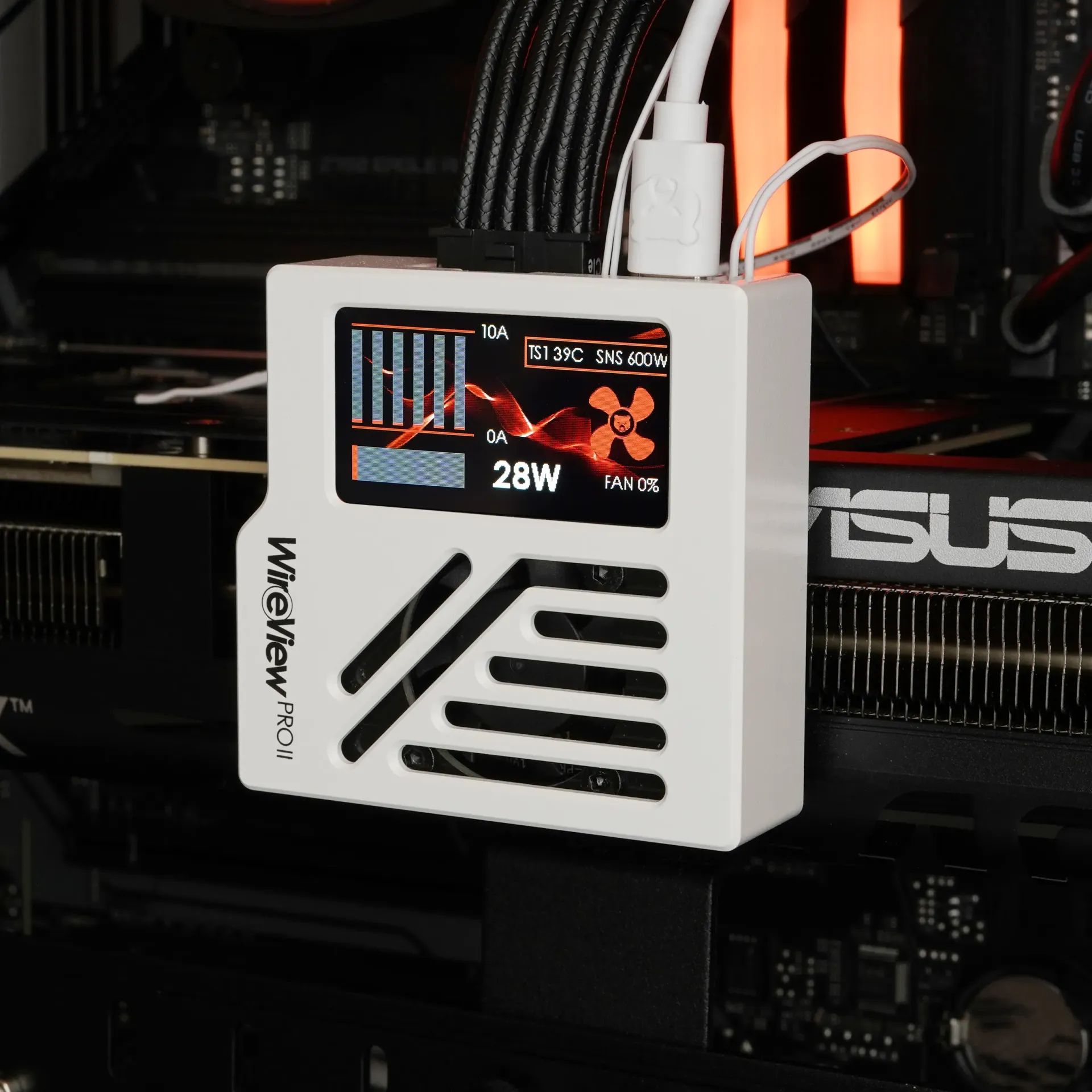

Thermal Grizzly WireView Pro II GPU Monitoring Device - Reverse - White

The WireView Pro II has been specifically developed for the demanding use of modern high-end graphics cards with 12V-2×6 connectors and represents the advanced version of the WireView Pro. As a patented development by Thermal Grizzly, it is protected by the European patent EP4250057. The current is measured not only as a total value but per conductor of the 12V-2×6 connector. This allows potential contact issues between the cable and graphics card to be identified immediately. The WireView Pro II was designed specifically to enable precise monitoring of the 12V-2×6 connector, allowing load distribution problems to be detected early and possible damage to the graphics card and the 12V-2×6 connector to be avoided.

Monitoring

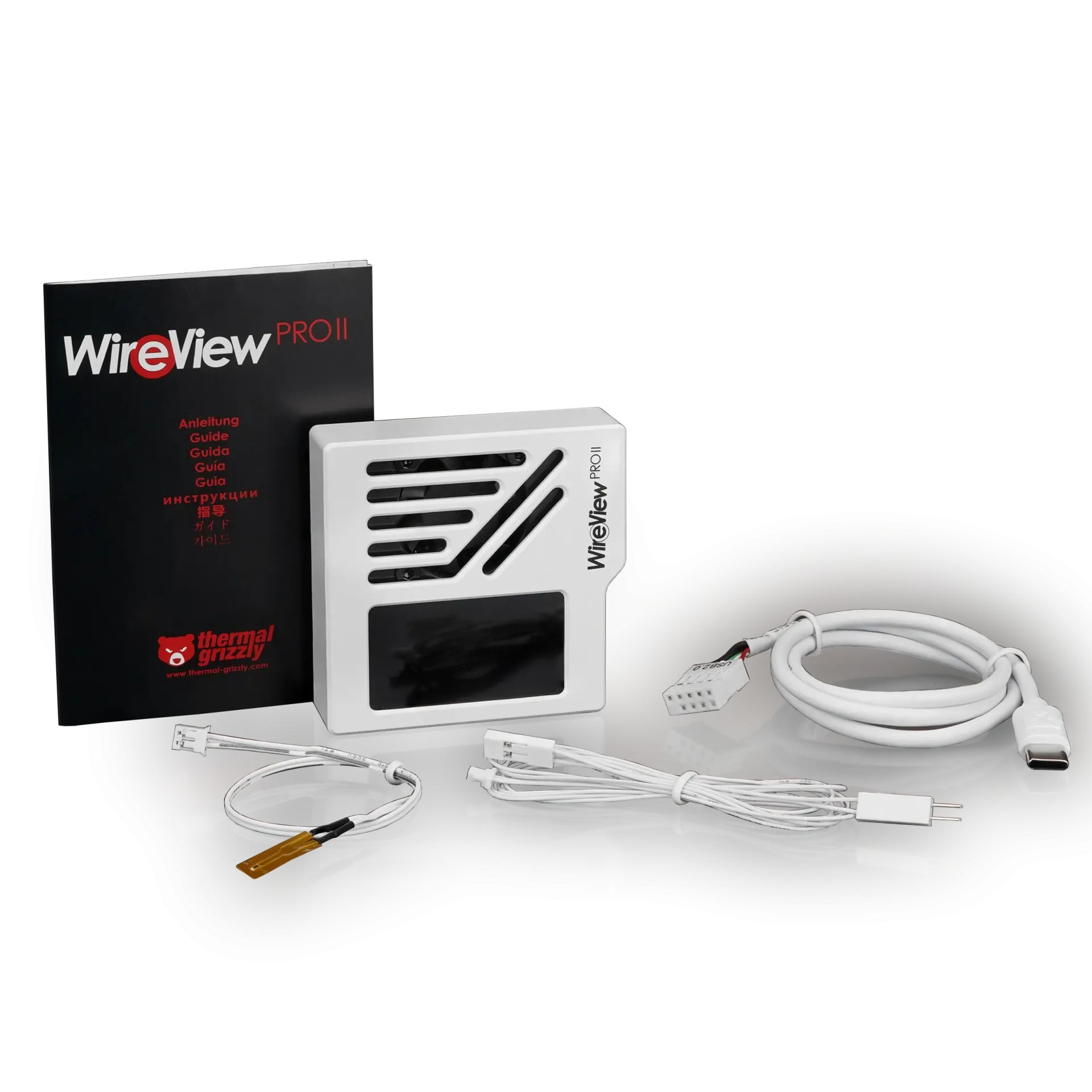

All safety-relevant parameters such as currents (A), voltages (V), temperatures (°C), and power consumption (W) are continuously measured. Thermal Grizzly defines limit values ​​for these that should not be exceeded during normal operation, as otherwise there is an increased risk of thermal damage to the connector. If a limit is exceeded, a visual warning appears on the display along with an audible alarm. Optionally, an automatic shutdown of the system via the supplied splitter cable is possible. The preset limit values ​​can be adjusted via the configuration menu.

Cooling

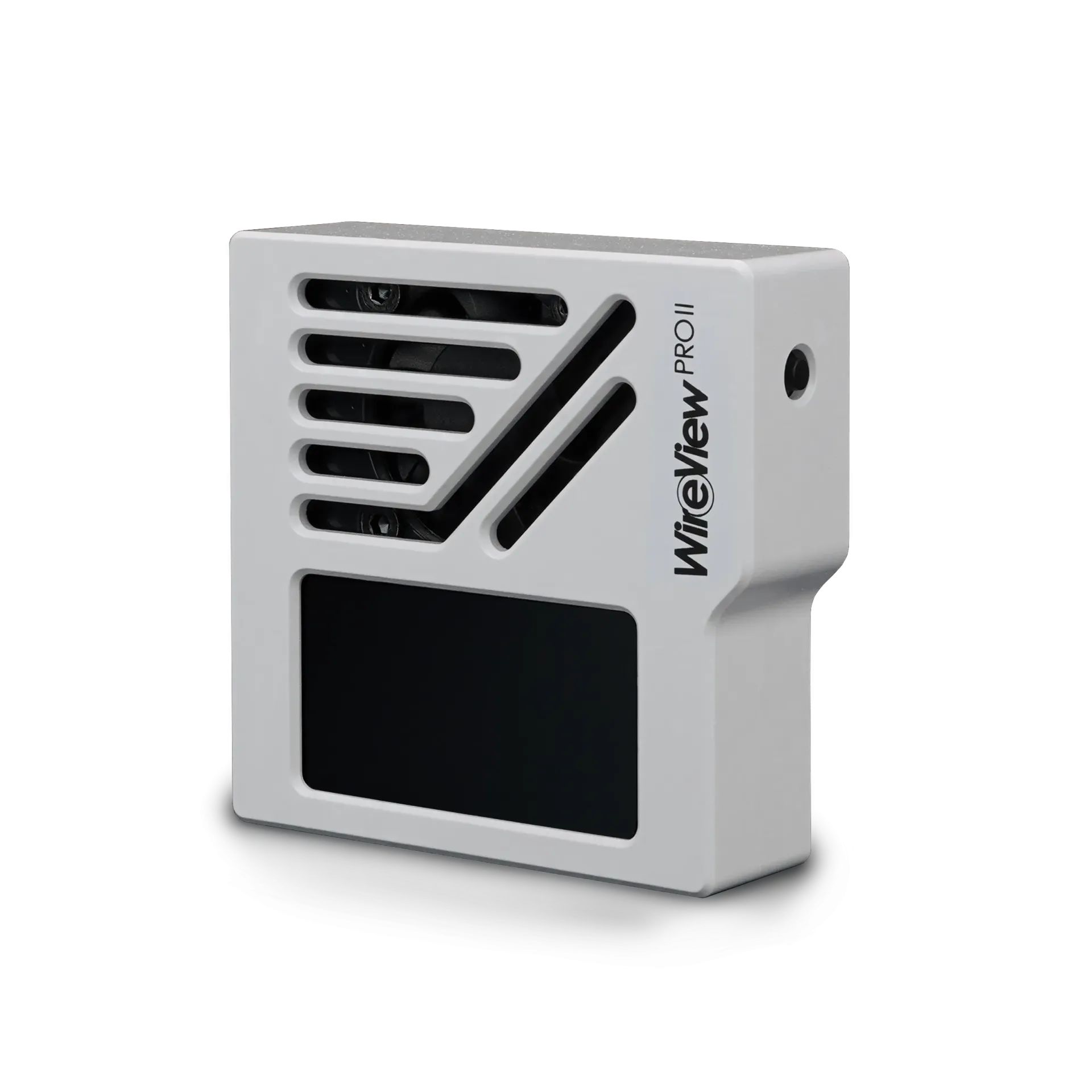

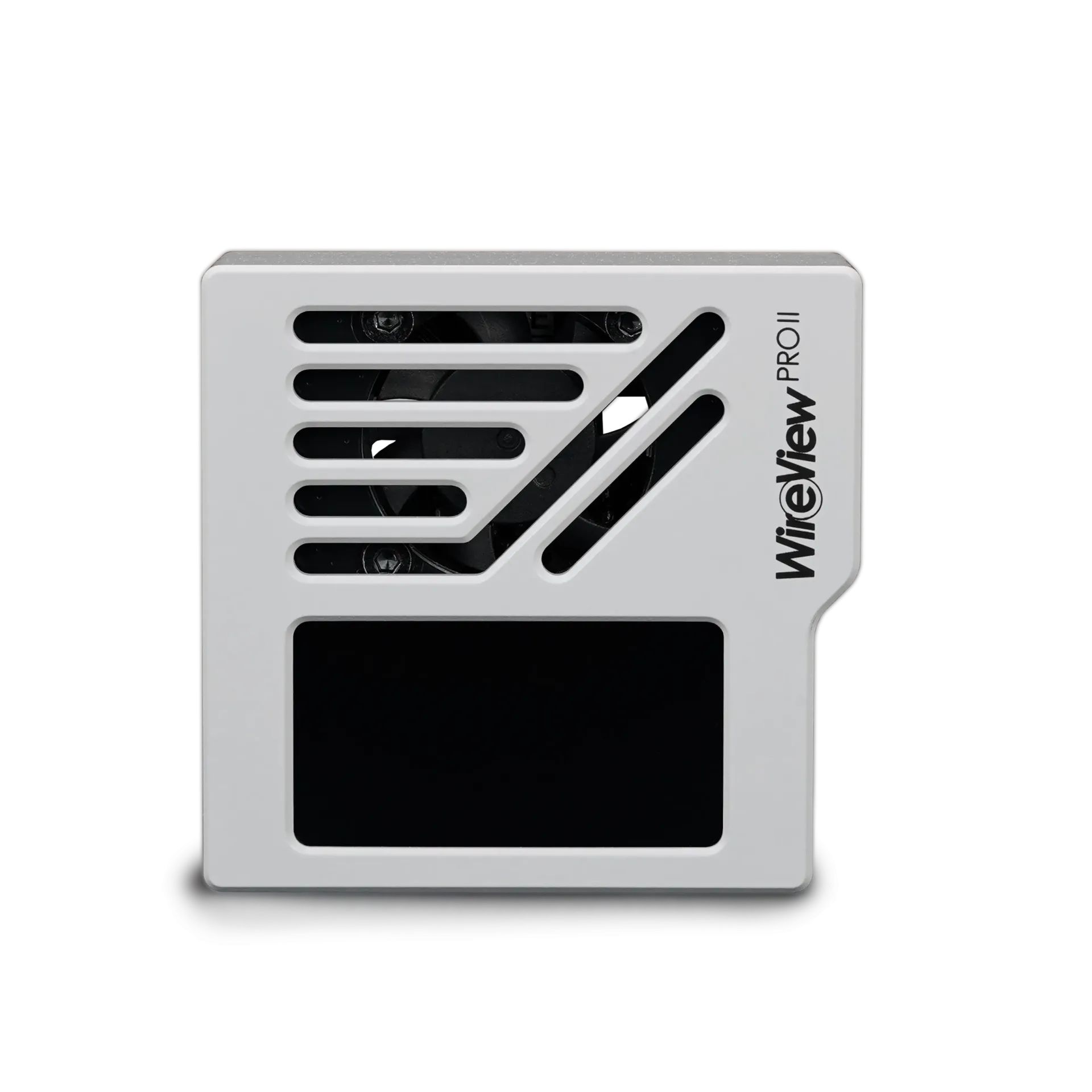

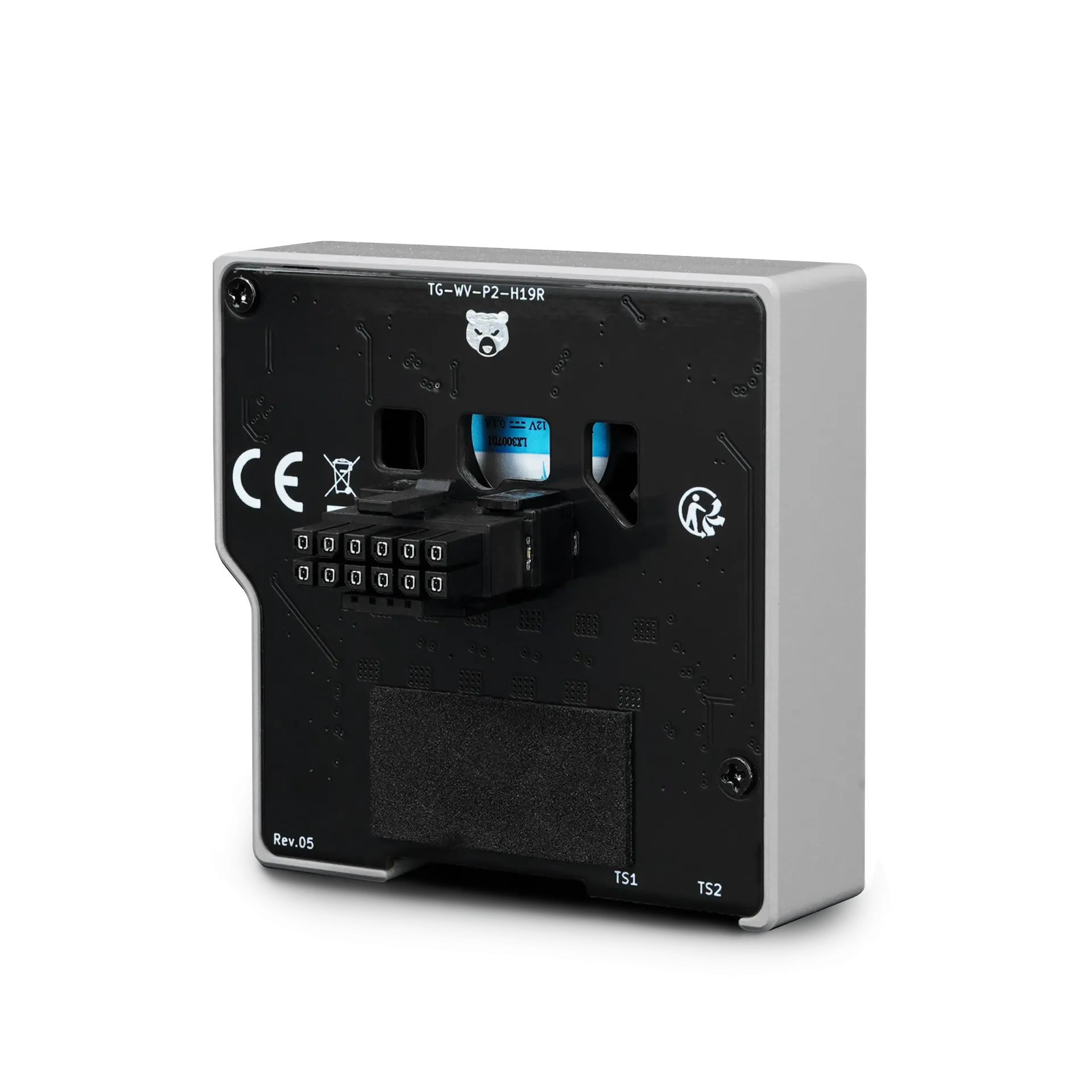

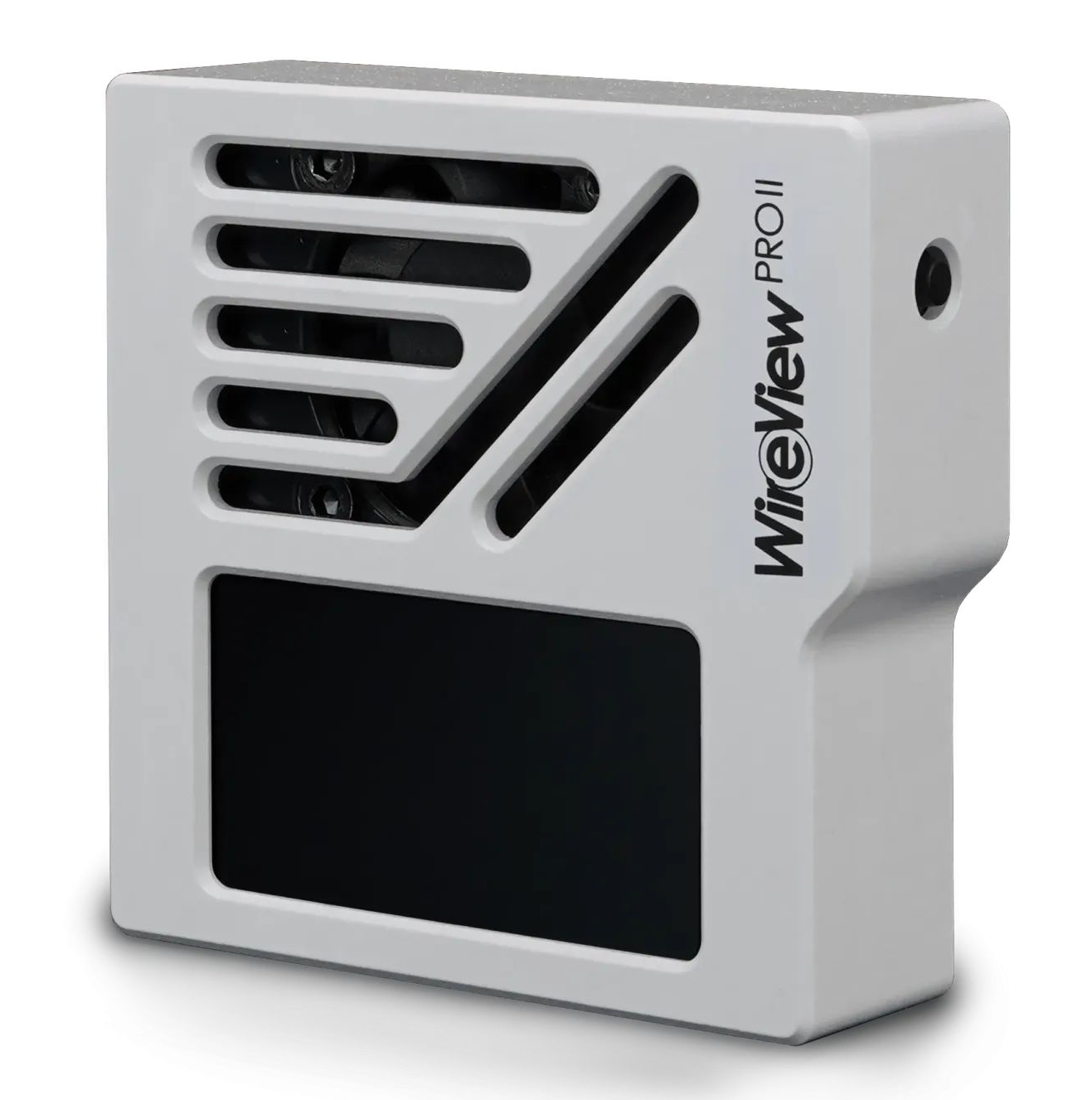

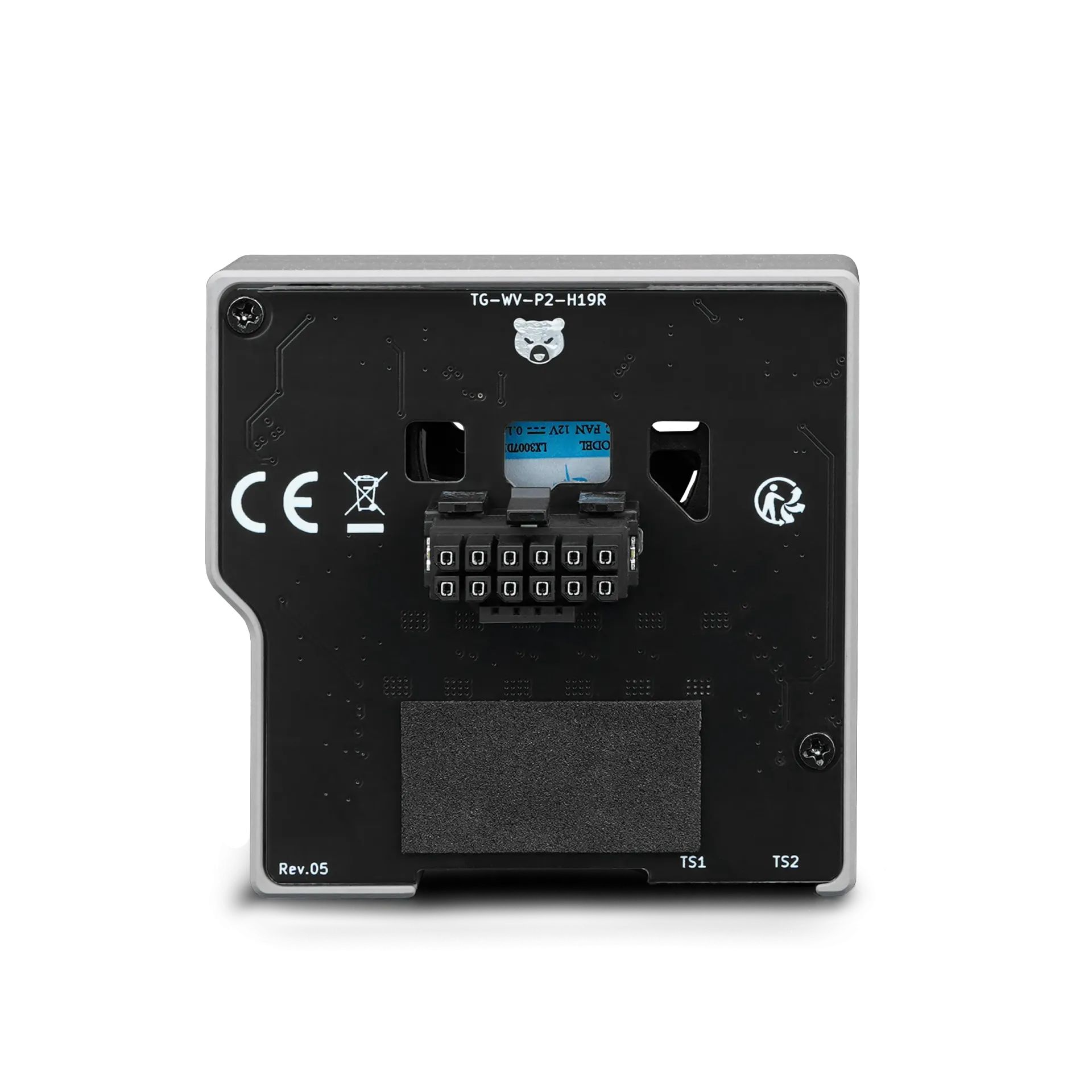

Due to unavoidable contact resistances at connector joints, additional waste heat is generated during the operation of high-performance GPUs. For controlled heat dissipation, a semi-passive fan is integrated that operates silently at idle and activates automatically with increasing power consumption or temperature. The CNC-machined aluminum housing features ventilation openings and serves as an active heat sink. Optimized airflow through openings in the rear PCB supports air circulation along all heat-relevant components.

User friendliness

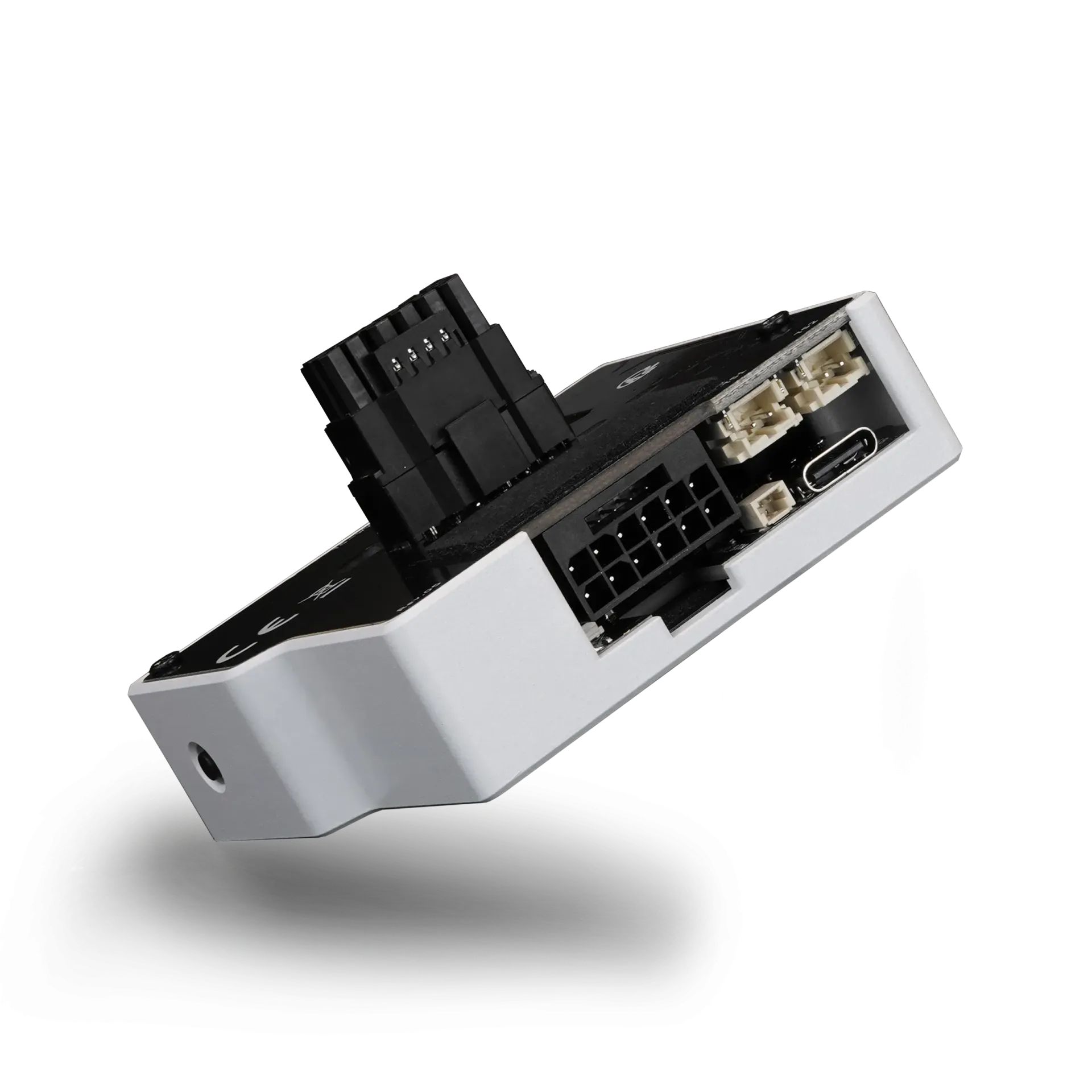

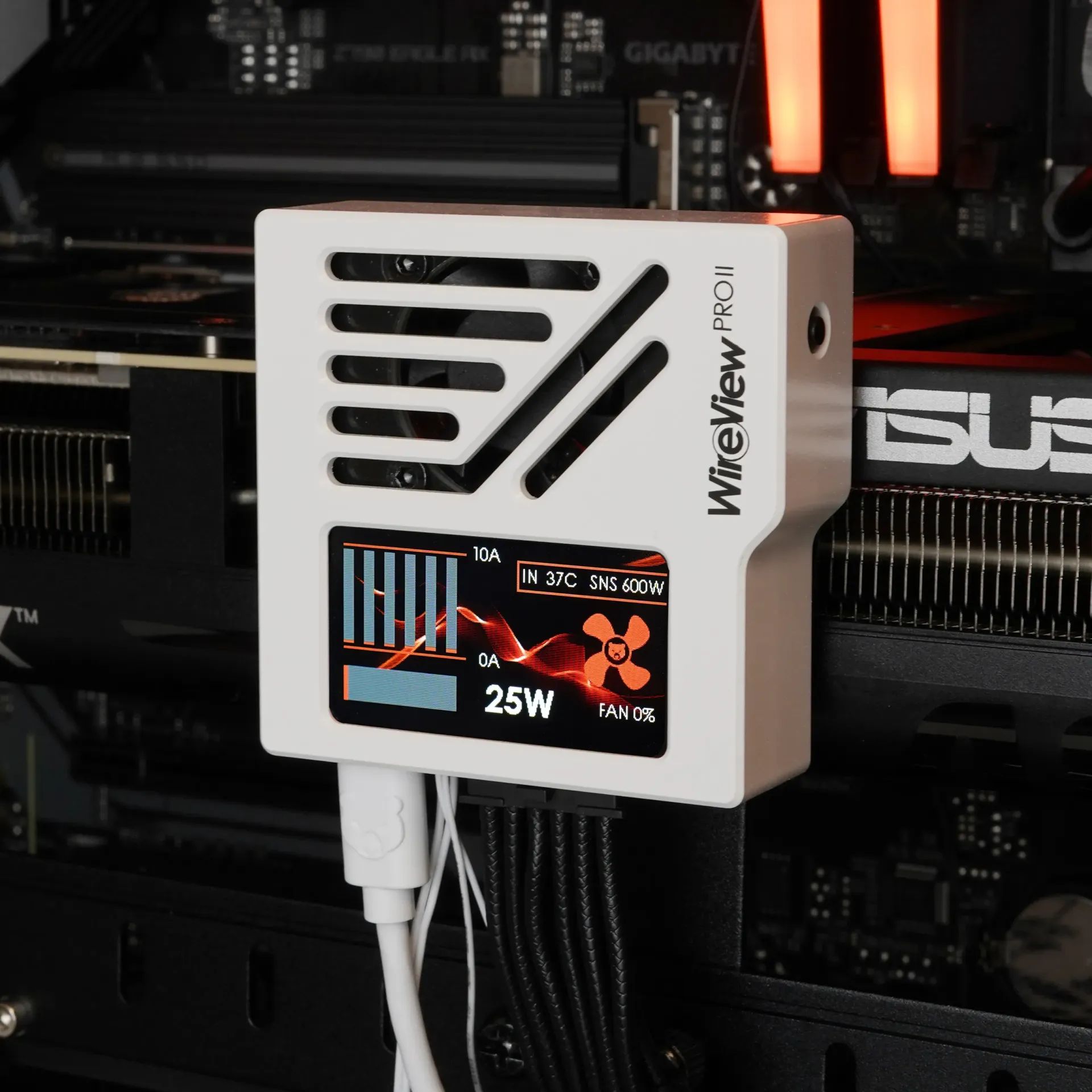

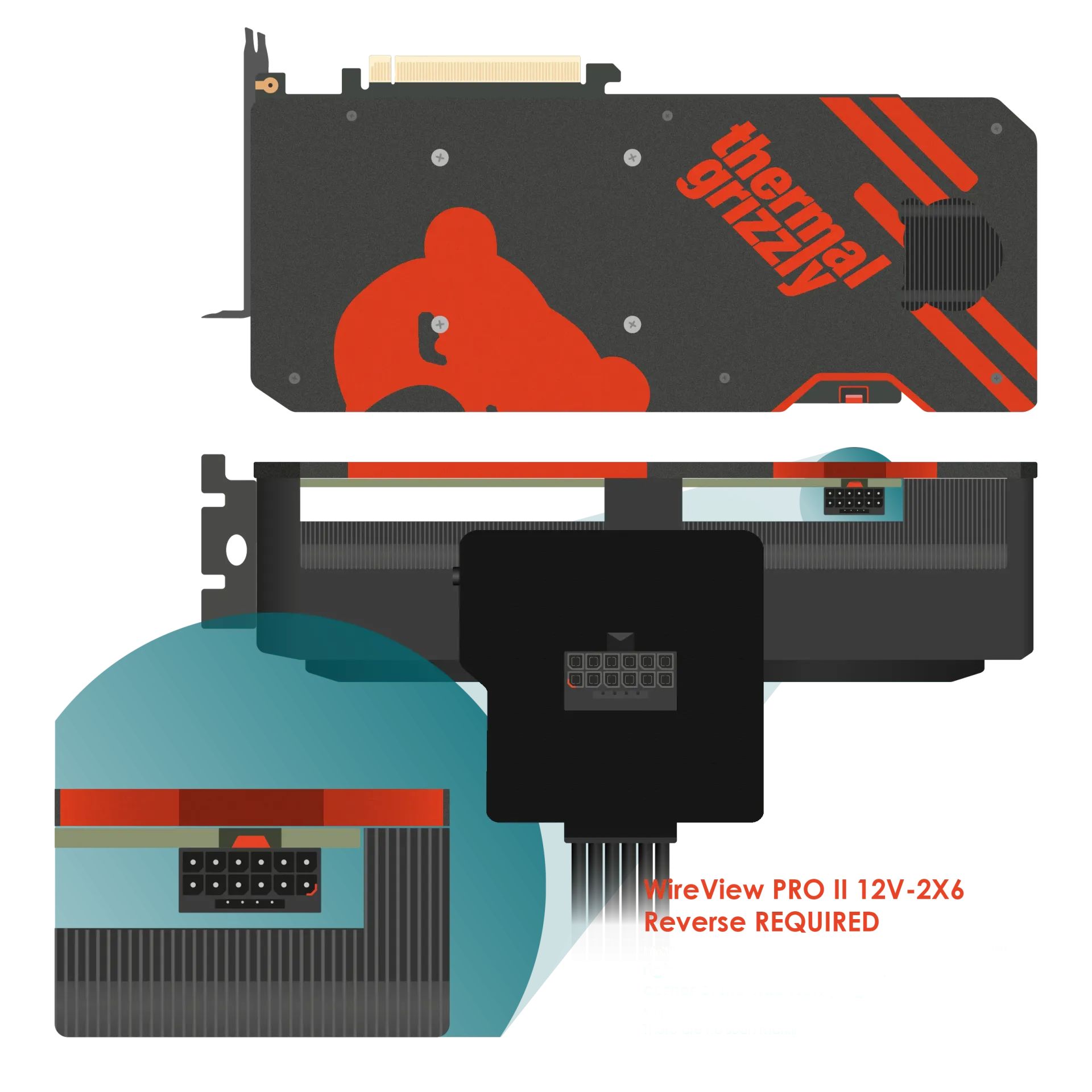

The WireView Pro II is available in two connector orientations and can therefore be used with almost any graphics card with a 12V-2×6 connection. The downward-facing connector orientation enables neat cable management and the device simultaneously acts as a 90° adapter. Multiple views are available on the integrated TFT-IPS display, which can be configured directly on the device. The device is fully usable as a hardware solution and will be expanded with software in the future. A corresponding update is planned for mid-December.

Automatic data logging
An integrated memory regularly logs relevant operating data to trace possible fault events. Recorded data include the 12-volt currents measured per pin, total power consumption, and temperature at the 12V-2×6 output (T-Out) near the connector. A data record is saved every 60 seconds. The memory supports about 340 days of full load or around 3-4 years of typical operation before older entries are automatically overwritten. The collected data support both fault analysis and the further development of safe connector solutions within the community.
