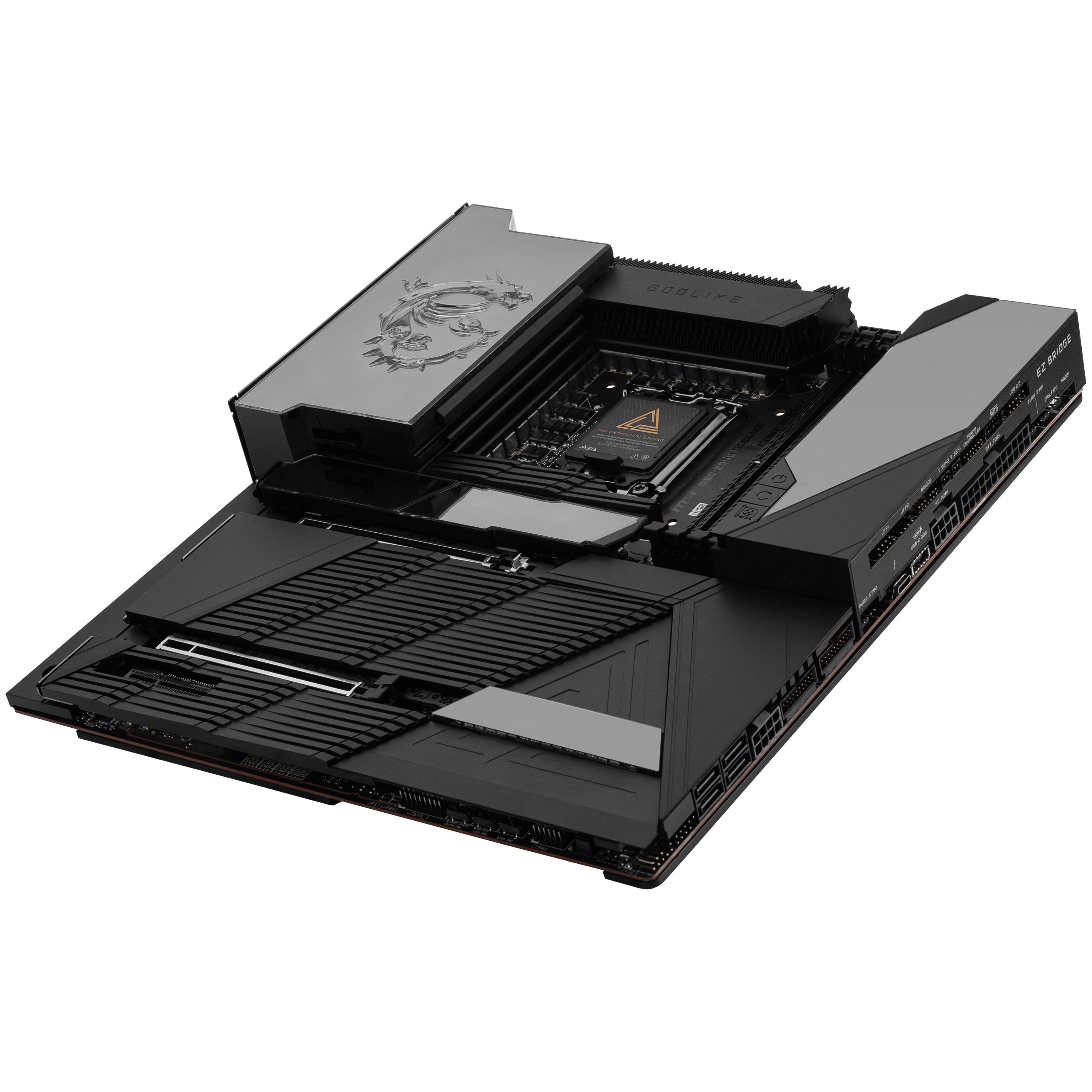

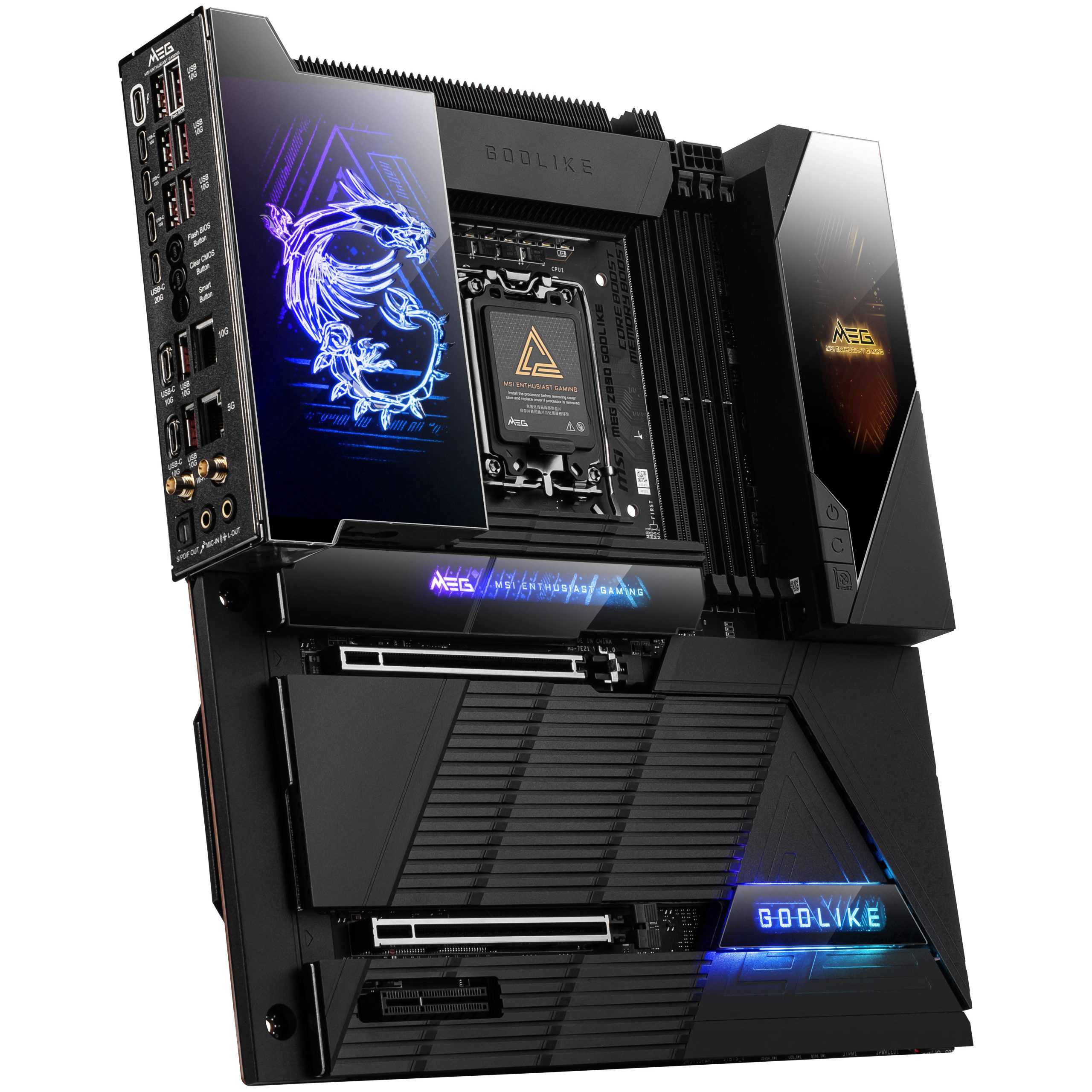

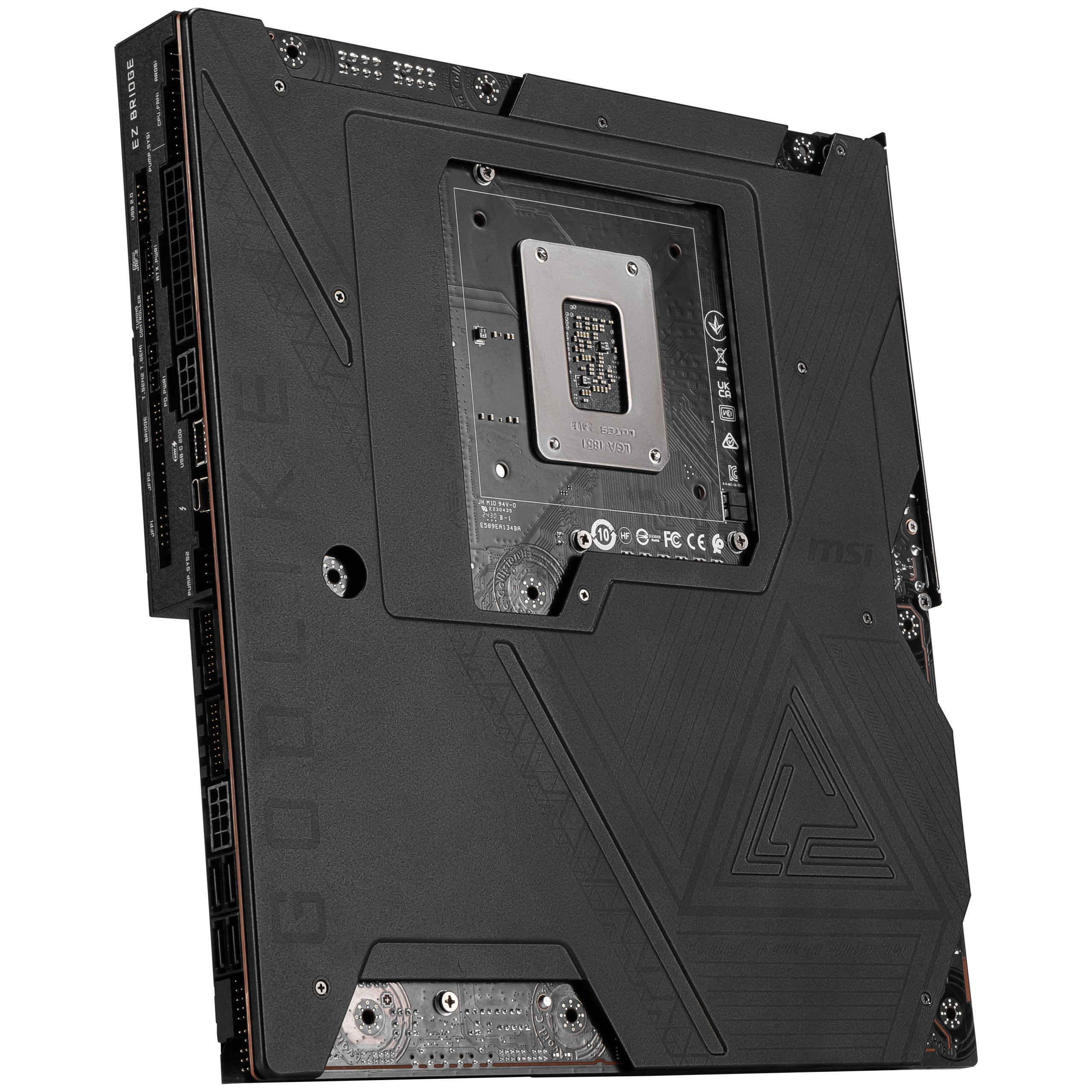

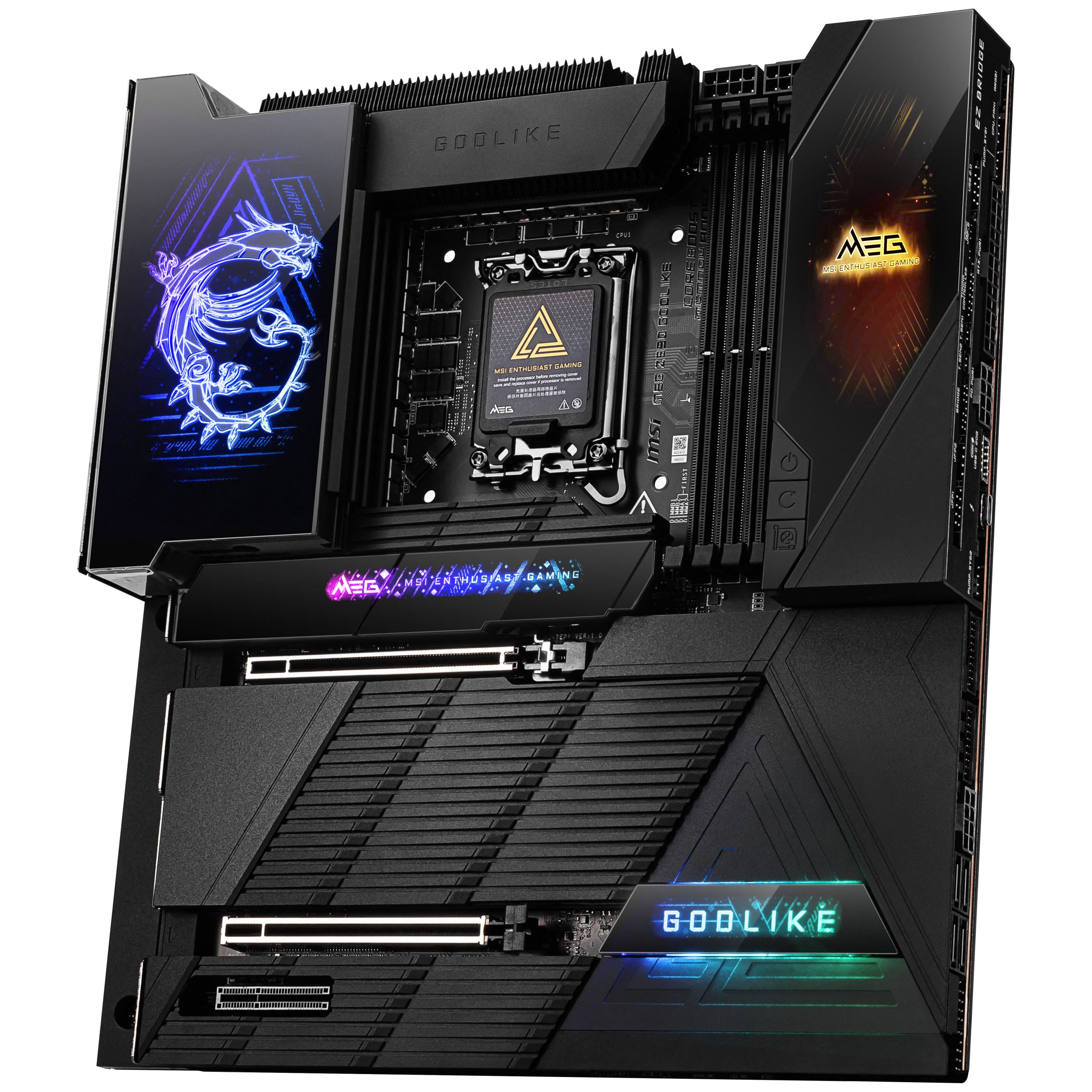

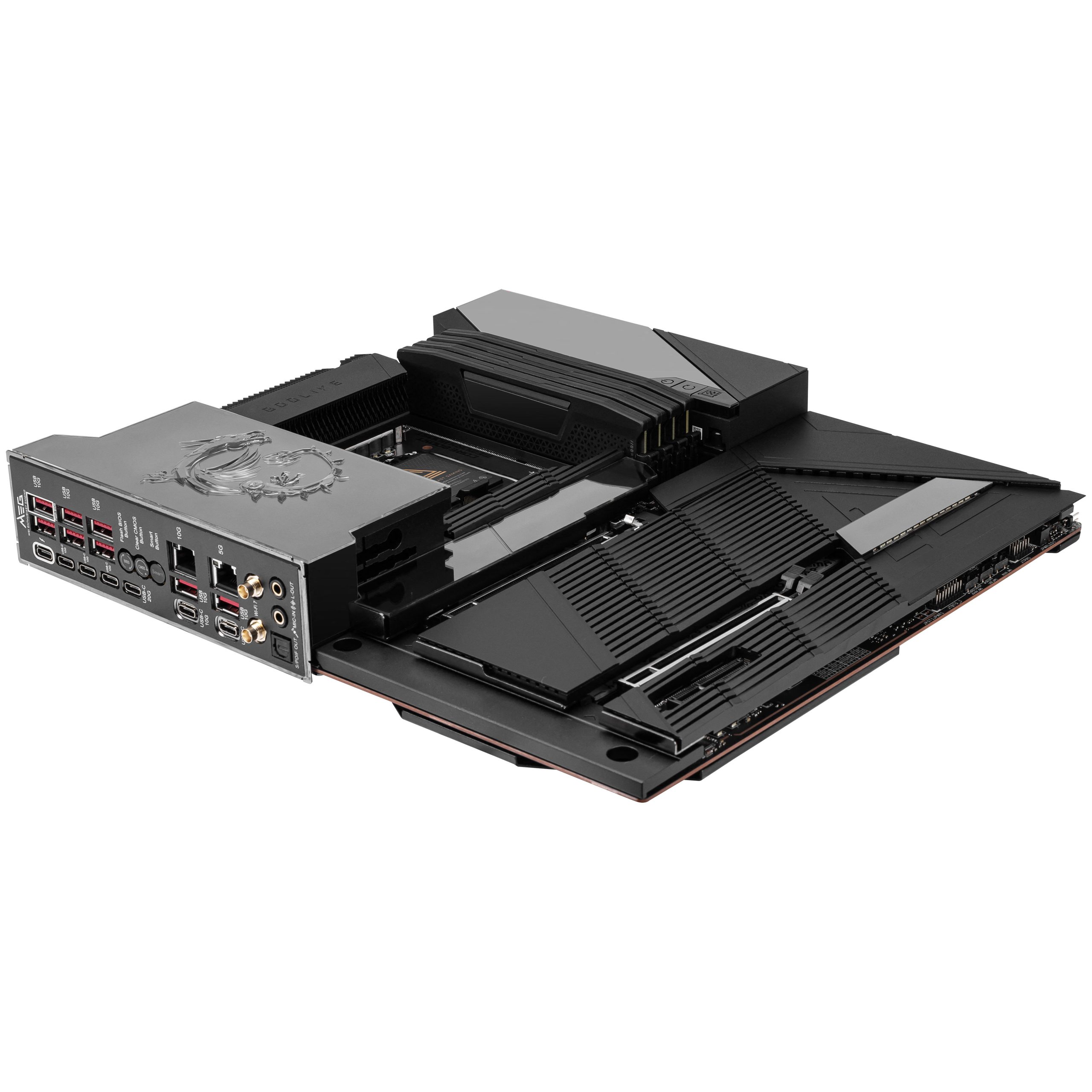

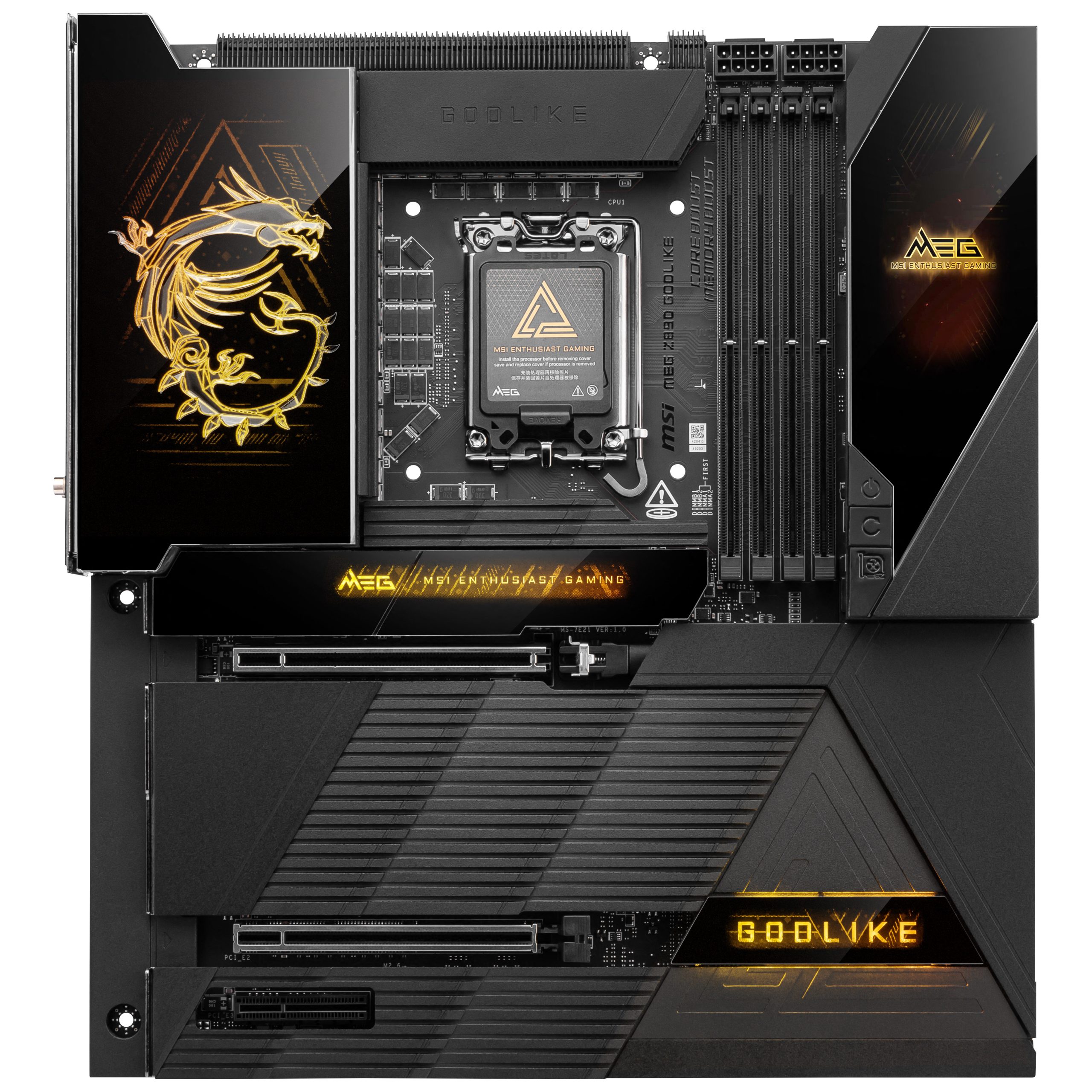

MSI MEG Z890 Godlike motherboard, socket LGA 1851, Intel Z890, E-ATX, DDR5

This motherboard is ideal for gaming enthusiasts who want to get the most performance out of their system.

– 2x PCIe 5.0 x16 (x16) and 1x PCIe 4.0 x4
– 4x DIMM slots for up to 256 GB DDR5 RAM up to 9200 MHz
– 6x M.2 (including 2x PCIe 5.0 and 4x PCIe 4.0) / 4x SATA 6G
– USB on the I/O panel: 2x Thunderbolt 4, 1x USB-C 3.2, 5x USB-C 3.1, and 8x USB 3.
– A total of 10x 4-pin connectors for fans and pumps
– OC features: 26+2+1+1 phase VRMs, CMOS
– Supports WiFi 7 and Bluetooth 5.4

MSI MEG Z890 Godlike: E-ATX motherboard with Intel LGA 1851 socket and Z890 chipset
The MSI MEG The Z890 Godlike is an E-ATX motherboard featuring the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the MSI MEG Z890 Godlike boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

Designed for Demanding Gaming
The MSI MEG Z890 Godlike was specifically designed for high-end gaming, allowing you to experience even the most demanding games without interruption. The first-class voltage converters ensure a stable power supply to the CPU, ensuring it operates reliably even at high clock speeds for extended periods. The DDR5 RAM can also be overclocked to higher clock speeds.

Technical Details
Form Factor:
– E-ATX (277 x 304.8 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 4x DDR5 DIMMs (up to 9,200 MHz with OC / XMP 3.0)
– Dual-Channel
 -Max. 256 GB
– Slots (Physical):
– 1x PCIe 5.0 x16 (electrical x16, CPU)
– 1x PCIe 5.0 x16 (electrical x8 CPU)
– 1x PCIe 4.0 x4 (electrical x4, chipset)
– Total Maximum Usable PCIe Lanes: 44
– Internal Connectors:
– 4x SATA 6G (max.)
– 1x M.2 (PCIe 5.0 x4; 2260/2280, CPU)
– 1x M.2 (PCIe 4.0 x4; 2260 / 2280, CPU)
– 1x M.2 (PCIe 5.0 x4 & 4.0 x4, 2242 / 2280, CPU / chipset)
– 1x M.2 (PCIe 4.0 x4; 2260 / 2280, chipset)
– 1x M.2 (PCIe 4.0 x4; 22110 / 2280, chipset)
– 1x M.2 (PCIe 4.0 x4 & SATA; 2260 / 2280, chipset)
– 1x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x chassis intrusion
– 1x Thunderbolt 5 card connector
– 2x front panels
– 1x front audio
– 1x Water Flow Connector
– 2x Thermal Sensor Connectors
– 1x tuning controller connector
– 1x TPM header (2.0)
– Fan header:
– 1x CPU fan (4-pin)
– 2x combo fan (4-pin)
– 7x case fans (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)
– 1x RGB

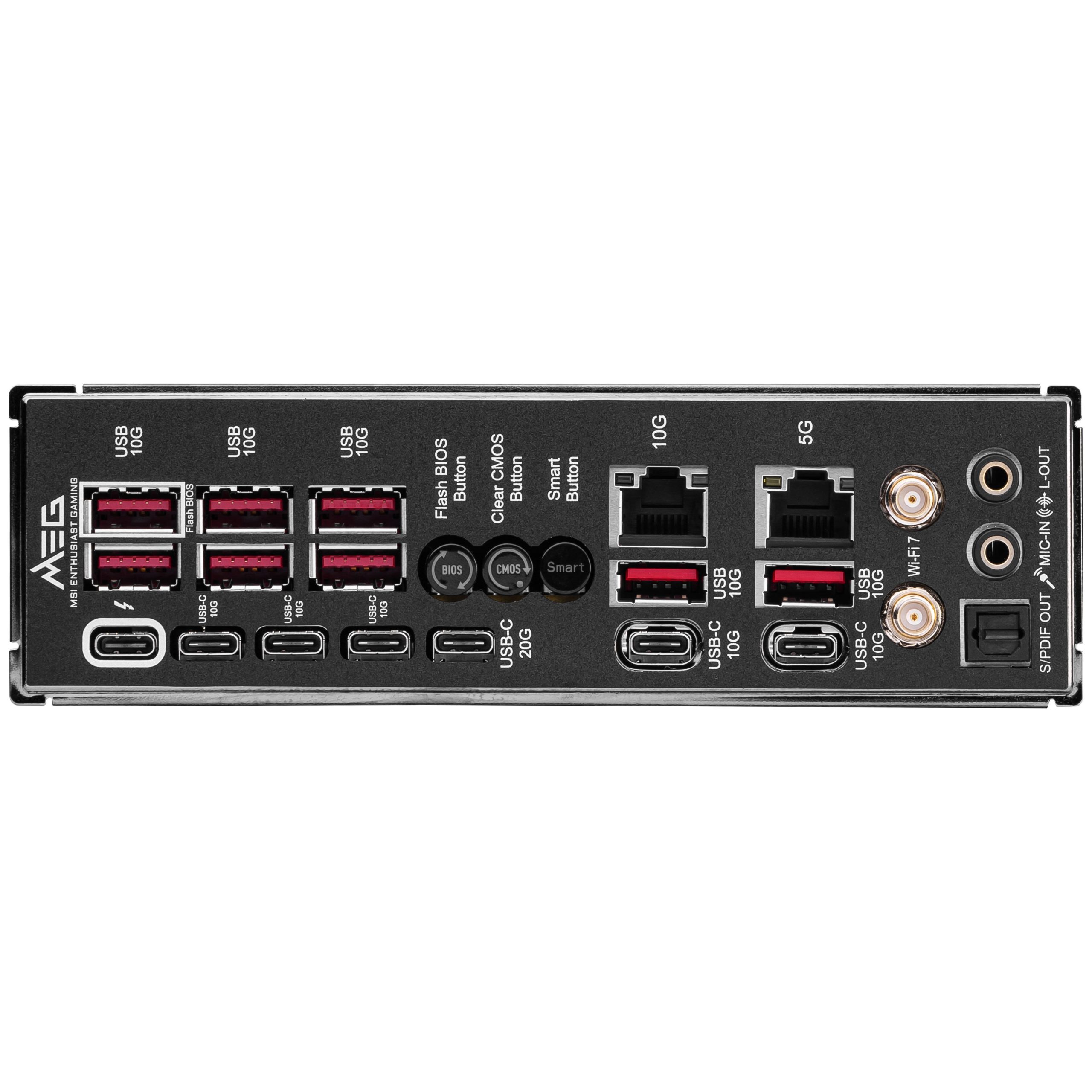

– External connections:
– 1x Thunderbolt 4 (USB-C, max. 40 Gbit/s)
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 5x USB 3.1 (Type C, USB 3.2 Gen 2 max. 10 Gbit/s)
– 8x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 1x 5 Gigabit LAN (Killer E500)
– 1x 10 Gigabit LAN (Marvell AQC113CS)
– 2x 3.5 mm jack (Realtek ALC 4082)
– 1x Type C DisplayPort
– 1x Flash BIOS button
– 1x Clear CMOS button
– 1x Smart Button
– 1x S/PDIF out
– 2x WiFi/Bluetooth module
– Power supply:
– 1x 24-pin ATX
– 2x 8-pin +12V CPU
– 1x 8-pin PCIe
