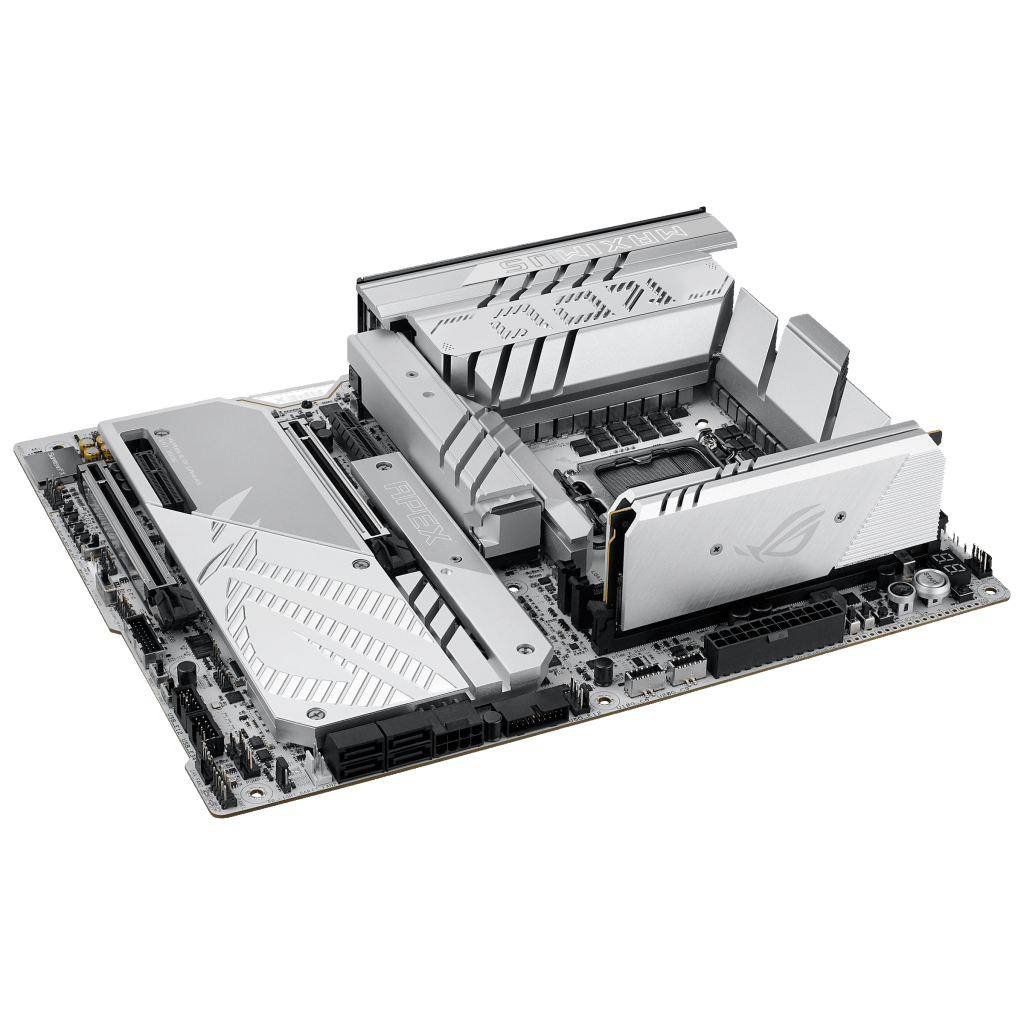

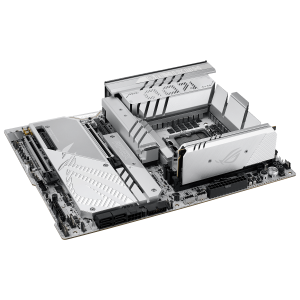

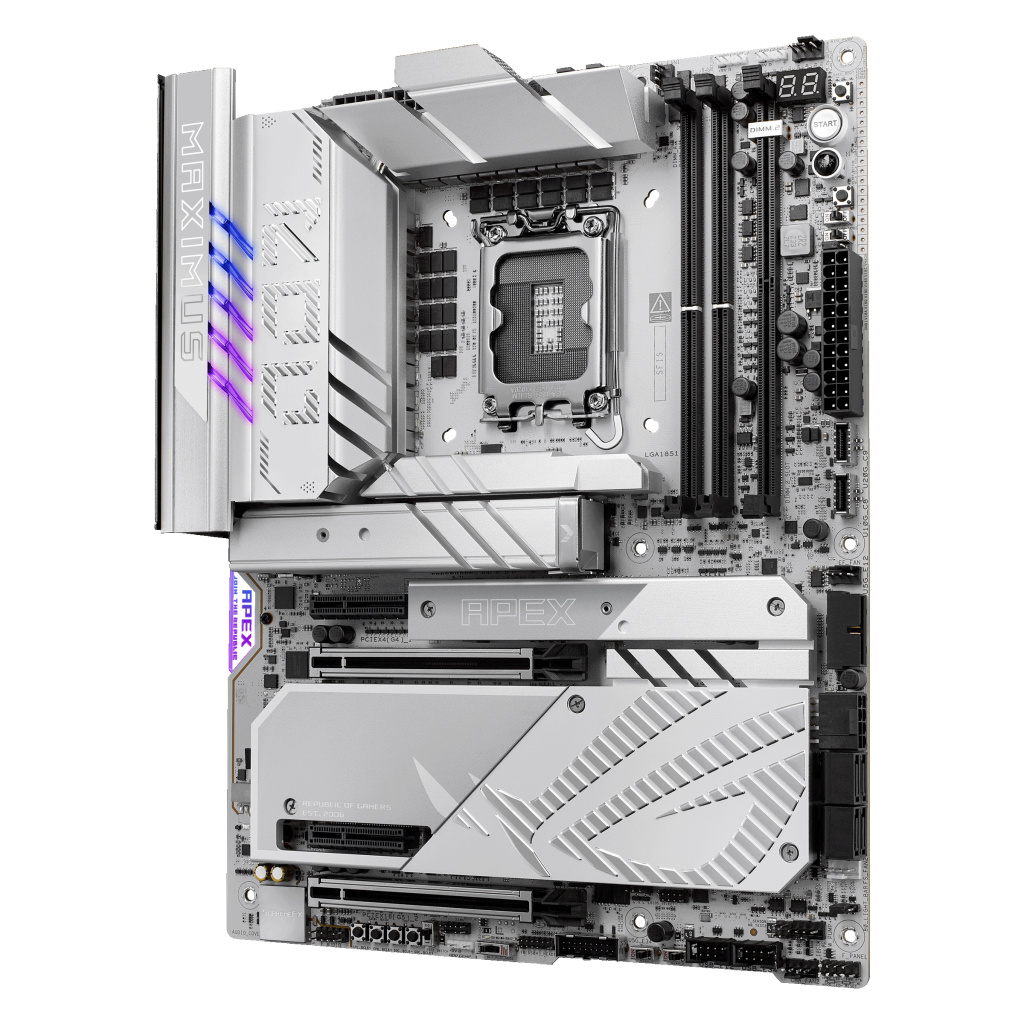

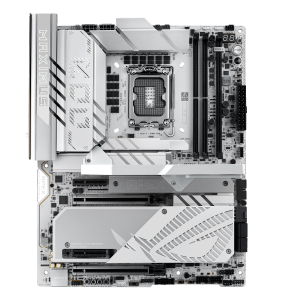

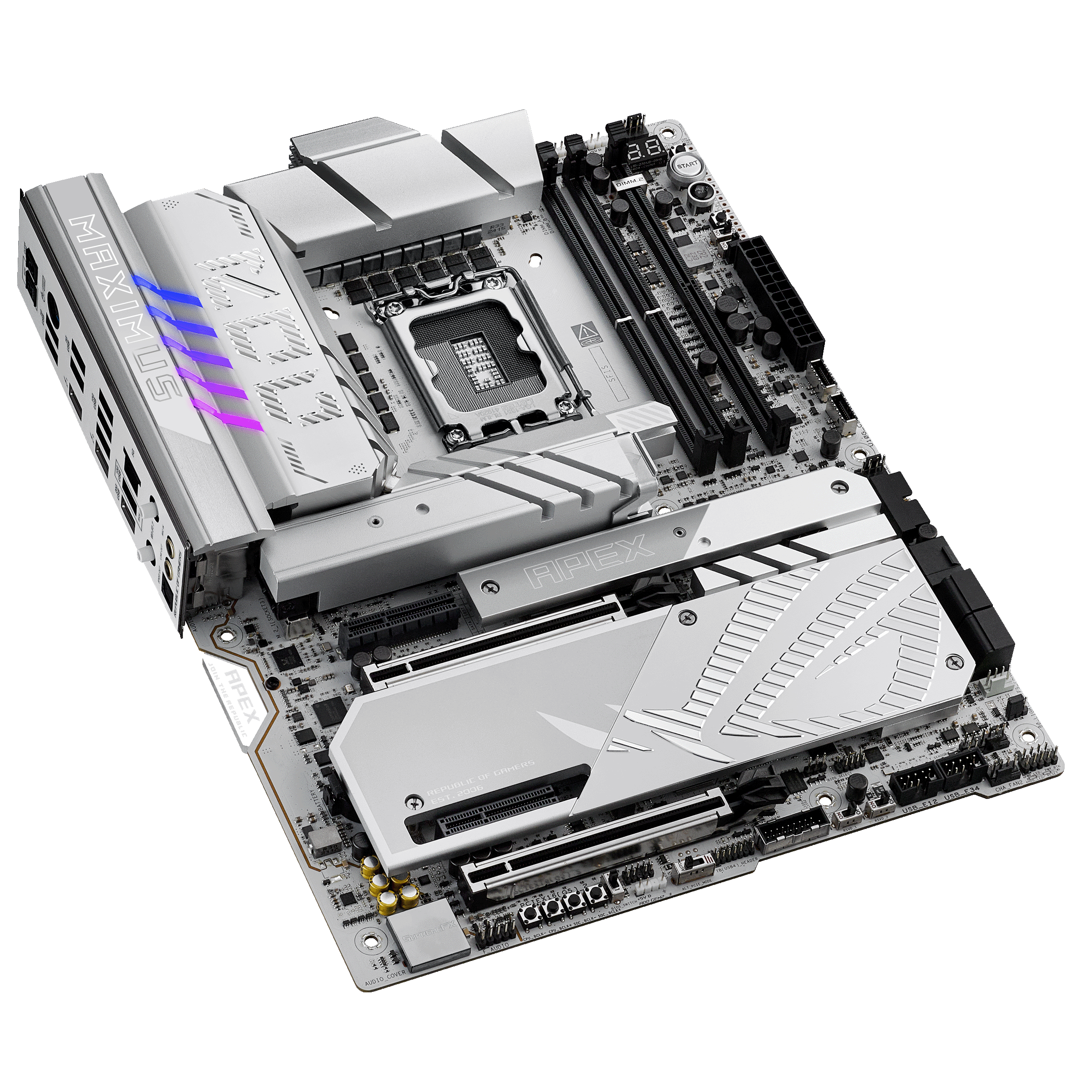

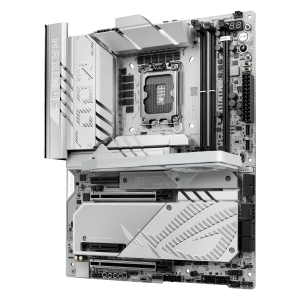

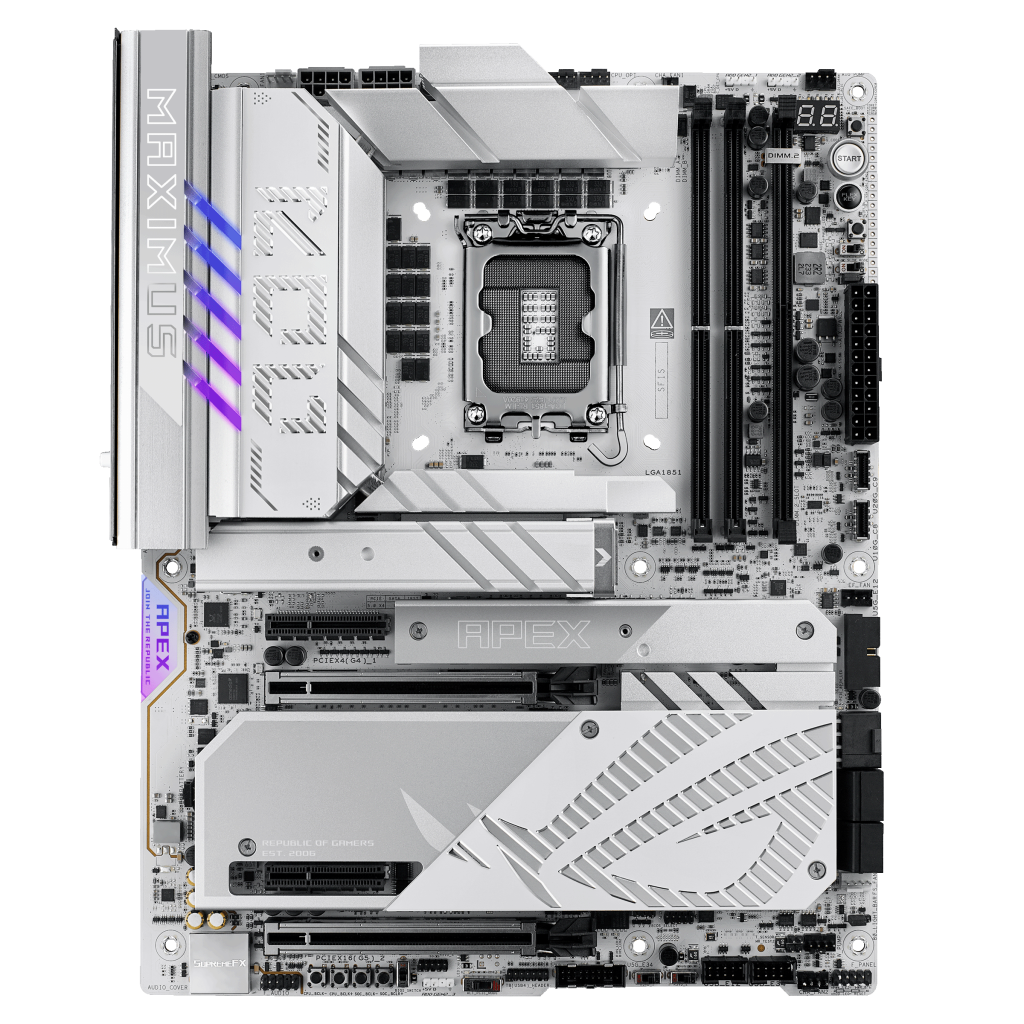

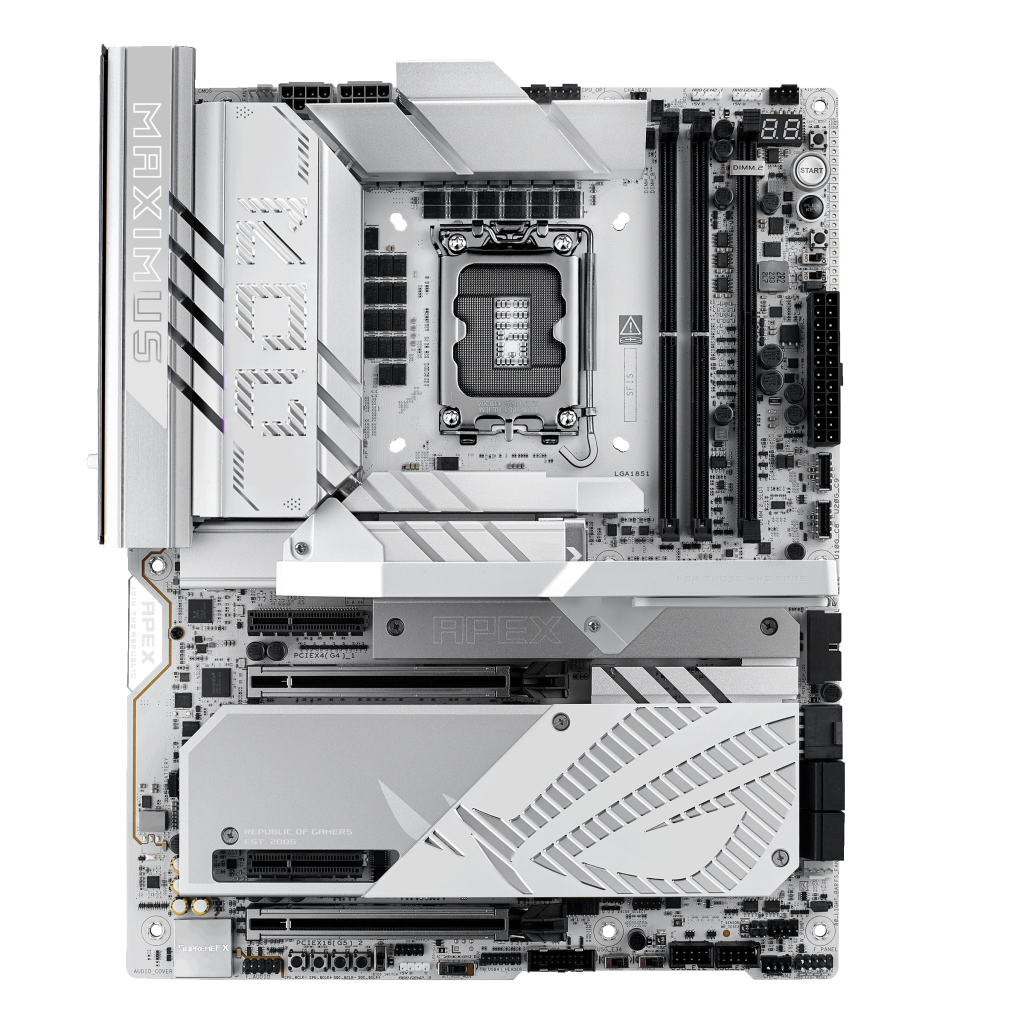

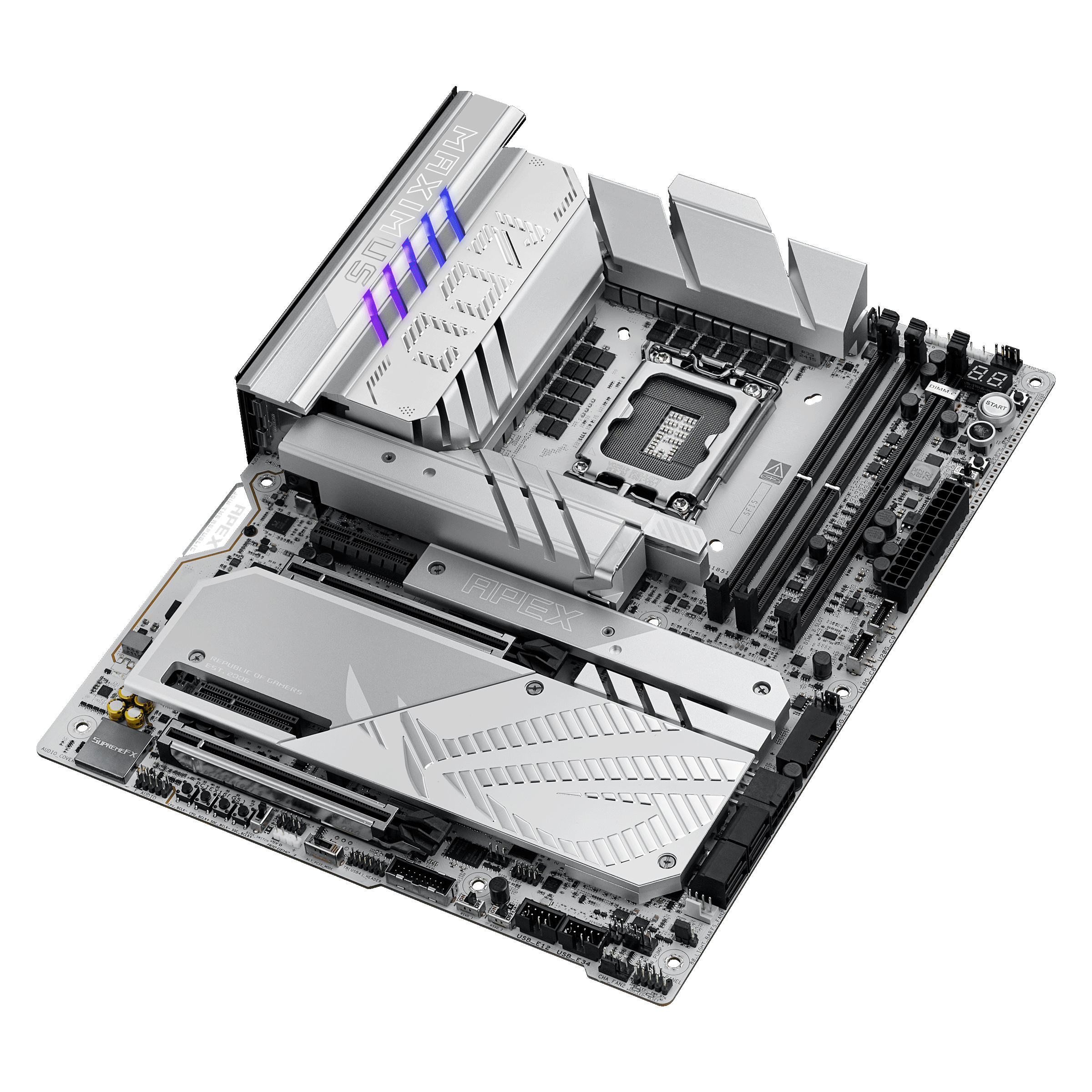

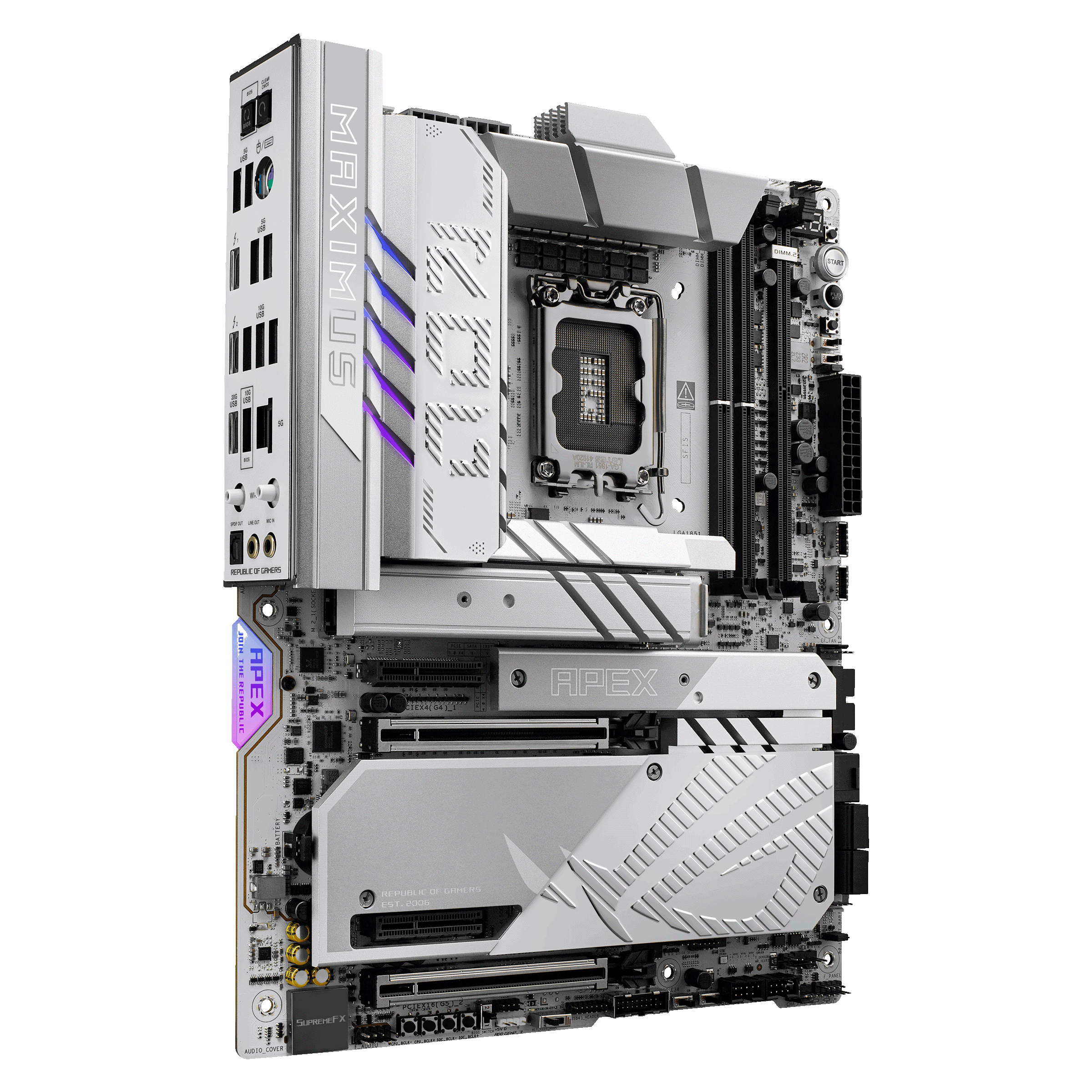

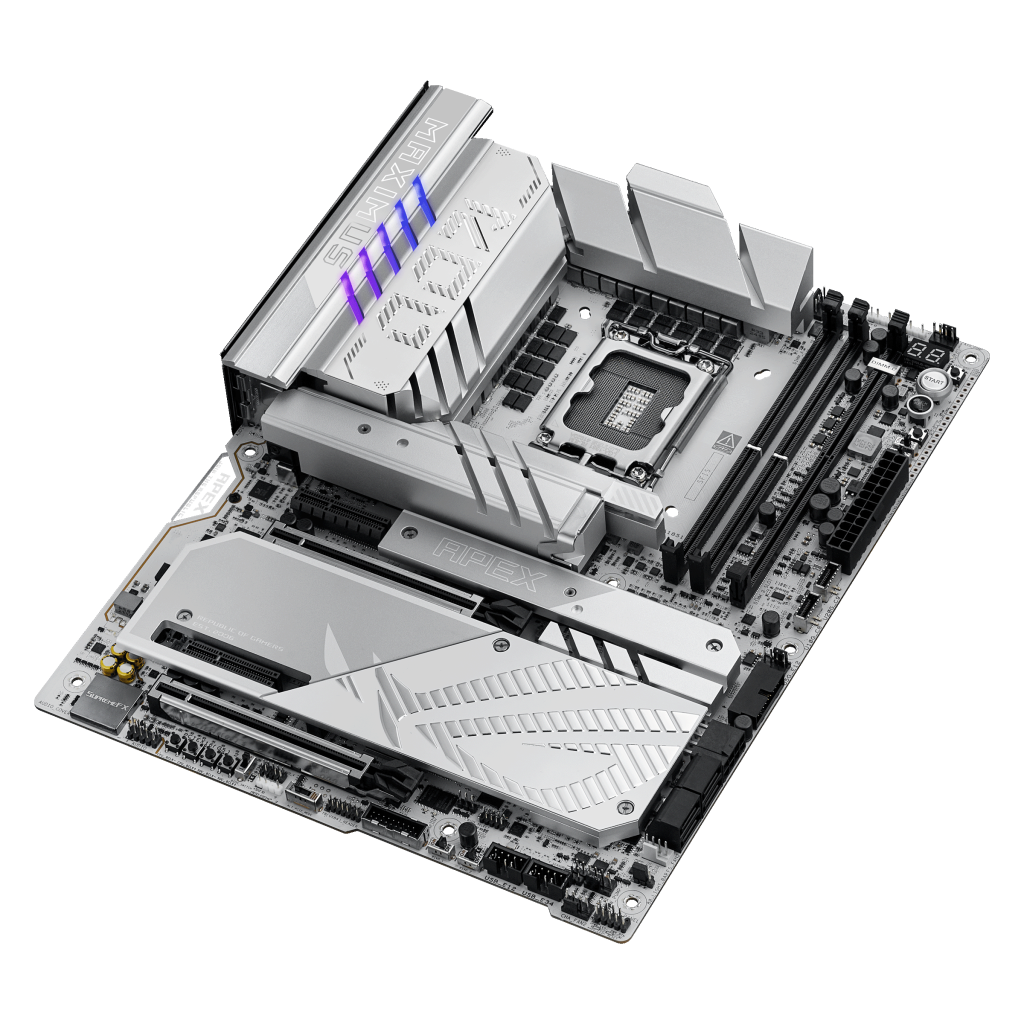

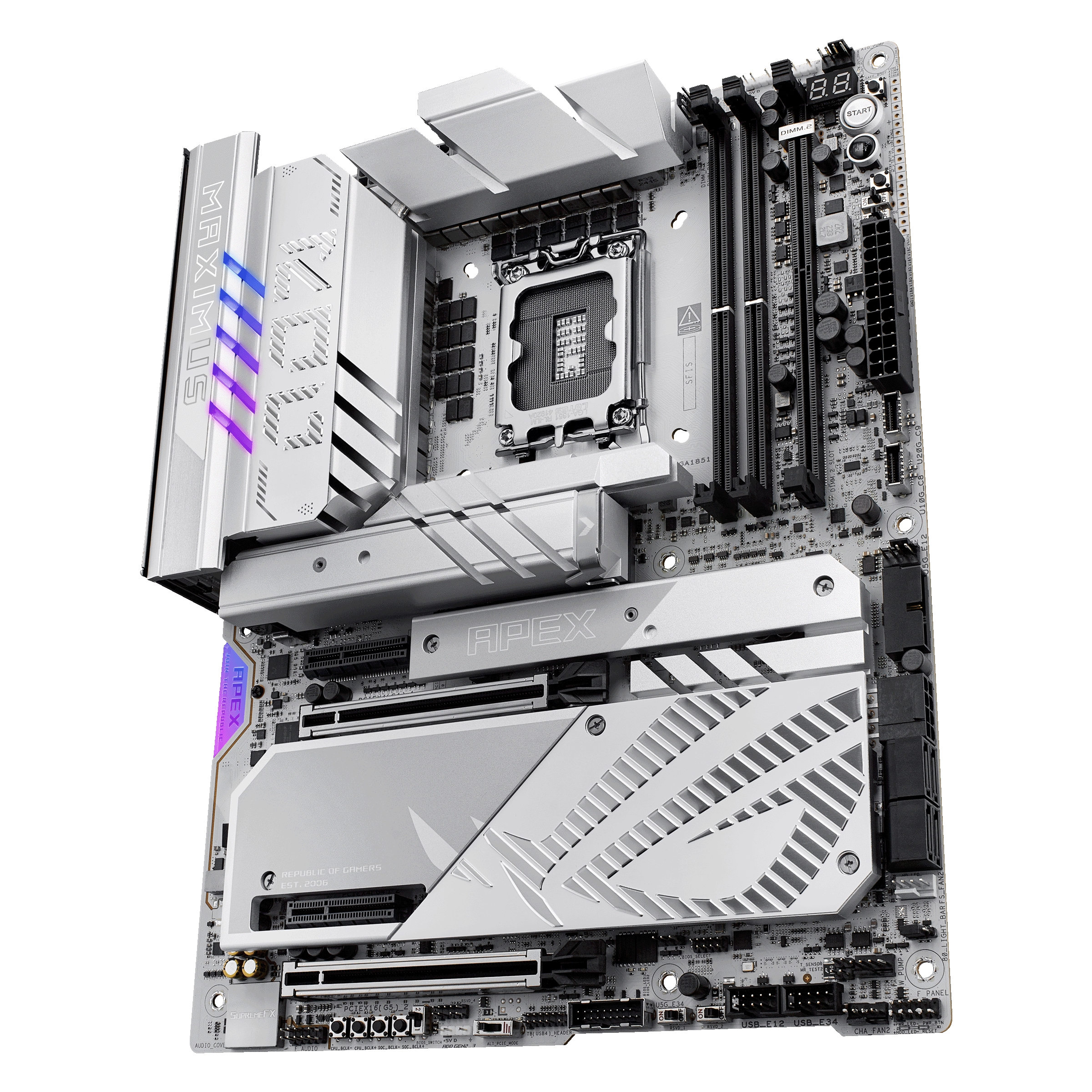

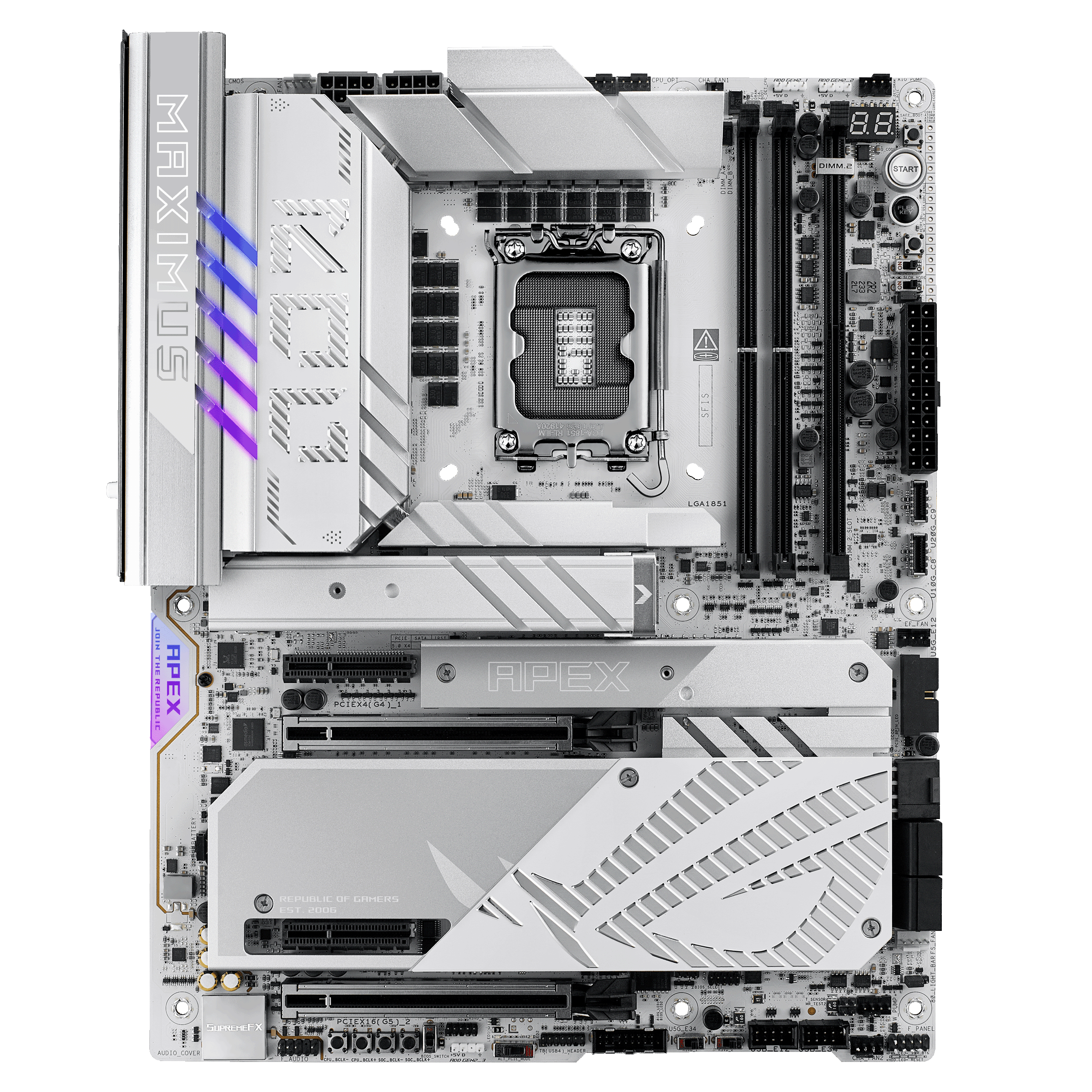

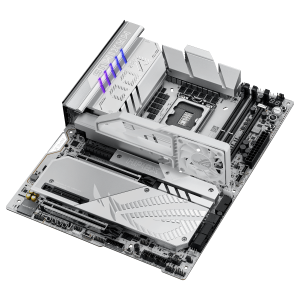

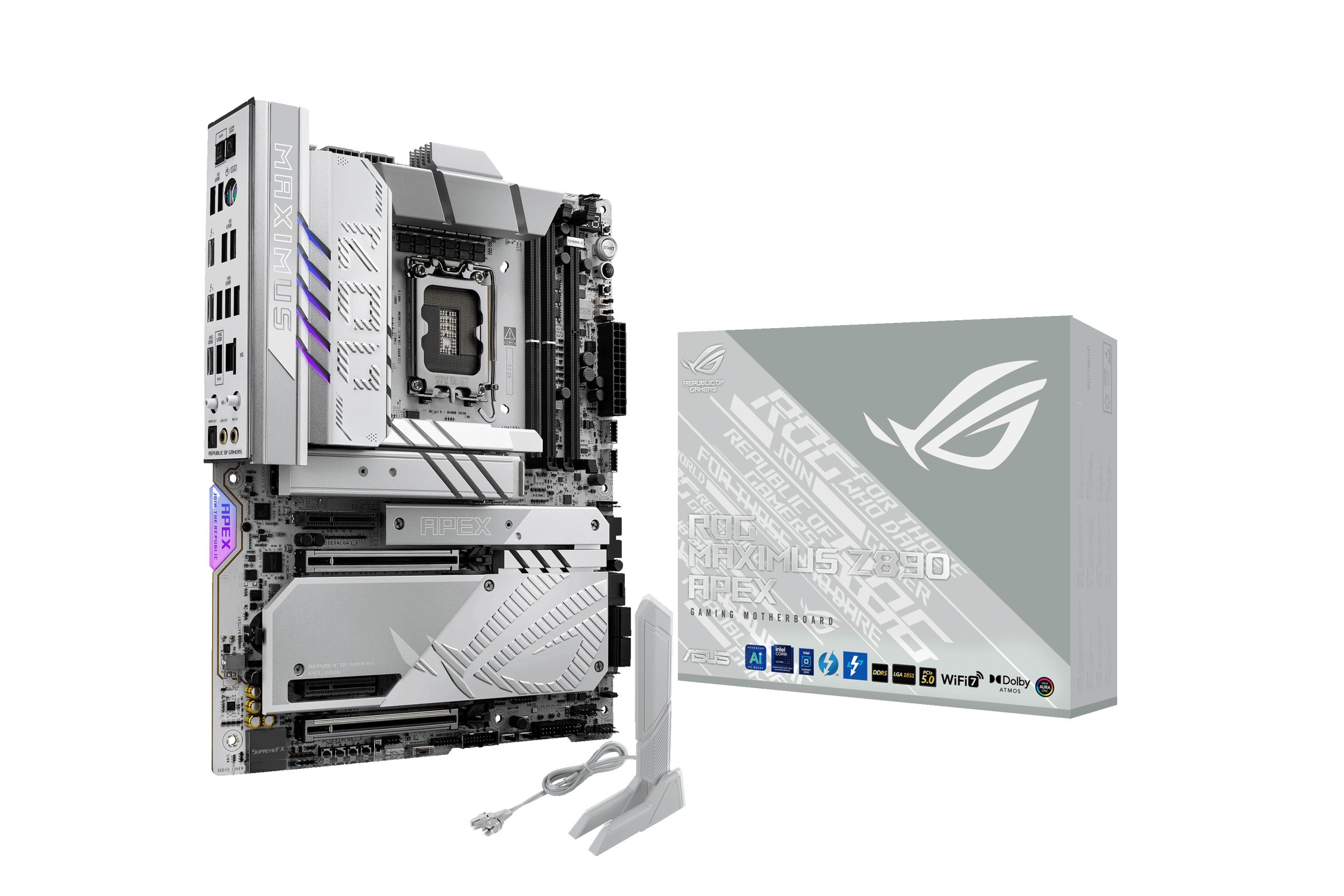

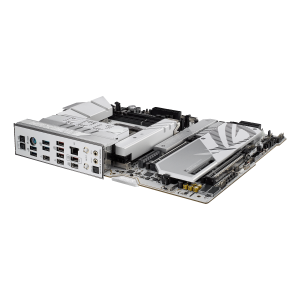

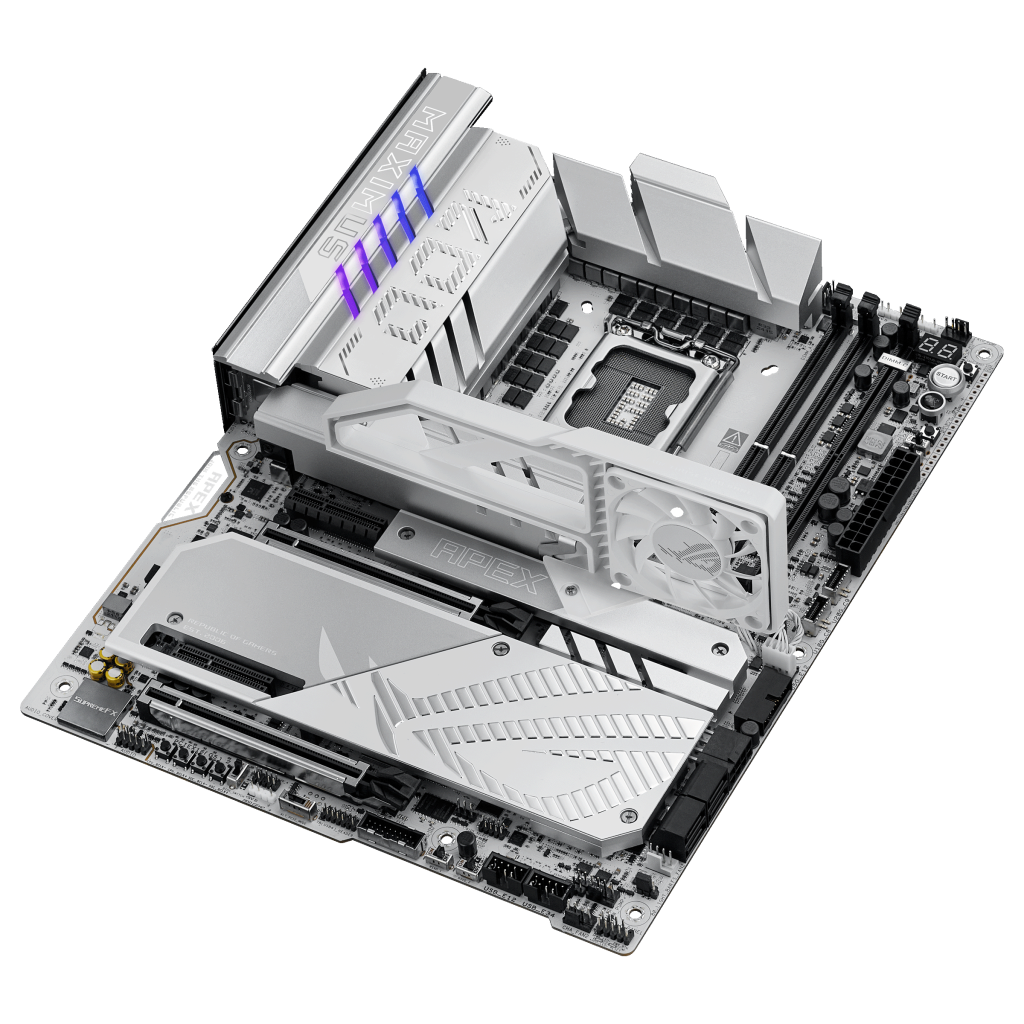

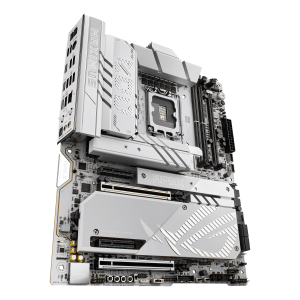

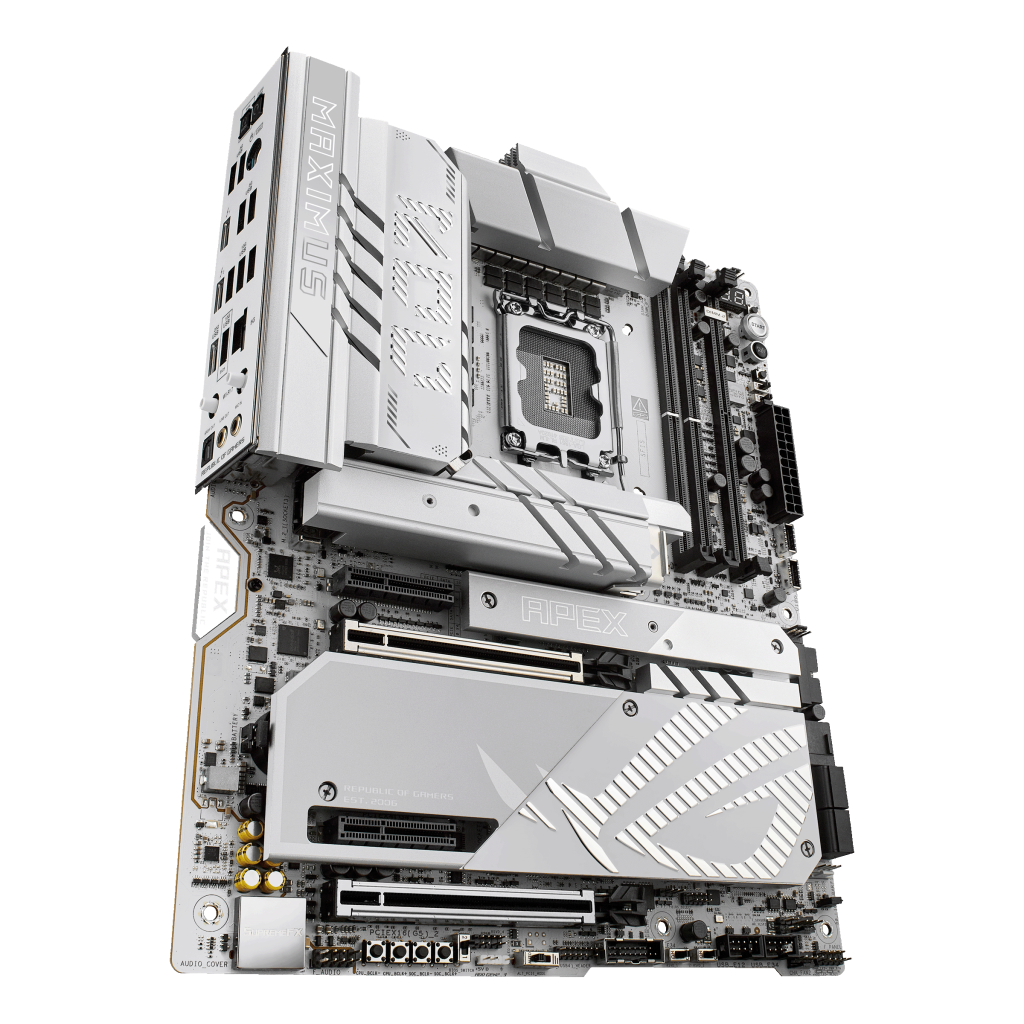

ASUS ROG Maximus Z890 Apex motherboard, socket LGA 1851, Intel Z890, ATX, DDR5

This high-end motherboard is ideal for enthusiasts and overclockers.

– 2x PCIe 5.0 x16 (x16) and 2x PCIe 4.0 x4
– 2x DIMM slots for up to 96 GB DDR5 RAM up to 9,000 MHz (XMP 3.0 & CUDIMM support)
– 4x M.2 (including 3x PCIe 5.0 and 1x PCIe 4.0) / 4x SATA 6G

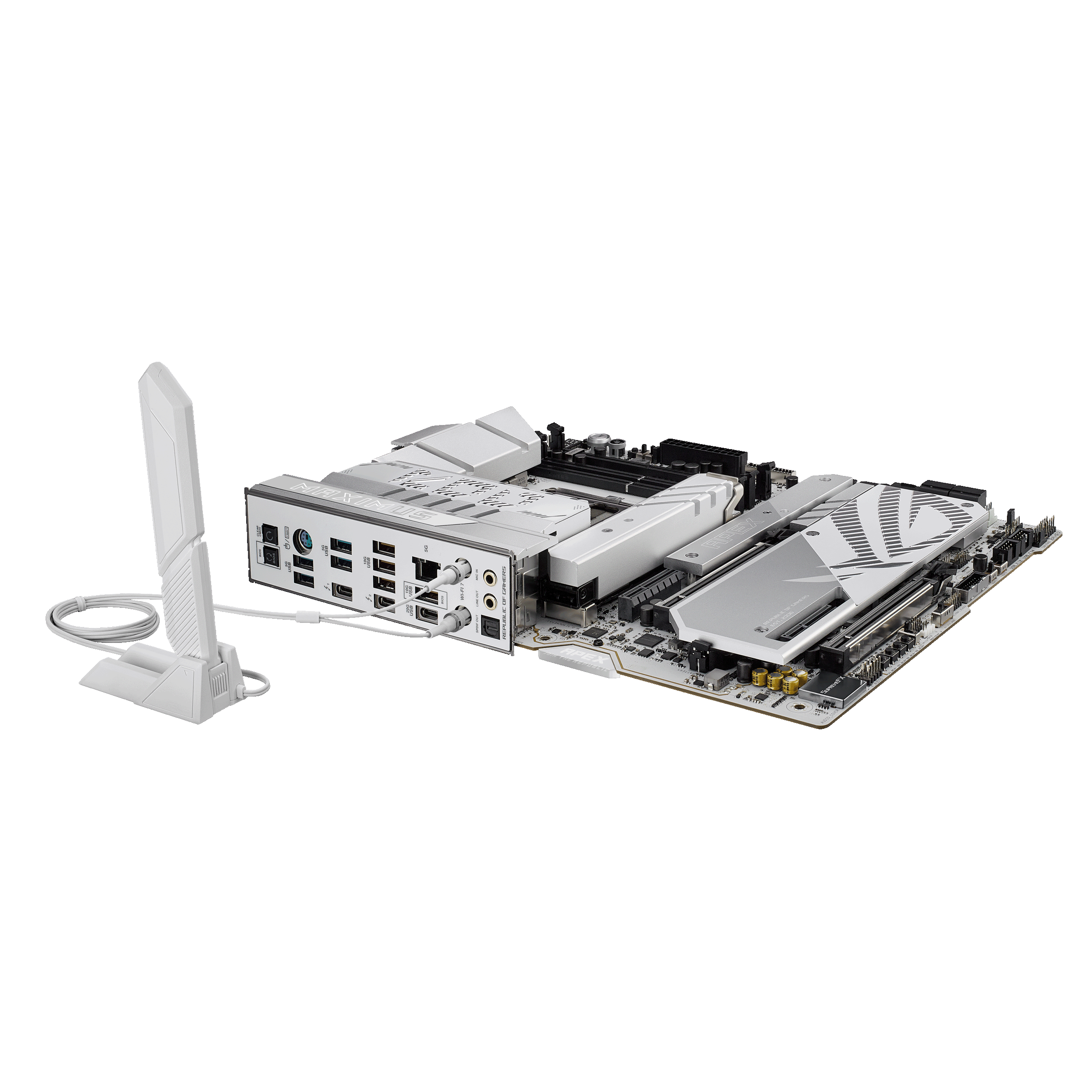

– USB on the I/O panel: 2x USB 4, 1x USB 3.2 Type-C, 4x USB 3.1, and 4x USB 3.0
– OC features: 22+1+2+2 phase VRMs, dual BIOS, CMOS reset, ReTry, LN2 support
– Total of 9x 4-pin connectors for fans and pumps
– Supports WiFi 7 and Bluetooth 5.4

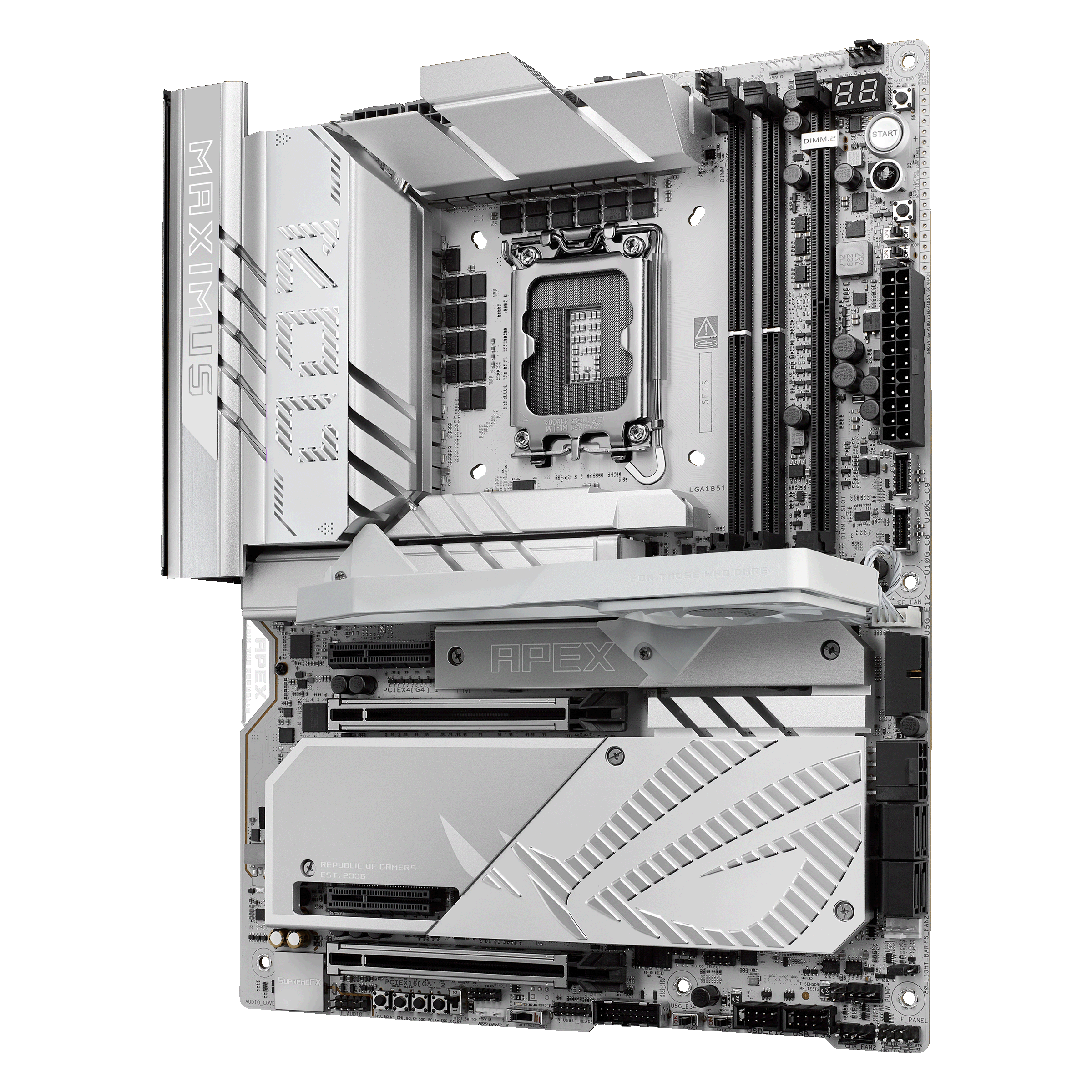

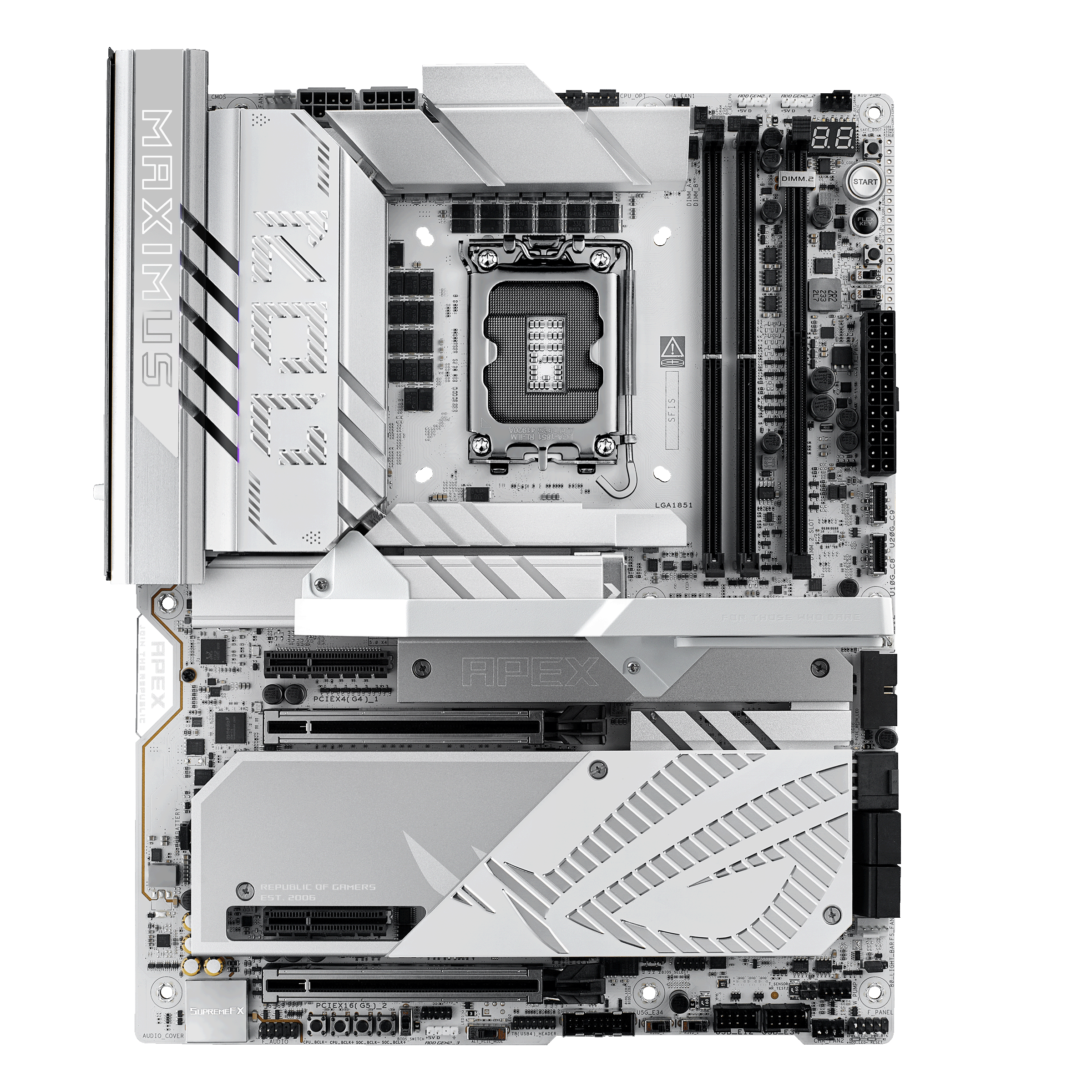

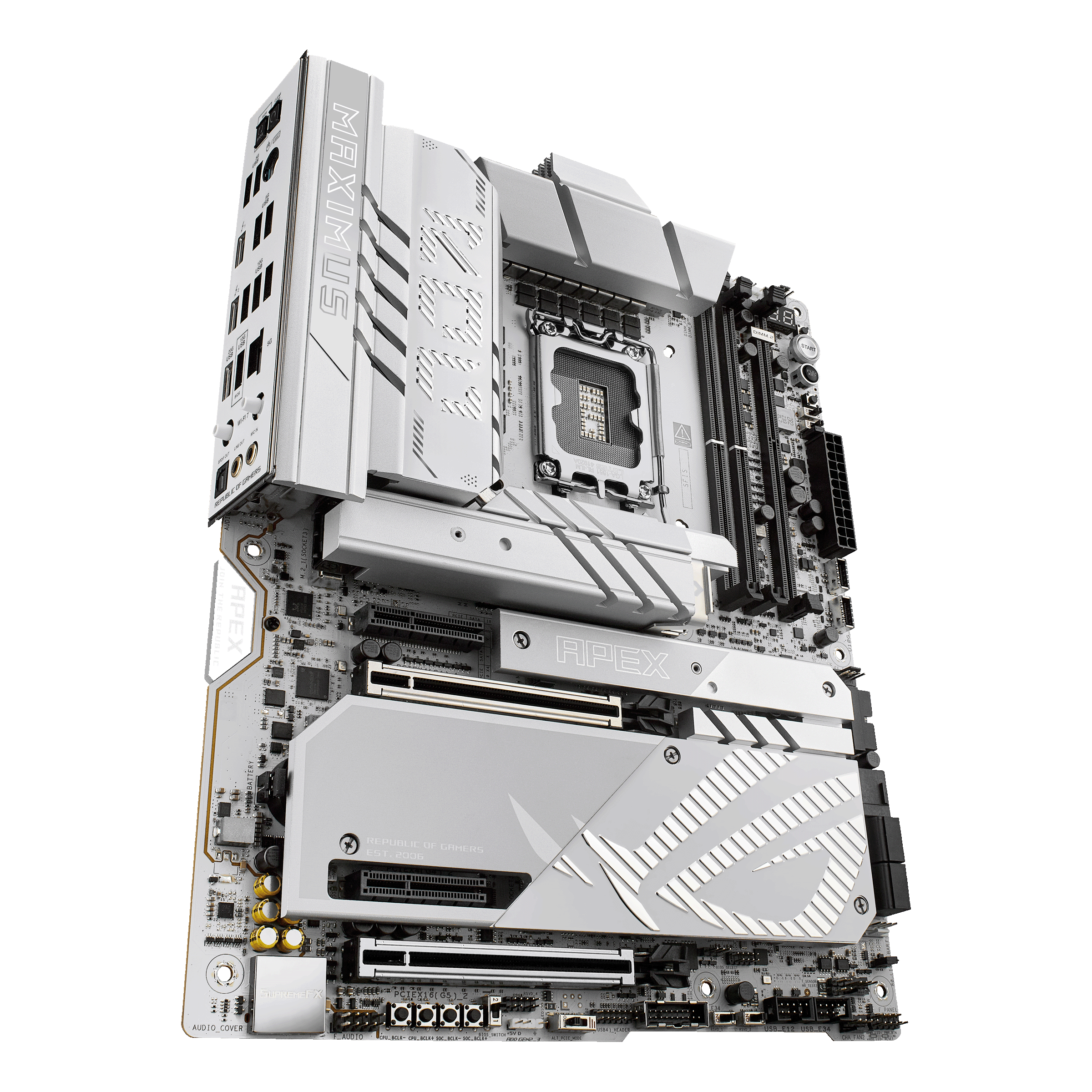

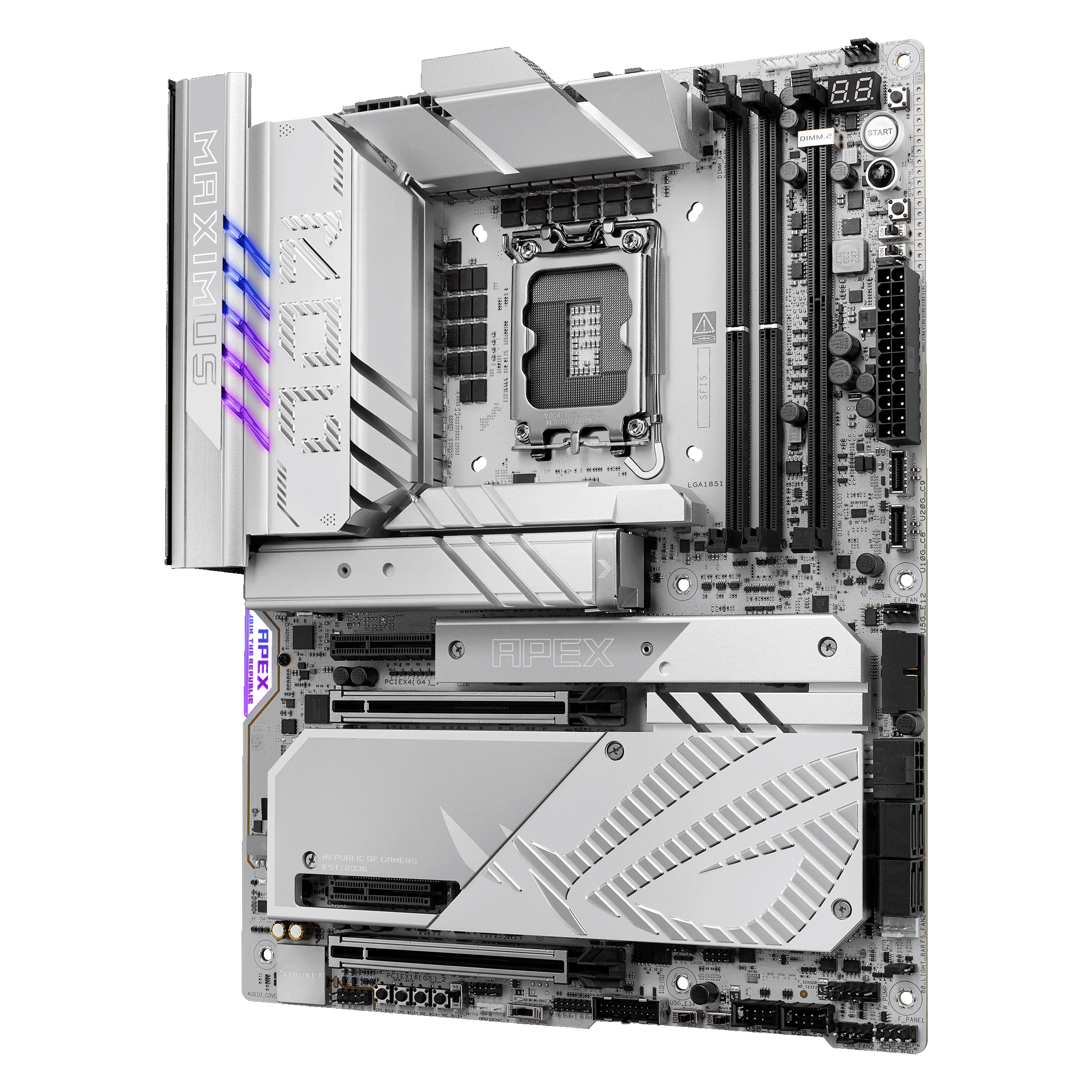

ASUS ROG Maximus Z890 Apex: ATX motherboard with Intel LGA 1851 Socket and Z890 Chipset
The ASUS ROG Maximus Z890 Apex is an ATX motherboard with the high-end Intel Z890 chipset and the LGA 1851 socket. It supports second-generation Intel Core Ultra processors, codenamed Arrow Lake. The Intel Z890 motherboard natively supports USB 4, which offers data transfer rates of up to 40 Gbps. Furthermore, the ASUS ROG Maximus Z890 Apex boasts full PCIe 5.0 connectivity, giving you twice the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.

The ASUS ROG Maximus Z890 Apex offers a variety of specially designed overclocking features for enthusiasts. With its 22+1+2+2 phase power delivery and Extreme Engine Digi+ technology, it ensures stable voltages even at extreme clock speeds. Extensive overclocking features include LN2 mode, specifically designed for liquid nitrogen cooling, as well as the ReTry and Safe Boot buttons, which facilitate restarting after a failed overclocking attempt.

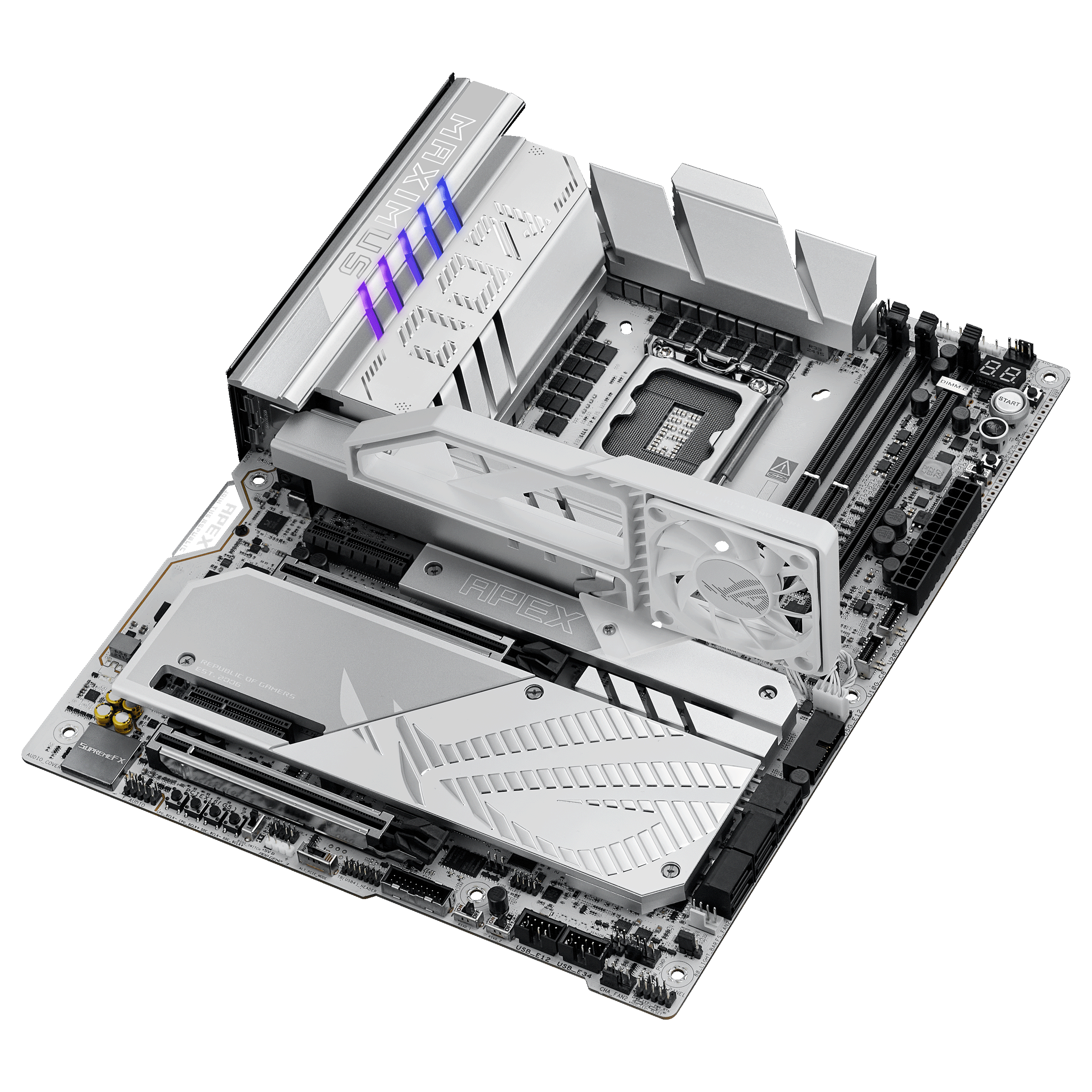

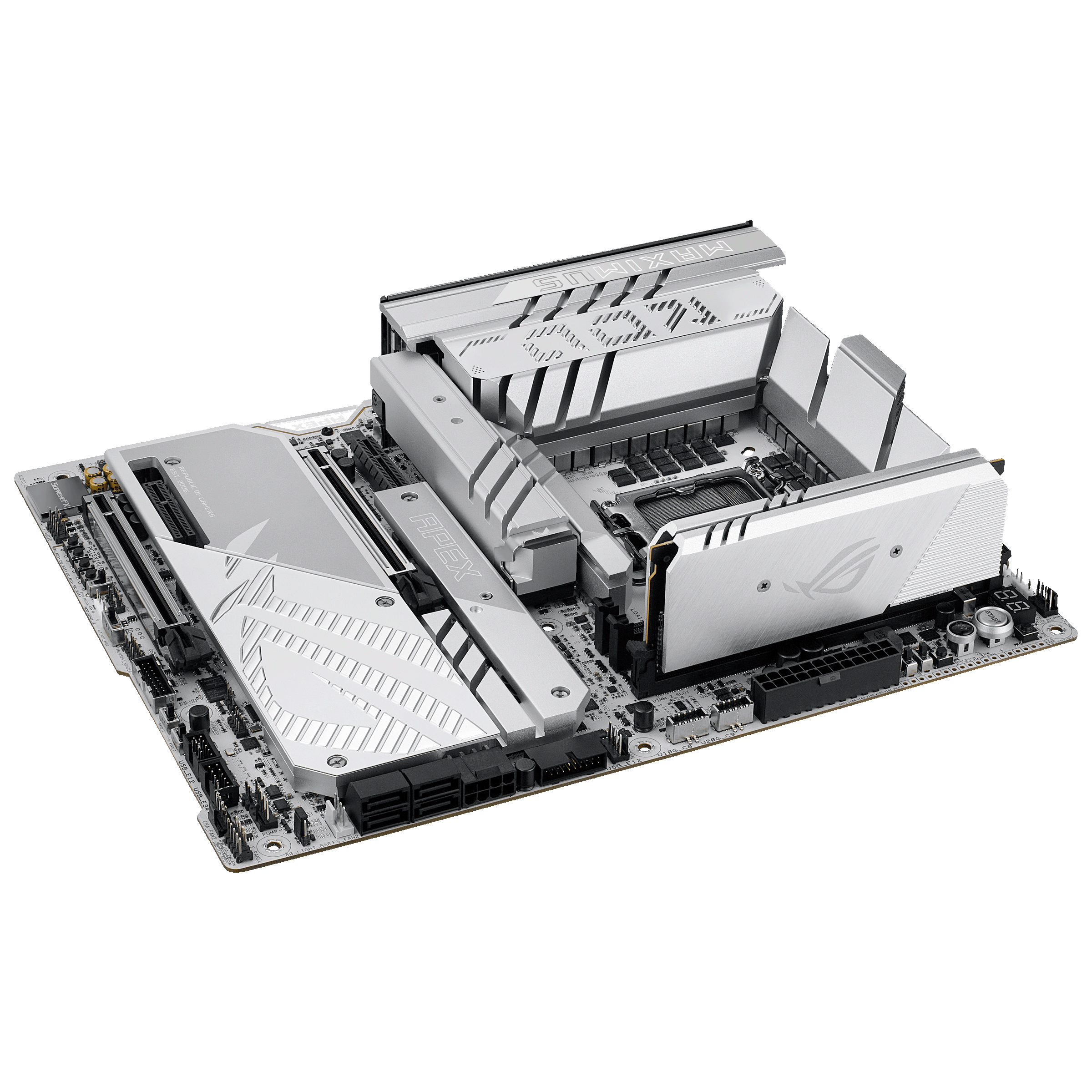

The board also features the ROG DIMM-2 adapter, which provides space for two additional M.2 SSDs, protected by separate heatsinks to ensure high storage speeds.

Technical Details
Form Factor:
– ATX (305 x 244 mm)
– Chipset:
– Intel Z890
– Socket:
– LGA 1851 (For 2nd Generation Intel Core Ultra CPUs)
– RAM:
– 2x DDR5 DIMM (5600 MHz, up to 9000 MHz via XMP / OC / CUDIMM)
– Dual-Channel
– Max. 96 GB
– Slots (Physical):
– 2x PCIe 5.0 x16 (electrical x16 or x8/x8)
– 2x PCIe 4.0 x4
– Internal Connectors:
– 4x SATA 6G
– 3x M.2 (PCIe 5.0 x4; 2242 / 2260 / 2280 / 22110, CPU)
– 1x M.2 (PCIe 4.0 x4 2242 / 2260 / 2280, chipset)
– 1x USB-C (1 header, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 1x USB-C (1 header, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (2 headers, USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (2 headers, max. 480 Mbit/s)
– 1x front panel audio header
– 1x 10-1-Pin System Panel Header
– 1x FlexKey button
– 1x ReTry button
– 1x start button
– 1x BIOS switch button
– 1x LN2 mode jumper
– 4x BCLK buttons
– 1x OSC Sense Header
– 18x ProbeIt Measurement Points
– 1x RSVD header
– 2x RSVD switches
– 1x Safe Boot Button
– 1x slow mode switch
– 1x V Latch Switch
– Fan header:
– 1x CPU fan (4-pin)
– 1x CPU OPT fan (4-pin)
– 1 x 4-pin AiO pump header
– 1x W_PUMP+ header
– 1x water flow header
– 2x case fans (4-pin)
– 2x full-speed header (4-pin)
– RGB header:
– 3x 3-pin ARGB (5V)

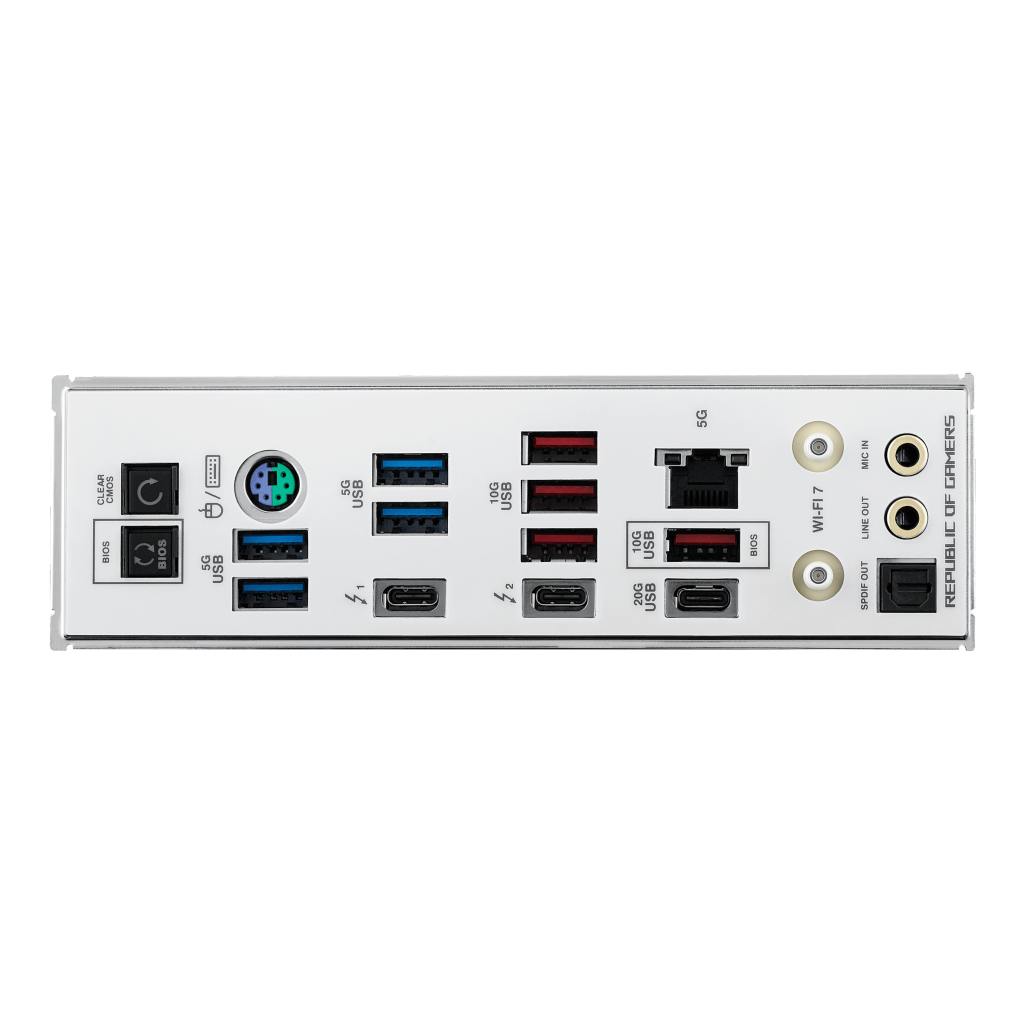

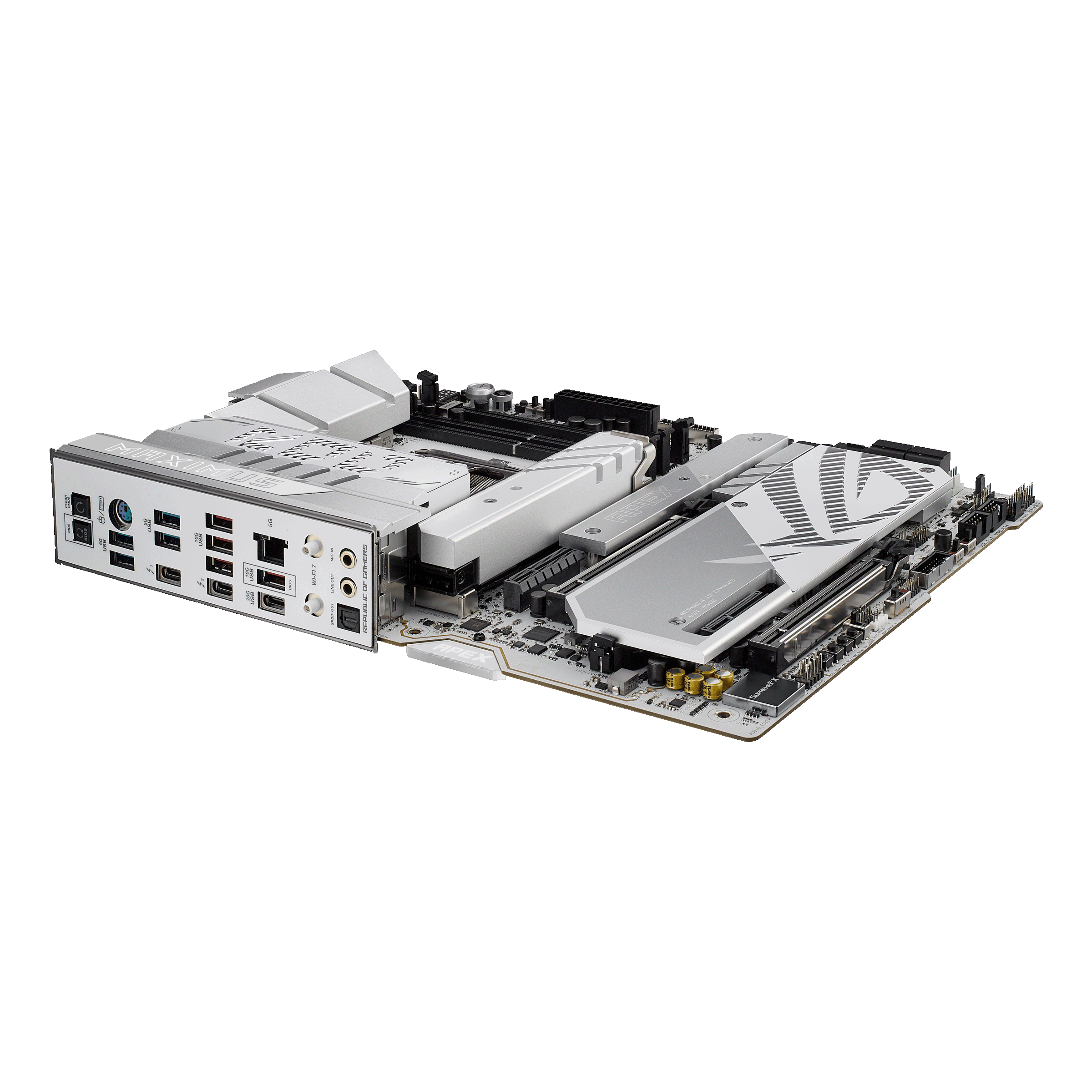

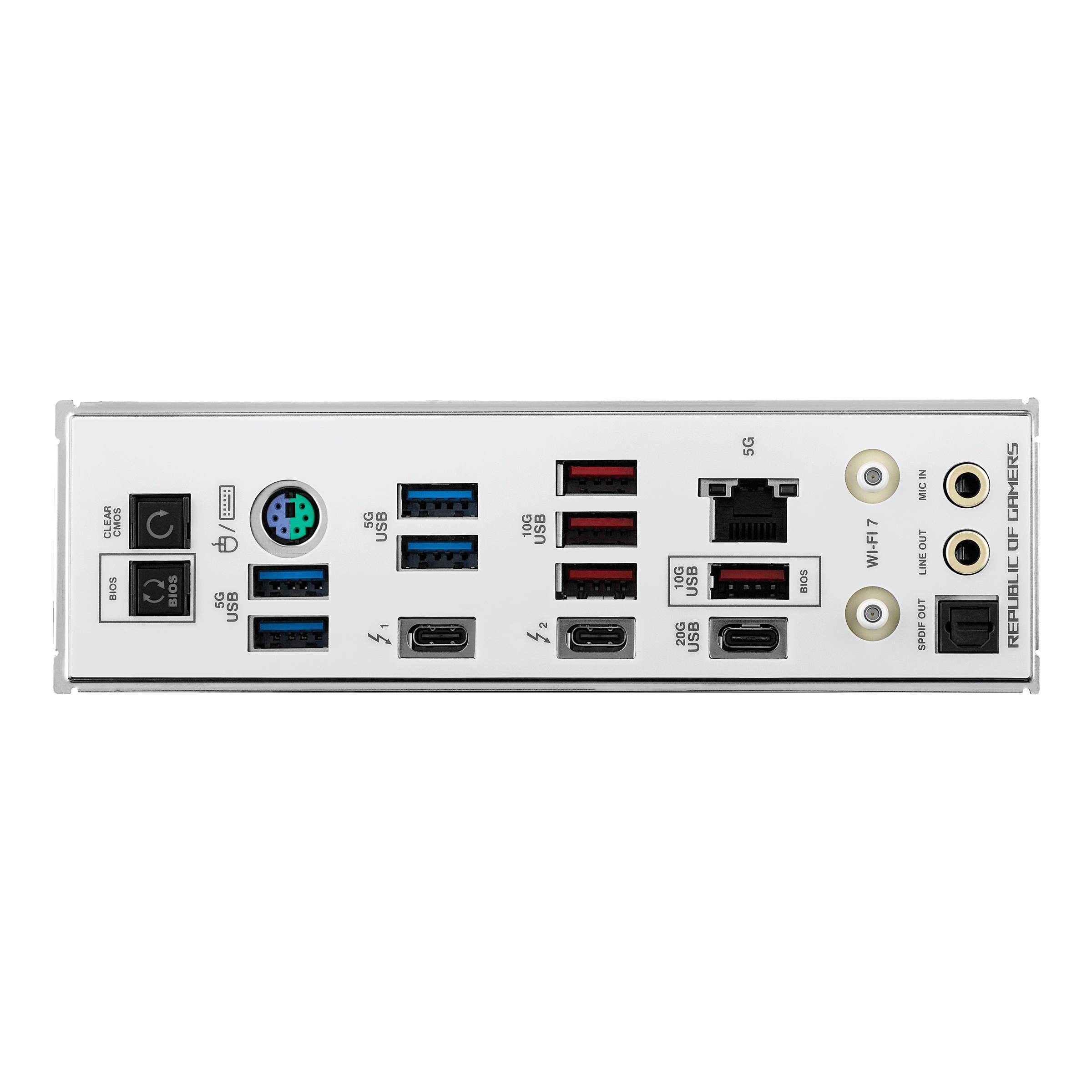

– – External connections:
– 2x Thunderbolt 4 (USB-C)
– 1x USB 3.2 (Type C, USB 3.2 Gen 2×2, max. 20 Gbit/s)
– 4x USB 3.1 (Type A, USB 3.2 Gen 2, max. 10 Gbit/s)
– 4x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
– 1x 5 Gigabit LAN
– 1x WiFi 7 / Bluetooth 5.4
– 2x 3.5 mm jack (Realtek ALC 4080)
– 1 x S/PDIF audio
– Power supply:
– 1 x 24-pin ATX
– 2 x 8-pin ATX12V
– 1 x 8-pin PCIe ATX

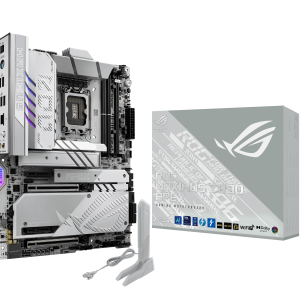

– Accessories:
– 1 x ROG DIMM.2 with heatsink
– 1 x ROG Memory Fan Kit

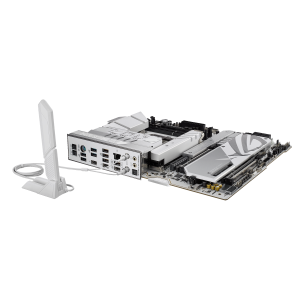

– 1 x ASUS WiFi Q antenna
– 1 x ROG bottle opener
– 1 x USB drive with drivers and utilities
