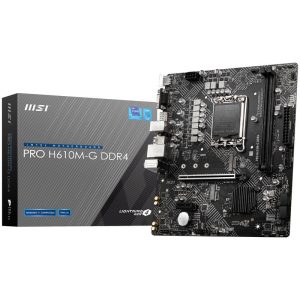

MSI PRO H610M-G, Socket LGA 1700, Intel H610M, Micro-ATX - DDR4

– 1x PCIe x16 slot, including 1x PCIe 4.0
– DDR4 memory up to 3200 MHz
– 1x M.2 slot with PCIe 3.0
– 1x M.2 Key E for optional WLAN module
– USB on the I/O panel: 4x USB 2.0 / 2x USB 3.0 Type A
– A total of 2 connectors for fans and 3x RGB headers
– With Gbit LAN

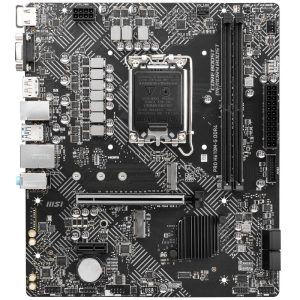

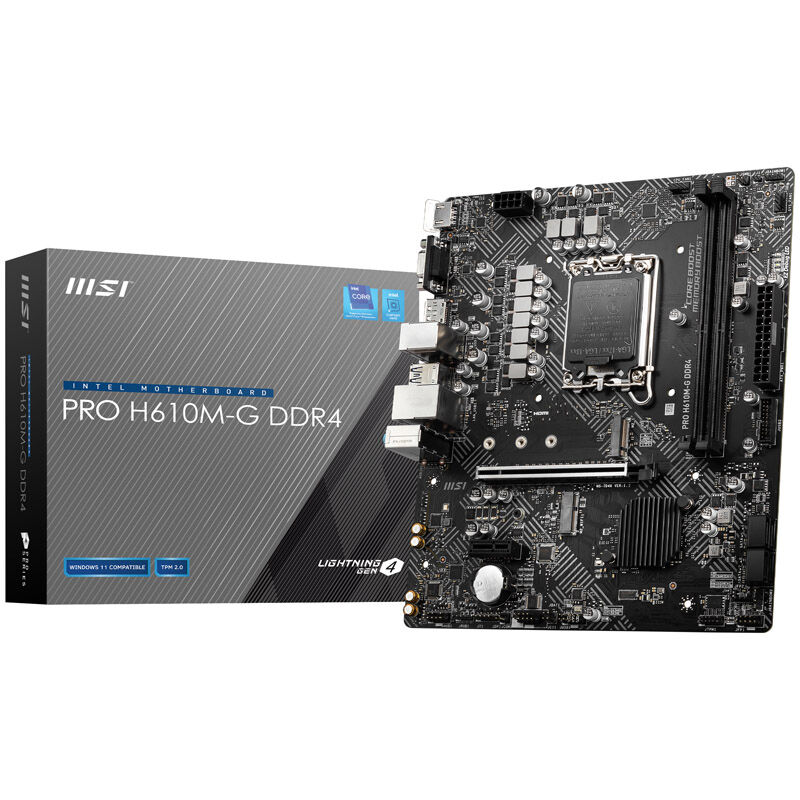

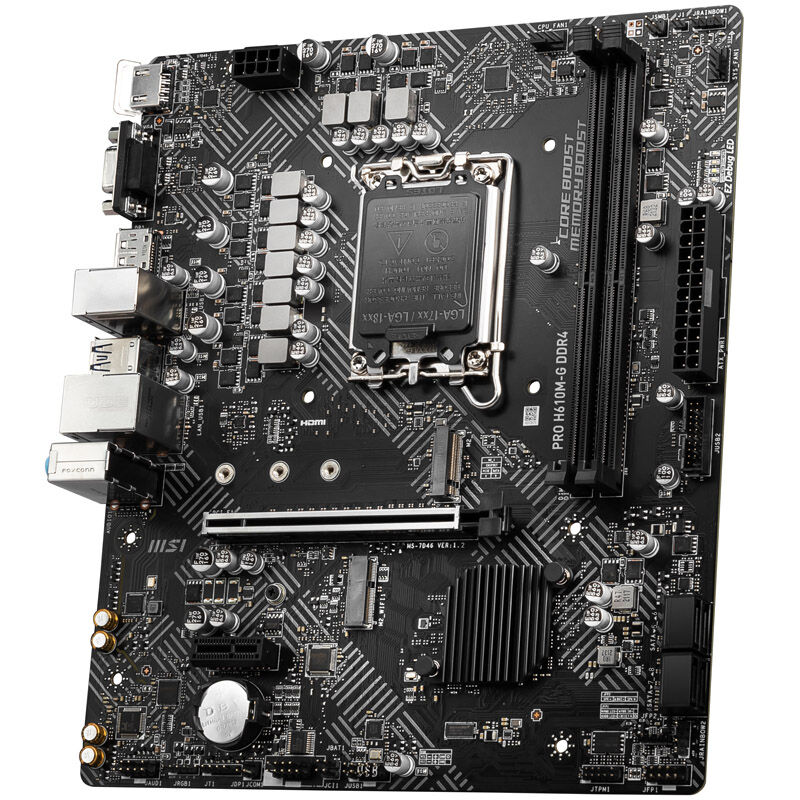

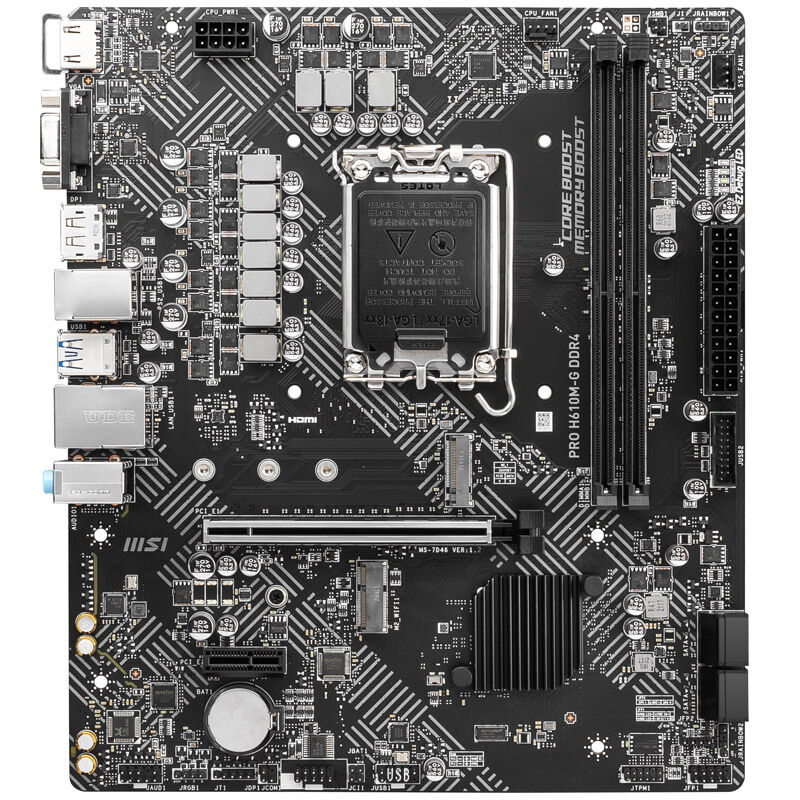

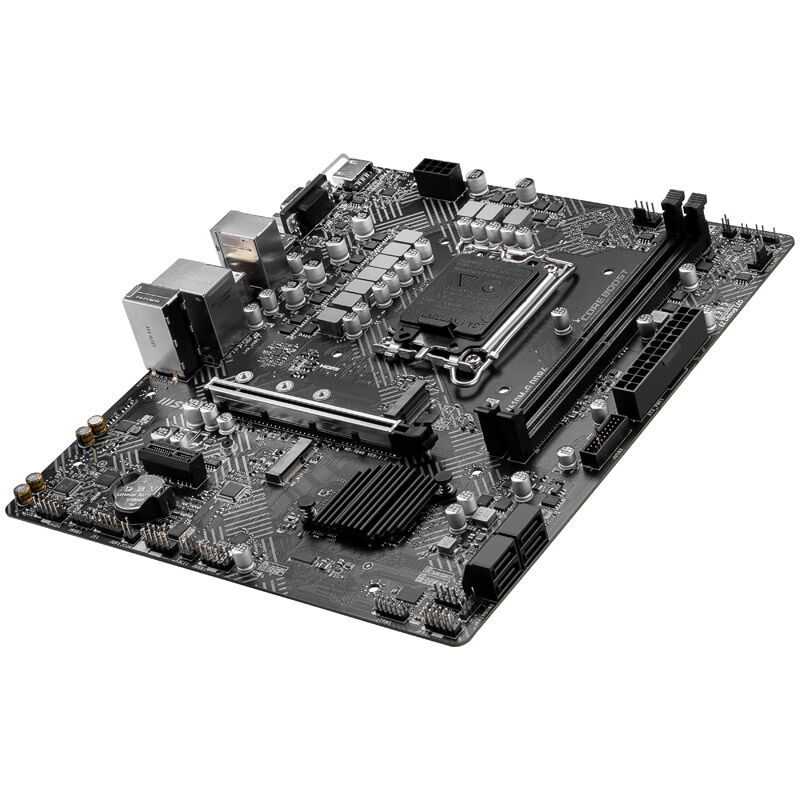

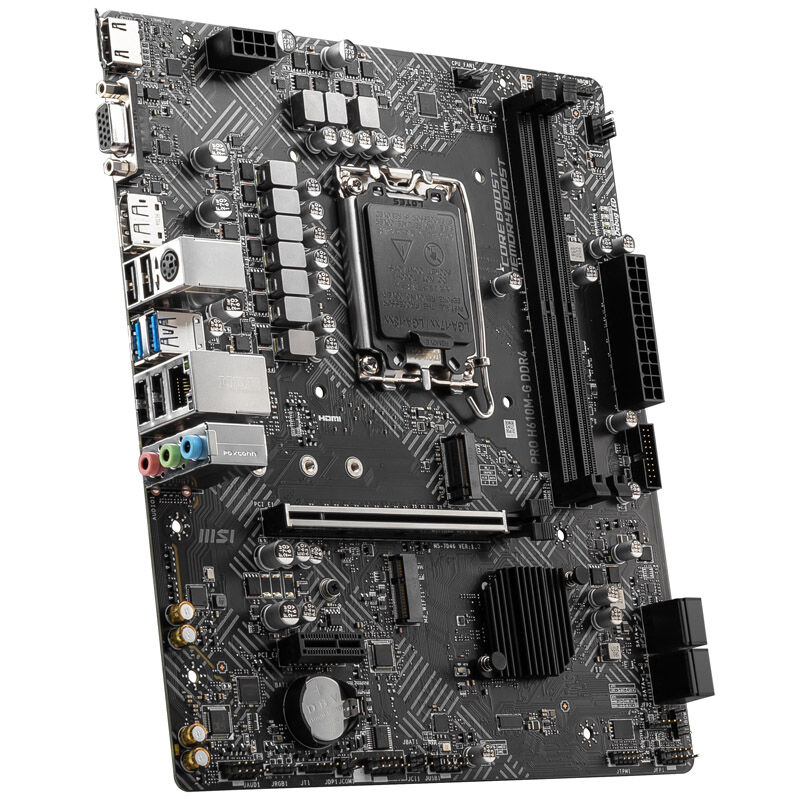

The MSI PRO H610M-G DDR4 Micro-ATX motherboard with Intel H610 chipset in detail
The MSI PRO H610M-G DDR4 is a Micro-ATX motherboard with the Intel H610 chipset and the LGA 1700 socket. The motherboard is suitable for 12th, 13th, and 14th generation Intel Core CPUs, Alder Lake, and Raptor Lake desktop processors. It supports DDR4 memory up to 3200 MHz and also offers features such as Gbit LAN.

Note: This motherboard supports DDR4 memory. Socket 1700 motherboards with DDR5 compatibility can be found at the following link:
Socket LGA 1700 motherboards with DDR5 DIMM slots

For the best possible processor performance, we recommend regularly updating your motherboards BIOS. This is especially true for motherboards that may have been shipped with an earlier BIOS version from the manufacturer.

Our King Mod Service will be happy to perform a BIOS update to the latest version in advance:
Add BIOS Update Service to your shopping cart now
Please note that this may delay shipping preparation by 1 to 4 business days!

More information on Intel Alder Lake, Meteor Lake, and the 12th, 13th, and 14th generation Core processors can be found at the following link:
Intel Socket 1700 CPUs at a Glance

Technical Details:
Form Factor:
– Micro-ATX (236 x 202 mm)
– Chipset:
– Intel H610
– Socket:
– 1700 (for 12th, 13th, and 14th generation Core CPUs)
– RAM:
– 2x DDR4 (3,200 MHz)
– Dual-Channel
– Max. 64 GB
– Slots (Physical):
– 1x PCIe 4.0 x16 (x16)
– 1x PCIe 3.0 x1
– Internal Connectors:
– 4x SATA 6G
– 1x M.2 Key E (for optional WLAN module)
– 1x M.2 Key M (PCIe 3.0) x4, 2242-2280, chipset) 2x USB 3.0 (one header, USB 3.2 Gen 1, max. 5 Gbps)
– 2x USB 2.0 (one header, max. 480 Mbit/s)
– 1x Front Panel Audio Header (AAFP)
– 2x 10-pin System Panel Header
– 1x Clear CMOS Jumper
– 1x Chassis Intrusion Header
– 1x 14-pin SPI TPM Header
– 1x COM Port Header
– 1x 5-pin MSI Tuning Controller Header
– Fan Header:
– 1x CPU Fan (4-pin)
– 1x Chassis Fan (4-pin)
– RGB Header:
– 2x 3-pin ARGB (5 V)
– 1x 4-pin RGB (12 V)

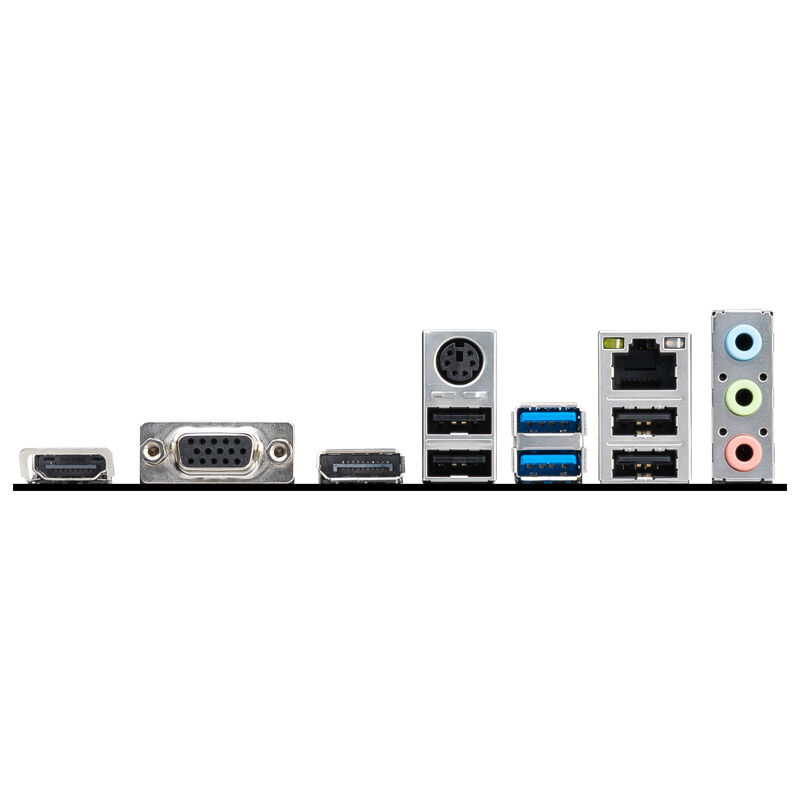

– External Connectors:
– 1x PS/2 for keyboard or mouse
– 2x USB 3.0 Type A (USB 3.2 Gen 1, max. 5 Gbit/s)
– 4x USB 2.0 (max. 480 Mbit/s)
– 1x VGA
– 1x HDMI 2.1
– 1x DisplayPort 1.4
– 1x RJ-45 (Intel I219V, max. 1 Gbit/s)
– 3x 3.5 mm jack (Realtek ALC 897)
– Power supply:
– 1x 24-pin ATX
– 1x 8-pin ATX/EPS 12V
